Lathes L237K

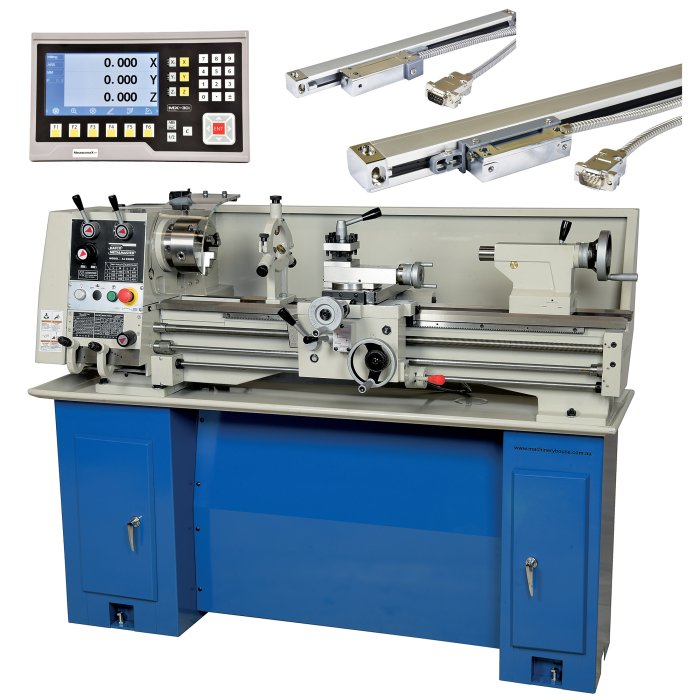

AL-960B - Centre Lathe Package Deal

Ø305 x 925mm Turning Capacity - Ø40mm Spindle Bore
12 Geared Head Speeds 70 ~ 1400rpm & Includes Cabinet Stand
L237K 1 of 5
Lathe 2 of 5
MX-30i - 3-Axis Digital Readout 3 of 5
MX-500-220/5U - 220mm Digital Readout Scale 4 of 5
MX-300-1020/5U - 1020mm Digital Readout Scale 5 of 5
HAFCO-METALMASTER
Package Deal
Order Code: L237K
ex-gst
inc-gst
$ 6,890.00
$ 7,579.00
Package Contents
240V / 15A
1 Year Warranty
Made in Taiwan
1
Add to Cart
Enquire
Price Match
Compare
Wishlist
Print
Delivery & Pickup Availabilities
Description
Description

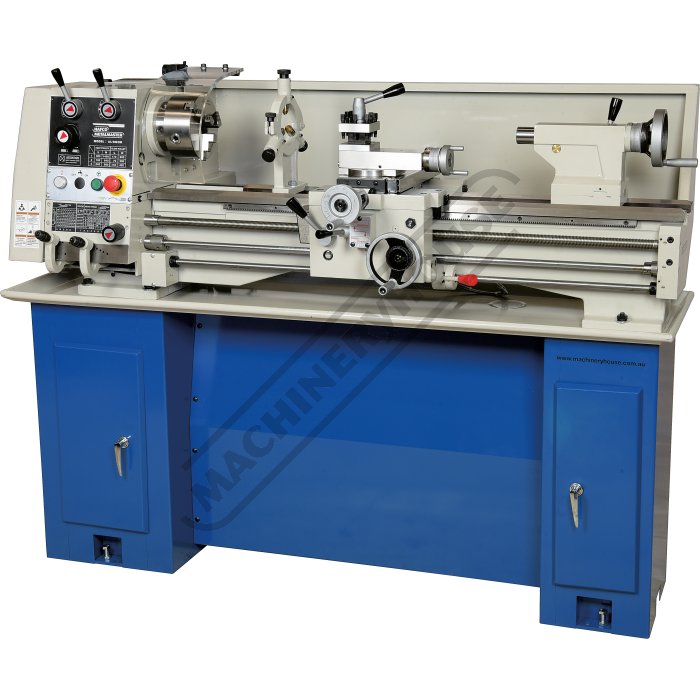

AL-960B - Centre Lathe Package Deal

Ø305 x 925mm Turning Capacity - Ø40mm Spindle Bore
12 Geared Head Speeds 70 ~ 1400rpm & Includes Cabinet Stand
Overview
Taiwanese-made precision metal lathe delivers exceptional precision and reliability for home enthusiasts, model engineers, gunsmiths, and small workshops. Renowned for its user-friendly design, it enhances metal turning to a professional level.

Bonus: Measumax MX-30i 3-Axis Digital Readout (scales provided; self-installation required).

Upgrade your metal turning experience with the AL-960B – the ultimate choice for precision and performance.
Features
  • Toolroom quality lathe, made in Taiwan & sold for over 40 years
  • Gear driven headstock for quick change of spindle speeds
  • Nachi Japanese made bearings supporting headstock spindle
  • Precision V- beds are hardened and ground
  • Adjustable taper roller bearings support the spindle
  • Change gears for metric and imperial thread cutting
  • Saddle handwheel mounted on right side of apron reducing swarf contacting the hand
  • External adjustable cross feed leadscrew nut
  • Powered longitudinal and cross feeds
  • 12 spindle speeds 70-1400rpm
  • Dual calibrated dials (except saddle hand wheel)
  • Quick-action feed gearbox for thread cutting
  • D1-4 camlock spindle for quick chuck changes and safe reverse direction turning
  • Removable gap bed-way for larger diameter jobs

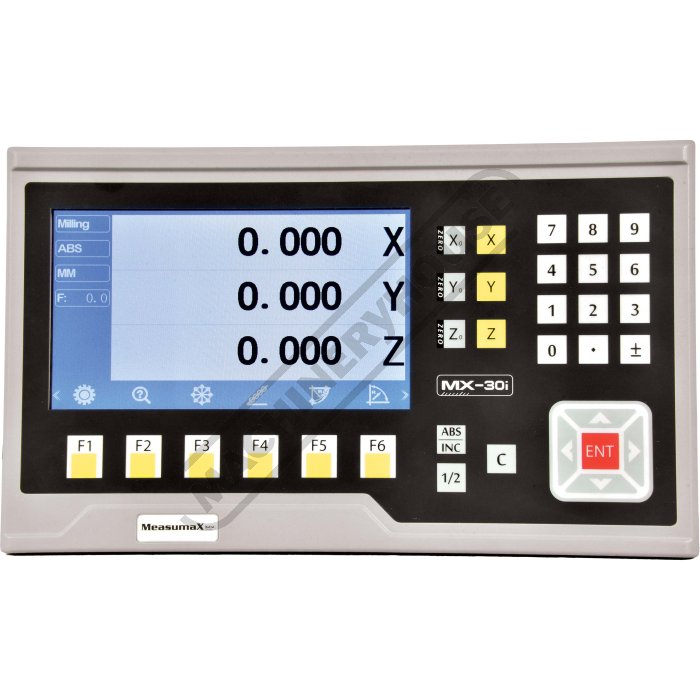

  • MX-30i - 3-Axis Digital Readout
  • 3 axis model allow up to 3 linear scales to be connected
  • 7" colour LCD screen provides a clear and easy to read display with graphics
  • Multiple pre-set display colours to choose from
  • Easy to use step by step graphical guidance for DRO functions when entering required parameters
  • On screen drawing of actual programmed result prior to processing PCD, Line of holes or Arc contour
  • One touch axis zero keys
  • Durable and wipe clean front panel graphic overlay with die-cast casting
  • The display unit is supplied with a mounting arm
  • 2-year warranty

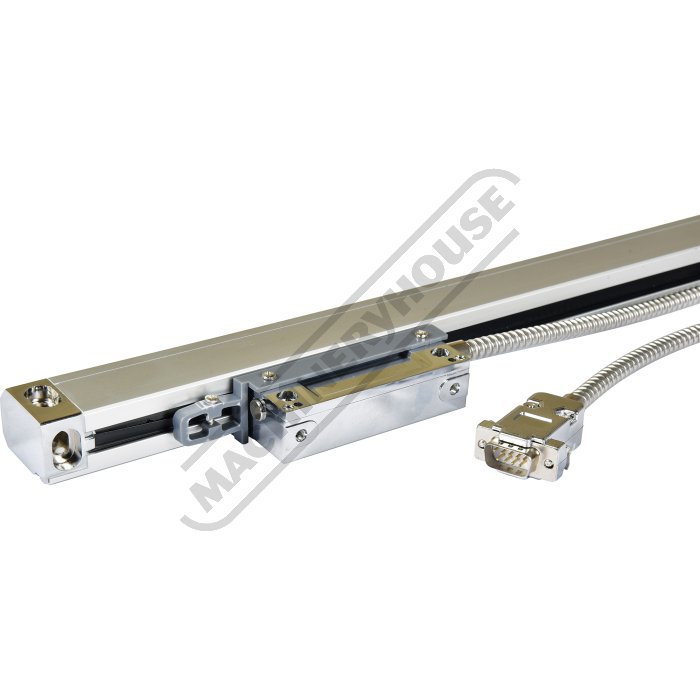

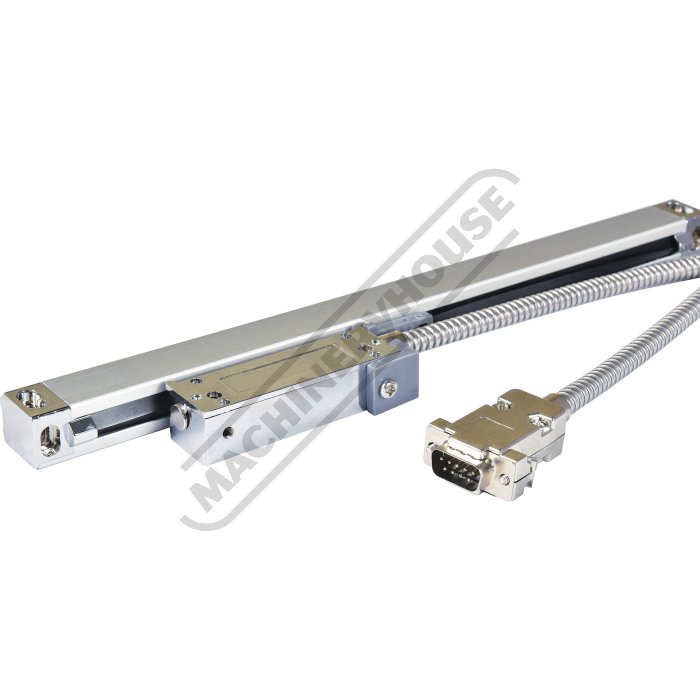

  • Digital Readout Scale
  • NSK Japanese, five bearing sliding structure for a smooth and accurate movement along the length of the scale
  • Glass scale with 5μm resolution
  • Scale body made from extruded Aluminium with wiper seals providing IP54 protectio
  • 3m connection cable with 9 pin D-Sub connector
Includes
  • MX-30i - 3-Axis Digital Readout
  • MX-500-220/5U - 220mm Digital Readout Scale
  • MX-300-1020/5U - 1020mm Digital Readout Scale

  • 160mm 3-jaw chuck with reverse jaws
  • 200mm 4-jaw chuck
  • Face plate
  • Fixed and travelling steadies
  • Change gears
  • Dead centre
  • Cabinet stand
  • Splash tray
  • Swarf tray
  • Thread-chasing dial
  • Chuck guard
  • Toolbox and instruction booklet
Specifications
