BP-360 - Wood Band Saw
340mm Throat x 225mm Height Capacity

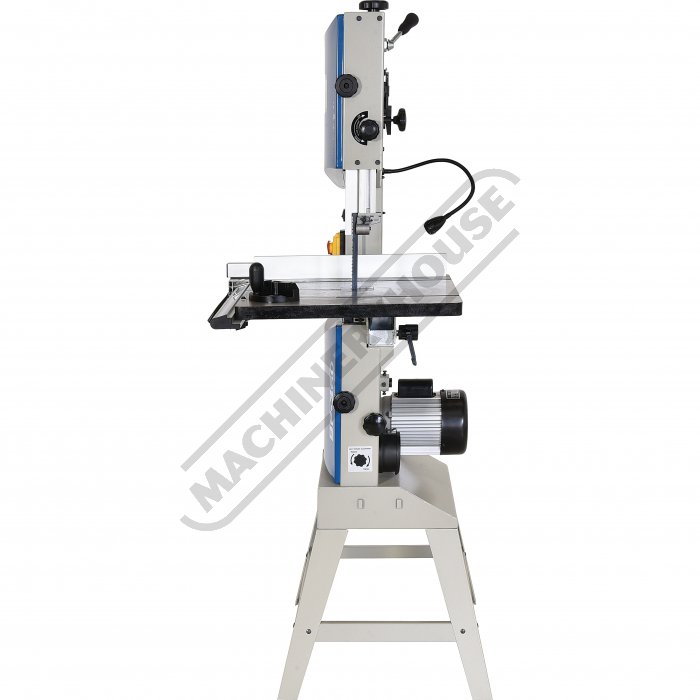

W9551 of 21

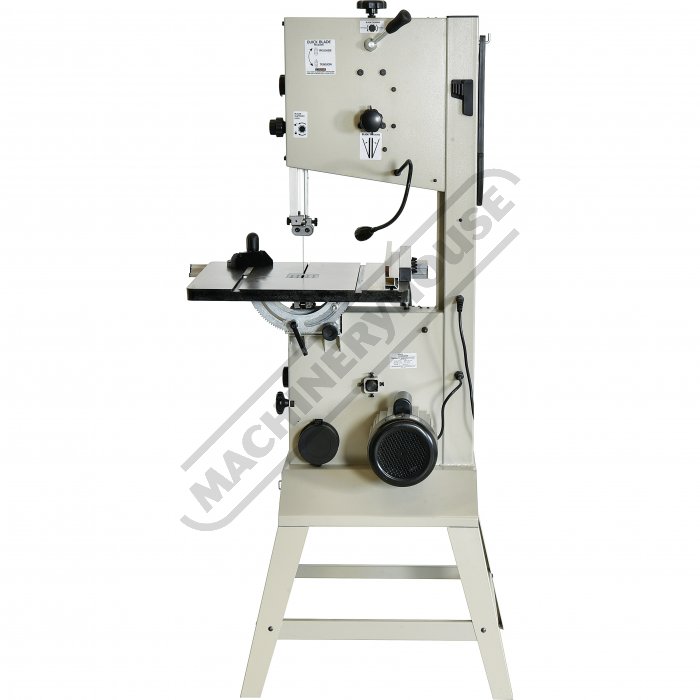

Rear View2 of 21

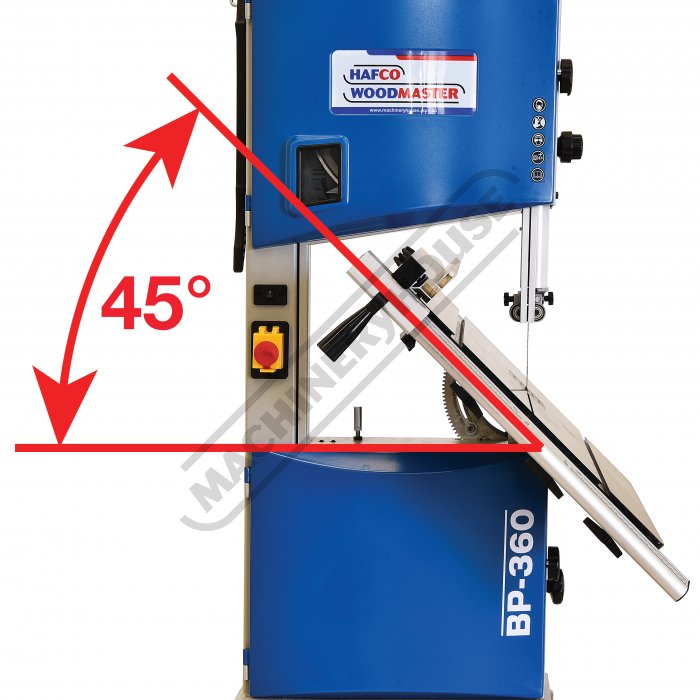

Cast Iron Table Tilts to 45 Degrees3 of 21

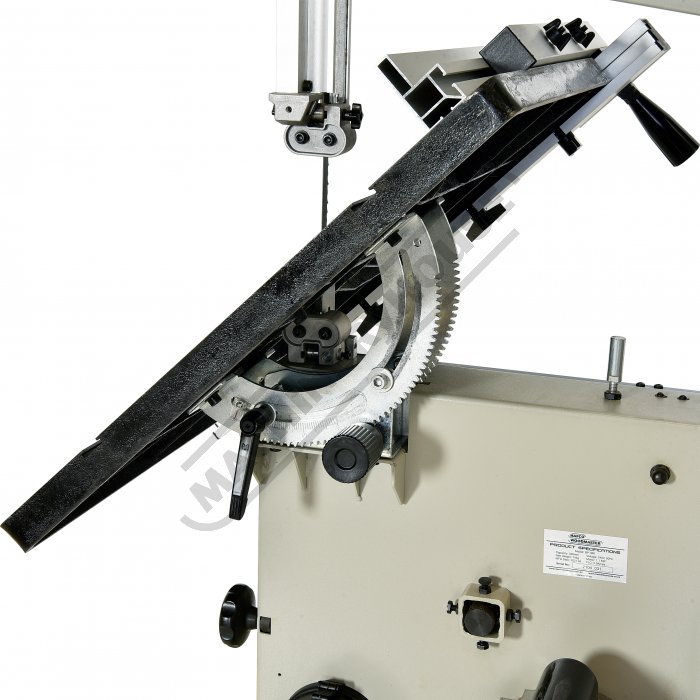

Tilt Table Adjustment4 of 21

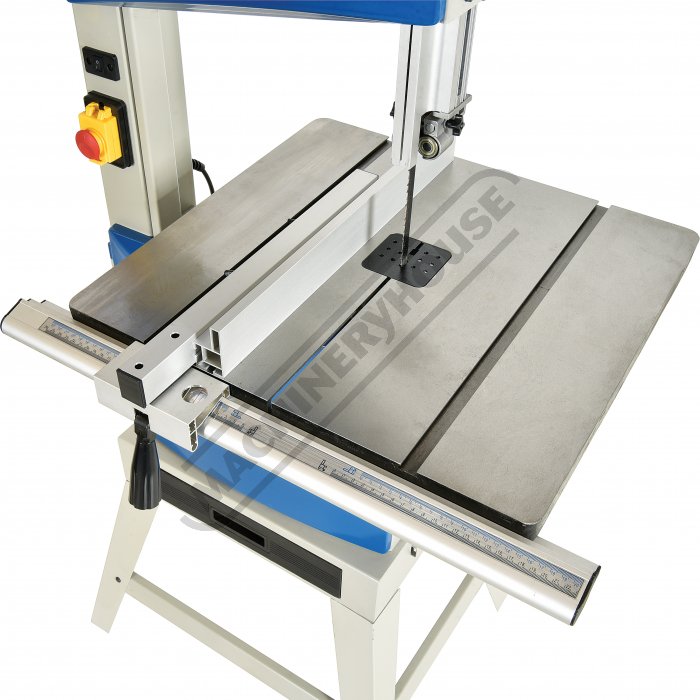

Sliding Rip Fence5 of 21

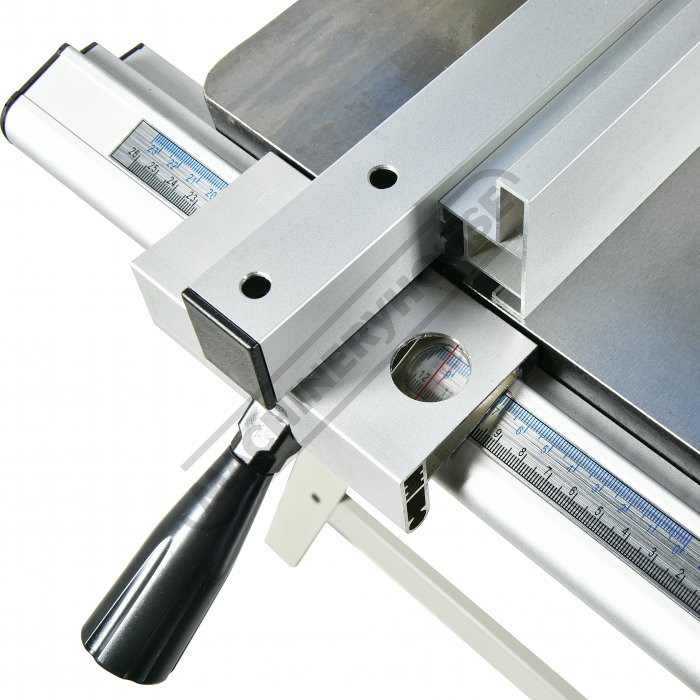

Quick Action Lock6 of 21
Work Light7 of 21
Blade Guard Micro Switch8 of 21

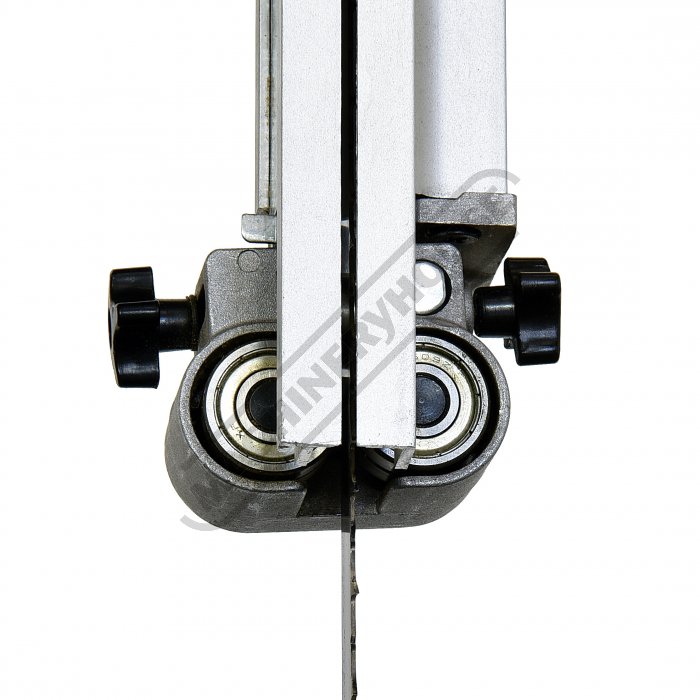

Ball Bearing Blade Guides9 of 21

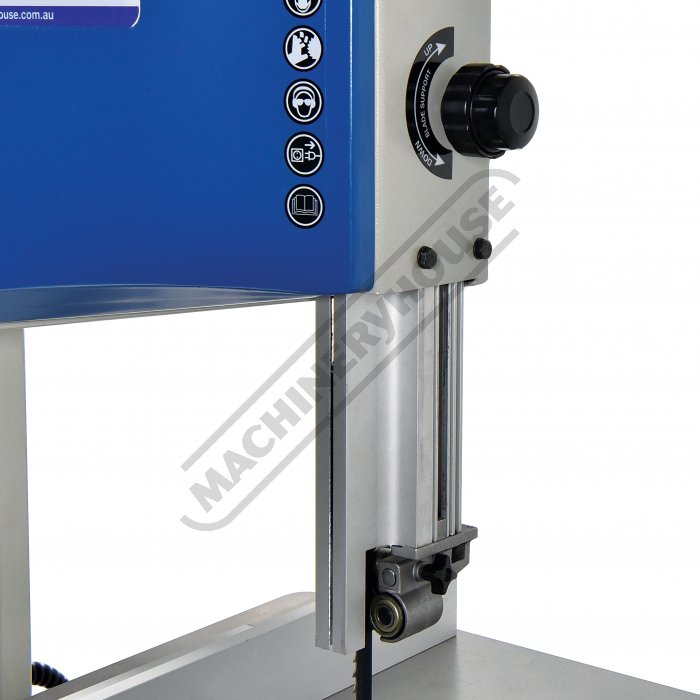

Height Adjustment Knob10 of 21
Cast Iron Table11 of 21
Bottom Belt Tension Knob and Mitre Guide Holder12 of 21
Mitre Guide13 of 21

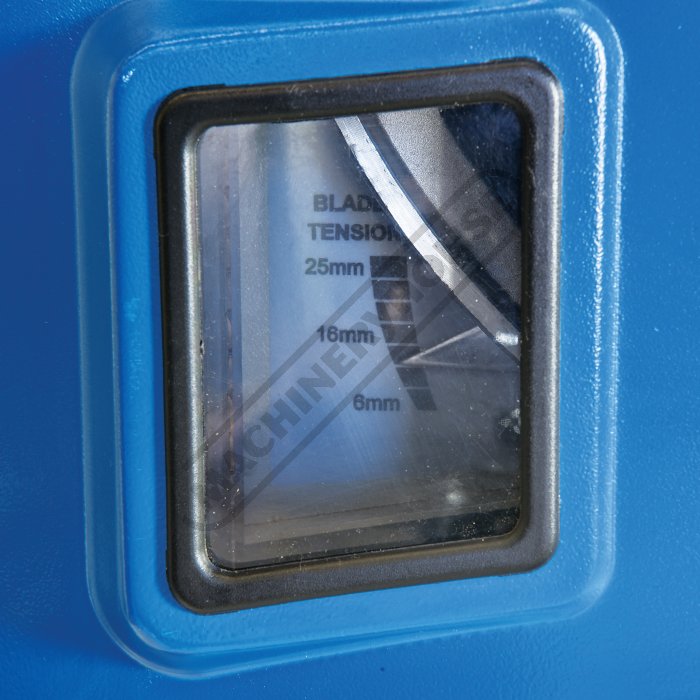

Blade Tension Sight Indicator14 of 21

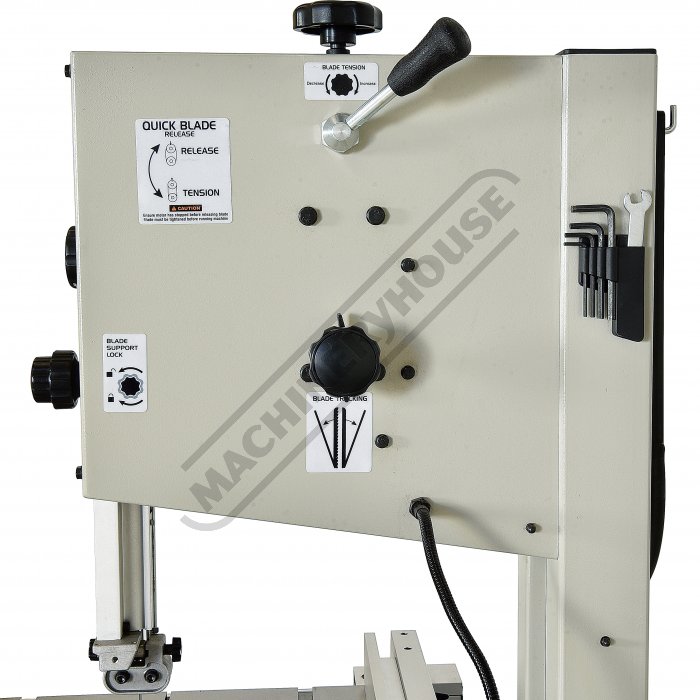

Blade Tension Adjustment15 of 21

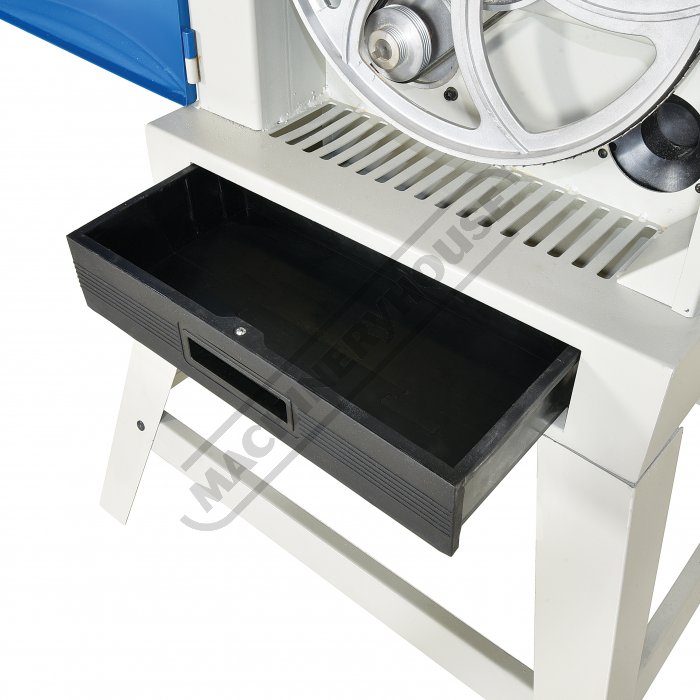

Slide Out Dust Compartment Drawer16 of 21
Dust Port and Motor17 of 21
Blade Tracking Knob18 of 21

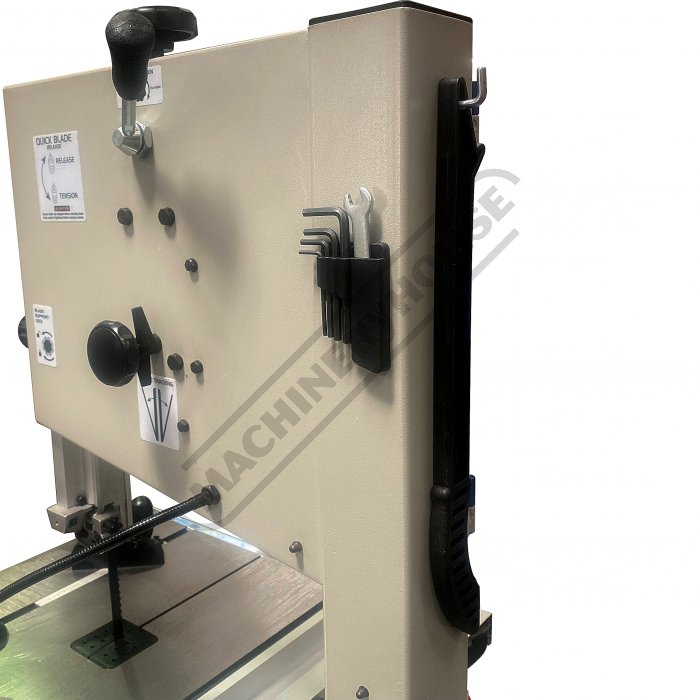

Push Stick and Tools19 of 21

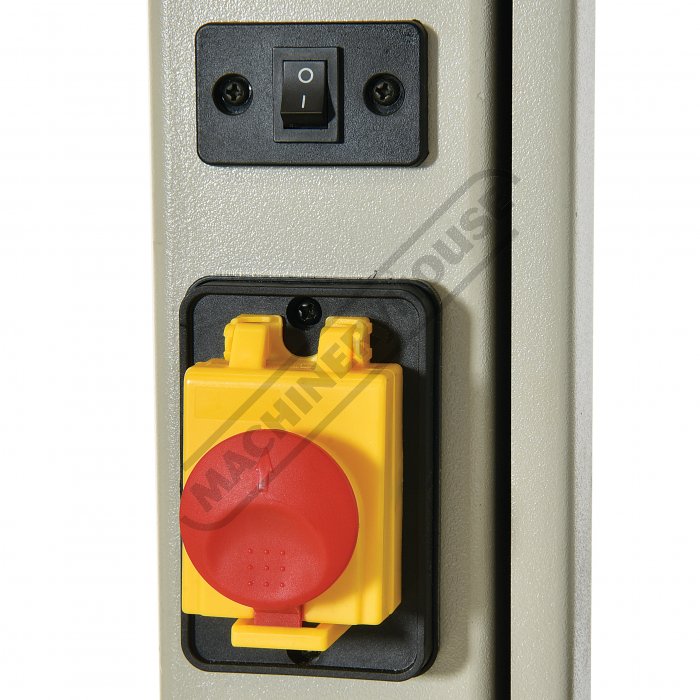

Safety Magnetic Switch and Light Switch20 of 21

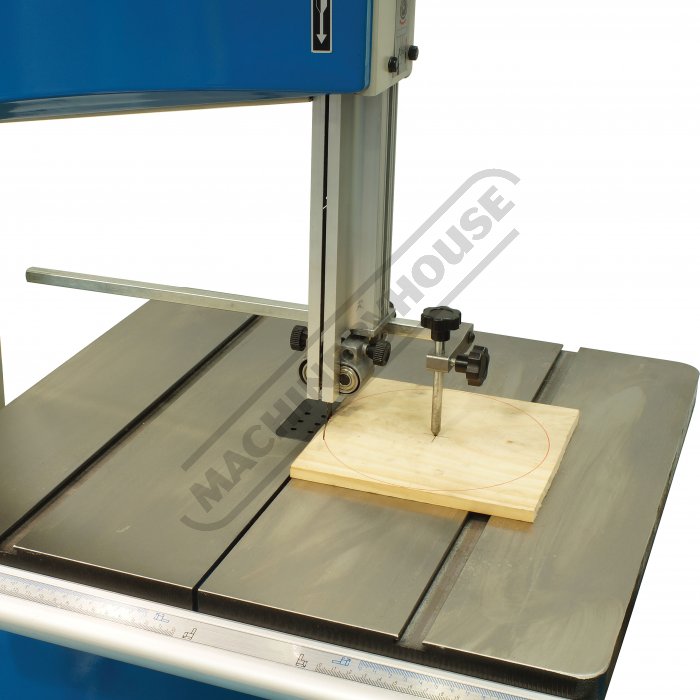

Shown with Optional Circle Cutting Attachment21 of 21
Order Code: W955
ex-gst
inc-gst
$
850.00
$
935.00
240V / 10A
2 Years Warranty
2 Years Warranty
Description
BP-360 - Wood Band Saw
340mm Throat x 225mm Height Capacity
Features
- 1100W / 1.5hp 240V induction motor
- Ball bearing blade guides to ensure smooth operation
- Safety magnetic switch with dust cover and emergency stop
- Hinged blade guards with safety micro-switches
- LED work light on flexible arm
- Cast iron table tilts 0-45° with mitre guide
- Rack & pinion table tilt mechanism
- Quick release blade tension lever
- Geared rack on cutting height adjustment
- Window in top blade guard for blade tension indicator

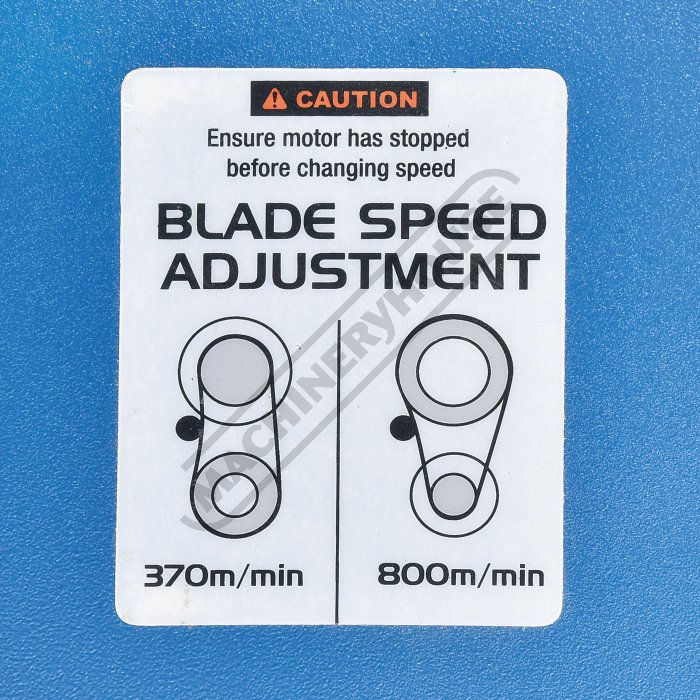

- 2 blade speeds - 370 & 800m/min
- Aluminium rip fence with quick action lock

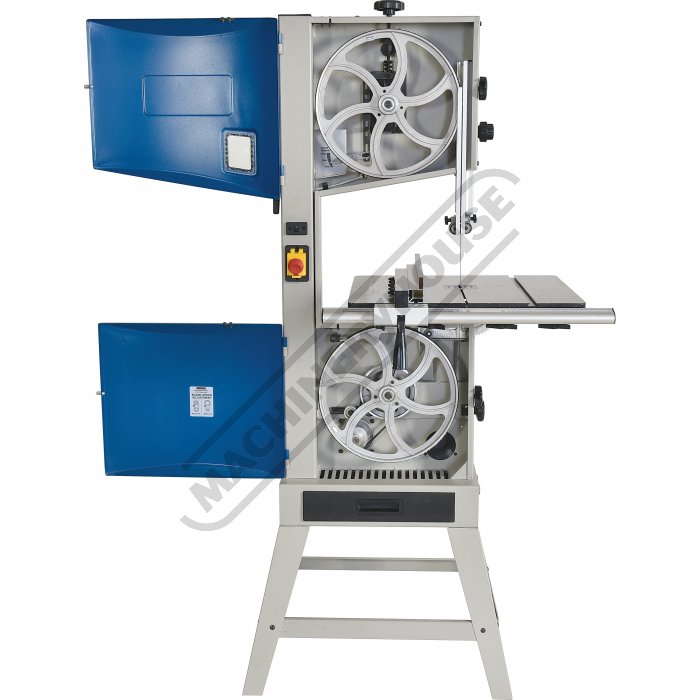

- Hinged top & bottom blade guard doors enables quick blade replacement
- Steel stand with slide dust compartment drawer
- 100mm dust collector port
Includes
- Push Stick
- Allen Keys
- Spanner
Compare Product Range
Specifications
| ORDER CODE | W955 |
|---|---|
| MODEL | BP-360 |
| (mm)Wheel Diameter (Ø) | 360 |
| (mm)Throat Capacity | 340 |
| (mm)Height Capacity | 225 |
| (mm)Table Size | 545 x 515 |
| Frame Type | Steel |
| (kW / hp)Motor Power | 1.1 / 1.5 |
| (V / amp)Voltage / Amperage | 240 / 10 |
| (Suits)Blade Code | W955A,W955B, W955F |
| (mm)Blade Size (L x W x T) | 2560 x 16 x 0.65 |

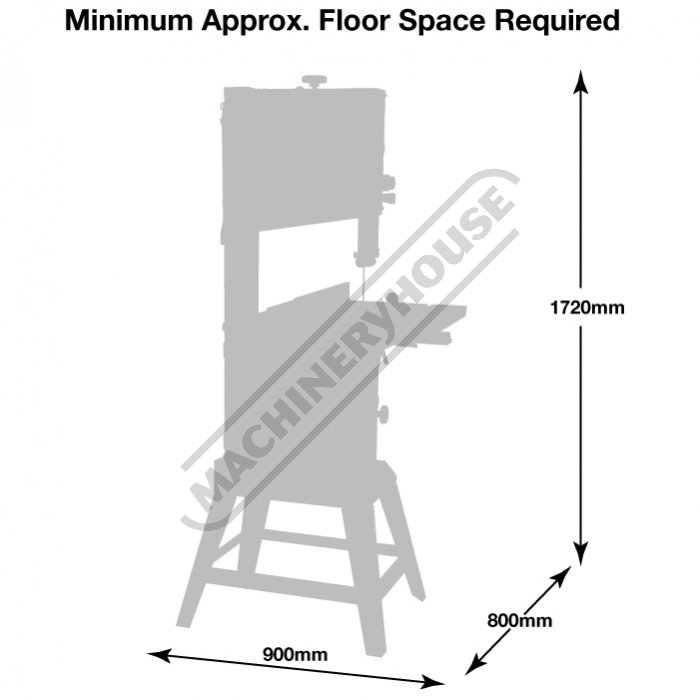

| (mm)Floor Space (W x D x H) | 920 x 800 x 1710 |
| (mm)Shipping Dimensions (L x W x H) | 575 x 440 x 1350 |
| (kg)Nett Weight | 82 |
