Order Code: W425
ex-gst
inc-gst
$ 2,890.00
$ 3,179.00
240V / 15A
2 Years Warranty
Made in Taiwan
Description

BP-500 - Wood Band Saw

510mm Throat x 335mm Height Capacity
Overview
The Hafco Woodmaster Taiwanese made trade series BP-500 bandsaw is among the very best of our premium 510mm deep cutting bandsaws on the market.

The welded steel frame is extraordinary rigidity, allowing superiorly high blade tensions and can handle up to a 38mm wide blade. The machine is powered 2.2kW/3hp 240V smooth and powerful motor & incorporates a mechanically foot brake lever allowing operator to stop the motor & blade fro rotating very quickly. The large cast iron blade wheels provide extra inertia to help cut through the toughest timbers and are balanced for smooth operation when running. Uniquely, the precision ground cast iron heavy duty table and cast iron rip fence ensures great stability & accuracy when using on any variety of timbers.

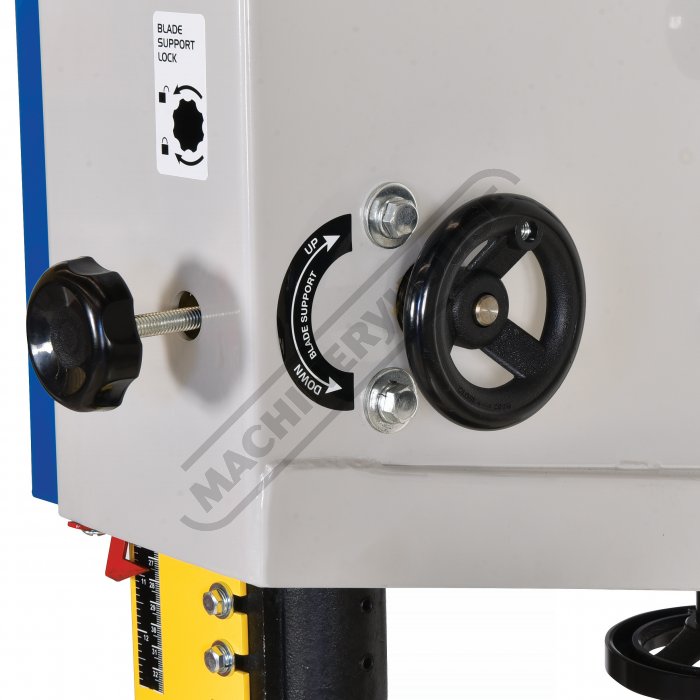

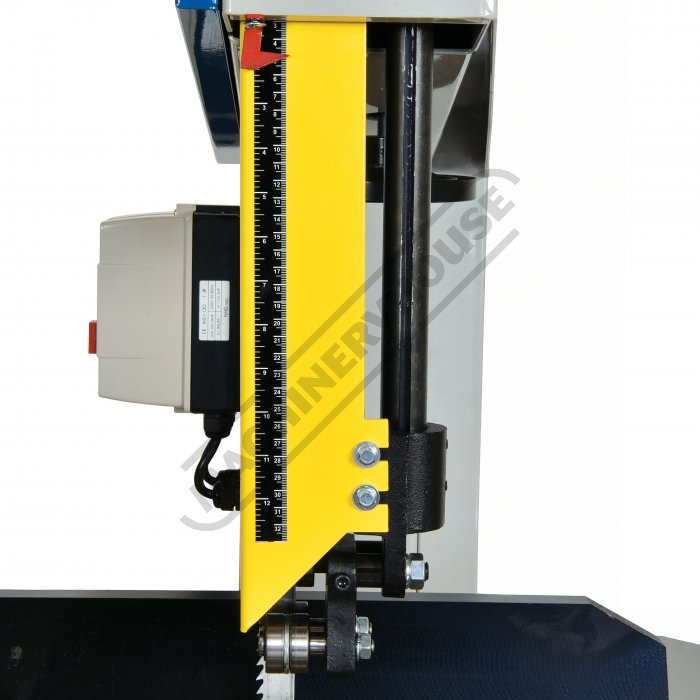

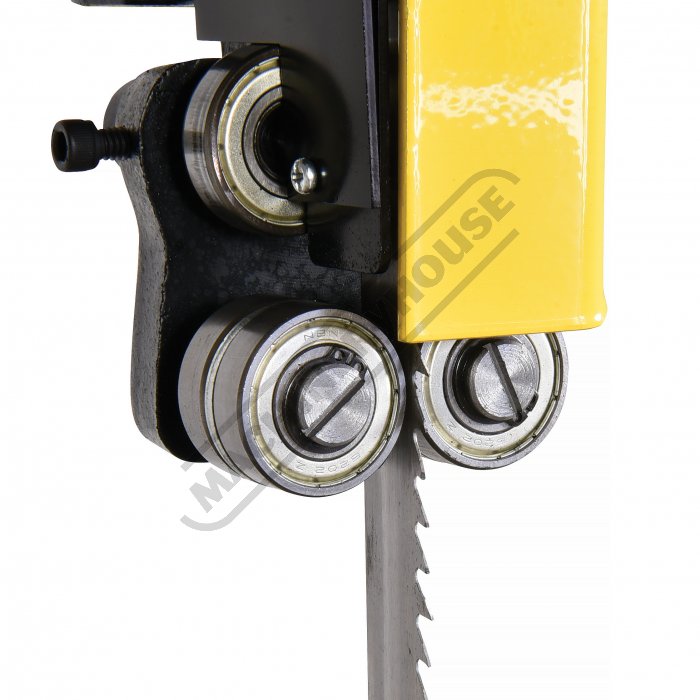

The 6 ball bearing blade guide system, 3 located on the adjustable height guide & 3 below the table offer outstanding blade accuracy that is required in a heavy duty machine. Also fitted are cast iron trunnions that offer a solid table mounting base and allows the table to tilt and be securely locked into place for those jobs that require angle cuts. The worm gear system for the blade guide post movement is used for quick and easy height adjustment settings. Safety features like magnetic power switch & tamper proof door interlock micro switches are fitted to this machine providing peace of mind for the operator.
Features
  • 2-speed (565/670 M/min)
  • 2.2kW / 3hp 240V motor

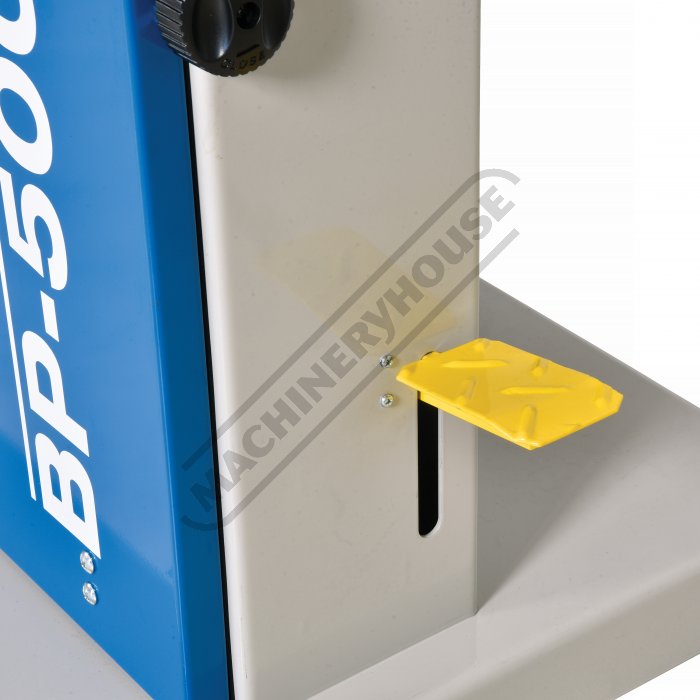

  • Foot brake with micro-switch

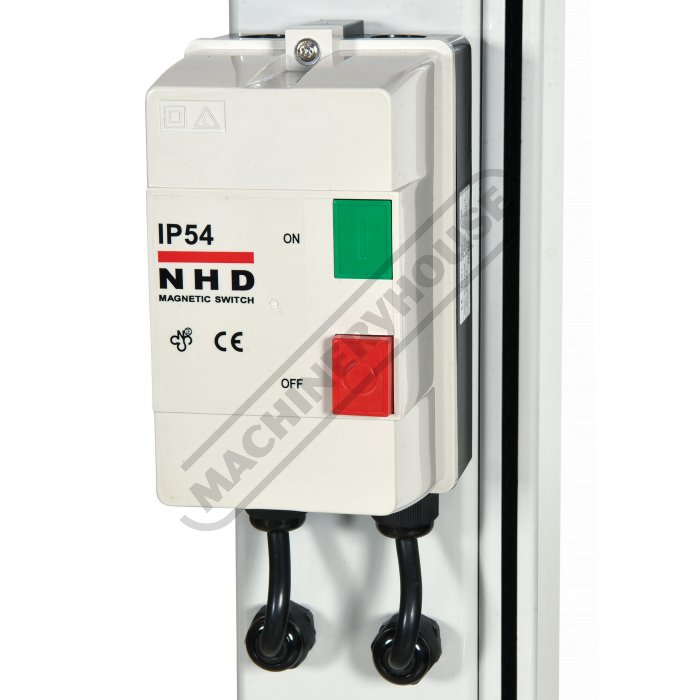

  • Magnetic switch with overload protection

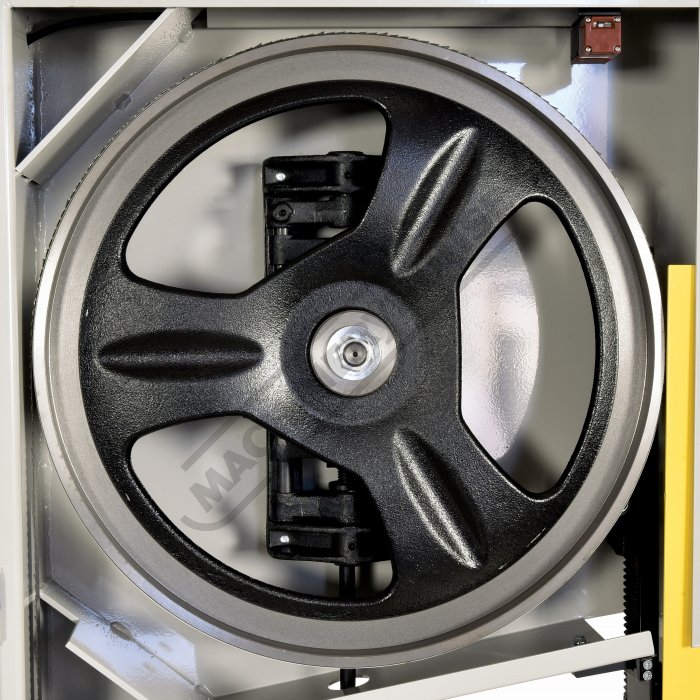

  • Heavy duty cast iron wheels and Ripping fence

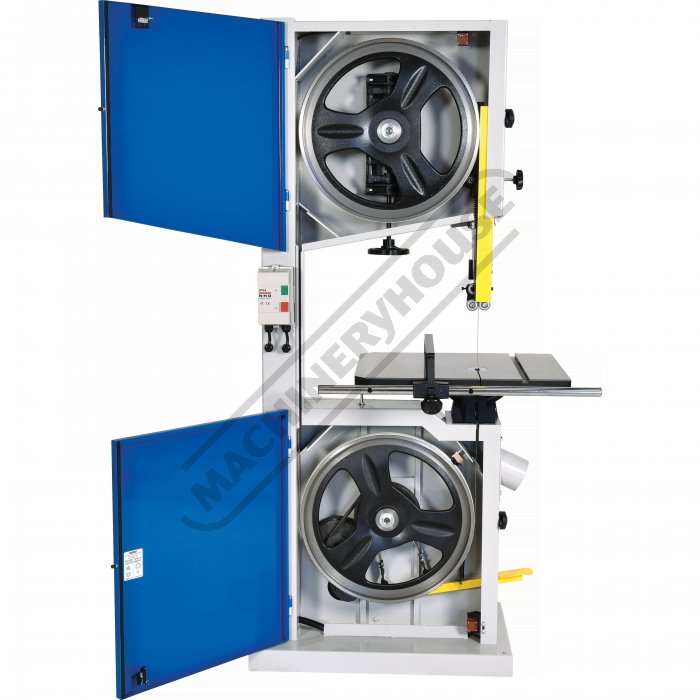

  • Tamper proof micro switches on top & bottom doors

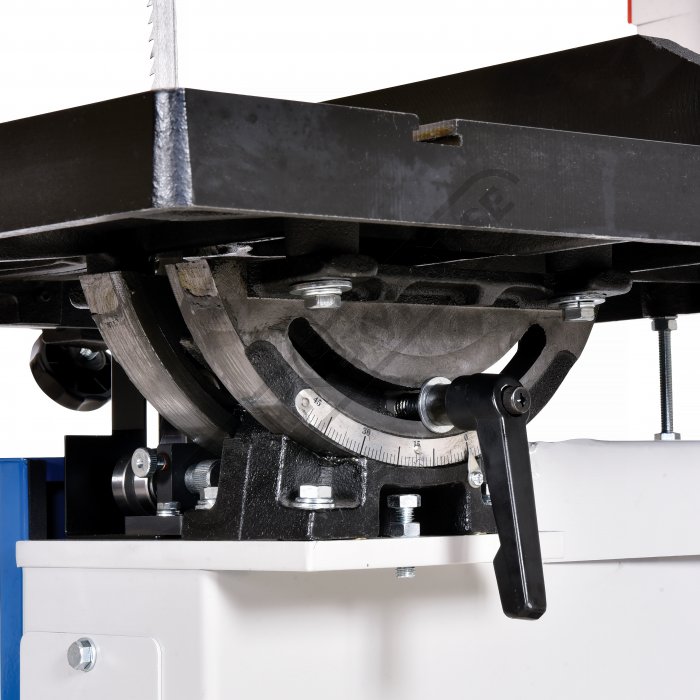

  • Cast iron table tilts to 45°
  • Ball bearing blade guides
  • Blade width tension indicator

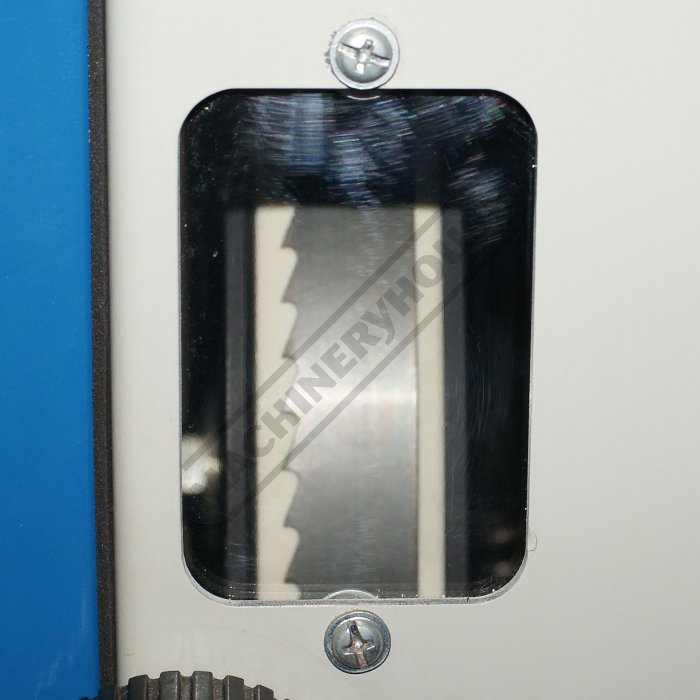

  • Viewing window for blade alignment

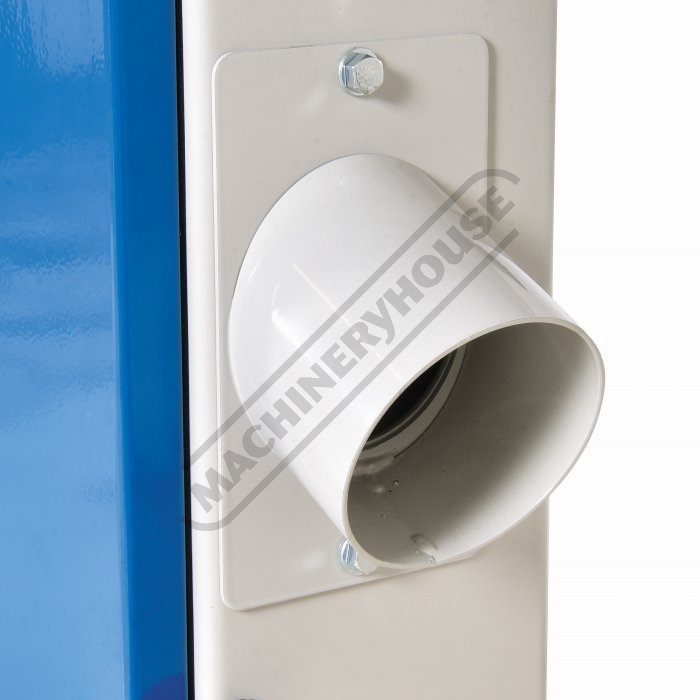

  • 100mm dust chute

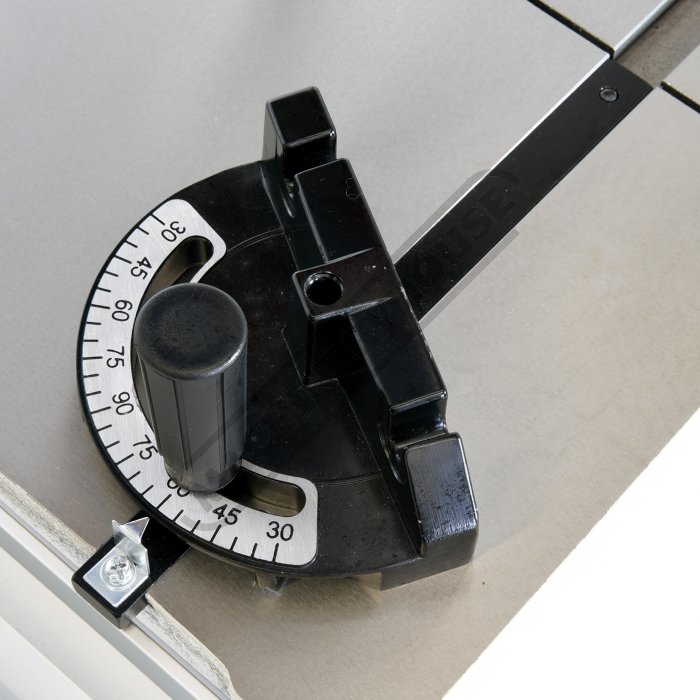

  • Includes rip fence and mitre guide
  • Quality Taiwanese Manufacture
Includes
  • Mitre guide
  • Cast iron Rip fence
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (mm)Wheel Diameter (Ø)
  • (mm)Throat Capacity
  • (mm)Height Capacity
  • (mm)Table Size
  • Frame Type
  • (kW / hp)Motor Power
  • (V / amp)Voltage / Amperage
  • (Suits)Blade Code
  • (mm)Blade Size (L x W x T)
  • (mm)Floor Space (W x D x H)
  • (mm)Shipping Dimensions (L x W x H)
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • W950
  • Compare
  • Wishlist
  • W950
  • BP-255
  • 255
  • 245
  • 152
  • 360 x 320
  • Steel
  • 0.375 / 0.5
  • 240 / 10
  • W950A, W950B, W950F
  • 1826 x 12.5 x 0.65
  • 750 x 650 x 1430
  • 450 x 380 x 1020
  • 42
  • $490.00
  • $539.00
  • ADD TO CART
  • Package DealW9501
  • Compare
  • Wishlist
  • W9501
  • BP-255 + Circle Att Package
  • 255
  • 245
  • 152
  • 360 x 320
  • Steel
  • 0.375 / 0.5
  • 240 / 10
  • W950A, W950B, W950F
  • 1826 x 12.5 x 0.65
  • 750 x 650 x 1430
  • 450 x 380 x 1020
  • 42
  • $508.18
  • $559.00
  • ADD TO CART
  • W952
  • Compare
  • Wishlist
  • W952
  • BP-310
  • 310
  • 305
  • 165
  • 480 x 390
  • Steel
  • 0.75 / 1
  • 240 / 10
  • W420A, W420B, W420F
  • 2240 x 12.5 x 0.65
  • 830 x 700 x 1590
  • 530 x 435 x 1230
  • 65
  • $720.00
  • $792.00
  • ADD TO CART
  • W955
  • Compare
  • Wishlist
  • W955
  • BP-360
  • 360
  • 340
  • 225
  • 545 x 515
  • Steel
  • 1.1 / 1.5
  • 240 / 10
  • W955A,W955B, W955F
  • 2560 x 16 x 0.65
  • 920 x 800 x 1710
  • 575 x 440 x 1350
  • 82
  • $890.00
  • $979.00
  • ADD TO CART
  • W4224
  • Compare
  • Wishlist
  • W4224
  • BP-355
  • 355
  • 345
  • 245
  • 535 x 435
  • Steel
  • 1.5 / 2
  • 240 / 10
  • W4224A,W4224B,W4224F
  • 2750 x 16 x 0.65
  • 920 x 760 x 1810
  • 1410 x 580 x 680
  • 121
  • $1,090.00
  • $1,199.00
  • ADD TO CART
  • W4330
  • Compare
  • Wishlist
  • W4330
  • BP-430A
  • 430
  • 415
  • 310
  • 585 x 435 with Extension
  • Steel
  • 1.5 / 2 [with Brake System]
  • 240 / 10
  • W433A, W433B, W433C
  • 3345 x 16 x 0.80
  • 850 x 830 x 1860
  • 780 x 520 x 2090
  • 181
  • $2,290.00
  • $2,519.00
  • ADD TO CART
  • Limited StockW434
  • Compare
  • Wishlist
  • W434
  • BP-480
  • 480
  • 462
  • 310
  • 480 x 480
  • Steel
  • 1.5 / 2
  • 240 / 15
  • W434A, W434B
  • 3630 x 19 x 0.80
  • 960 x 850 x 1935
  • 850 x 540 x 2170
  • 174
  • $2,250.00
  • $2,475.00
  • ADD TO CART
  • W4344
  • Compare
  • Wishlist
  • W4344
  • BP-480
  • 480
  • 462
  • 310
  • 480 x 480
  • Steel
  • 1.5 / 2 [with Brake System]
  • 240 / 15
  • W434A, W434B
  • 3630 x 19 x 0.80
  • 960 x 850 x 1935
  • 864 x 508 x 2160
  • 174
  • $2,990.00
  • $3,289.00
  • ADD TO CART
  • W4346
  • Compare
  • Wishlist
  • W4346
  • BP-480
  • 480
  • 462
  • 310
  • 480 x 480
  • Steel
  • 1.5 / 2 [with Brake System]
  • 415
  • W434A, W434B
  • 3630 x 19 x 0.80
  • 960 x 850 x 1935
  • 864 x 508 x 2160
  • 174
  • $3,090.00
  • $3,399.00
  • ADD TO CART
  • W425
  • Compare
  • Wishlist
  • W425
  • BP-500
  • 525
  • 510
  • 335
  • 508 x 612
  • Steel
  • 2.2 / 3
  • 240 / 15
  • W425A, W425B, W425C
  • 3937 x 25.4 x 0.70
  • 1050 x 800 x 1910
  • 920 x 640 x 2050
  • 290
  • $2,890.00
  • $3,179.00
  • ADD TO CART
  • W429
  • Compare
  • Wishlist
  • W429
  • BP-630
  • 630
  • 615
  • 370
  • 542 x 660
  • Steel
  • 2.2/ 3
  • 415
  • W429A, W429B
  • 4483 x 25.4 x 0.90
  • 1160 x 900 x 2100
  • 113 x 752 x 2220
  • 350
  • $3,990.00
  • $4,389.00
  • ADD TO CART
