NSW Schools / TAFE - HM-48B Mill Drill Machine with Digital Readout - Includes Tooling Package

(X) 540mm (Y) 185mm (Z) 410mm

NSW Contract Item No.26A Alternative

K8244 1 of 32

Swivel Head 45 Degrees Left or Right 2 of 32

45 Degrees To Left 3 of 32

Mill Head Close Up 4 of 32

Digital Readout System 5 of 32

Spindle Speed Controls 6 of 32

Speed Chart 7 of 32

Control Panel 8 of 32

Quill Depth Stop Gauge 9 of 32

Digital Readout on Quill Depth 10 of 32

Motorized Z Axis 11 of 32

Quill Feed Handle 12 of 32

Fine Feed Handle 13 of 32

Mill Head Limiter Safety Switch 14 of 32

Milling Cutter 15 of 32

Swivel Safety Guard 16 of 32

Large Ground Work Table with T Slots 17 of 32

Table Limit Switches 18 of 32

Table Feed Hand Wheel 19 of 32

Also Manual Handle Rack and Pinion Wind Up Head 20 of 32

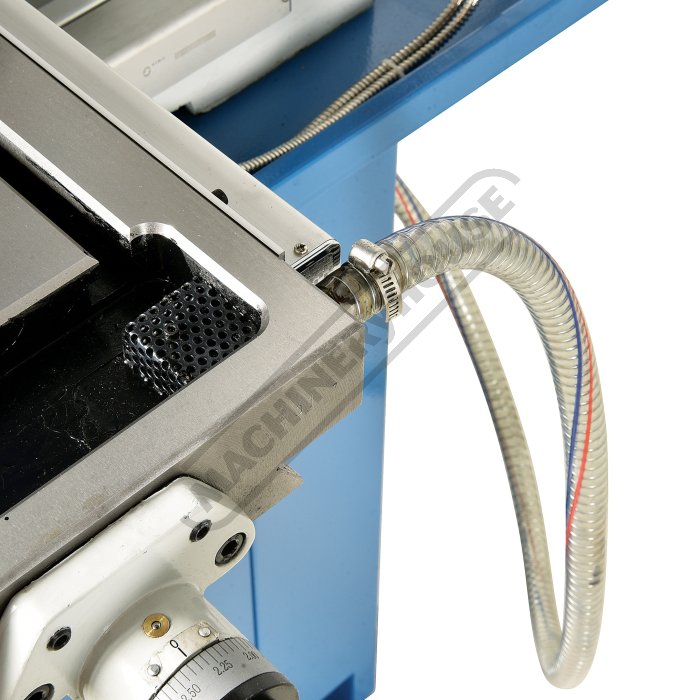

Table Coolant Return 21 of 32

2HP 240V Motor 22 of 32

Main Switch 23 of 32

Key Lockable Switch 24 of 32

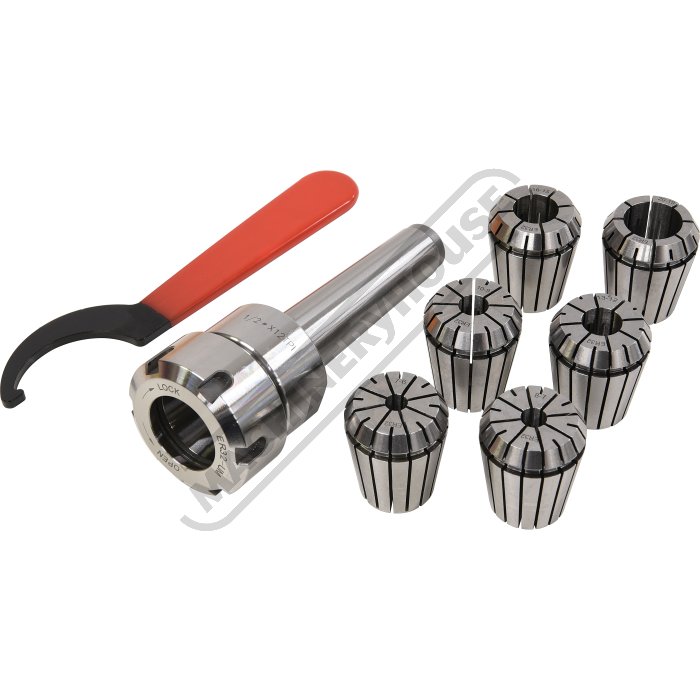

3MT x ER32 Collet Chuck Set (C922B) 25 of 32

100mm Tilting Drill Press Vice (V114) 26 of 32

13mm Keyless Drill Chuck (C292) 27 of 32

3MT x JT6 Drill Chuck Arbor (D443) 28 of 32

50mm x 90 Face Mill (M510) 29 of 32

MT3-FMB22 20 Face Mill Arbor (M562) 30 of 32

Milling Inserts - 10 Inserts Per Pack (L066) 31 of 32

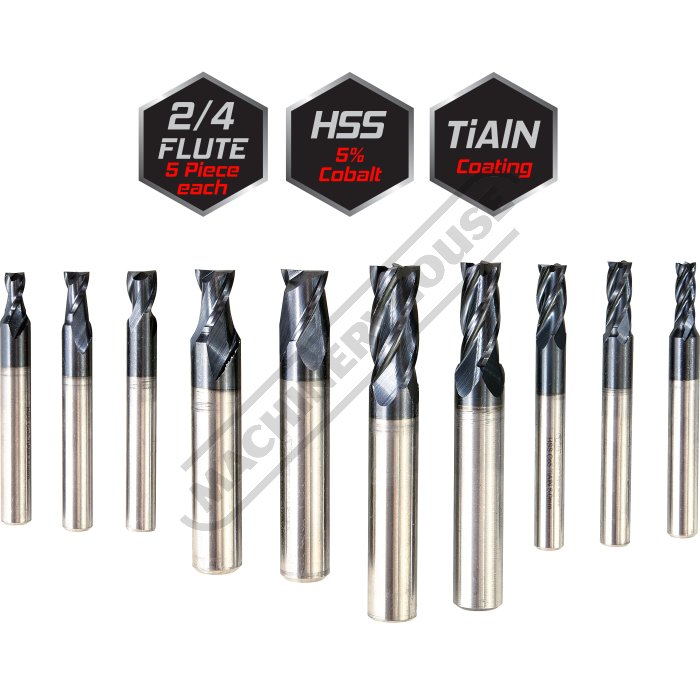

10pc Metric HSS Milling Cutter Set 4-10mm (M350) 32 of 32

HAFCO-METALMASTER

Order Code: K8244

Please Call

240V / 15A
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

NSW Schools / TAFE - HM-48B Mill Drill Machine with Digital Readout - Includes Tooling Package

(X) 540mm (Y) 185mm (Z) 410mm

NSW Contract Item No.26A Alternative

Overview

We for many years have been working in close consultation with the education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

The HM-48S milling machines is similar in overall size to the popular RF-31 or HM-32 but with the additional benefit of a 6-speed 95-1650rpm, gear driven head which can be tilted up to 90º either side of the vertical. This feature allows the head to be positioned in a variety of positions, allowing a whole range of milling, slotting, grooving, drilling and boring operations to be carried out.

The usual handle-driven down feed is available for precision drilling and there is a fine manual down-feed control for precise vertical milling.

The motor is controlled by a standard forward and reverse on/off switch.

Features

3 Axis digital readout system
Gear driven head with 6 speeds
Dovetail vertical Z-Axis
Pendant control with swivel arm
Digital tilting head gauge
Tilting head to ±90º from vertical with digital display
Large 820 x 240mm ground work table with T-slots
Adjustable leadscrew nuts eliminating backlash on both axis
Fine feed hand wheel operating quill feed
Motorised head for Z-Axis travel
Forward and reverse on/off switch
3MT spindle with 75mm diameter lockable quill
Adjustable table and drill length stops
Metric dial graduations @ 0.05mm for X & Y-Axis
Rear slide-way cover and slide clamps on all axis
Table lock on both axis
Heavy duty cast iron stand with coolant tray
Includes coolant system, swarf tray & work light

Includes

3 Axis digital readout system
Cast iron stand
Coolant system
Motorised vertical head motor
Digital tilting head gauge
Halogen light
Safety cutter guard
3MT x ER32 Collet Chuck Set (C922B)
100mm Tilting Drill Press Vice (V114)
13mm Keyless Drill Chuck (C292)
3MT x JT6 Drill Chuck Arbor (D443)
Ø50mm x 90º Face Mill (M510)
MT3 - FMB22-20 Face Mill Arbor (M562)
Milling Inserts (10 Inserts Per Pack) (L066)
10pc Metric HSS Milling Cutter Set 4-10mm (M350)

Specifications

Compare Product Range

Specifications

ORDER CODE	K8244
NSW Contract No.	NSW Item No.26A Alternative
MODEL	Schools / TAFE HM-48B with Digital Readout
Digital Readout	3-Axis DRO
(mm)Drilling Capacity	31.5
(mm)End Milling Capacity	28
(mm)Face Milling Capacity	76
Spindle Taper	3MT
(mm)Quill Travel / Diameter	120 / 75
Type of Slides	Dovetail
(mm)Spindle to Column	273
(mm)Table Size	820 x 240
(mm)T-Slot	14
(mm)Longitudinal Travel (X-Axis)	540
(mm)Cross Travel (Y-Axis)	185
(mm)Vertical Travel (Z-Axis)	410
(kg)Work Table Load Capacity	60
(mm)Position Accuracy	1550
Swivel Head (Left - Right)	±90º
(mm/rev)Quill Feed Rate/Rev	Manual
(No. / rpm)Spindle Speeds (Vertical)	6 (95-1650rpm)
(kW / hp)Motor Power (Vertical)	1.5 / 2
(V / amp)Motor Voltage	240 / 10
(kg)Nett Weight	430
