Description

QLD Schools / TAFE - BM-40V Turret Milling Machine with Digital Readout - Includes Tooling Package

(X) 860mm (Y) 360mm (Z) 430mm

QLD Contract Item No. 12.4

Overview

Manufactured in Taiwan

Features

3 Axis digital readout fitted
3HP 415V motor, dial variable speed system (BM-40V)
NT30 Spindle taper with a chrome & ground quill
Hardened & ground work table & slide-ways
Turcite "B" coated X & Y Axis slide-ways reduces friction for smooth operation
All slides utilise dovetail construction for maximum rigidity
Meehanite casting for high strength & minimal deformation
Quality electrics & overload protection in an easy access enclosure
Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.
High / neutral and low gear selection lever to maximise torque
Align AL-500S X-Axis power-feed with adjustable micro switch feed stops
Coolant system, halogen light, 150mm machine vice & swarf tray
Metric dial graduations @ 0.02mm for X , Y & Z-Axis
Automatic quill feed 0.015, 0.04, 0.08mm/rev
Automatic cut off depth stop on quill
Oil lubrication pump and reservoir
Slide-way covers Y & Z-Axis
Head tilts Â±45Âº forward and back
Head swivels Â±90Âº left and right
Manual quick action quill lever
Mechanical spindle brake
Tool box and manual

Includes

3-Axis digital readout fitted
One-shot oil lubrication pump and reservoir
Drawbar M12 thread
Coolant system
Slide-way covers
X-Axis power-feed
Halogen light
Safety cutter guard
Swarf tray

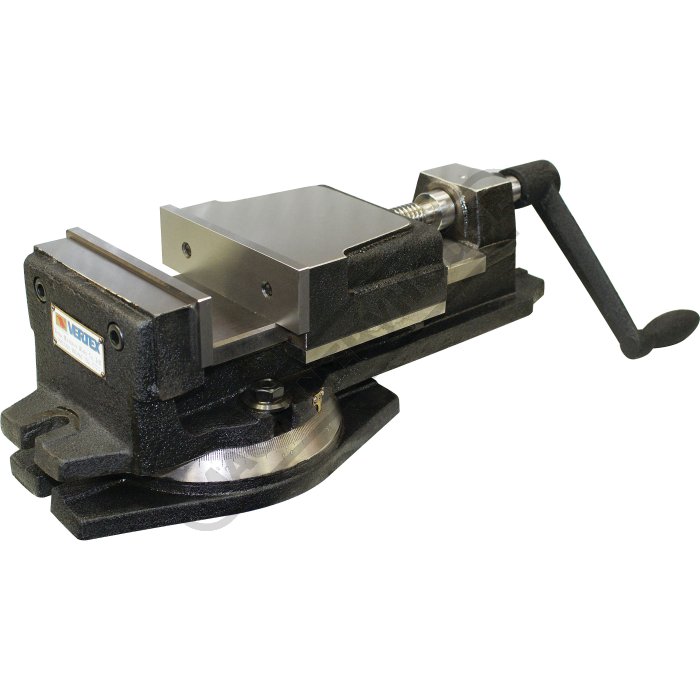

150mm Machine Vice (V106)

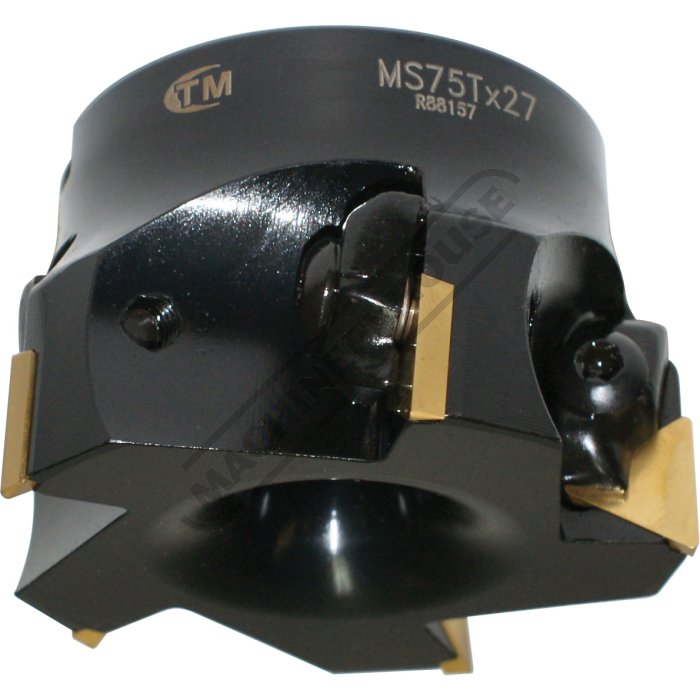

75mm Face Mill Cutter (M512)

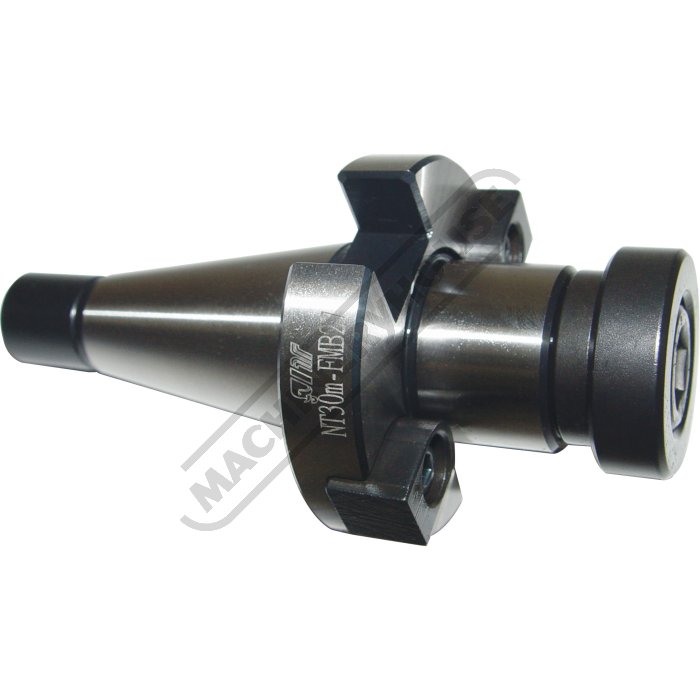

NT30 x 27mm Face Mill Arbor (M542)

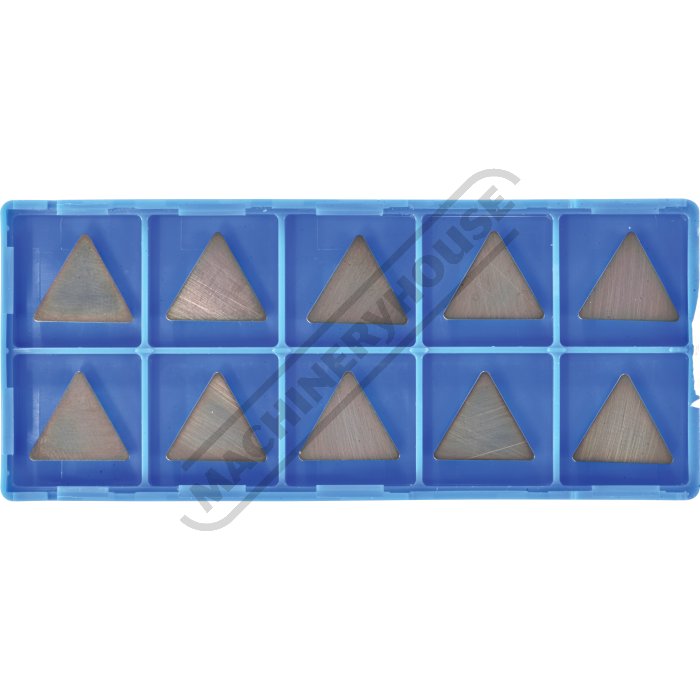

Pkt of 10 Milling Inserts (L066)

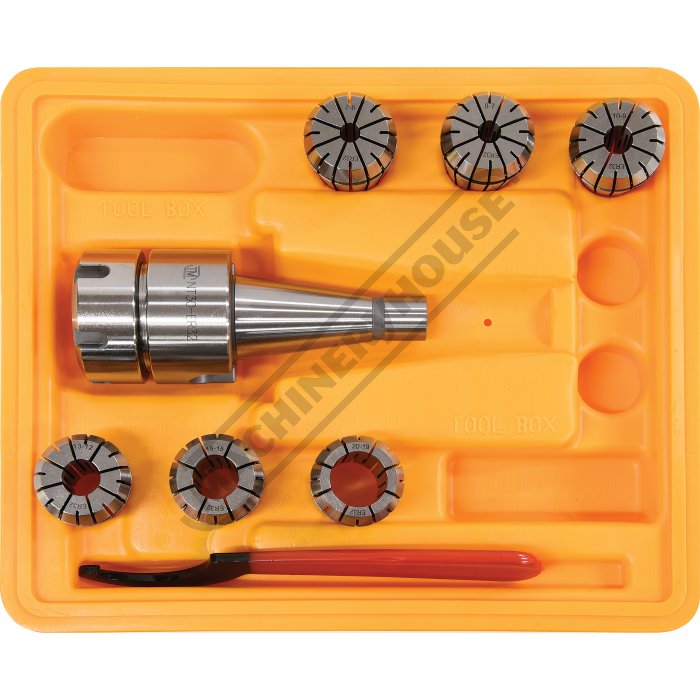

NT30 x 6 Piece Collet Chuck Set (C9245)

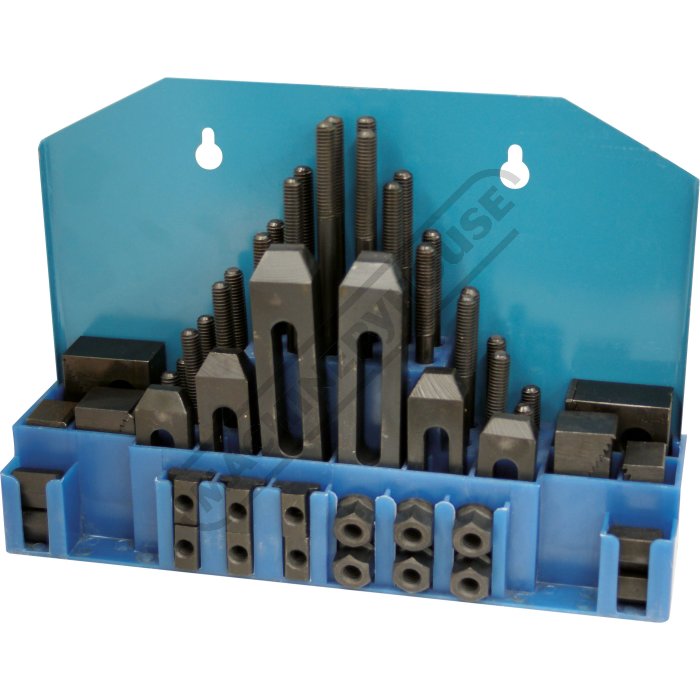

1/2" UNC Clamp Kit Set (C091)
160mm 3 Jaw Lathe Chuck (C2806)

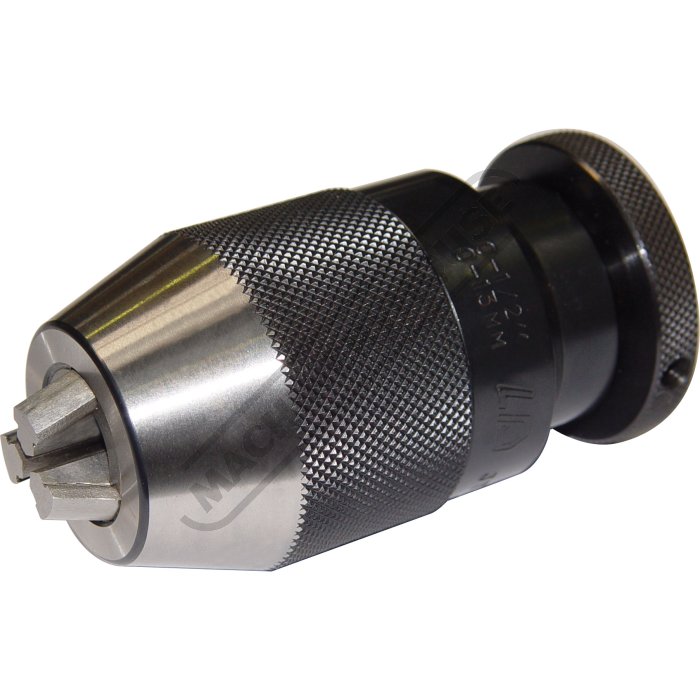

13mm Keyless Drill Chuck (C292)

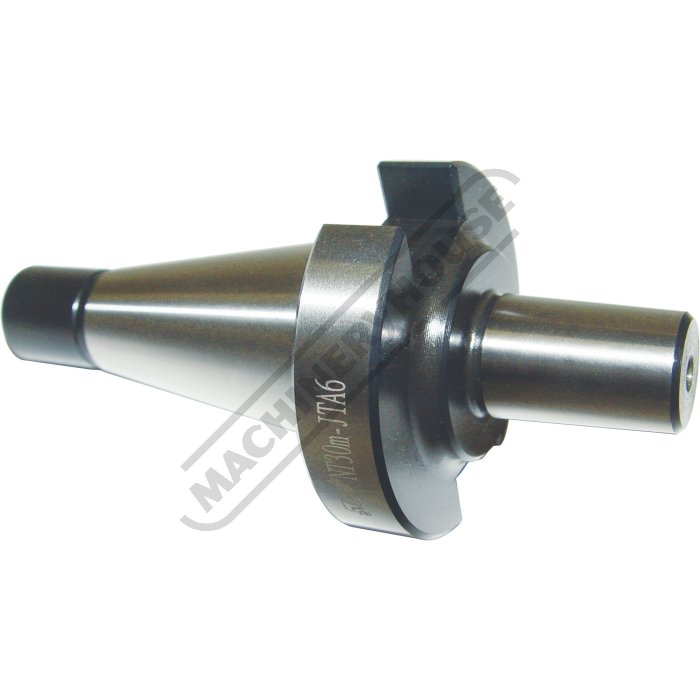

NT30 Drill Chuck Arbor (D450)
128mm- BS-1 Dividing Head (D002)

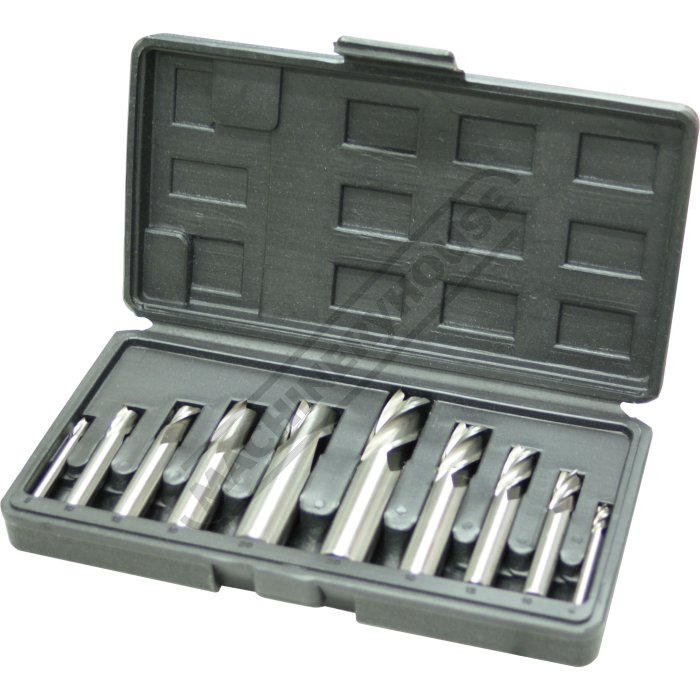

6-20mm Metric End Mill & Slot Drill Set (M3301)

Specifications

Compare Product Range

Specifications

ORDER CODE	K8745D
QLD Contract No.	QLD Item No. 12.4
MODEL	Schools / TAFE BM-40V with Digital Readout
Digital Readout	3-Axis DRO
(mm)Drilling Capacity	38
(mm)End Milling Capacity	32
(mm)Face Milling Capacity	125
Spindle Taper	NT30
(mm)Quill Travel / Diameter	127 / 86
(mm)Ram Stroke	508
(mm)Spindle to Table	505
Type of Slides	Dovetail
(mm)Spindle to Column	735
(mm)Table Size	1370 x 254
(mm)T-Slot	5/8"
(mm)Longitudinal Travel (X-Axis)	860
(mm)Cross Travel (Y-Axis)	360
(mm)Vertical Travel (Z-Axis)	425
(kg)Work Table Load Capacity	300
Swivel Head (Left - Right)	±90º
(mm/min)Power Feed Longitudintal (X-Axis)	0.02 - 0.20
Power Feed Cross (Y-Axis)	Optional
Power Feed Vertical (Z-Axis)	Optional
(mm/rev)Quill Feed Rate/Rev	0.015, 0.04, 0.08
(No. / rpm)Spindle Speeds (Vertical)	Variable (70-3500rpm)
(kW / hp)Motor Power (Vertical)	2.2 / 3
(V / amp)Motor Voltage	415
(kg)Nett Weight	1300
