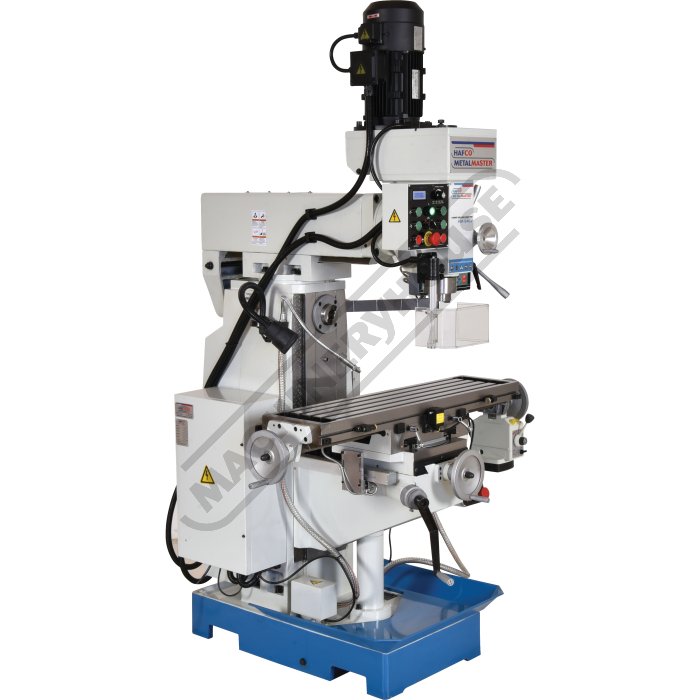

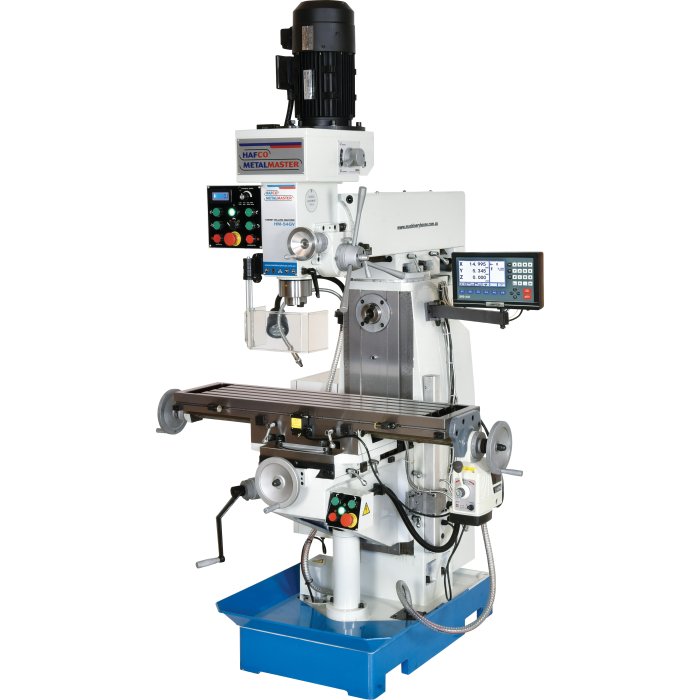

QLD Schools / TAFE - HM-54GV Geared Turret Head Milling Machine with Digital Readout - Includes Tooling Package

(X) 600mm (Y) 200mm (Z) 340mm
QLD Contract Item No. 12.3
Overview
We for many years have been working in close consultation with the education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

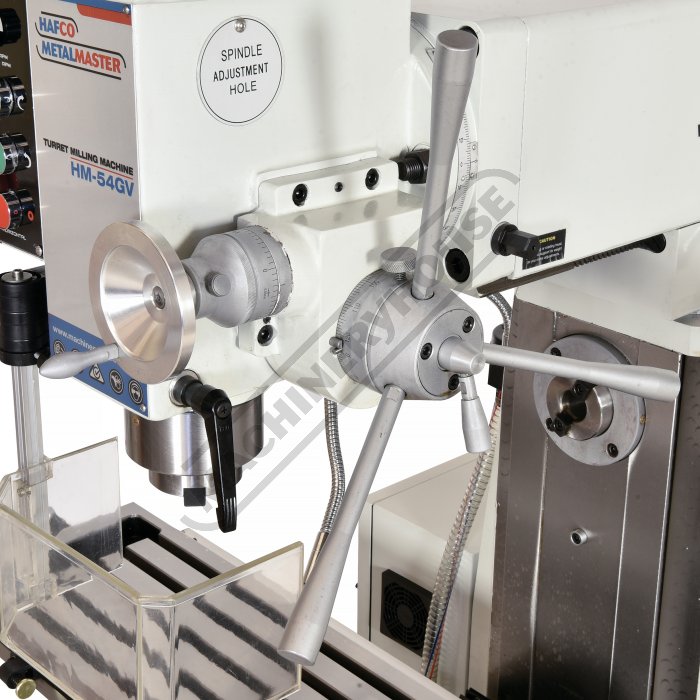

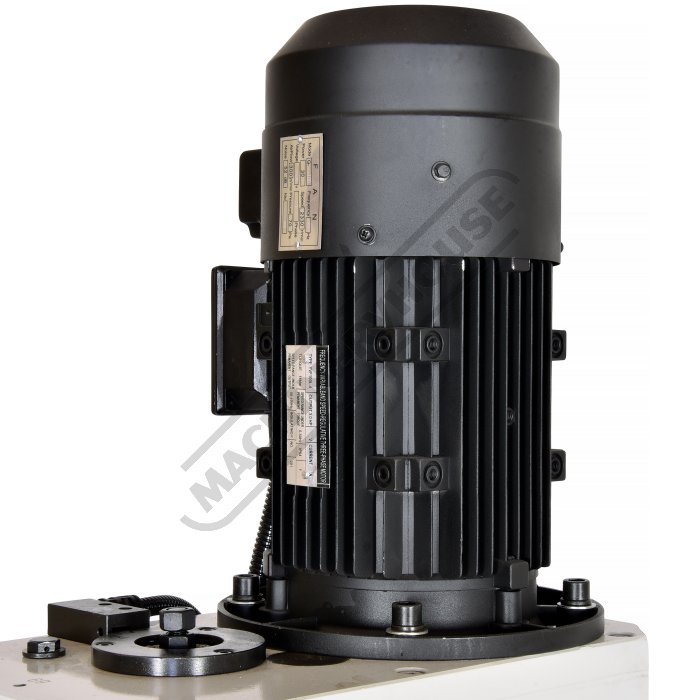

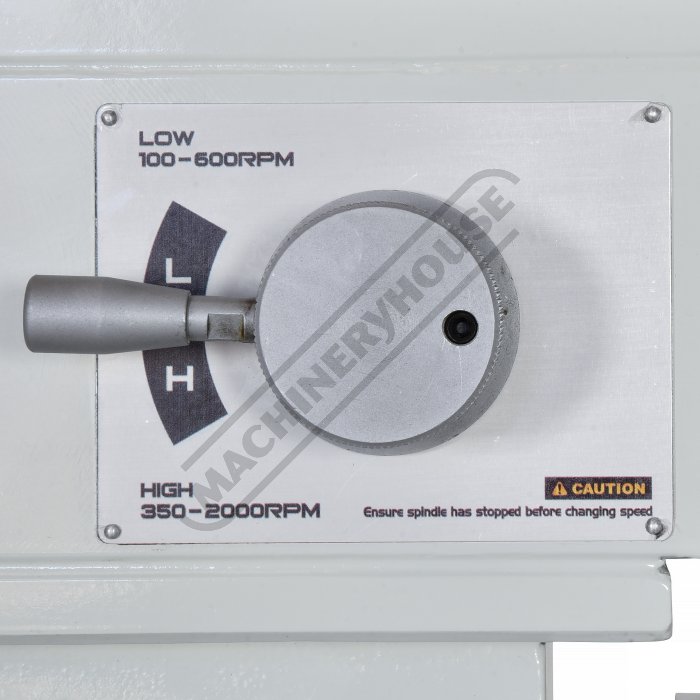

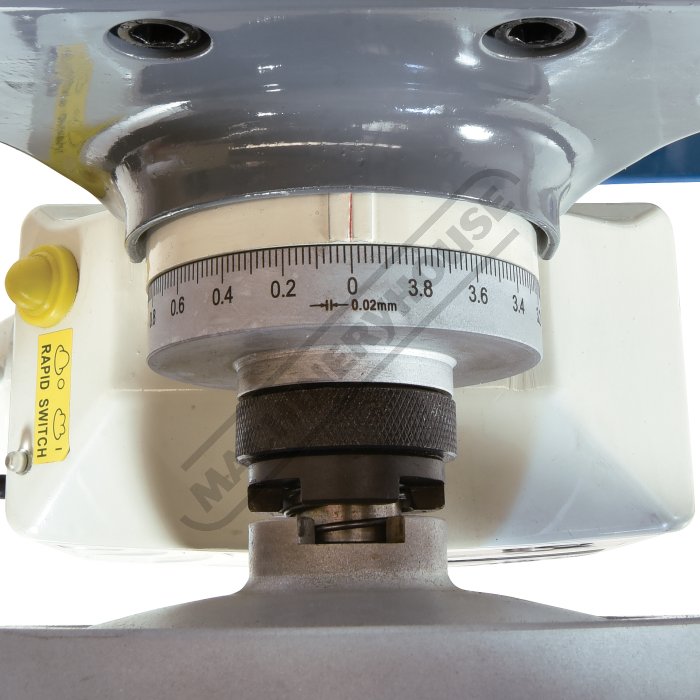

This HM-54GV geared head vertical and horizontal turret milling machine now includes a inverter variable speed drive on the vertical spindle, with a powerful continuous-load 2.2kW / 3hp vertical motor and a 2hp motor for the horizontal spindle, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 600mm X axis by 200mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. The hi-low geared head selector lever mounted on right side of milling head allows for quick change off speed range.

Other features include 3-Axis digital readout system, taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage LED work light, coolant system, X axis power feed unit, drill chuck, 1" & 1-1/4" horizontal arbors, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation.

Extra Features:
Swivel table
1" & 1-1/4" horizontal arbors
Features

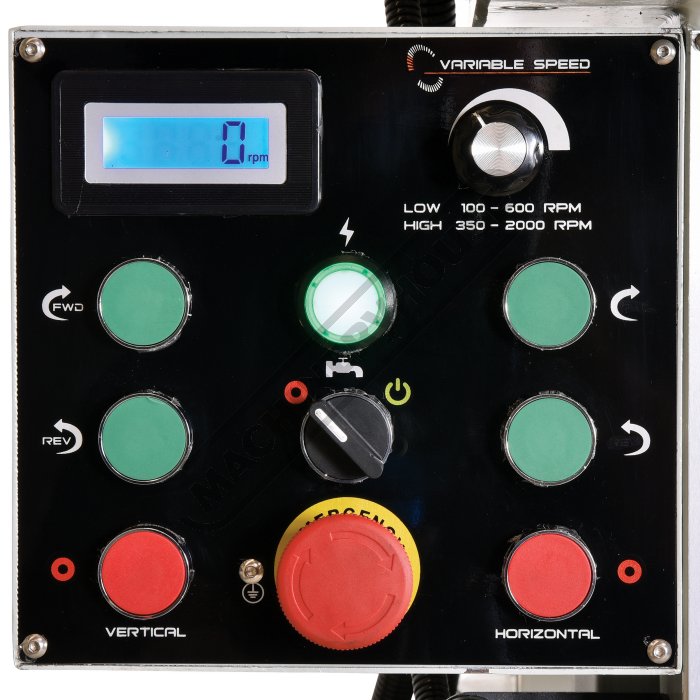

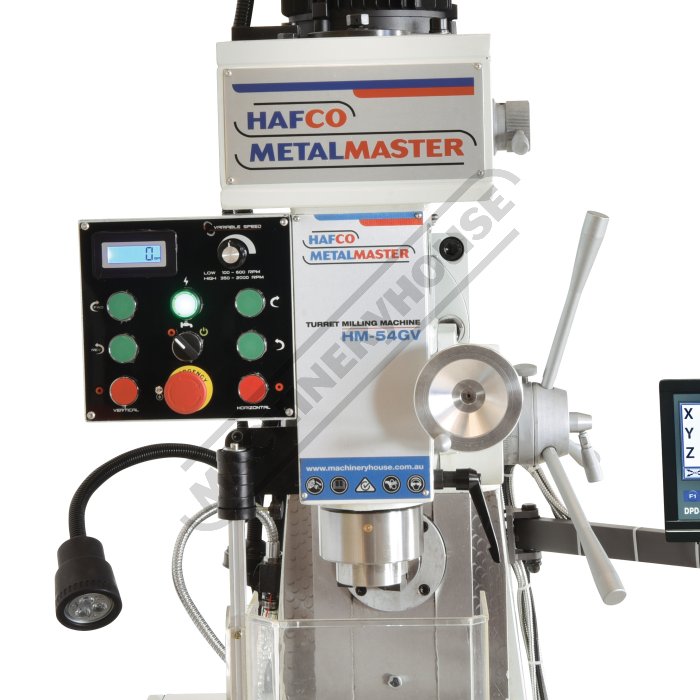

  • Electronic inverter variable spindle speeds

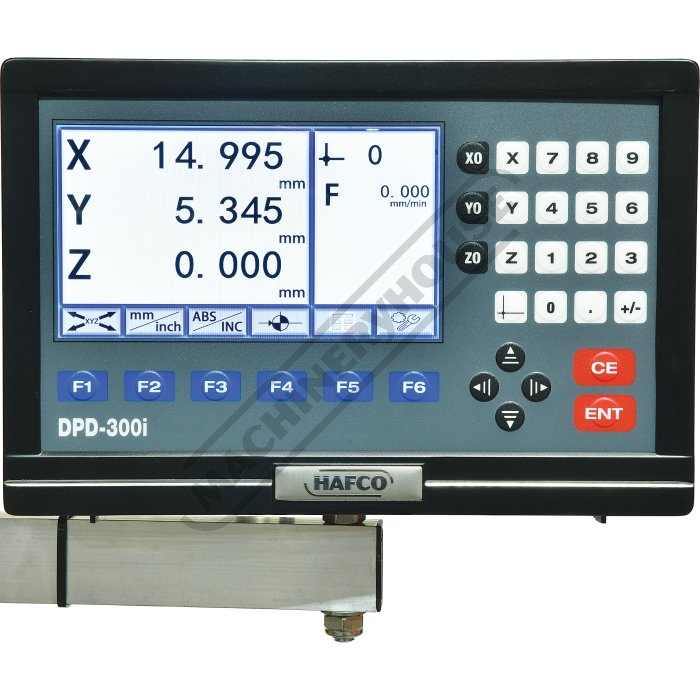

  • 3 Axis digital readout system

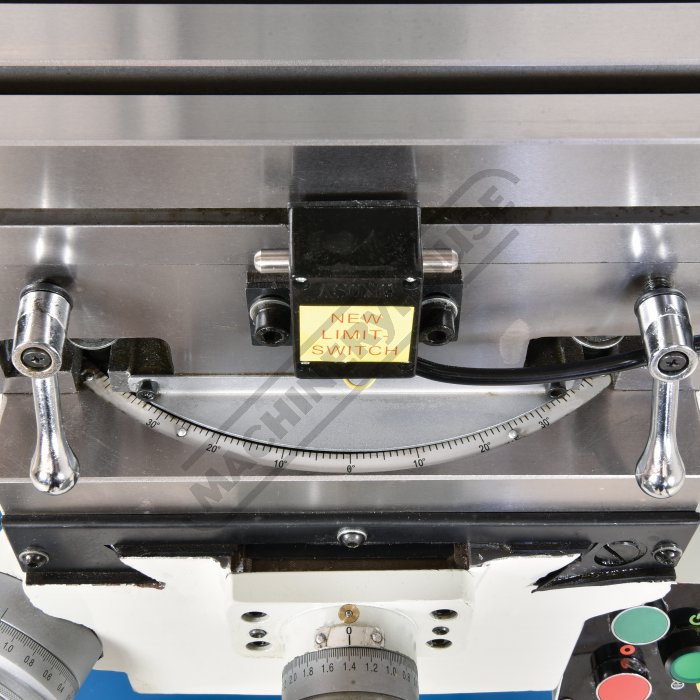

  • Swivel table left & right with graduated scale

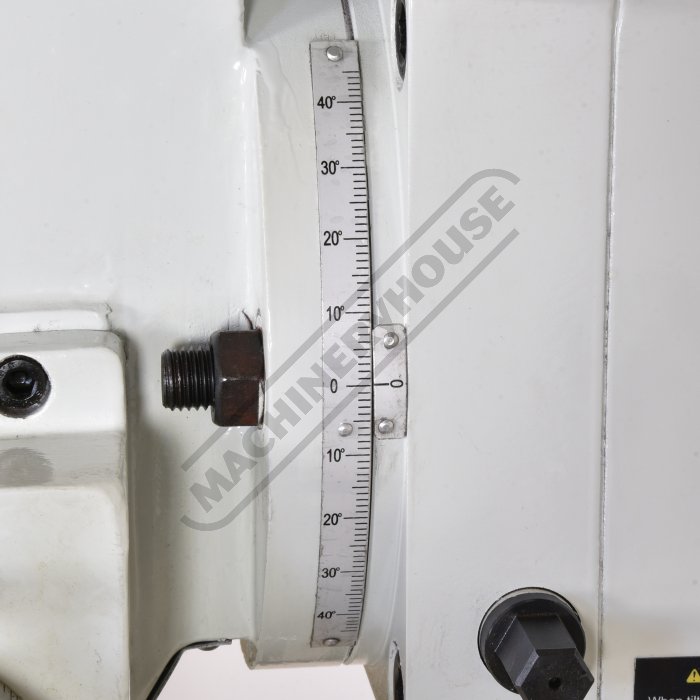

  • Mill head tilts to ±45º left to right

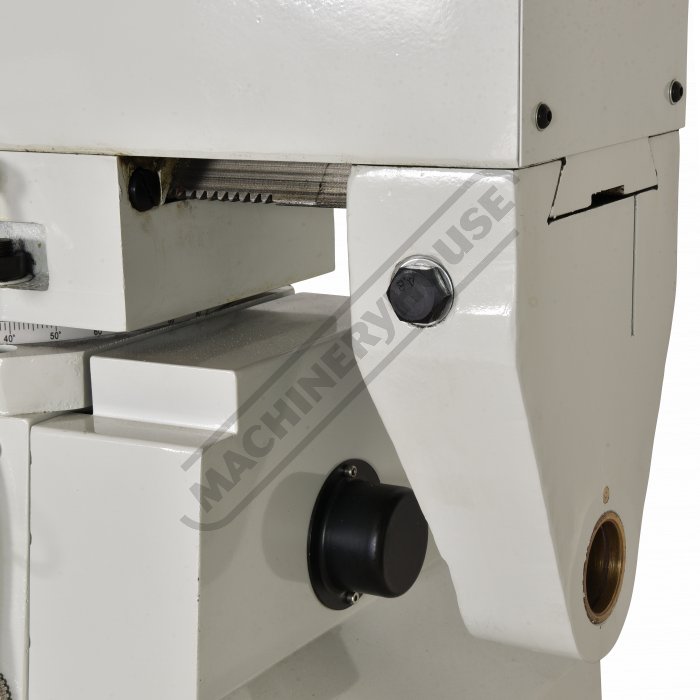

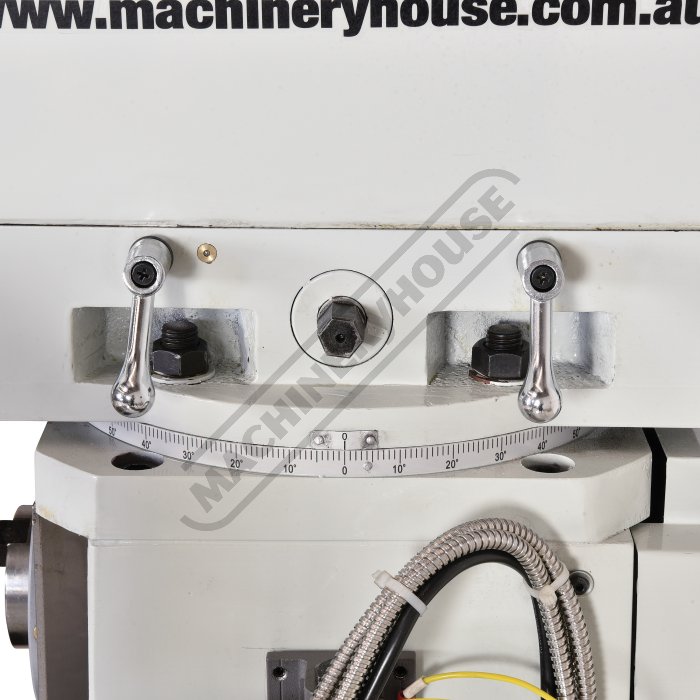

  • 450mm horizontally sliding and rotating ram

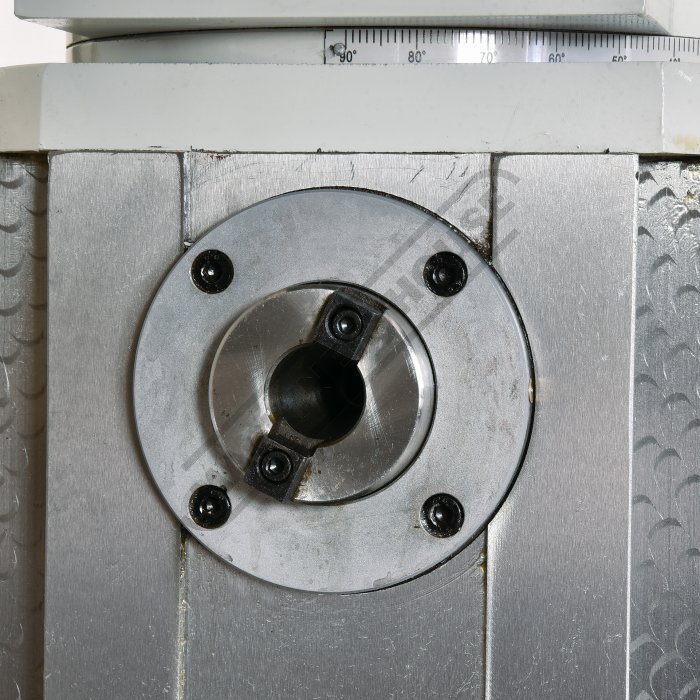

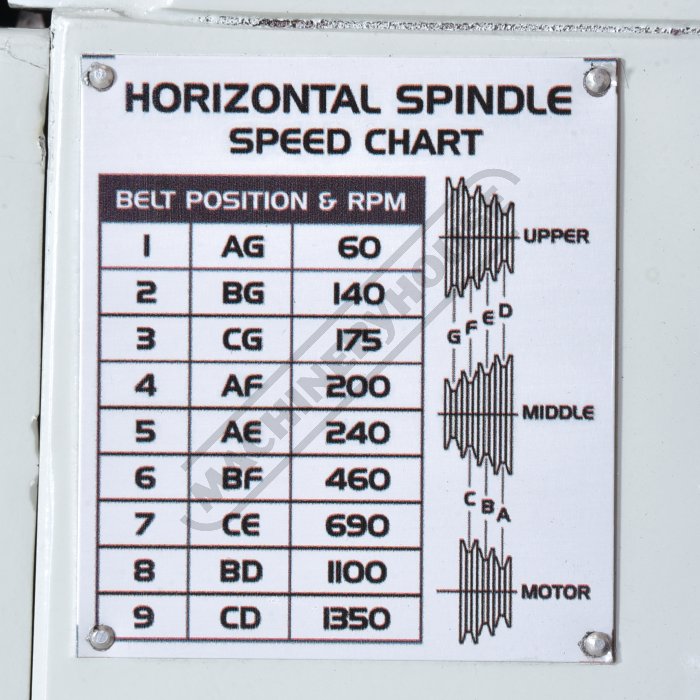

  • NT30 Horizontal and vertical spindles that are hardened and ground

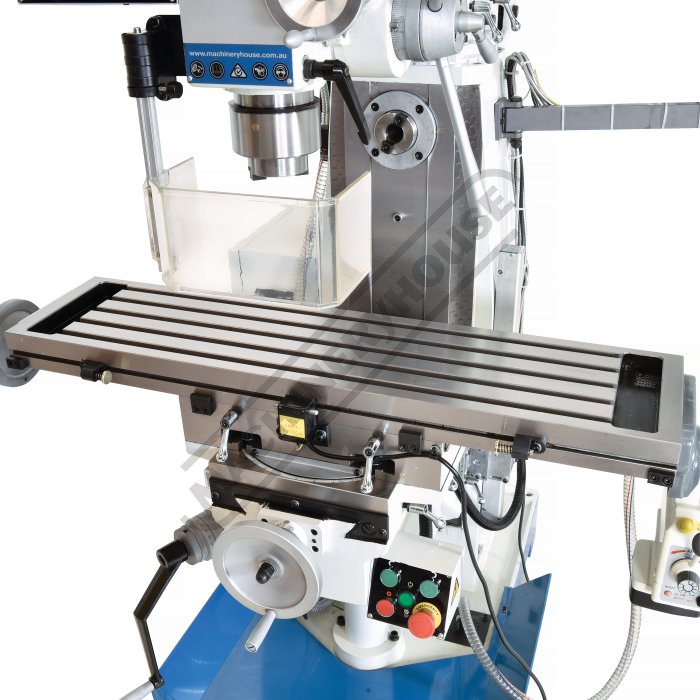

  • Precision-ground dovetail slide-ways and table
  • Precision milling table incorporating machined T slots

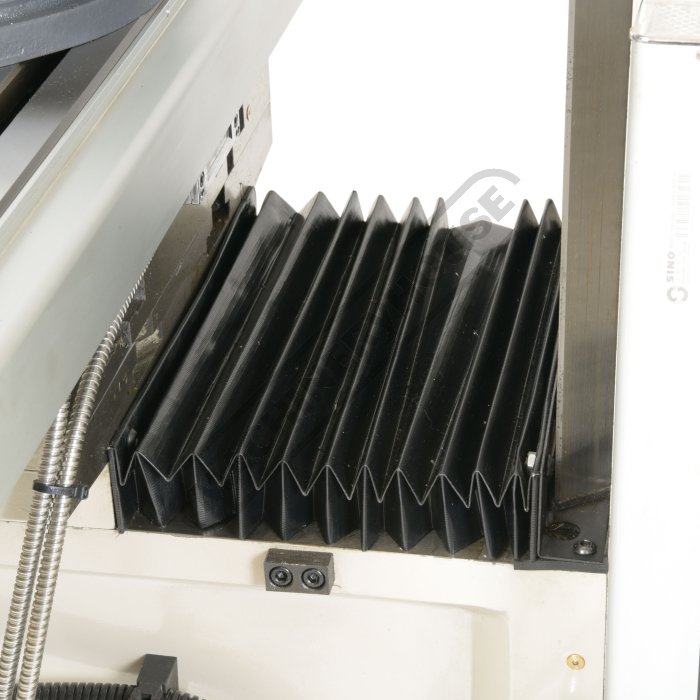

  • Rear concertina slide-way cover

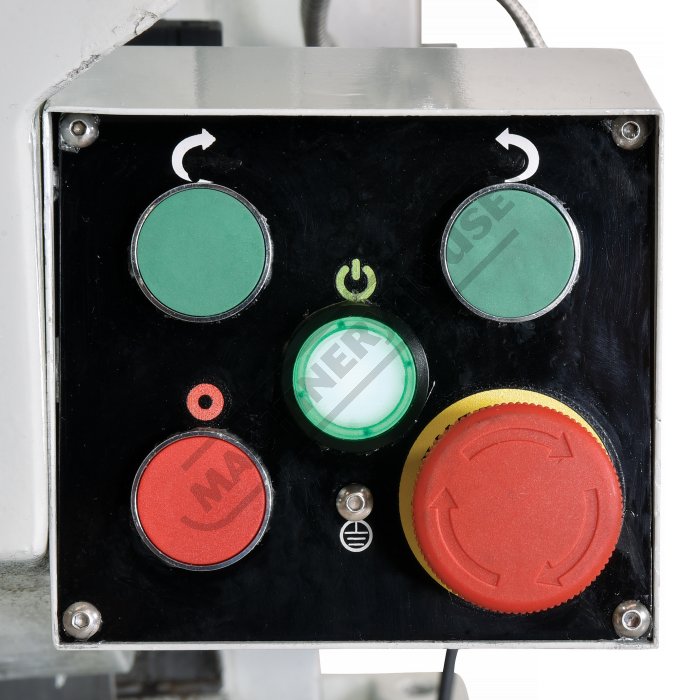

  • Forward and reverse button switch
  • Fine hand wheel operated quill feed
  • Swarf & splash tray

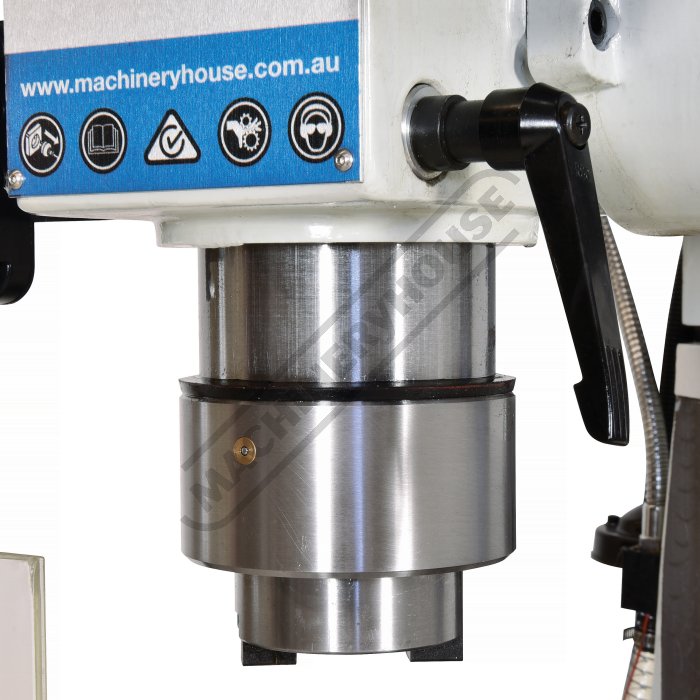

  • Spindle lock for quill

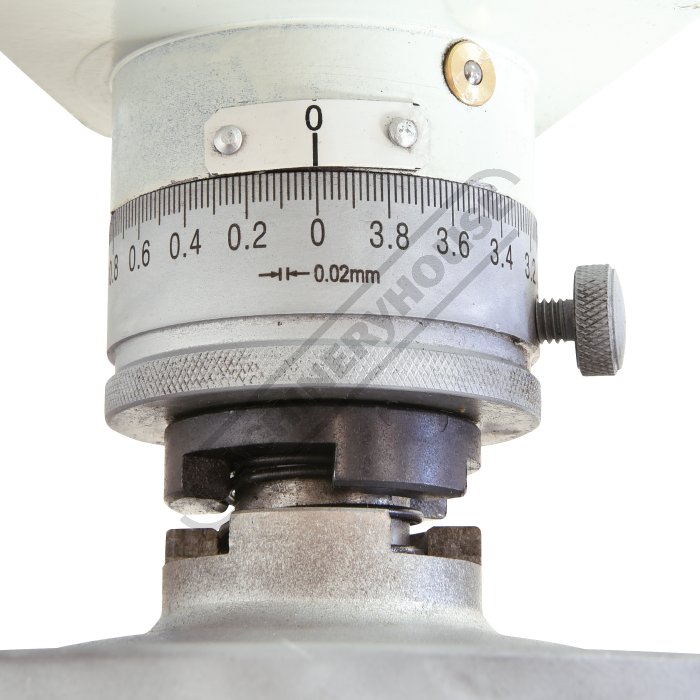

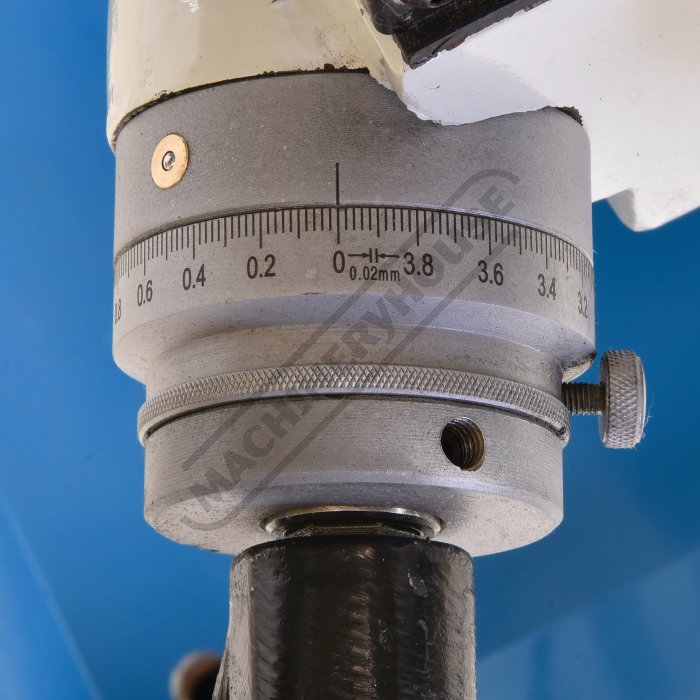

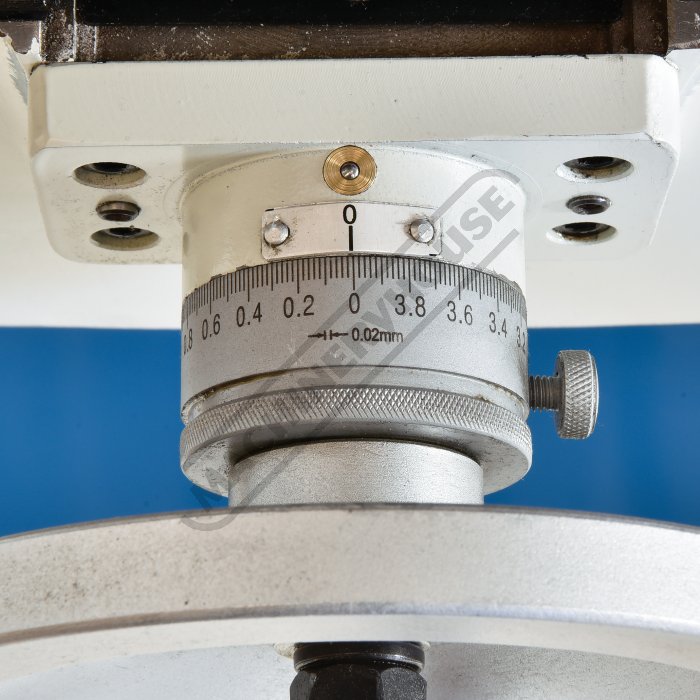

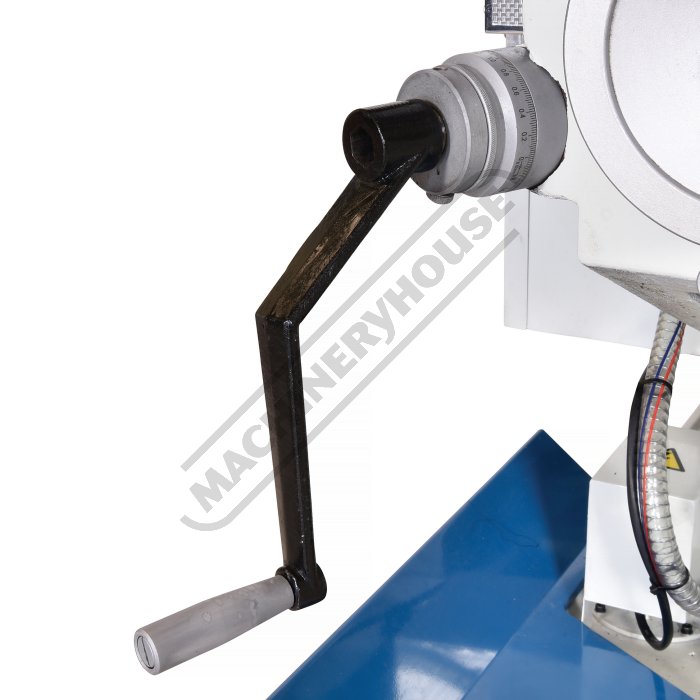

  • Metric dial graduations @ 0.02mm for X , Y & Z-Axis

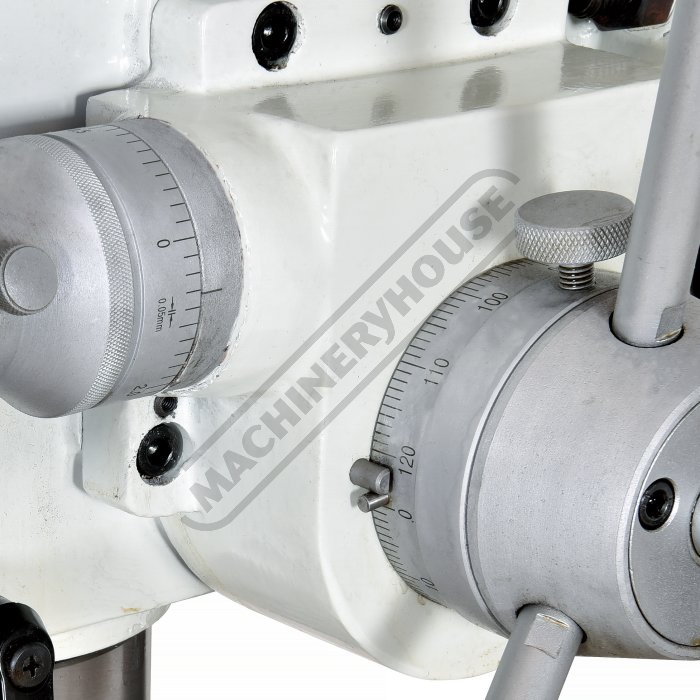

  • Vertical quill hand-wheel dial graduations @ 0.05mm
  • All slides utilise dovetail construction for maximum rigidity
  • Includes 1" & 1-1/4" arbors for the horizontal spindle

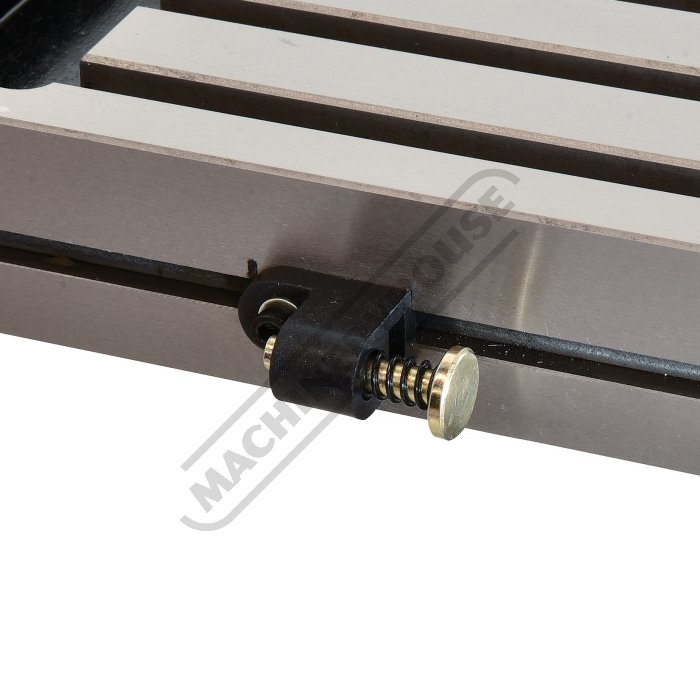

  • * Note: X & Y travels maybe reduced due to digital readout scales and safety stops
  • * Note: Optional Y & Z power feeds require additional parts & fitting (not included)

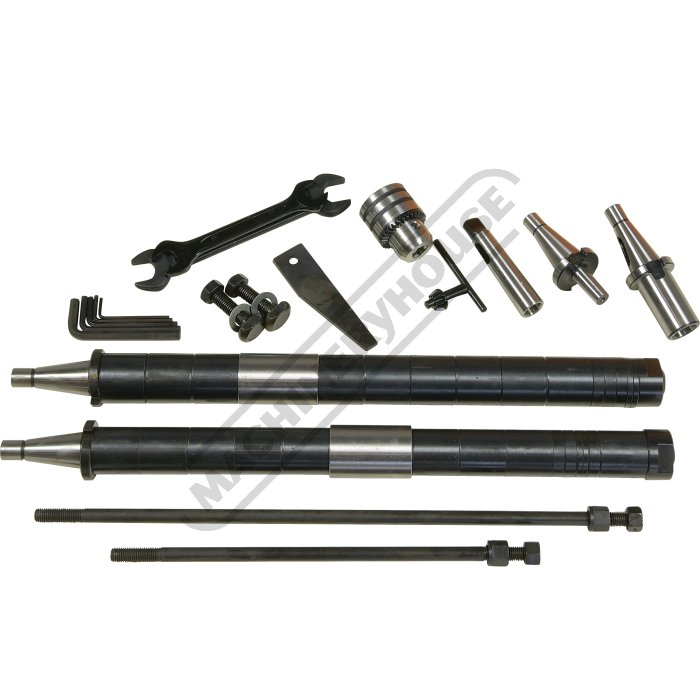

Includes

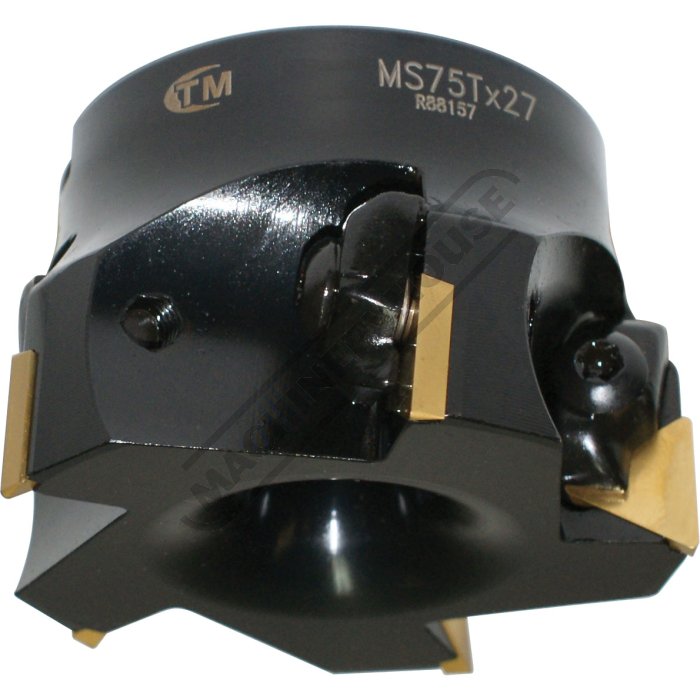

  • 75mm Face Mill Cutter (M512)

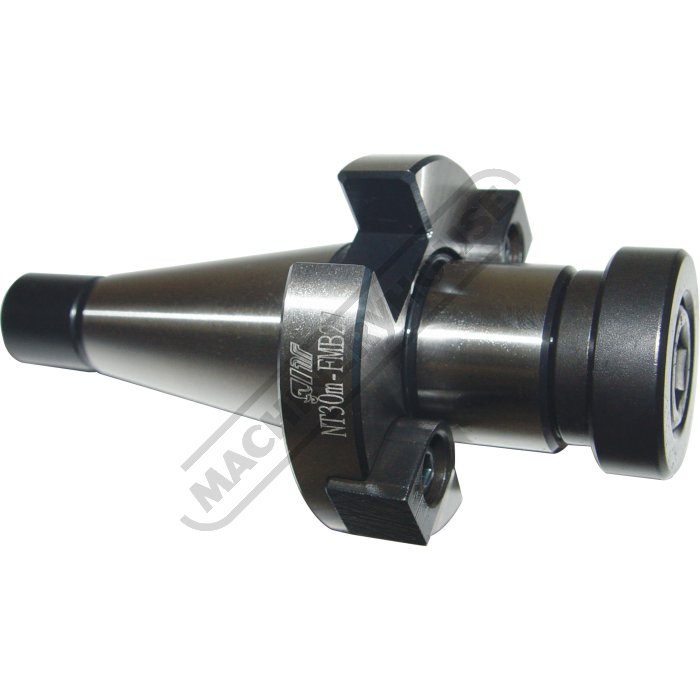

  • NT30 x 27mm Face Mill Arbor (M542)

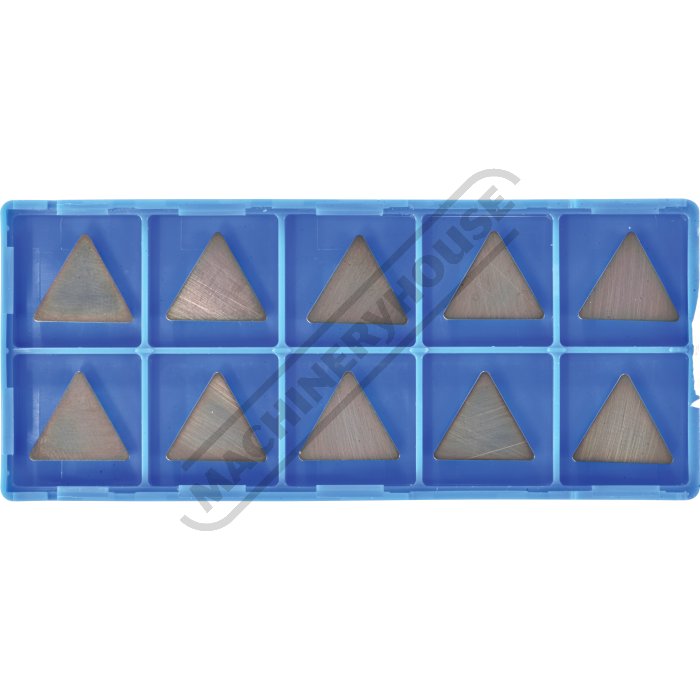

  • Pkt of 10 Milling Inserts (L066)

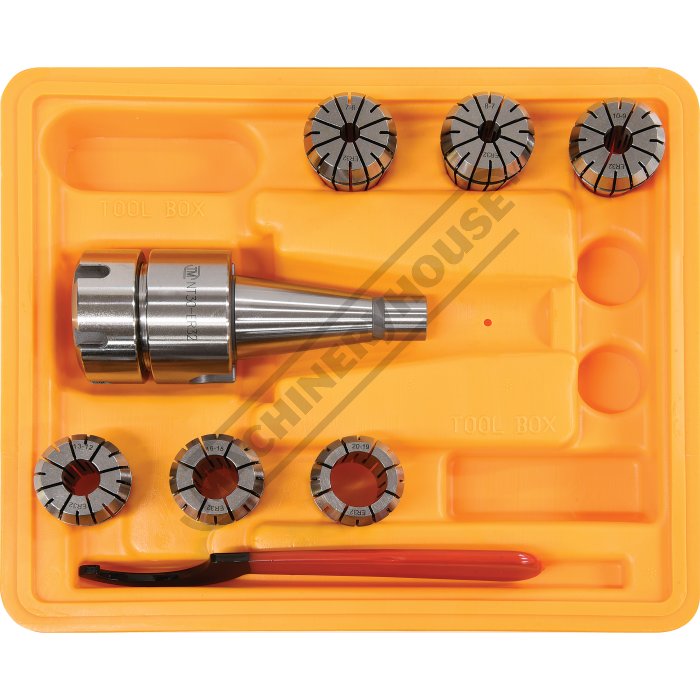

  • NT30 x 6 Piece Collet Chuck Set (C9245)

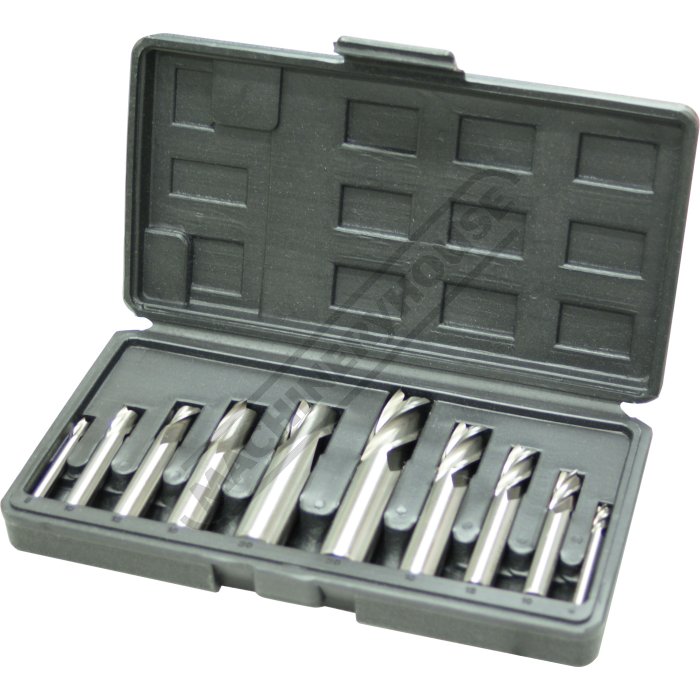

  • 6-20mm Metric End Mill & Slot Drill Set (M3301)

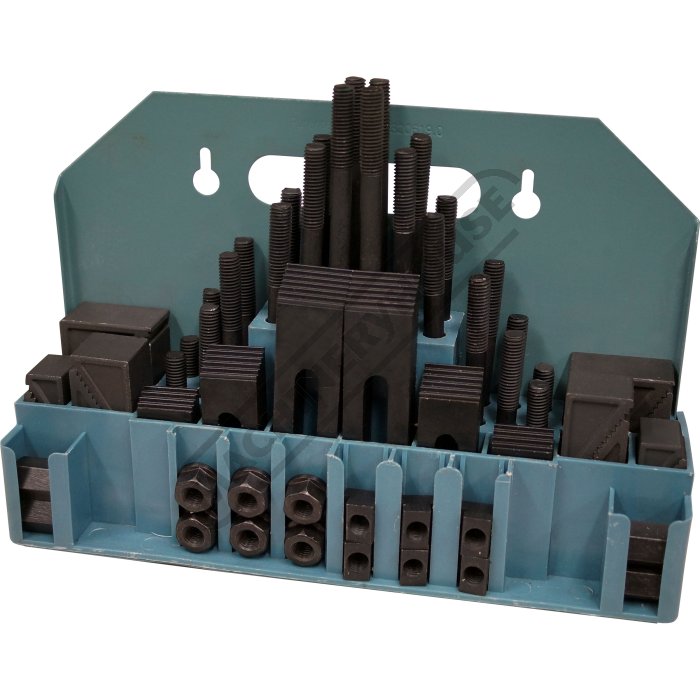

  • 14mm Clamp Kit (C0965)

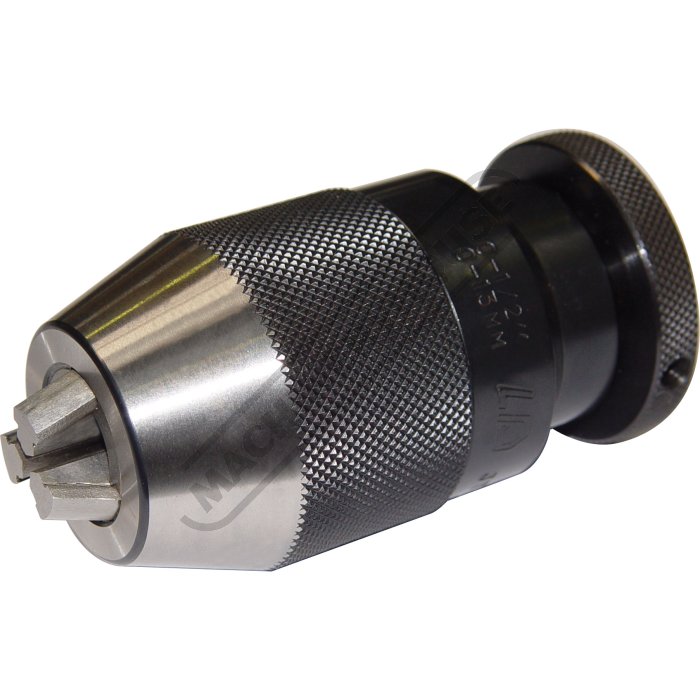

  • 13mm Keyless Drill Chuck (C292)
  • 100mm- BS-0 Dividing Head (D001)
  • 130mm 3 Jaw Lathe Chuck (C280)
  • Electronic inverter variable spindle speeds
  • 3 Axis digital readout system

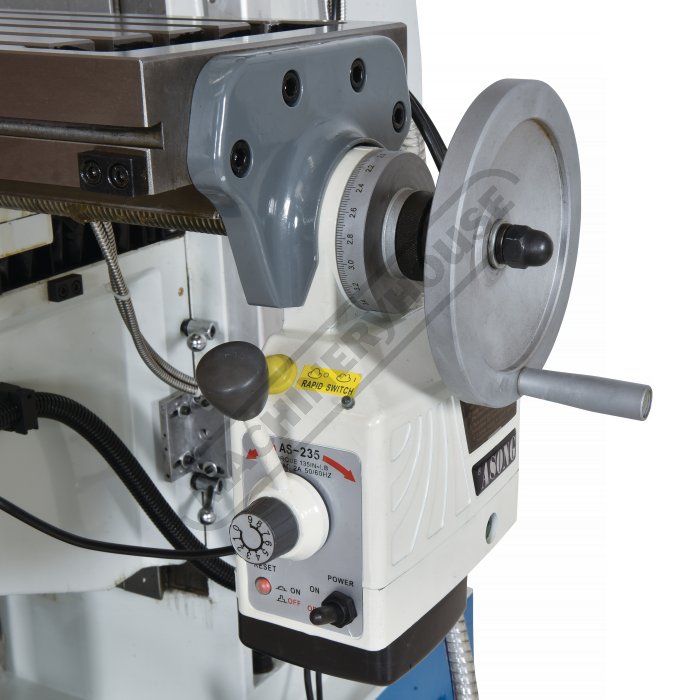

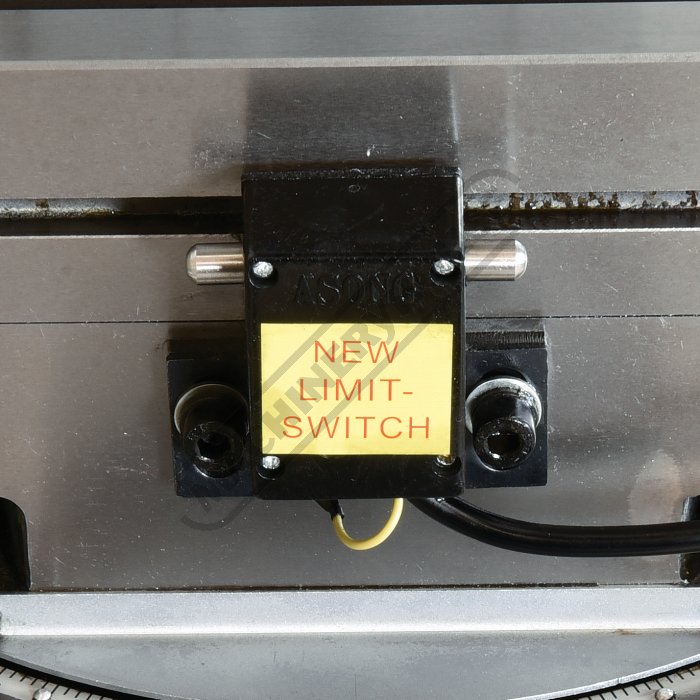

  • X-Axis power-feed

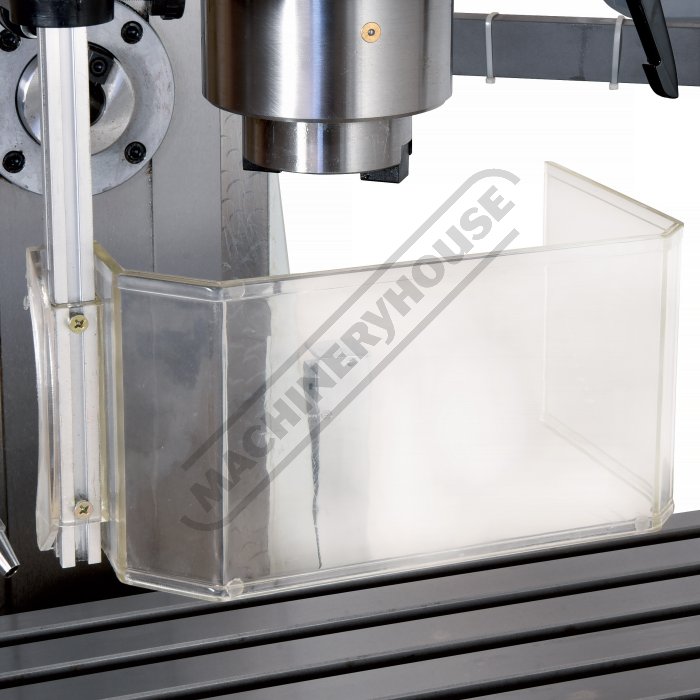

  • Safety cutter guard
  • Swarf tray

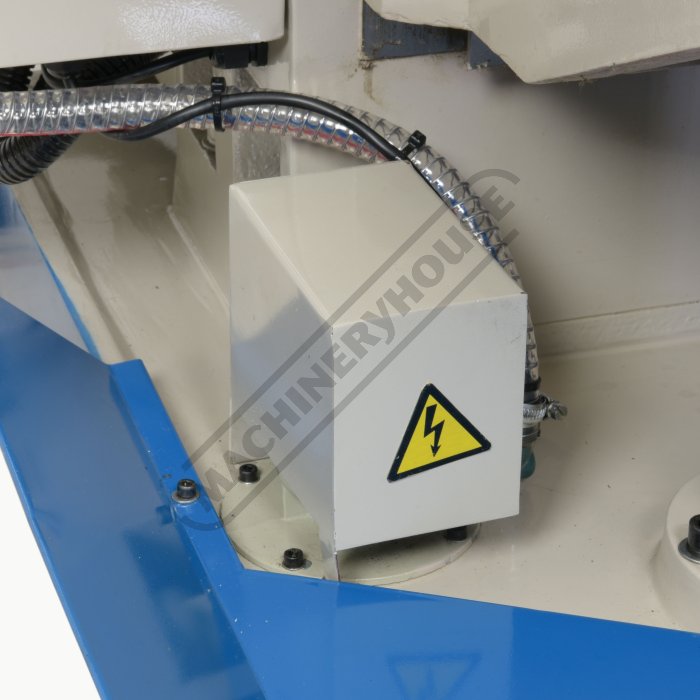

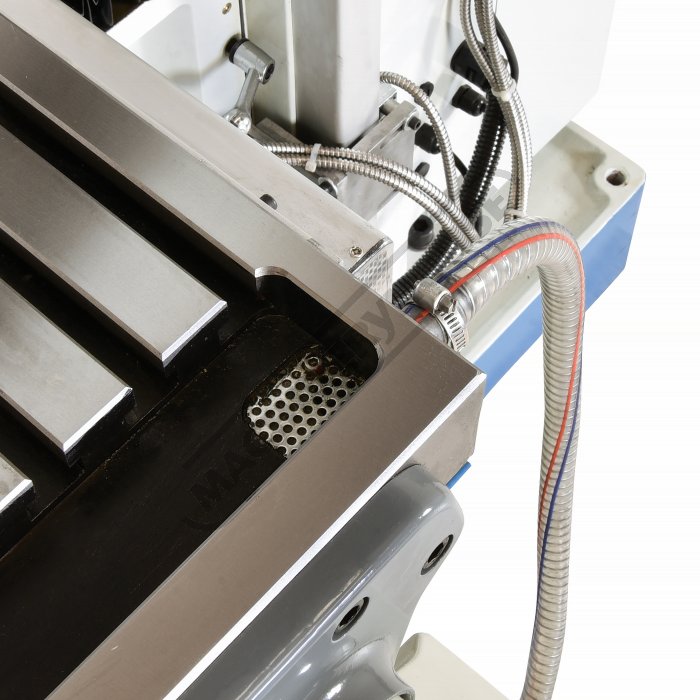

  • Coolant system

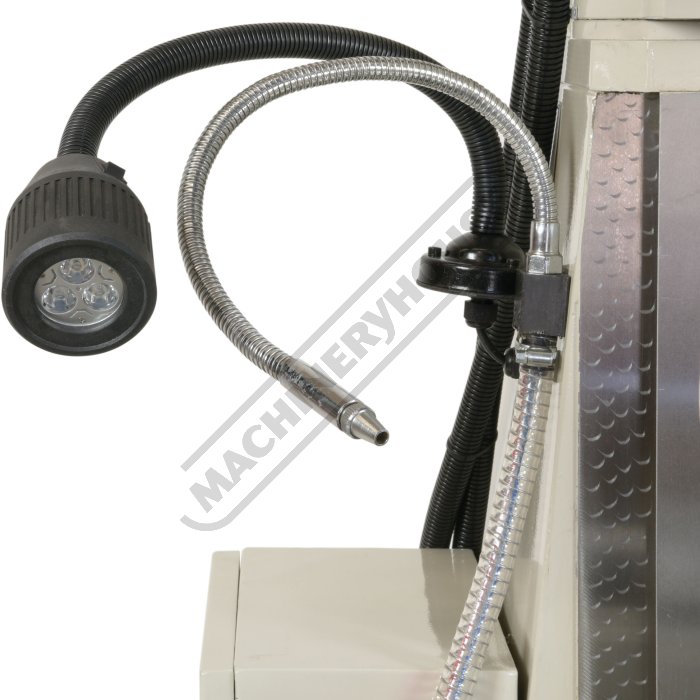

  • LED work light

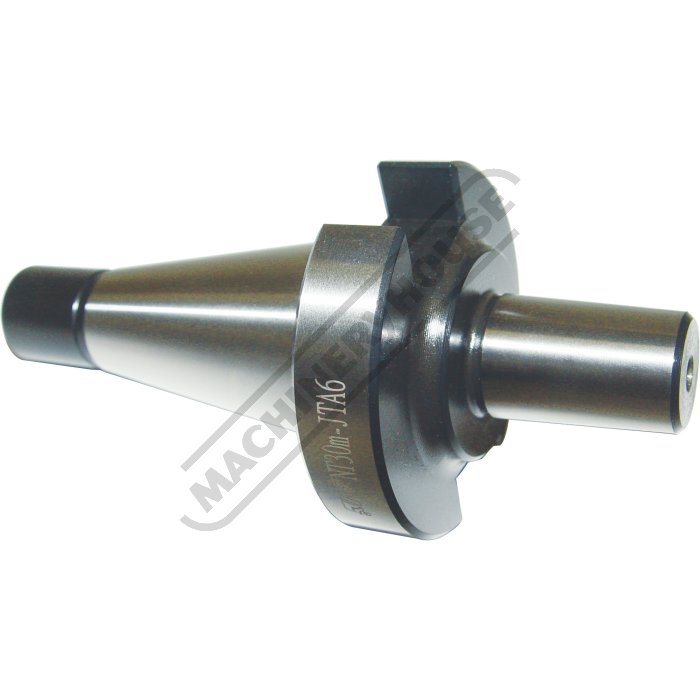

  • Drill chuck & arbor
  • NT30 to 3MT adaptor
  • 2MT & 3MT adaptors
  • Drawbar M12 thread

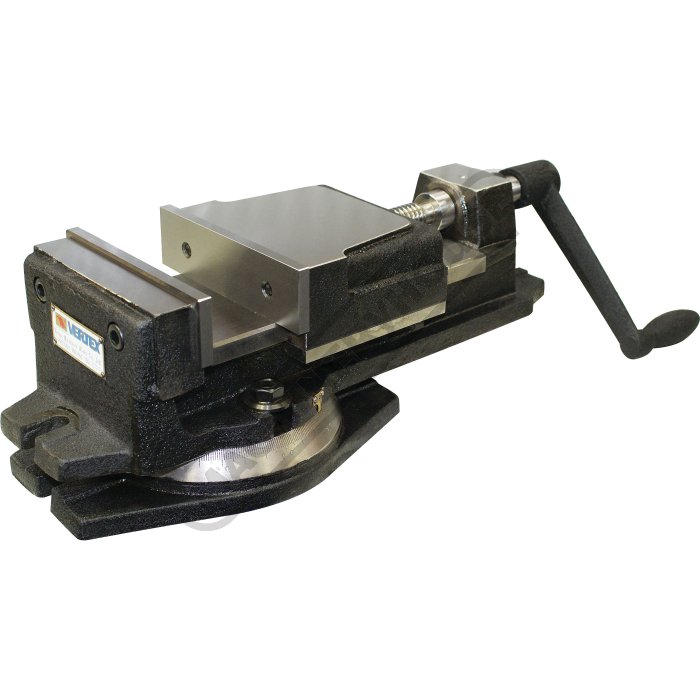

Recommended Accessories
