NSW Schools / TAFE F80TC Opti mill CNC Milling Machine

Description Specifications Compare Downloads

Description

NSW Schools / TAFE - F80TC Opti-mill CNC Milling Machine

(X) 400mm (Y) 250mm (Z) 400mm

NSW Contract Item No.33B

Overview

Designed and Engineered in Germany the OPTIMUM CNC range is a market leader in Europe and is now available in Australia through Hare and Forbes Machinery House. Offering exceptional value for money the OPTIMUM range can have you set up for in house CNC machining at a fraction of the financial outlay previously required.

Features

Siemens 808AD CNC control
Travel X 450mm, Y 260mm, Z 450mm
Table Size 800mm x 260mm
Table load capacity 200kg
BT40 - 10,000rpm Spindle
12 tool automatic tool change
3-Axis linear guide-ways
Axis servo motor control
Flood coolant system
High output LED work light
Central lubrication unit

Safety Features

Full CE Safety enclosure with Safety PLC

Includes

3 x (T220) BT40 x ER32-70 Collet Chucks
2 x (T165) BT40-SLA16 Side Lock Holders (BT40)
1 x (T167) BT40-SLA20 Side Lock Holder (BT40)
1 x (T155) BT40-FMB27-45 Face Mill Arbor
1 x (T194) BT40-APU16-120 Drill Chuck BT APU Type
8 x (T142) MAS P40T 45º Pull Studs
1 x (C922) ER32 Collet Set - 18 Piece
1 x (C932) ER32 Collet Chuck Wrench
1 x (T320) VTS-BT40 Tool Setting Stand

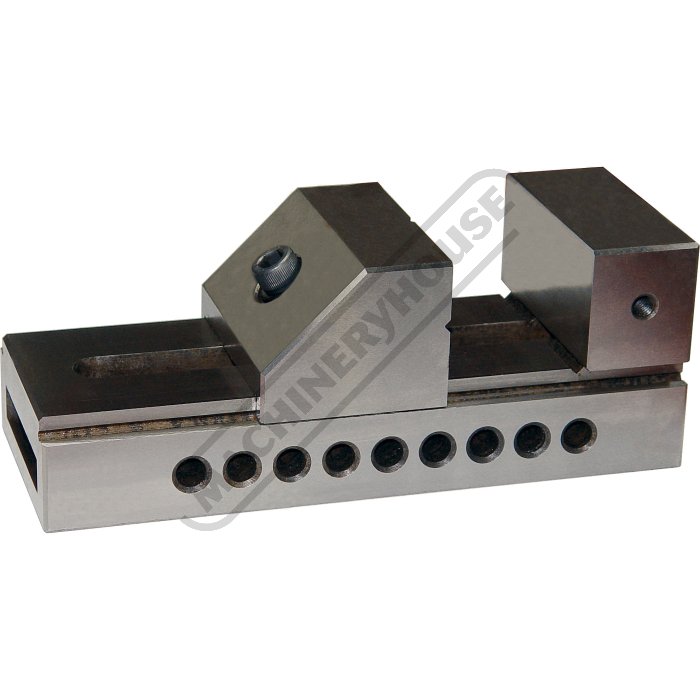

1 x (V365) 73mm Toolmakers vice

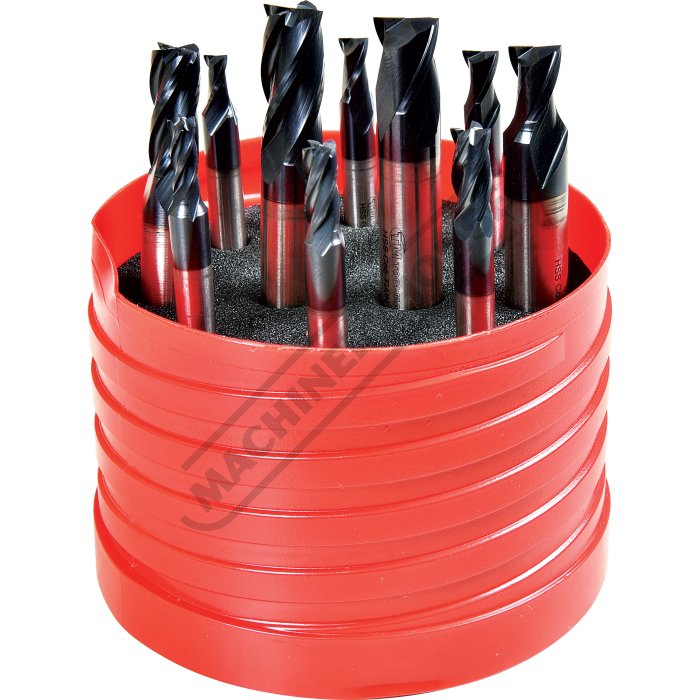

1 x (M350) 10pc Metric HSS Milling Cutter Set 4-10mm

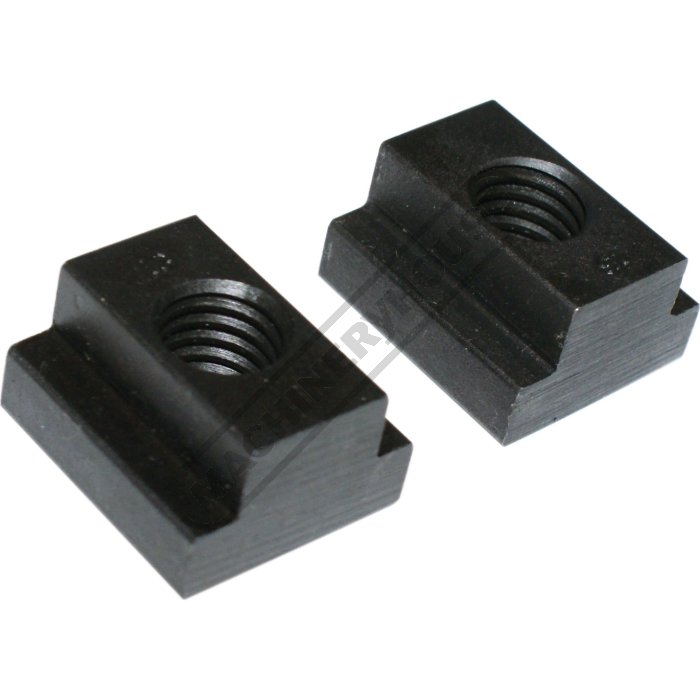

1 x (C084) 1/2" Tee nuts suit 5/8" table slot

Optional Accessories

Delivery & installations
Training packages in Hare & Forbes Tech Centre

Specifications

Compare Product Range

Specifications

ORDER CODE	K8518
NSW Contract No.	NSW Item No. 33B
MODEL	Schools / TAFE Opti-mill F80TC
Digital Readout	Siemens 808AD CNC control
Spindle Taper	BT40
Type of Slides	Linear Guide-Ways
(mm)Table Size	800 x 260
(mm)T-Slot	16
(mm)Longitudinal Travel (X-Axis)	450
(mm)Cross Travel (Y-Axis)	260
(mm)Vertical Travel (Z-Axis)	450
(kg)Work Table Load Capacity	200
(No. / rpm)Spindle Speeds (Vertical)	50 - 10000rpm
(kW / hp)Motor Power (Vertical)	3.3 / 4.5
(V / amp)Motor Voltage	415
(kg)Nett Weight	1800
