BMGEVS250 Industrial Turret Milling Machine Horizontal & Vertical

Home School-TAFE Equipment Metal Working Machinery TAFE Milling Machines TAFE M586E

BM-GEVS250 - Industrial Turret Milling Machine - Horizontal & Vertical

Table Travel: (X) - 700mm (Y) - 250mm (Z) - 440mm

Includes DRO, BS-2 Universal Dividing Head & Pneumatic Drawbar System

M586E 1 of 35

Horizontal Head Setup 2 of 35

Horizontal Head Setup Close Up 3 of 35

Universal Dividing Head 4 of 35

Swivel Arm Control Panel 5 of 35

3 Axis Digital Read Out 6 of 35

Control Panel 7 of 35

Gear Drive Table Feed 8 of 35

Horizontal Speed Selection Levers 9 of 35

Spindle Controls 10 of 35

Swivel Table 11 of 35

Tilting Mill Head Left & Right to 90 Degrees 12 of 35

Rotating Horizontal Ram 13 of 35

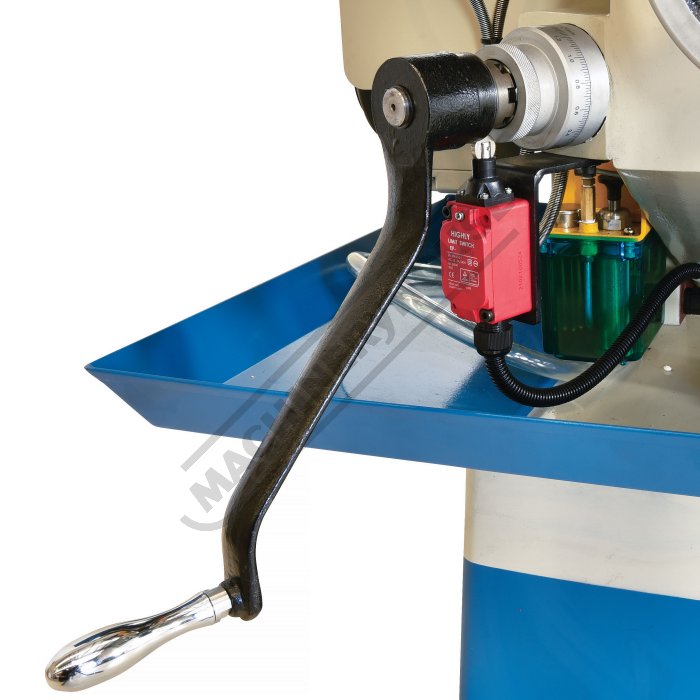

Z Axis Feed Handle with Micro 14 of 35

Z Axis Rapid Motor 15 of 35

Automatic Slideway Lubrication System 16 of 35

Y Axis Table Locks 17 of 35

Oil Feeder Distribution Block 18 of 35

Y Axis Feed Handle 19 of 35

X Axis Feed Handle 20 of 35

Air Powered Draw Bar System 21 of 35

Horizontal Spindle 22 of 35

Quill Feed Depth Stop 23 of 35

Variable Inverter Speed 24 of 35

Air Powered Draw Bar Control 25 of 35

Mill Head Right Side View 26 of 35

Quill Feed Engagement Dial 27 of 35

3 Speed Quill Feed 28 of 35

Mill Head Left Side View 29 of 35

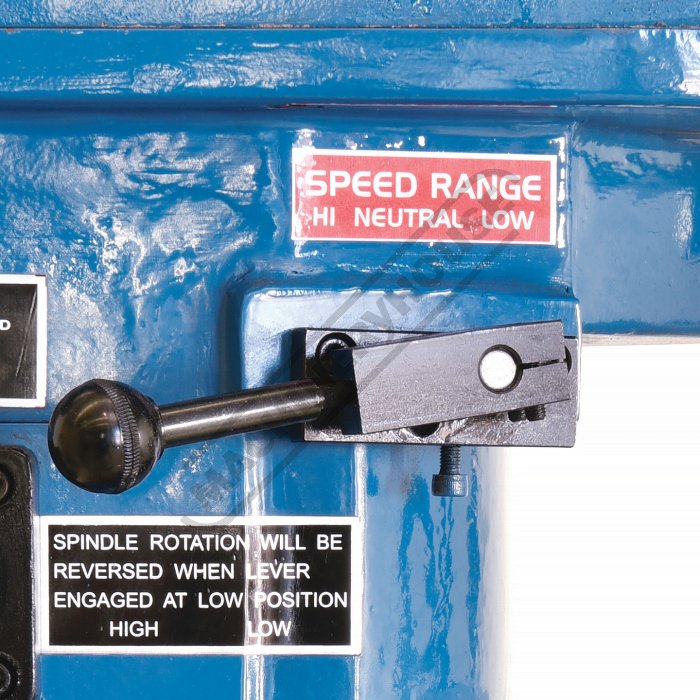

High Low Spindle Speed Gear Lever 30 of 35

Includes Horizontal Arbor 31 of 35

Left View 32 of 35

Removed Dividing Head 33 of 35

Removed Dividing Head Horizontal Head Setup 34 of 35

Removed Dividing Head Horizontal Head Setup Close Up 35 of 35

HAFCO-METALMASTER

Order Code: M586E

ex-gst

inc-gst

^$ 33,950.00

^$ 37,345.00

415V / (NO PLUG)
1 Year Warranty

Made in Taiwan

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

BM-GEVS250 - Industrial Turret Milling Machine - Horizontal & Vertical

Table Travel: (X) - 700mm (Y) - 250mm (Z) - 440mm

Includes DRO, BS-2 Universal Dividing Head & Pneumatic Drawbar System

Features

Vertical spindle, Yaskawa inverter variable speed drive 60 – 3600rpm
Horizontal spindle, 40-980 rpm speeds controlled by gear selection levers with oil bath lubrication
5HP vertical & 3HP horizontal spindle motors provide exceptional machining power
1100 x 250mm hardened and ground worktable with ±45º left and right swivel
NT40 spindle taper with Ø105mm chrome hardened and ground quill
Automatic quill feed 0.037, 0.076, 0.152mm/rev
Vertical mill head swivels ±45º to left and right
Spindle guard with micro switch
3-Axis digital readout fitted
Pneumatic draw bar system for quick and effortless tool change
Heavy duty gear driven X Axis power-feed
Z-Axis powered elevating motor
Metric dial graduations @ 0.02mm for X , Y & Z-Axis
Meehanite castings for superior rigidity
Hardened and ground dovetail guideways
Turcite-B coating on X & Y-Axis ways for wear resistance and smooth operation
Auto lubrication system maintains proper lubrication to all slideways
Universal BS-2 dividing head with chuck and guarding

Includes

3-Axis Digital Readout Fitted
Automatic Lubrication System
LED Lamp
Coolant System
Slide-way Covers
Safety Cutter Guard
Swarf Tray
1" Horizontal Arbor
2 x Horizontal Arbor Supports
2 x M16 Drawbars

Specifications

Compare Product Range

Specifications

ORDER CODE	M585E
MODEL	BM-GEVS250
Digital Readout	3-Axis Digital Readout
Spindle Taper	NT40
(mm)Quill Travel / Diameter	127 / 105
(mm)Ram Stroke	300
(mm)Spindle to Table	470
Type of Slides	Dovetail (X,Y & Z)
(mm)Spindle to Column	500
(mm)Table Size	1100 x 250
(mm)T-Slot	5/8"
(mm)Longitudinal Travel (X-Axis)	700
(mm)Cross Travel (Y-Axis)	250
(mm)Vertical Travel (Z-Axis)	440
(kg)Work Table Load Capacity	300
Swivel Head (Left - Right)	±90º
(mm/min)Power Feed Longitudintal (X-Axis)	0.02 - 0.20
Power Feed Cross (Y-Axis)	Optional
Power Feed Vertical (Z-Axis)	Rapid
(mm/rev)Quill Feed Rate/Rev	0.037 / 0.076 / 0.152
(No. / rpm)Spindle Speeds (Vertical)	Variable (60 - 3600)
(No. / rpm)Spindle Speeds (Horizontal)	6 (40 - 980)
(kW / hp)Motor Power (Vertical)	3.75 / 5
(kW / hp)Motor Power (Horizontal)	2.25 / 3
(V / amp)Motor Voltage	415
(kg)Nett Weight	1350
