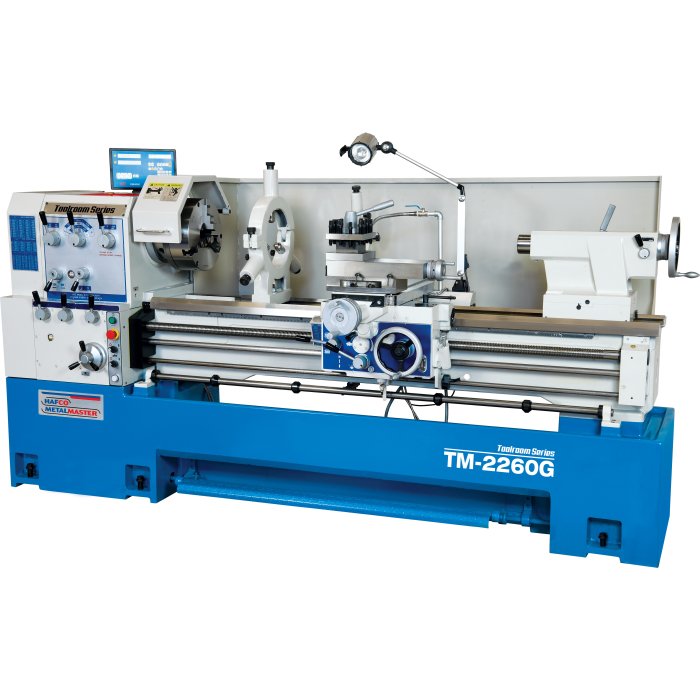

TM-2260G - Centre Lathe

Ø560 x 1500mm Turning Capacity - Ø105mm Spindle Bore

Includes Digital Readout System

L637D 1 of 33

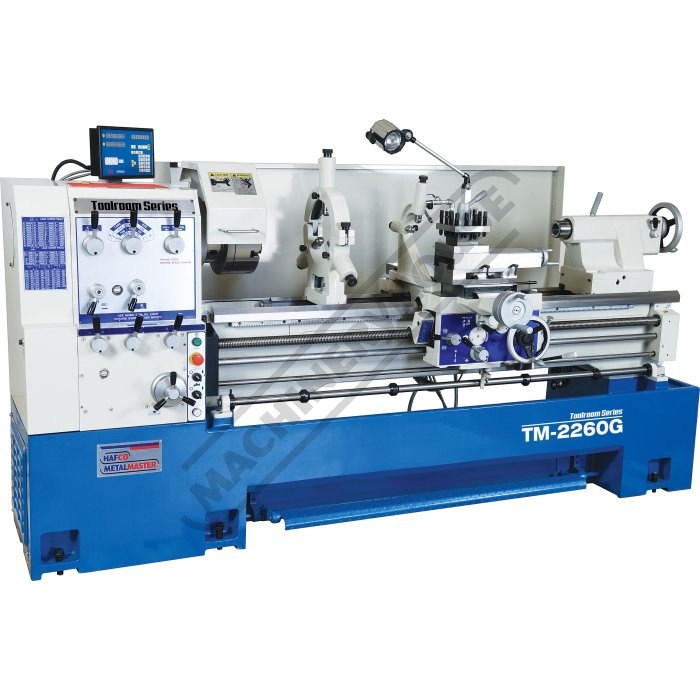

Left View 2 of 33

2 Axis Digital Readout 3 of 33

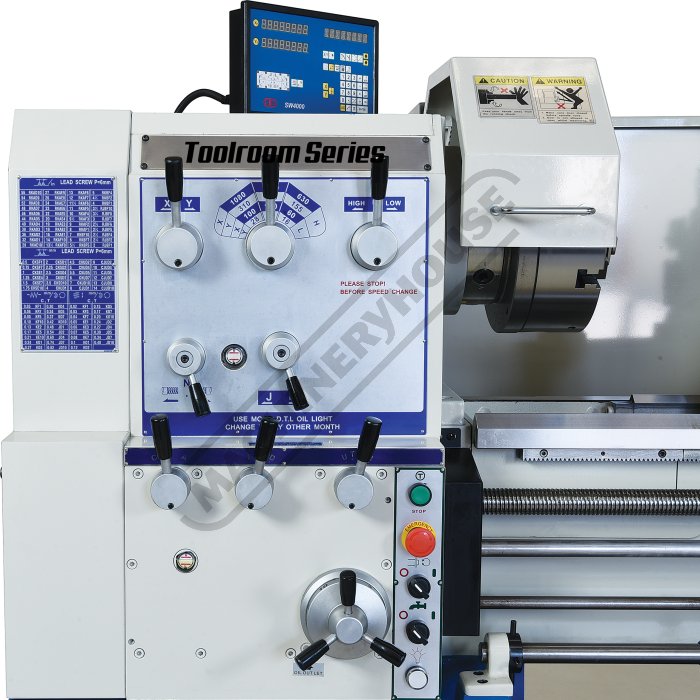

Headstock 4 of 33

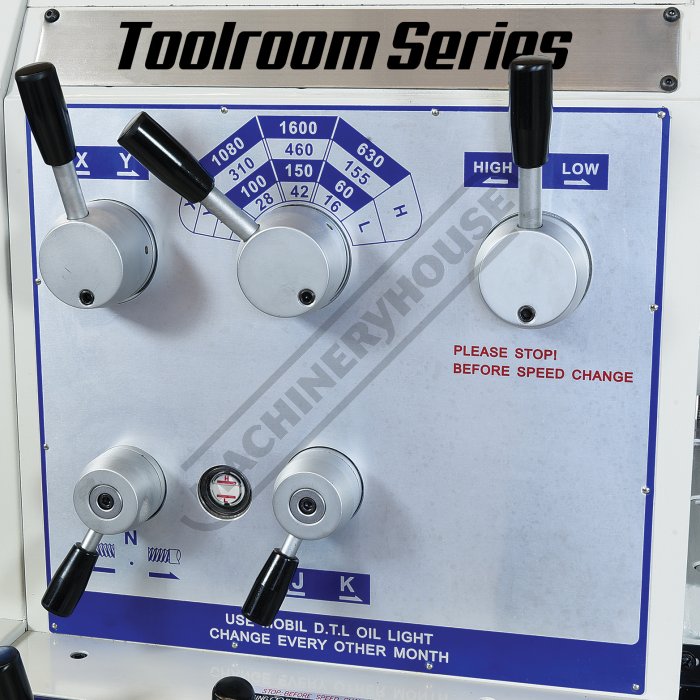

Spindle Speed Selectors 5 of 33

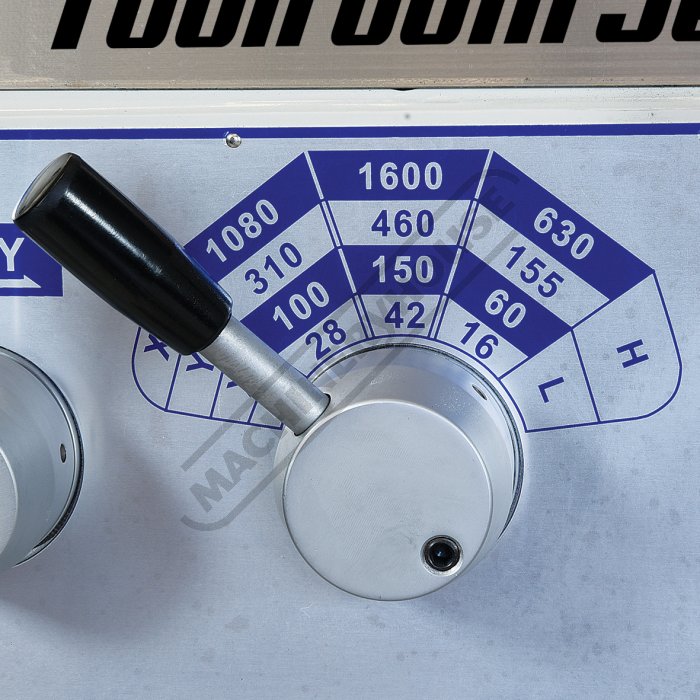

Spindle Speeds 6 of 33

Universal Enclosed Gearbox 7 of 33

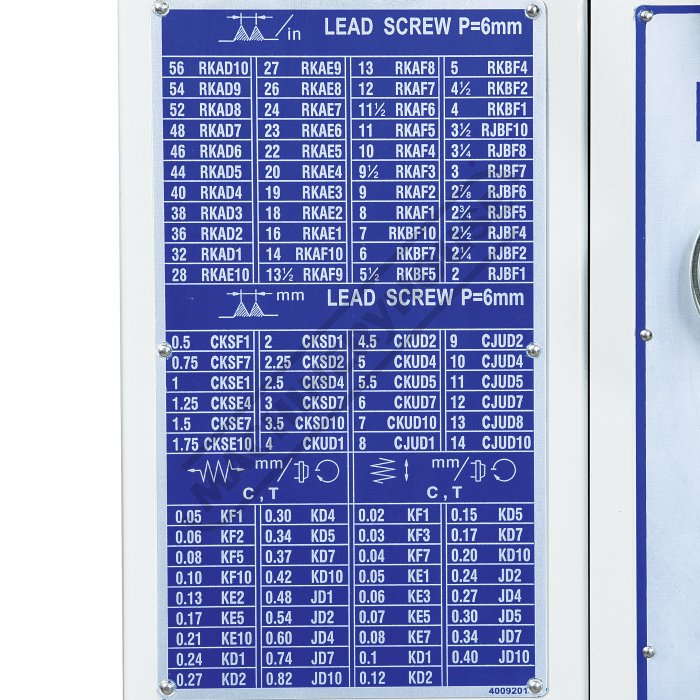

Thread Charts 8 of 33

Safety Chuck Guard 9 of 33

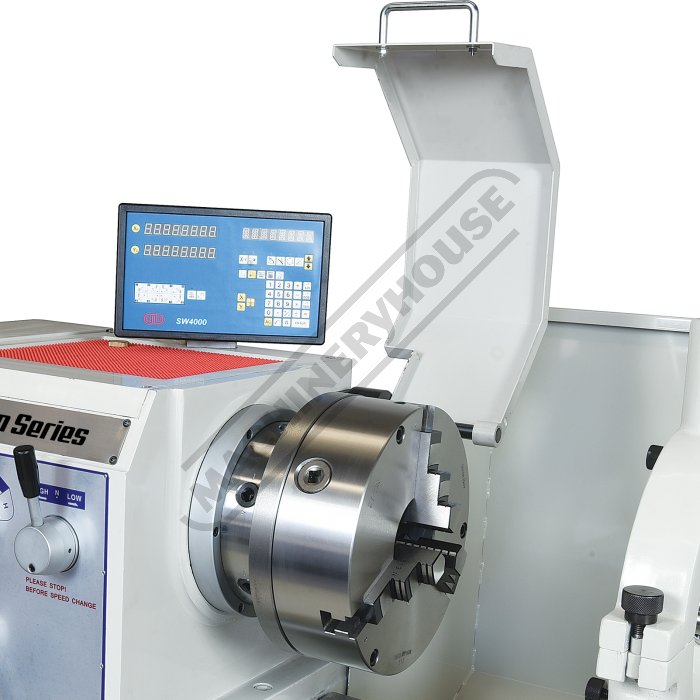

Safety Chuck Guard Open 10 of 33

3 Jaw Chuck 11 of 33

Saddle Left View 12 of 33

Saddle Right View 13 of 33

3 Point Steady 14 of 33

2 Point Steady 15 of 33

Coolant System and Work Light 16 of 33

Toolpost 17 of 33

Compound Slide Angle Sclae 18 of 33

Spindle Engagement Lever 19 of 33

Saddle Lock 20 of 33

Saddle Hand Wheel 21 of 33

Adjustable 4 Position Length Stop 22 of 33

Cross Feed Hand Wheel 23 of 33

Compound Slide Hand Wheel 24 of 33

Thread Chasing Dial 25 of 33

Feed Engagement Levers 26 of 33

Tailstock 27 of 33

Tailstock Hand Wheel 28 of 33

Tailstock Hand Wheel 29 of 33

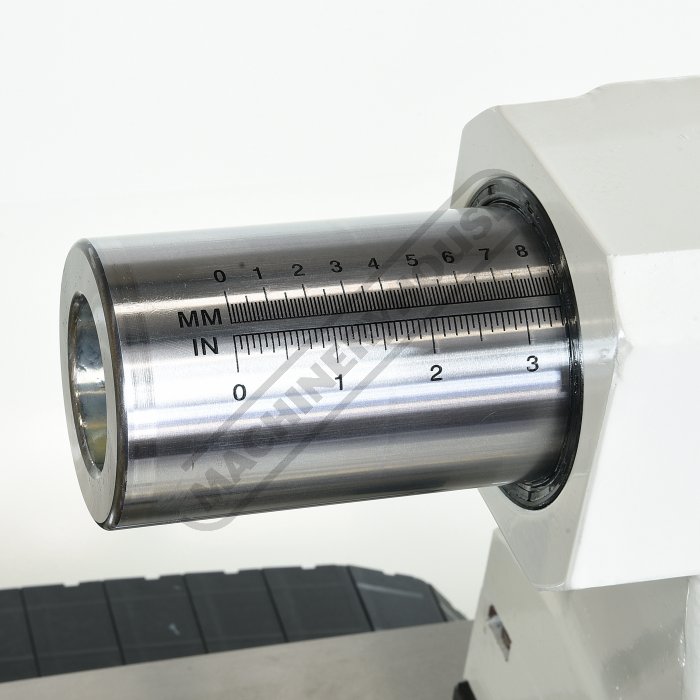

Tailstock Quill 30 of 33

Meehanite Cast Bed 31 of 33

Removable Gap Bed 32 of 33

Footbrake 33 of 33

HAFCO-METALMASTER

On Sale

Order Code: L637D

ex-gst

inc-gst

^$ 32,250.00

^$ 35,475.00

^$ 31,250.00

^$ 34,375.00

415V / (NO PLUG)
1 Year Warranty

Made in Taiwan

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

TM-2260G - Centre Lathe

Ø560 x 1500mm Turning Capacity - Ø105mm Spindle Bore

Includes Digital Readout System

Overview

The TM-2260G Industrial quality centre lathe is manufactured in Taiwan to a stringent precision engineering high tolerance & superior excellence to cope with any job or task its set out to achieve by the professional machinist, and importantly to deliver many years of valuable & reliable service.

One of the most forgotten & important feature in a quality lathe is the spindle bore support bearings & generally not mentioned or overlooked because they are hidden well within the headstock of the lathe. Not in this case as the TM-2260G is equipped with 3 x German quality SKF bearings offering excellent spindle support to handle extreme cutting loads to produce accurate work.

Another reliable feature in this range of precision lathes is the manufacturing process of the bed-ways, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

This lathe package is complete with the most desirable features required to turn out quality precise parts we all require from a metal turning lathe.

Features

2 Axis digital readout system
Triple SKF German made bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
High quality one-piece Meehanite cast base increases rigidity
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
350mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 788mm
Powered longitudinal and cross feeds
2 speed high/low lever on tailstock
Slide-way mechanical lubrication pump driven via the saddle hand-wheel
Adjustable 4 position length-stop mechanism for accurate repetitive operation
Dual calibrated dials incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Roller bearings inserted to assist tail stock movement
Oil sight glass for head stock, gearbox and apron
Low voltage LED work light
D1-8 camlock spindle for quick chuck removal
12 Spindle speeds from 16 - 1600rpm
Large 105mm spindle bore
7.5kW / 10HP 415V main motor

Includes

2 Axis digital readout system
310mm 3-jaw chuck with reverse jaws
400mm 4-jaw chuck
355mm face plate
Fixed steady with roller bearings
Travelling steady with roller bearings
4-position knock out feed system
Dead centres
Thread chasing dial
Foot brake
Coolant system
LED Work light
Rear splash guard
Spindle reducing bush
Instruction booklet

Specifications

Compare Product Range

Specifications

ORDER CODE	L637D
MODEL	TM-2260G
(mm)Swing Over Bed	560
(mm)Distance Between Centres	1500
(mm)Spindle Bore	105
(mm)Swing In Gap	788
(mm)Swing Over Cross-slide	340
Digital Readout System Fitted	Yes
Quick Change Toolpost Fitted	Optional
Taper Turning Attachment	Optional
Coolant System	Yes
(mm)Tool Height To Suit	25
(mm)Centre Height	280
Spindle Nose Size or Type	D1-8 Camlock
(mm)Bed Width	350
(MT)Headstock Spindle Taper	7
(MT)Tailstock Taper	5
(mm)Cross Slide Travel	300
(mm)Compound Slide Travel	200
Leadscrew Type	Metric
(mm/rev)Metric Cross Feed (X-Axis)	0.02 - 0.4
(mm/rev)Metric Longitudinal Feed (Z-Axis)	0.05 - 0.82
(No. / mm)Metric Thread Steps & Pitch	24 (0.5 - 14)
(No. / TPI)Imperial Thread Steps & TPI	44 (2 - 56)
(mm)3 Jaw Chuck Diameter	310
(mm)4 Jaw Chuck Diameter	400
(No. / rpm)Spindle Steps / Speeds	12 (16 - 1600)
(kW / hp)Motor Power	7.5 / 10
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	2550
