CL-460 - Centre Lathe
Ø460 x 1000mm Turning Capacity - Ø80mm Spindle Bore
Includes Digital Readout System, Quick Change Toolpost, Taper Turning Attachment & Auto Slide-way Lubrication
L606D
1 of 39
2 Axis Digital Readout
2 of 39
Safety Chuck Guard
3 of 39
Headstock Controls
4 of 39
Speed Selections Levers and Feed Levers
5 of 39
Feed Chart
6 of 39
Feed Lever
7 of 39
Automatic Lubrication System
8 of 39
Removable Gap Bedway
9 of 39
Hardened and Ground Bed
10 of 39
Taper Turning Attachment
11 of 39
Taper Turning Attachment Close Up
12 of 39
Taper Turning Attachment Full View
13 of 39
Saddle Front View
14 of 39
Quick Change Toolpost
15 of 39
Saddle Safety Guard
16 of 39
Saddle Safety Guard Shown Open
17 of 39
Leadscrew Covers
18 of 39
Thread Chasing Dial
19 of 39
Spindle Engagement Lever
20 of 39
Saddle Right View
21 of 39
Compound Slide
22 of 39
Compound Angle Scale
23 of 39
Saddle Controls
24 of 39
5 Position Adjustable Length Stop
25 of 39
Cross Feed Dial in Metric Mode
26 of 39
Cross Feed Dial in Imperial Mode
27 of 39
Compound Slide Dial in Metric
28 of 39
Saddle Dial In Metric
29 of 39
LED Worklight and Coolant Hose
30 of 39
LED Worklight Close Up
31 of 39
Fixed Steady with Roller Guides
32 of 39
Travelling Steady with Roller Guides
33 of 39
Tailstock
34 of 39
Tailstock Quill Graduations
35 of 39
Tailstock with Horizontal Adjustment
36 of 39
Tailstock Dial in Metric
37 of 39
Footbrake
38 of 39
80mm Spindle Bore
39 of 39
On Sale
Order Code: L606D
ex-gst
inc-gst
$
18,250.00
$
20,075.00
$
16,950.00
$
18,645.00
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description
CL-460 - Centre Lathe
Ø460 x 1000mm Turning Capacity - Ø80mm Spindle Bore
Includes Digital Readout System, Quick Change Toolpost, Taper Turning Attachment & Auto Slide-way Lubrication

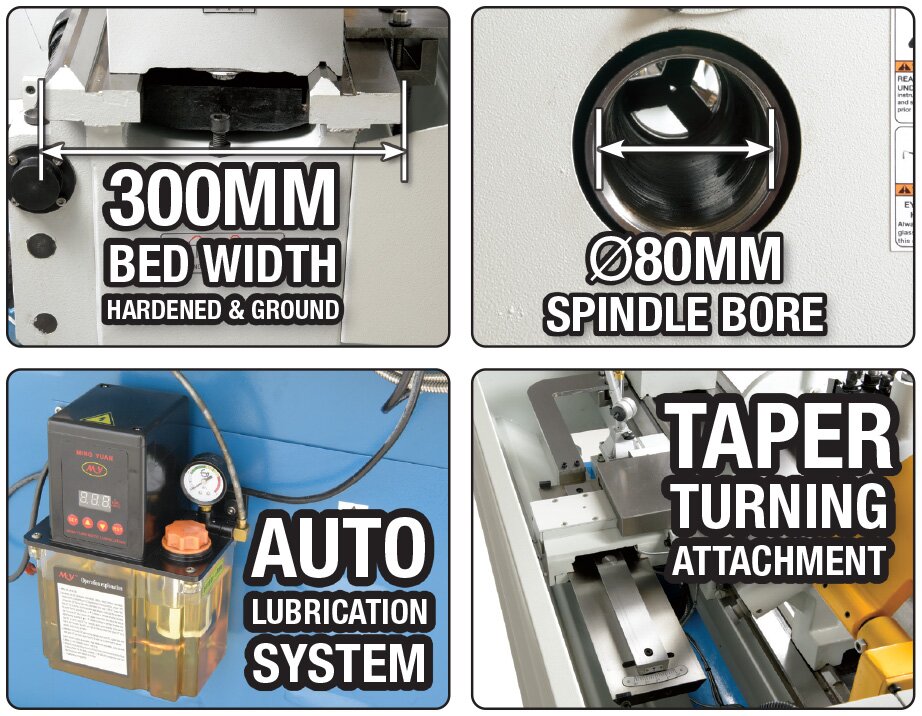

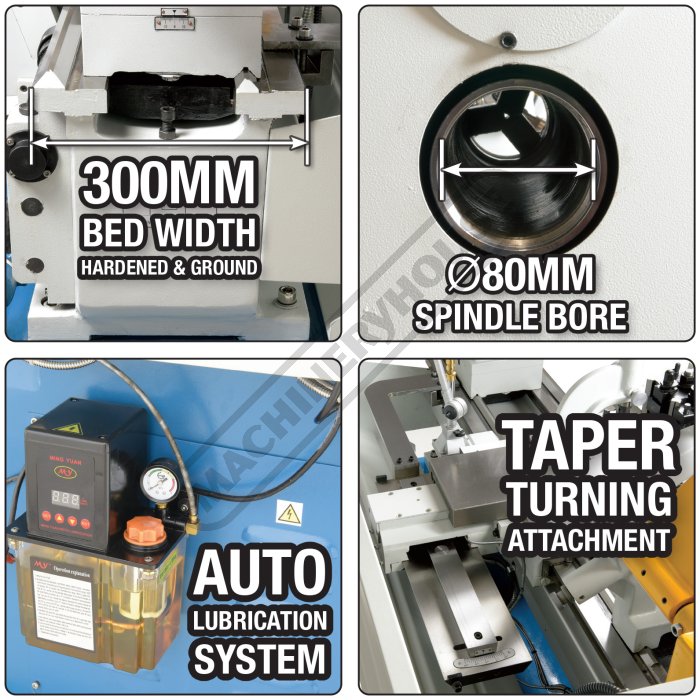

Features
- 2 axis digital readout system
- Quick change toolpost
- Taper turning attachment fitted to saddle
- Automatic lubrication pump oiling slides
- Triple bearings supporting headstock spindle
- Adjustable taper roller bearings providing spindle accuracy
- Precision 'V'-beds & headstock gears are all hardened & ground
- One piece cast iron base increases rigidity
- Overload protection on drive motor and coolant system
- Universal enclosed gearbox incorporating metric & imperial thread capabilities
- Inching button incorporated on the control panel for convenient spindle speed selection
- Foot operated spindle brake with safety cut out switch
- 300mm wide induction hardened heavy duty cast iron bed
- Removable gap bed allowing workpiece to swing up to 690mm
- Chuck guard fitted with safety micro switch
- Powered longitudinal and cross feeds
- Adjustable 5 position length-stop mechanism for accurate repetitive operation
- Micro adjustable saddle stop
- Dual calibrated cross feed dial incorporating metric & imperial graduations
- Coolant system with flexible hose enabling operator to manipulate flow direction
- Oil level sight glass for headstock and gearbox
- Low voltage halogen work light
- D1-8 camlock spindle for quick chuck removal
- 12 spindle speeds from 25-1860rpm
- Large 80mm spindle bore
- 5.5kW / 7.5HP 415V main motor
Includes
- 2 axis digital readout system
- Taper turning attachment
- Quick change toolpost
- Auto lubrication pump for slides
- Concertina leadscrew covers
- 250mm 3-jaw chuck with reverse jaws
- 350mm 4-jaw chuck
- 350m face plate
- Fixed steady with roller bearings
- Travelling steady with brass guides
- Dead centres
- Thread chasing dial
- Foot brake
- Coolant system
- LED Work light
- Rear splash guard
- Spindle reducing bush
Compare Product Range
Specifications
| ORDER CODE | L606D |
|---|---|
| MODEL | CL-460 |
| (mm)Swing Over Bed | 460 |
| (mm)Distance Between Centres | 1000 |
| (mm)Spindle Bore | 80 |
| (mm)Swing In Gap | 690 |
| (mm)Swing Over Cross-slide | 274 |
| Digital Readout System Fitted | Yes |
| Quick Change Toolpost Fitted | Yes |
| Leadscrew Covers Fitted | Yes |
| Taper Turning Attachment | Yes |
| Coolant System | Yes |
| (mm)Tool Height To Suit | 25 |
| (mm)Centre Height | 230 |
| Spindle Nose Size or Type | D1-8 Camlock |
| (mm)Bed Width | 300 |
| (MT)Headstock Spindle Taper | 6 |
| (MT)Tailstock Taper | 4 |
| (mm)Cross Slide Travel | 285 |
| (mm)Compound Slide Travel | 128 |
| Leadscrew Type | Metric |
| (mm/rev)Metric Cross Feed (X-Axis) | 0.014 - 0.784 |
| (mm/rev)Metric Longitudinal Feed (Z-Axis) | 0.031 - 1.70 |
| (No. / mm)Metric Thread Steps & Pitch | 47 (0.1 - 14) |
| (No. / TPI)Imperial Thread Steps & TPI | 60 (2 - 112) |
| (mm)3 Jaw Chuck Diameter | 250 |
| (mm)4 Jaw Chuck Diameter | 350 |
| (No. / rpm)Spindle Steps / Speeds | 12 (25 - 1860) |
| (kW / hp)Motor Power | 5.5 / 7.5 |
| (V / amp)Voltage / Amperage | 415 |
| (kg)Nett Weight | 1950 |
