M20 x 2.0mm HSS Straight Flute 3 Piece Hand Tap Set

Metric Fine Pitch

T8230 1 of 3

Thread tapping tools tutorial - Kondinin Group and Hare & Forbes 2 of 3

M20 X 2.0mm Tap Set 3 of 3

TOOLMASTER

Order Code: T8230

ex-gst

inc-gst

^$ 190.00

^$ 209.00

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

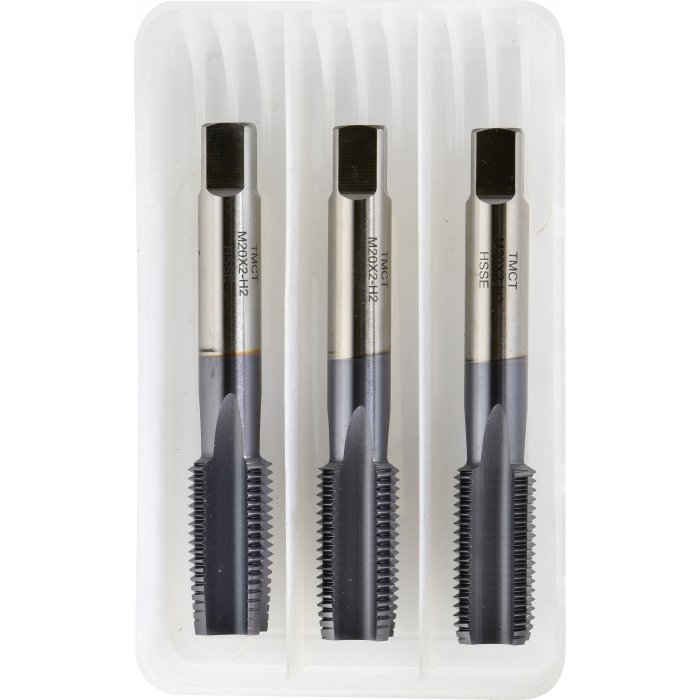

M20 x 2.0mm HSS Straight Flute 3 Piece Hand Tap Set

Metric Fine Pitch

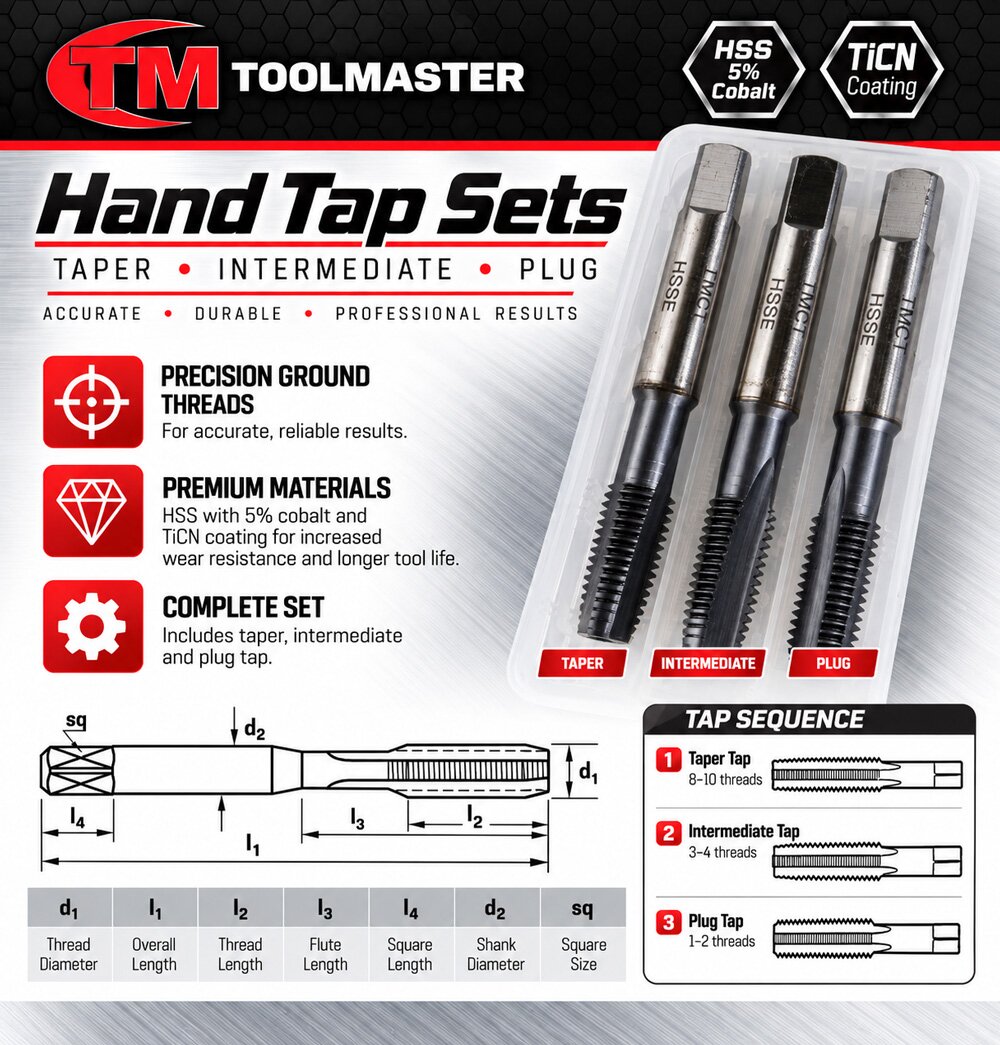

Overview

A premium-quality 3-piece hand tap set designed for accurate, controlled cutting of metric internal threads. The set includes taper, intermediate and plug taps, allowing the thread to be progressively cut in stages for greater control, reduced cutting load and a clean, accurate finish.

Manufactured from M35 High Speed Steel with 5% cobalt, these taps provide excellent hardness, heat resistance and cutting-edge durability. A TiCN (Titanium Carbonitride) coating provides increased wear resistance for extended tool life, while precision CNC-ground threads ensure excellent accuracy and consistent thread formation.

Ideal for machining, fabrication, maintenance, repair and general workshop applications, the complete set is supplied in a convenient storage case to keep all three taps protected and organised.

Features

Complete 3-piece hand tap set for progressive and controlled thread cutting
M35 High Speed Steel with 5% cobalt for excellent hardness, heat resistance and durability
TiCN coating provides increased wear resistance and helps extend tool life
Precision CNC-ground threads for clean, accurate and consistent thread formation
Straight flute design ideal for general-purpose hand tapping
Metric pitch thread form
Manufactured to ISO 529 Standard
Supplied in a handy storage case for protection and organisation

Includes

1 x Taper
1 x Intermediate
1 x Plug

Specifications

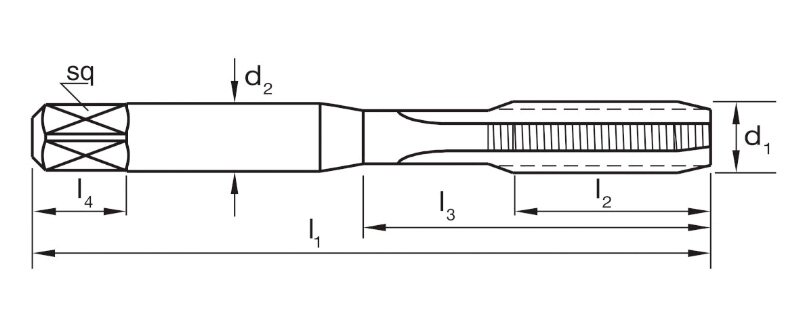

Enlarge Diagram Compare Product Range

Specifications

ORDER CODE	T8230
Set Includes (Tap Profile)	Taper - Intermediate - Plug
Flute Type	Straight
(Ø / mm)d1 - Tap Size (Diameter)	M20
(Ø / mm)d2 - Shank Diameter	16.0
(TPI)Pitch	2.0mm
(TPI)Pitch Type	Fine
(Type)Thread Form	Metric
(DIN)Standard	ISO 529
(mm)l1 - Length	112
(mm)l2 - Flute Length	37.0
(mm)l4 - Square Length	15.0
(mm)Square Across Flats	11.20
(Ø / mm)Drill Tapping Size (Diameter)	18.0
