Hand Tap Sets - Metric T8103

M6 x 1.0mm Straight Flute HSGT 3pc Tap Set - T9010600

Metric Coarse
T8103 1 of 4
Thread tapping tools tutorial - Kondinin Group and Hare & Forbes 2 of 4

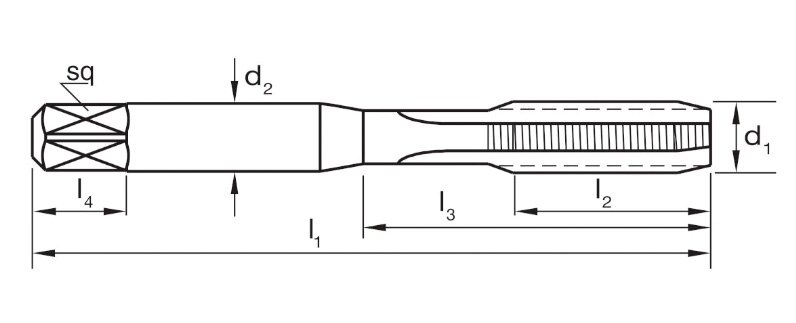

Diagram 3 of 4
Starter Intermediate & Plug Tap 4 of 4
SUTTON TOOLS
Order Code: T8103
ex-gst
inc-gst
$ 58.00
$ 63.80
Made in Australia
1
Add to Cart
Enquire
Price Match
Compare
Wishlist
Print
Delivery & Pickup Availabilities
Description
Description

M6 x 1.0mm Straight Flute HSGT 3pc Tap Set - T9010600

Metric Coarse
Overview
The Sutton Tools Tap Set is designed for general purpose use and is suitable for materials up to 1000N/mm². It can be used for both hand and machine operations, making it versatile for various applications. With depths up to approximately 1 x d₁, this tap set provides reliable performance and precision.
Features
  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
  • Material: HSS M2
  • Standard: ISO529
  • Tolerance: ISO2/6H
  • Finish: Bright
  • Type: Straight Flute
Includes
  • 1 x Taper
  • 1 x Intermediate
  • 1 x Bottoming
Specifications
Downloads
You may also like
T8104
M8 x 1.25mm Straight Flute HSGT 3pc Tap Set - T9010800
Metric Coarse
SUTTON TOOLS
Code: T8104

$ 63.00 ex
$ 69.30 inc

Add to Cart
T8200
M3 x 0.5mm HSS Straight Flute 3 Piece Hand Tap Set
Metric Coarse Pitch
TOOLMASTER
Code: T8200

$ 25.00 ex
$ 27.50 inc

Add to Cart
T8105
M10 x 1.5mm Straight Flute HSGT 3pc Tap Set - T9011000
Metric Coarse
SUTTON TOOLS
Code: T8105

$ 85.00 ex
$ 93.50 inc

Add to Cart
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • Part Number
  • Set Includes (Tap Profile)
  • Flute Type
  • (Ø / mm)d1 - Tap Size (Diameter)
  • (Ø / mm)d2 - Shank Diameter
  • (TPI)Pitch
  • (TPI)Pitch Type
  • (Type)Thread Form
  • (DIN)Standard
  • (mm)l1 - Length
  • (mm)l2 - Flute Length
  • (mm)l4 - Square Length
  • (mm)Square Across Flats
  • (Ø / mm)Drill Tapping Size (Diameter)
  • (ex-gst)Pricing
  • (inc-gst)
  • T8200
  • Compare
  • Wishlist
  • T8200
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M3
  • 2.2
  • 0.5mm
  • Coarse
  • Metric
  • ISO 529
  • 48
  • 11.0
  • 4.0
  • 2.50
  • 2.5
  • $25.00
  • $27.50
  • ADD TO CART
  • T8202
  • Compare
  • Wishlist
  • T8202
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M4
  • 2.8
  • 0.7mm
  • Coarse
  • Metric
  • ISO 529
  • 53
  • 13.0
  • 5.0
  • 3.15
  • 3.3
  • $27.00
  • $29.70
  • ADD TO CART
  • T8204
  • Compare
  • Wishlist
  • T8204
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M5
  • 3.5
  • 0.8mm
  • Coarse
  • Metric
  • ISO 529
  • 58
  • 16.0
  • 6.0
  • 4.00
  • 4.2
  • $29.00
  • $31.90
  • ADD TO CART
  • T8207
  • Compare
  • Wishlist
  • T8207
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M6
  • 4.5
  • 0.75mm
  • Fine
  • Metric
  • ISO 529
  • 66
  • 19.0
  • 6.0
  • 5.00
  • 5.3
  • $36.00
  • $39.60
  • ADD TO CART
  • T8206
  • Compare
  • Wishlist
  • T8206
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M6
  • 4.5
  • 1.0mm
  • Coarse
  • Metric
  • ISO 529
  • 66
  • 19.0
  • 6.0
  • 5.00
  • 5.0
  • $36.00
  • $39.60
  • ADD TO CART
  • T8209
  • Compare
  • Wishlist
  • T8209
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M8
  • 6.0
  • 1.0mm
  • Fine
  • Metric
  • ISO 529
  • 72
  • 22.0
  • 8.0
  • 6.30
  • 7.0
  • $45.00
  • $49.50
  • ADD TO CART
  • T8208
  • Compare
  • Wishlist
  • T8208
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M8
  • 6.0
  • 1.25mm
  • Course
  • Metric
  • ISO 529
  • 72
  • 22.0
  • 8.0
  • 6.30
  • 6.8
  • $45.00
  • $49.50
  • ADD TO CART
  • T8212
  • Compare
  • Wishlist
  • T8212
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M10
  • 7.0
  • 1.25mm
  • Fine
  • Metric
  • ISO 529
  • 80
  • 24.0
  • 8.0
  • 8.00
  • 8.8
  • $54.00
  • $59.40
  • ADD TO CART
  • T8211
  • Compare
  • Wishlist
  • T8211
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M10
  • 7.0
  • 1.5mm
  • Course
  • Metric
  • ISO 529
  • 80
  • 24.0
  • 8.0
  • 8.00
  • 8.5
  • $54.00
  • $59.40
  • ADD TO CART
  • T8216
  • Compare
  • Wishlist
  • T8216
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M12
  • 9.0
  • 1.5mm
  • Fine
  • Metric
  • ISO 529
  • 89
  • 29.0
  • 10.0
  • 7.10
  • 10.5
  • $68.00
  • $74.80
  • ADD TO CART
  • T8215
  • Compare
  • Wishlist
  • T8215
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M12
  • 9.0
  • 1.75mm
  • Course
  • Metric
  • ISO 529
  • 89
  • 29.0
  • 10.0
  • 7.10
  • 10.3
  • $68.00
  • $74.80
  • ADD TO CART
  • T8221
  • Compare
  • Wishlist
  • T8221
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M14
  • 11.0
  • 1.25mm
  • Extra Fine
  • Metric
  • ISO 529
  • 95
  • 30.0
  • 12.0
  • 9.00
  • 12.8
  • $85.00
  • $93.50
  • ADD TO CART
  • T8220
  • Compare
  • Wishlist
  • T8220
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M14
  • 11.0
  • 1.5mm
  • Fine
  • Metric
  • ISO 529
  • 95
  • 30.0
  • 12.0
  • 9.00
  • 12.5
  • $85.00
  • $93.50
  • ADD TO CART
  • T8219
  • Compare
  • Wishlist
  • T8219
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M14
  • 11.0
  • 2.0mm
  • Course
  • Metric
  • ~ISO 529
  • 95
  • 30.0
  • 12.0
  • 9.00
  • 12.0
  • $85.00
  • $93.50
  • ADD TO CART
  • T8224
  • Compare
  • Wishlist
  • T8224
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M16
  • 12.0
  • 1.5mm
  • Fine
  • Metric
  • ISO 529
  • 102
  • 32.0
  • 12.0
  • 10.00
  • 14.5
  • $130.00
  • $143.00
  • ADD TO CART
  • T8223
  • Compare
  • Wishlist
  • T8223
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M16
  • 12.0
  • 2.0mm
  • Course
  • Metric
  • ISO 529
  • 102
  • 32.0
  • 12.0
  • 10.00
  • 14.0
  • $130.00
  • $143.00
  • ADD TO CART
  • T8230
  • Compare
  • Wishlist
  • T8230
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M20
  • 16.0
  • 2.0mm
  • Fine
  • Metric
  • ISO 529
  • 112
  • 37.0
  • 15.0
  • 11.20
  • 18.0
  • $190.00
  • $209.00
  • ADD TO CART
  • T8229
  • Compare
  • Wishlist
  • T8229
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M20
  • 16.0
  • 2.5mm
  • Course
  • Metric
  • ISO 529
  • 112
  • 37.0
  • 15.0
  • 11.20
  • 17.5
  • $190.00
  • $209.00
  • ADD TO CART
  • T8102
  • Compare
  • Wishlist
  • T8102
  • T9010500
  • Taper - Intermediate - Plug
  • Straight
  • M5
  • 3.5
  • 0.8mm
  • Course
  • Metric
  • ISO 529
  • 58
  • 16.0
  • 6.0
  • 4.00
  • 4.2
  • $56.00
  • $61.60
  • ADD TO CART
  • T8103
  • Compare
  • Wishlist
  • T8103
  • T9010600
  • Taper - Intermediate - Plug
  • Straight
  • M6
  • 4.5
  • 1.0mm
  • Course
  • Metric
  • ISO 529
  • 66
  • 19.0
  • 6.0
  • 5.00
  • 5.0
  • $58.00
  • $63.80
  • ADD TO CART
  • T8104
  • Compare
  • Wishlist
  • T8104
  • T9010800
  • Taper - Intermediate - Plug
  • Straight
  • M8
  • 6.0
  • 1.25mm
  • Course
  • Metric
  • ISO 529
  • 72
  • 22.0
  • 8.0
  • 6.30
  • 6.8
  • $63.00
  • $69.30
  • ADD TO CART
  • T8105
  • Compare
  • Wishlist
  • T8105
  • T9011000
  • Taper - Intermediate - Plug
  • Straight
  • M10
  • 7.0
  • 1.5mm
  • Course
  • Metric
  • ISO 529
  • 80
  • 24.0
  • 8.0
  • 8.00
  • 8.5
  • $85.00
  • $93.50
  • ADD TO CART
  • T8106
  • Compare
  • Wishlist
  • T8106
  • T9011200
  • Taper - Intermediate - Plug
  • Straight
  • M12
  • 9.0
  • 1.75mm
  • Course
  • Metric
  • ISO 529
  • 89
  • 28.0
  • 10.0
  • 7.10
  • 10.8
  • $130.00
  • $143.00
  • ADD TO CART
