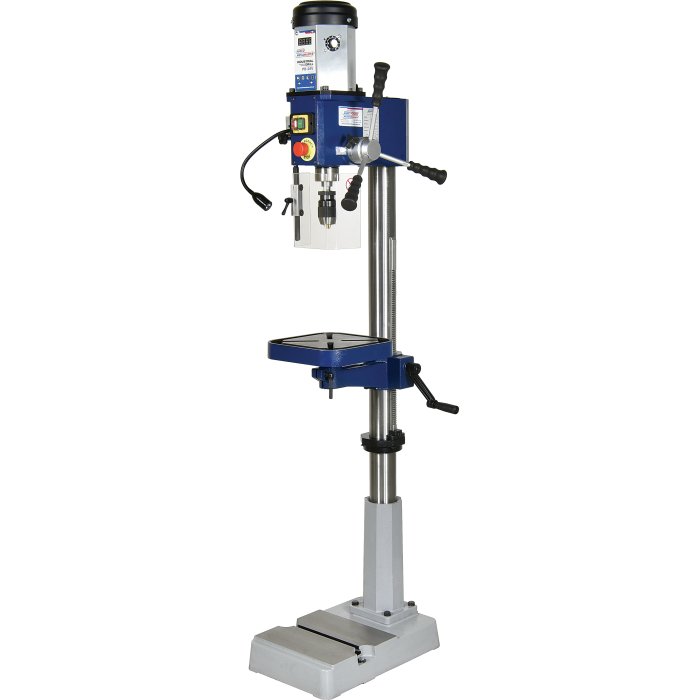

PD-28V - Industrial Pedestal Drill - Variable Speed
200-2400rpm Variable Speed
Ø16mm Drill Capacity with 2MT Spindle Taper
K8790
1 of 17

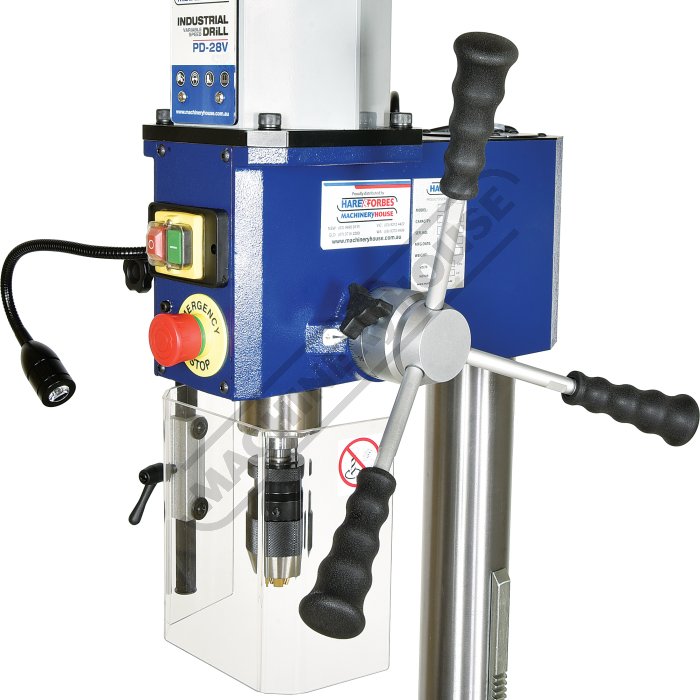

Quill Handle
2 of 17

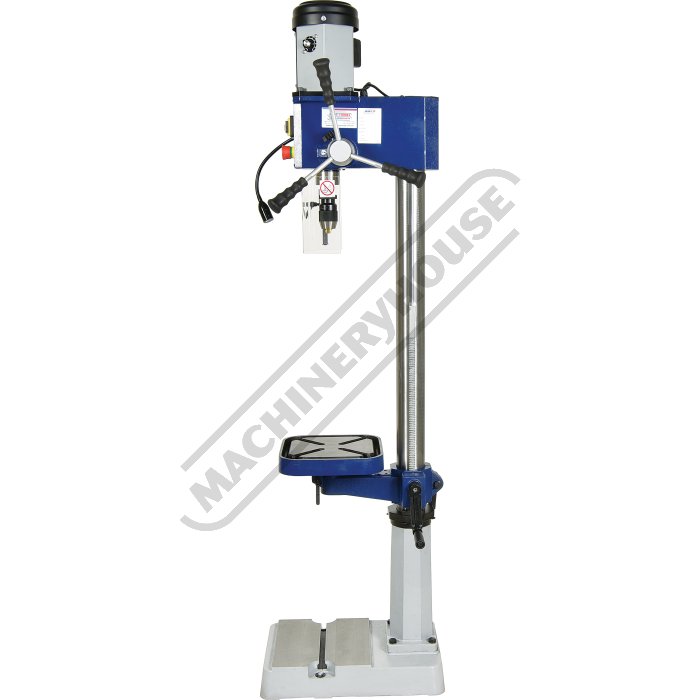

Rack and Pinion Fully Down
3 of 17

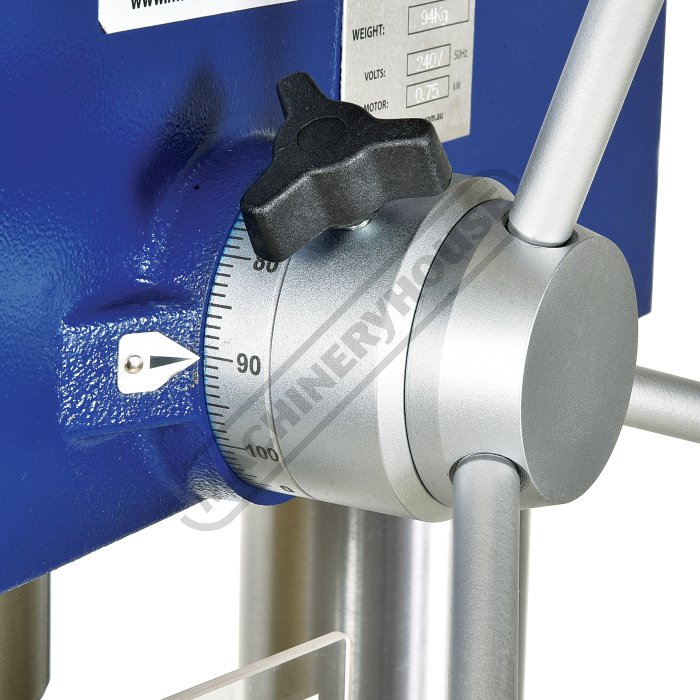

Drill Depth Setting with Scale
4 of 17

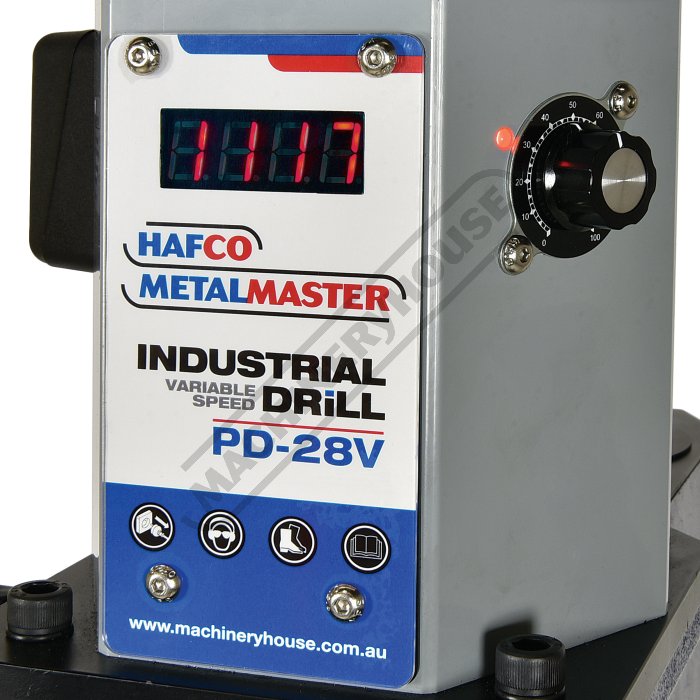

Variable Speed Readout with Adjustable Dial
5 of 17

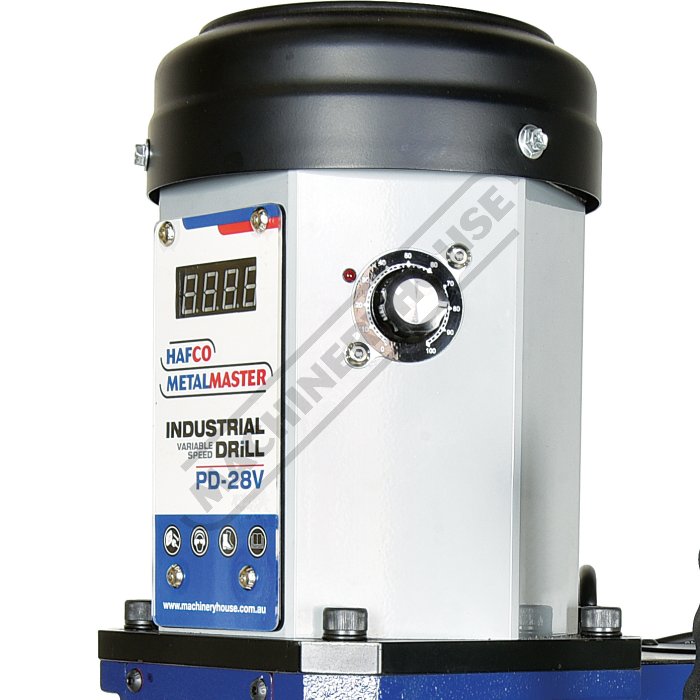

DC Brushless Motor
6 of 17

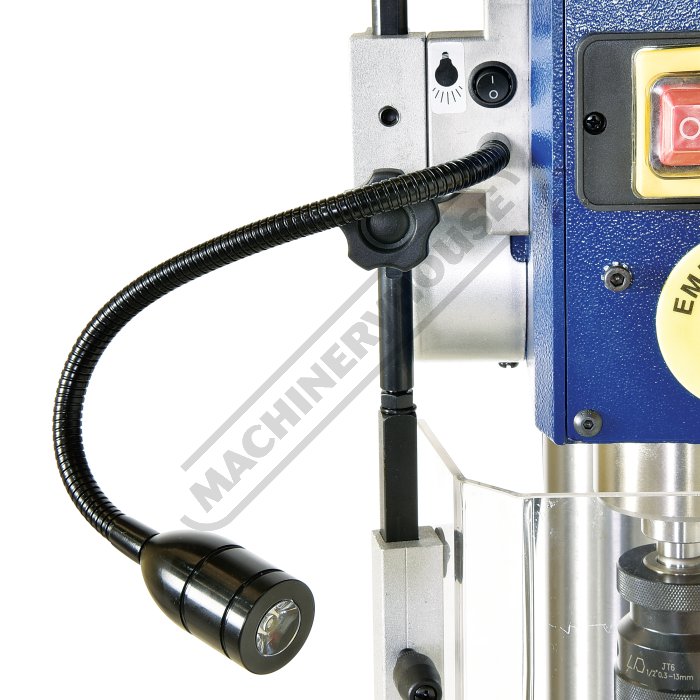

Work Light
7 of 17

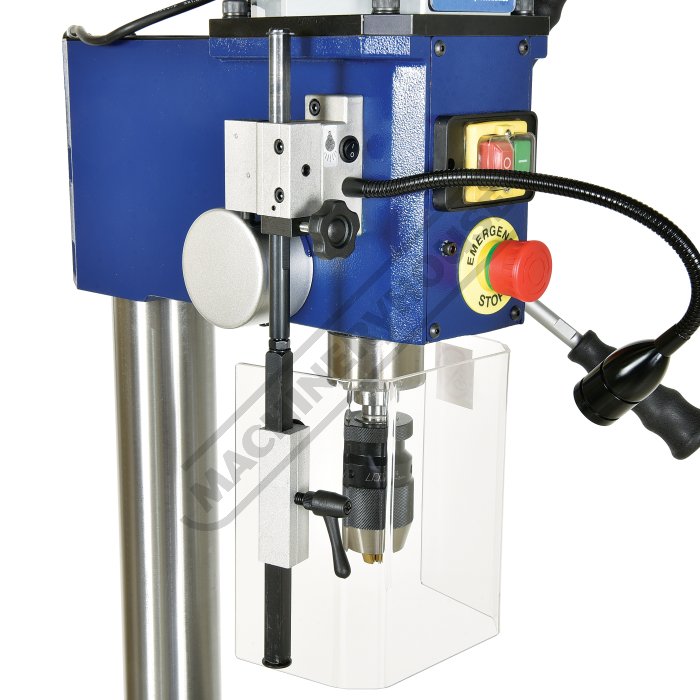

Drill Chuck Safety Guard with Micro Switch
8 of 17

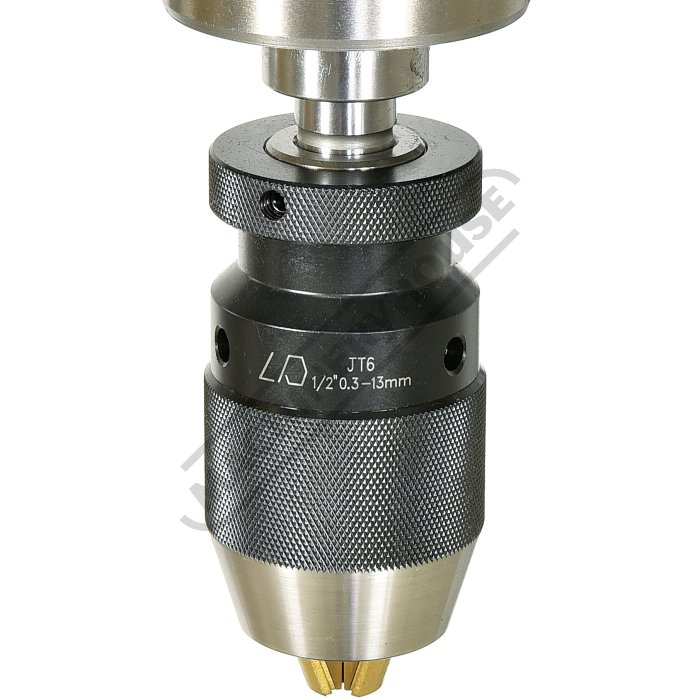

13mm Keyless Drill Chuck
9 of 17

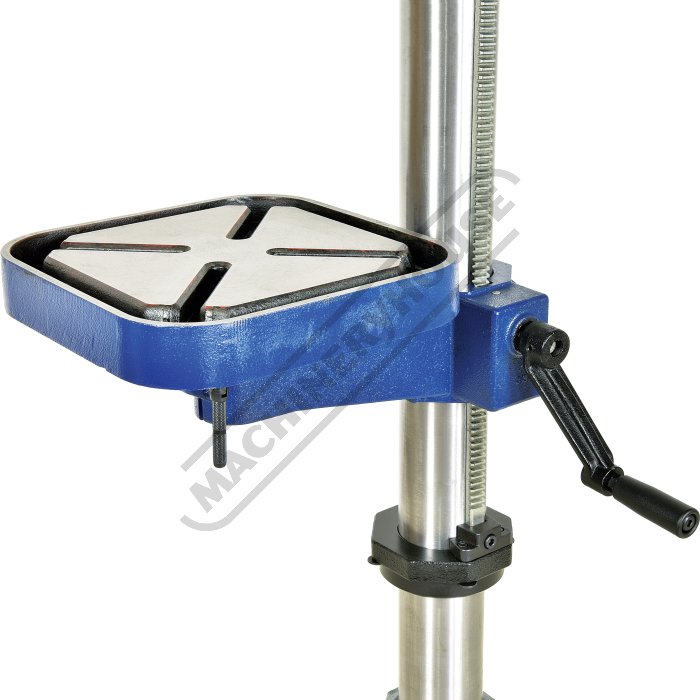

Table with Rack and Pinion Wind Up
10 of 17

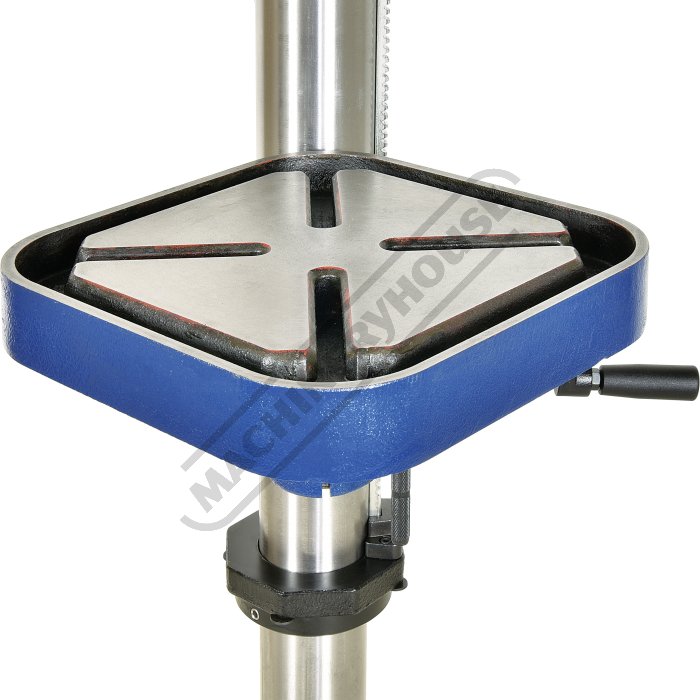

Cast Iron Table Rotates 360 Degree
11 of 17

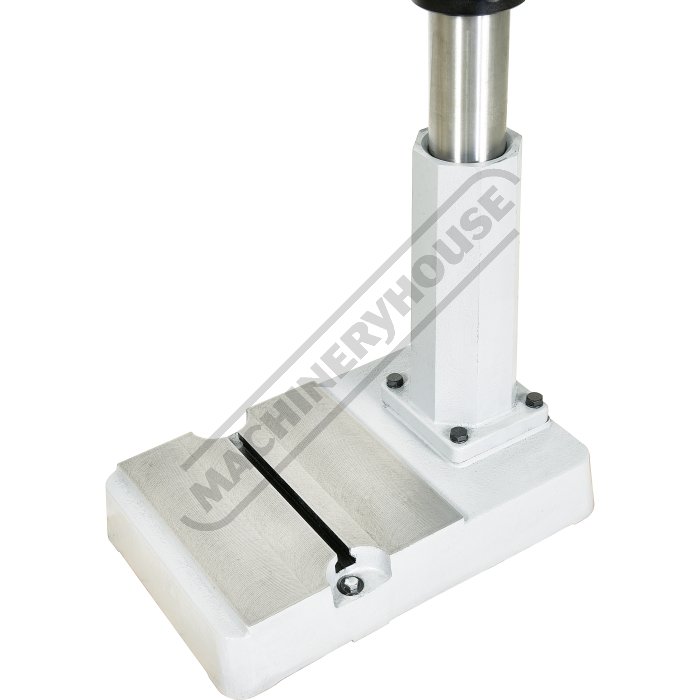

T Slot Base
12 of 17

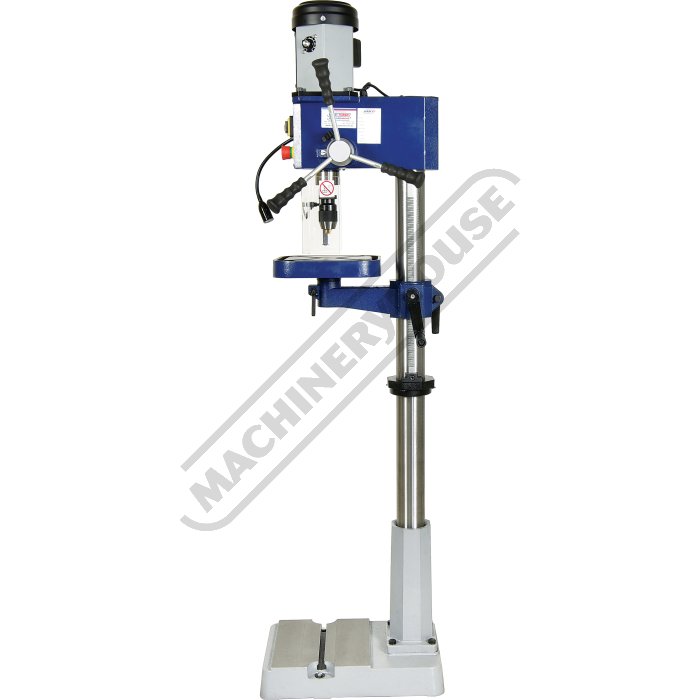

Rack and Pinion Fully Up
13 of 17
Rack and Pinion Fully Down
14 of 17

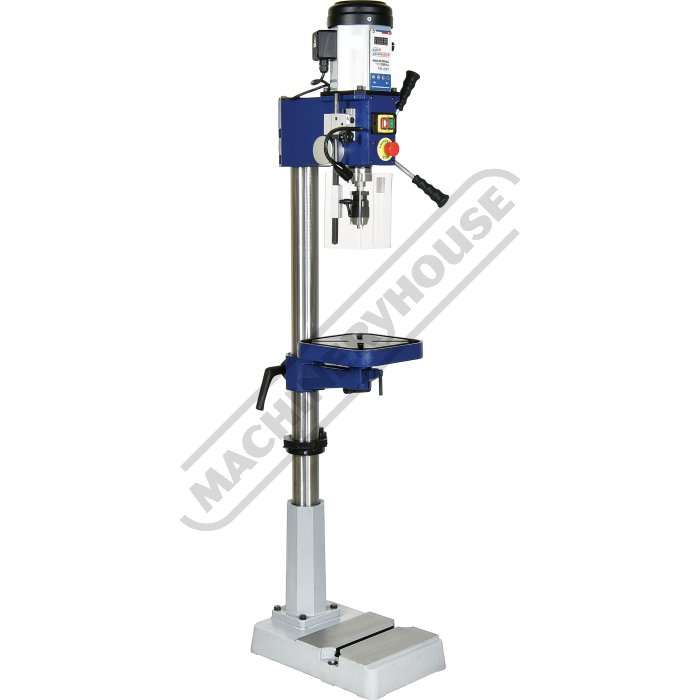

Left View
15 of 17

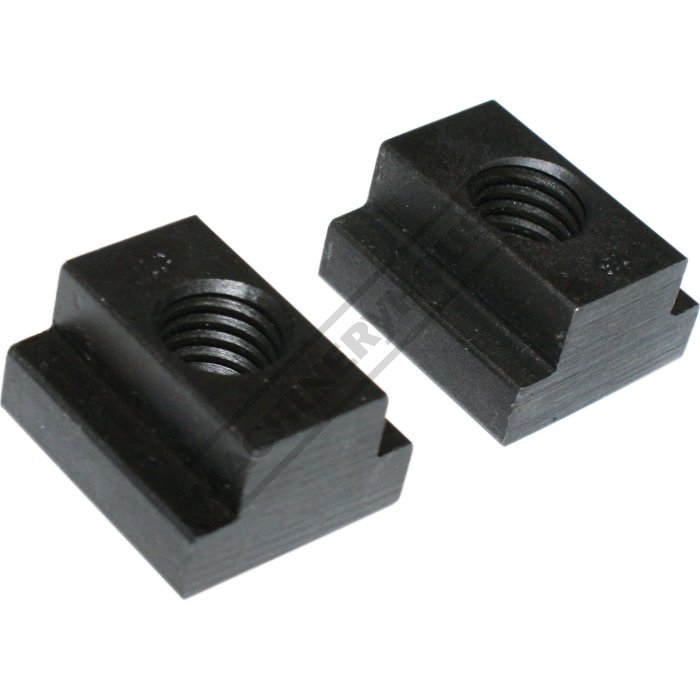

C085A 12mm Clamp Kit Tee Nuts
16 of 17

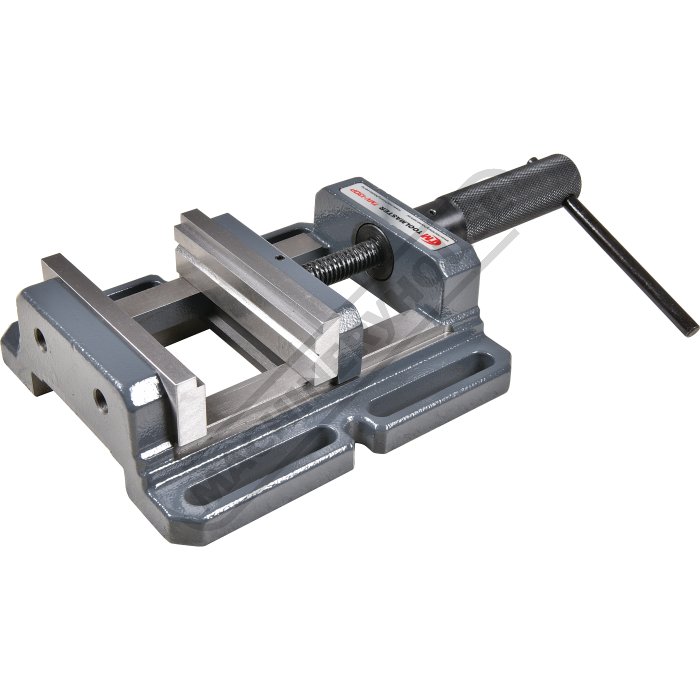

V1451 130mm Drill Press Vice
17 of 17
Order Code: K8790
Description
PD-28V - Industrial Pedestal Drill - Variable Speed
200-2400rpm Variable Speed
Ø16mm Drill Capacity with 2MT Spindle Taper
Features
- High quality Taiwanese made
- Brushless DC 1hp motor - direct drive for higher torque and smooth operation
- 200-2400rpm variable speed with digital readout
- Heavy cast iron construction for rigidity and accuracy
- Precision Ø0.03 - Ø13mm keyless chuck included
- Safety drilling chuck guard with micro switch
- Safety magnetic-type switch
- T slotted work table rotates 360º
- Drilling depth stop setting with scale
- Rack & pinion table height adjustment with locking lever
- Emergency stop switch
- LED Light
Safety Features
- Interlocked spindle safety guard
- Emergency stop switch
- Test and tag certificate on 240V lead
- OPTIONAL SAFETY ELECTRICS
- (D201) - Knee operation emergency stop
Includes
- 3-16mm drill chuck & arbor
- Chuck key & drill drift tool
- (C085A) 12mm Clamp kit tee nuts
- (V1451) 130mm Drill press vice
Compare Product Range
Specifications
| ORDER CODE | K8790 |
|---|---|
| MODEL | PD-28V |
| Bench / Pedestal Type | Pedestal |
| Duty Type | Industrial-Duty |
| (mm)Drill Capacity | Ø16 |
| (MT)Spindle Taper | 2 |
| (mm)Spindle Travel | 83 |
| (mm)Throat Depth | 185 |
| (mm)Quill Diameter | 47 |
| (mm)Collar Diameter | 65 |
| (mm)Column Diameter | 80 |
| (mm)Spindle To Table | 645 |
| (mm)Spindle To Base | 1180 |
| Table Shape | Square |
| (Yes / No)Micro Switch On Pulley Guard | Yes |
| Table Size | 285 x 285 |
| (No.)Spindle Steps | Variable Speed |
| (RPM)Spindle Speeds | 200 - 2400 |
| (kW / hp)Motor Power | 0.75 / 1 |
| (V / amp)Voltage / Amperage | 240 / 10 |
| (mm)Overall Height | 1800 |
| (kg)Nett Weight | 102 |
