PD-28V - Industrial Pedestal Drill - Variable Speed

200-2400rpm Variable Speed

Ø16mm Drill Capacity with 2MT Spindle Taper

K8206 1 of 16

Key Lockable Switch 2 of 16

Quill Handle 3 of 16

Drill Depth Setting with Scale 4 of 16

Variable Speed Readout with Adjustable Dial 5 of 16

DC Brushless Motor 6 of 16

Work Light 7 of 16

Interlocked Spindle Safety Guard 8 of 16

Table with Rack and Pinion Wind Up 9 of 16

Cast Iron Table Rotates 360 Degree 10 of 16

T Slot Base 11 of 16

Left View 12 of 16

13mm Keyless Drill Chuck 13 of 16

2MT x 1MT Morse Taper Drill Sleeve D420 14 of 16

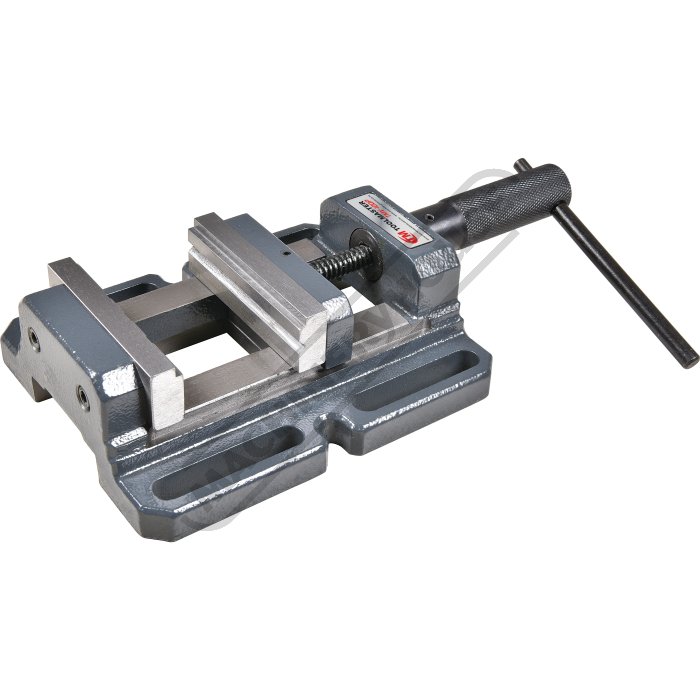

100mm Drill Press Vice 15 of 16

12mm Clamp Tee Nuts C085A 16 of 16

HAFCO-METALMASTER

Order Code: K8206

Please Call

240V / 10A
1 Year Warranty

Made in Taiwan

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

PD-28V - Industrial Pedestal Drill - Variable Speed

200-2400rpm Variable Speed

Ø16mm Drill Capacity with 2MT Spindle Taper

Overview

The Hafco Metalmaster PD-28V Industrial variable speed drill is the statement of quality that is unlike anything else on the market. The direct drive variable speed brushless DC motor provides smooth and effortless power. No more messing around with belts and pulleys, simply turn the speed dial to adjust the spindle speed from 200-2400 rpm displayed on the digital readout. The direct drive design optimizes full torque throughout the entire rpm range with no slippage.

Features

High quality Taiwanese made
Brushless DC 1hp motor - direct drive for higher torque and smooth operation
200-2400rpm variable speed with digital readout
Heavy cast iron construction for rigidity and accuracy
LED Light
Thick walled column ensuring greater rigidity
T slotted work table that rotates 360º
Rack & pinion table height adjustment with locking lever
Drilling depth stop setting with scale
Fan-cooled 240 volt motor rated for continuous use with overload protection

Safety Features

Interlocked spindle safety guard
Emergency stop switch
NVR type on/off switch
Keyed isolation switch - PWD approved
Test and tag certificate on 240V lead

Includes

100mm deluxe drill vice (V1441)
13mm keyless drill chuck
2MT x JT6 drill chuck arbor
2MT x 1MT morse taper drill sleeve (D420)
Drill drift
M10 tee nuts suit 12mm table slot (C085A)

Specifications

Compare Product Range

Specifications

ORDER CODE	D158
MODEL	PD-28V
Duty Type	Industrial-Duty
(mm)Drill Capacity	Ø16
(MT)Spindle Taper	2
(mm)Spindle Travel	83
(mm)Throat Depth	185
(mm)Quill Diameter	47
(mm)Collar Diameter	65
(mm)Column Diameter	80
(mm)Spindle To Table	645
(mm)Spindle To Base	1180
Table Shape	Square
(Yes / No)Micro Switch On Pulley Guard	Yes
Table Size	285 x 285
Spindle Drive Type	Direct Drive
(No.)Spindle Steps	Variable
(RPM)Spindle Speeds	200 - 2400
(kW / hp)Motor Power	0.75 / 1
(V / amp)Voltage / Amperage	240 / 10
(mm)Overall Height	1800
(kg)Nett Weight	102
