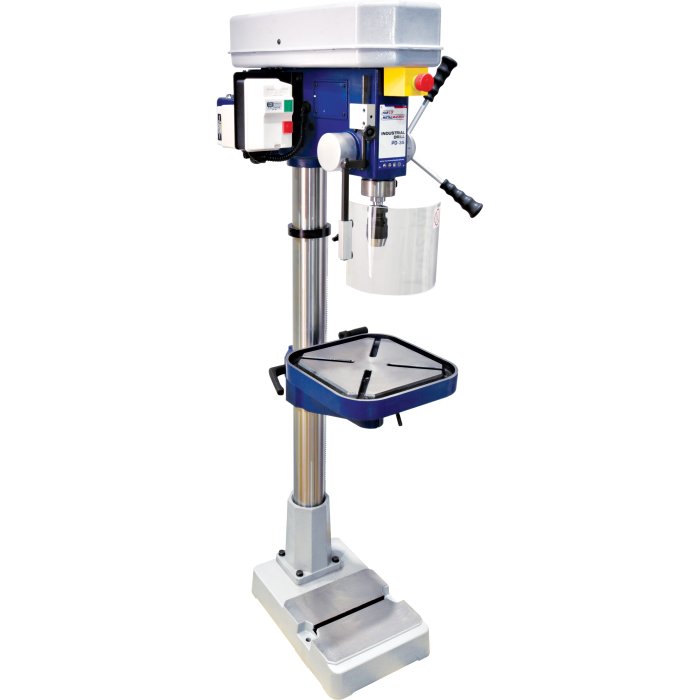

NSW Schools / TAFE - PD-35B Pedestal Drill

31.5mm

NSW Contract Item No.2B

K8204 1 of 22

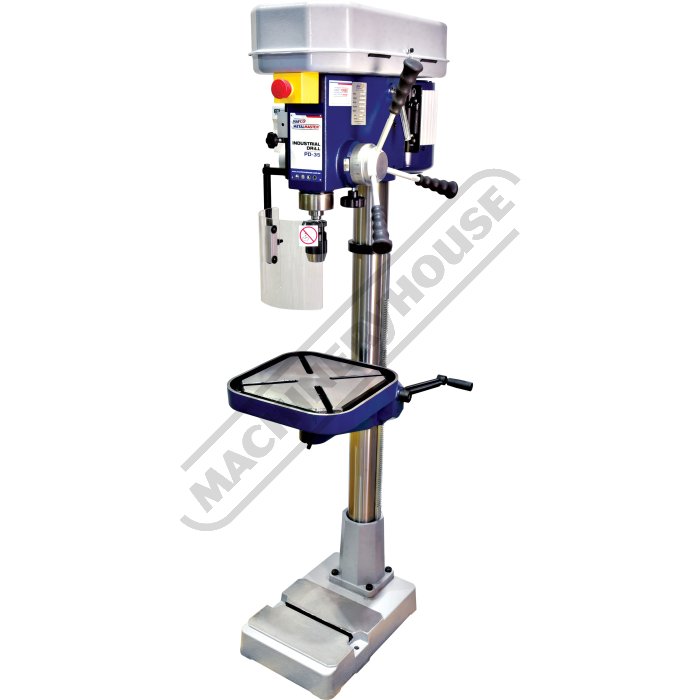

Right View 2 of 22

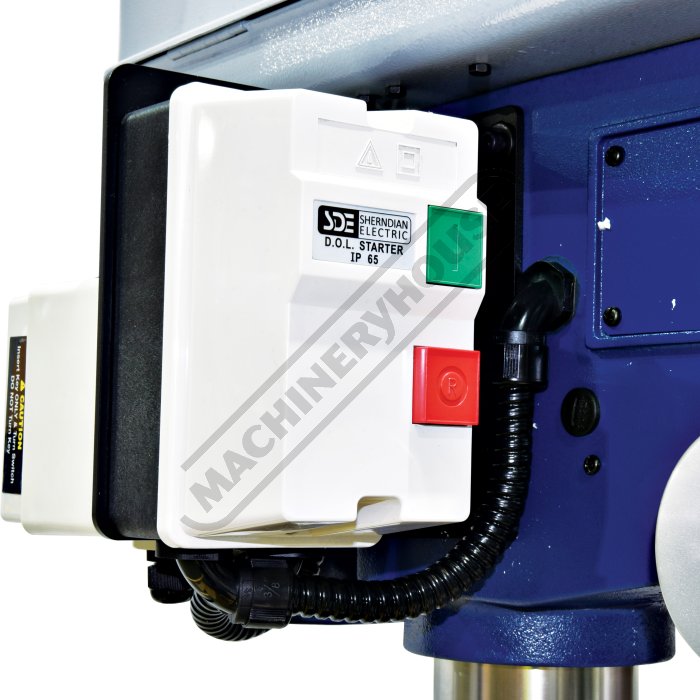

Magnetic Switch Safety Stop Switch 3 of 22

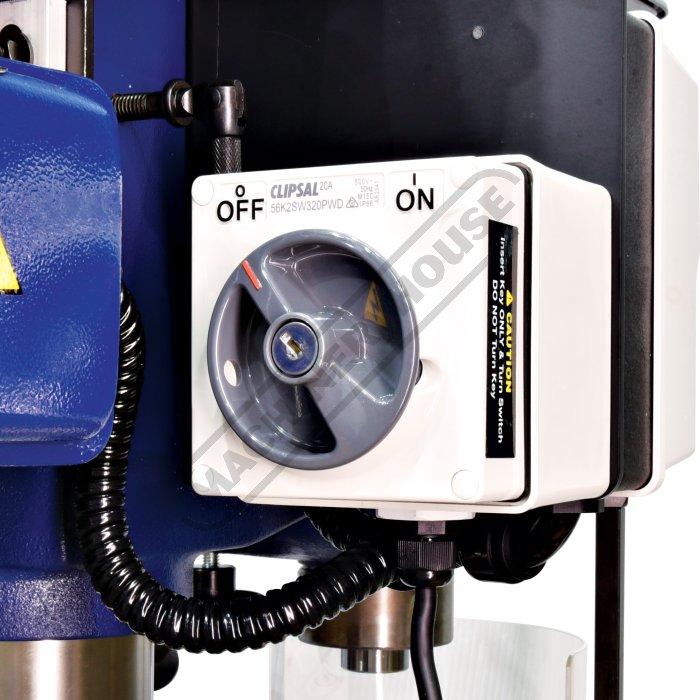

Lockable Switch 4 of 22

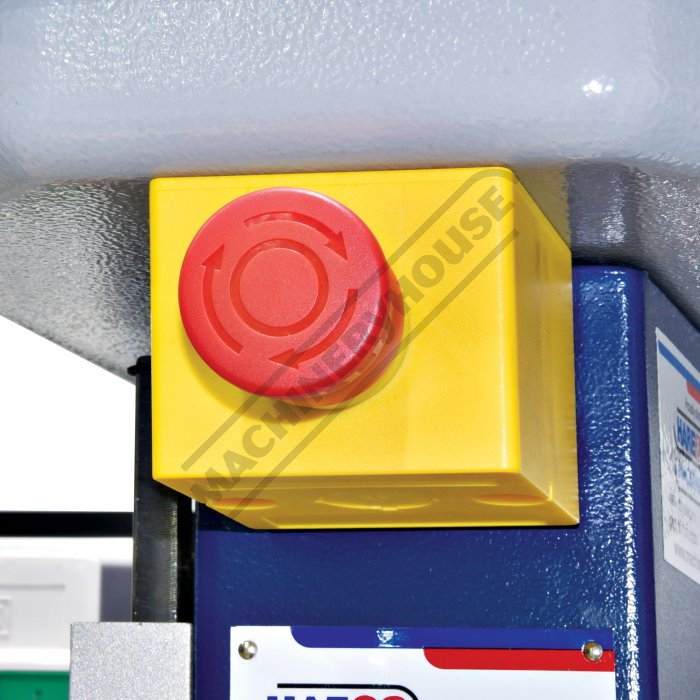

Safety Stop Switch 5 of 22

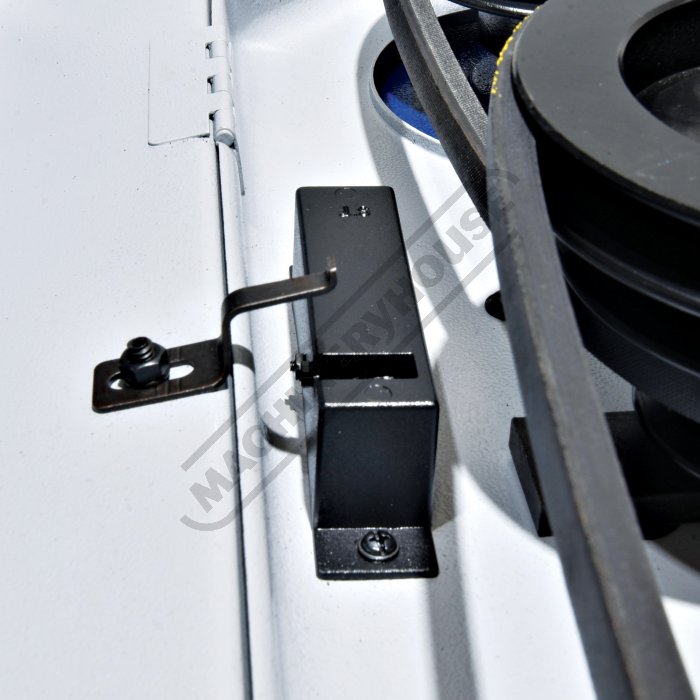

Safety Micro Switch on Belt Cover 6 of 22

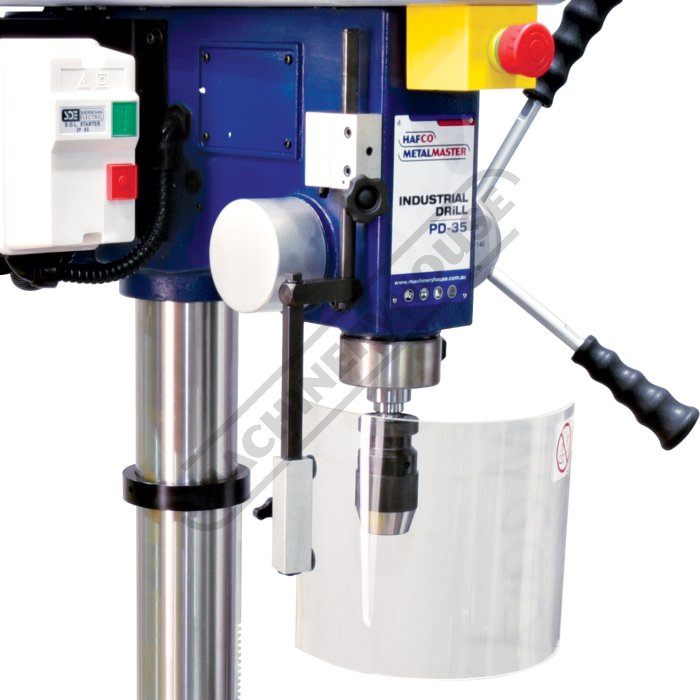

Interlocked Spindle Safety Guard 7 of 22

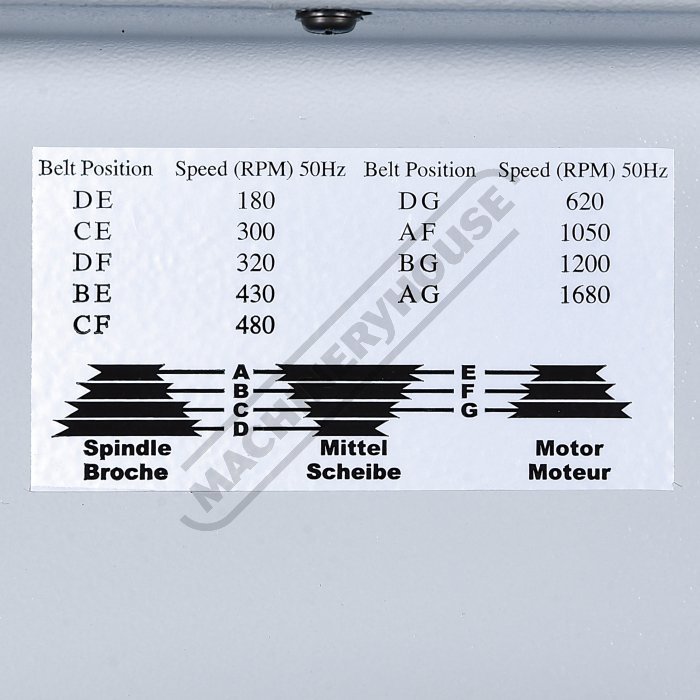

Speed Chart 8 of 22

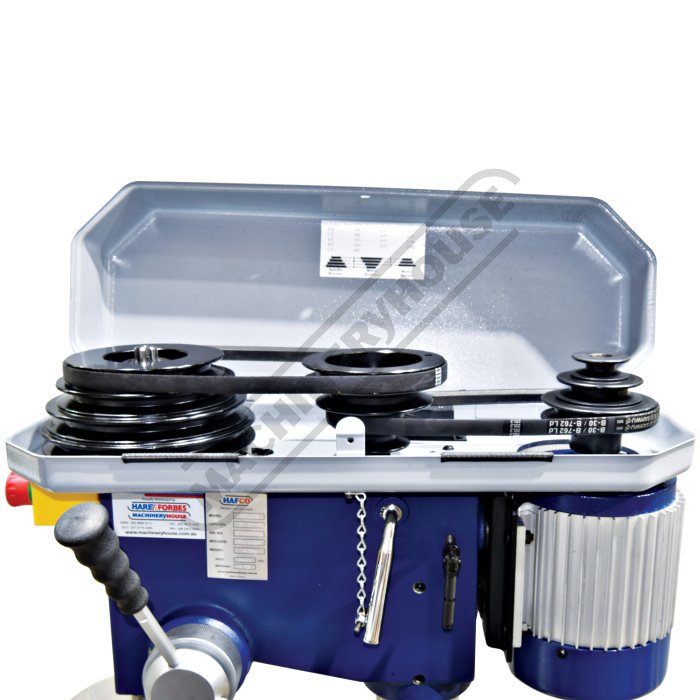

B Section Belt Drive System 9 of 22

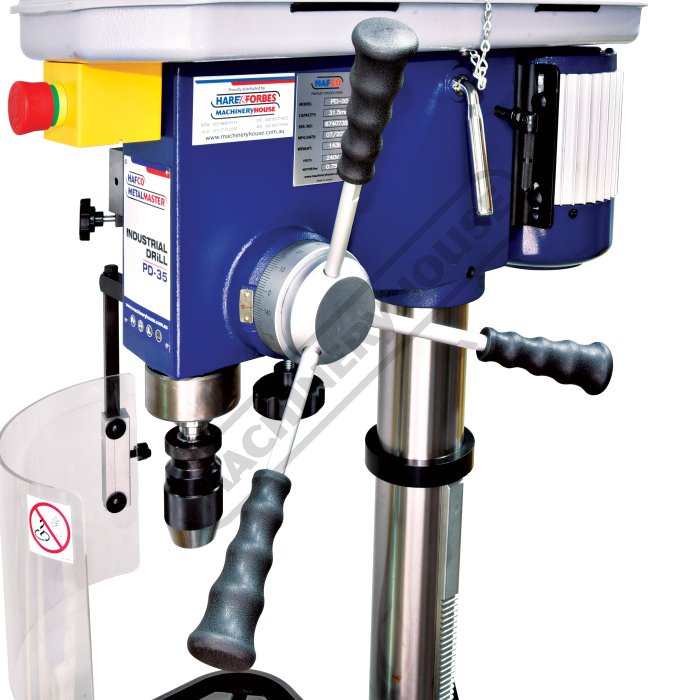

Quill Handle 10 of 22

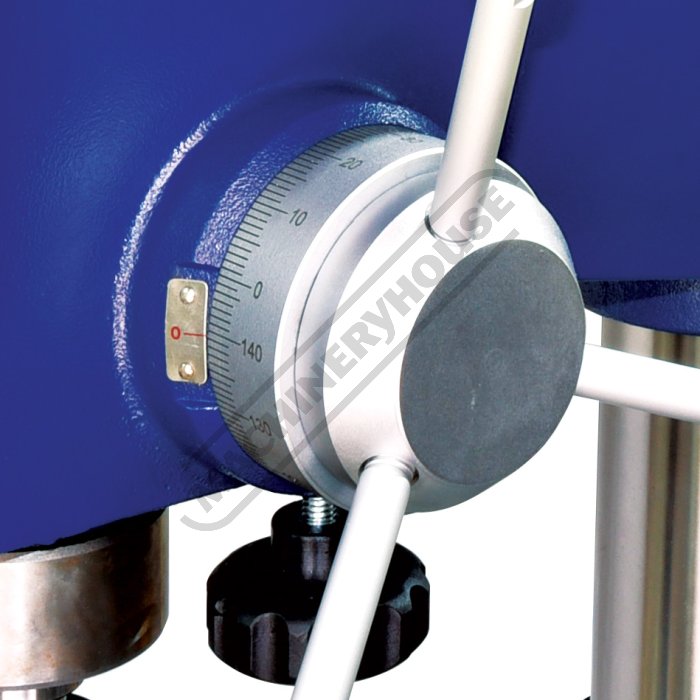

Drilling Depth Stop Setting with Scale 11 of 22

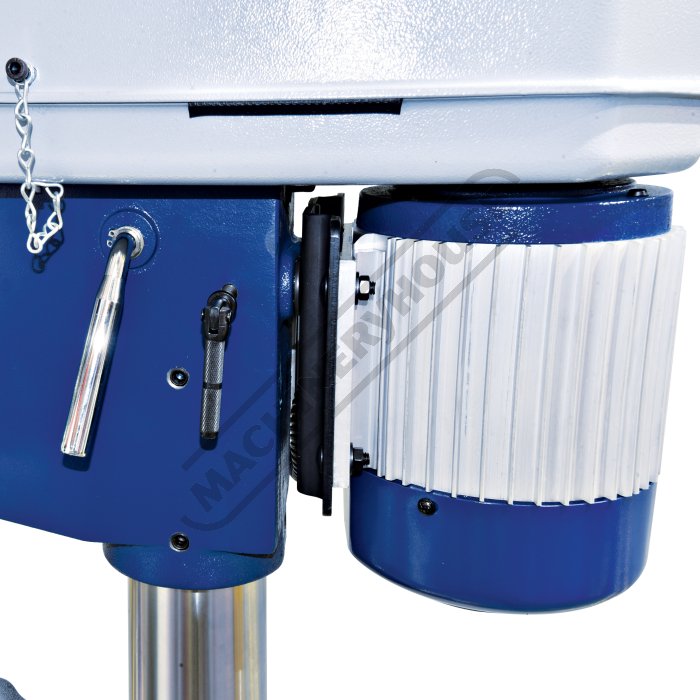

Motor Belt Tension Lever Lock 12 of 22

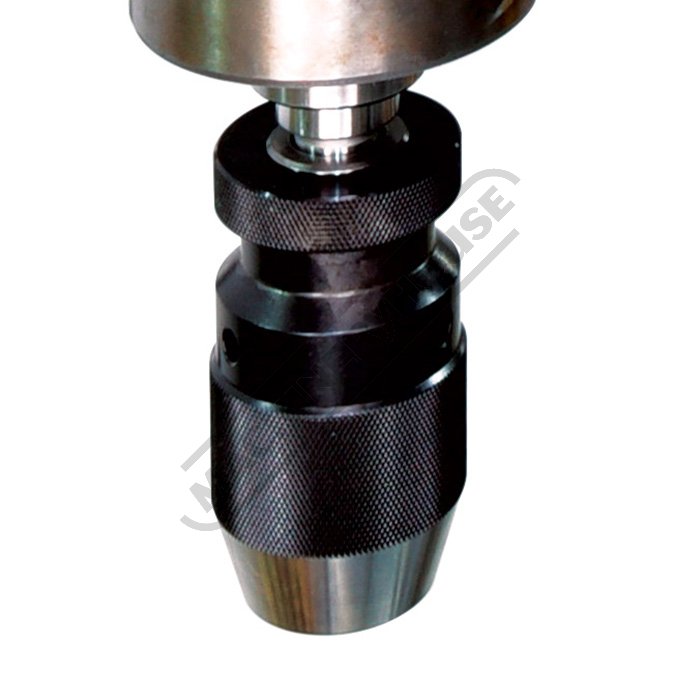

Keyless Drill Chuck 13 of 22

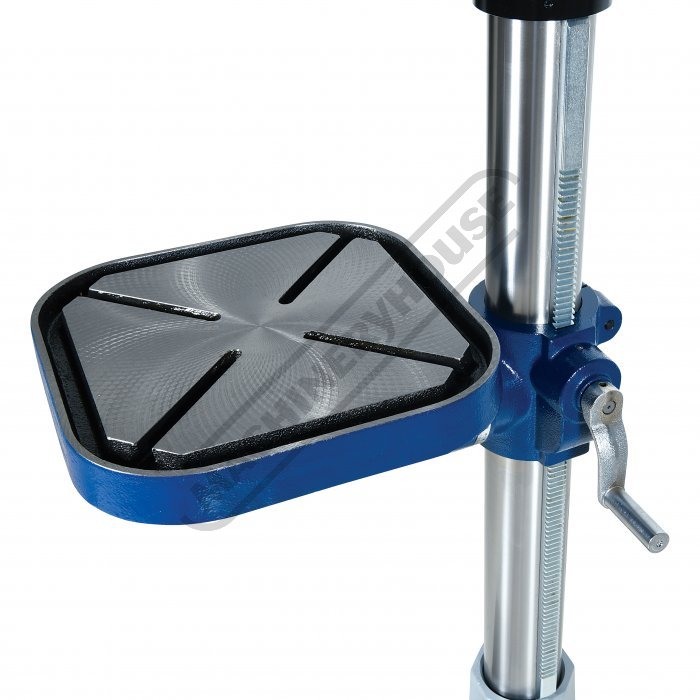

Table Rack Pinion Wind Up 14 of 22

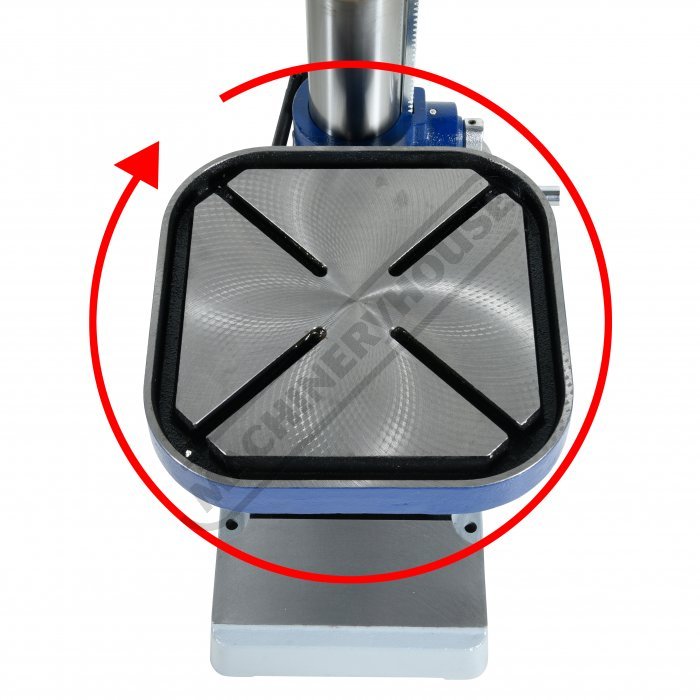

Cast Iron Table Rotates 360 Degree 15 of 22

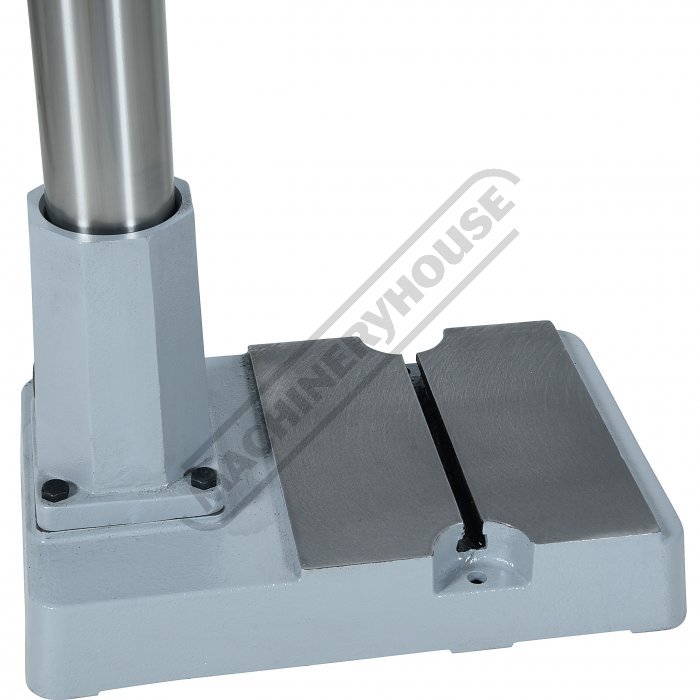

Heavy Duty Base With T Slot 16 of 22

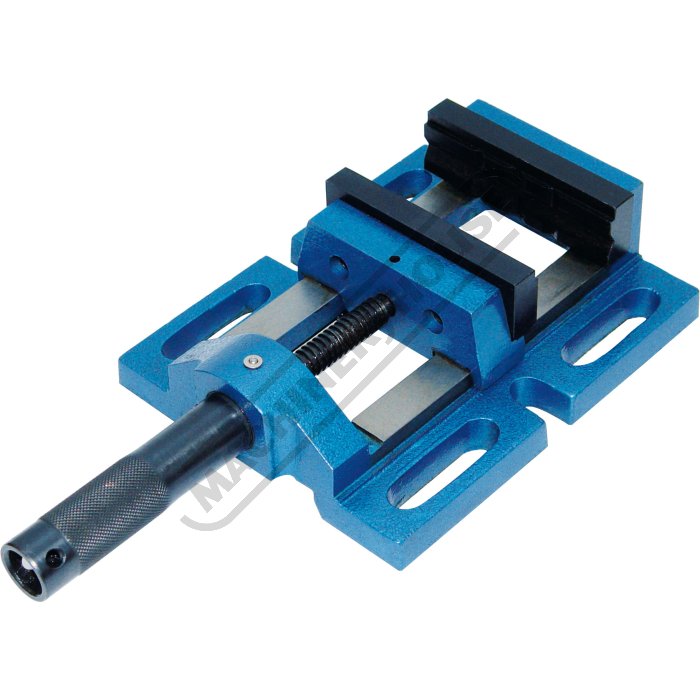

100mm Delux Drill Vice V144 17 of 22

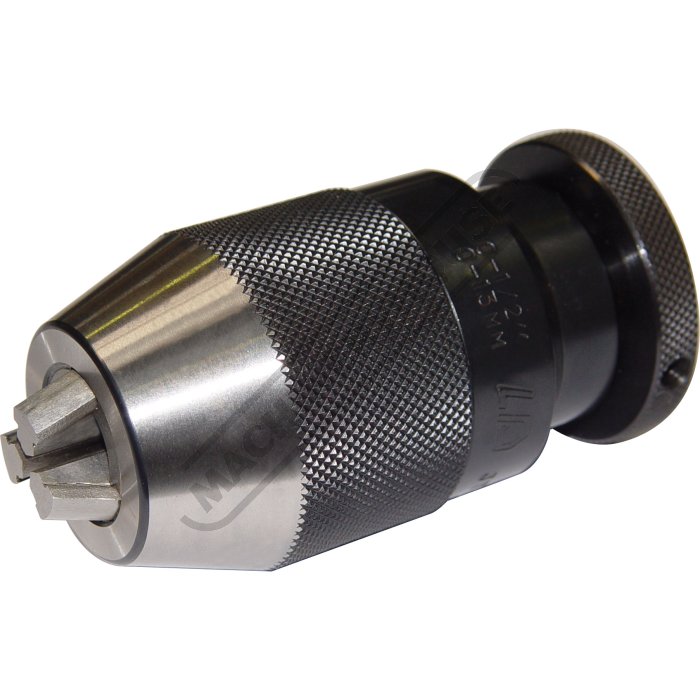

13mm Keyless Drill Chuck C292 18 of 22

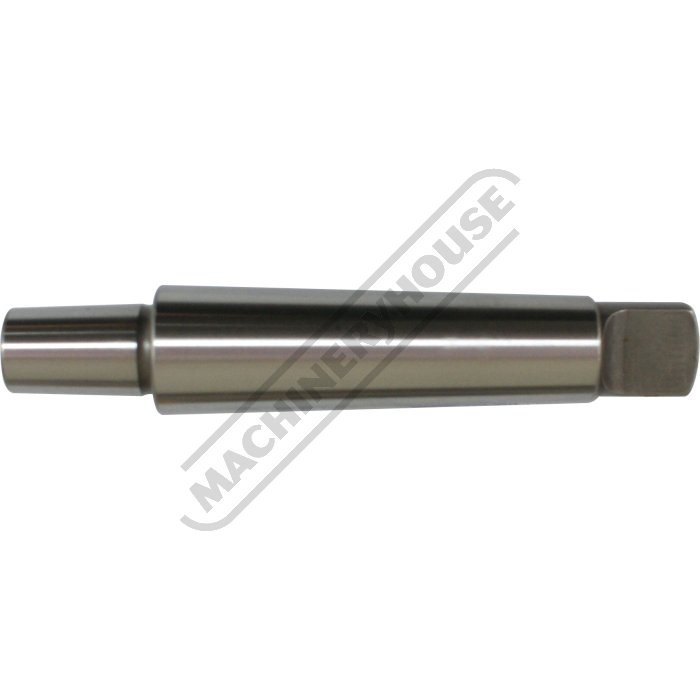

3MT x JT6 Drill Chuck Arbor D443 19 of 22

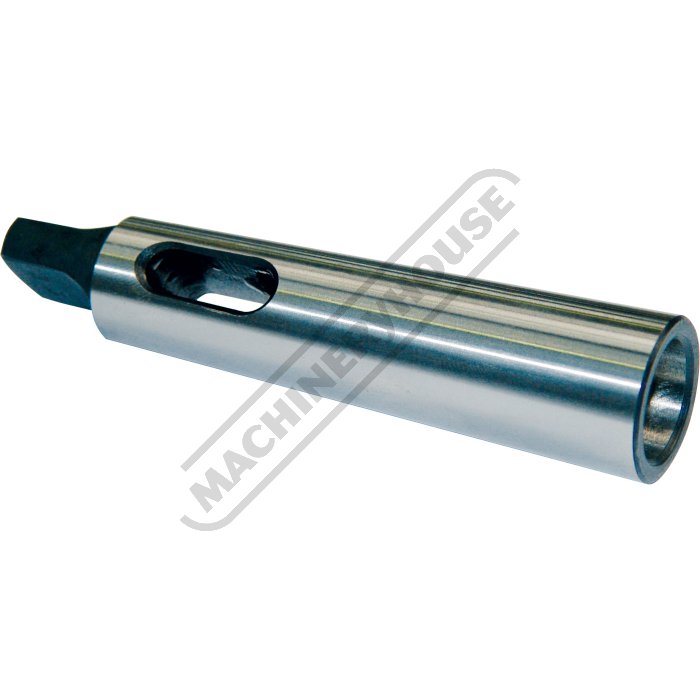

2MT 1MT Drill Sleeve D420 20 of 22

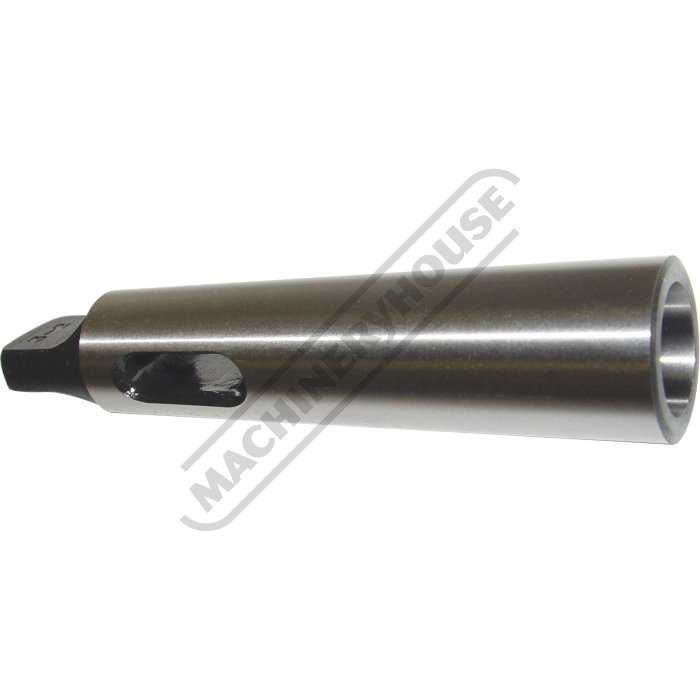

3MT 2MT Drill Sleeve D422 21 of 22

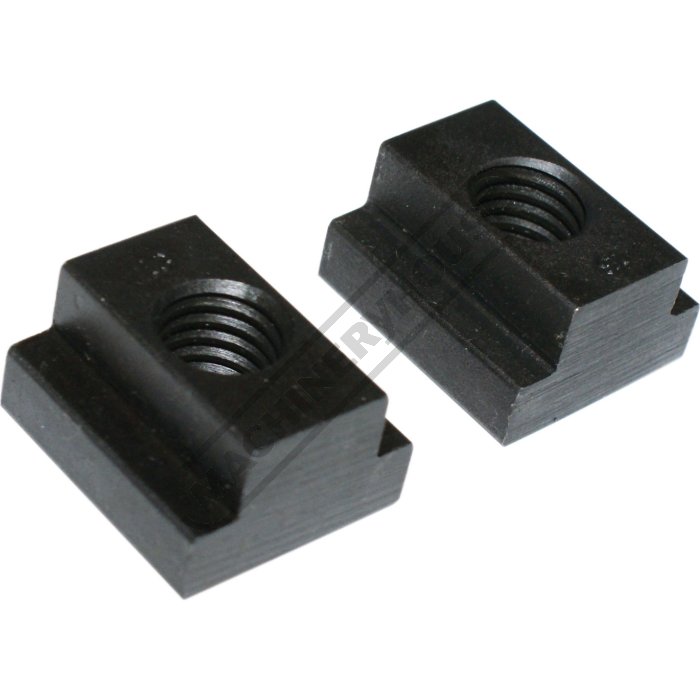

Clamp Kit Tee Nuts C085A 22 of 22

HAFCO-METALMASTER

Order Code: K8204

Please Call

415V
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

NSW Schools / TAFE - PD-35B Pedestal Drill

31.5mm

NSW Contract Item No.2B

Features

High quality Taiwanese made
Precision ground 3MT spindle
Quiet running, B-Section V-belt drive system
Thick walled 92mm column ensuring greater rigidity
T slotted work table that rotates 360º
Rack & pinion table height adjustment with locking lever
Drilling depth stop setting with scale
Quick action belt tensioning lever
2 speed high / low switch
18 Spindle speeds, 90-180, 150-300, 160-320, 215-430, 240-480, 310-620, 525-1050, 600-1200, 840-1680rpm
Fan-cooled 415 volt motor rated for continuous use with overload protection

Safety Features

Interlocked spindle safety guard
Emergency stop switch
Tamper proof micro switch fitted to belt cover with integrated tool-locking mechanism
DOL starter switch with overload protection
Keyed isolation switch - PWD approved

Includes

100mm deluxe drill vice (V1441)
13mm keyless drill chuck (C292)
3MT x JT6 drill chuck arbor (D443)
2MT - 1MT drill sleeve (D420)
3MT - 2MT drill sleeve (D422)
Drill drift
M10 tee nuts suit 12mm table slot (C085A)

Specifications

Compare Product Range

Specifications

ORDER CODE	K8204
NSW Contract No.	NSW Contract No.2B
MODEL	Schools / TAFE PD-35B
Bench / Pedestal Type	Pedestal
Duty Type	Industrial-Duty
(mm)Drill Capacity	31.5
(MT)Spindle Taper	3
(Yes / No)Auto Feed	No
(mm)Spindle Travel	125
(mm)Throat Depth	225
(mm)Quill Diameter	72
(mm)Collar Diameter	92
(mm)Column Diameter	92
(mm)Spindle To Table	730
(mm)Spindle To Base	1175
Table Shape	Square
(Yes / No)Micro Switch On Pulley Guard	Yes
Table Size	350 x 350
Spindle Drive Type	B Section Belt
(No.)Spindle Steps	18
(RPM)Spindle Speeds	90 - 1680
(kW / hp)Motor Power	0.75 / 1
(V / amp)Voltage / Amperage	415
(mm)Overall Height	1700
(kg)Nett Weight	136
