GHD-22A Geared Head Drill - QLD Schools / TAFE

Ø25mm Drilling Capacity

QLD Contract Item No. 2.2

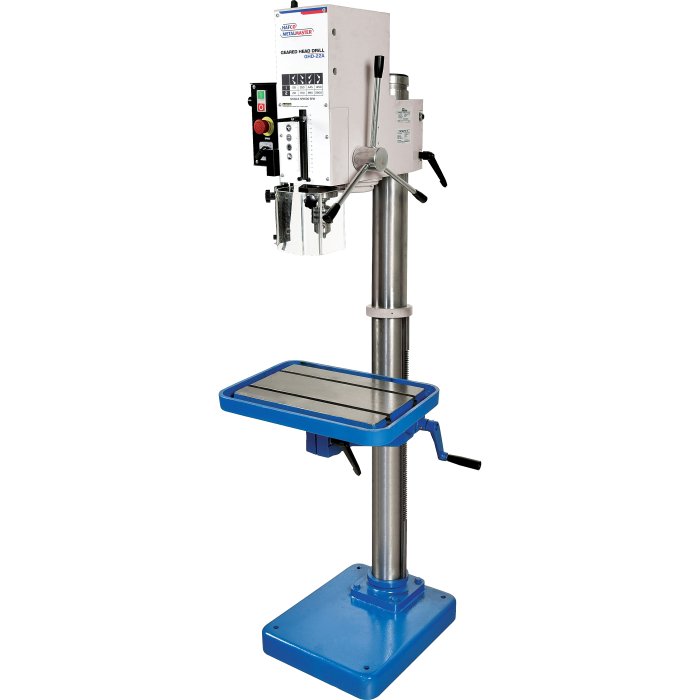

K8700 1 of 16

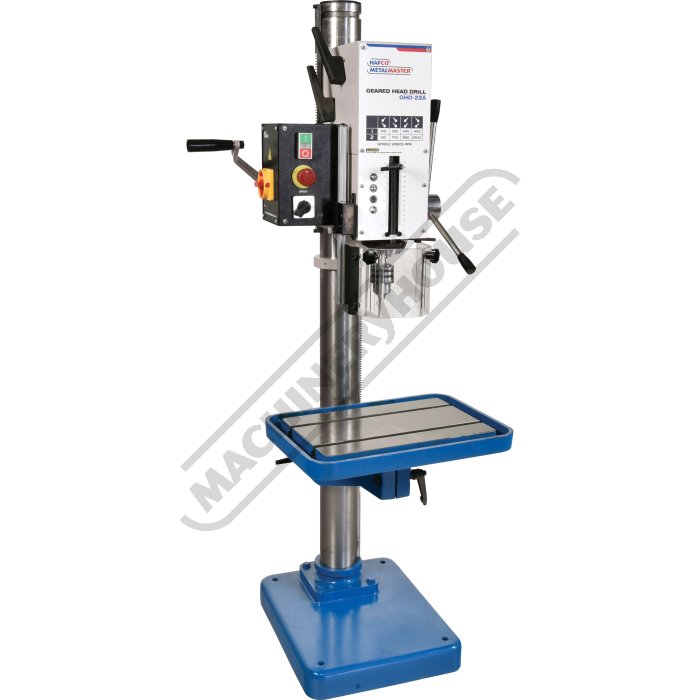

Left View 2 of 16

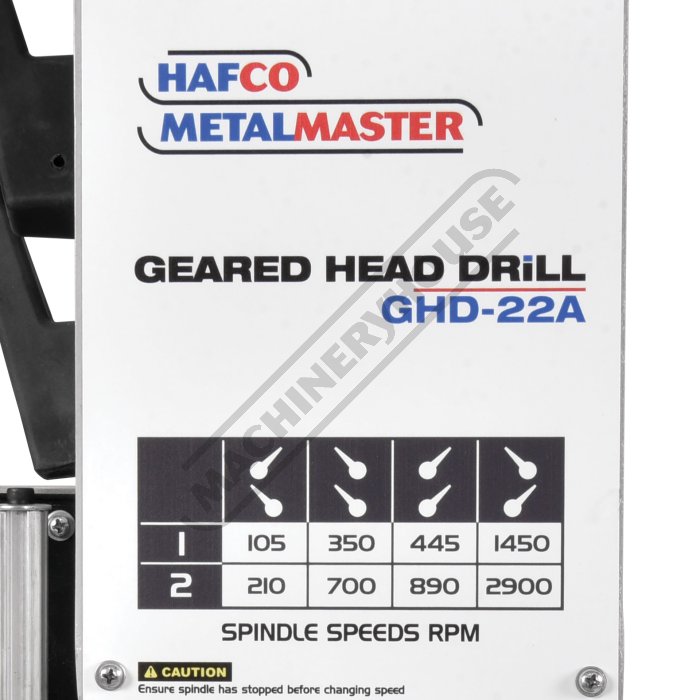

HighLow With Forward Reverse Spindle Speeds 3 of 16

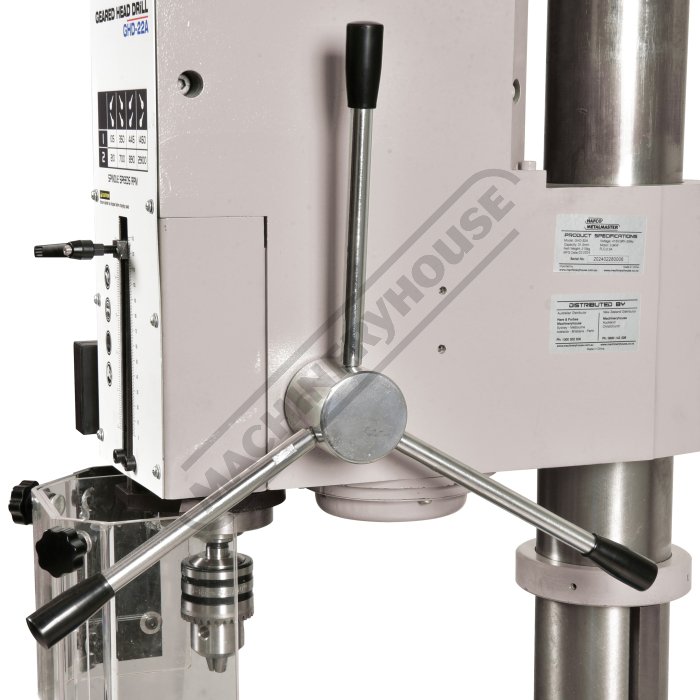

Quill Handle 4 of 16

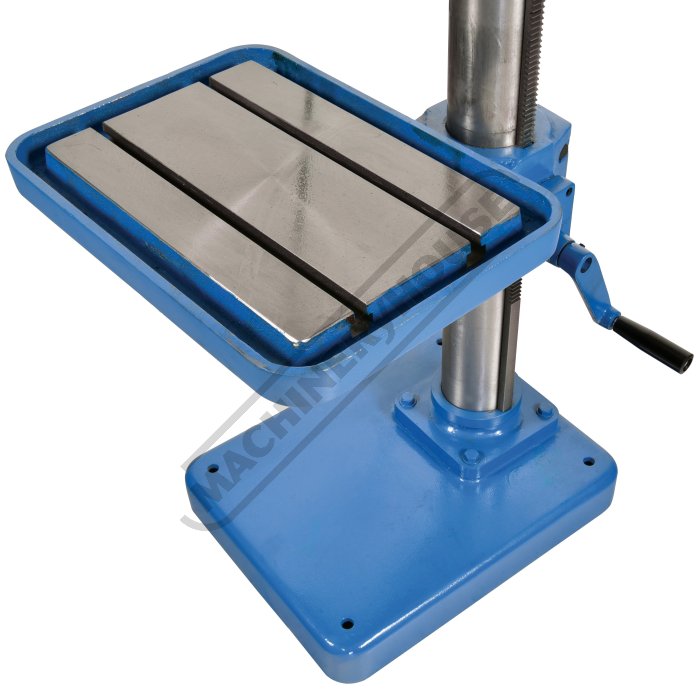

T Slotted Work Table With 360 Degree Rotation 5 of 16

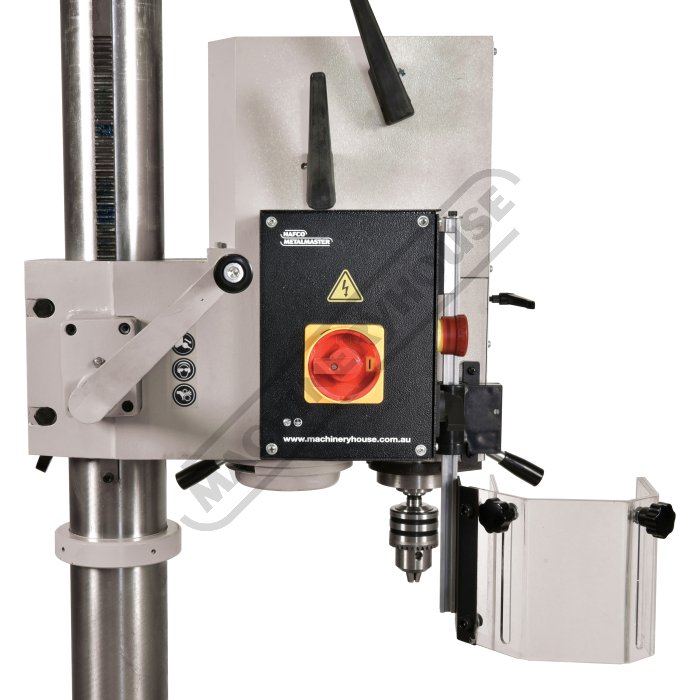

Rack Pinion Wind Up Drill Head 6 of 16

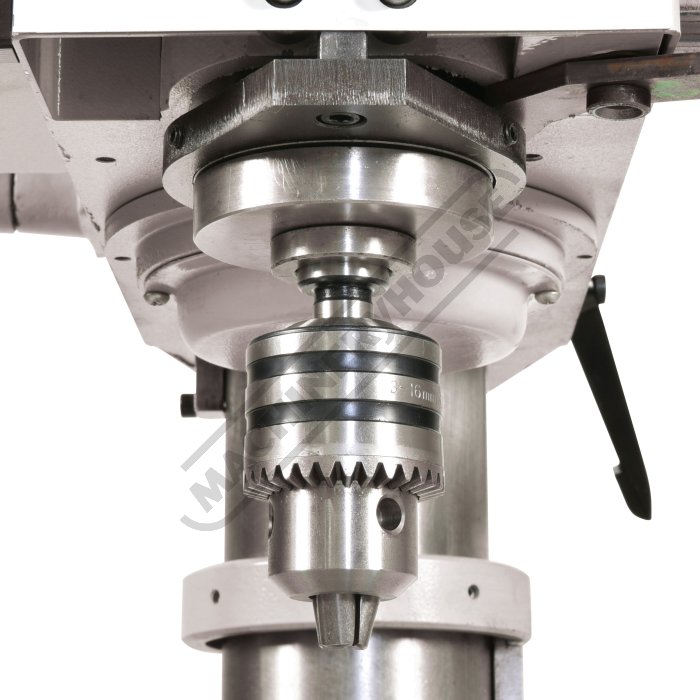

Drill Chuck 7 of 16

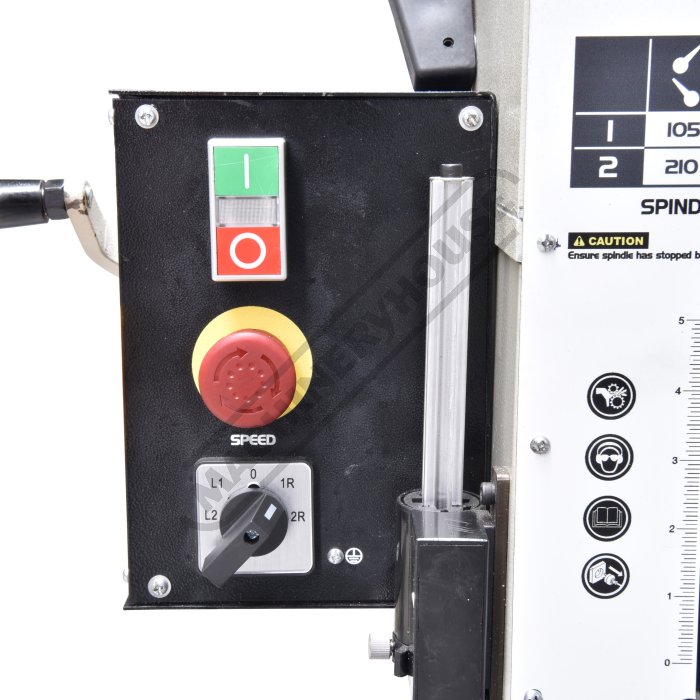

Switch Panel 8 of 16

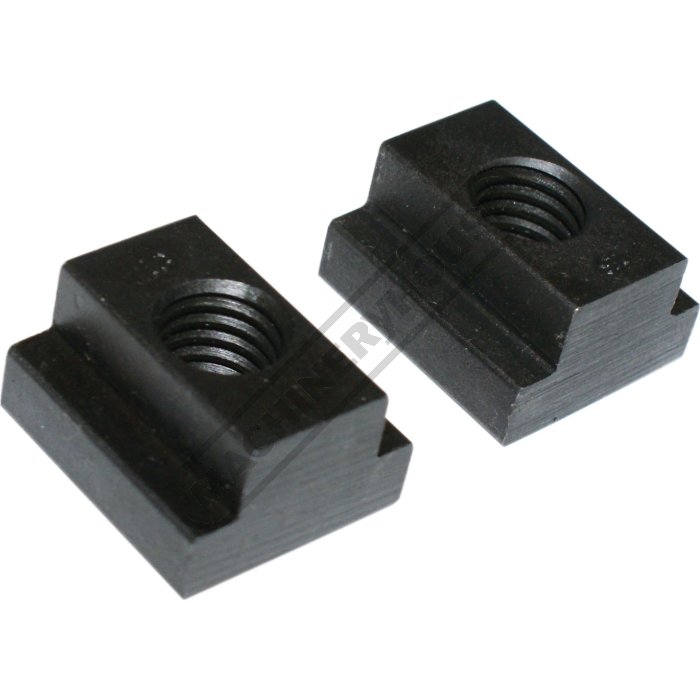

C086 M12 x 14mm Tee Nuts 9 of 16

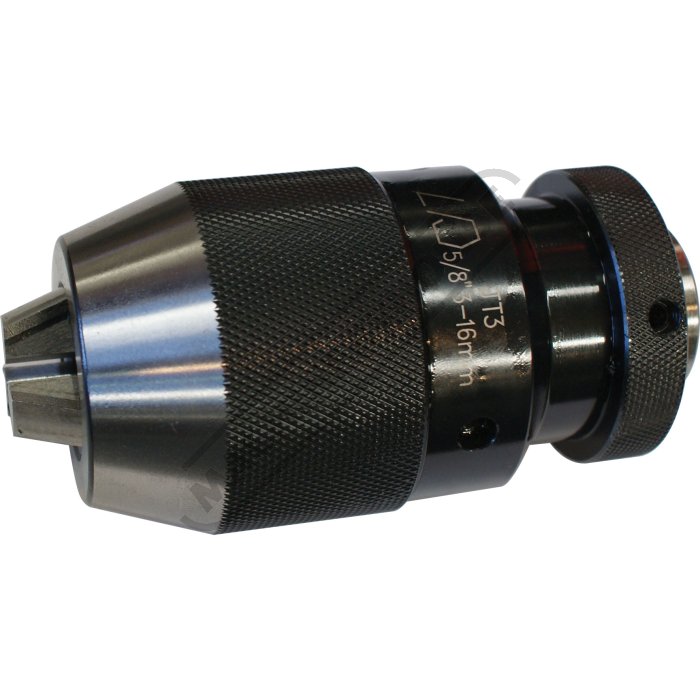

C294 16mm Keyless Drill Chuck 10 of 16

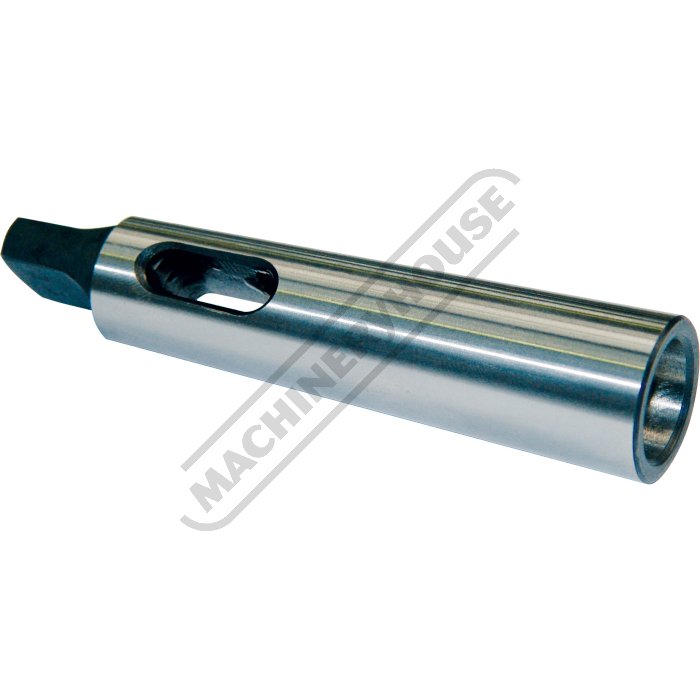

D420 2 1MT Sleeve 11 of 16

D422 3 2MT Sleeve 12 of 16

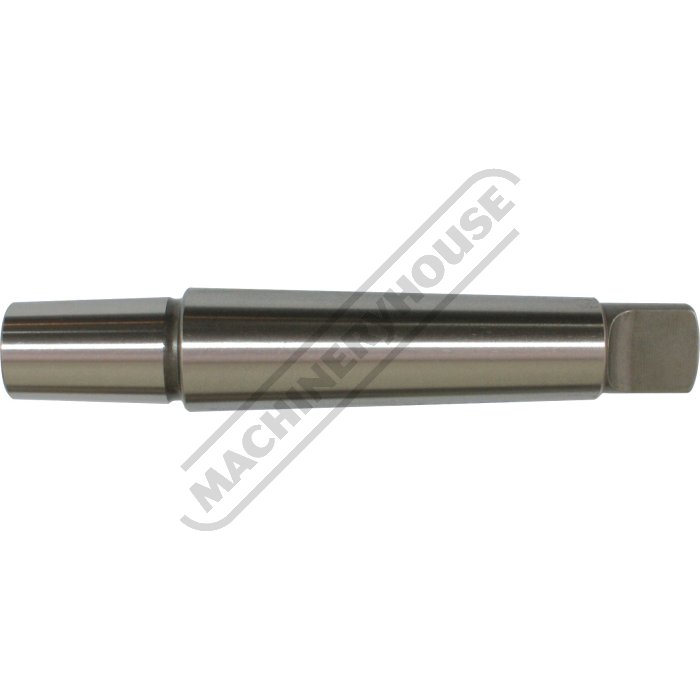

D443A 3MT x JT3 Drill Chuck Arbor 13 of 16

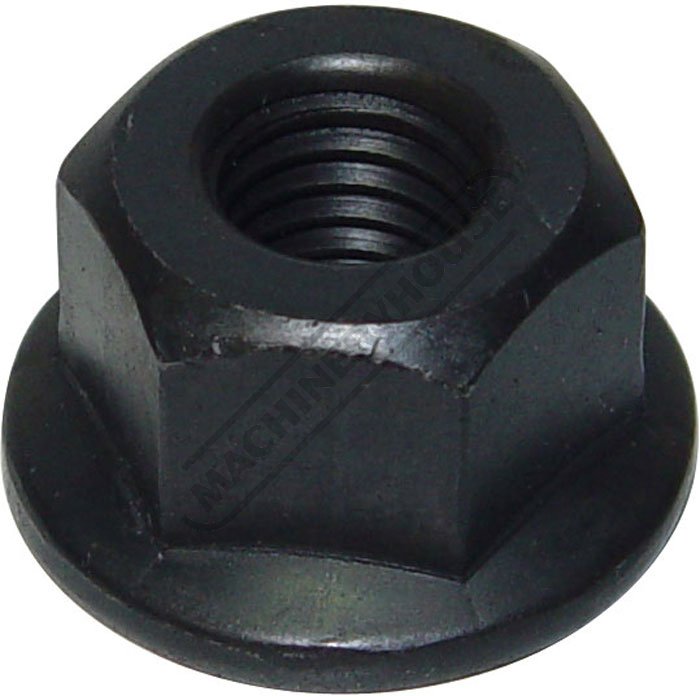

N086 Flanged Nuts 14 of 16

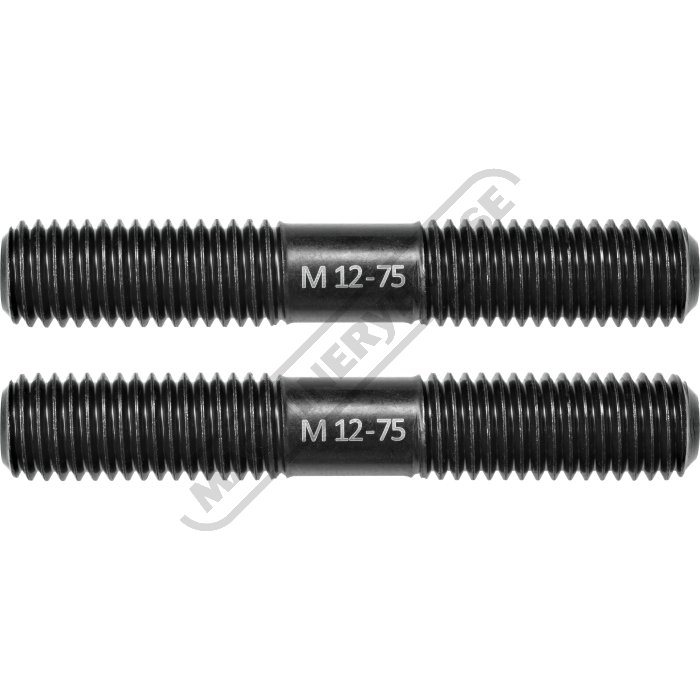

N0893 Double End Threaded Clamp Stud 15 of 16

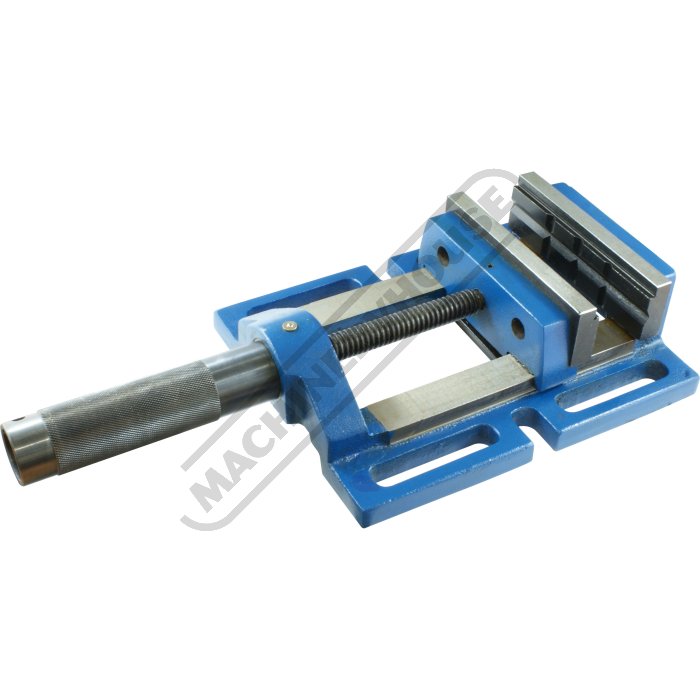

V145 Drill Press Vice Deluxe 16 of 16

HAFCO-METALMASTER

Order Code: K8700

Please Call

415V / (NO PLUG)
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

GHD-22A Geared Head Drill - QLD Schools / TAFE

Ø25mm Drilling Capacity

QLD Contract Item No. 2.2

Overview

We for many years have been working in close consultation with the education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

Features

Ideal for industrial or workshop use
Geared head drilling machine with 3 morse taper spindle
8 drilling speeds from 105 - 2900 rpm
High/low with forward & reverse switch
Helical cut gears for quiet & smooth operation
Interlocked spindle safety guard
Rack and pinion wind-up drill head
Rack & pinion table height adjustment with locking lever
Thick walled column ensuring greater rigidity
Drill ejector lever
Safety emergency stop/reset switch
Table rotates 360º
Drilling depth stop setting with scale
T slotted work table

Includes

16mm Keyless Drill Chuck (C294)
3MT x JT3 Drill Chuck Arbor (D443A)
127mm Delux Drill Vice (V145)
Tee Nuts M12-14mm Table Slot (C086)
2MT - 1MT Drill Sleeve (D420)
3MT - 2MT Drill Sleeve (D422)
Flanged Nuts (N086)
Double End Threaded Clamp Stud (N0893)

Specifications

Compare Product Range

Specifications

ORDER CODE	K8700
QLD DOE Item No.	2.2
MODEL	Schools / TAFE GHD-22A
Bench / Pedestal Type	Pedestal
Duty Type	Industrial-Duty
(mm)Drill Capacity	Ø25
(MT)Spindle Taper	3
(mm)Spindle Travel	125
(mm)Throat Depth	255
(mm)Quill Diameter	60
(mm)Column Diameter	100
(mm)Spindle To Table	830
(mm)Spindle To Base	1240
Table Shape	Rectangle
(Yes / No)Micro Switch On Pulley Guard	No
Table Size	350 x 500
Spindle Drive Type	Geared Head
(No.)Spindle Steps	8
(RPM)Spindle Speeds	105 - 2900
(kW / hp)Motor Power	0.9 / 1.2
(V / amp)Voltage / Amperage	415
(mm)Overall Height	1800
(kg)Nett Weight	220
