QLD Schools / TAFE - GHD-38B Geared Head Drill

40mm

QLD Contract Item No. 2.4

K8702 1 of 15

DoE QLD Preferred Supplier 2 of 15

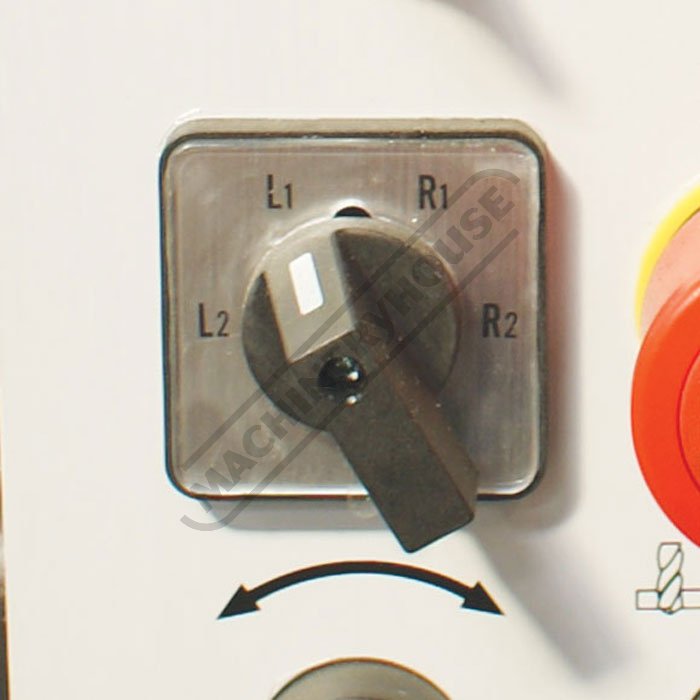

High Low with Forward and Reverse Switch 3 of 15

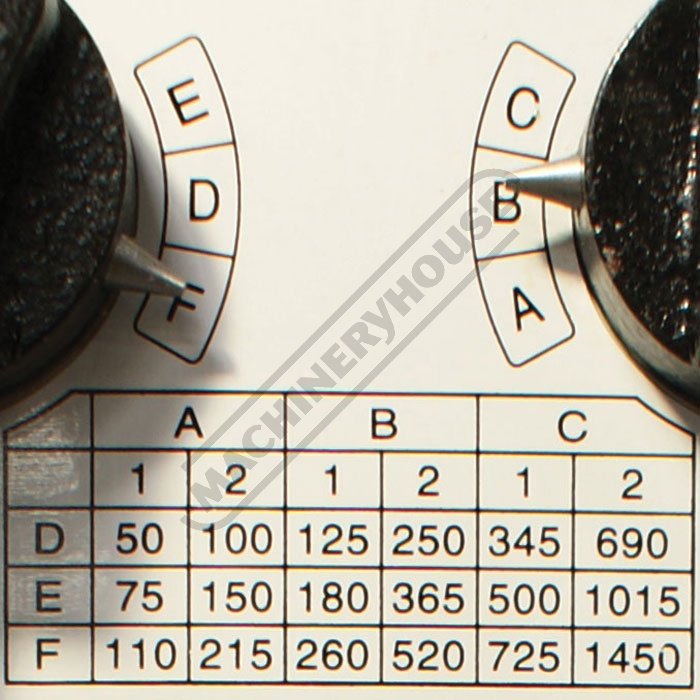

18 Drilling Speeds from 50 1450rpm 4 of 15

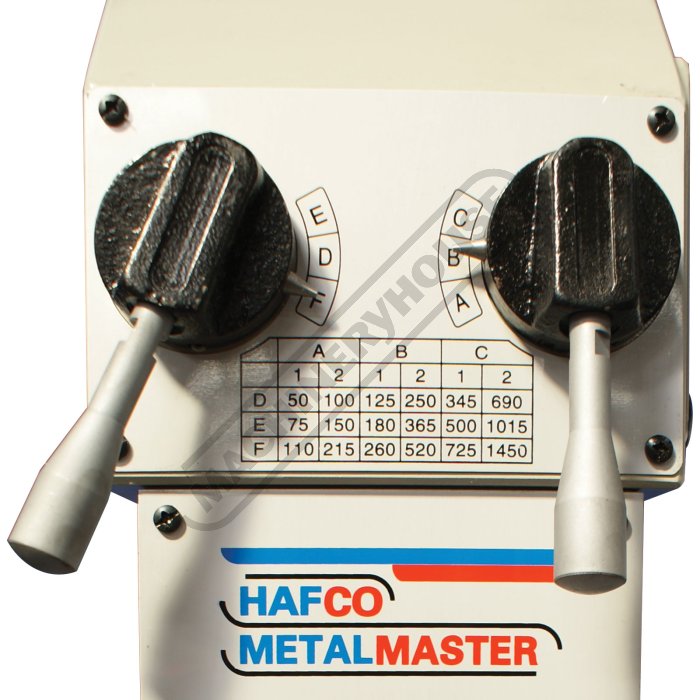

Gear Selection Levers 5 of 15

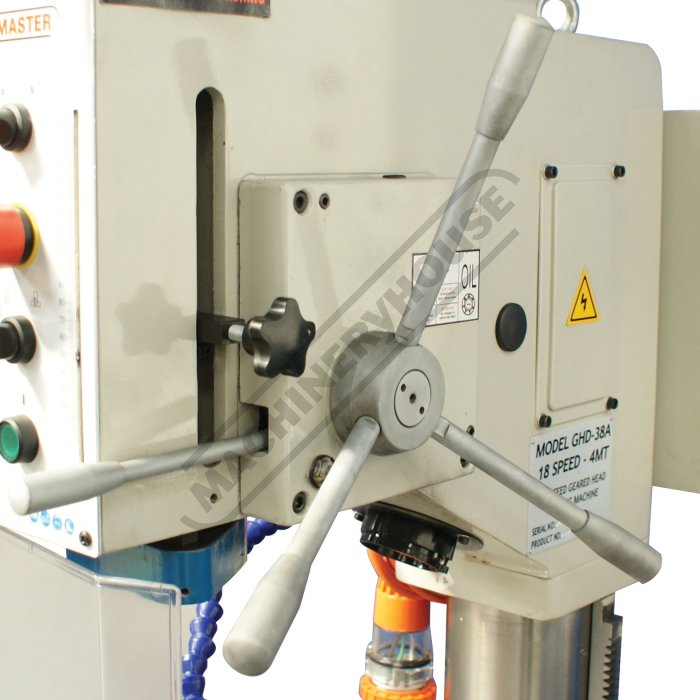

Adjustable accurate depth setting with auto feed cut out for increased productivity 6 of 15

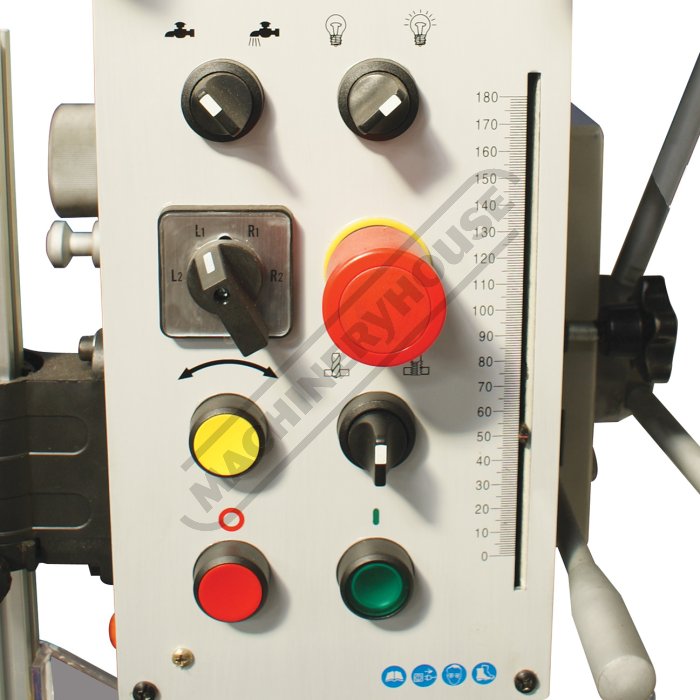

Head Controls 7 of 15

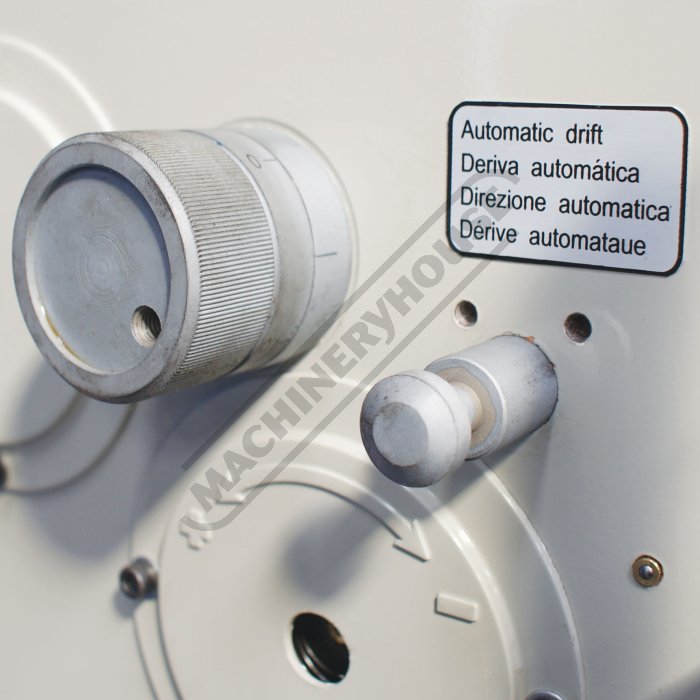

Automatic Feed Range and Auto Drift Drill Ejector 8 of 15

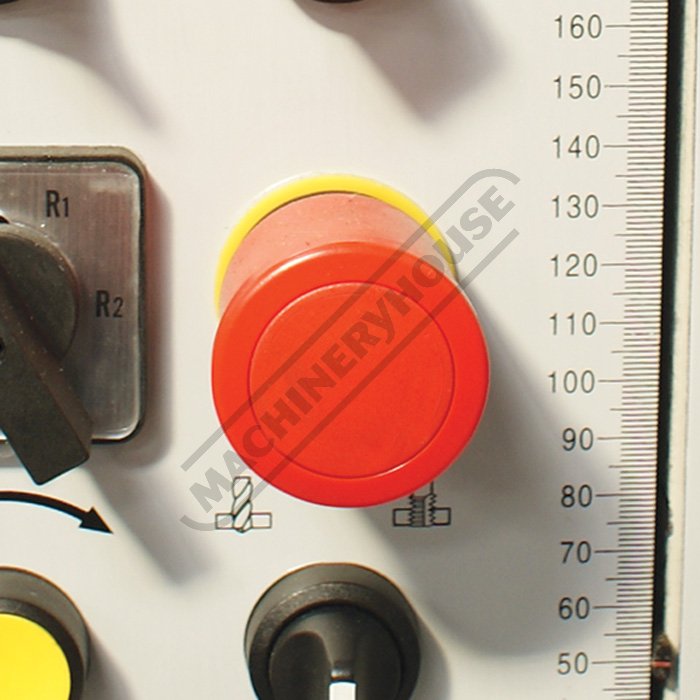

Emergency Stop Switch and Overload Protection 9 of 15

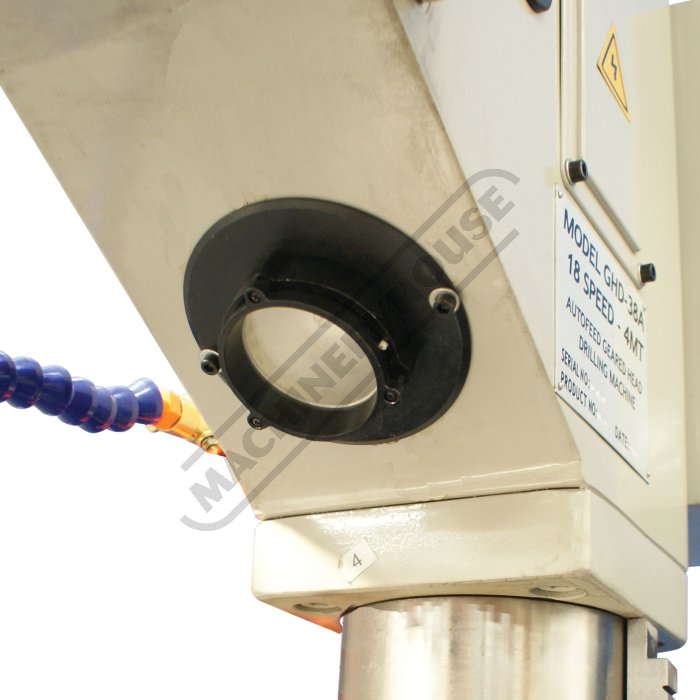

Work Light 10 of 15

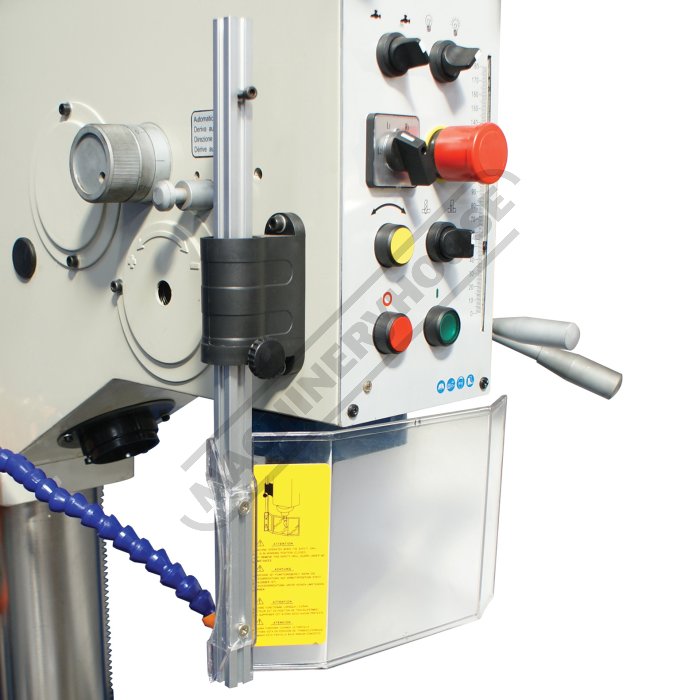

Interlocked Spindle Safety Guard 11 of 15

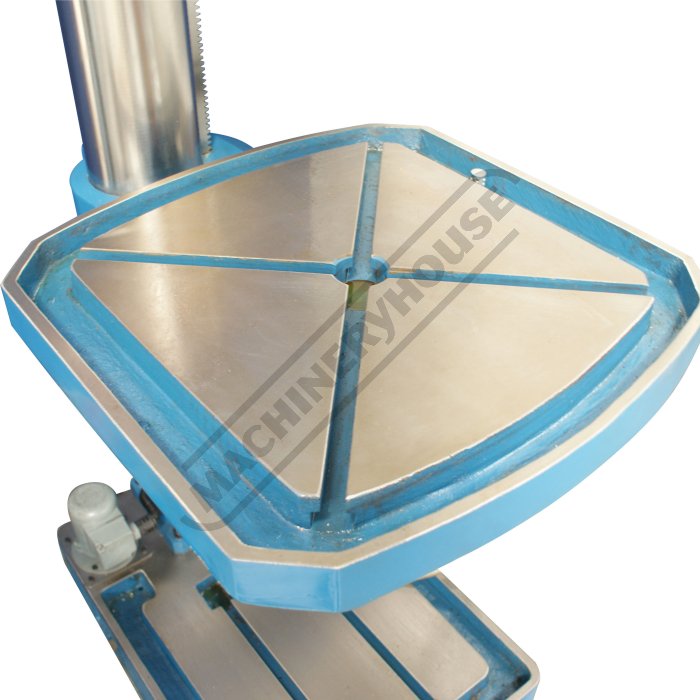

T Slotted Work Table 12 of 15

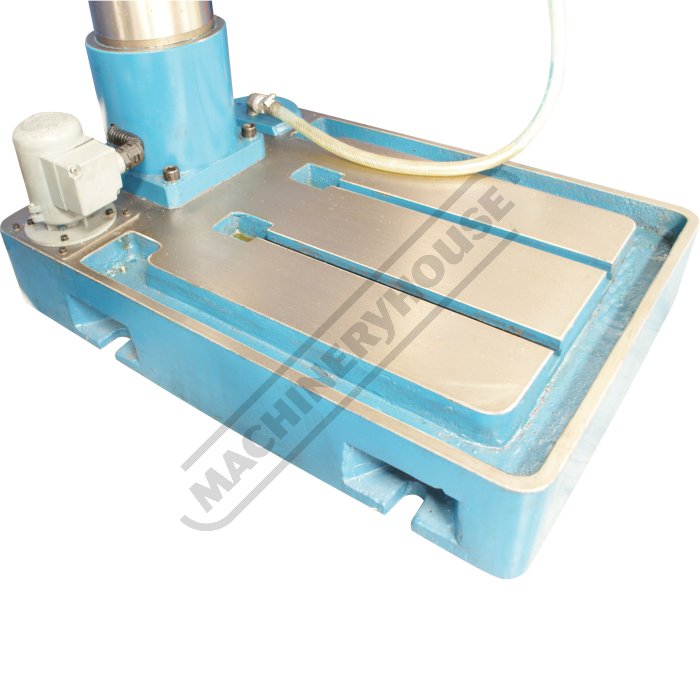

T Slotted Base 13 of 15

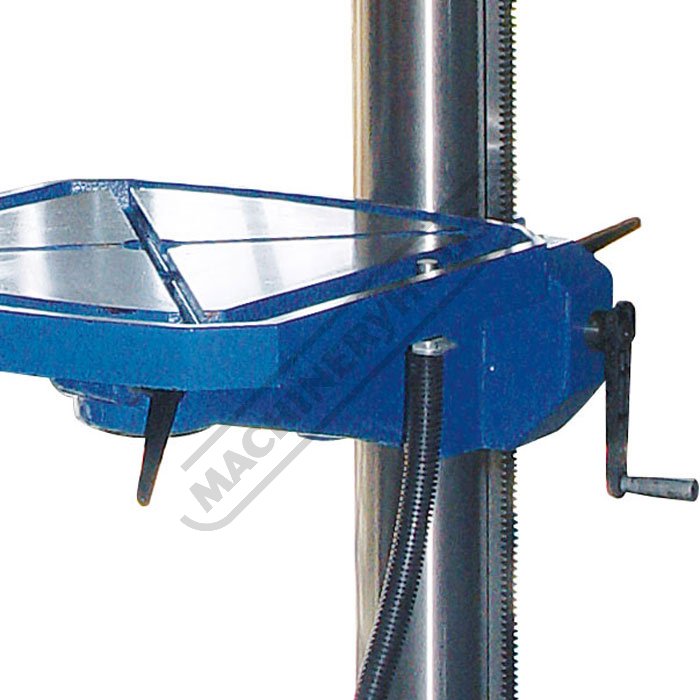

Rack and pinion wind up Table 14 of 15

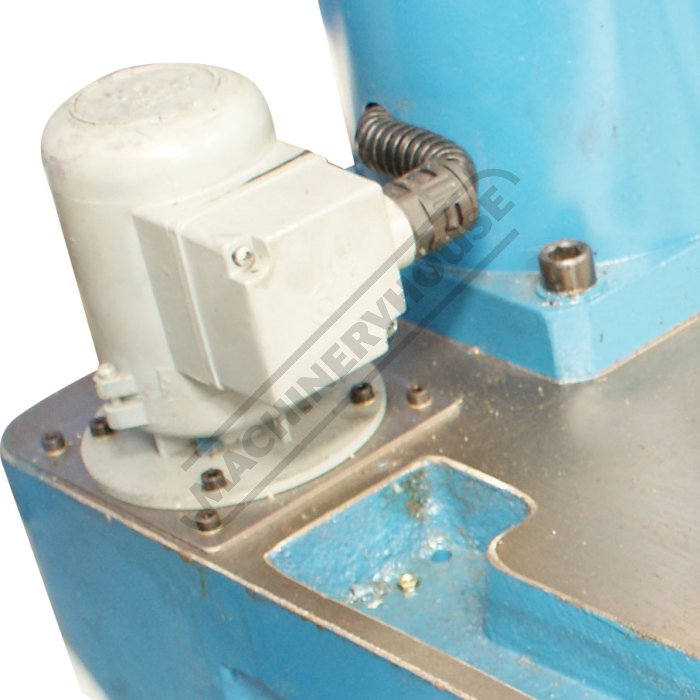

Coolant Pump System 15 of 15

HAFCO-METALMASTER

Order Code: K8702

Please Call

415V / (NO PLUG)
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

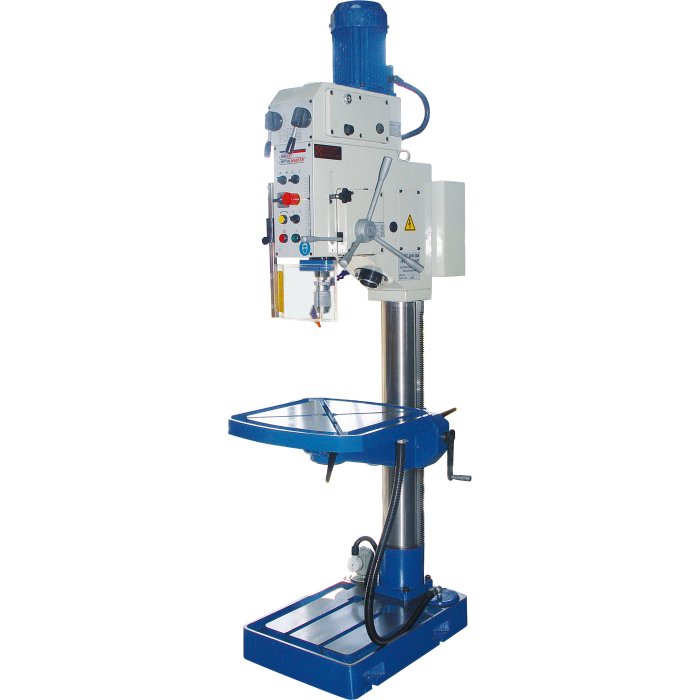

QLD Schools / TAFE - GHD-38B Geared Head Drill

40mm

QLD Contract Item No. 2.4

Overview

We for many years have been working in close consultation with the education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

Features

Ideal for industrial workshop use
Geared head drilling machine with 4 morse taper spindle
Automatic thread tapping with auto reversal of direction upon reaching the pre-set depth
Automatic feed range (0.1, 0.2mm/rev)
18 drilling speeds from 50-1450rpm
Interlocked spindle safety guard
Drill ejector incorporated in machine
Coolant pump system with flexible hose
Work light mounted in convenient location
40mm drill capacity with 180mm of Spindle travel
Oil sight glass for geared head and feed gearbox
Modern electrics to European CE standards
Forward and reverse spindle switch with high and low speeds
Emergency stop switch and overload protection
Substantial heavy walled column ensuring greater rigidity
Adjustable accurate depth setting with auto feed cut out for increased productivity
Rack and pinion wind-up table
T slotted work table and base

Includes

Coolant pump system
Auto feed
Tapping function
Chuck guard
Work light

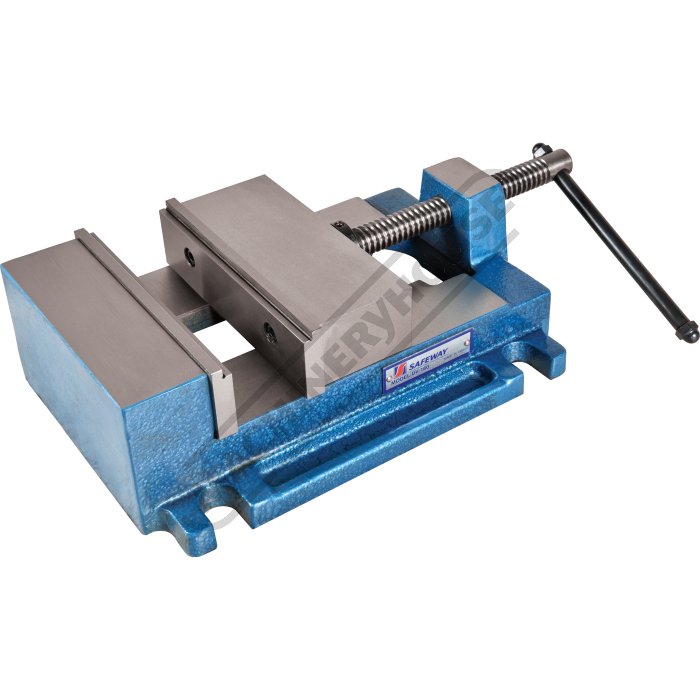

160mm Precision SAFEWAY Drill Vice (V143)

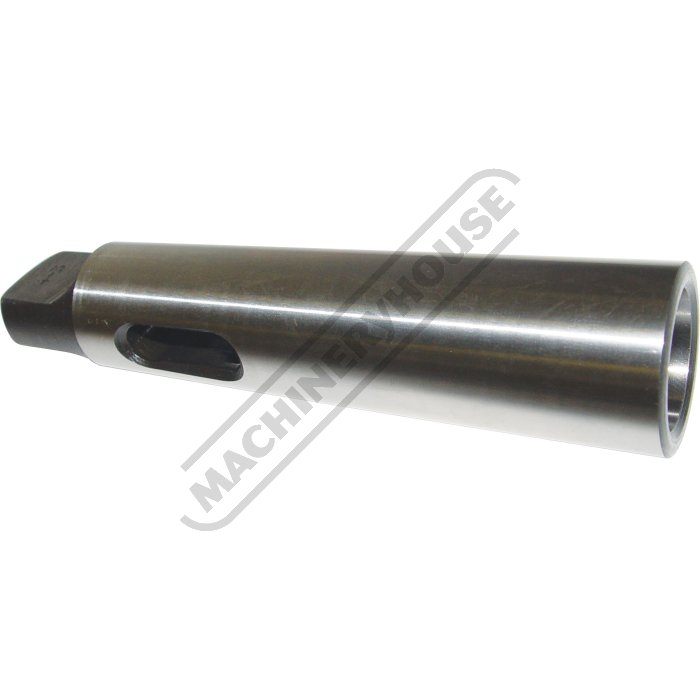

4MT - 3MT Drill Sleeve (D424)
3MT - 2MT Drill Sleeve (D422)

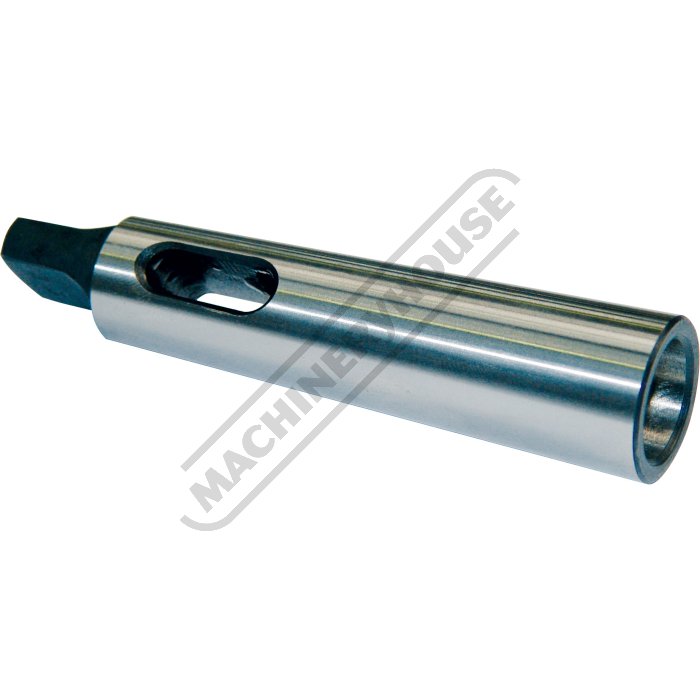

2MT - 1MT Drill Sleeve (D420)

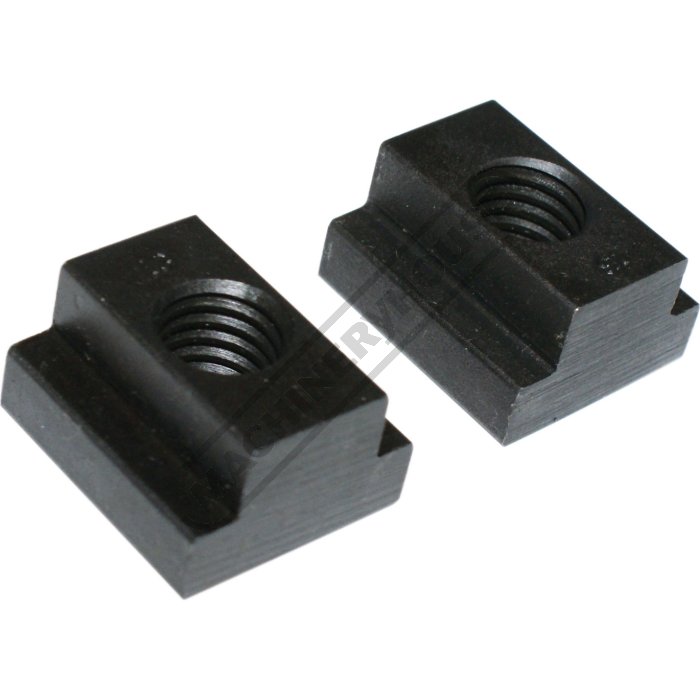

Tee Nuts 16mm Table Slot (C087)

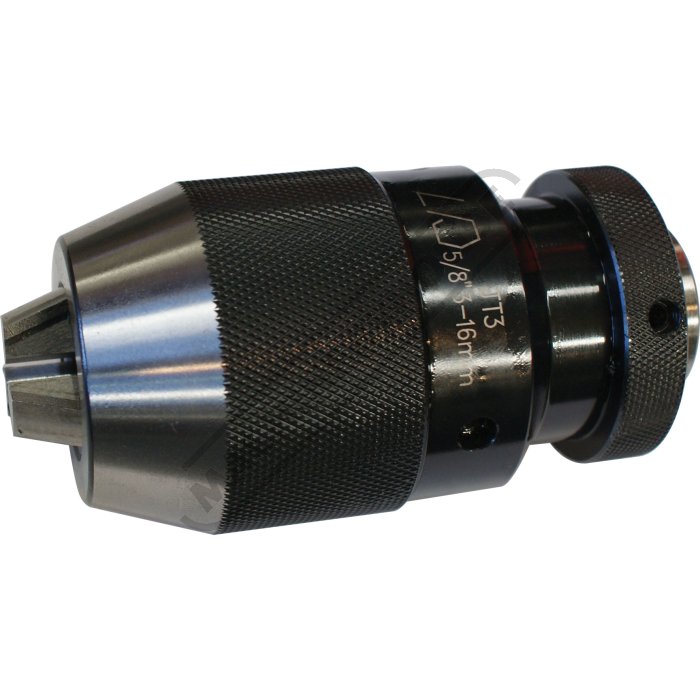

16mm Keyless Drill Chuck (C294)

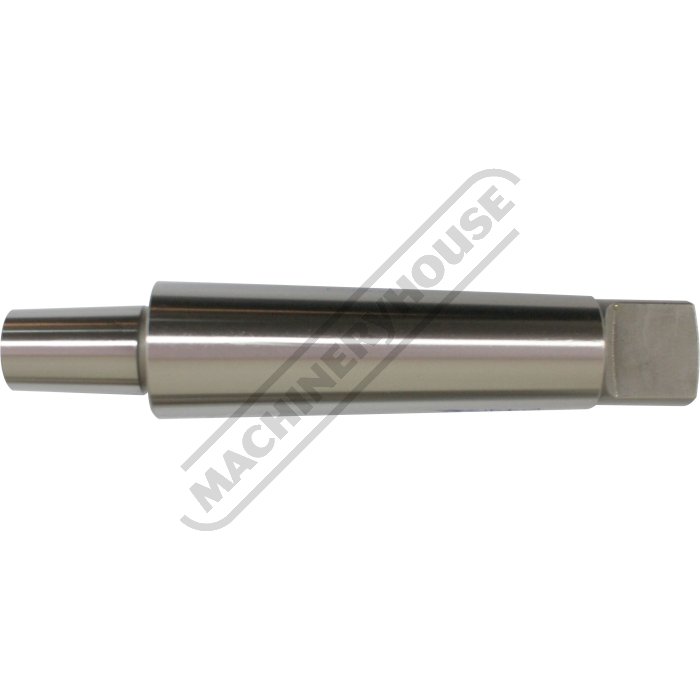

4MT x JT3 Drill Chuck Arbor (D454A)

Specifications

Compare Product Range

Specifications

ORDER CODE	K8702
QLD Contract No.	QLD Item No. 2.4
MODEL	Schools / TAFE GHD-38B
Bench / Pedestal Type	Pedestal
Duty Type	Industrial-Duty
(mm)Drill Capacity	40
(MT)Spindle Taper	4
Threading Capacity	M24
(Yes / No)Auto Feed	Yes
(mm)Spindle Travel	180
(mm)Throat Depth	350
(mm)Quill Diameter	75
(mm)Column Diameter	150
(mm)Spindle To Table	770
(mm)Spindle To Base	1320
Table Shape	Square
(Yes / No)Micro Switch On Pulley Guard	No
Table Size	560 x 560
Spindle Drive Type	Geared Head
(No.)Spindle Steps	18
(RPM)Spindle Speeds	50 - 1450
(kW / hp)Motor Power	1.5 / 2
(V / amp)Voltage / Amperage	415
(mm)Overall Height	2220
(kg)Nett Weight	595
