Order Code: K8709D
ex-gst
inc-gst
$ 5,650.00
$ 6,215.00
240V / 10A
1 Year Warranty
Finance Available
Description

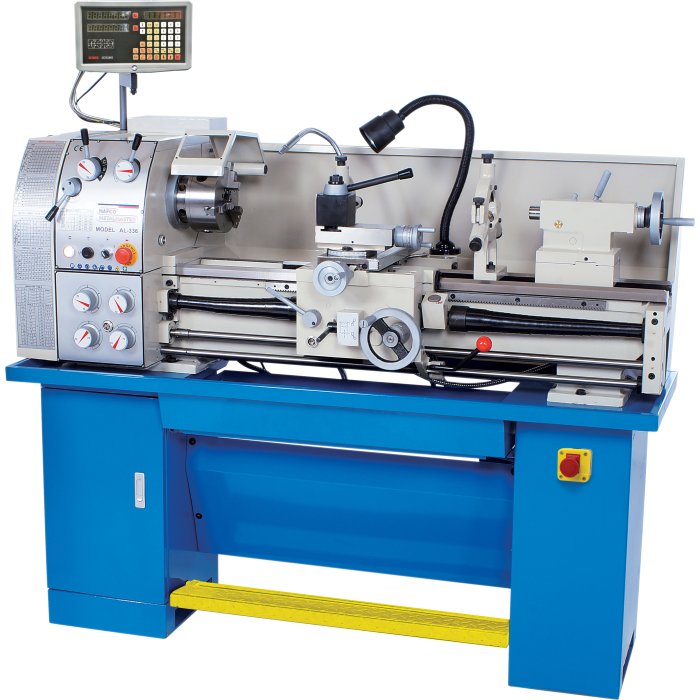

QLD Schools / TAFE - AL-336D Bench Lathe includes Tooling Package

3000 x 900mm Turning Capacity
QLD Contract Item No.
Overview
We for many years have been working in close consultation with the education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

A high quality specification, floor standing, heavy duty metal turning lathe suitable for the keen model engineer, general maintenance and small production work shops. Featuring a precision ground, induction hardened bed, fully gear driven spindle with a speed range of 65 - 1810rpm, selectable via the front of headstock mounted gear selection levers.

2HP single phase 240V motor is supplied on machine, taper roller spindle bearings, range of cross and longitudinal feed speeds selected on a separate gearbox, thread chasing dial, spindle foot brake, chuck guard with safety interlock, guarded leadscrew, splash guard, coolant pump system, work lamp, digital readout on a separate panel.

Supplied with a large range of standard accessories including a 150mm(6") 3 jaw self centring chuck, 200mm(8") 4 jaw independent chuck, face plate and dead centres. 5 to 3 MT reduction sleeve, steady rest, follow rest, quick change tool post with 4 tool holders. The floor stand is supplied with a swarf tray and incorporates a foot brake. Change gears and toolbox with maintenance tools.

The overall capacities are 900mm between centres and 300mm swing over the bed. A gap bed facility gives 450mm swing. Thread cutting facilities in Metric & Imperial with a reversible leadscrew, the thread chasing dial provides easy re-engagement of the leadscrew in the correct position. (note the thread chasing dial is designed for imperial only).
Features
  • 2 Axis digital readout
  • Quick change toolpost with 4 holders
  • Gear drive headstock for quick change of spindle speeds
  • Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
  • Concertina leadscrew cover
  • Slide out swarf tray from front of machine
  • Low voltage work light
  • Foot operated spindle brake with safety cut out switch
  • Slide out front swarf tray for easy cleaning
  • Change gears for metric and imperial thread cutting
  • Oil sight glass for head stock and gearbox
  • Adjustable taper roller bearings support the spindle
  • 18 spindle speeds from 65 to 1810rpm
  • Inching button is incorporated on the control panel for convenient spindle speed selection
  • Enclosed quick action gearbox for thread cutting and auto feeding
  • Powered longitudinal and cross feeds
  • D1-4 camlock spindle for quick chuck changes and safe reverse direction turning. ISO standard
  • Removable gap bed-way for larger diameter jobs
  • Dual calibrated dials (except for saddle hand-wheel)
  • Chuck & change gear guards are fitted with micro switches
Includes
  • 2 Axis digital readout system
  • Concertina leadscrew cover
  • Quick change toolpost with 4 holders
  • Slide out front swarf tray
  • 3-jaw chuck with reverse jaws
  • 4-jaw chuck
  • Face plate
  • Fixed steady
  • Travelling steady
  • Coolant system
  • Change gears
  • Dead centres
  • Thread-chasing dial
  • Safety chuck guard
  • Work light
  • Stand
  • Foot brake
  • Rear splash guard & slide out swarf tray
  • Tool box
  • Instruction booklet

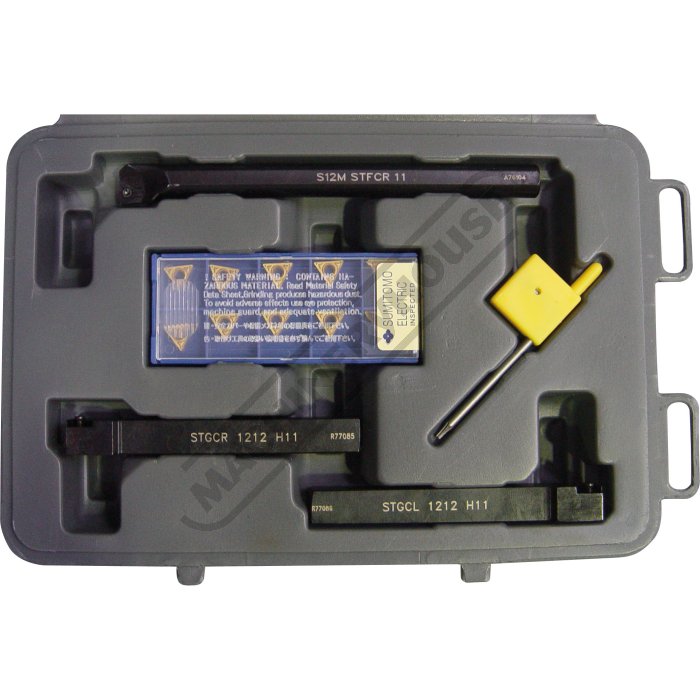

  • 12mm Turning Tool Set - (L450)

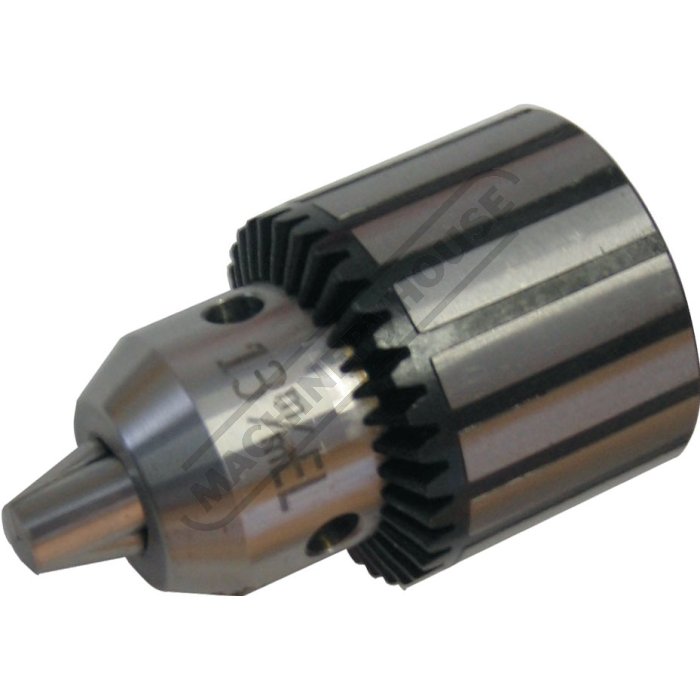

  • 13mm Keyed Drill Chuck - (C289)

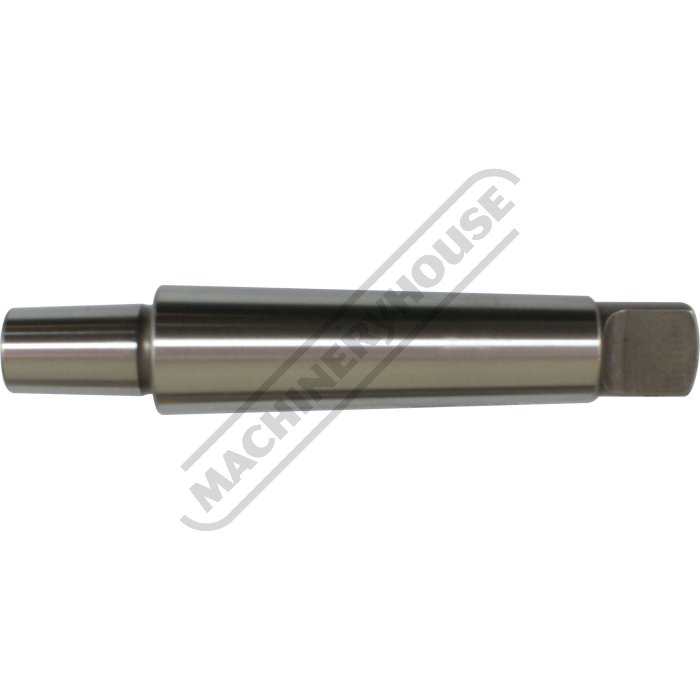

  • 3MT Drill Chuck Arbor - (D443)

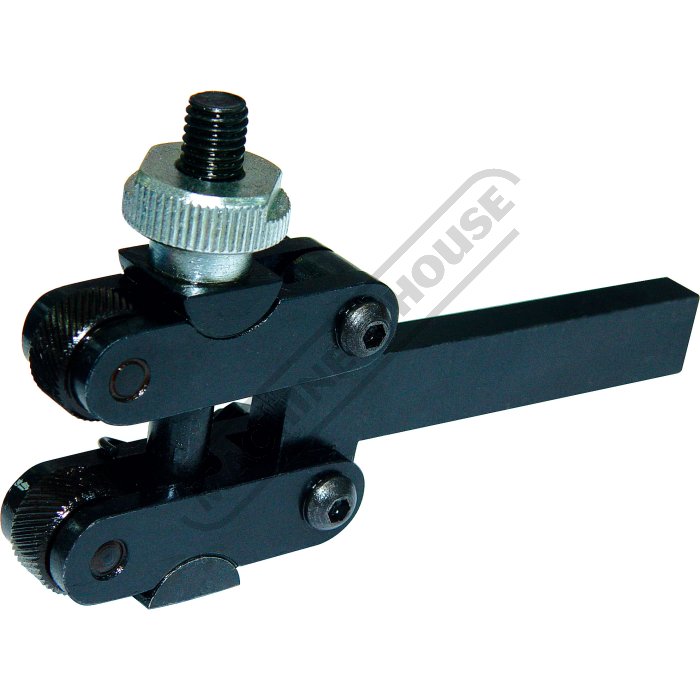

  • Knurling Tool - (L080)

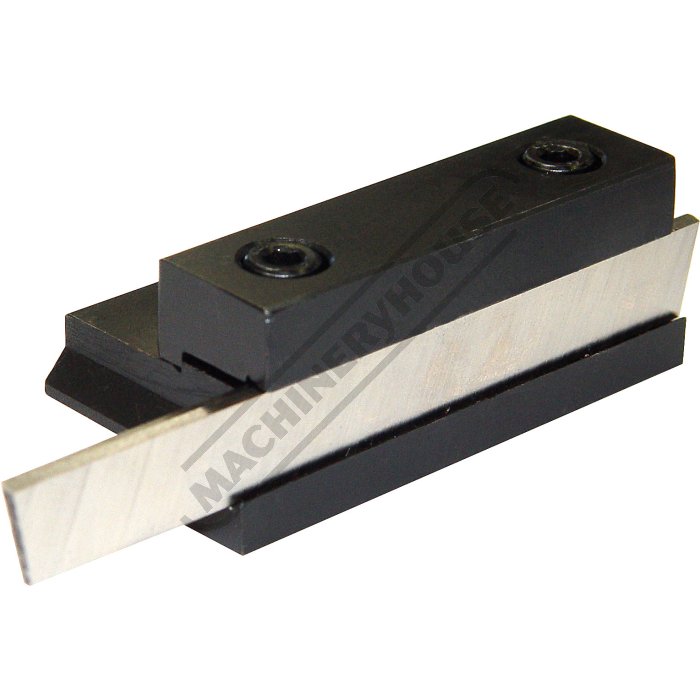

  • 12mm Parting Off Block - (L074)

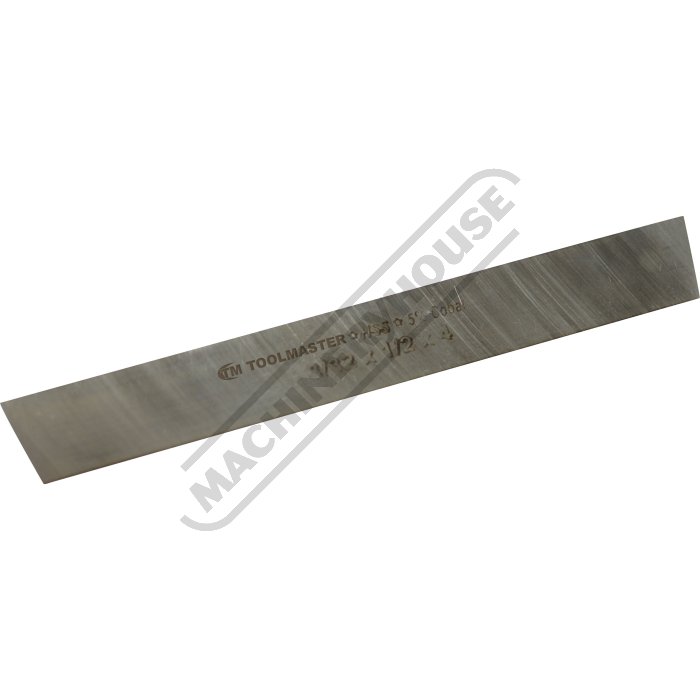

  • HSS Parting Off Blade - (L0007)

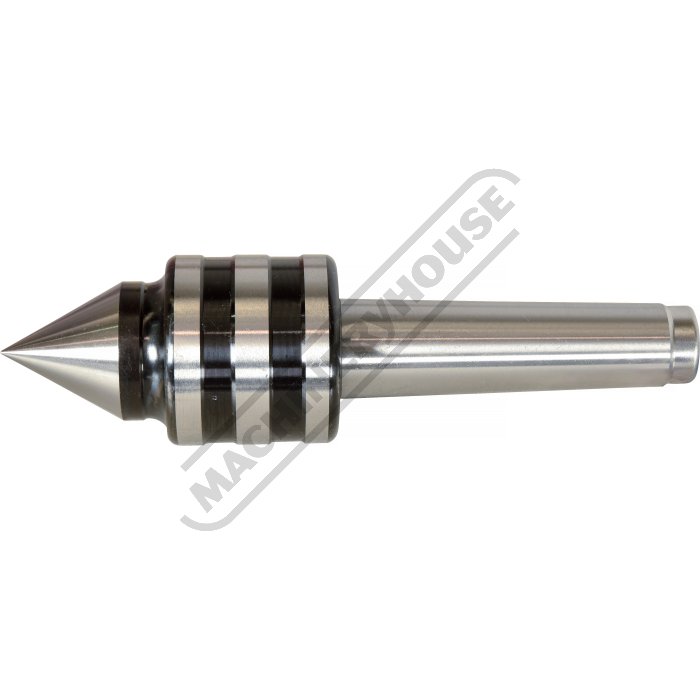

  • 3MT Live Centre - (C052)
