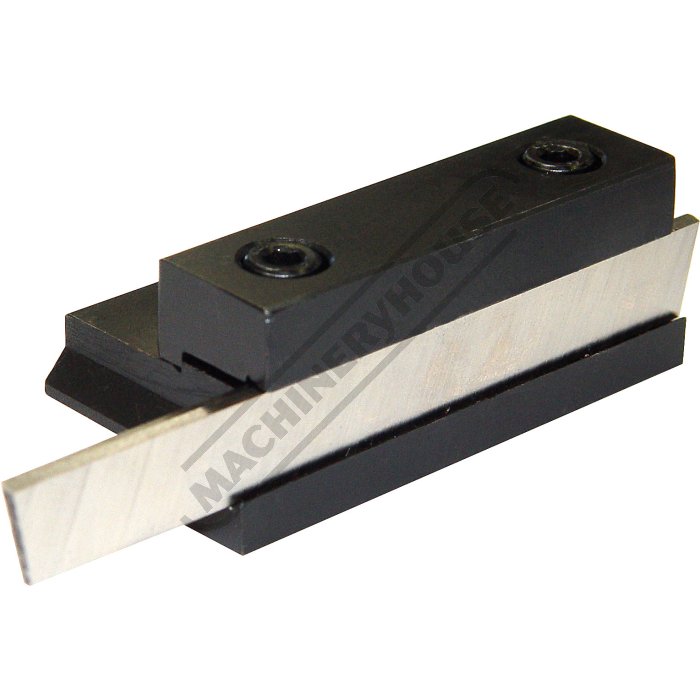

L074 Parting Tool Holder Suits 12 HSS Tool Bit 32 of 35

L080 Knurling Tool Holder Clamp Type 33 of 35

L451 Lathe Turning Tool Kit 3 piece Insert Type 34 of 35

M002 Steel Machine Mount Rubber Insert 35 of 35

HAFCO-METALMASTER

Order Code: K8714D

Please Call

415V / (NO PLUG)
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Downloads

Description

QLD Schools / TAFE - AL-1000D Centre Lathe with Digital Readout - Includes Tooling Package

356 x 1000mm Turning Capacity

QLD Contract Item No. 4.4

Features

Tool room quality precision lathe, Made in Taiwan
Gear drive headstock for quick change of spindle speeds
Removable gap bed-way for larger diameter jobs
Change gears for metric and imperial thread cutting
Powered longitudinal cross feeds
Dual calibrated dials (except for saddle hand wheel)
Enclosed quick action gearbox for thread cutting and auto feeding
Precision ‘V’-beds are hardened and ground, incorporating a rigid webbed casting
Slide out swarf tray for easy cleaning
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle
Overload clutch mechanism on auto power feed
Inching button is incorporated on the control panel for convenient spindle speed selection
9 spindle speeds (82-2000rpm) - 240V model
18 spindle speeds (50-2000rpm) - 415V model

Safety Features

Foot operated spindle brake with safety cut out switch
Overload protection on drive motor and coolant system
Leadscrew cover
Emergency stop switch on headstock & on tailstock plinth
Interlocked safety chuck guard
Interlocked change gear cover
240V model with test and tag certificate

Includes

2 Axis DRO
160mm 3-jaw chuck with reverse jaws
200mm 4-jaw chuck
Face plate
Fixed & travelling steadies
Change gears
Dead centres
Thread chasing dial
Stand with slide out swarf tray
Rear splash guard
Coolant system
Spanners
Toolbox
Operators manual

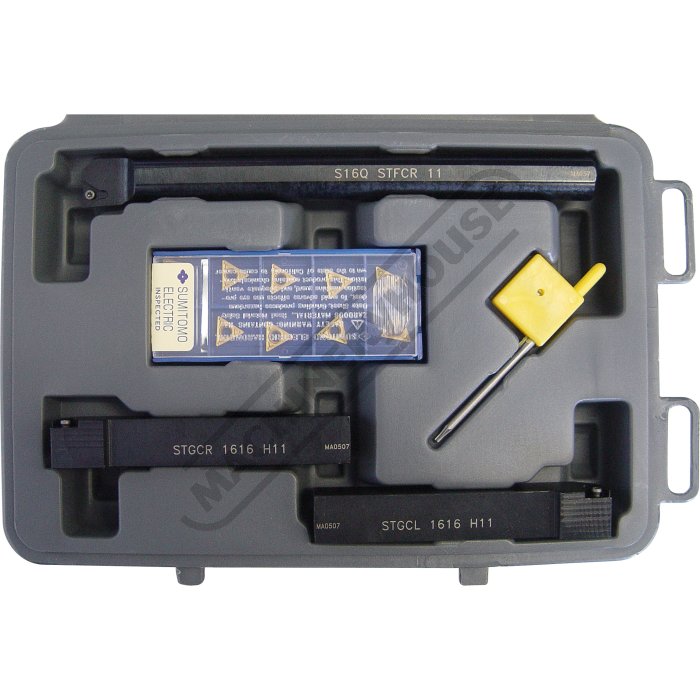

(L451) 16mm Turning Tool Kit

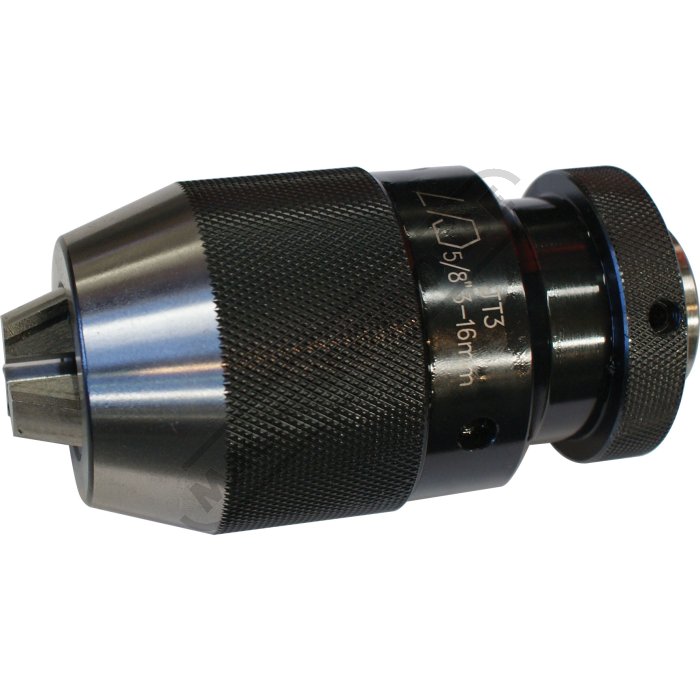

(C294) 0-16mm Industrial Drill Chuck

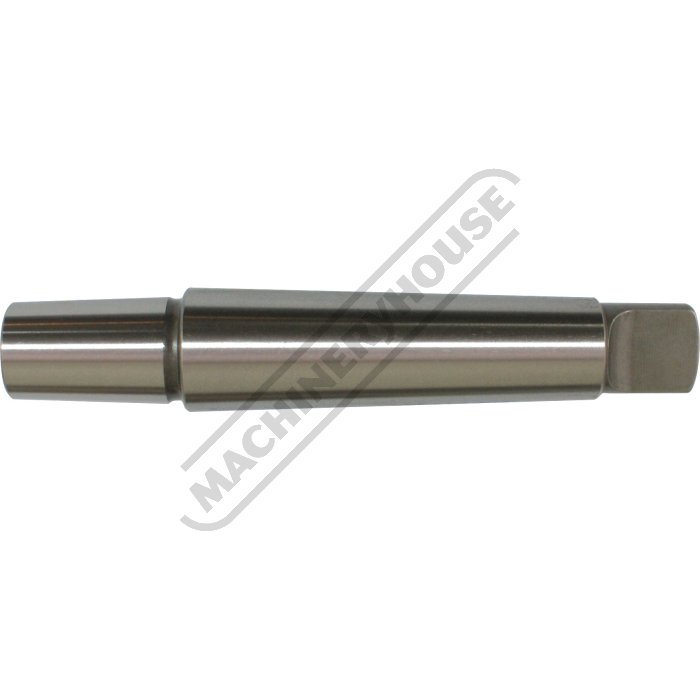

(D443A) 3MT x JT3 Drill Chuck Arbor

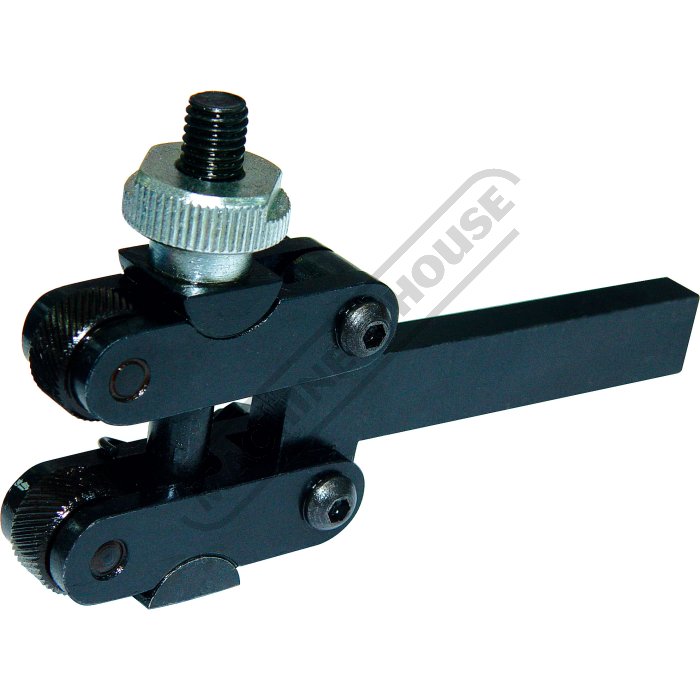

(L080) Clamp Type Knurling Tool Holder

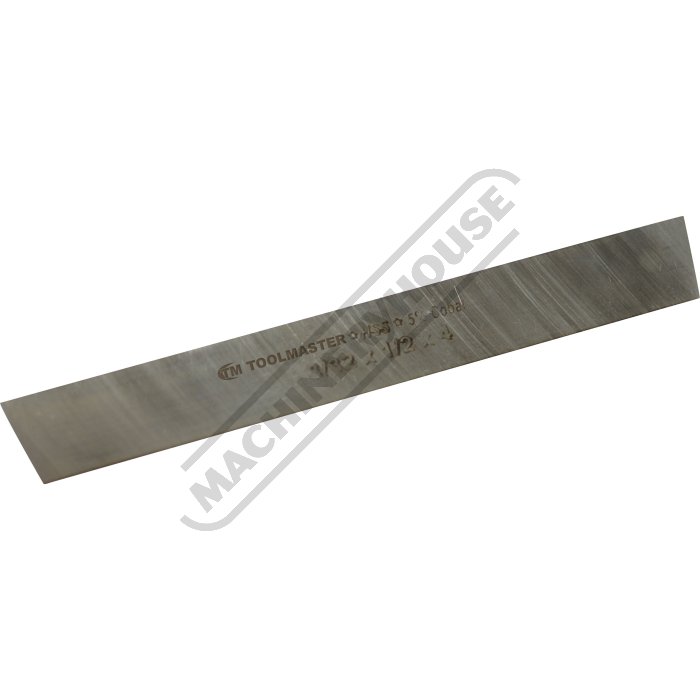

(L074 & L0007) Parting Tool Holder & HSS Blade

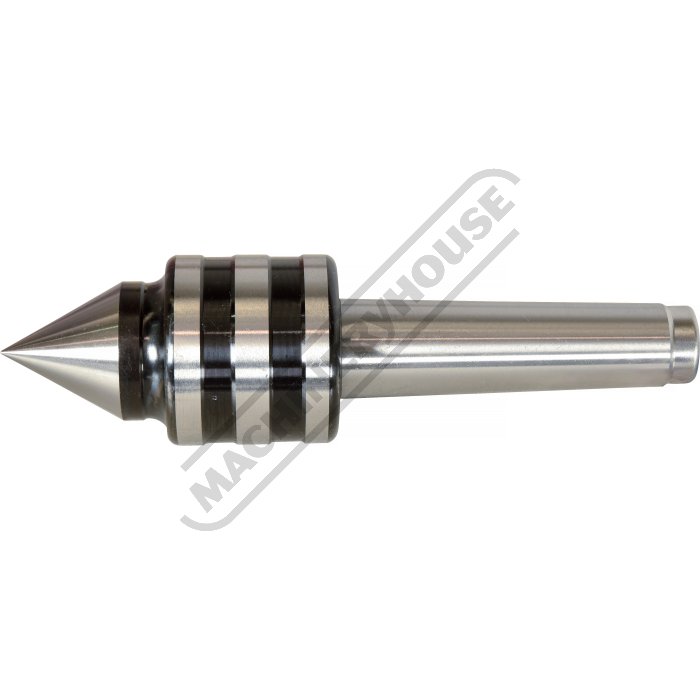

(C052) 3MT Live Centre

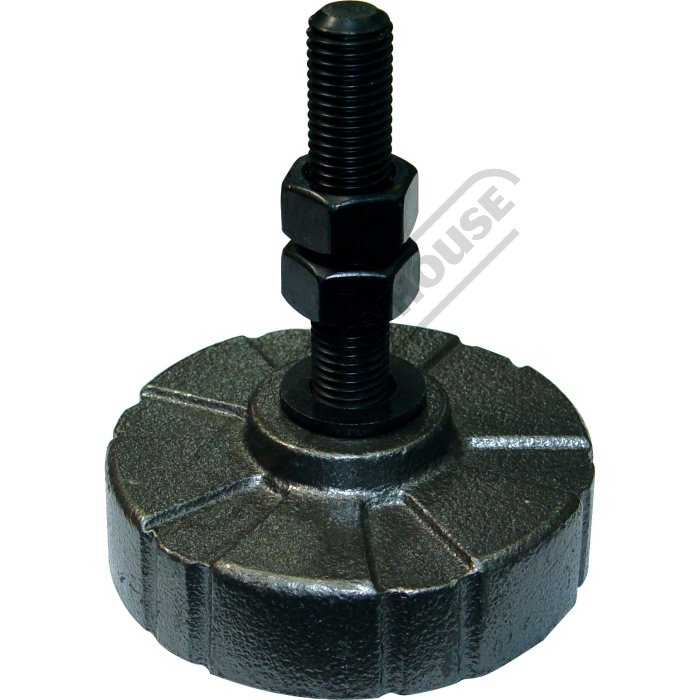

(M002) Steel Machine Mount & Rubber Insert - 500kg Load Capacity (x6)

Specifications

Compare Product Range

Specifications

ORDER CODE	K8714D
QLD Contract No.	QLD Item No. 4.4
MODEL	Schools/TAFE AL-1000D KIT with DRO
Digital Readout	Yes
(mm)Tool To Suit	16
(mm)Distance Between Centres	1000
(mm)Swing Over Bed	360
(mm)Swing Over Gap	516
(mm)Swing Over Cross-slide	225
(mm)Centre Height	178
(mm)Spindle Bore	Ø40
Camlock Spindle Size	D1-4
(mm)Bed Width	190
(MT)Head Stock Spindle Taper	5
(MT)Tail Stock Taper	3
(mm)Cross Slide Travel	175
(mm)Compound Slide Travel	100
Lead Screw	Metric
(mm/rev)Cross Feed	0.034 - 0.468
(mm/rev)Longitudinal Feed	0.068 - 0.936
(No. / mm)Metric Thread Range	30 (0.4 - 7.0)
(No. / TPI)Imperial Thread Range	32 (4 - 56)
(mm)3 Jaw Chuck Diameter	Ø160
(mm)4 Jaw Chuck Diameter	Ø200
(No. / RPM)Spindle Steps/speeds	18 (50 - 2000)
(kW / hp)Motor Power	2.25 / 3
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	700
