QLD Schools / TAFE - AL-250G Bench Lathe includes Tooling Package

250 x 500mm Turning Capacity

K8708 1 of 28

DoE QLD Preferred Supplier 2 of 28

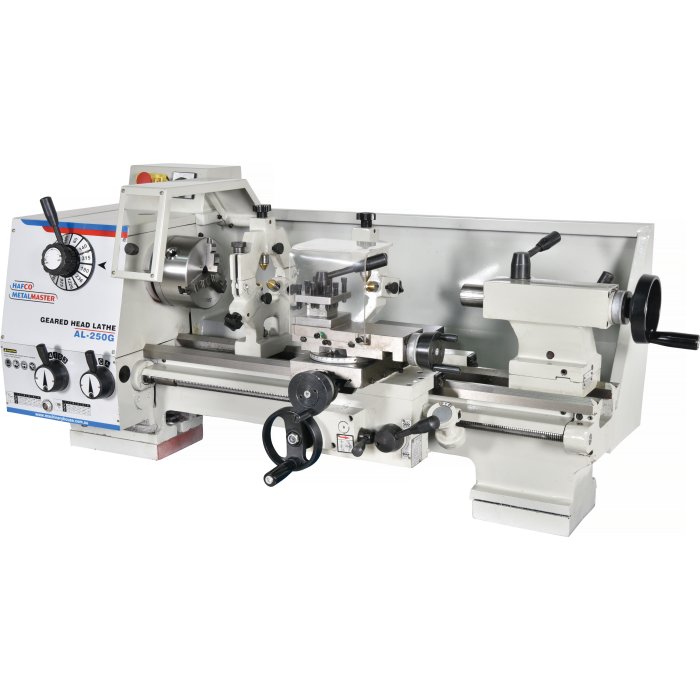

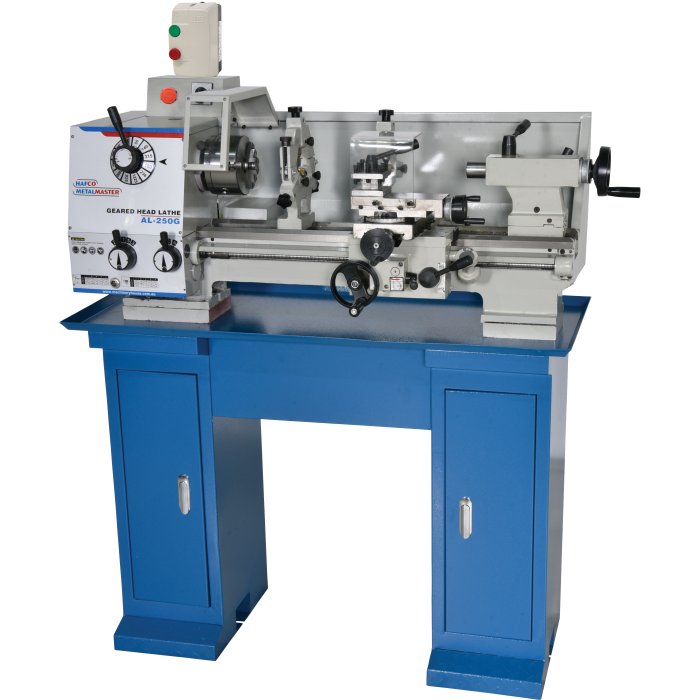

AL250G Bench Lathe 3 of 28

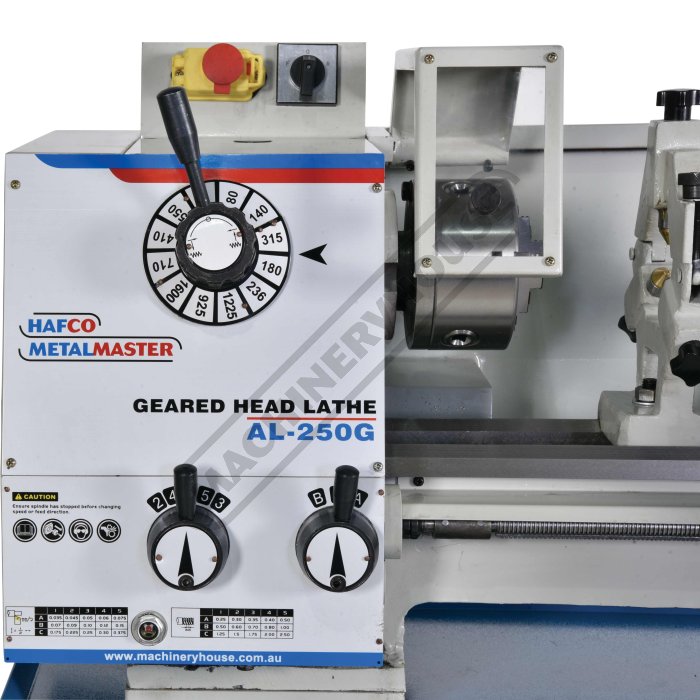

Headstock Controls 4 of 28

Speed Selection Lever 5 of 28

Feed and Threading Gearbox Levers 6 of 28

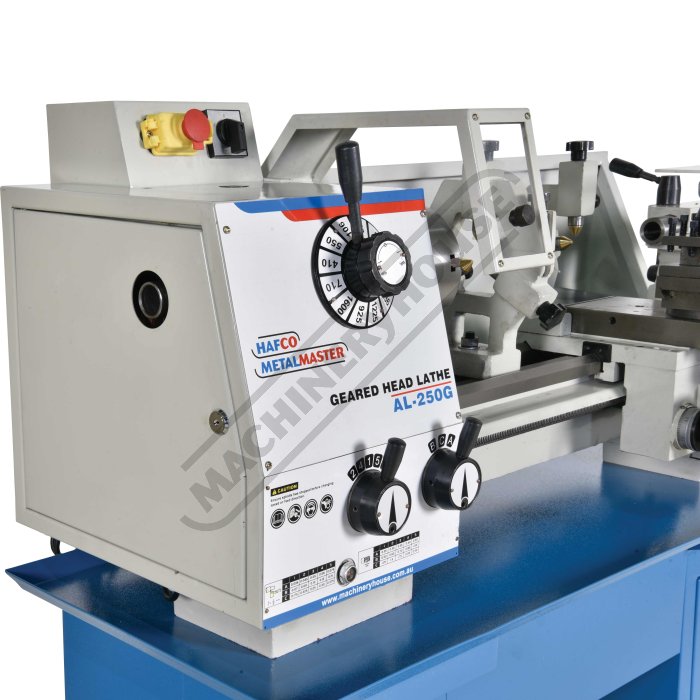

Key Lockable Side Pulley Door 7 of 28

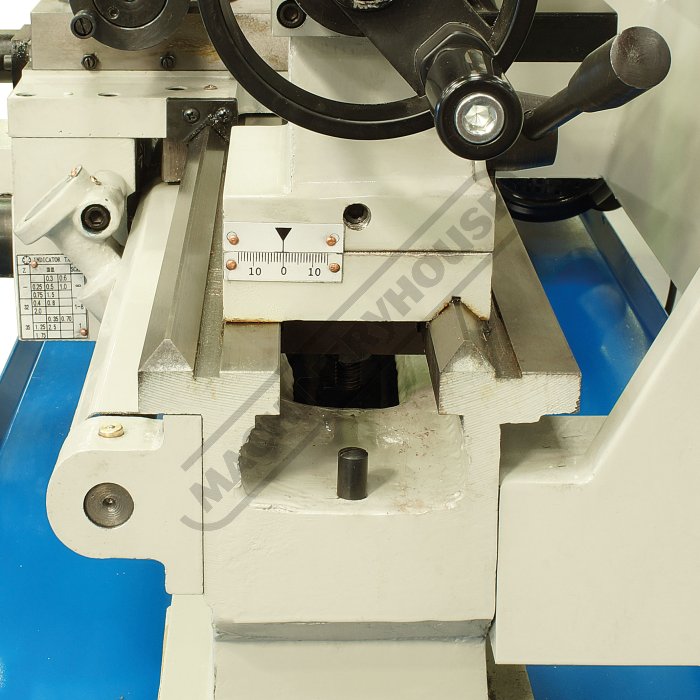

Hardened and Ground Bed 8 of 28

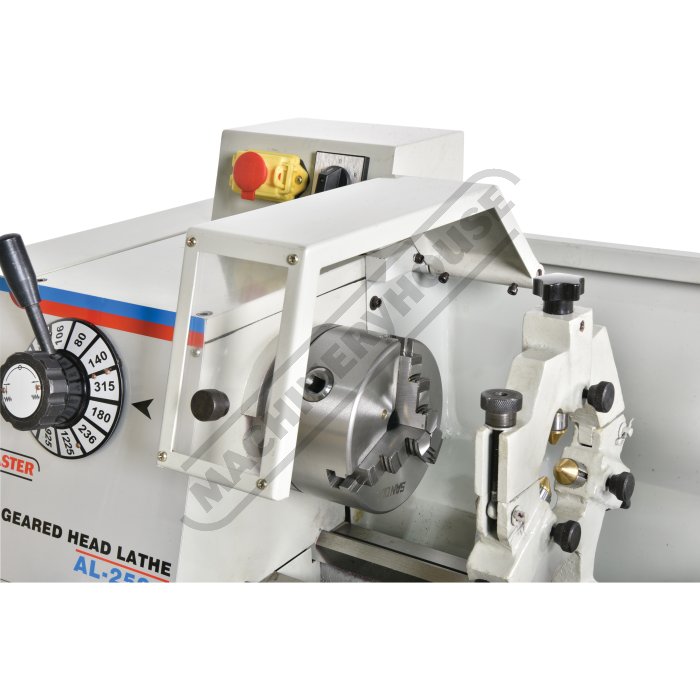

Safety Chuck Guard with Micro 9 of 28

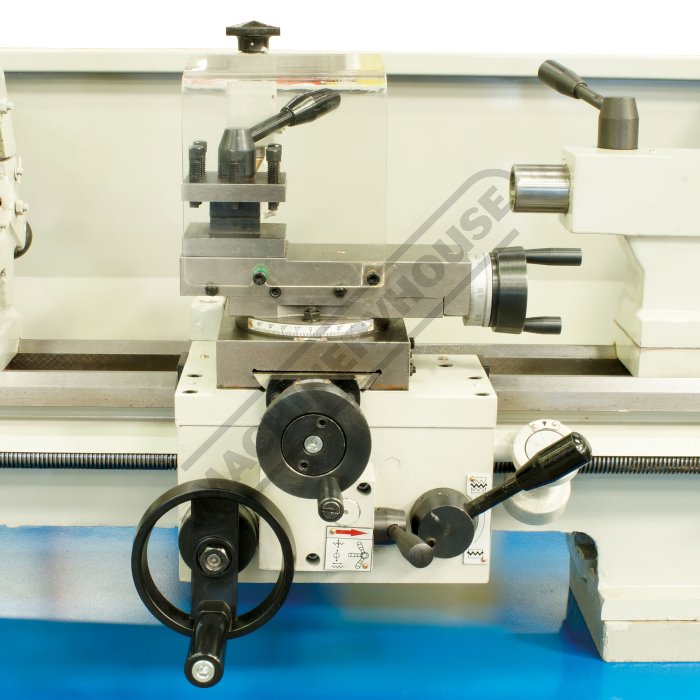

Saddle Front View 10 of 28

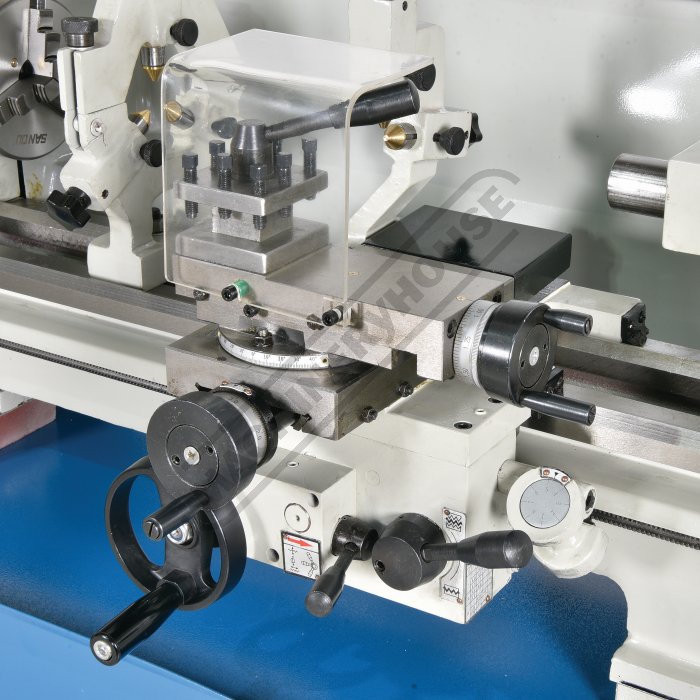

Saddle 11 of 28

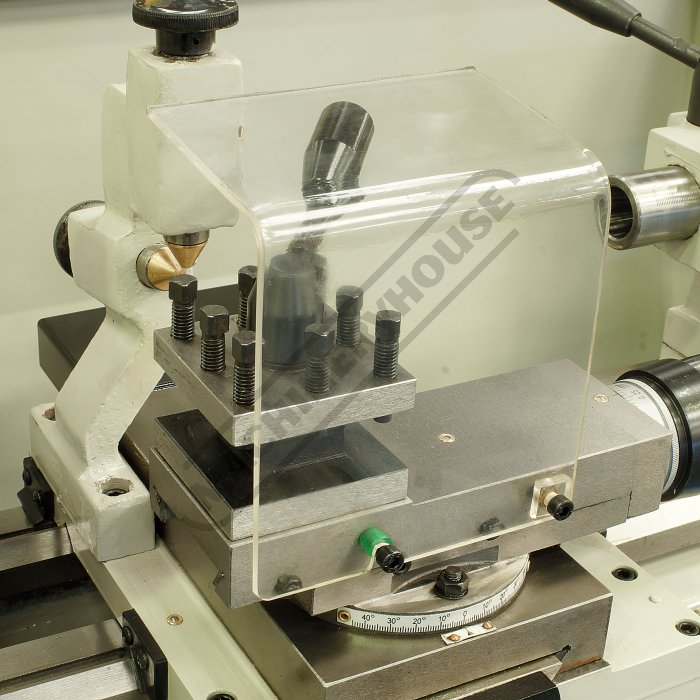

Compound Table with Safety Guard 12 of 28

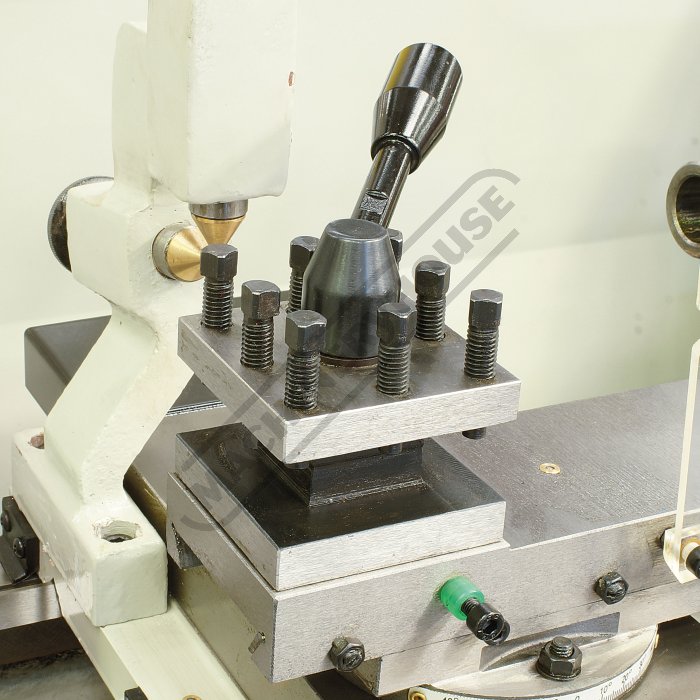

4 Way Toolpost 13 of 28

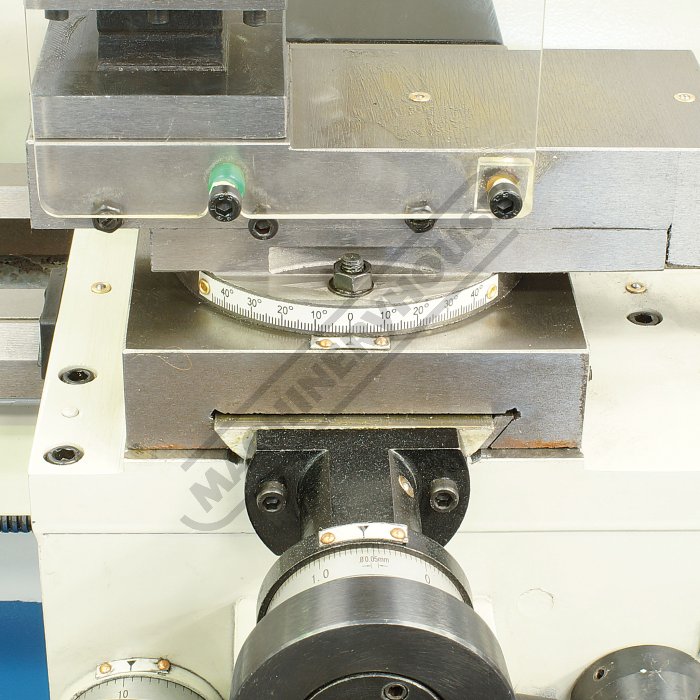

Swivel Compound Slide 14 of 28

Thread Chasing Dial 15 of 28

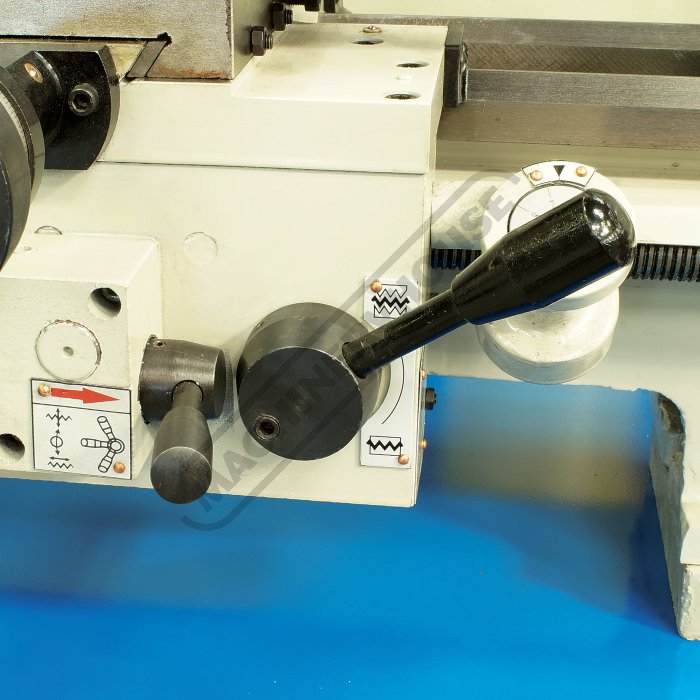

Feed and Thread Engagement Levers 16 of 28

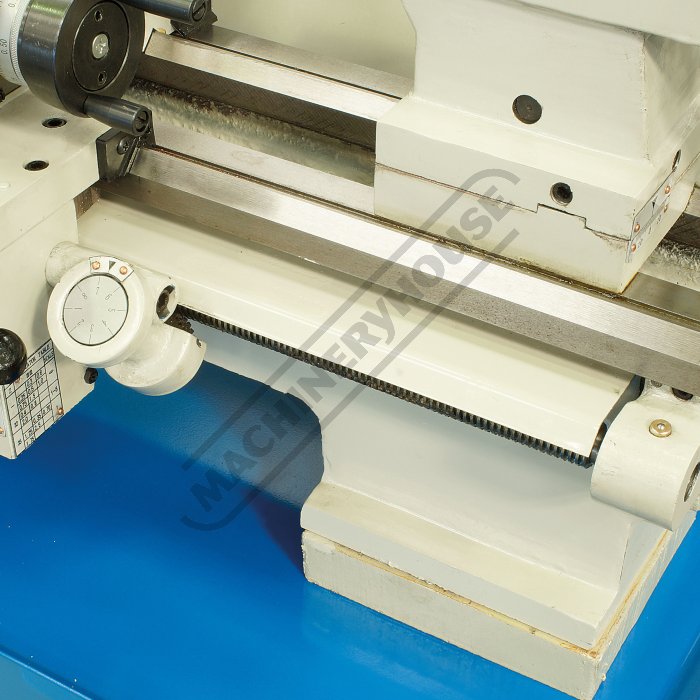

Leadscrew Cover 17 of 28

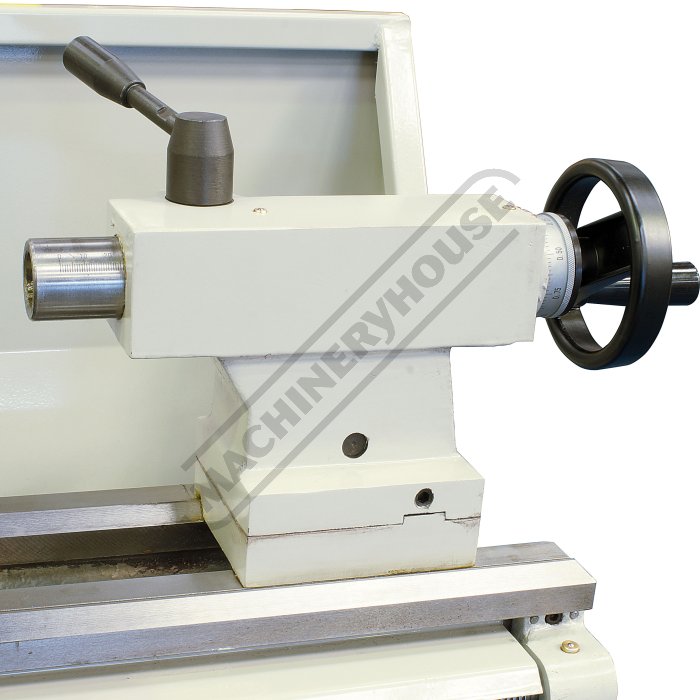

Tailstock 18 of 28

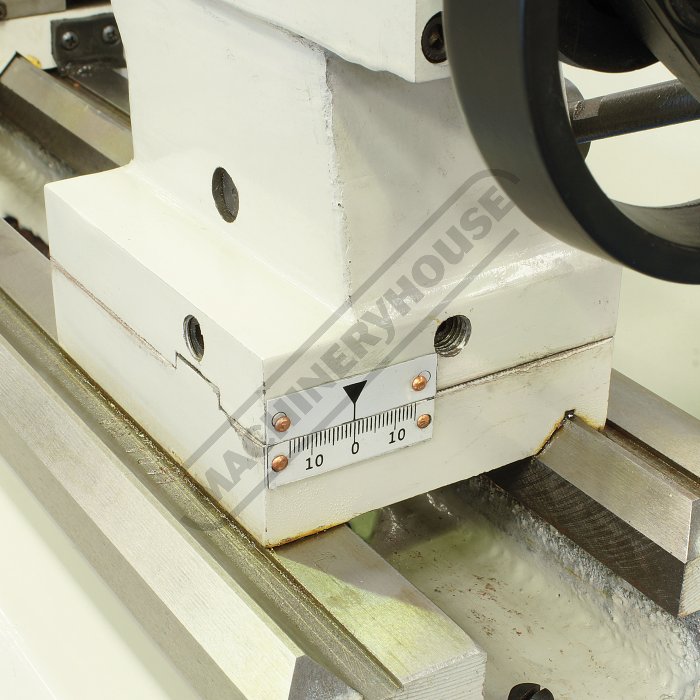

Tailstock Horizontal Adjustment 19 of 28

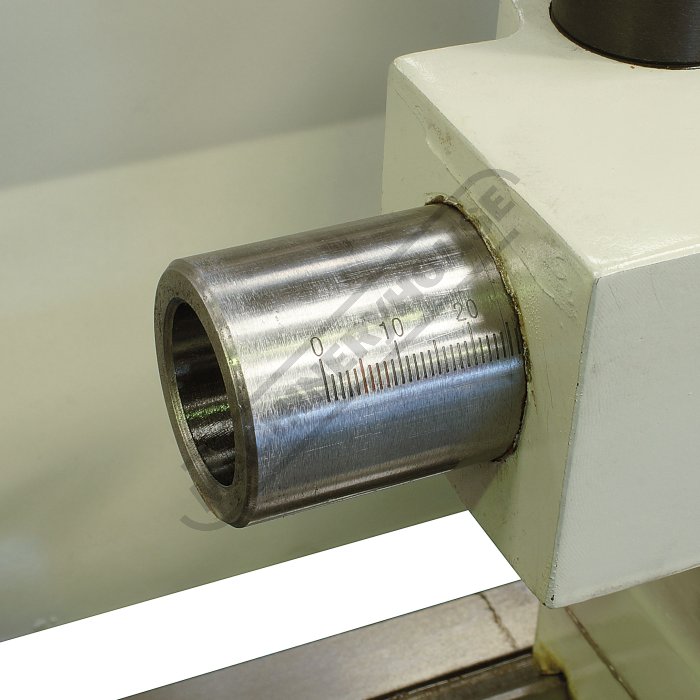

Tailstock Quill Graduations 20 of 28

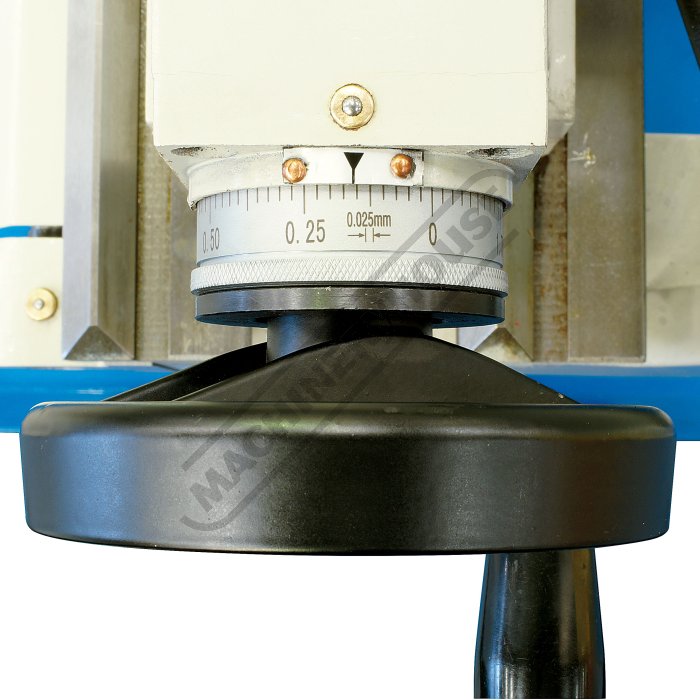

Tailstock Hand Wheel 21 of 28

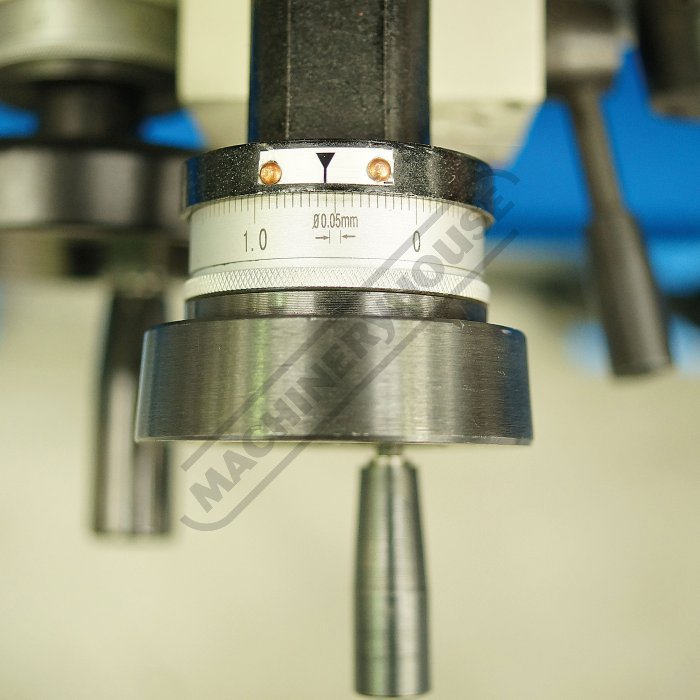

Cross Feed Hand Wheel 22 of 28

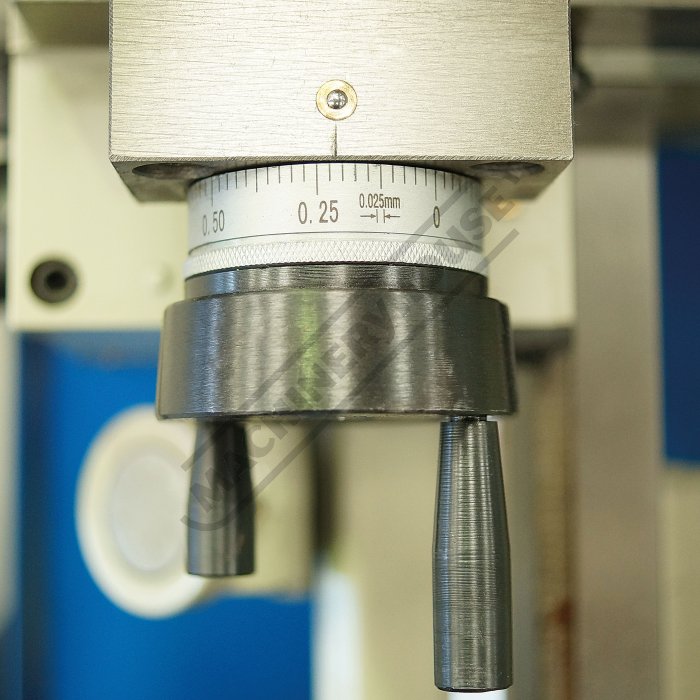

Compound Slide Hand Wheel 23 of 28

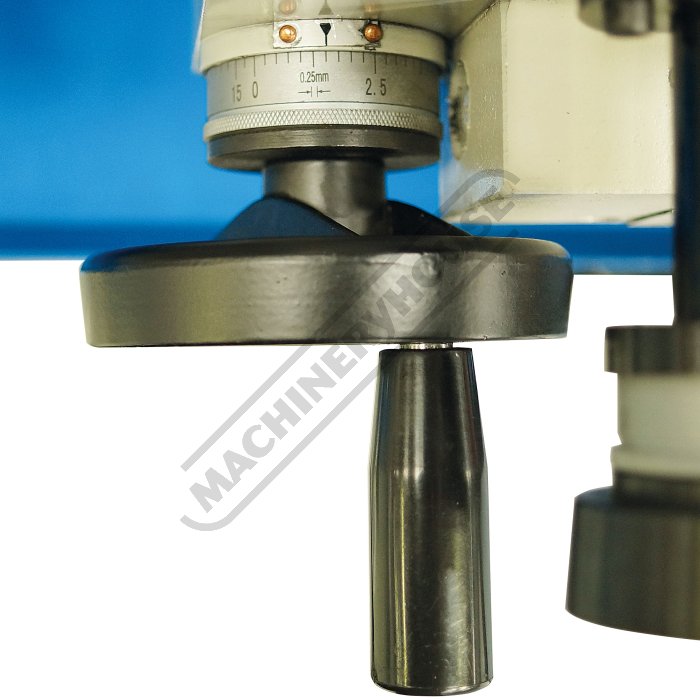

Saddle Hand Wheel Graduations 24 of 28

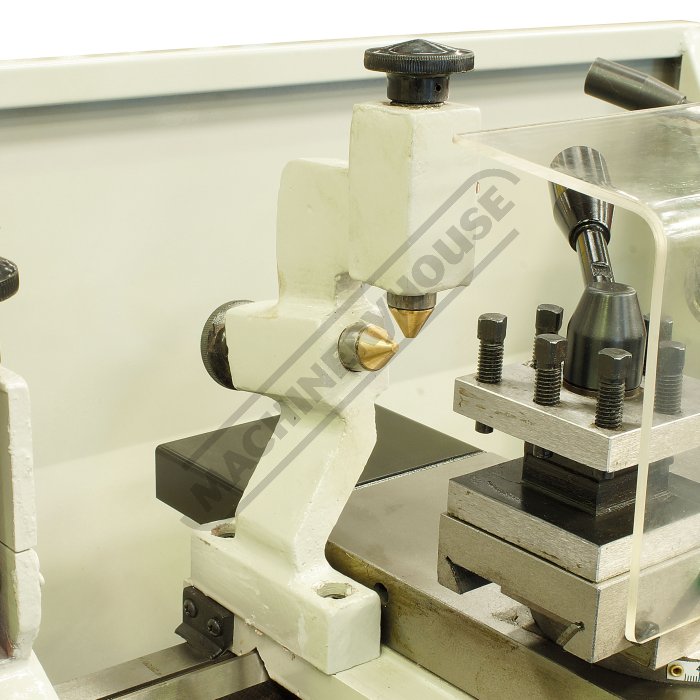

2 Point Travelling Steady 25 of 28

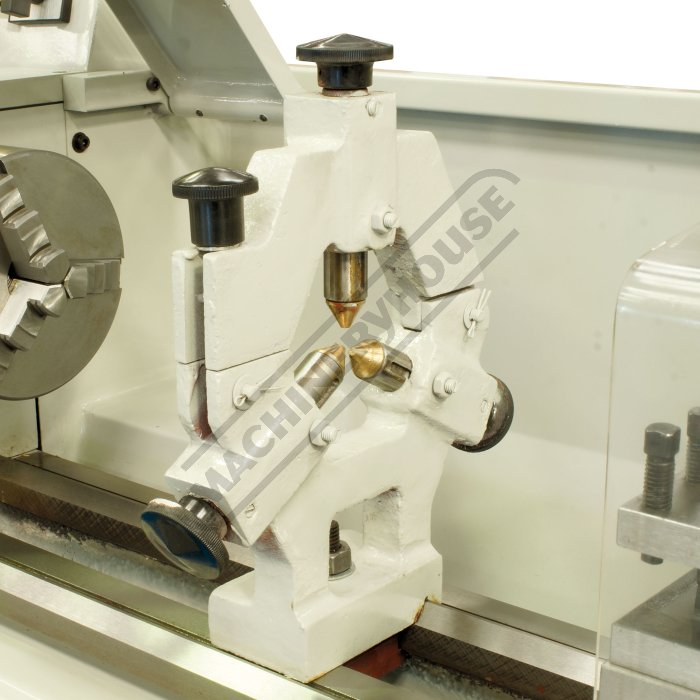

3 Point Fixed Steady 26 of 28

Micro Switch Fitted To Pulley Cover 27 of 28

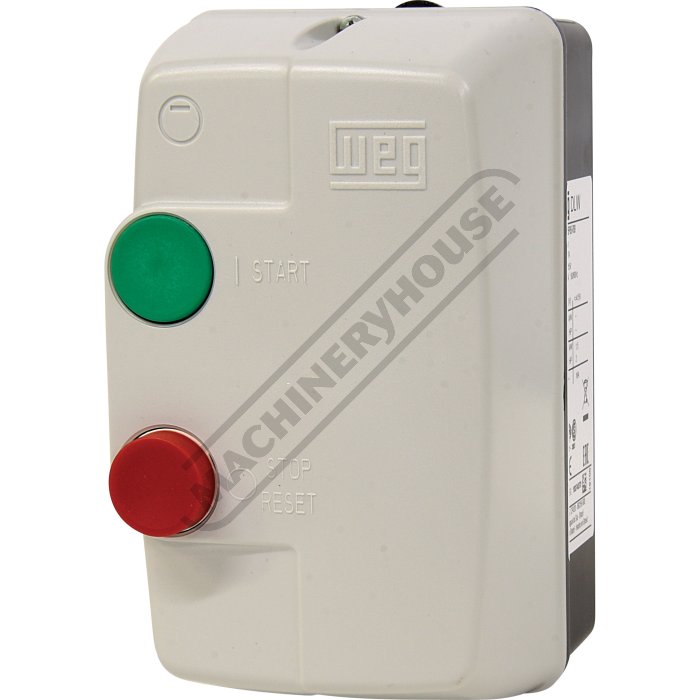

Forward Reverse Switch with Emergency Stop 28 of 28

HAFCO-METALMASTER

Order Code: K8708

Please Call

240V / 10A
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

QLD Schools / TAFE - AL-250G Bench Lathe includes Tooling Package

250 x 500mm Turning Capacity

Overview

We for many years have been working in close consultation with the education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

Features

12 spindle speed geared headstock incorporates a single progression dial
26mm spindle bore
Hardened and ground bed
Enclosed quick action gearbox for thread cutting & auto feeding
Adjustable taper roller spindle bearings
Metric thread cutting
Powered longitudinal and cross feeds
Headstock and gearbox oil sight glass
Metric thread chasing dial
Quick action tailstock locking lever
Forward/reverse spindle switch
0.75kW / 1hp 240V motor

Includes

130mm 3-jaw chuck with reverse jaws
Face plate
Fixed steady
Travelling steady
Dead centre
Rear splash guard & swarf tray
Safety chuck guard
Leadscrew Cover
Instruction booklet

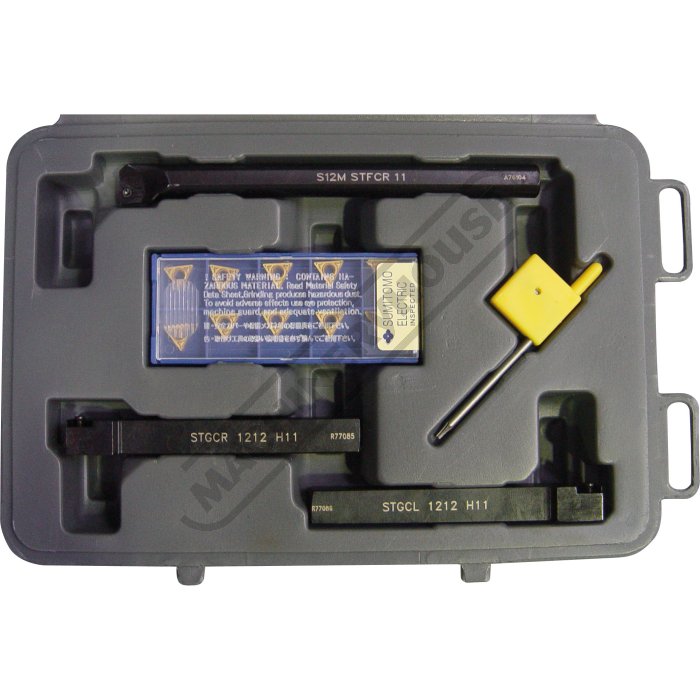

12mm Turning Tool Set - (L450)

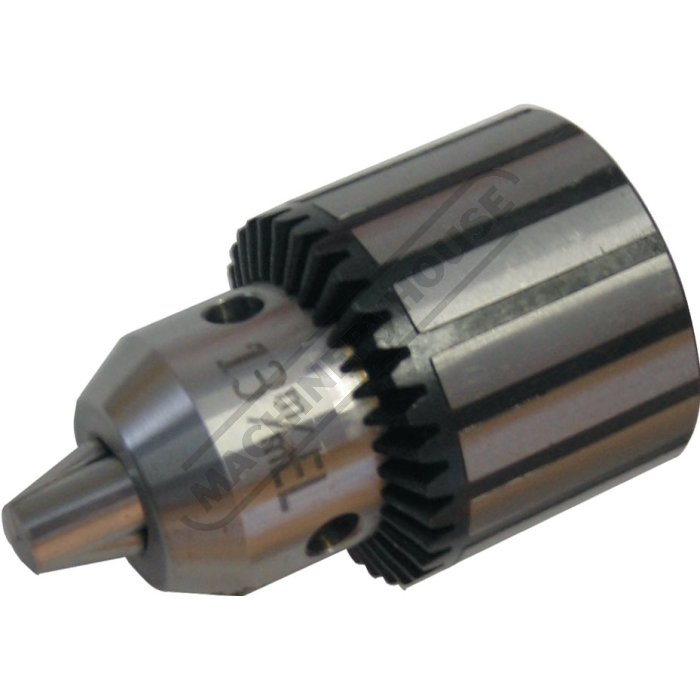

13mm Keyed Drill Chuck - (C289)

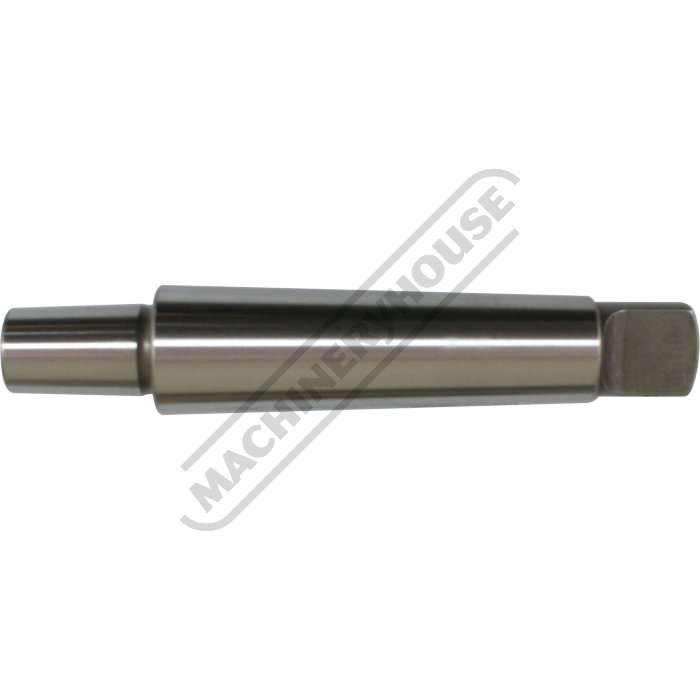

3MT Drill Chuck Arbor - (D443)

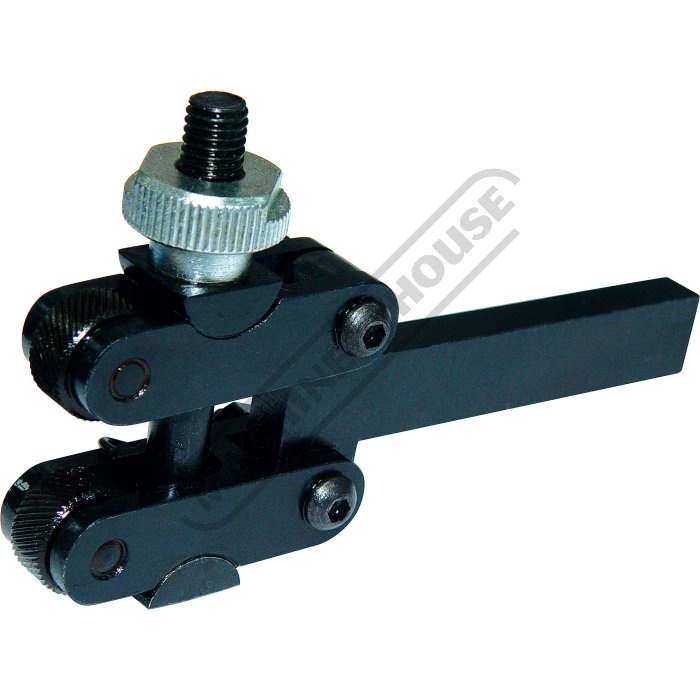

Knurling Tool - (L080)

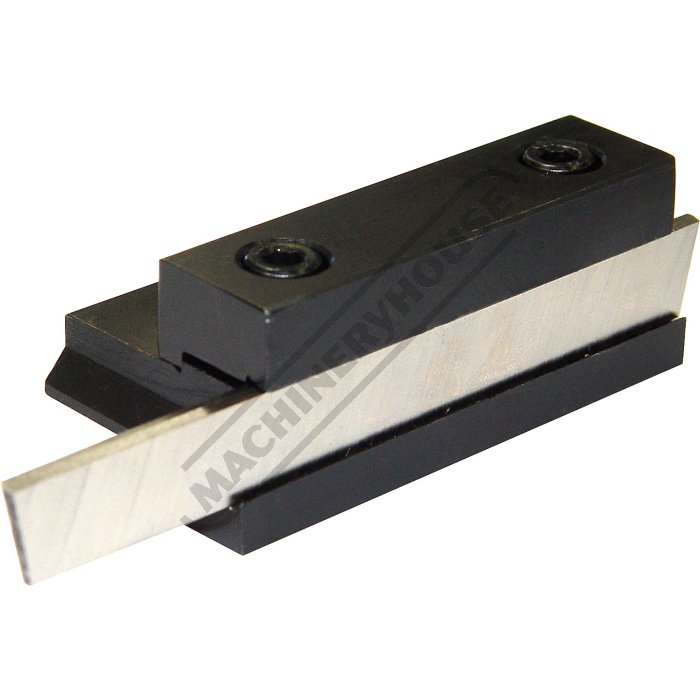

12mm Parting Off Block - (L074)

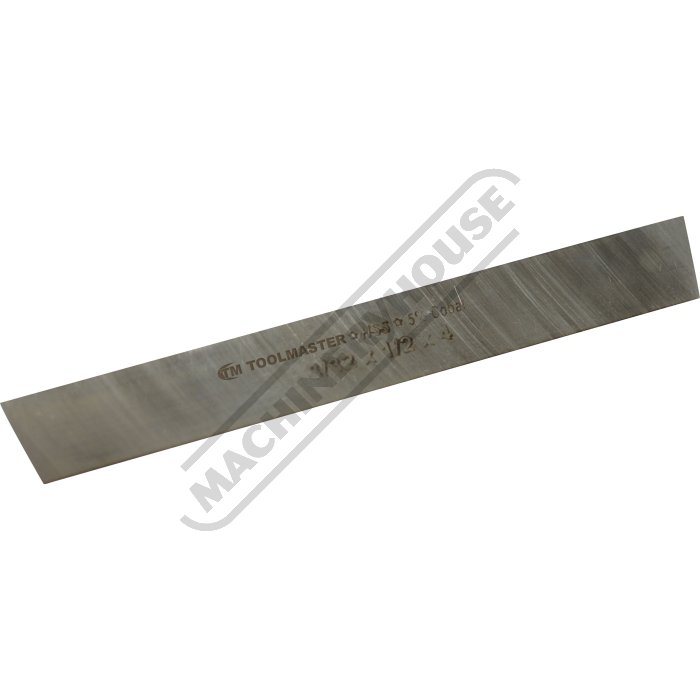

HSS Parting Off Blade - (L0007)

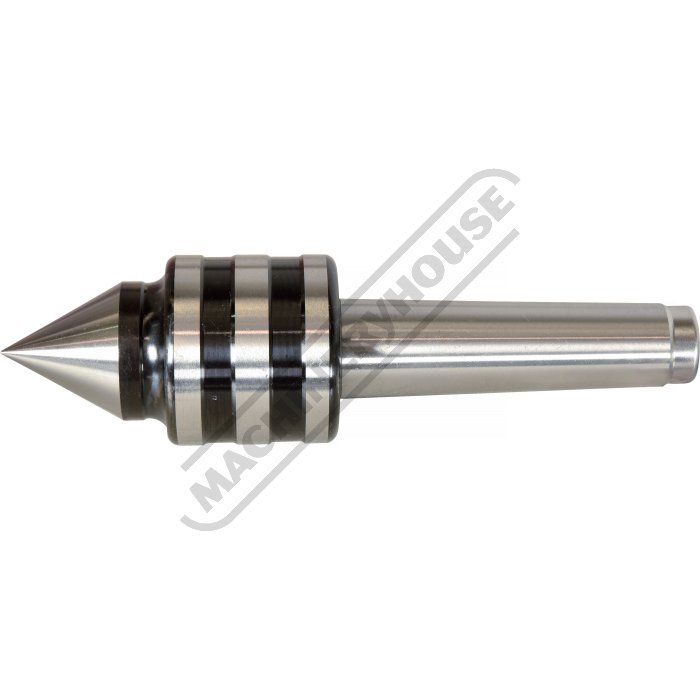

3MT Live Centre - (C052)

Optional Accessories

PLEASE NOTE: Quick Change Toolpost,
L292, will accept 16mm turning tools but 16mm boring bar WONT fit on this machine
L280, will accept 12mm turning tools and 12mm boring bar WILL fit on this machine

Specifications

Compare Product Range

Specifications

ORDER CODE	K8708
MODEL	Schools/TAFE AL-250G
(mm)Tool To Suit	16
(mm)Distance Between Centres	500
(mm)Swing Over Bed	250
(mm)Swing Over Cross-slide	150
(mm)Centre Height	125
(mm)Spindle Bore	26
Camlock Spindle Size	Fixed
(mm)Bed Width	140
(MT)Head Stock Spindle Taper	4
(MT)Tail Stock Taper	3
(mm)Cross Slide Travel	145
(mm)Compound Slide Travel	75
Lead Screw	Metric
(mm/rev)Cross Feed	0.017 - 0.187
(mm/rev)Longitudinal Feed	0.035 - 0.375
(No. / mm)Metric Thread Range	15 (0.25 - 2.5)
(mm)3 Jaw Chuck Diameter	130
(mm)4 Jaw Chuck Diameter	Optional
(No. / RPM)Spindle Steps/speeds	12 (80 - 1600)
(kW / hp)Motor Power	0.75 / 1
(V / amp)Voltage / Amperage	240 / 10
(kg)Nett Weight	185
