QA-140 - Quick Change Toolpost

150 - 170mm Lathe Centre Height

L2921 of 6

Toolpost Rear View2 of 6

Toolpost3 of 6

Toolpost With Holder4 of 6

Holders5 of 6

Holder Profiles6 of 6

On Sale

Order Code: L292

ex-gst

inc-gst

^$ 190.00

^$ 209.00

^$ 160.00

^$ 176.00

1 Year Warranty

1

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Downloads

Description

QA-140 - Quick Change Toolpost

150 - 170mm Lathe Centre Height

Overview

Manufactured from carbonised and hardened steel.

Features

All bearing surfaces are precision ground to ensure rigidity
Handy lathe accessory for tool rooms and general engineering shops
Ease of operation cuts set-up time by 90%
No shims are required to adjust tools to correct centre height
Easily fitted to most centre lathes
Please Note: Some machining required to suit your lathe

Includes

4 x Square Tool Holders - for 16mm tools

Optional Accessories

Holders - L292A, L292B, L292C

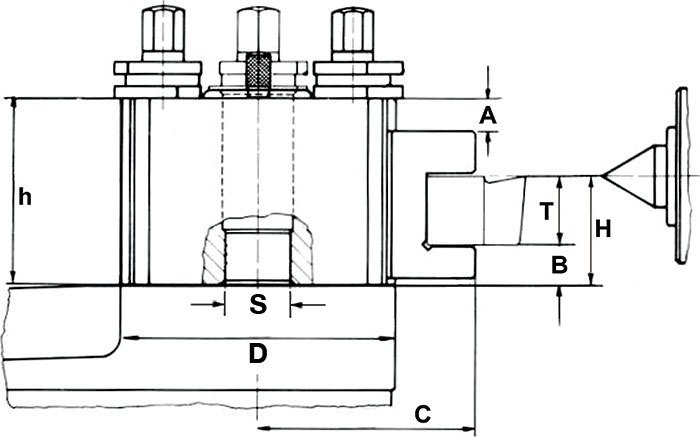

Enlarge Diagram Compare Product Range

Specifications

ORDER CODE	L292
MODEL	QA-140
(mm)Lathe Centre Height	150 - 170
(mm)Lathe Swing	300 - 340
(mm)A	25
(mm)B	12.65
(mm)C	61
(mm)D	72.6
(mm)E	41
(mm)H	28.65
(mm)h	69.85
(mm)S	M16 x 1.5
(mm)T	16
(mm)Y	112
(No.)Number of Sides	2
(No.)Number of Holders	4
(kg)Nett Weight	6.2

Downloads

Email a link to this page Product Brochure Selecting a Quick Change Toolpost (738 KB)
