Your Store: 625 Boundary Rd, Coopers Plains QLD 4108 | Ph: (07) 3715 2200
Order Code: K8716D

Please Call
415V / (NO PLUG)
1 Year Warranty
Description

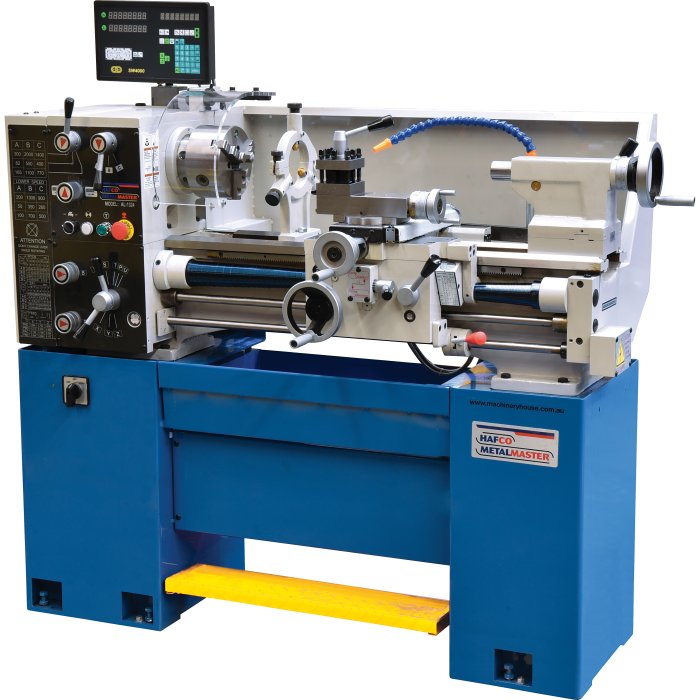

QLD Schools / TAFE - AL-1324 Centre Lathe with Digital Readout - Includes Tooling Package

330 x 600mm Turning Capacity
Overview
We for many years have been working in close consultation with the education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

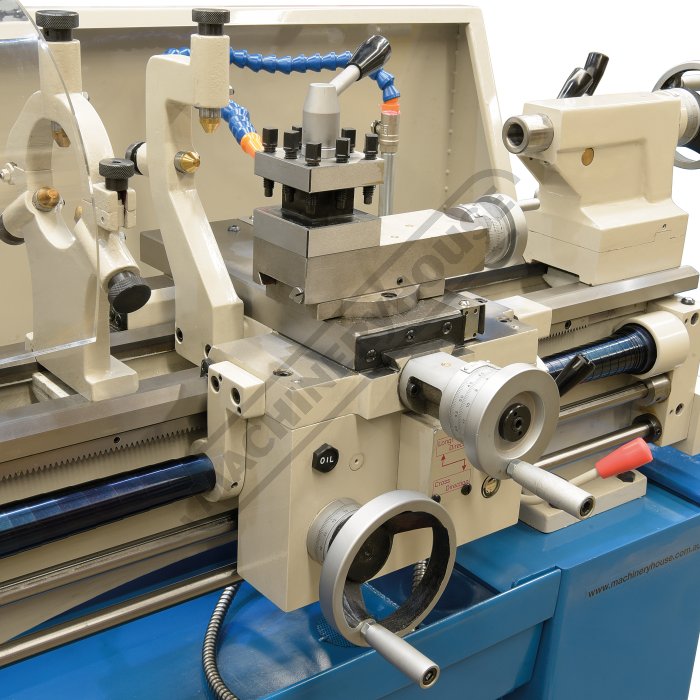

The AL-1324 is manufactured in Taiwan with all the safety features needed to comply with the education department. This machine has the following safety features such as leadscrew cover, chuck guard with micro switch, micro switch fitted to side access door and emergency foot brake making this machine superior in safety to protect the learning and developing students.
Features
  • Tool room quality precision lathe, Made in Taiwan and have been sold for over 20 years
  • 2 Axis Digital Readout System

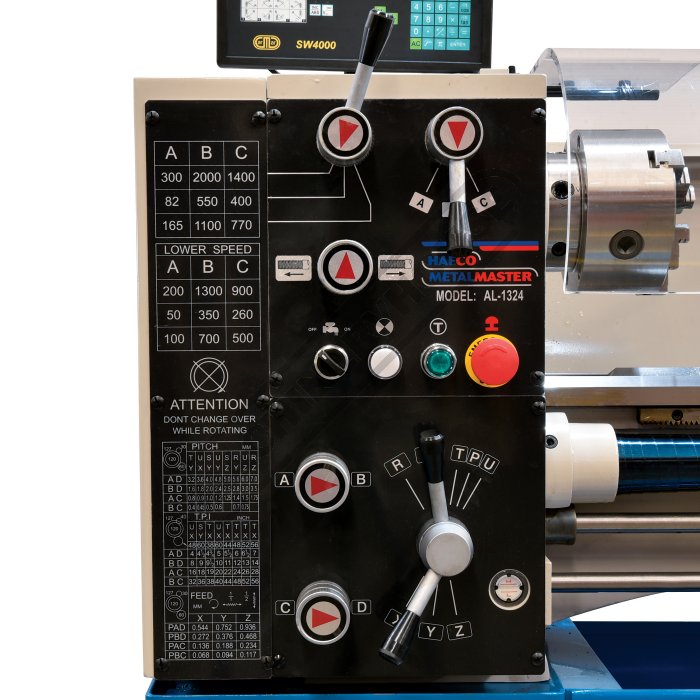

  • Gear drive headstock for quick change of spindle speeds
  • Stand increasing rigidity and reducing vibration

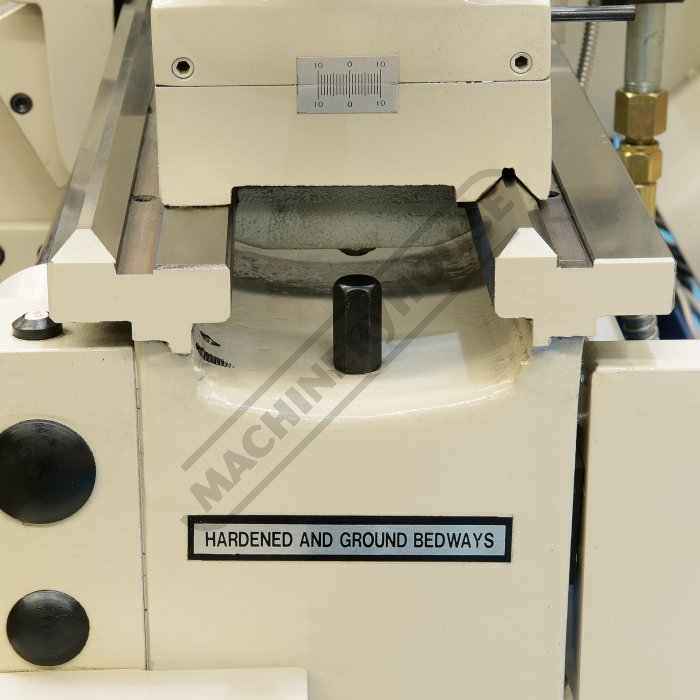

  • Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting

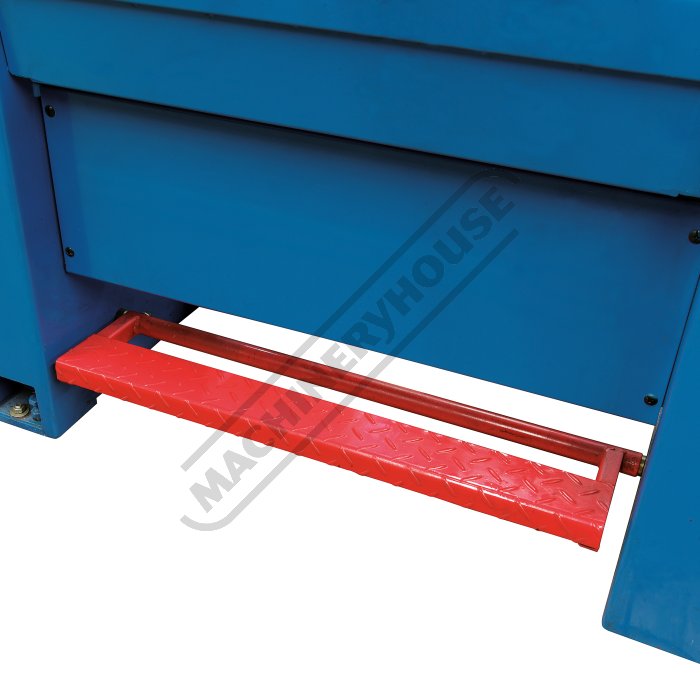

  • Foot operated spindle brake with safety cut out switch

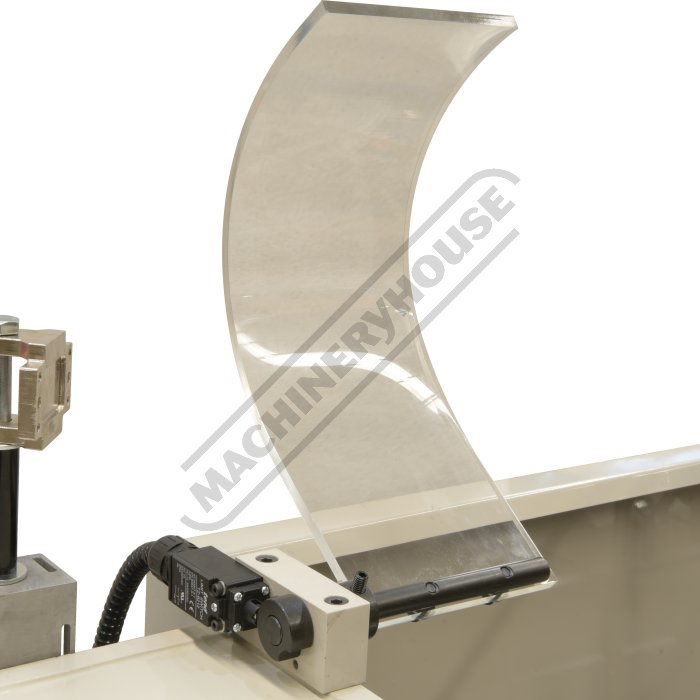

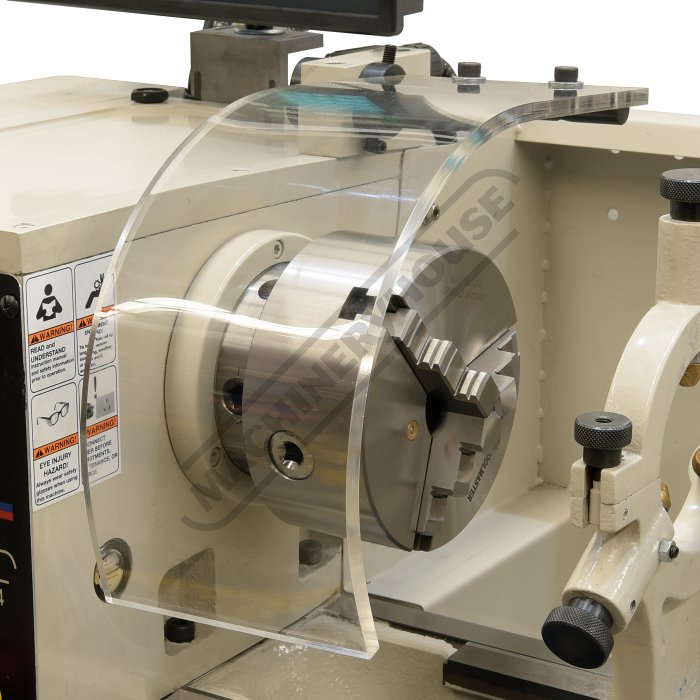

  • Chuck guard fitted fitted with micro switch

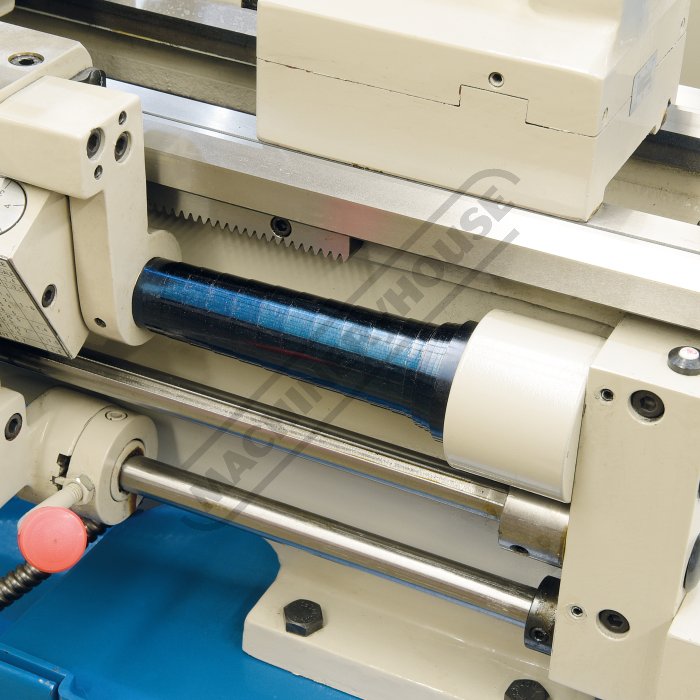

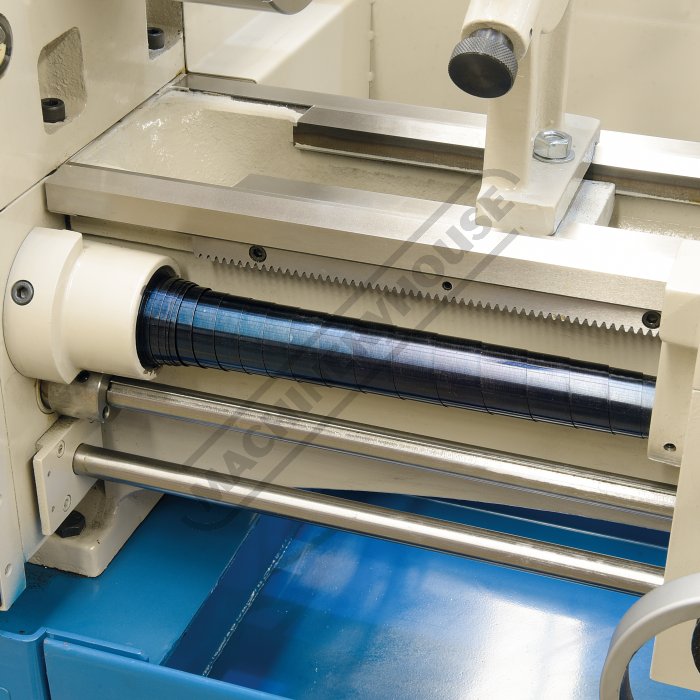

  • Leadscrew cover ensures swarf not reaching clasp nut

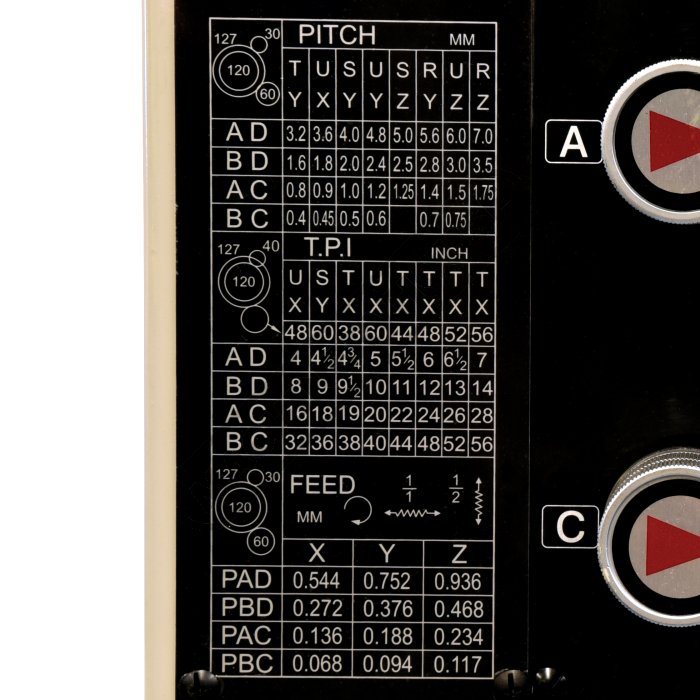

  • Change gears for metric and imperial thread cutting
  • Oil sight glass for head stock and gearbox
  • Adjustable taper roller bearings support the spindle
  • Overload clutch mechanism on auto power feed
  • Overload protection on drive motor and coolant system

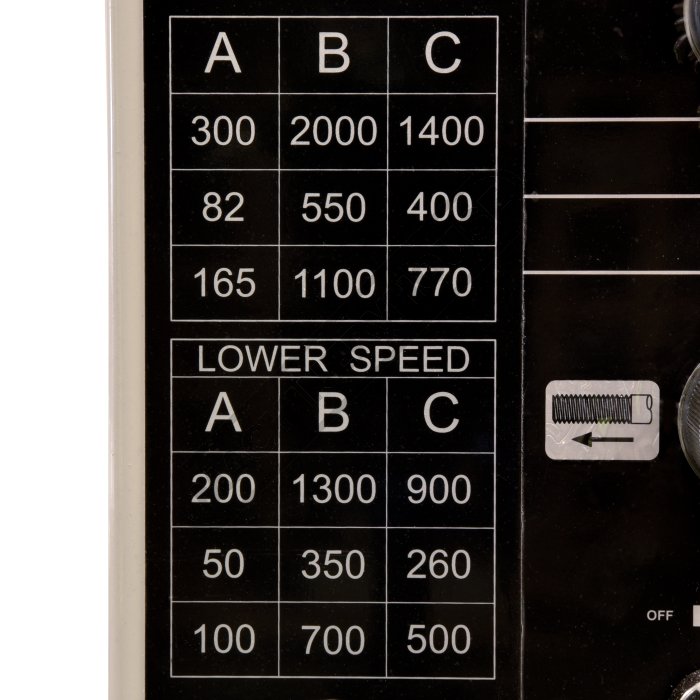

  • 3HP/415V motor, 18-speed (50 - 2000rpm)

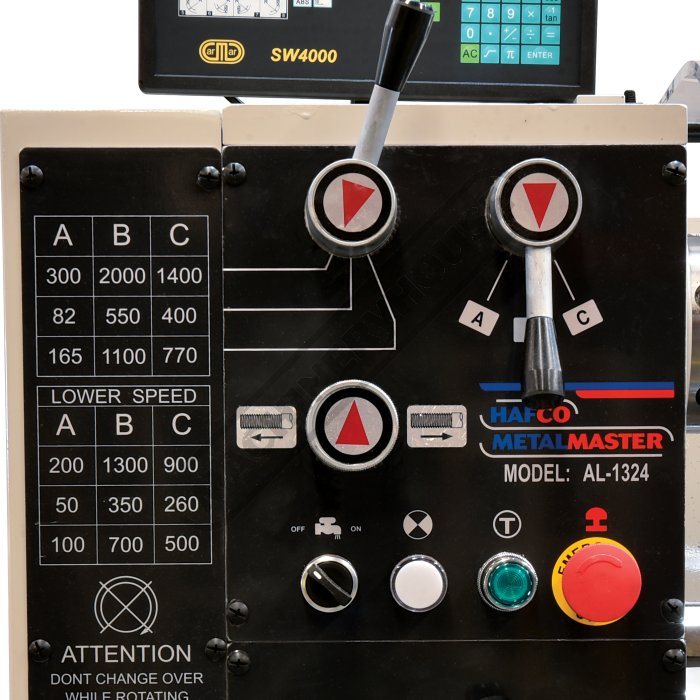

  • Inching button is incorporated on the control panel for convenient spindle speed selection

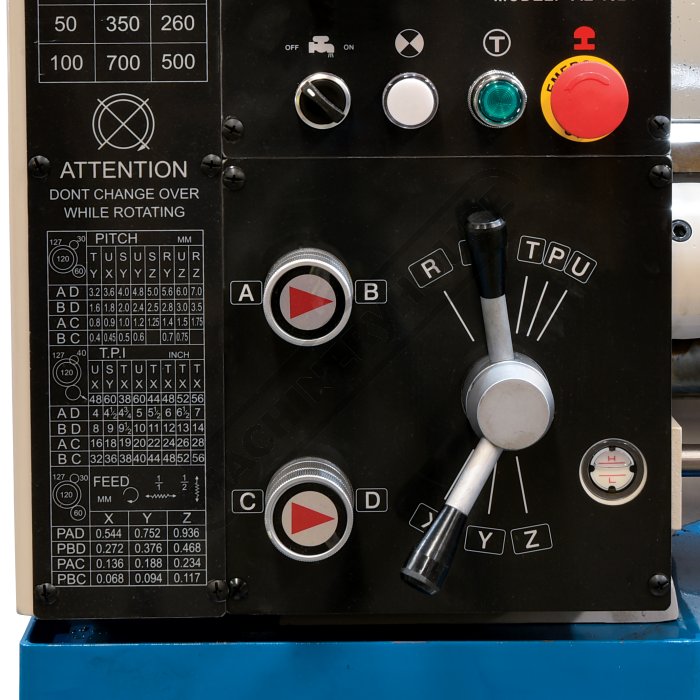

  • Enclosed quick action gearbox for thread cutting and auto feeding

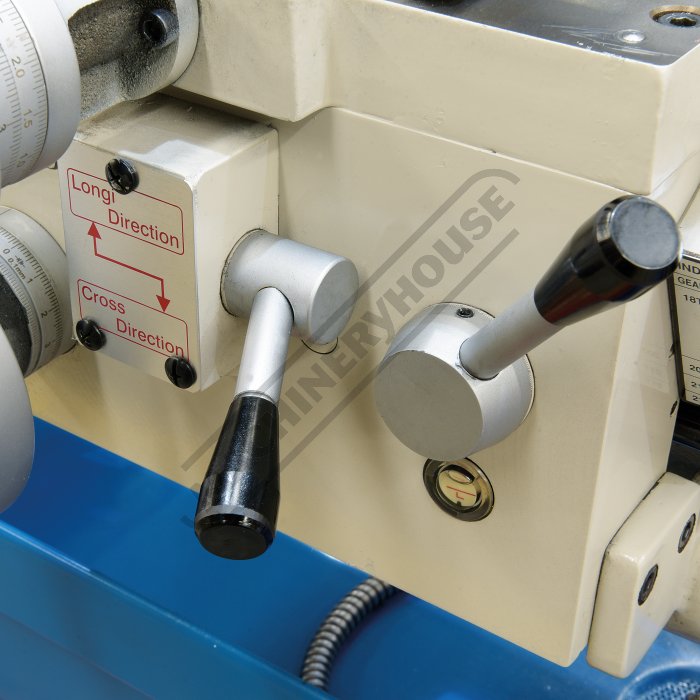

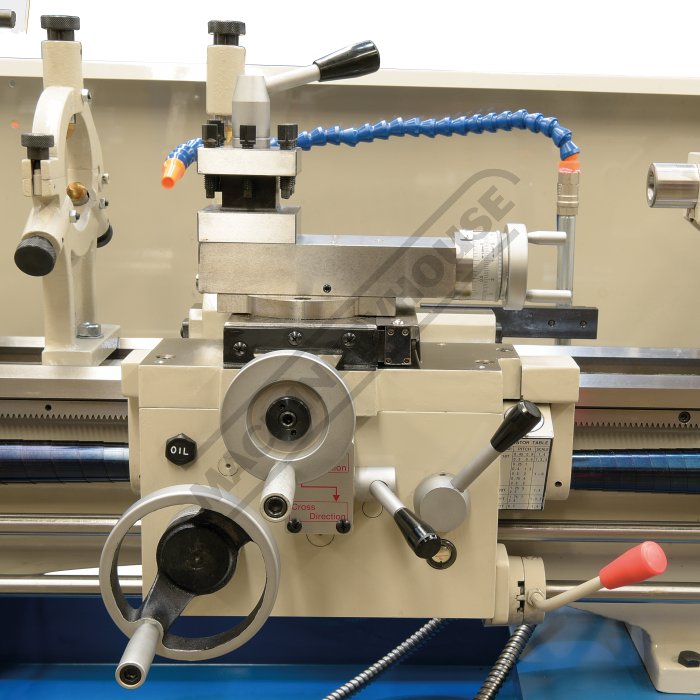

  • Powered longitudinal and cross feeds
  • D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard

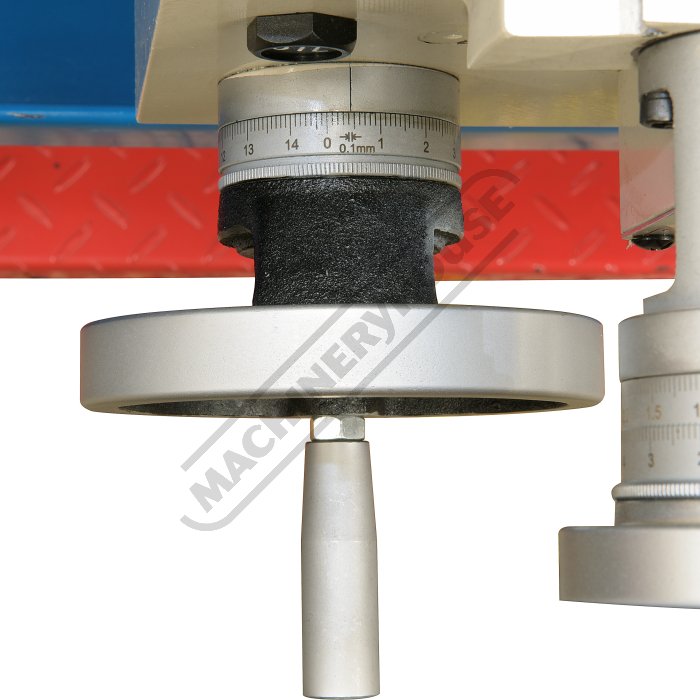

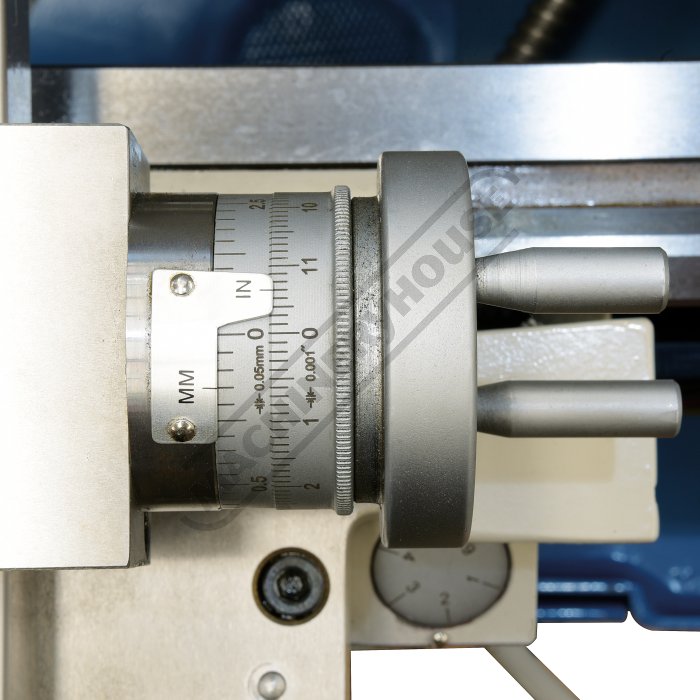

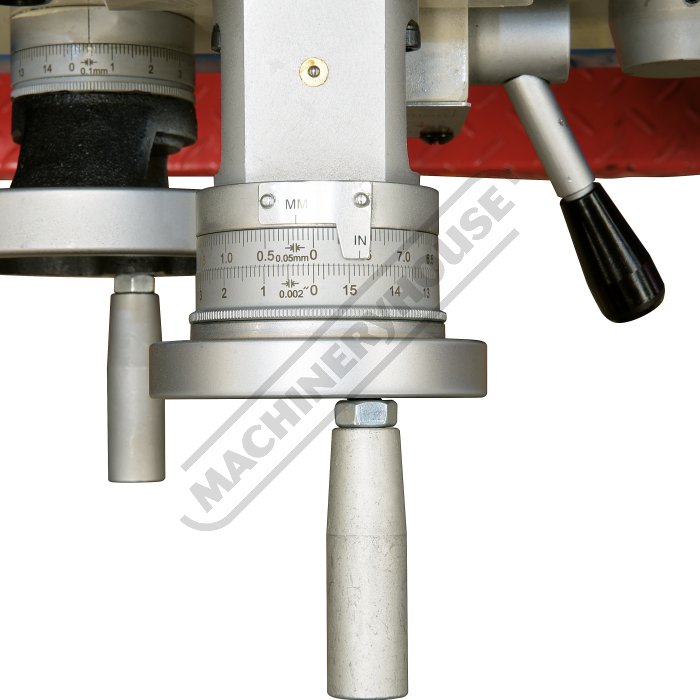

  • Dual calibrated feed dials

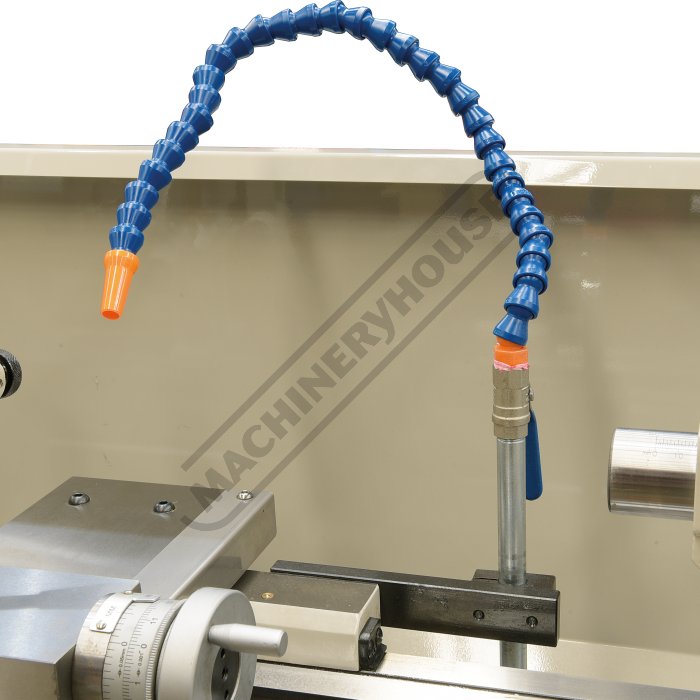

  • Coolant system with flexible hose

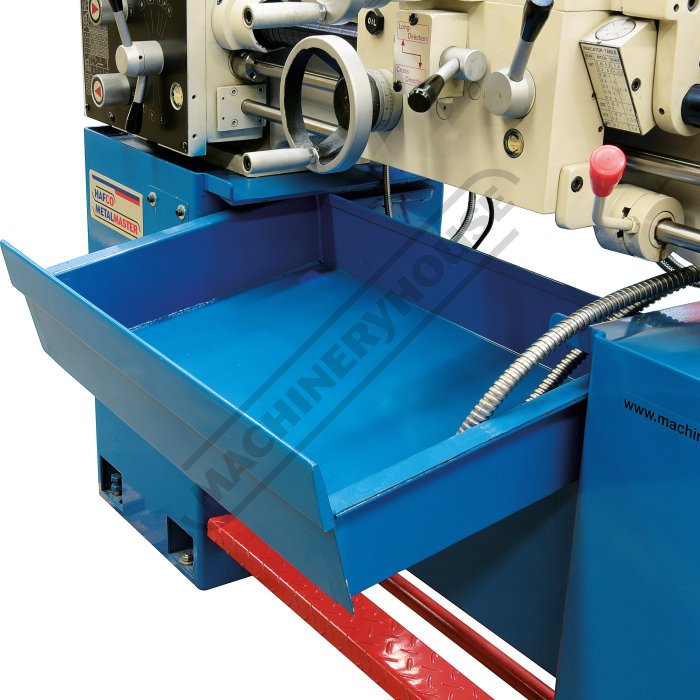

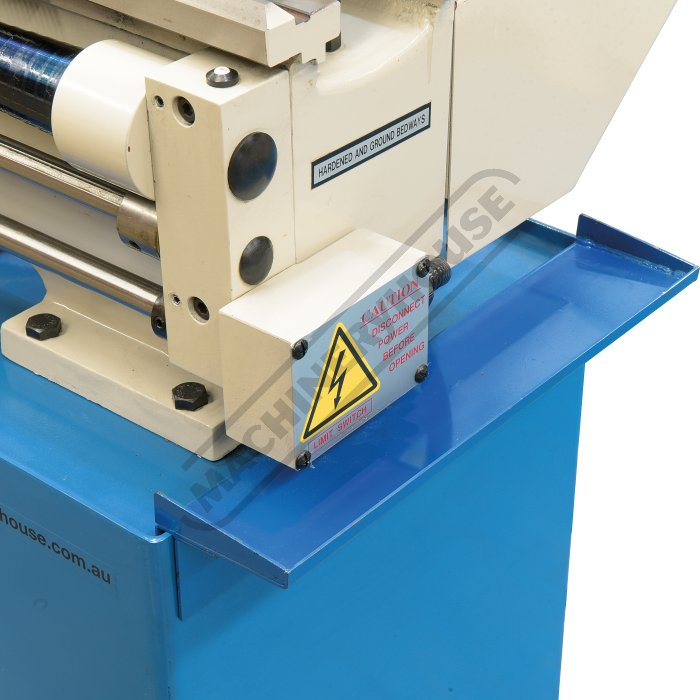

  • Slide out swarf tray
Includes
  • 2 Axis Digital Readout System

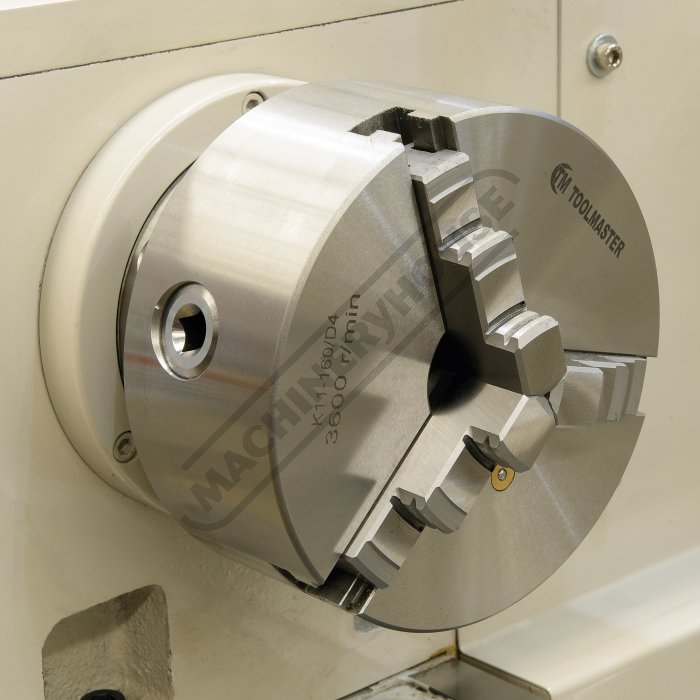

  • 3-jaw chuck with reverse jaws
  • 4-jaw chuck
  • Faceplate

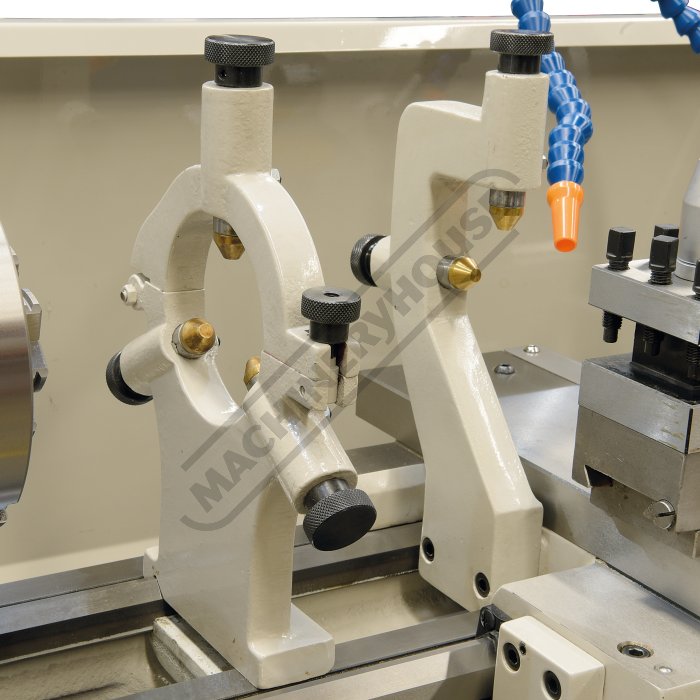

  • Fixed Steady
  • Travelling steady
  • Chuck guard
  • Leadscrew covers
  • Dead centre

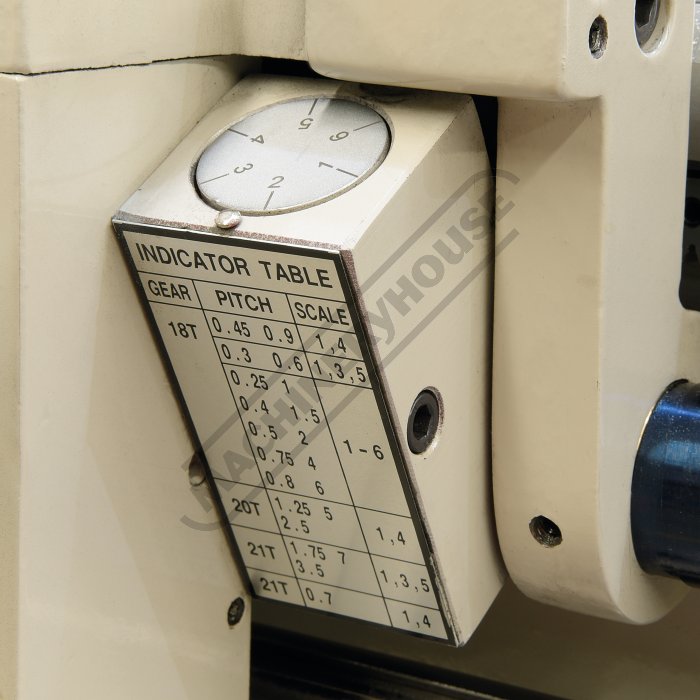

  • Thread chasing dial
  • Foot brake
  • Coolant system
  • Rear splash guard
  • Drive Plate

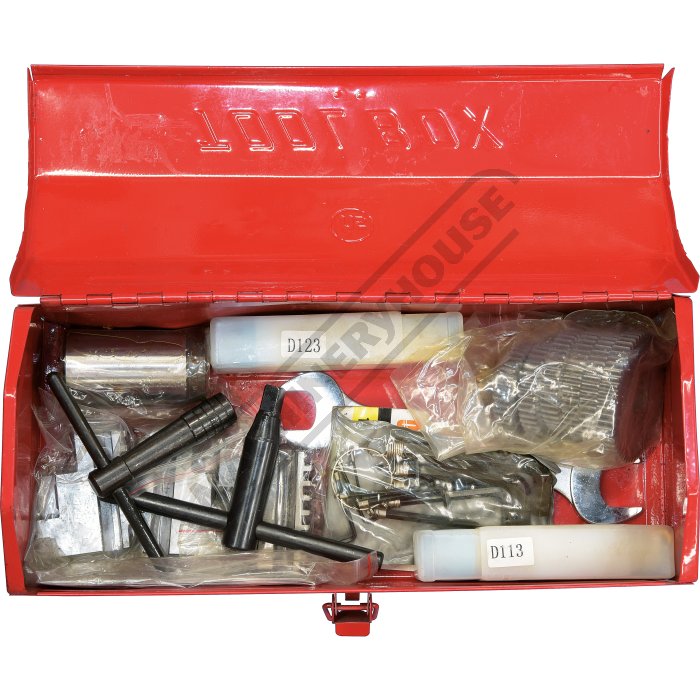

  • Instruction booklet

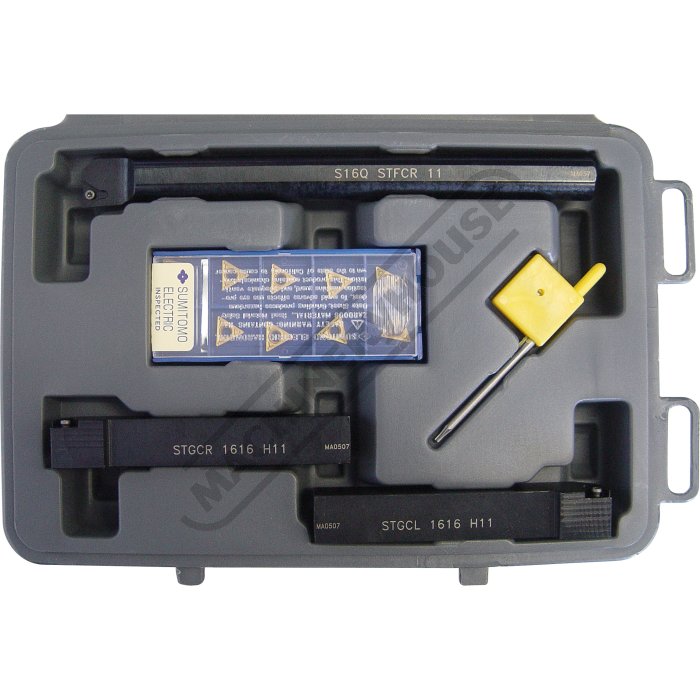

  • 16mm Turning Tool Kit (L451)

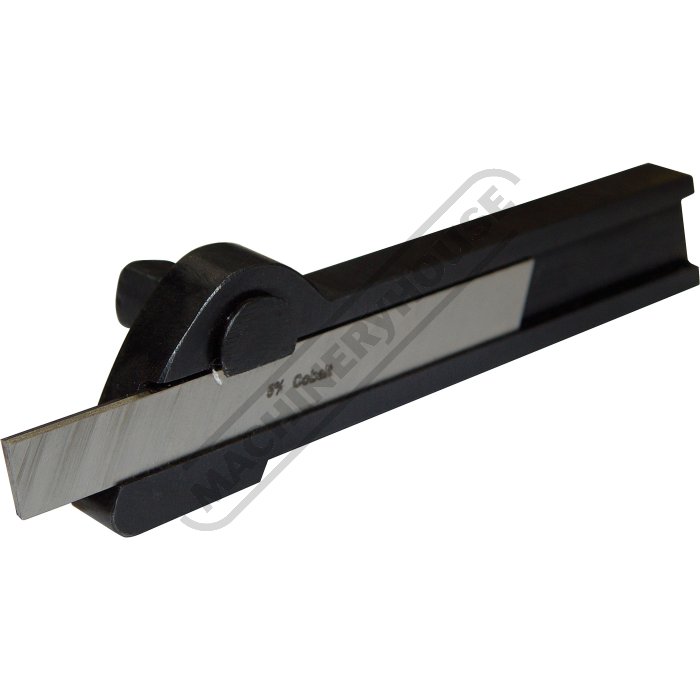

  • Parting Tool Holder (L074)

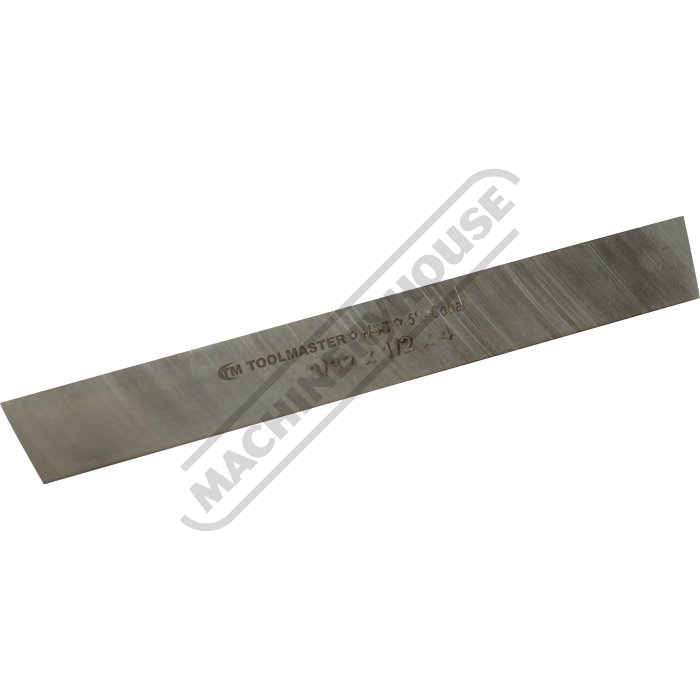

  • HSS Parting Blade (L0007)

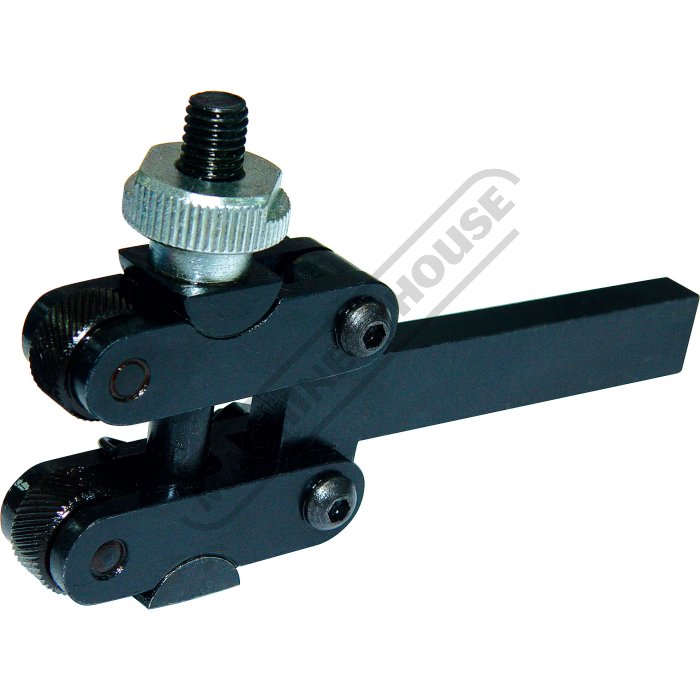

  • Knurling Tool Holder (Clamp Type) (L080)

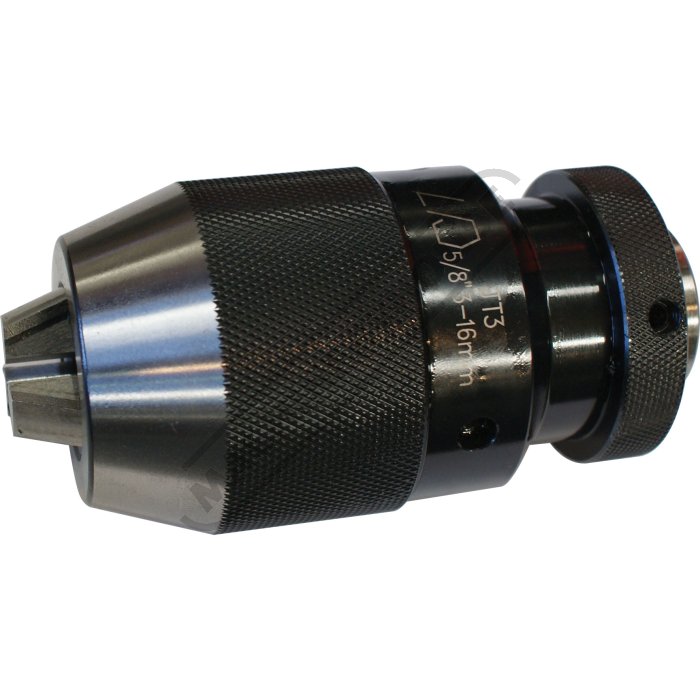

  • 16mm Keyless Drill Chuck (C294)

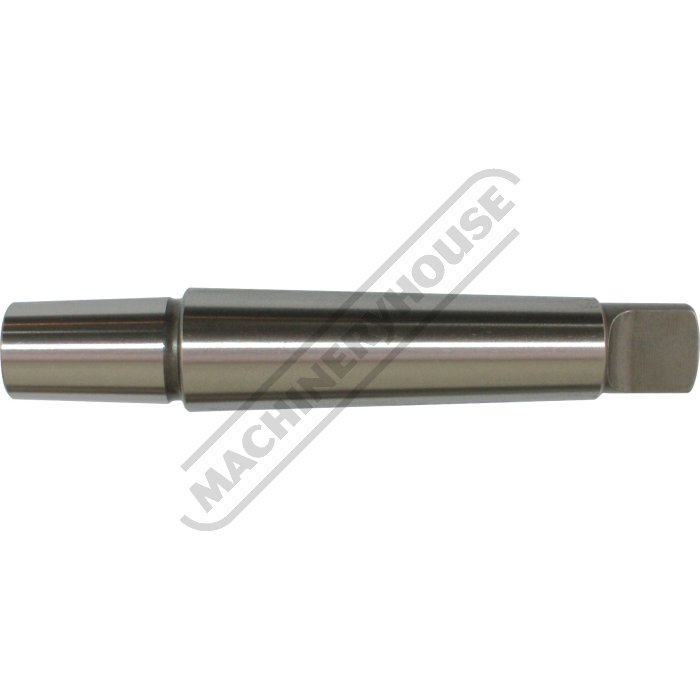

  • 3MT x JT3 Drill Chuck Arbor (D443A)
  • 3MT Live Centre (C052)
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • NSW Contract No.
  • QLD Contract No.
  • MODEL

  • Digital Readout
  • (mm)Tool To Suit
  • (mm)Distance Between Centres
  • (mm)Swing Over Bed
  • (mm)Swing Over Gap
  • (mm)Swing Over Cross-slide
  • (mm)Centre Height
  • (mm)Spindle Bore
  • Camlock Spindle Size
  • (mm)Bed Width
  • (MT)Head Stock Spindle Taper
  • (MT)Tail Stock Taper
  • (mm)Cross Slide Travel
  • (mm)Compound Slide Travel
  • Lead Screw
  • (mm/rev)Cross Feed
  • (mm/rev)Longitudinal Feed
  • (No. / mm)Metric Thread Range
  • (No. / TPI)Imperial Thread Range
  • (mm)3 Jaw Chuck Diameter
  • (mm)4 Jaw Chuck Diameter
  • (No. / RPM)Spindle Steps/speeds
  • (kW / hp)Motor Power
  • (V / amp)Voltage / Amperage
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • K8250
  • Compare
  • Wishlist
  • K8250
  • NSW Item No.35A
  • ~
  • Schools/TAFE AL-1324
    KIT
  • Optional
  • 16
  • 600
  • 330
  • ~
  • 200
  • 165
  • Ø40
  • D1-4
  • 190
  • 5
  • 3
  • 175
  • 100
  • Metric
  • 0.034 ~ 0.468
  • 0.068 ~ 0.936
  • 30 (0.4 - 7.0)
  • 32 (4 - 56)
  • Ø160
  • Ø200
  • 9 / 82-2000
  • 2.25 / 3
  • 240 / 15
  • 660
  • Please Call
  • Please Call
  • ADD TO CART
  • K8251
  • Compare
  • Wishlist
  • K8251
  • NSW Item No.35A
  • ~
  • Schools/TAFE AL-1324
    KIT with DRO
  • Yes
  • 16
  • 600
  • 330
  • ~
  • 200
  • 165
  • Ø40
  • D1-4
  • 190
  • 5
  • 3
  • 175
  • 100
  • Metric
  • 0.034 ~ 0.468
  • 0.068 ~ 0.936
  • 30 (0.4 - 7.0)
  • 32 (4 - 56)
  • Ø160
  • Ø200
  • 9 / 82-2000
  • 2.25 / 3
  • 240 / 15
  • 660
  • Please Call
  • Please Call
  • ADD TO CART
  • K8252
  • Compare
  • Wishlist
  • K8252
  • NSW Item No.35B
  • ~
  • Schools/TAFE AL-1324
    KIT
  • Optional
  • 16
  • 600
  • 330
  • ~
  • 200
  • 165
  • Ø40
  • D1-4
  • 190
  • 5
  • 3
  • 175
  • 100
  • Metric
  • 0.034 ~ 0.468
  • 0.068 ~ 0.936
  • 30 (0.4 - 7.0)
  • 32 (4 - 56)
  • Ø160
  • Ø200
  • 18 / 50-2000
  • 2.25 / 3
  • 415
  • 660
  • Please Call
  • Please Call
  • ADD TO CART
  • K8253
  • Compare
  • Wishlist
  • K8253
  • NSW Item No.35B
  • ~
  • Schools/TAFE AL-1324
    KIT with DRO
  • Yes
  • 16
  • 600
  • 330
  • ~
  • 200
  • 165
  • Ø40
  • D1-4
  • 190
  • 5
  • 3
  • 175
  • 100
  • Metric
  • 0.034 ~ 0.468
  • 0.068 ~ 0.936
  • 30 (0.4 - 7.0)
  • 32 (4 - 56)
  • Ø160
  • Ø200
  • 18 / 50-2000
  • 2.25 / 3
  • 415
  • 660
  • Please Call
  • Please Call
  • ADD TO CART
  • K8708
  • Compare
  • Wishlist
  • K8708
  • ~
  • ~
  • Schools/TAFE AL-250G

  • ~
  • 16
  • 500
  • 250
  • ~
  • 150
  • 125
  • 26
  • Fixed
  • 140
  • 4
  • 3
  • 145
  • 75
  • Metric
  • 0.017 - 0.187
  • 0.035 - 0.375
  • 15 (0.25 - 2.5)
  • ~
  • 130
  • Optional
  • 12 (80 - 1600)
  • 0.75 / 1
  • 240 / 10
  • 185
  • Please Call
  • Please Call
  • ADD TO CART
  • K8716D
  • Compare
  • Wishlist
  • K8716D
  • ~
  • ~
  • Schools/TAFE AL-1324
    KIT with DRO
  • Yes
  • 16
  • 600
  • 330
  • ~
  • 200
  • 165
  • Ø40
  • D1-4
  • 190
  • 5
  • 3
  • 175
  • 100
  • Metric
  • 0.034 ~ 0.468
  • 0.068 ~ 0.936
  • 30 (0.4 - 7.0)
  • 32 (4 - 56)
  • Ø160
  • Ø200
  • 18 / 50-2000
  • 2.25 / 3
  • 415
  • 660
  • Please Call
  • Please Call
  • ADD TO CART
