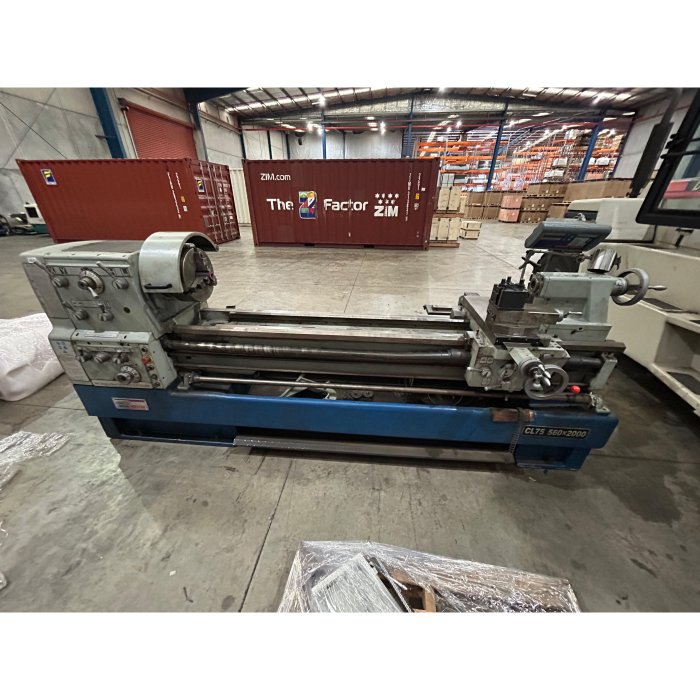

Centre Lathe - CL-75
560 x 2000mm Turning Capacity - 105mm Spindle Bore
Includes Digital Readout System, Quick Change Toolpost & Taper Turning Attachment
Main
1 of 3
Image 2
2 of 3
Image 3
3 of 3
Limited Stock
Order Code: XXLA238
Description
Centre Lathe - CL-75
560 x 2000mm Turning Capacity - 105mm Spindle Bore
Includes Digital Readout System, Quick Change Toolpost & Taper Turning Attachment
Overview
PICK UP MELBOURNE ONLY
NO WARRANTY
USED MACHINE
NO WARRANTY
USED MACHINE
Features
- 2 Axis digital readout system
- Quick change toolpost
- Taper turning attachment fitted to saddle
- Triple bearings supporting headstock spindle
- Adjustable taper roller bearings providing spindle accuracy
- Precision 'V'-beds & headstock gears are all hardened & ground
- One piece cast iron base increases rigidity
- Overload protection on drive motor and coolant system
- Universal enclosed gearbox incorporating metric & imperial thread capabilities
- Inching button incorporated on the control panel for convenient spindle speed selection
- Foot operated spindle brake with safety cut out switch
- 350mm wide induction hardened heavy duty cast iron bed
- Removable gap bed allowing work piece to swing up to 785mm
- Chuck guard fitted with safety micro switch
- Powered longitudinal and cross feeds
- Adjustable 4 position length-stop mechanism for accurate repetitive operation
- Micro adjustable saddle stop
- Dual calibrated dials incorporating metric & imperial graduations
- Coolant system with flexible hose enabling operator to manipulate flow direction
- Oil sight glass for head stock and gearbox
- Low voltage halogen work light
- Lubrication pump on saddle oiling slides
- D1-8 camlock spindle for quick chuck removal
- 12 spindle speeds from 25-1600rpm
- 105mm spindle bore
- 7.5kW / 10HP 415V main motor
Includes
- 2 Axis digital readout system
- Quick change toolpost
- Taper turning attachment fitted to saddle
- Concertina leadscrew covers
- 315mm 3-jaw chuck with reverse jaws
- 350mm 4-jaw chuck
- Face plate
- Fixed steady with roller bearings
- Travelling steady with brass guides
- Dead centres
- Thread chasing dial
- Foot brake
- Coolant system
- Work light
- Rear splash guard
- Spindle reducing bush
Compare Product Range
Specifications
| ORDER CODE | L626D |
|---|---|
| MODEL | CL-75 |
| (State)Branch Location | MELBOURNE |
| Type | Lathe |
| Brand | HAFCO |
| Capacity | 560 x 2000mm |
| (rpm)Speed Range | 25 - 1600 |
| (kW / hp)Motor Power | 7.5 / 10 |
| (V / amp)Voltage / Amperage | 415 |
