C0821 - 5MT Live Centre Extended Point
3000rpm, 1500kg Load Capacity
C0821
1 of 1
Discontinued
Order Code: C0821
1 Year Warranty
Description
C0821 - 5MT Live Centre Extended Point
3000rpm, 1500kg Load Capacity
Overview
Toolmaster live centre's are fitted with needle, thrust and ball bearings suitable for high speed CNC turning with medium to heavy loads.
The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.
The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.
Features
- 60º Extended point Angle
- Maximum speed 3000rpm
- Maximum load 1500kg
- Accuracy 0.005mm
Compare Product Range

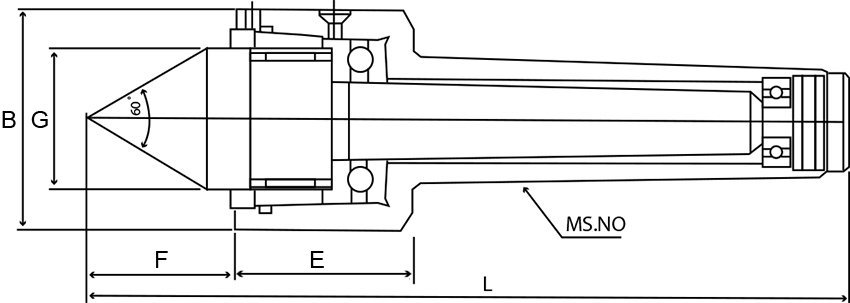

Specifications
| ORDER CODE | C0821 |
|---|---|
| (MT)Taper | 5MT |
| Point Type | Extended |
| (rpm)Maximum Speed | 3000 |
| (kg)Maximum Load Capacity | 1500 |
| (deg)Angle θ | 60 |
| (mm)B | 70 |
| (mm)E | 65.5 |
| (mm)F | 69 |
| (mm)G | 45 |
| (mm)L | 264 |
You may also like
- Compare:
- Wishlist:
- ORDER CODE
- (MT)Taper
- Point Type
- (rpm)Maximum Speed
- (kg)Maximum Load Capacity
- (deg)Angle θ
- (mm)A
- (mm)B
- C
- D
- D1
- d
- (mm)E
- (mm)F
- (mm)G
- (mm)L
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- C050
- 2MT
- Standard
- 5000
- ~
- ~
- ~
- 40
- ~
- ~
- ~
- ~
- 38
- 26
- 22.5
- 133.5
- 0.6
- $59.09
- $65.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C052
- 3MT
- Standard
- 4500
- ~
- ~
- ~
- 49.5
- ~
- ~
- ~
- ~
- 47
- 36.5
- 24
- 170
- 1.14
- $67.27
- $74.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C057
- 3MT
- Extended
- 3500
- 400
- 60
- 46
- 44
- 86
- 41
- 25
- 10
- ~
- ~
- ~
- 176
- 0.84
- $150.00
- $165.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C072
- 3MT
- Standard
- 4500
- 500
- 60
- 32
- ~
- ~
- 52
- 20
- ~
- ~
- ~
- ~
- ~
- 1.2
- $448.18
- $493.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C054
- 4MT
- Standard
- 3000
- ~
- ~
- ~
- 50
- ~
- ~
- ~
- ~
- 37.3
- 27
- 22.3
- 185
- 1.32
- $80.00
- $88.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C059
- 4MT
- Extended
- 3000
- 600
- 60
- 55
- 51
- 108
- 47
- 32
- 12
- ~
- ~
- ~
- 214
- 1.46
- $177.27
- $195.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C074
- 4MT
- Standard
- 4000
- 1000
- 60
- 36
- ~
- ~
- 58
- 25
- ~
- ~
- ~
- ~
- ~
- 1.4
- $570.00
- $627.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- C079
- 4MT
- Extended
- 4000
- 650
- 60
- 45
- ~
- ~
- 58
- 23.7
- ~
- ~
- ~
- ~
- ~
- 1.4
- $586.36
- $645.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C060
- 5MT
- Standard
- 2000
- 1065
- 60
- 54
- 72
- 136
- 65
- 52
- ~
- ~
- ~
- ~
- 262
- 3.7
- $300.00
- $330.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- C075
- 5MT
- Standard
- 2500
- 4000
- 60
- 34
- ~
- ~
- 87
- 40
- ~
- ~
- ~
- ~
- ~
- 3.6
- $740.91
- $815.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C080
- 5MT
- Extended
- 3000
- 2500
- 60
- 72
- ~
- ~
- 87
- 38
- ~
- ~
- ~
- ~
- ~
- 3.6
- $854.55
- $940.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C076
- 6MT
- Standard
- 1800
- 7000
- 60
- 41
- ~
- ~
- 98
- 48
- ~
- ~
- ~
- ~
- ~
- 6.7
- $1,633.64
- $1,797.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- C081
- 6MT
- Extended
- 2500
- 4500
- 60
- 72
- ~
- ~
- 98
- 43
- ~
- ~
- ~
- ~
- ~
- 6.7
- $1,640.00
- $1,804.00
- ADD TO CART
