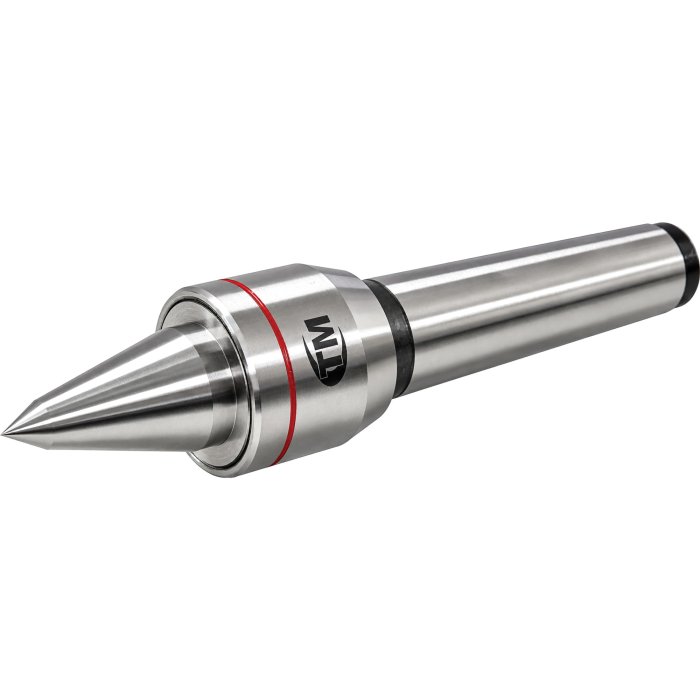

C059 - 4MT Live Centre Extended Point
Taiwanese Precision Quality
3000rpm, 600kg Load Capacity
C059
1 of 5
Work Piece Load Graph
2 of 5
Side View
3 of 5
Rear View
4 of 5
Wooden Case
5 of 5
Order Code: C059
ex-gst
inc-gst
$
200.00
$
220.00
1 Year Warranty
Made in Taiwan
Description
C059 - 4MT Live Centre Extended Point
Taiwanese Precision Quality
3000rpm, 600kg Load Capacity
Overview
Toolmaster live centre's are fitted with needle, thrust and ball bearings suitable for medium to high speed lathes with heavy loads.
The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.
The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.
Features
- Maximum speed 3000rpm @ 180kg
- Maximum load 600kg @ 70rpm
- Hardened to HRC 60º
- Made from alloy steel
- Assembled with thrust, needle & ball bearings
Compare Product Range
Specifications
| ORDER CODE | C059 |
|---|---|
| (MT)Taper | 4MT |
| Point Type | Extended |
| (rpm)Maximum Speed | 3000 |
| (kg)Maximum Load Capacity | 600 |
| (deg)Angle θ | 60 |
| (mm)A | 55 |
| (mm)B | 51 |
| C | 108 |
| D | 47 |
| D1 | 32 |
| d | 12 |
| (mm)L | 214 |
| (kg)Nett Weight | 1.46 |
