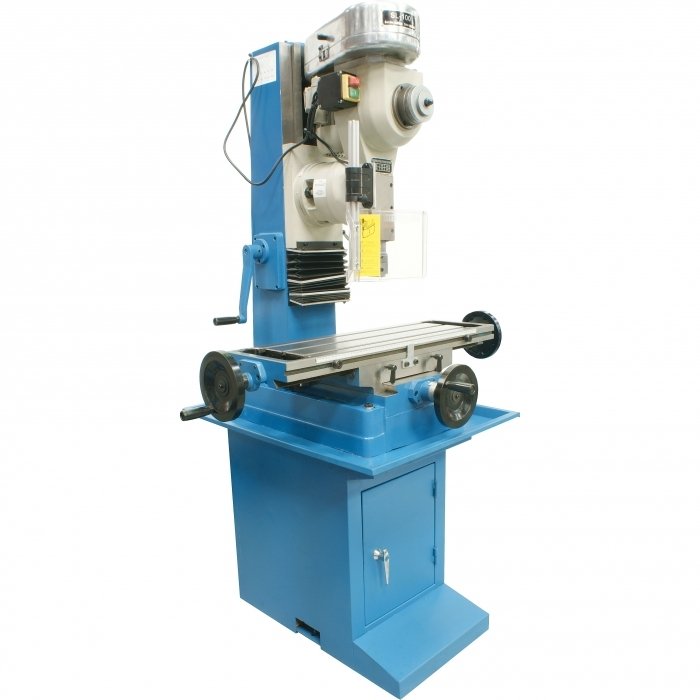

Swivel Head Slotting Machine - SL-100A
100mm Stroke
ZS707
1 of 17

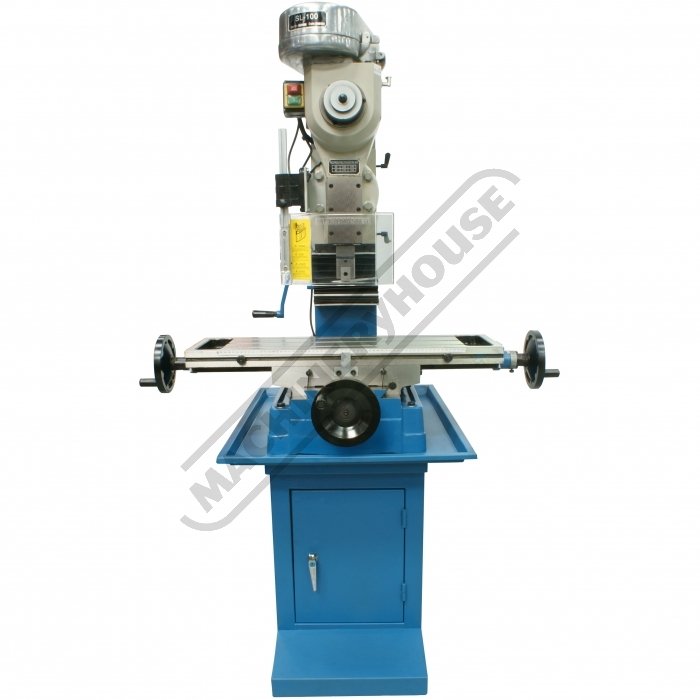

Front View
2 of 17

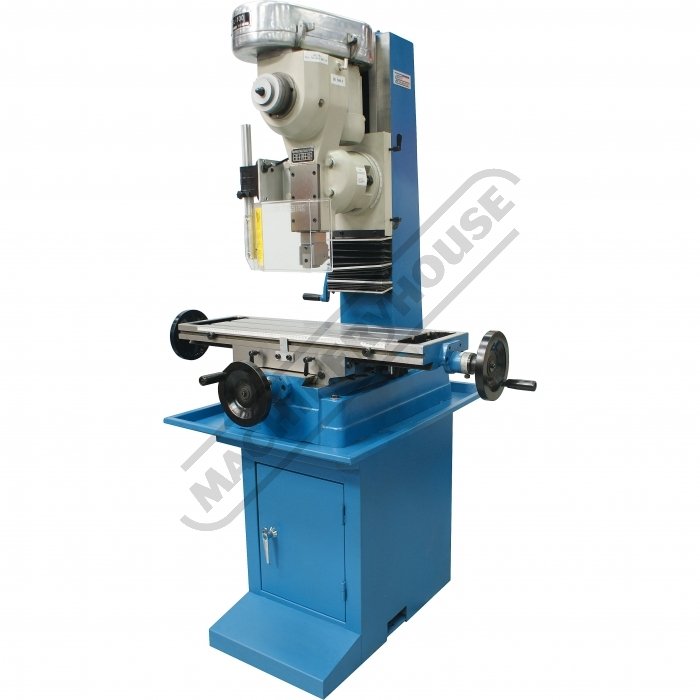

Right View
3 of 17

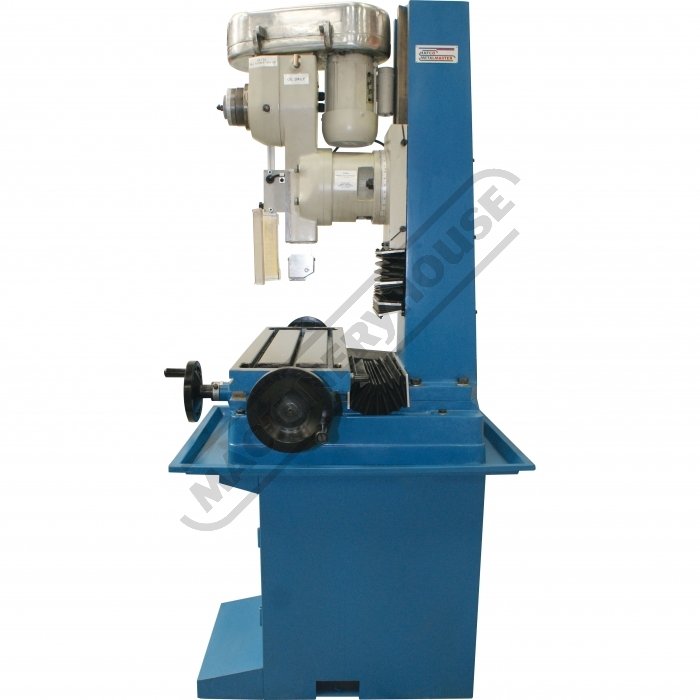

Side View
4 of 17

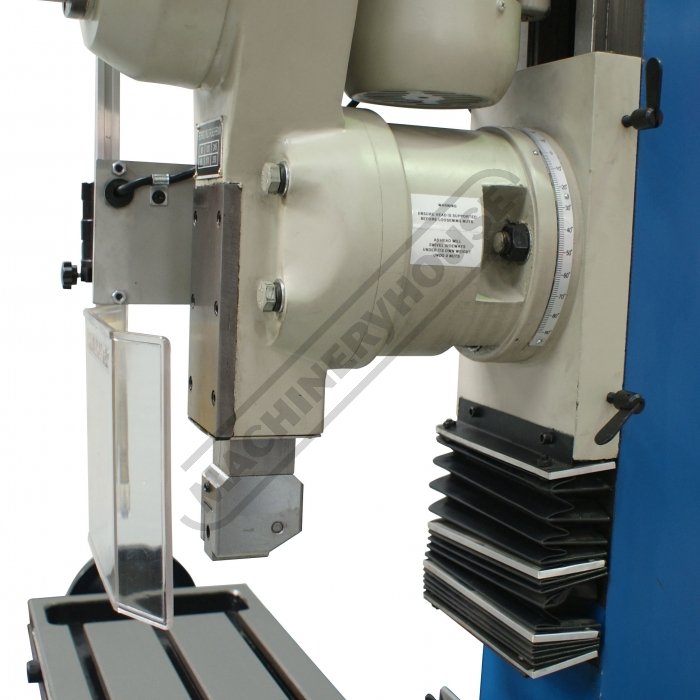

Head
5 of 17

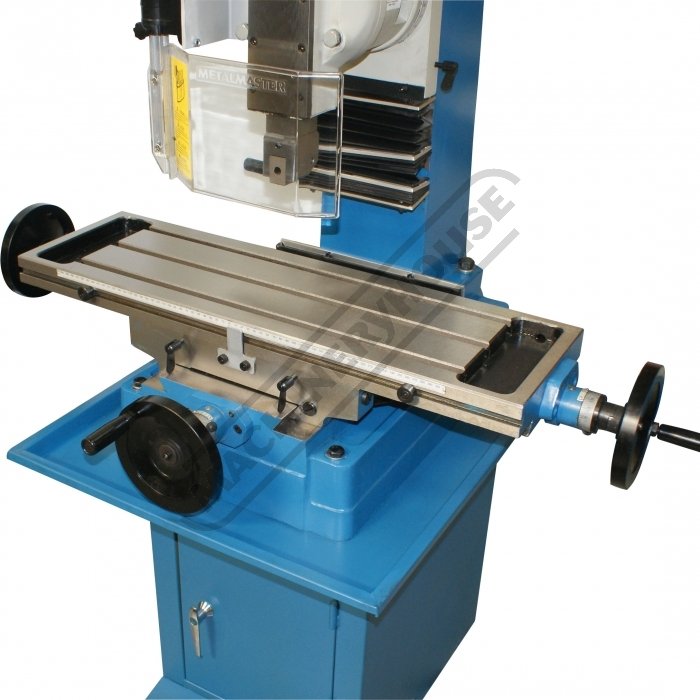

Table
6 of 17

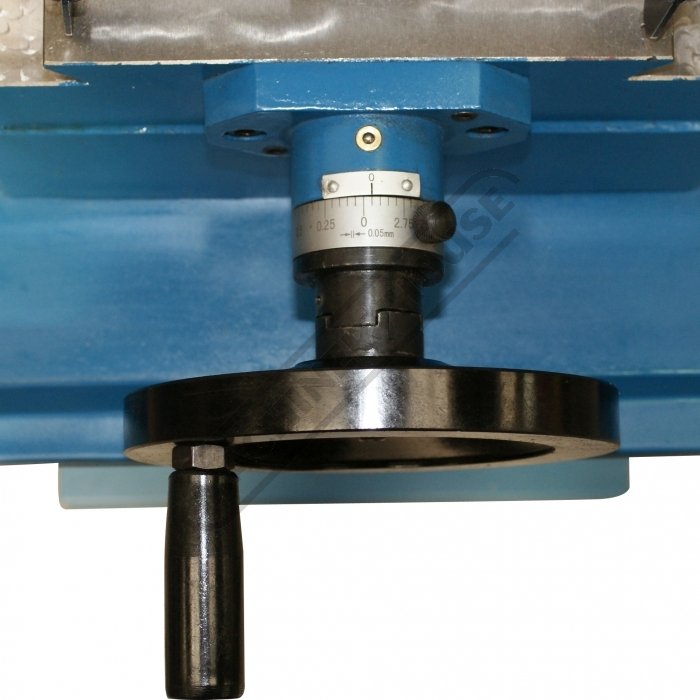

Handle
7 of 17

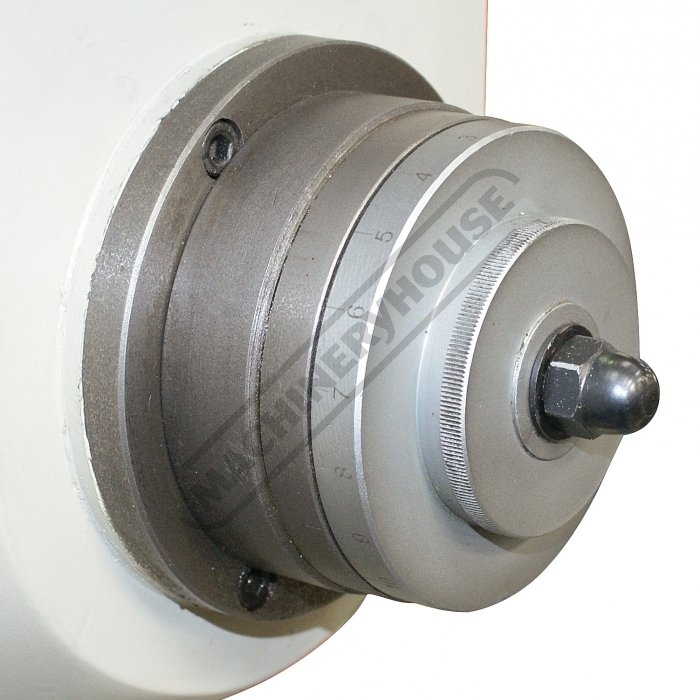

Stroke Adjustment
8 of 17

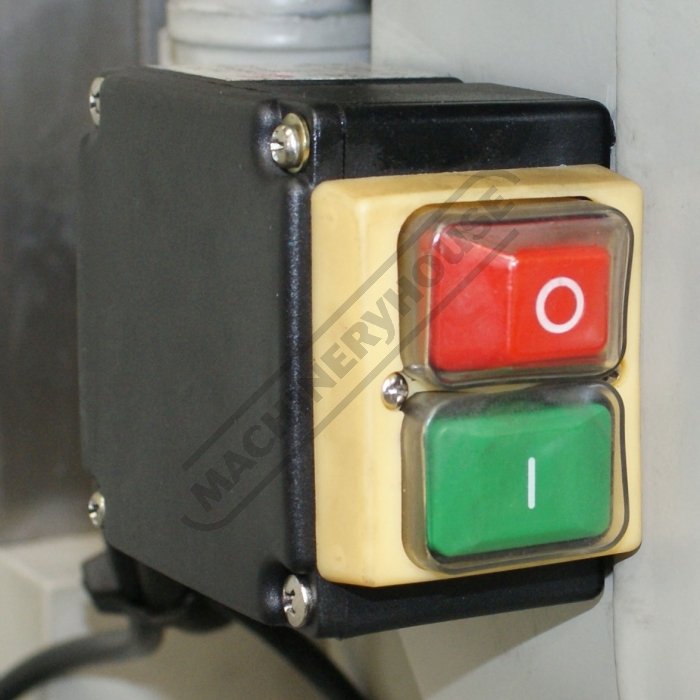

Switch
9 of 17

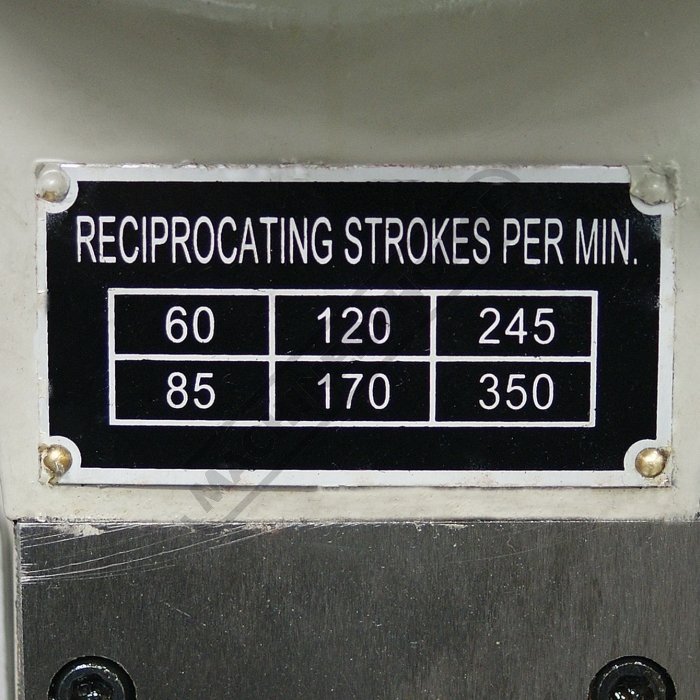

Strokes Per Minute Chart
10 of 17

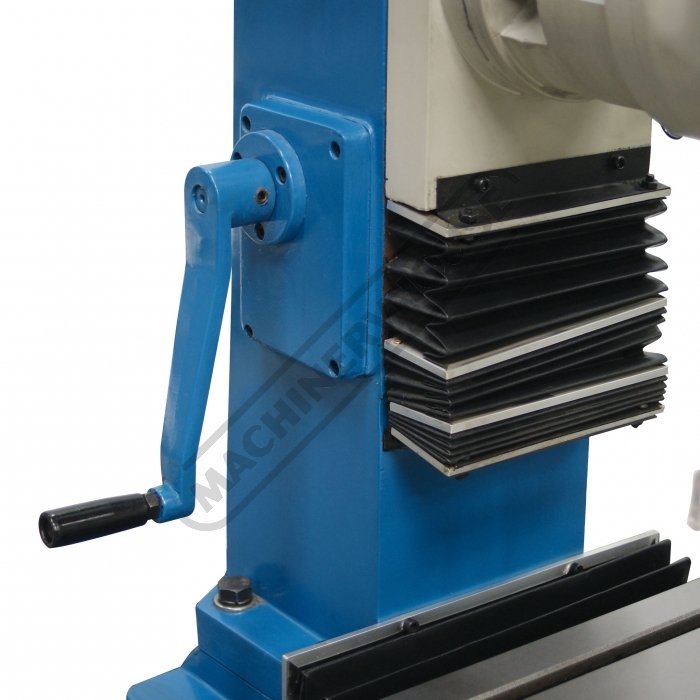

Head Adjustment Handle
11 of 17

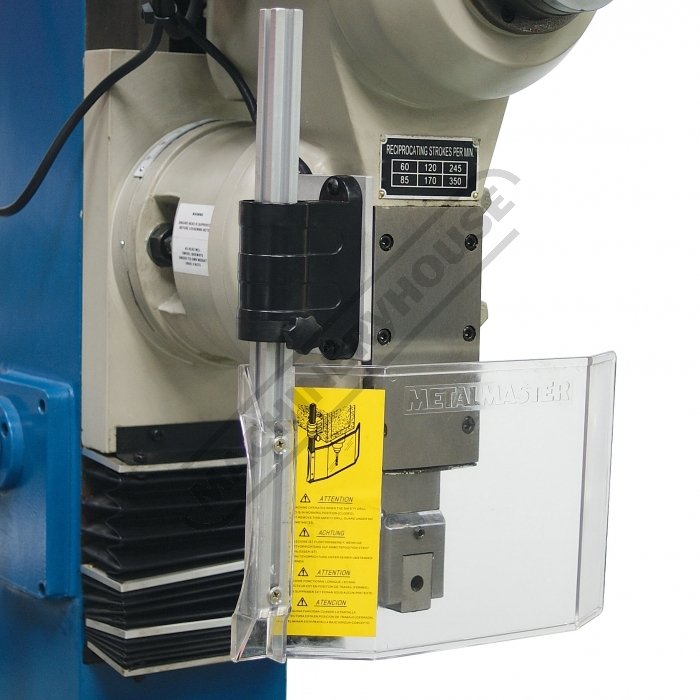

Safety Guard
12 of 17

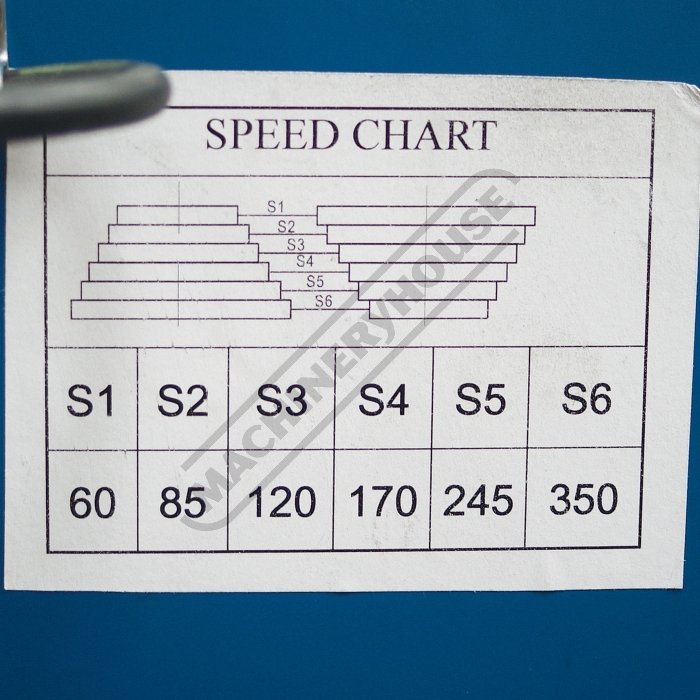

Speed Chart
13 of 17

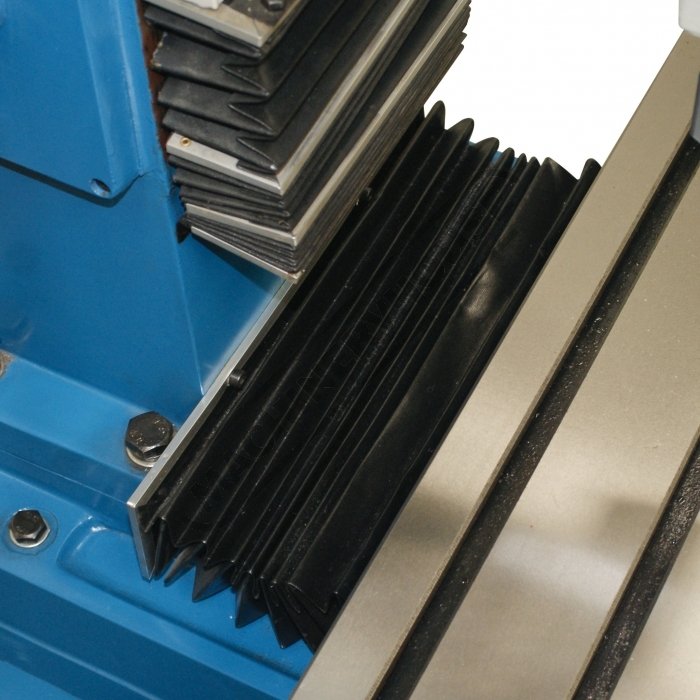

Concertina Slideway Covers
14 of 17

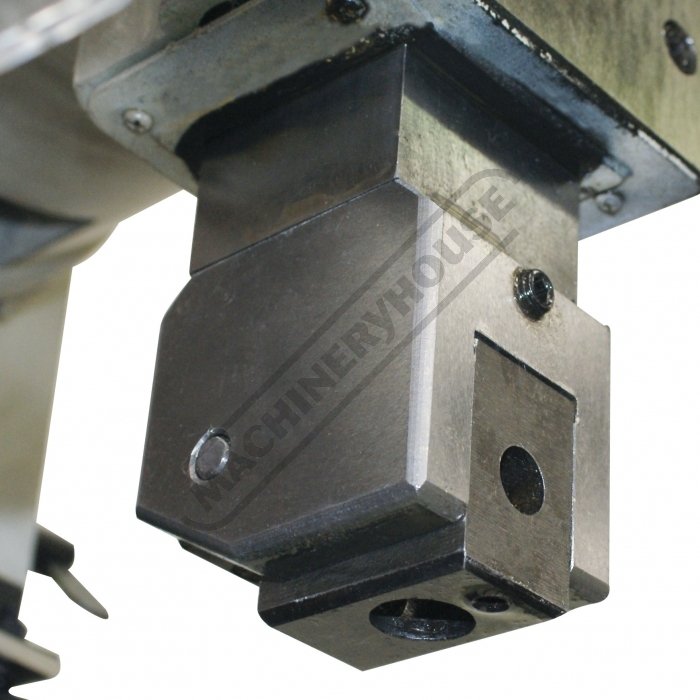

Slotting Head
15 of 17

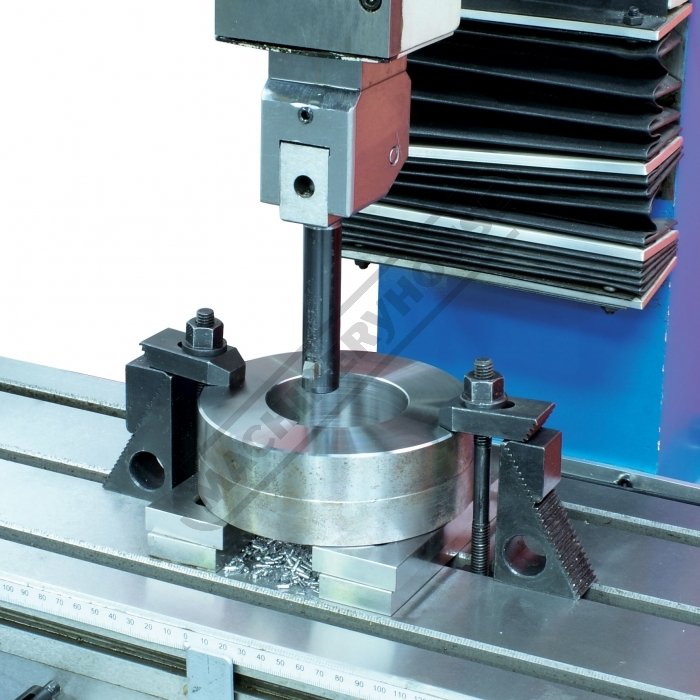

Shown Slotting
16 of 17

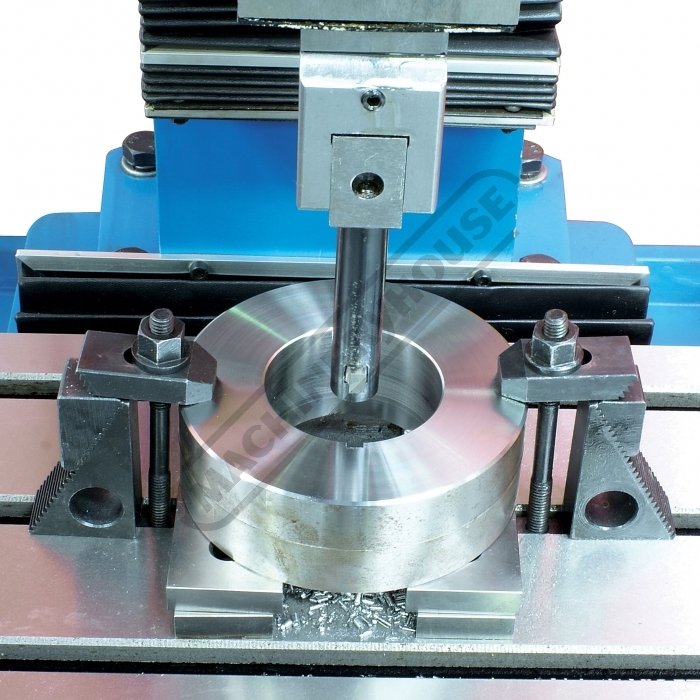

Shown Slotting Front View
17 of 17
On Sale - Limited Stock
Order Code: ZS707
ex-gst
inc-gst
$
4,850.00
$
5,335.00
$
3,500.00
$
3,850.00
Only Available From: Sydney, Melbourne (Pick Up Only)
240V / 10A
1 Year Warranty
1 Year Warranty
Description
Swivel Head Slotting Machine - SL-100A
100mm Stroke
Features
- Heavy duty cast iron construction
- Swivel head tilts left and right 90º
- Dovetail vertical Z-Axis
- 0-100mm machining stroke range
- Strokes per minute 60-350 (6 ranges)
- 800 x 240mm table size
- 230mm working table cross travel
- 560mm working table longitudinal travel
- Safety chuck guard with micro
- 14mm T-Slot on table
- 370W/0.5hp, 240V motor
- Includes steel fabricated stand
- Suits 16mm diameter tooling
Compare Product Range
Specifications
| ORDER CODE | ZS707 |
|---|---|
| MODEL | SL-100A |
| (mm)Maximum Stroke | 100 |
| (SPM)Ram Stroke (strokes/min) | 60-350 (6 steps) |
| (mm)Work Table Size | 800 x 240 |
| (mm)Work Table longitudinal Travel | 560 |
| (mm)Work Table Cross Travel | 230 |
| (kW / hp)Motor Power | 0.37 / 0.05 |
| (V / amp)Voltage / Amperage | 240 / 10 |
| (kg)Nett Weight | 300 |
