Discontinued
Order Code: W434
Description

BP-480 - Wood Band Saw

2 Blade Speeds - 488 & 1010m/min
462mm Throat Depth x 310mm Height Capacity
Overview
The BP-480 is the big brother of the BP-430 bandsaw and offers a large capable cutting capacity of 465mm depth x 310mm height. The powerful 1500W, 2hp 240V motor drives a 2-speed pulley system that allows you to cut a wide variety of timber sections. The welded steel frame is extraordinary rigid allowing for higher blade tension with a quick release blade tensioning lever that substantially speeds up the process of changing the blade.

The BP-480 also manufactured in Taiwan offers excellent safety features including interlocked blade guard doors, safety magnetic nvr power switch, twin extraction ports and is all compliant to CE standard. The cast iron table and heavy-duty ball bearing blade guides are included, along with a rigid rip fence and precision mitre fence.

Worm gear systems incorporated for both table tilting and blade guidepost movement are used for quick & easy adjustment. Another very important feature that is also often forgotten is that the machine offers cast iron blade wheels that are balanced for smooth running and helps eliminate excessive vibration.

An often overlooked feature is the ease of changing the blade; The BP-480 has a quick release blade tensioning lever which substantially speeds up the process of blade changing. Two belt speeds offer the right speed of 488 & 1010m/min. for cutting either a large or small job.
Features
  • 1500W / 2hp 240V motor
  • 2-speed 488/1010m/min
  • 465mm throat capacity,
  • 480mm heavy duty cast iron wheels
  • Magnetic NVR on/off switch
  • Micro-switch protection on hinged blade guard doors
  • Ball bearing blade guides
  • Quick-action blade tension

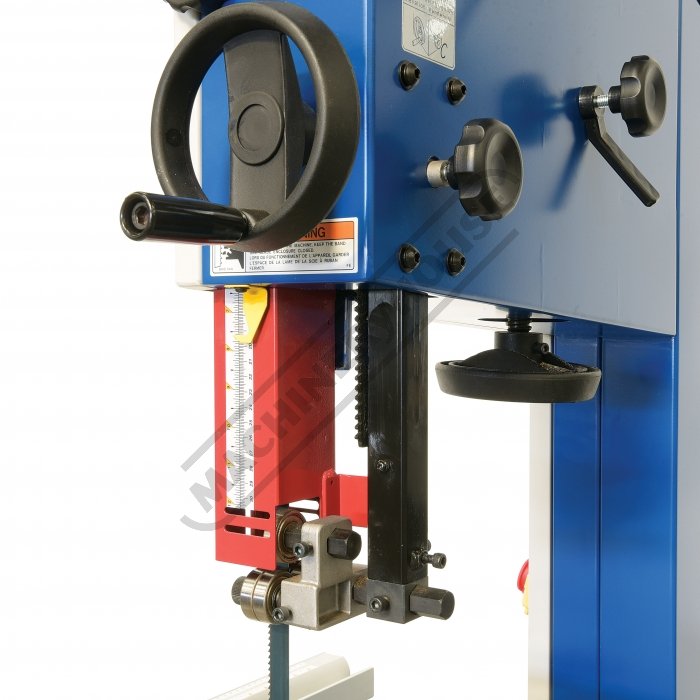

  • Rack & pinion adjustment on top blade guide
  • Twin 100mm dust chutes
  • Cast iron table tilts to 45°
  • CE safety standard compliant
  • Quality Taiwanese manufacture
Includes
  • Mitre guide
  • Aluminium rip fence
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (mm)Wheel Diameter (Ø)
  • (mm)Throat Capacity
  • (mm)Height Capacity
  • (mm)Table Size
  • Frame Type
  • (kW / hp)Motor Power
  • (V / amp)Voltage / Amperage
  • (Suits)Blade Code
  • (mm)Blade Size (L x W x T)
  • (mm)Floor Space (W x D x H)
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale W950
  • Compare
  • Wishlist
  • W950
  • BP-255
  • 255
  • 245
  • 152
  • 360 x 320
  • Steel
  • 0.375 / 0.5
  • 240 / 10
  • W950A, W950B, W950F
  • 1826 x 12.5 x 0.65
  • 750 x 650 x 1430
  • 38
  • $490.00
  • $539.00
  • ADD TO CART
  • On Sale - Package Deal W9501
  • Compare
  • Wishlist
  • W9501
  • BP-255 + Circle Att Package
  • 255
  • 245
  • 152
  • 360 x 320
  • Steel
  • 0.375 / 0.5
  • 240 / 10
  • W950A, W950B, W950F
  • 1826 x 12.5 x 0.65
  • 750 x 650 x 1430
  • 43
  • $499.09
  • $549.00
  • ADD TO CART
  • On Sale W952
  • Compare
  • Wishlist
  • W952
  • BP-310
  • 310
  • 305
  • 165
  • 480 x 390
  • Steel
  • 0.75 / 1
  • 240 / 10
  • W420A, W420B, W420F
  • 2240 x 12.5 x 0.65
  • 830 x 700 x 1590
  • 73
  • $771.82
  • $849.00
  • ADD TO CART
  • On Sale W955
  • Compare
  • Wishlist
  • W955
  • BP-360
  • 360
  • 340
  • 225
  • 545 x 515
  • Steel
  • 1.1 / 1.5
  • 240 / 10
  • W955A,W955B, W955F
  • 2560 x 16 x 0.65
  • 920 x 800 x 1710
  • 88
  • $990.00
  • $1,089.00
  • ADD TO CART
  • On Sale W4224
  • Compare
  • Wishlist
  • W4224
  • BP-355
  • 355
  • 345
  • 245
  • 535 x 435
  • Steel
  • 1.5 / 2
  • 240 / 10
  • W4224A,W4224B,W4224F
  • 2750 x 16 x 0.65
  • 920 x 760 x 1810
  • 121
  • $1,317.27
  • $1,449.00
  • ADD TO CART
  • On Sale W4330
  • Compare
  • Wishlist
  • W4330
  • BP-430A
  • 430
  • 415
  • 310
  • 585 x 435 with Extension
  • Steel
  • 1.5 / 2 (Electronic Brake System)
  • 240 / 10
  • W433A, W433B, W433C
  • 3345 x 16 x 0.80
  • 850 x 830 x 1860
  • 181
  • $2,180.00
  • $2,398.00
  • ADD TO CART
  • On Sale W4340
  • Compare
  • Wishlist
  • W4340
  • BP-480A
  • 480
  • 465
  • 310
  • 680 x 480
  • Steel
  • 1.5 / 2 (Electronic Brake System)
  • 240 / 10
  • W434A, W434B
  • 3630 x 19 x 0.80
  • 960 x 850 x 1935
  • 214
  • $2,540.00
  • $2,794.00
  • ADD TO CART
  • W4344
  • Compare
  • Wishlist
  • W4344
  • BP-480
  • 480
  • 465
  • 310
  • 480 x 480
  • Steel
  • 1.5 / 2 [with Brake System]
  • 240 / 15
  • W434A, W434B
  • 3630 x 19 x 0.80
  • 960 x 850 x 1935
  • 174
  • $3,250.00
  • $3,575.00
  • ADD TO CART
  • W4346
  • Compare
  • Wishlist
  • W4346
  • BP-480
  • 480
  • 465
  • 310
  • 480 x 480
  • Steel
  • 1.5 / 2 [with Brake System]
  • 415
  • W434A, W434B
  • 3630 x 19 x 0.80
  • 960 x 850 x 1935
  • 174
  • $3,350.00
  • $3,685.00
  • ADD TO CART
  • On Sale W425
  • Compare
  • Wishlist
  • W425
  • BP-500
  • 525
  • 510
  • 335
  • 508 x 612
  • Steel
  • 2.2 / 3
  • 240 / 15
  • W425A, W425B, W425C
  • 3937 x 25.4 x 0.70
  • 1050 x 800 x 1910
  • 290
  • $2,900.00
  • $3,190.00
  • ADD TO CART
  • On Sale W429
  • Compare
  • Wishlist
  • W429
  • BP-630
  • 630
  • 615
  • 370
  • 542 x 660
  • Steel
  • 2.2/ 3
  • 415
  • W429A, W429B
  • 4483 x 25.4 x 0.90
  • 1160 x 900 x 2100
  • 350
  • $4,390.00
  • $4,829.00
  • ADD TO CART
  • Discontinued W434
  • Compare
  • Wishlist
  • W434
  • BP-480
  • 480
  • 462
  • 310
  • 480 x 480
  • Steel
  • 1.5 / 2
  • 240 / 15
  • W434A, W434B
  • 3630 x 19 x 0.80
  • 960 x 850 x 1935
  • 174
  • N/A
  • N/A
  • ENQUIRE
Spare Parts Parts List (2 MB)
