Discontinued
Order Code: W396
Description

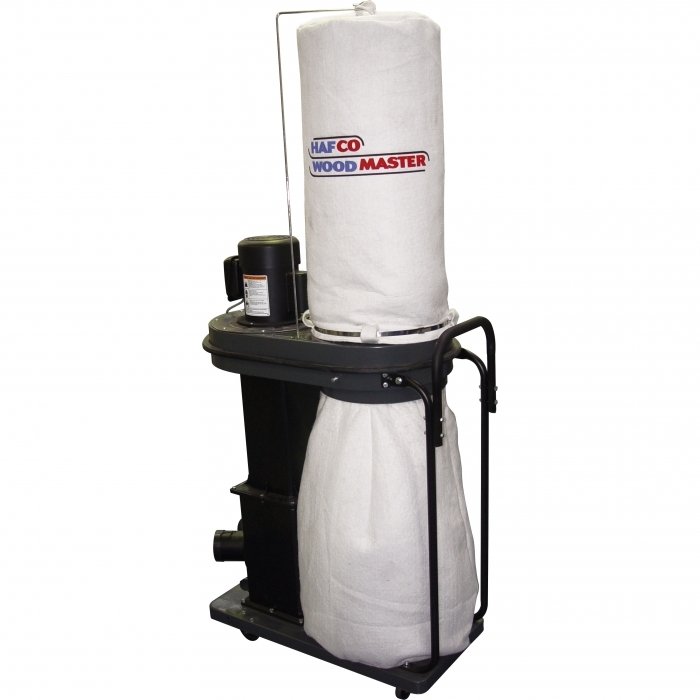

Dust Collector - DC-60

1200cfm - LPHV System
Overview
LPHV = Low Pressure High Volume System

The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.
Features
  • 1.5kW (2HP) 240V motor
  • 1200cfm air flow suction
  • Floor sweeping attachment
  • Portable on wheels
  • 100mm(4") x twin inlets
  • Quick-action clamps
  • Quick-change drop in bottom bag
  • 2 Micron Filter Bag
  • MADE IN TAIWAN
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • Type

  • (CFM)Airflow
  • (Yes / No)LPHV - Low Pressure High Volume
  • (Yes / No)HPLV - High Pressure Low Volume
  • (Microns)Filtration
  • (No. / mm)Inlets / Diameter
  • (No. / mm)Outlets / Diameter
  • (kW / hp)Motor Power
  • (V / amp)Voltage
  • (mm)Floor Space (W x D x H)
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale - New Release Dust Collector 50 Litre DDC-50L
  • Compare
  • Wishlist
  • W390
  • DDC-50L
  • Dust Collector

  • 109
  • No
  • Yes
  • 0.5
  • 1 x Ø100
  • ~
  • 1.2 / 1.6
  • 240 / 10
  • 350 x 350 x 650
  • 9
  • $180.91
  • $199.00
  • ADD TO CART
  • On Sale Dust Collector DC-2
  • Compare
  • Wishlist
  • W332
  • DC-2
  • Dust Collector

  • 500
  • Yes
  • No
  • ~
  • 1 x Ø100
  • ~
  • 0.75 / 1
  • 240 / 10
  • 750 x 400 x 1550
  • 30
  • $226.36
  • $249.00
  • ADD TO CART
  • On Sale Dust Collector HD12
  • Compare
  • Wishlist
  • W886
  • HD12
  • Dust Collector

  • 680
  • Yes
  • No
  • ~
  • 1 x Ø100
  • ~
  • 0. 56 / 0.75
  • 240 / 10
  • 900 x 520 x 1570
  • 24
  • $270.00
  • $297.00
  • ADD TO CART
  • On Sale Cyclone Dust Separator CDS-2/3
  • Compare
  • Wishlist
  • W316
  • CDS-2/3
  • Cyclone Dust Separator

  • ~
  • No
  • No
  • ~
  • 2 x Ø100
  • Ø152 ~ 25mm
  • ~
  • ~
  • 650 x 560 x 1700
  • 19
  • $426.36
  • $469.00
  • ADD TO CART
  • On Sale Dust Collector DC-3
  • Compare
  • Wishlist
  • W394
  • DC-3
  • Dust Collector

  • 1200
  • Yes
  • No
  • ~
  • 2 x Ø100
  • ~
  • 1.5 / 2
  • 240 / 10
  • 1000 x 700 x 1950
  • 42
  • $399.09
  • $439.00
  • ADD TO CART
  • On Sale - Package Deal Dust Collector & Cyclone Separator Package Deal DCC-310
  • Compare
  • Wishlist
  • K047
  • DCC-310
  • Dust Collector Package

  • 1200
  • Yes
  • No
  • ~
  • 2 x Ø100
  • ~
  • 1.5 / 2
  • 240 / 10
  • 2000 x 700 x 1950
  • 91
  • $1,180.00
  • $1,298.00
  • ADD TO CART
  • On Sale Dust Collector DC-7
  • Compare
  • Wishlist
  • W329
  • DC-7
  • Dust Collector

  • 2300
  • Yes
  • No
  • ~
  • 3 x Ø100
  • ~
  • 2.25 / 3
  • 240 / 10
  • 1550 x 740 x 1930
  • 51
  • $535.45
  • $589.00
  • ADD TO CART
  • On Sale Industrial Dust Collector DC-90
  • Compare
  • Wishlist
  • W331
  • DC-90
  • Dust Collector

  • 3200
  • Yes
  • No
  • ~
  • 3 x Ø100
  • ~
  • 3.75 / 5
  • 415
  • 1600 x 800 x 2840
  • 109
  • $1,790.00
  • $1,969.00
  • ADD TO CART
  • On Sale Cyclone Dust Collector CD-20
  • Compare
  • Wishlist
  • W319
  • CD-20
  • Dust Collector &
    Cyclone Separator
  • 910
  • Yes
  • No
  • ~
  • 3 x Ø100
  • ~
  • 1.5 / 2
  • 240 / 10
  • ~
  • 130
  • $1,726.36
  • $1,899.00
  • ADD TO CART
  • On Sale Cyclone Dust Collector CD-30
  • Compare
  • Wishlist
  • W320
  • CD-30
  • Dust Collector &
    Cyclone Separator
  • 2204
  • Yes
  • No
  • ~
  • 3 x Ø100
  • ~
  • 2.2 / 3
  • 240 / 15
  • ~
  • 152
  • $2,390.00
  • $2,629.00
  • ADD TO CART
  • Discontinued Dust Collector DC-60
  • Compare
  • Wishlist
  • W396
  • DC-60
  • Dust Collector

  • 1200
  • Yes
  • No
  • ~
  • 2 x Ø100
  • ~
  • 1.5 / 2
  • 240 / 10
  • ~
  • 50
  • N/A
  • N/A
  • ENQUIRE
