DC-90 - Industrial Dust Collector
5HP
3200cfm - LPHV System
W331
1 of 7
Front View
2 of 7

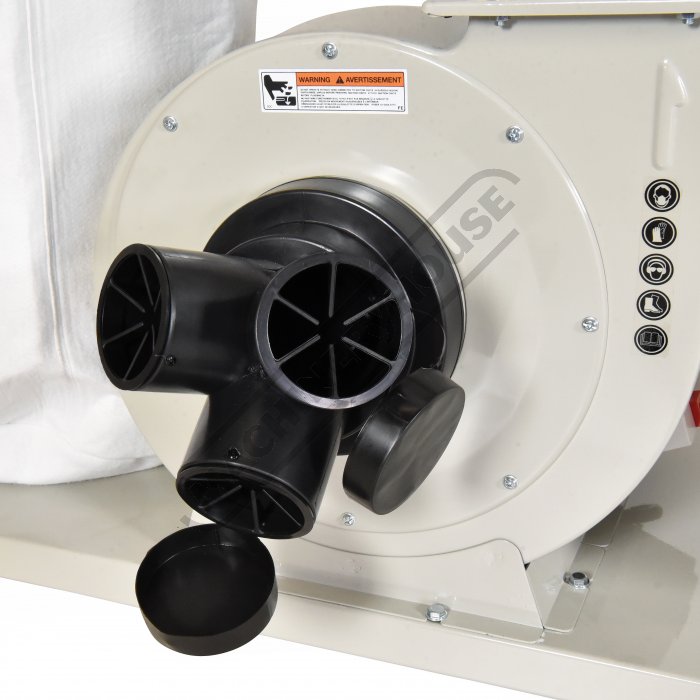

100mm Triple Inlets
3 of 7

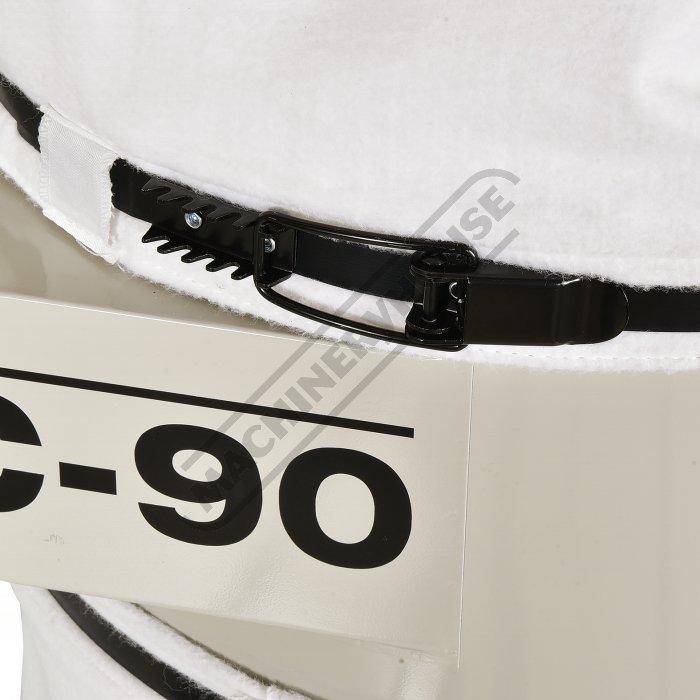

Quick Action Clamps On Bags
4 of 7

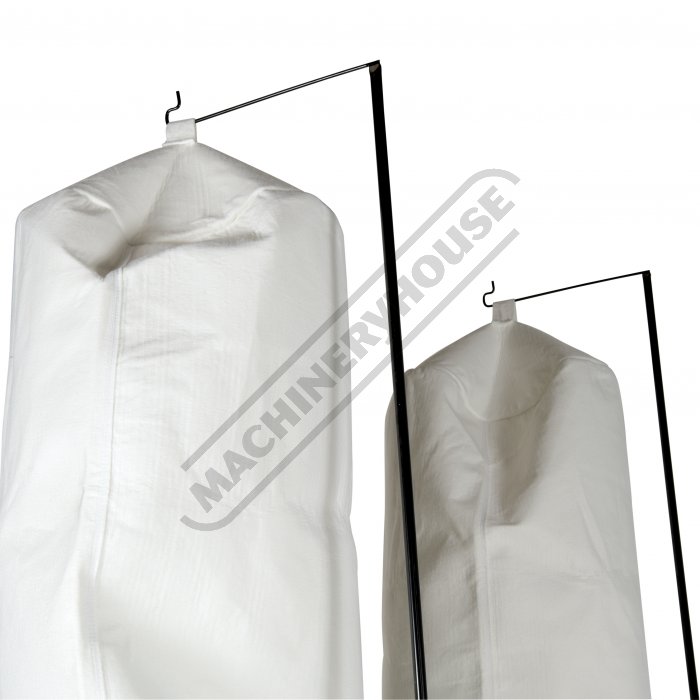

Top Bag Support Arms
5 of 7

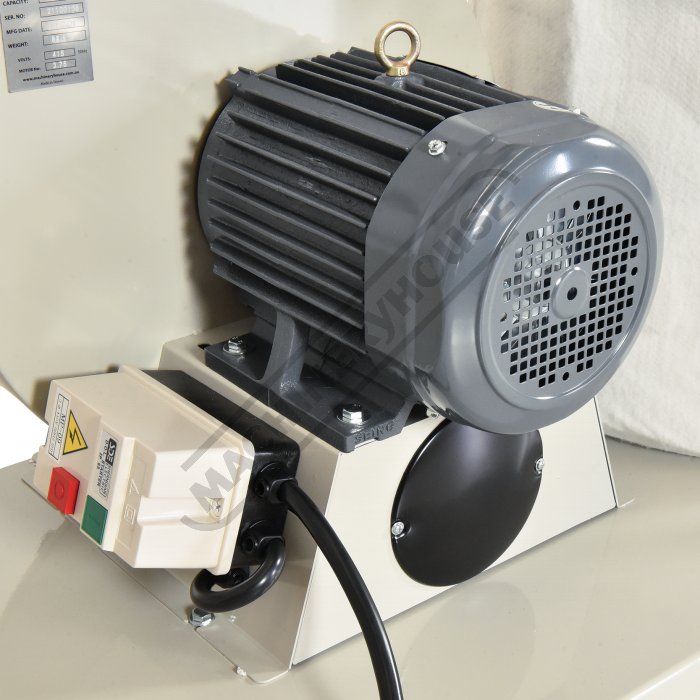

5hp 415V Motor
6 of 7

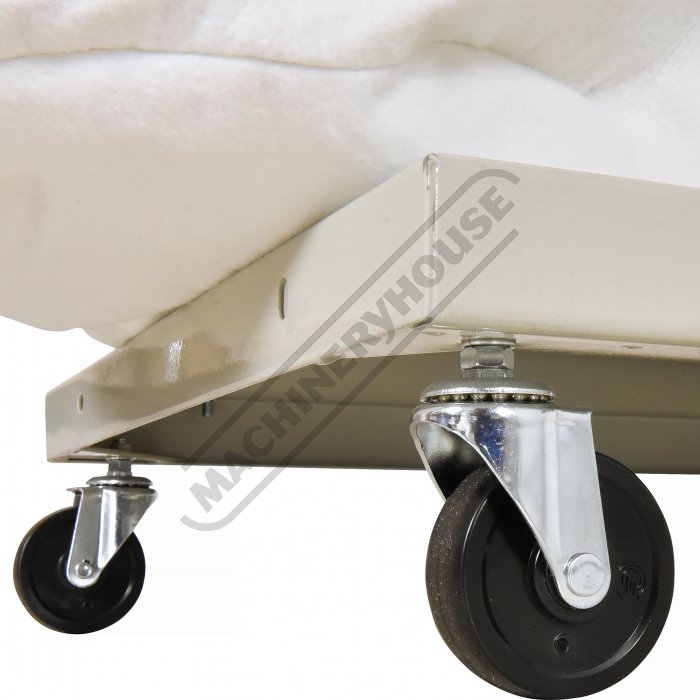

4 Swivel Wheels
7 of 7
Order Code: W331
ex-gst
inc-gst
$
1,790.00
$
1,969.00
415V / (NO PLUG)
2 Years Warranty
2 Years Warranty
Made in Taiwan
Description
DC-90 - Industrial Dust Collector
5HP
3200cfm - LPHV System
Overview
The Hafco Woodmaster DC-90 Industrial Twin Bag Dust Extractor is the ideal unit for the professional workshop. The powerful 3.75kW / 5hp 415V motor, delivers an exceptional 3200cfm suction. Triple 100mm inlets allows for attaching up to 3 machines and fitted with dual 2 micron filter bags and collection bags, this unit will cater to the cabinetmaker cutting particle board and MDF, or the furniture maker using solid timber.
Features
- 3,200cfm air flow suction
- Heavy duty motor and solid construction to effectively handle the collection of wood chips and sawdust
- Ø355mm metal impeller, precision balanced and designed for maximum air flow performance
- 2 Micron, 1600mm high upper felt bags, offering optimum air flow efficiency
- Lower plastic see-through bags
- Quick-action bag clamps
- Triple Ø100mm inlets for attaching up to 3 machines
- Complete with 4-wheel castors for portability
- Made in Taiwan
Compare Product Range
Specifications
| ORDER CODE | W331 |
|---|---|
| MODEL | DC-90 |
| Type | Dust Collector |
| (CFM)Airflow | 3200 |
| (Yes / No)LPHV - Low Pressure High Volume | Yes |
| (Yes / No)HPLV - High Pressure Low Volume | No |
| (No. / mm)Inlets / Diameter | 3 x Ø100 |
| (kW / hp)Motor Power | 3.75 / 5 |
| (V / amp)Voltage | 415 |
| (mm)Floor Space (W x D x H) | 1600 x 800 x 2840 |
| (kg)Nett Weight | 109 |
