Your Store: 625 Boundary Rd, Coopers Plains QLD 4108 | Ph: (07) 3715 2200
Discontinued
Order Code: W427
415V / (NO PLUG)
2 Years Warranty
Made in Taiwan
Description

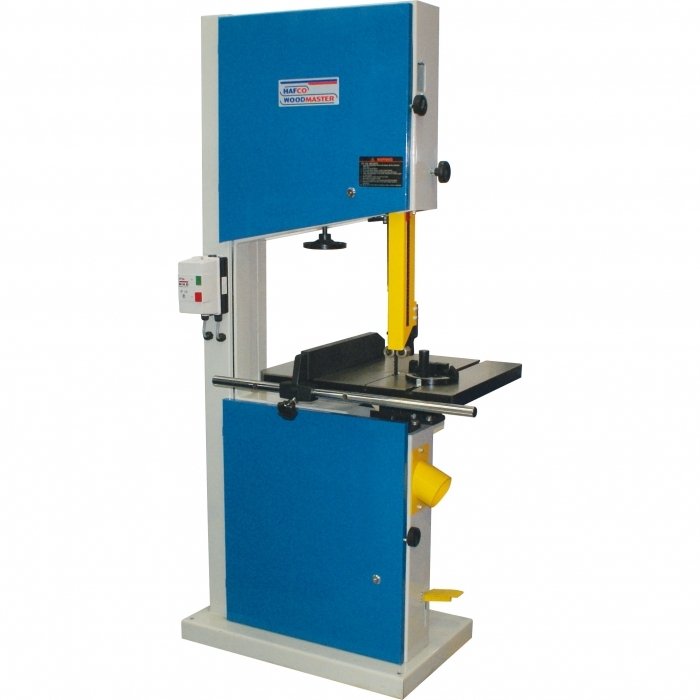

BP-500 - Wood Band Saw

510mm Throat Depth x 335mm Height Capacity
Overview
The Hafco Woodmaster Taiwanese made trade series BP-500 bandsaw is among the very best of our premium 510mm deep cutting bandsaws on the market.

The welded steel frame is extraordinary rigidity, allowing superiorly high blade tensions and can handle up to a 38mm wide blade. The machine is powered 2.2kW/3hp 415V smooth and powerful motor & incorporates a mechanically foot brake lever allowing operator to stop the motor & blade fro rotating very quickly. The large cast iron blade wheels provide extra inertia to help cut through the toughest timbers and are balanced for smooth operation when running. Uniquely, the precision ground cast iron heavy duty table and cast iron rip fence ensures great stability & accuracy when using on any variety of timbers.

The 10 ball bearing blade guide system, 5 located on the adjustable height guide & 3 below the table offer outstanding blade accuracy that is required in a heavy duty machine. Also fitted are cast iron trunnions that offer a solid table mounting base and allows the table to tilt and be securely locked into place for those jobs that require angle cuts. The worm gear system for the blade guide post movement is used for quick and easy height adjustment settings. Safety features like magnetic power switch & tamper proof door interlock micro switches are fitted to this machine providing peace of mind for the operator.
Features
  • 2-speed (565/670 M/min)
  • 2.2kW / 3hp 415V motor
  • Foot brake with micro-switch
  • Magnetic switch with overload protection
  • Heavy duty cast iron wheels and Ripping fence
  • Tamper proof micro switches on top & bottom doors
  • Cast iron table tilts to 45°
  • Blade width tension indicator
  • Viewing window for blade alignment
  • 100mm dust chute
  • Includes rip fence and mitre guide
  • Quality Taiwanese Manufacture
Includes
  • Mitre guide
  • Cast iron Rip fence
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (mm)Wheel Diameter (Ø)
  • (mm)Throat Capacity
  • (mm)Height Capacity
  • (mm)Table Size
  • Frame Type
  • (kW / hp)Motor Power
  • (V / amp)Voltage / Amperage
  • (Suits)Blade Code
  • (mm)Blade Size (L x W x T)
  • (mm)Floor Space (W x D x H)
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale W950
  • Compare
  • Wishlist
  • W950
  • BP-255
  • 255
  • 245
  • 152
  • 360 x 320
  • Steel
  • 0.375 / 0.5
  • 240 / 10
  • W950A, W950B, W950F
  • 1826 x 12.5 x 0.65
  • 750 x 650 x 1430
  • 38
  • $490.00
  • $539.00
  • ADD TO CART
  • On Sale - Package Deal W9501
  • Compare
  • Wishlist
  • W9501
  • BP-255 + Circle Att Package
  • 255
  • 245
  • 152
  • 360 x 320
  • Steel
  • 0.375 / 0.5
  • 240 / 10
  • W950A, W950B, W950F
  • 1826 x 12.5 x 0.65
  • 750 x 650 x 1430
  • 43
  • $499.09
  • $549.00
  • ADD TO CART
  • On Sale W952
  • Compare
  • Wishlist
  • W952
  • BP-310
  • 310
  • 305
  • 165
  • 480 x 390
  • Steel
  • 0.75 / 1
  • 240 / 10
  • W420A, W420B, W420F
  • 2240 x 12.5 x 0.65
  • 830 x 700 x 1590
  • 73
  • $771.82
  • $849.00
  • ADD TO CART
  • On Sale W955
  • Compare
  • Wishlist
  • W955
  • BP-360
  • 360
  • 340
  • 225
  • 545 x 515
  • Steel
  • 1.1 / 1.5
  • 240 / 10
  • W955A,W955B, W955F
  • 2560 x 16 x 0.65
  • 920 x 800 x 1710
  • 88
  • $990.00
  • $1,089.00
  • ADD TO CART
  • On Sale W4224
  • Compare
  • Wishlist
  • W4224
  • BP-355
  • 355
  • 345
  • 245
  • 535 x 435
  • Steel
  • 1.5 / 2
  • 240 / 10
  • W4224A,W4224B,W4224F
  • 2750 x 16 x 0.65
  • 920 x 760 x 1810
  • 121
  • $1,317.27
  • $1,449.00
  • ADD TO CART
  • On Sale + Gift Card W4330 Bonus Gift Card
  • Compare
  • Wishlist
  • W4330
  • BP-430A
  • 430
  • 415
  • 310
  • 585 x 435 with Extension
  • Steel
  • 1.5 / 2 (Electronic Brake System)
  • 240 / 10
  • W433A, W433B, W433C
  • 3345 x 16 x 0.80
  • 850 x 830 x 1860
  • 181
  • $2,180.00
  • $2,398.00
  • ADD TO CART
  • On Sale W4340
  • Compare
  • Wishlist
  • W4340
  • BP-480A
  • 480
  • 465
  • 310
  • 680 x 480
  • Steel
  • 1.5 / 2 (Electronic Brake System)
  • 240 / 10
  • W434A, W434B
  • 3630 x 19 x 0.80
  • 960 x 850 x 1935
  • 214
  • $2,540.00
  • $2,794.00
  • ADD TO CART
  • W4344
  • Compare
  • Wishlist
  • W4344
  • BP-480
  • 480
  • 465
  • 310
  • 480 x 480
  • Steel
  • 1.5 / 2 [with Brake System]
  • 240 / 15
  • W434A, W434B
  • 3630 x 19 x 0.80
  • 960 x 850 x 1935
  • 174
  • $3,250.00
  • $3,575.00
  • ADD TO CART
  • W4346
  • Compare
  • Wishlist
  • W4346
  • BP-480
  • 480
  • 465
  • 310
  • 480 x 480
  • Steel
  • 1.5 / 2 [with Brake System]
  • 415
  • W434A, W434B
  • 3630 x 19 x 0.80
  • 960 x 850 x 1935
  • 174
  • $3,350.00
  • $3,685.00
  • ADD TO CART
  • On Sale W425
  • Compare
  • Wishlist
  • W425
  • BP-500
  • 525
  • 510
  • 335
  • 508 x 612
  • Steel
  • 2.2 / 3
  • 240 / 15
  • W425A, W425B, W425C
  • 3937 x 25.4 x 0.70
  • 1050 x 800 x 1910
  • 290
  • $2,900.00
  • $3,190.00
  • ADD TO CART
  • On Sale W429
  • Compare
  • Wishlist
  • W429
  • BP-630
  • 630
  • 615
  • 370
  • 542 x 660
  • Steel
  • 2.2/ 3
  • 415
  • W429A, W429B
  • 4483 x 25.4 x 0.90
  • 1160 x 900 x 2100
  • 350
  • $4,390.00
  • $4,829.00
  • ADD TO CART
  • Discontinued W427
  • Compare
  • Wishlist
  • W427
  • BP-500
  • 525
  • 510
  • 335
  • 508 x 612
  • Steel
  • 2.2 / 3
  • 415
  • W425A, W425B, W425C
  • 3937 x 25.4 x 0.70
  • ~
  • 265
  • N/A
  • N/A
  • ENQUIRE
