BMGEVS250 Industrial Turret Milling Machine Horizontal & Vertical

Home Metal Working Machines Milling Machines Milling Machines - Conventional M586D

BM-GEVS250 - Industrial Turret Milling Machine - Horizontal & Vertical

Table Travel: (X) - 700mm (Y) - 250mm (Z) - 440mm

Includes DRO & Pneumatic Drawbar System

M586D 1 of 30

Horizontal Head Setup 2 of 30

Horizontal Head Setup Close Up 3 of 30

Swivel Arm Control Panel 4 of 30

3 Axis Digital Read Out 5 of 30

Control Panel 6 of 30

Gear Drive Table Feed 7 of 30

Horizontal Speed Selection Levers 8 of 30

Spindle Controls 9 of 30

Swivel Table 10 of 30

Tilting Mill Head Left & Right to 90 Degrees 11 of 30

Rotating Horizontal Ram 12 of 30

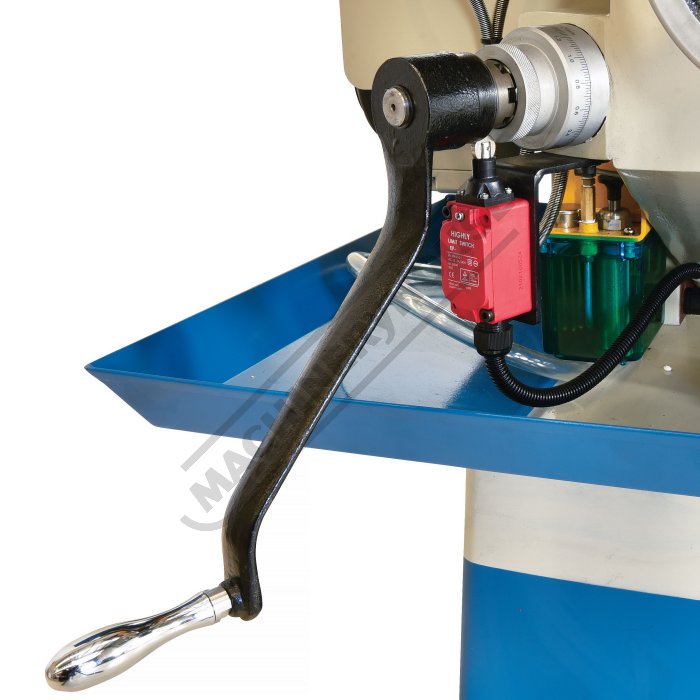

Z Axis Feed Handle with Micro 13 of 30

Z Axis Rapid Motor 14 of 30

Automatic Slideway Lubrication System 15 of 30

Y Axis Table Locks 16 of 30

Oil Feeder Distribution Block 17 of 30

Y Axis Feed Handle 18 of 30

X Axis Feed Handle 19 of 30

Air Powered Draw Bar System 20 of 30

Horizontal Spindle 21 of 30

Quill Feed Depth Stop 22 of 30

Variable Inverter Speed 23 of 30

Air Powered Draw Bar Control 24 of 30

Mill Head Right Side View 25 of 30

Quill Feed Engagement Dial 26 of 30

3 Speed Quill Feed 27 of 30

Mill Head Left Side View 28 of 30

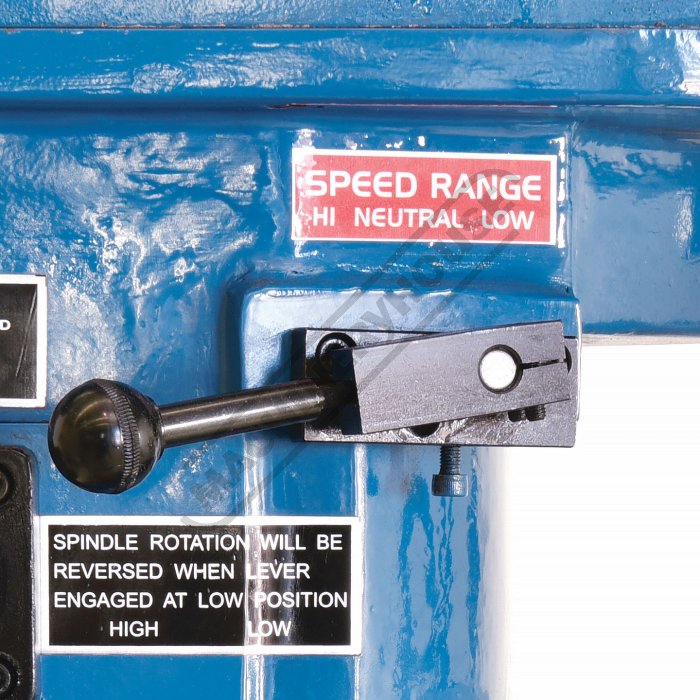

High Low Spindle Speed Gear Lever 29 of 30

Includes Horizontal Arbor 30 of 30

HAFCO-METALMASTER

Order Code: M586D

ex-gst

inc-gst

^$ 31,950.00

^$ 35,145.00

415V / (NO PLUG)
1 Year Warranty

Made in Taiwan

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

BM-GEVS250 - Industrial Turret Milling Machine - Horizontal & Vertical

Table Travel: (X) - 700mm (Y) - 250mm (Z) - 440mm

Includes DRO & Pneumatic Drawbar System

Features

Vertical spindle, Yaskawa inverter variable speed drive 60 – 3600rpm
Horizontal spindle, 40-980 rpm speeds controlled by gear selection levers with oil bath lubrication
5HP vertical & 3HP horizontal spindle motors provide exceptional machining power
NT40 spindle taper with Ø105mm chrome hardened and ground quill
1100 x 250mm hardened and ground worktable with ±45º left and right swivel
Automatic quill feed 0.037, 0.076, 0.152mm/rev
Vertical mill head swivels ±45º to left and right
Spindle guard with micro switch
3-Axis digital readout fitted
Pneumatic draw bar system for quick and effortless tool change
Heavy duty gear driven X Axis power-feed
Z-Axis powered elevating motor
Metric dial graduations @ 0.02mm for X , Y & Z-Axis
Meehanite castings for superior rigidity
Hardened and ground dovetail guideways
Turcite-B coating on X & Y-Axis ways for wear resistance and smooth operation
Auto lubrication system maintains proper lubrication to all slideways

Includes

3-Axis Digital Readout Fitted
Automatic Lubrication System
LED Lamp, Coolant System
Slide-way Covers
Safety Cutter Guard
Swarf Tray
1" Horizontal Arbor
2 x Horizontal Arbor Supports
2 x M16 Drawbars

Specifications

Compare Product Range

Specifications

ORDER CODE	M586D
MODEL	BM-GEVS250
Digital Readout	3-Axis Digital Readout
Type	Vertical & Horizontal
(mm)Table Size	1100 x 250
Spindle Taper - Vertical	NT40
Spindle Taper - Horizontal	NT40
(mm)Longitudinal Travel (X-Axis)	700
(mm)Cross Travel (Y-Axis)	250
(mm)Vertical Travel (Z-Axis)	440
Type of Slides	Dovetail (X, Y & Z)
(mm)Ram Travel	300
(mm)Spindle to Table	470
(mm)Spindle Travel / Diameter	127 / 105
(mm)Throat Depth (max.)	500
Tilting Head (Left ~ Right)	±90º
(mm/rev)Power Feed - Quill	0.037 / 0.076 / 0.152
(mm/min)Power Feed - Longitudinal (X-Axis)	0.02 - 0.20
(mm/min)Power Feed - Cross (Y-Axis)	Optional
(mm/min)Power Feed - Vertical (Z-Axis)	Rapid
(inch / mm)Table T-Slot Size	5/8
(kg)Work Table Load Capacity	300
(No./ rpm)Spindle Speeds Vertical	Variable (60 - 3600)
(No./ rpm)Spindle Speeds Horizontal	6 (40 - 980)
(kW / hp)Motor Power - Vertical Spindle	3.75 / 5
(kW / hp)Motor Power - Horizontal Spindle	2.25 / 3
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	1350
