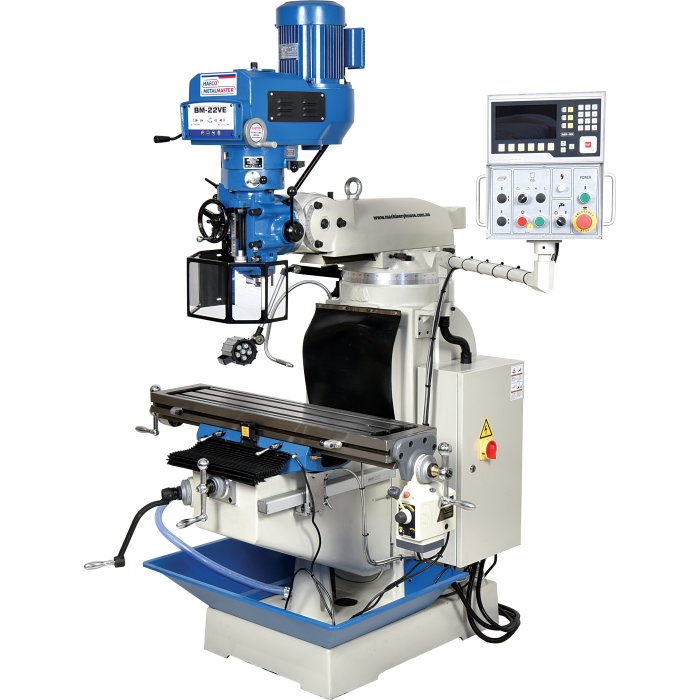

Industrial Turret Milling Machine - BM-22VE
Table Travel: (X) - 600mm (Y) - 325mm (Z) - 370mm
Includes Digital Readout System
M592D
1 of 25
Left View
2 of 25

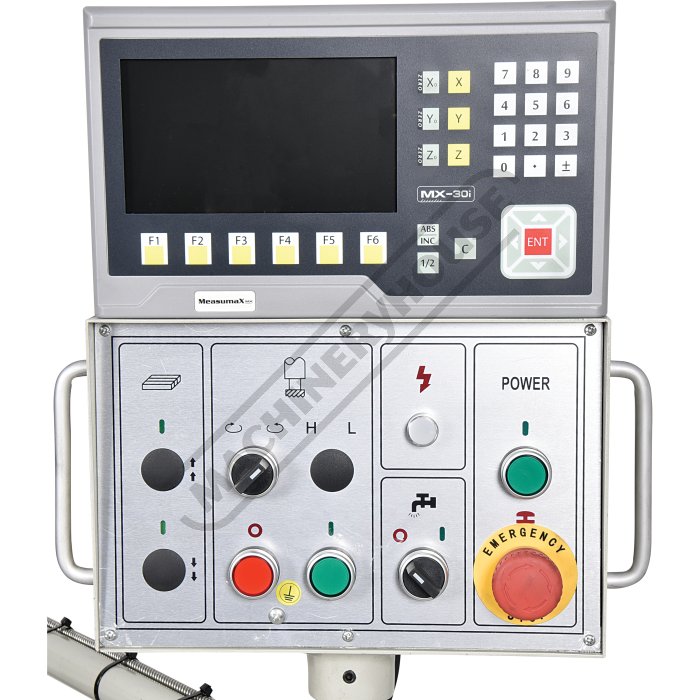

Control Panel
3 of 25

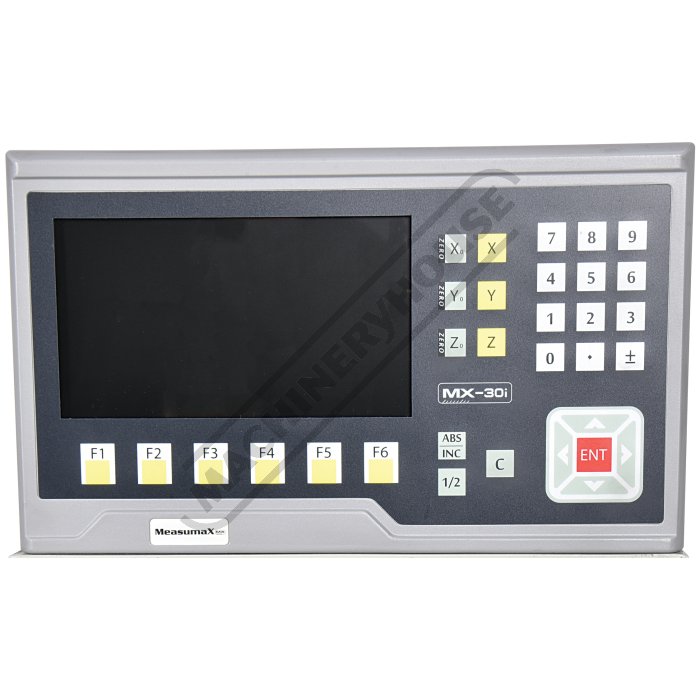

Axis Digital Readout System
4 of 25

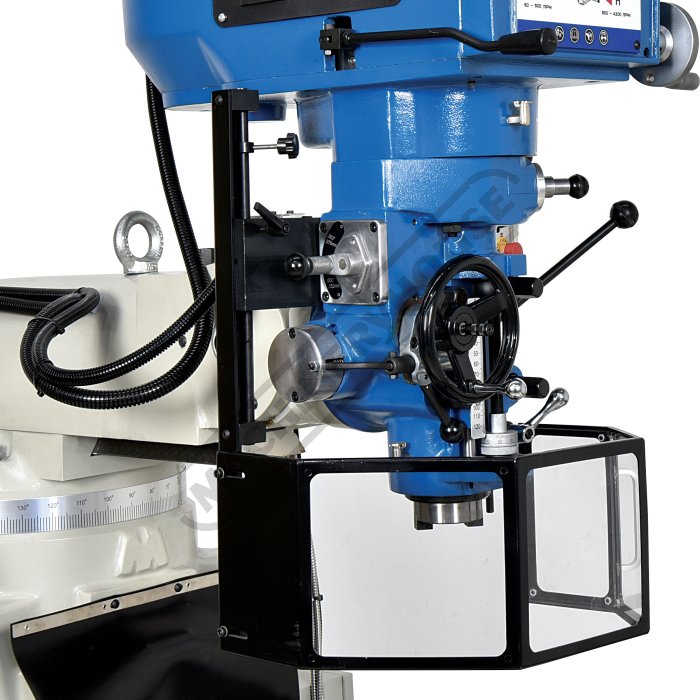

Safety Chuck Guard
5 of 25

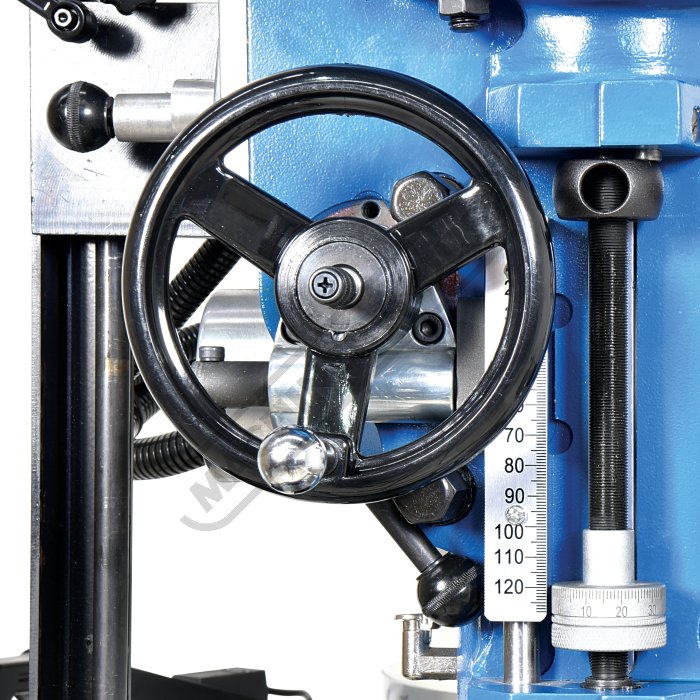

Quill Feed Depth Stop
6 of 25

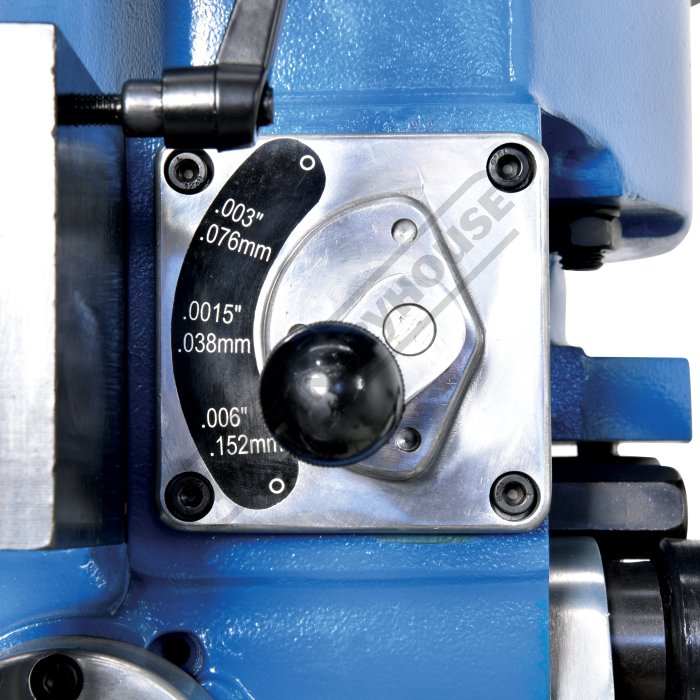

Feed Range Selector
7 of 25

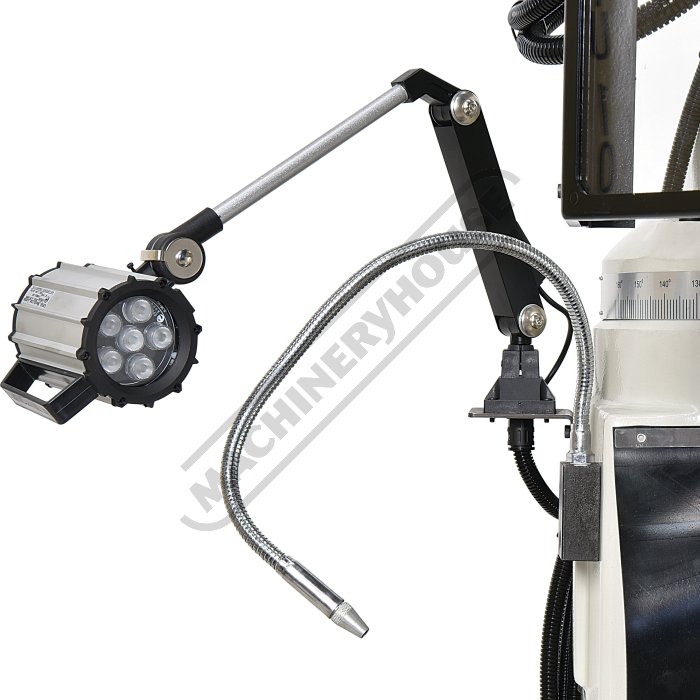

Halogen Worklight Coolant Hose
8 of 25

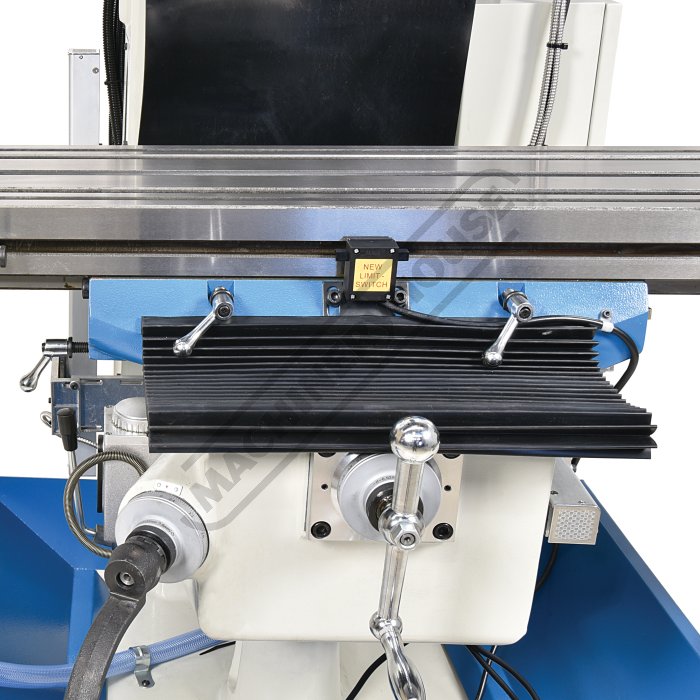

Table Feed Limit Switches
9 of 25

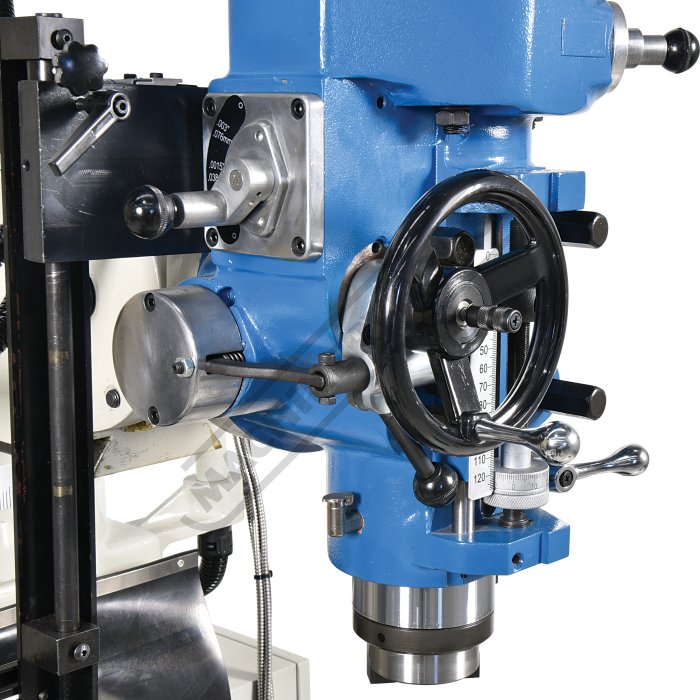

Quill Feed Engagement Lever
10 of 25

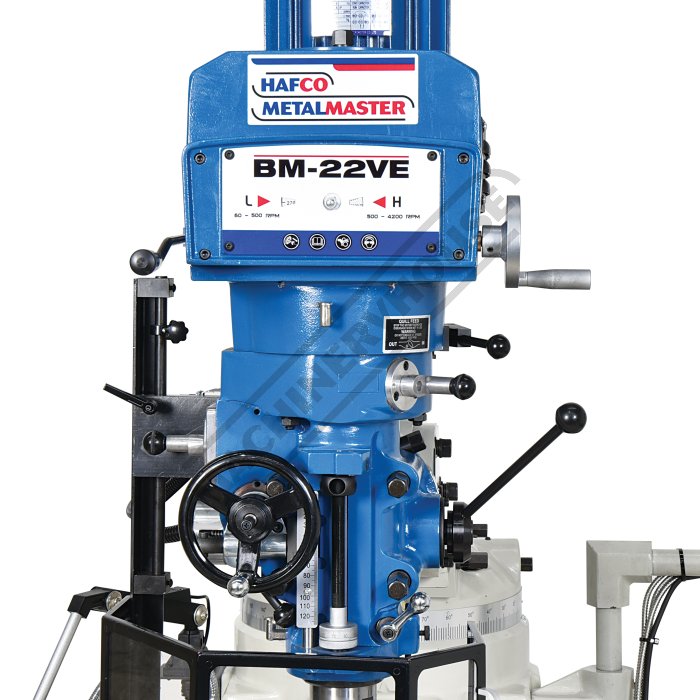

Head Controls
11 of 25

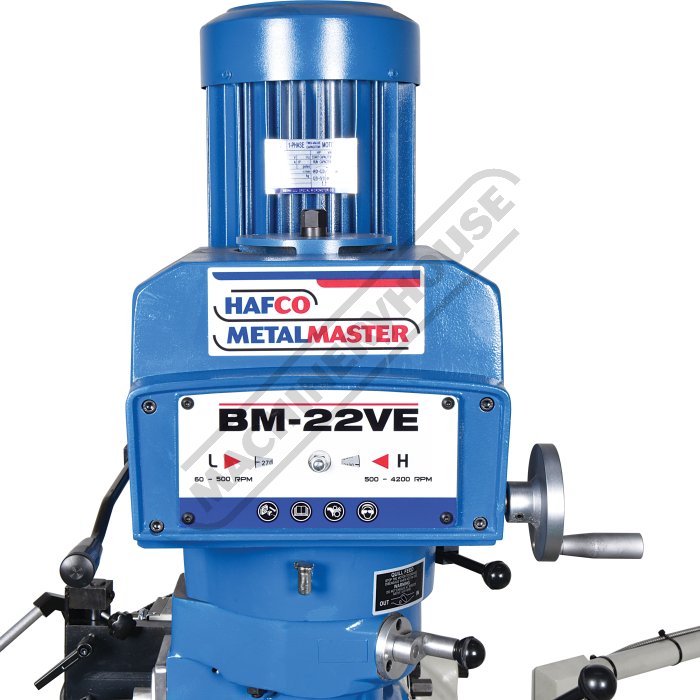

Spindle Break Lever
12 of 25

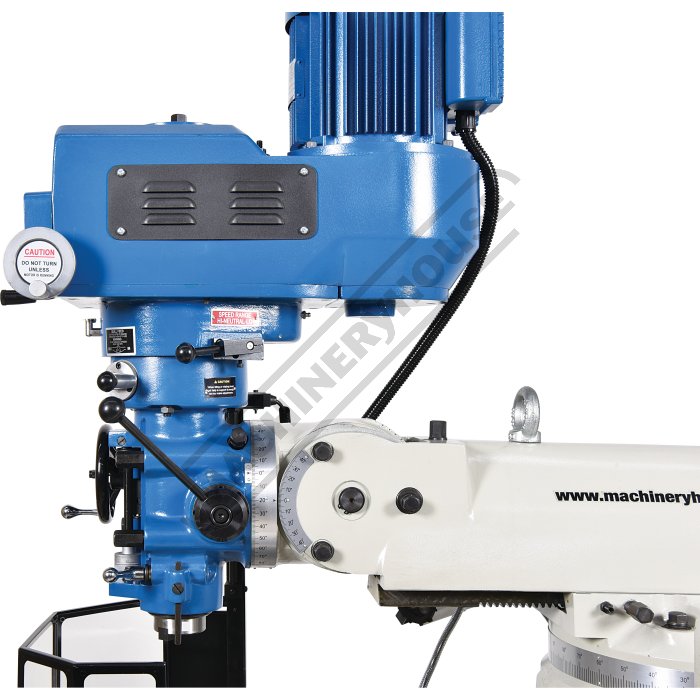

Head Right Side View
13 of 25

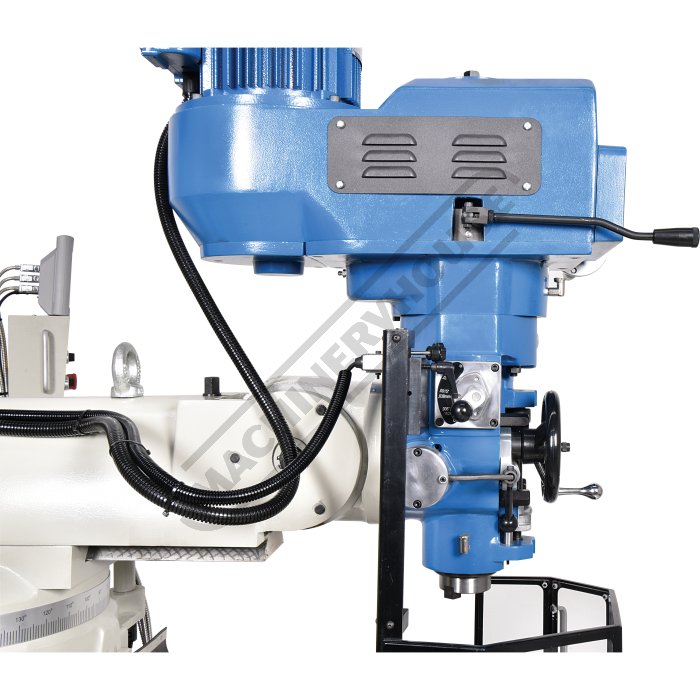

Head Left Side View
14 of 25

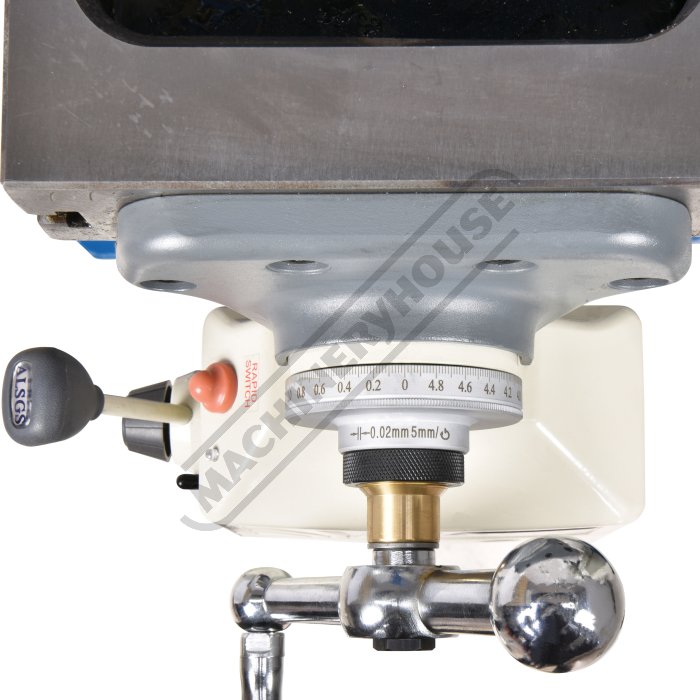

X Axis Dial
15 of 25

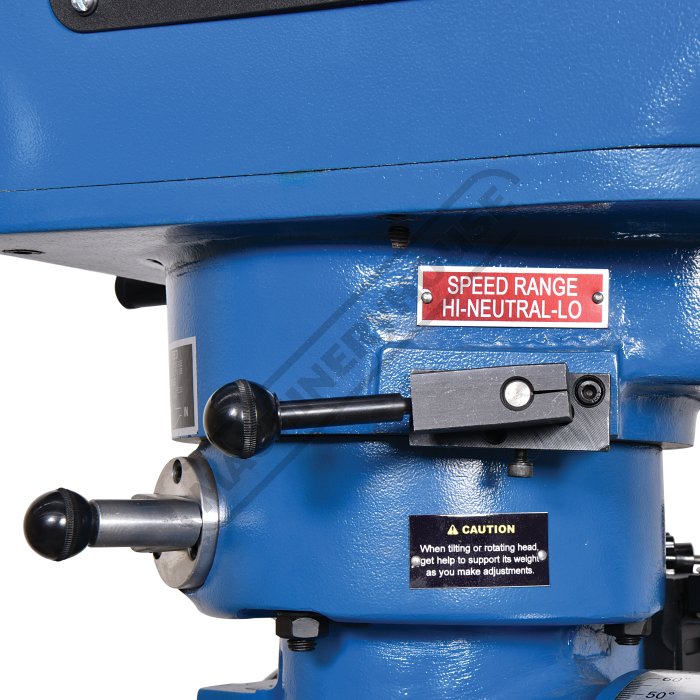

Feed Engage Disengage Drive
16 of 25

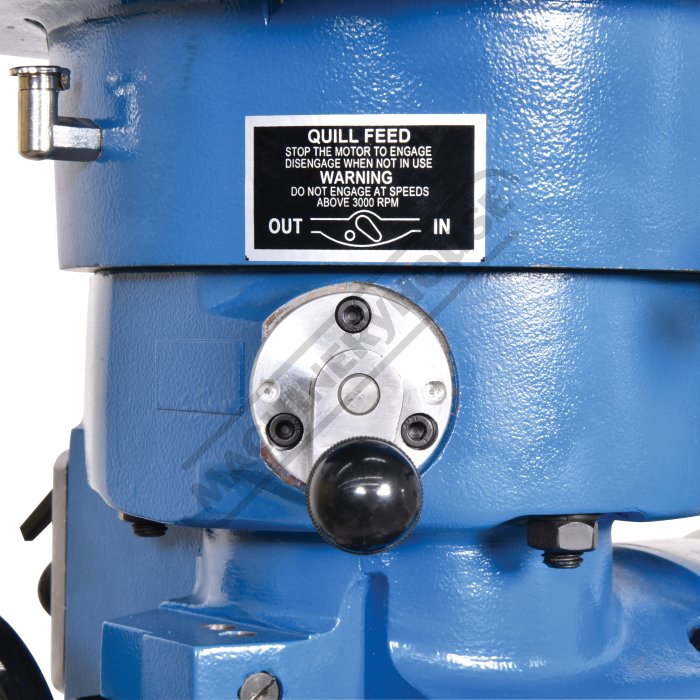

Feed Engage Disengage Drive 2
17 of 25

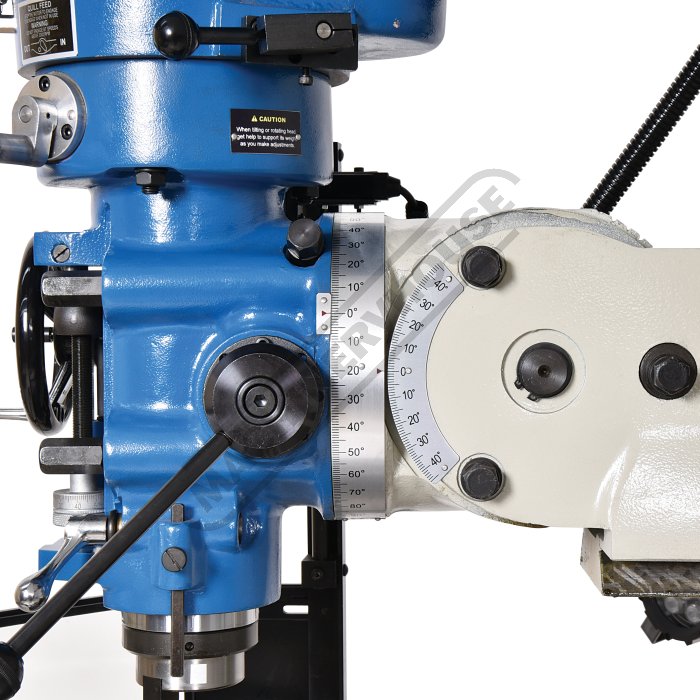

Universal Tilting Rotating Head
18 of 25

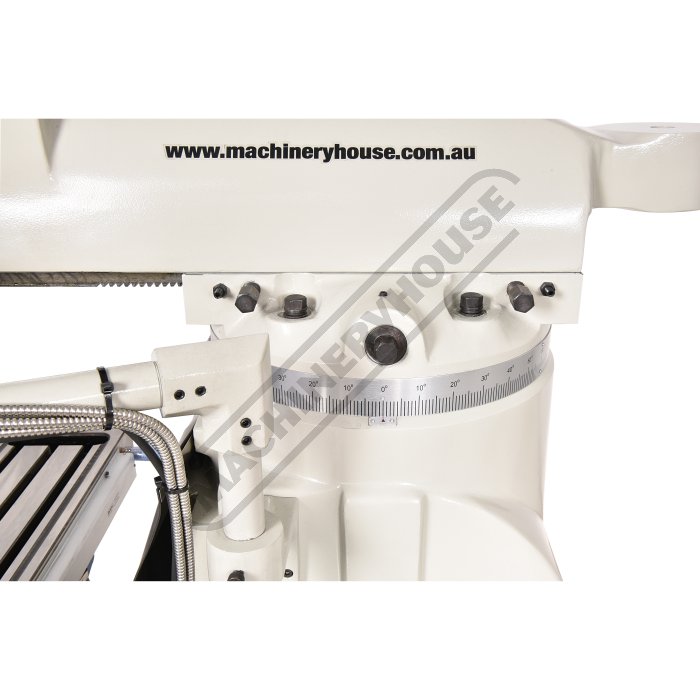

Adjustable Swivel Sliding Ram
19 of 25

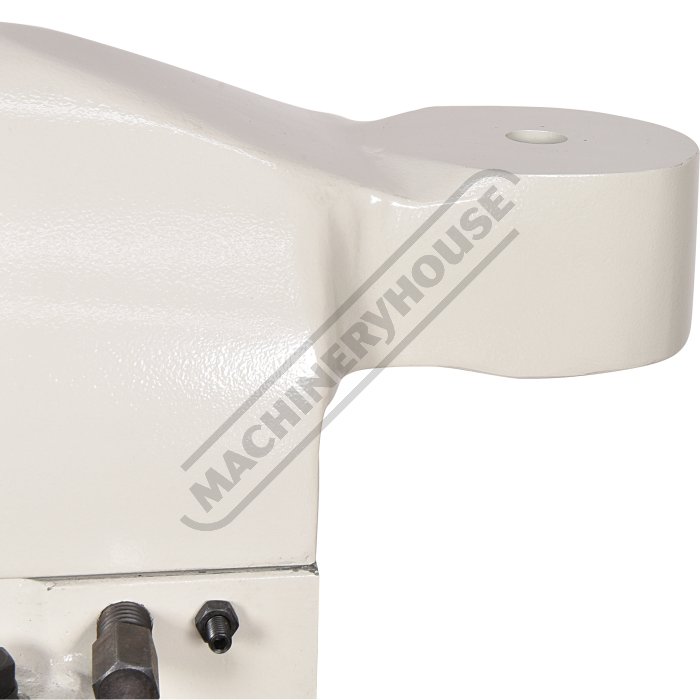

Tail Lug Spigot Supports Slotting Head
20 of 25

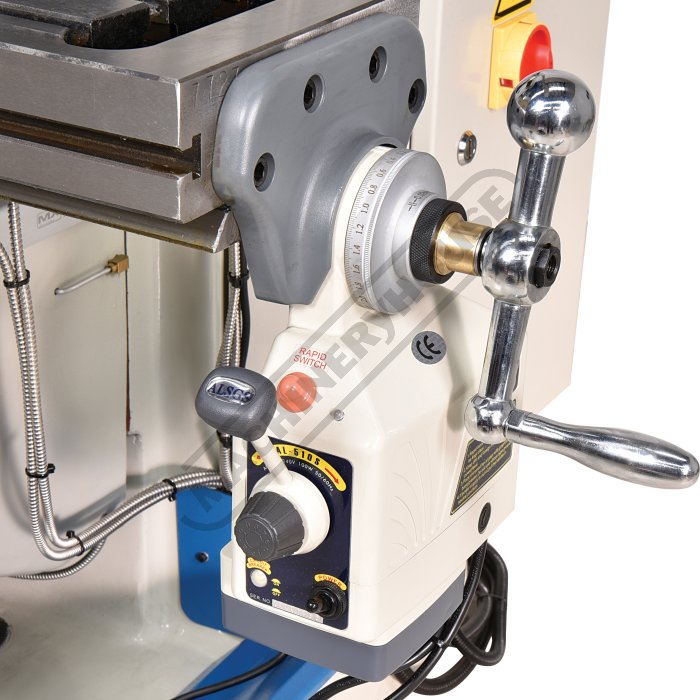

X Axis Power Feed with Rapid
21 of 25

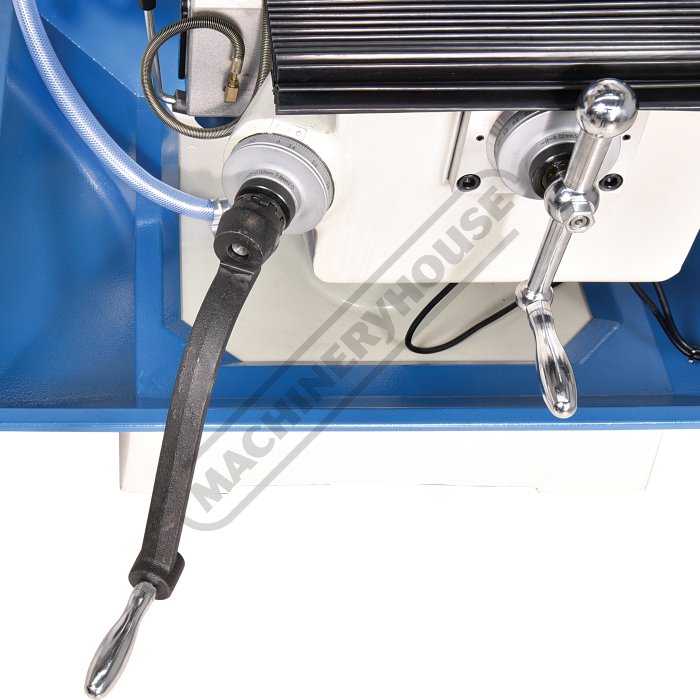

Knee Feed Handle
22 of 25

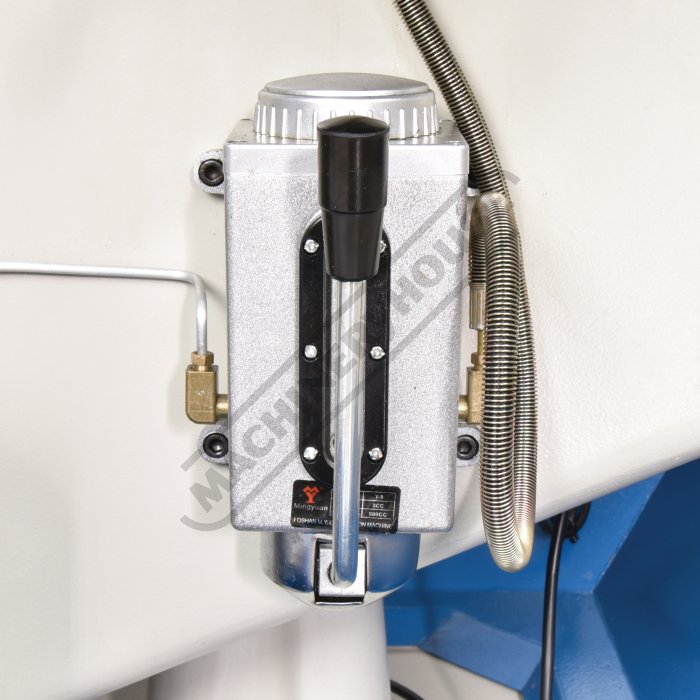

Lubrication Pump
23 of 25

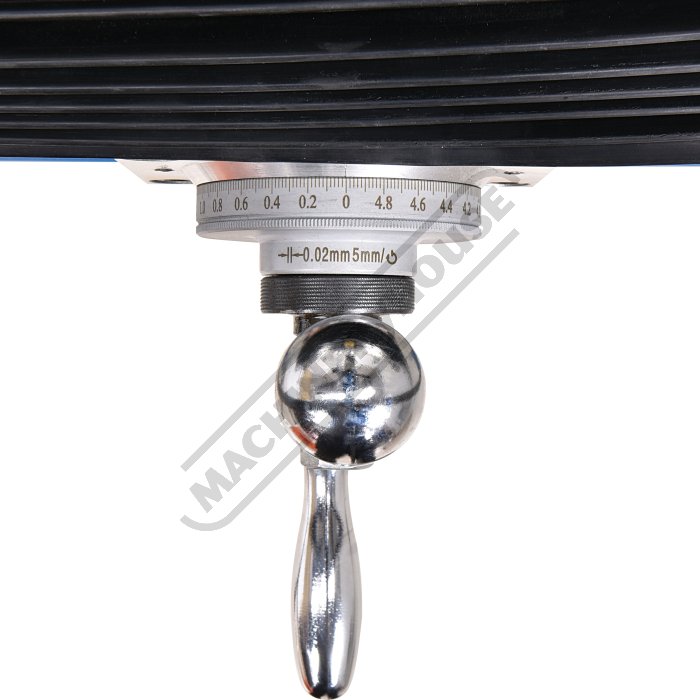

Y Axis
24 of 25

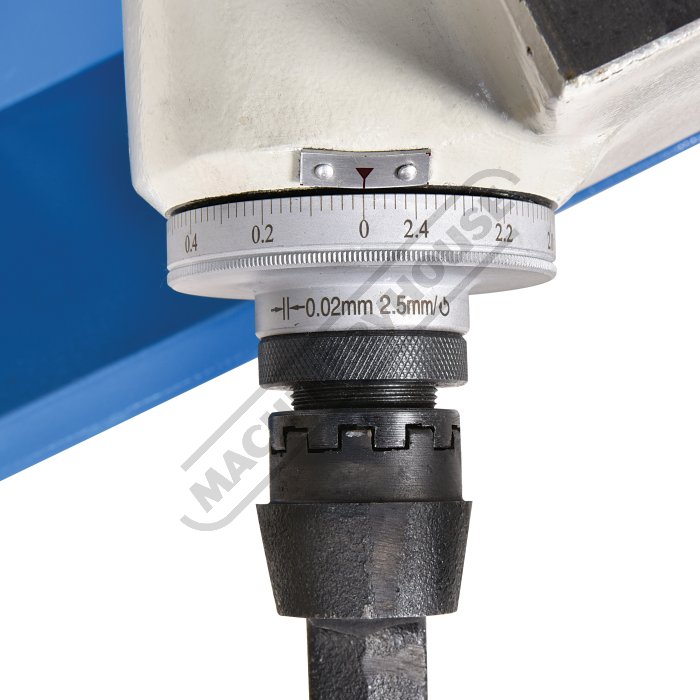

Z Axis Dial
25 of 25
Order Code: M592D
ex-gst
inc-gst
$
10,750.00
$
11,825.00
240V / 15A
1 Year Warranty
1 Year Warranty
Description
Industrial Turret Milling Machine - BM-22VE
Table Travel: (X) - 600mm (Y) - 325mm (Z) - 370mm
Includes Digital Readout System
Overview
Quality product representing excellent value
Features
- 3 Axis digital readout fitted
- 3HP 240V motor with mechanical variable speed system
- NT30 Spindle taper with a chrome & ground quill
- Hardened & ground work table & slide-ways
- All slides utilise dovetail construction for maximum rigidity
- Turcite B coated X & Y Axis slide-ways reduces friction for smooth operation
- Meehanite casting for high strength & minimal deformation
- Quality electrics & overload protection in an easy access enclosure
- Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
- The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.
- High / neutral and low gear selection lever to maximise torque
- X-Axis power-feed with adjustable micro switch feed stops
- Metric dial graduations @ 0.02mm for X , Y & Z-Axis
- Automatic quill feed 0.038, 0.076, 0.152mm/rev
- Automatic cut off depth stop on quill
- Oil lubrication pump and reservoir
- Slide-way covers Y & Z-Axis
- Mill head tilts to ±45º forward and back
- Mill head tilts to ±90º left and right
- Manual quick action quill lever
- Mechanical spindle brake
- Tool box and manual
Includes
- 3 Axis digital readout fitted
- One-shot oil lubrication pump and reservoir
- Drawbar M12 thread
- Coolant system
- Slideway covers
- X-Axis power-feed
- LED work light
- Safety cutter guard
- Swarf tray
Compare Product Range
Specifications
| ORDER CODE | M592D |
|---|---|
| MODEL | BM-22VE |
| Digital Readout | 3-Axis Digital Readout |
| Type | Vertical |
| (mm)Table Size | 1067 x 230 |
| Spindle Taper - Vertical | NT30 |
| (mm)Longitudinal Travel (X-Axis) | 600 |
| (mm)Cross Travel (Y-Axis) | 325 |
| (mm)Vertical Travel (Z-Axis) | 370 |
| Type of Slides | Dovetail (X, Y & Z) |
| (mm)Ram Travel | 315 |
| (mm)Spindle to Table | 430 |
| (mm)Spindle Travel / Diameter | 127 / 86 |
| (mm)Throat Depth (max.) | 482 |
| Tilting Head (Left ~ Right) | ±90º |
| Tilting Head (Forward ~ Back) | ±45º |
| (mm/rev)Power Feed - Quill | 0.038 / 0.076 / 0.152 |
| (mm/min)Power Feed - Longitudinal (X-Axis) | 20 - 2000 |
| (mm/min)Power Feed - Cross (Y-Axis) | Optional |
| (inch / mm)Table T-Slot Size | 16 |
| (kg)Work Table Load Capacity | 250 |
| (No./ rpm)Spindle Speeds Vertical | Variable (60 - 4200) |
| (kW / hp)Motor Power - Vertical Spindle | 2.2 / 3 |
| (V / amp)Voltage / Amperage | 240 |
| (kg)Nett Weight | 1000 |
