BM-2000 - Heavy Duty Universal Milling Machine

Table Travel: (X) - 1400mm (Y) - 700mm (Z) - 500mm

Includes Digital Readout System & Servo Driven Ballscrew System X, Y & Z-Axis

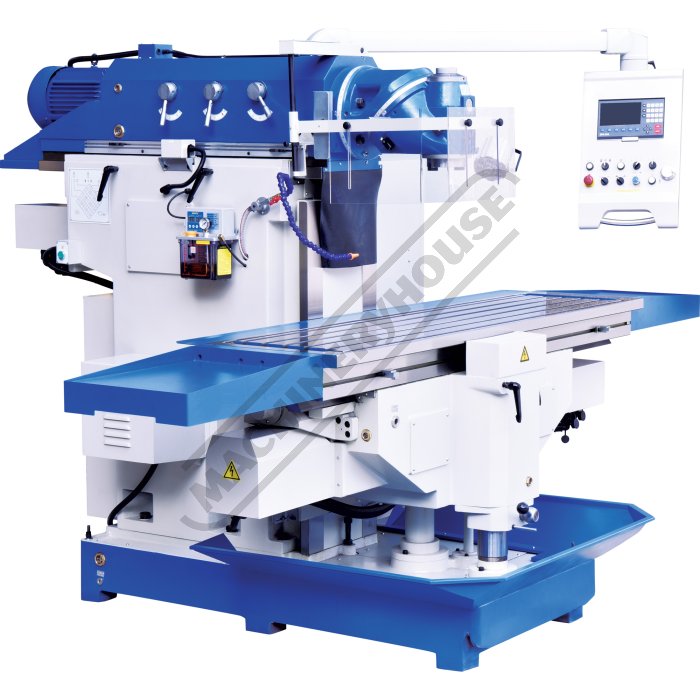

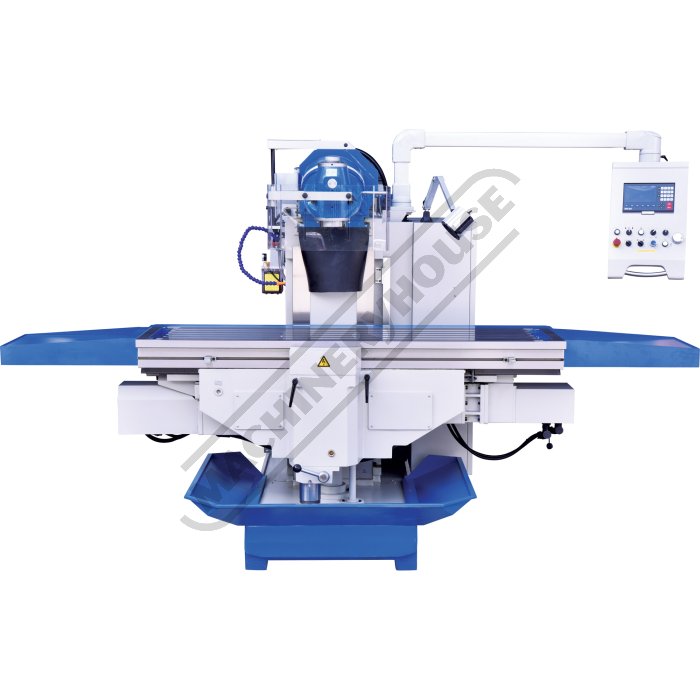

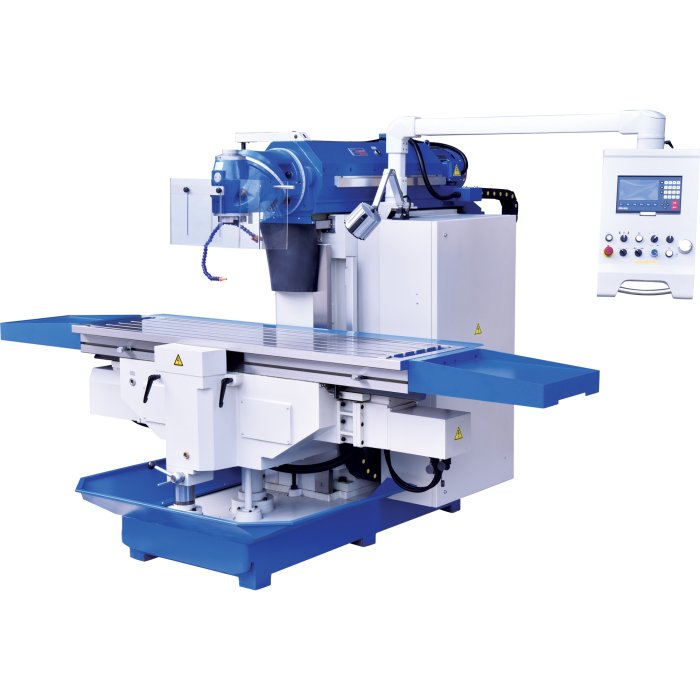

M640D 1 of 16

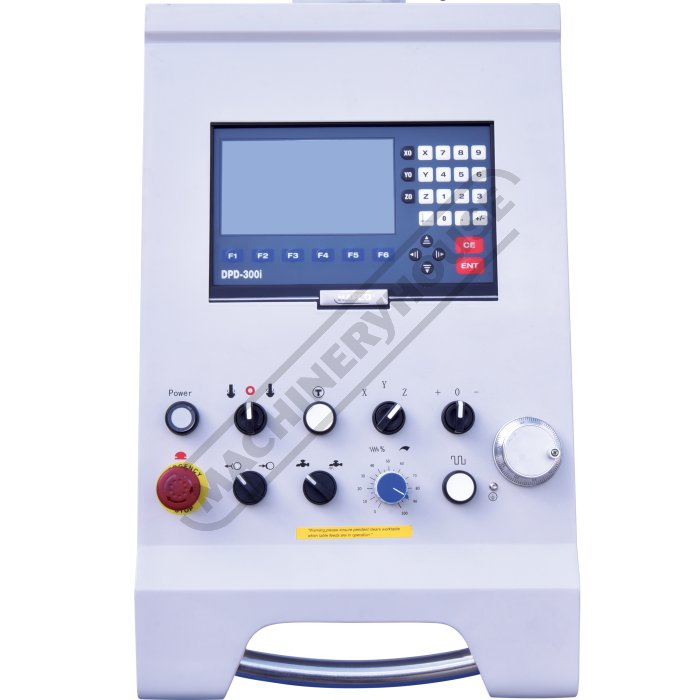

Control Panel 2 of 16

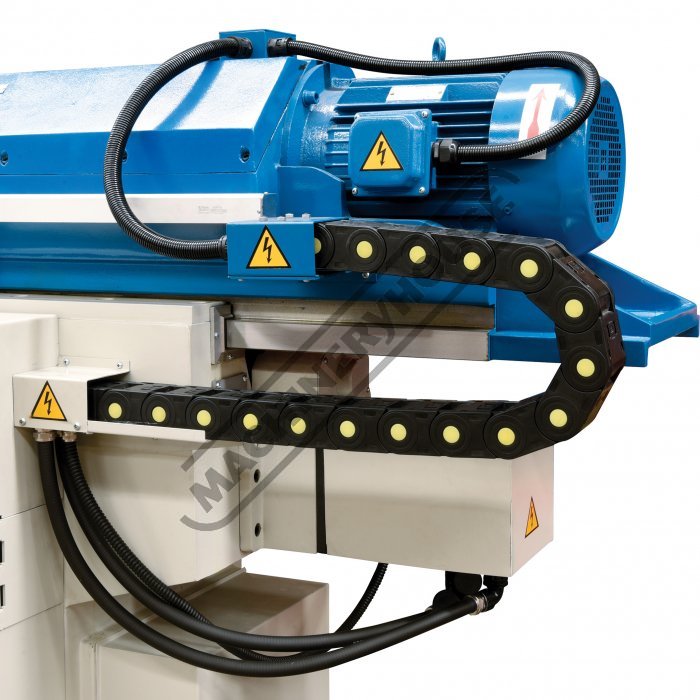

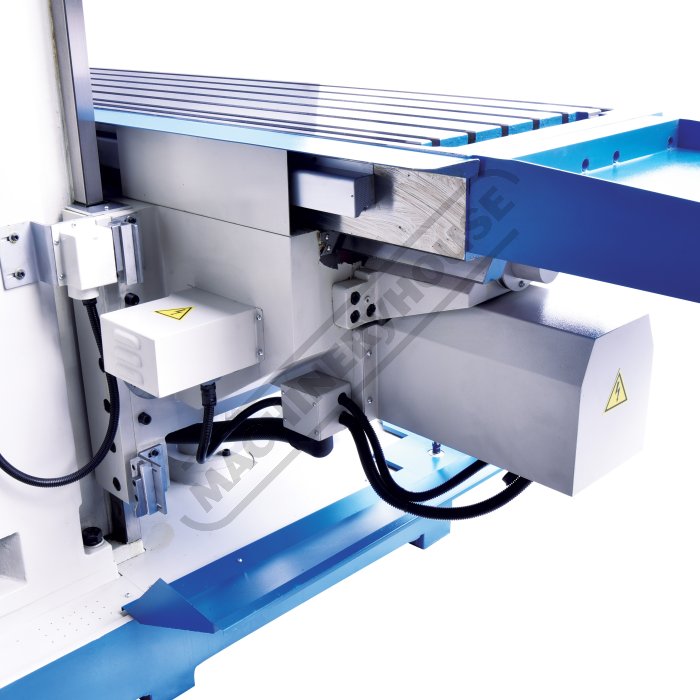

Motor And Track 3 of 16

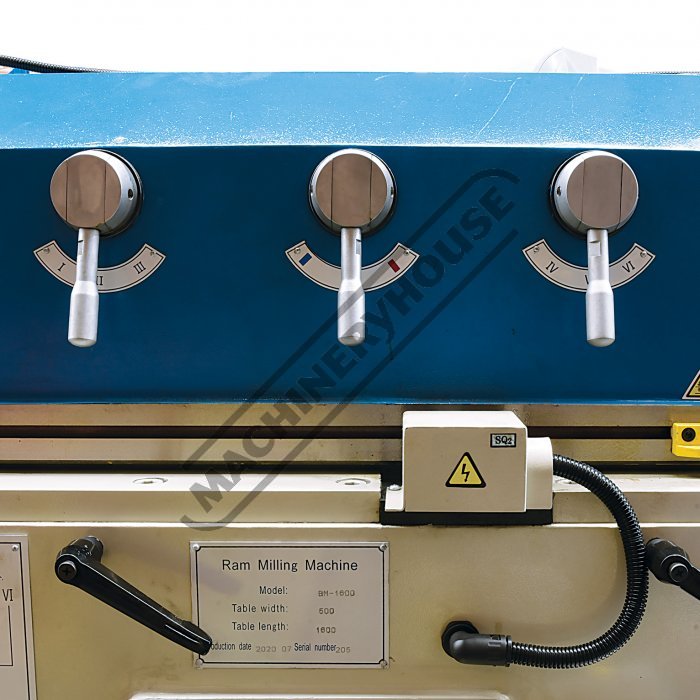

Gear Adjustment 4 of 16

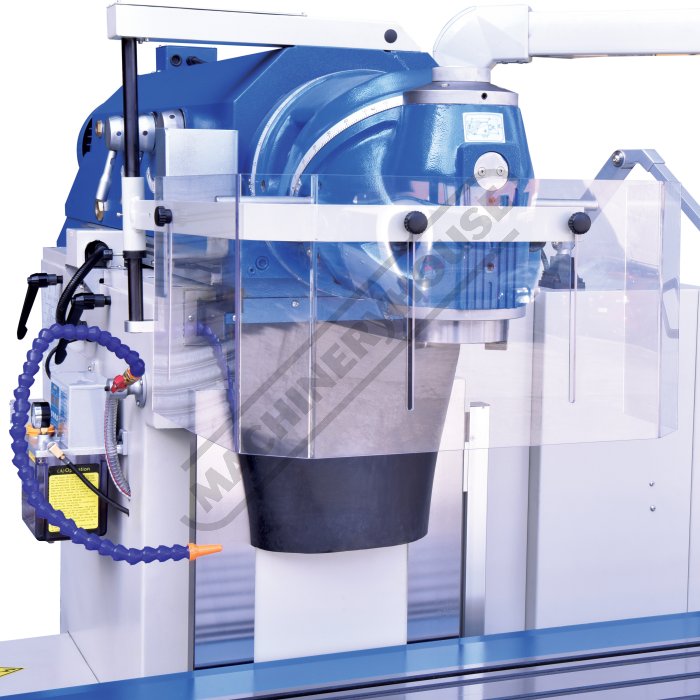

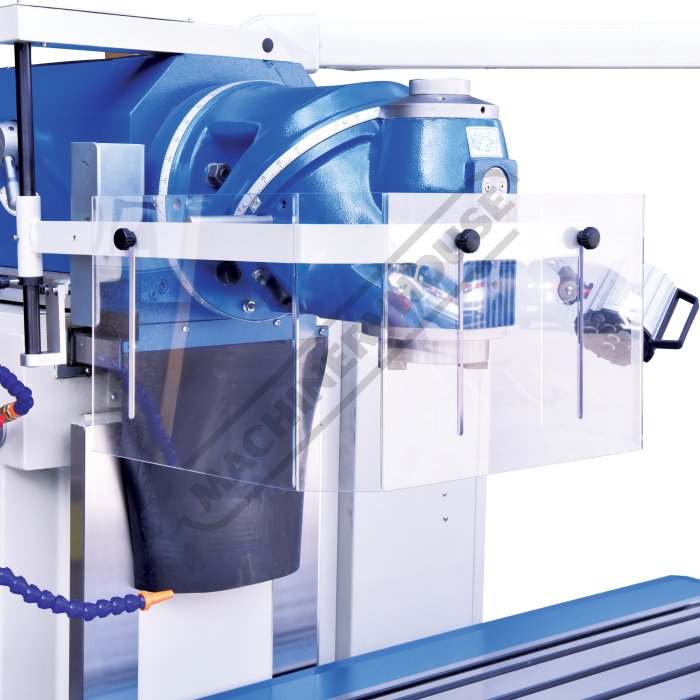

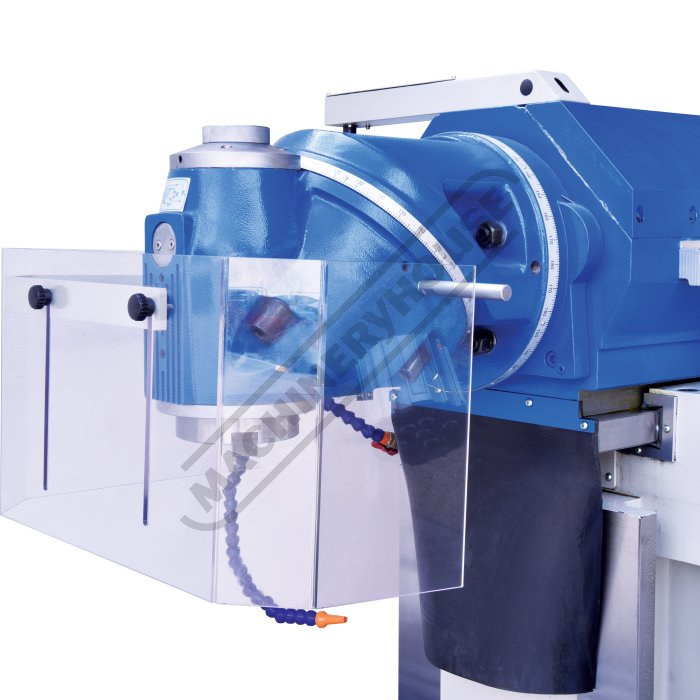

Mill Head 5 of 16

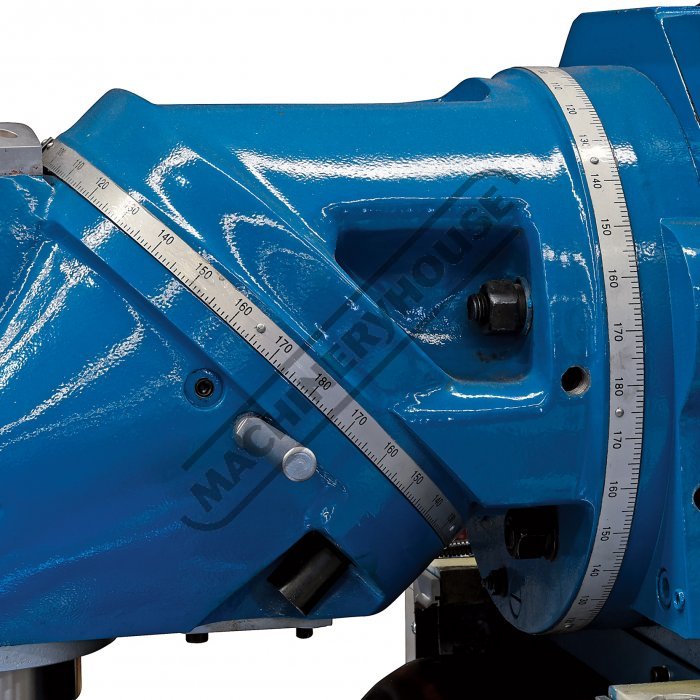

Head Tilts Vertical To Horizontal 6 of 16

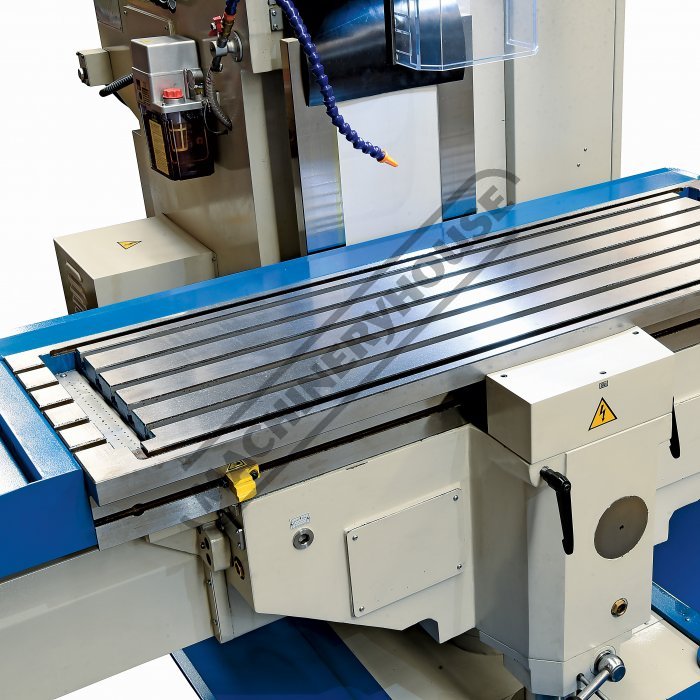

Large Slotted Work Table 7 of 16

Filter 8 of 16

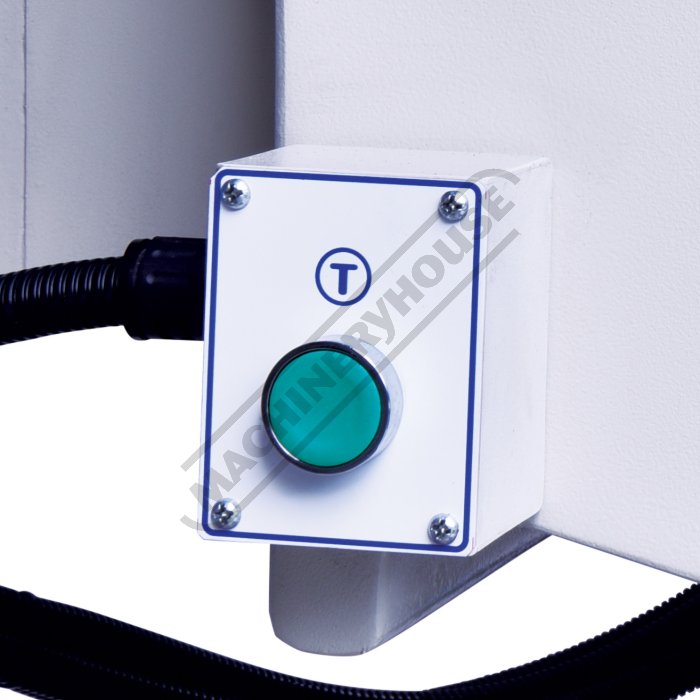

Toggle Switch 9 of 16

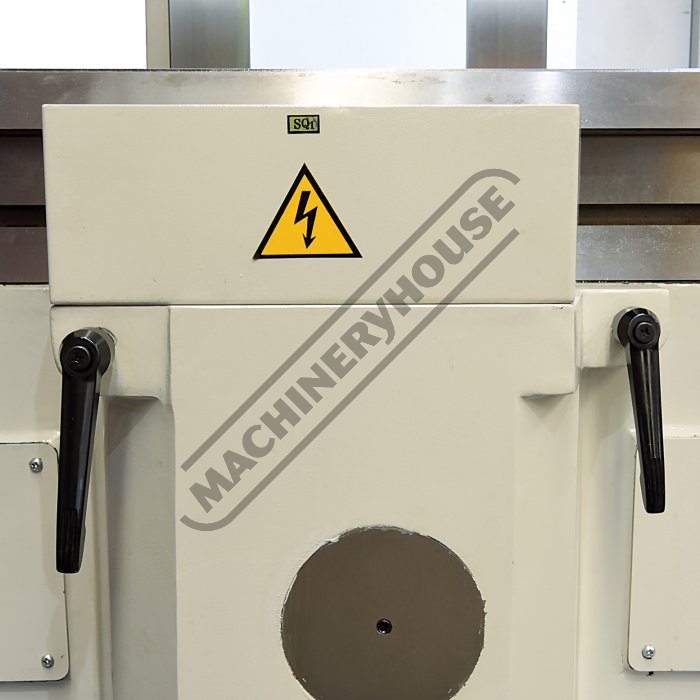

Table Locks 10 of 16

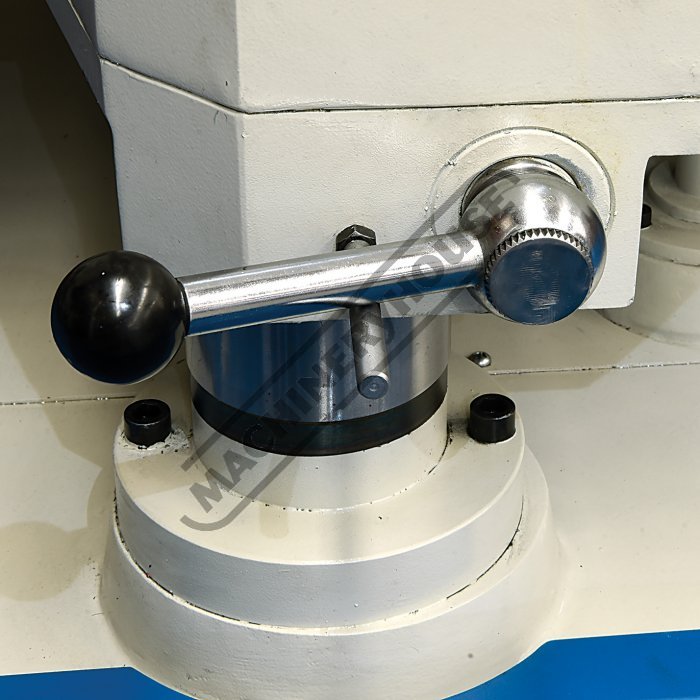

Table Lock 11 of 16

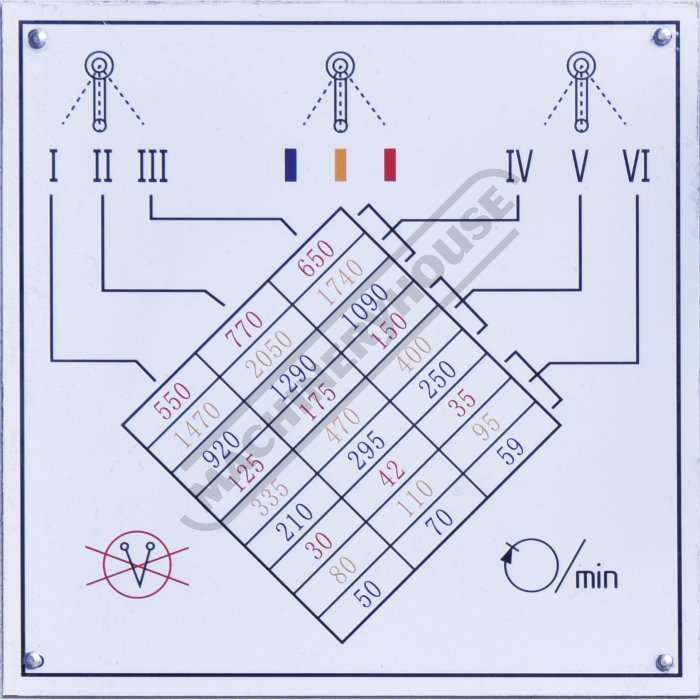

Speed Chart 12 of 16

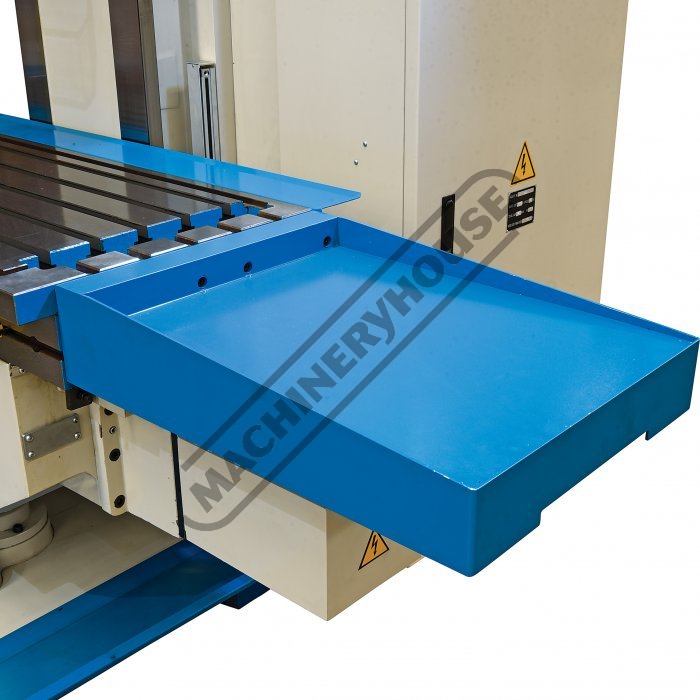

Side Table Tool Rest 13 of 16

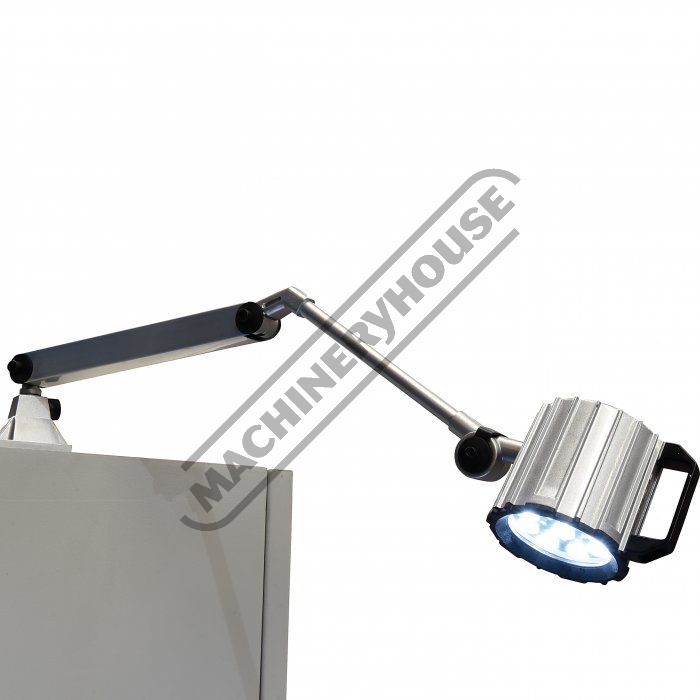

LED Light 14 of 16

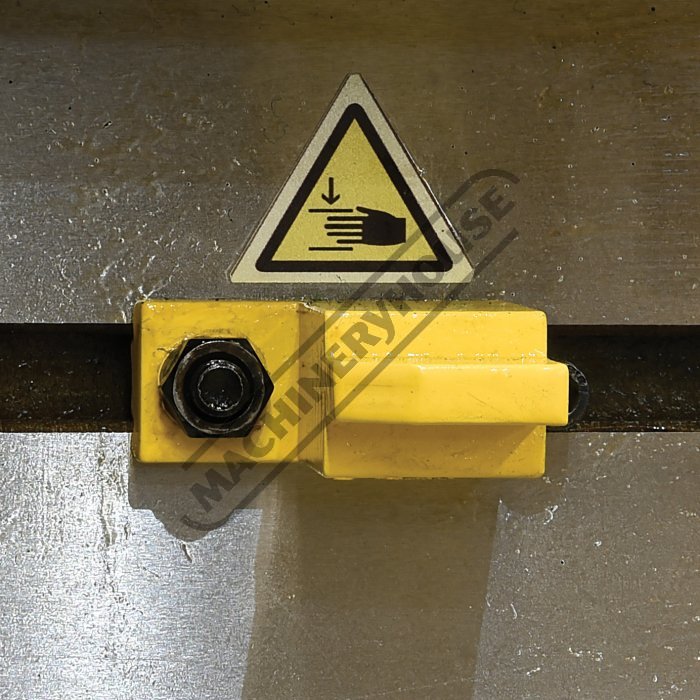

Table Stops 15 of 16

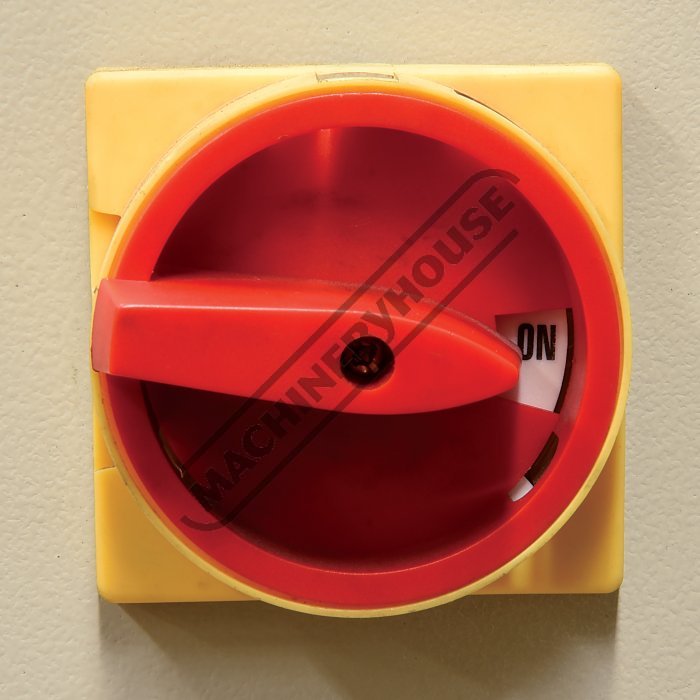

ON OFF Switch 16 of 16

HAFCO-METALMASTER

Order Code: M640D

ex-gst

inc-gst

^$ 57,500.00

^$ 63,250.00

415V / (NO PLUG)
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Downloads

Description

BM-2000 - Heavy Duty Universal Milling Machine

Table Travel: (X) - 1400mm (Y) - 700mm (Z) - 500mm

Includes Digital Readout System & Servo Driven Ballscrew System X, Y & Z-Axis

Overview

The BM-2000 universal milling machine features a solid, heavy cast iron construction, making this model ideal for heavy machining of oversize workpieces.
The servo-controlled feed system ensures constant torque when removing metal under extreme load. All this is combining with and extra-large hardened & ground working table with long travels to match.

Features

3-Axis digital readout fitted
Large 2000 x 500mm slotted work table
NT50 universal head swivels 360º & tilts vertical to horizontal position
Electric brake & rapid feed on X, Y & Z-Axis
Servo controlled feed motors on X, Y & Z-Axis ensures constant torque
Hardened ballscrew X, Y & Z-Axis preloaded for easy and precise feeds
Rigid, torsion-proof construction, dovetail guide X-Axis & wide square guides Y & Z-Axis
Robust transmission with hardened and ground gears & slide-ways
Hardened & ground work table & all X, Y & Z-Axis slideways
All slideways are automatically lubricated
High grade casting for additional strength & minimal deformation
Quality electrics & overload protection in an easy access enclosure
Table trays each end of work table
Steel slide-way cover Y-Axis

Includes

Safety cutter guard
Coolant system

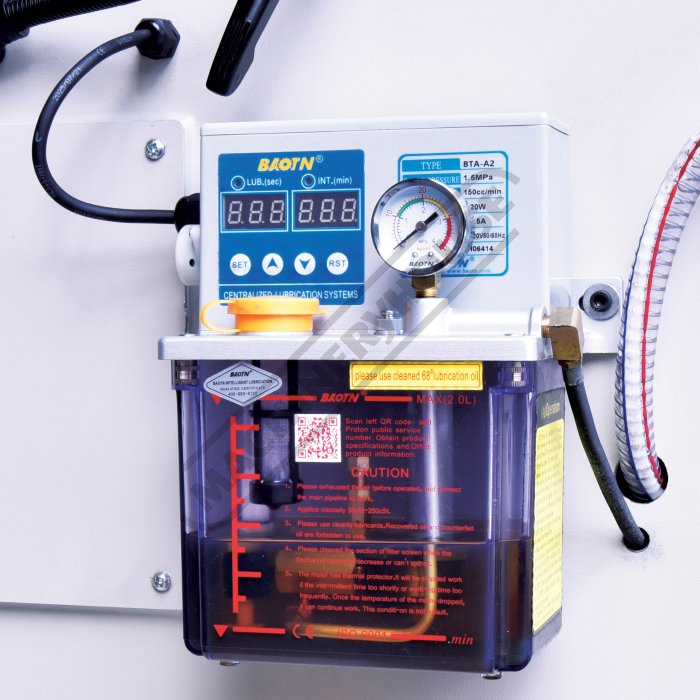

Automatic oil lubrication system
Cast iron table extensions
LED light
Base swarf tray
M24 drawbar

Specifications

Compare Product Range

Specifications

ORDER CODE	M640D
MODEL	BM-2000
Digital Readout	3-Axis Digital Readout
Type	Universal Head
(mm)Table Size	2000 x 500
Column Type	Dovetail
Spindle Taper - Vertical	NT50
Spindle Taper - Horizontal	NT50
(mm)Longitudinal Travel (X-Axis)	1400
(mm)Cross Travel (Y-Axis)	700
(mm)Vertical Travel (Z-Axis)	570
Type of Slides	Dovetail (X), Square (Y & Z)
(mm)Ram Travel	45 - 745
(mm)Spindle to Table	50 - 550
Tilting Head (Left ~ Right)	360º
Tilting Head (Forward ~ Back)	Fixed
(mm/min)Power Feed - Longitudinal (X-Axis)	10 - 1000
(mm/min)Power Feed - Cross (Y-Axis)	10 - 1000
(mm/min)Power Feed - Vertical (Z-Axis)	5 - 500
(inch / mm)Table T-Slot Size	18
(kg)Work Table Load Capacity	1800
Spindle Speeds - Universal Head	27 (30 - 2050)
Motor Power - Universal Head	7.5 / 10
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	4700
