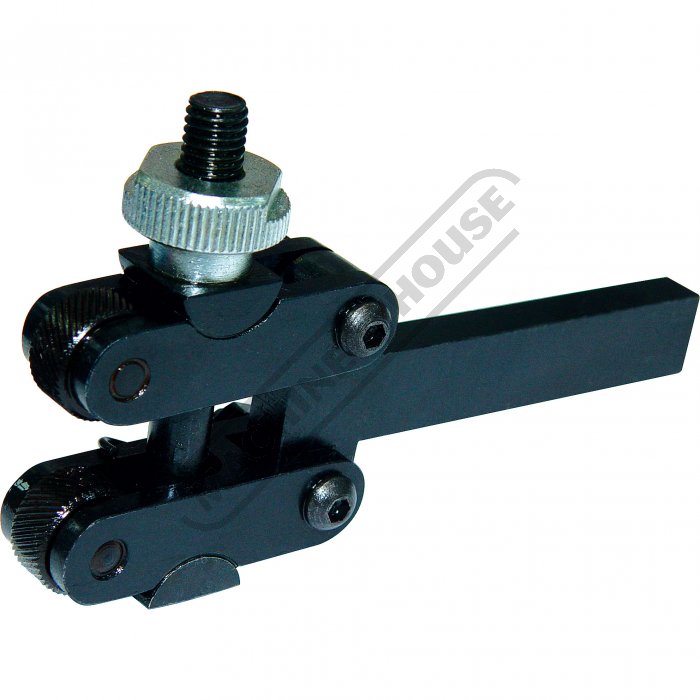

Knurling Tool Holder Clamp Type-L080 42 of 45

6 x 500kg capacity Machine Mounts M002 43 of 45

Lathe Carrier 38mm Bent Tail-L081 44 of 45

Drive Plate 45 of 45

HAFCO-METALMASTER

Order Code: K8250

Please Call

240V / 15A
1 Year Warranty

Made in Taiwan

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Downloads

Description

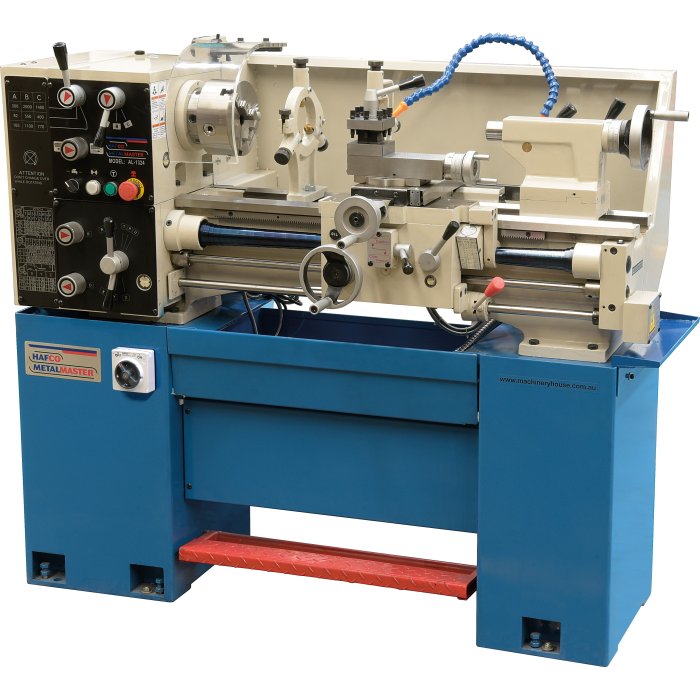

NSW Schools / TAFE - AL-1324 Centre Lathe - Includes Tooling Package

330 x 600mm Turning Capacity

NSW Contract Item No.35A

Overview

The AL-1324 is proudly manufactured in Taiwan and is equipped with all the necessary safety features to meet the standards set by the education department. This machine includes a leadscrew cover, a chuck guard with a micro switch, a micro switch on the side access door, and an emergency foot brake. These advanced safety features make the AL-1324 an excellent choice for protecting students as they learn and develop their skills.

Features

Toolroom quality precision lathe
Manufactured in Taiwan and sold for over 25 years
Gear drive headstock for quick change of spindle speeds
Stand increasing rigidity and reducing vibration
Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle
2HP/240V motor, 9-speed (82 - 2000rpm)
Enclosed quick action gearbox for thread cutting and auto feeding
Powered longitudinal and cross feeds
D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
Dual calibrated dials
Coolant system with flexible hose
Slide out swarf tray

Safety Features

Foot operated spindle brake with safety cut out switch
Interlocked safety chuck guard
Interlocked change gear cover with integrated tool-locking mechanism
Leadscrew cover ensures swarf not reaching clasp nut
Emergency stop switch fitted to headstock
Overload protection on drive motor and coolant system
Overload clutch mechanism on auto power feed

Keyed isolation switch - PWD approved
Test and tag certificate on 240V lead

Includes

Ø160mm 3-jaw chuck with reverse jaws - D1-4 mount
Ø200mm 4-jaw chuck - D1-4 mount
Ø200mm Drive Plate - D1-4 mount
Fixed Steady
Travelling steady
Dead centre
Spindle reducing bush
Thread chasing dial
Rear splash guard
16mm Turning Tool Kit (L451)
Parting Tool Holder (L074)
HSS Parting Blade (L0007)
13mm Keyless Drill Chuck (C292)
3MT x JT6 Drill Chuck Arbor (D443)
3MT Live Centre (C052)
Knurling Tool Holder - Clamp type (L080)
Lathe Carrier 38mm - Bent tail (L081)
6 x Machine mounts - 500kg capacity (M002)
Spanners, toolbox & operators manual

Specifications

Compare Product Range

Specifications

ORDER CODE	K8250
NSW Contract No.	NSW Item No.35A
MODEL	Schools/TAFE AL-1324 KIT
Digital Readout	Optional
(mm)Tool To Suit	16
(mm)Distance Between Centres	600
(mm)Swing Over Bed	330
(mm)Swing Over Cross-slide	200
(mm)Centre Height	165
(mm)Spindle Bore	Ø40
Camlock Spindle Size	D1-4
(mm)Bed Width	190
(MT)Head Stock Spindle Taper	5
(MT)Tail Stock Taper	3
(mm)Cross Slide Travel	175
(mm)Compound Slide Travel	100
Lead Screw	Metric
(mm/rev)Cross Feed	0.034 ~ 0.468
(mm/rev)Longitudinal Feed	0.068 ~ 0.936
(No. / mm)Metric Thread Range	30 (0.4 - 7.0)
(No. / TPI)Imperial Thread Range	32 (4 - 56)
(mm)3 Jaw Chuck Diameter	Ø160
(mm)4 Jaw Chuck Diameter	Ø200
(No. / RPM)Spindle Steps/speeds	9 / 82-2000
(kW / hp)Motor Power	1.5 / 2
(V / amp)Voltage / Amperage	240 / 15
(kg)Nett Weight	660
