DS-1625T-R600 - 41.275mm OD x 180º Round Tube Die Set

152.4mm CLR, Made from Steel

Suits RDB Series (Not RDB-050) Pipe & Tube Benders

B8298 1 of 2

Baileigh Industrial Rotary Draw Tooling and Die Sets Explained 2 of 2

BAILEIGH

Discontinued

Order Code: B8298

1 Year Warranty

Made in U.S.A

Sorry, this Product is no longer available
Click Here To View All Pipe & Tube Bender Accessories

Compare

Wishlist

Description Specifications Compare Accessories Downloads

Description

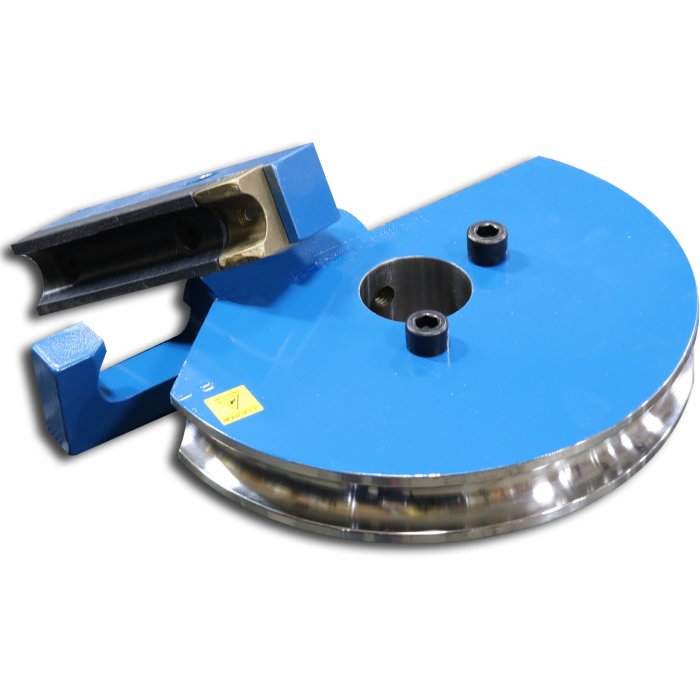

DS-1625T-R600 - 41.275mm OD x 180º Round Tube Die Set

152.4mm CLR, Made from Steel

Suits RDB Series (Not RDB-050) Pipe & Tube Benders

Overview

41.275mm OD Round tube die set with a 152.4mm Center line Radius. Fits on all Baileigh Industrial rotary draw benders that accept drop on tooling (Not RDB-050). Center line radius is based on 2.1082mm wall thickness.

Features

41.275mm OD steel former with 152.4mm centre line radius for 180 degree bends
2.1082mm recommended minimum wall thickness
180 degree maximum bend angle
Set includes forming die, counter die, and hook sleeve

Specifications

Compare Product Range

Specifications

ORDER CODE	B8298
MODEL	DS-1625T-R600
Type	Round Tube Die Set
(Deg)Degree of Bend (Max)	180º
(inch / mm)Size	41.276 OD
(inch / mm)CLR - Centre Line Radius	152.4
(inch / mm)Recommended Min. Wall Thickness	2.1082
Suits Machine Model	RDB Series (Not RDB-050)
(kg)Nett Weight	25.0
