RDB-480 - Motorised Pipe & Tube Rotary Draw Bender

Ø1/2" - Ø4" NB Pipe Capacity, Ø19.05 - Ø127mm Round Tube Capacity

B8100 1 of 3

TouchScreen 2 of 3

Fork Pocket 3 of 3

BAILEIGH

Order Code: B8100

Please Call

415V / (NO PLUG)
1 Year Warranty

Made in U.S.A

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Downloads

Description

RDB-480 - Motorised Pipe & Tube Rotary Draw Bender

Ø1/2" - Ø4" NB Pipe Capacity, Ø19.05 - Ø127mm Round Tube Capacity

Overview

This programmable pipe bender shapes material at blistering speeds with professional accuracy. Made in the USA, the RDB-480 pipe bender for sale will revolutionize the efficiency of your fabrication shop.

Features

Why choose Baileigh’s RDB-480 Tube Bender over competing machines?
Cuts down on time and effort for repeat projects by storing complex bend specifications as programs.
Reduces delays with extremely fast automatic bending.
You can rely on after-sale support and project advice from Baileigh’s experienced team—just a phone call away—for as long as you’re using the RDB-480.
Accommodates a wide range of tooling, available from Baileigh, to suit almost any application.
Runs on 415 volt three-phase power
Tackles heavy-duty materials, bending up to 127mm tubing and 4" NB (11/32", schedule 80) pipe
Rotary draw bender smoothly executes 180° bends in just 20 seconds and can complete up to 360° bends
Stores up to 170 programs of 10 bends each in its internal memory and accepts limitless external memory

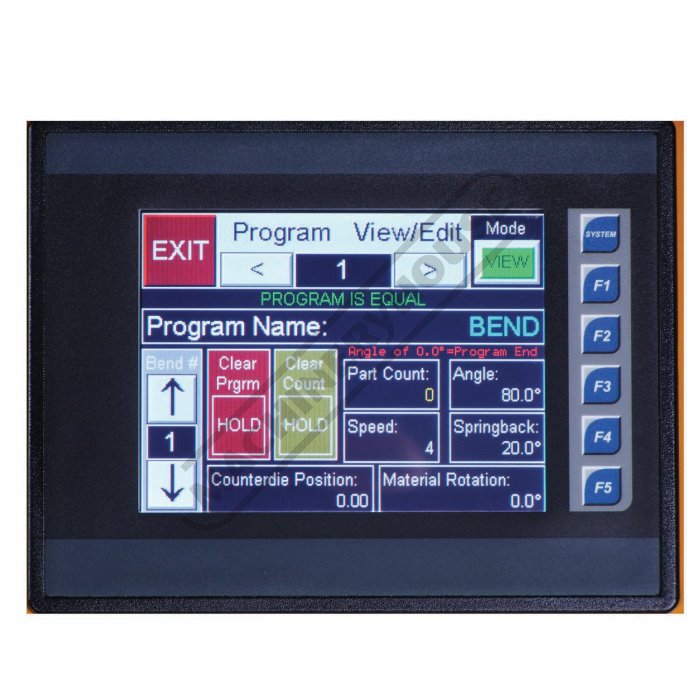

Easy-to-use touchscreen or handy foot pedal can both operate the bender, when not in manual mode
2-piece die mount loosens to release bent tubing without a hassle
Covered by a 1-year parts warranty and lifetime technical support

Specifications

Compare Product Range

Specifications

ORDER CODE	B8100
MODEL	RDB-480
(Type)Material	Pipe & Tube
(Type)Material Section	Round, Square & Rod
(Type)Machine	Electric Hydraulic - Rotary Draw
(inch / mm)Round Pipe Range (NB) - Mild Steel	Ø1/2" - Ø4"
(inch / mm)Round Tube Range (OD) - Mild Steel	Ø19.05 - Ø127
(inch / mm)Square Tube Range	12.7 - 50.8
(inch)Round Pipe (NB) x Wall Capacity - Mild Steel	Ø4" (Schedule 80)
(inch / mm)Round Tube (OD) x Wall Capacity - Mild Steel	Ø127 x 2.11
(Deg / Sec)Bend Speed - Maximum	180° / 25
(inch / mm)Centre Line Radius - Maximum (CLR)	28" / 711.2mm
(inch / mm)Centre Line Radius - Minimum (CLR)	6" / 152.4mm
(inch / mm)Tube Formers Included	~
(inch / mm)Pipe Formers Included	~
(deg)Angle Capacity	190º
(kW / hp)Motor Power	7.5 / 10
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	2730
