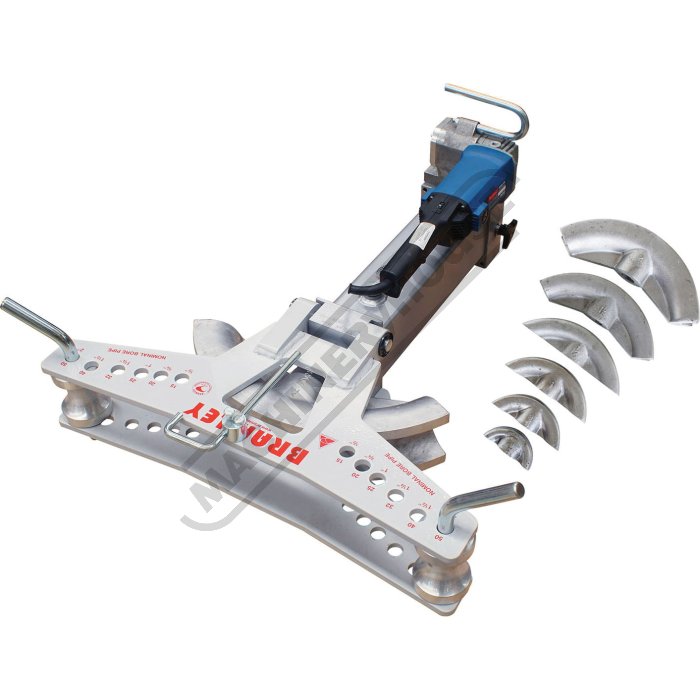

PB2-E - Electric Hydraulic Pipe Bender
Ø1/2 - Ø2" NB Pipe Capacity
Includes Ø1/2", Ø3/4", Ø1", Ø1-1/4", Ø1-1/2", Ø2" Cast Aluminium Formers
P0801 of 1
Order Code: P080
ex-gst
inc-gst
$
3,500.00
$
3,850.00
240V / 10A
1 Year Warranty
1 Year Warranty
Made in New Zealand
Finance Available
Finance Available
Description
PB2-E - Electric Hydraulic Pipe Bender
Ø1/2 - Ø2" NB Pipe Capacity
Includes Ø1/2", Ø3/4", Ø1", Ø1-1/4", Ø1-1/2", Ø2" Cast Aluminium Formers
Features
- Easy and simple operation, connect direct into 240V power
- Light weight aluminium alloy formers with large angle of arc to support pipe during bending
- Enclosed, maintenance-free mono-block hydraulic system with automatic piston return
- High thrust hydraulic pump with 150kN (15T) piston rating for high speed operation
- Powerful 240V compact motor for efficiency with portability
- Quick & easy to adjust guide pins to suit pipe
- Bends pipe up to a maximum of 90º
- Complete with six formers, two bobbins (support rollers) & pins
Includes

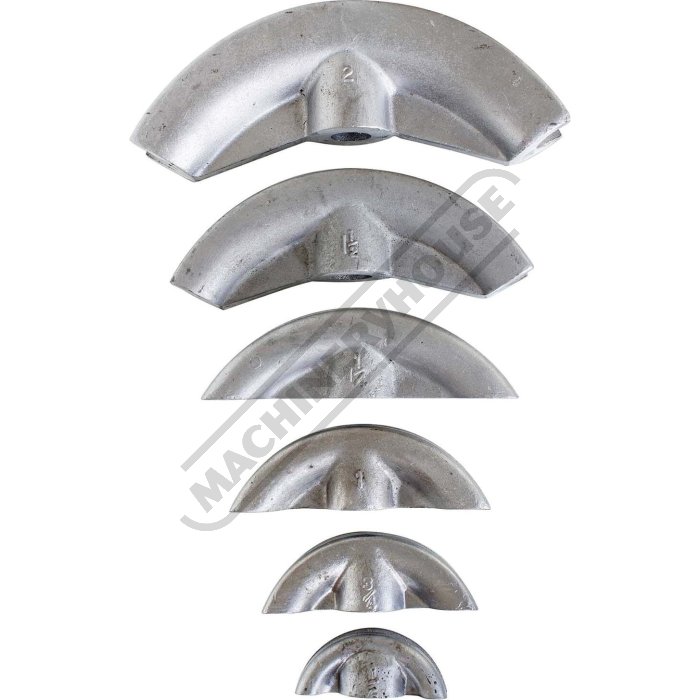

- Cast Aluminium Pipe Formers:
- Ø1/2" has 75mm centre line radius
- Ø3/4" has 105mm centre line radius
- Ø1" has 140mm centre line radius
- Ø1-1/4" has 175mm centre line radius
- Ø1-1/2" has 200mm centre line radius
- Ø2" has 240mm centre line radius
Compare Product Range
Specifications
| ORDER CODE | P080 |
|---|---|
| MODEL | PB2-E |
| (Type)Material | Pipe |
| (Type)Material Section | Round |
| (Type)Machine | Electric Hydraulic |
| (Tonne)Hydraulic Jack Size | 15 |
| (inch / mm)Round Pipe Range (NB) - Mild Steel | Ø1/2" - Ø2" |
| (inch / mm)Tube Formers Included | ~ |
| (inch / mm)Pipe Formers Included | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| (inch / mm)Spigot Size on Ram | 38 |
| (V / amp)Voltage / Amperage | 240 / 10 |
| (mm)Shipping Dimensions | 640 x 660 x 670 |
| (kg)Nett Weight | 68 |
