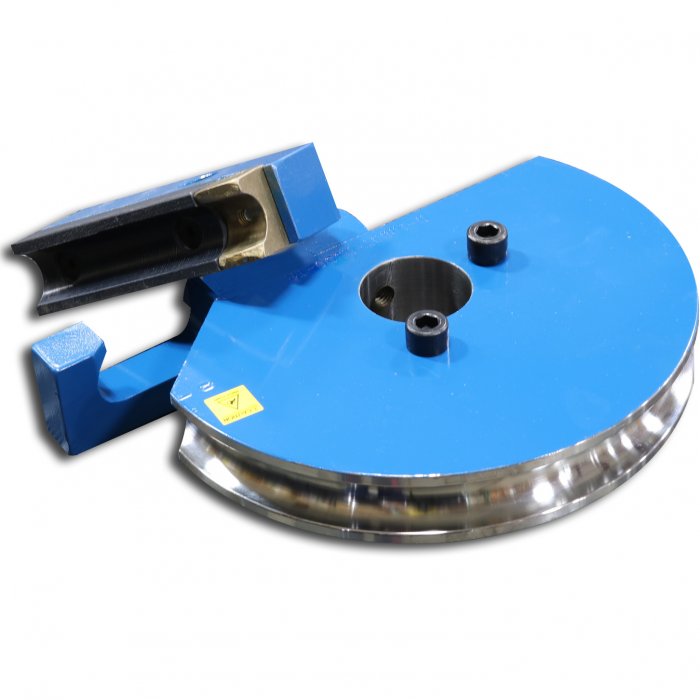

DS-1500T-R450 - 38.1mm OD x 180º Round Tube Die Set

114.3mm CLR, Made from Steel

Suits RDB Series (Not RDB-050) Pipe & Tube Benders

B8286 1 of 2

Baileigh Industrial Rotary Draw Tooling and Die Sets Explained 2 of 2

Discontinued

Order Code: B8286

1 Year Warranty

Sorry, this Product is no longer available
Click Here To View All Pipe & Tube Bender Accessories

Compare

Wishlist

Description Specifications Compare Accessories Downloads

Description

DS-1500T-R450 - 38.1mm OD x 180º Round Tube Die Set

114.3mm CLR, Made from Steel

Suits RDB Series (Not RDB-050) Pipe & Tube Benders

Overview

38.1mm OD Round tube die set with a 114.3mm Center line Radius. Fits on all Baileigh Industrial rotary draw benders that accept drop on tooling (Not RDB-050). Center line radius is based on 2.413mm wall thickness.

Features

38.1mm OD steel former with 114.3mm centre line radius for 180 degree bends
2.413mm recommended minimum wall thickness
180 degree maximum bend angle
Set includes forming die, counter die, and hook sleeve

Specifications

Compare Product Range

Specifications

ORDER CODE	B8286
MODEL	DS-1500T-R450
Type	Round Tube Die Set
(Deg)Degree of Bend (Max)	180º
(inch / mm)Size	38.1 OD
(inch / mm)CLR - Centre Line Radius	114.3
(inch / mm)Recommended Min. Wall Thickness	2.413
Suits Machine Model	RDB Series (Not RDB-050)
(kg)Nett Weight	15
