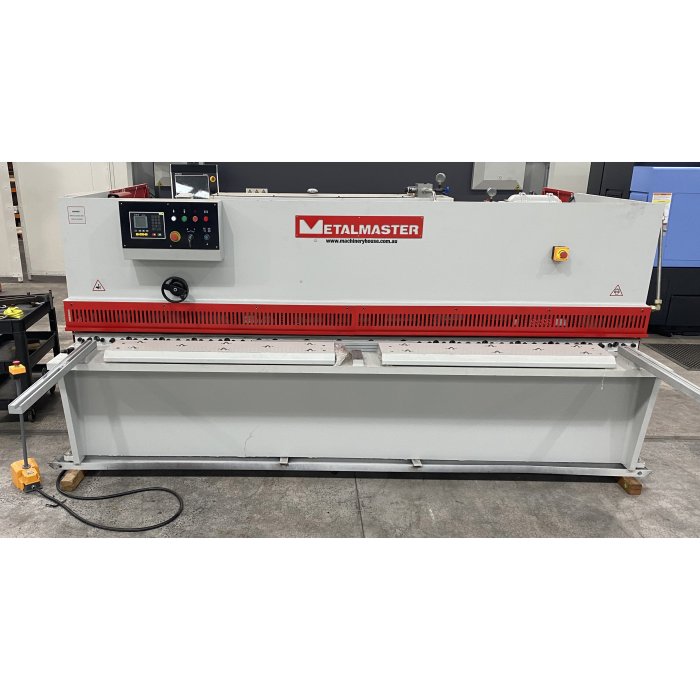

SG-3206E - Hydraulic NC Swing Beam Guillotine

1-6mm Capacity

NOT SUITABLE FOR THIN SHEET LIMITED WARRANTY

Main 1 of 1

METALMASTER

Used Equipment

Order Code: ZS918

ex-gst

inc-gst

^$ 18,000.00

^$ 19,800.00

Only Available From: Melbourne (Pick Up Only)

415V / (NO PLUG)

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Downloads

Description

SG-3206E - Hydraulic NC Swing Beam Guillotine

1-6mm Capacity

NOT SUITABLE FOR THIN SHEET LIMITED WARRANTY

Overview

Limited warranty

MetalMaster Quality Guillotines feature high durability, and provide precision shearing capabilities, The Guillotine main frames are constructed from rolled, stress relieved solid steel to prevent distortion during the shearing process and under extreme continuous loads.

MetalMaster Guillotines are produced in high volume production process and therefore are able to be manufactured cost effectively, resulting in affordable price, representing value for money and quicker return on investment.

This heavy duty over driven style, fixed rake guillotine has been developed for shearing material from mild steel through to stainless steel due to the specially designed shearing blades with characteristics of 1. High resistance to wear, 2. High resistance to corrosion, 3. High resistance to impact & 4. High tensile strength.

All electrical components are of European quality supplied by, Schneider

Rexroth hydraulic control valves.

Features

Estun E21S programmable digital control stores up to 40 unique programs with 25 automatic progressive cutting steps in each individual program, assuring production accuracy & repeatability every time
Estun E21S programmable control system provides up to 750mm travel via leadscrew backgauge, simply enter the desired measurement into the controller and press go, the backgauge then will move quickly into the position you have requested
Blade gap adjusting dial mounted on side of machine for convenient and accurate alteration for all your material thickness from 0.5 - 6mm. This dial is designed so that a straightforward rotation clock or anti clockwise to achieve desired plate thickness. Measurement on dial indicates and refers to actual blade gap distance in millimetres
Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine.
Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.
Top shearing blade made from 6CrW2Si quality composite and has two (2) cutting edges allowing minimised down time in blade rotation.
Bottom shearing blade made from 6CrW2Si quality composite and has four (4) cutting edges allowing minimised down time in blade rotation.
The core structure of the steel main frame has been electronically welded ensuring maximum penetration during the manufacturing process. In addition to this feature the cutting beam has been stress relieved eliminating any distortion after manufacturing.
LED shadow line lighting has been incorporated into the machine frame providing a clear cutting line on the work piece and enabling scribed or marked material to be cut with simplicity as required.
Heavy duty squaring arm is fitted with a graduated rule and adjustable flip up front stops and mitre guide allowing operator to cut to the required size from the front of machine. Flip over stops can be set to repeat cutting length required with accuracy. The arm also aligns the material to be located square to the cutting edge.
Safety three photo electric rear guards fitted to steel side gates ensuring that the machine will be disabled when person enters rear of machine when in use
Safety reset button for guarding system located at rear of machine, this feature requires operator to walk to rear of machine to visually check for any obstruction prior to resetting & starting machine
Mild steel capacity is rated on hot rolled material with 250MPA

Pre-Commissioning:
1. Guillotine is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes

Heavy duty over driven machine construction
Rapid blade gap adjustment
Emergency stops fitted on both ends of machine for additional safety
Individual hydraulic hold downs with nylon pads
125mm throat enables shearing of longer material than 3200mm
Shadow line lighting allows operator to quickly see the cut line
750mm Estun E21S programmable control via leadscrew backgauge with fine adjustment
1250mm long aluminium front sheet supports to help protect material from scratching
Swing away backgauge function for cutting long sheets
4 edge quality 6CrW2Si blades suitable for stainless steel
Rexroth hydraulic control valves
Schneider electrical components
Transfer balls on table & support arms
Heavy duty support arms and squaring arms
Stroke counter and short stroke adjustment
Sliding chute fitted, easily allowing operator to retrieve cut pieces
Three safety photo electric light beams on rear guarding

Specifications

Compare Product Range

Specifications

ORDER CODE	ZS918
MODEL	SG-3206E
Type	Hydraulic NC Swing Beam Guillotine
Brand	METALMASTER
Capacity	3200 x 6mm
(kW / hp)Motor Power	7.5 / 10
(V / amp)Voltage / Amperage	415
(Available)Branch The Item is Located	Melbourne
