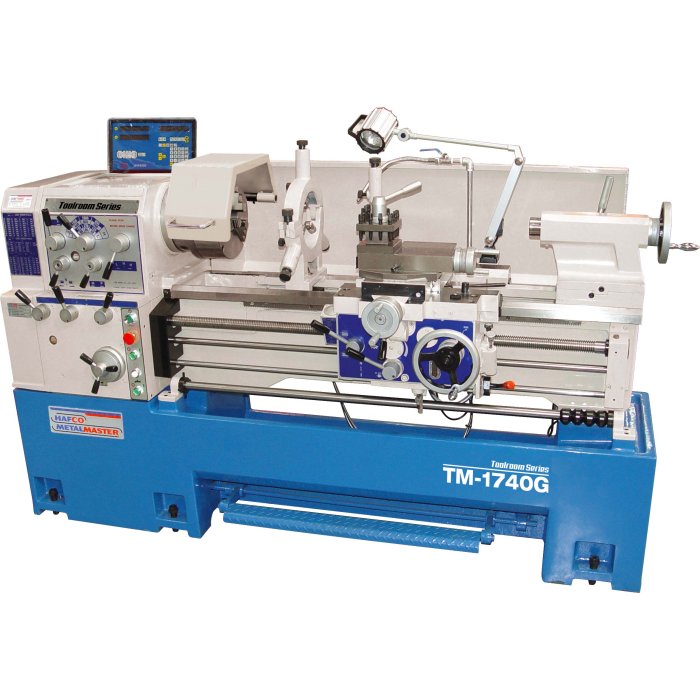

Centre Lathe - TM-1740G
Ø430 x 1000mm Turning Capacity - Ø80mm Spindle Bore
WA TAFE Specification
Z02790
1 of 31

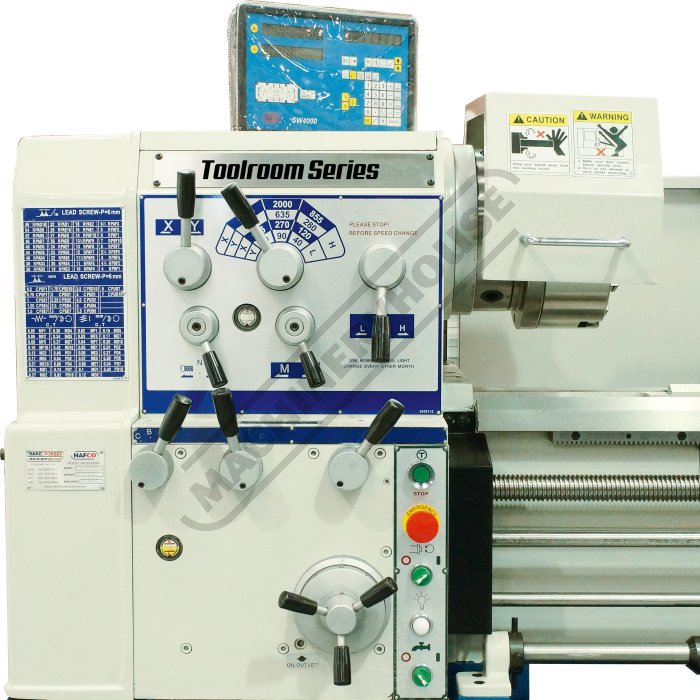

Headstock
2 of 31

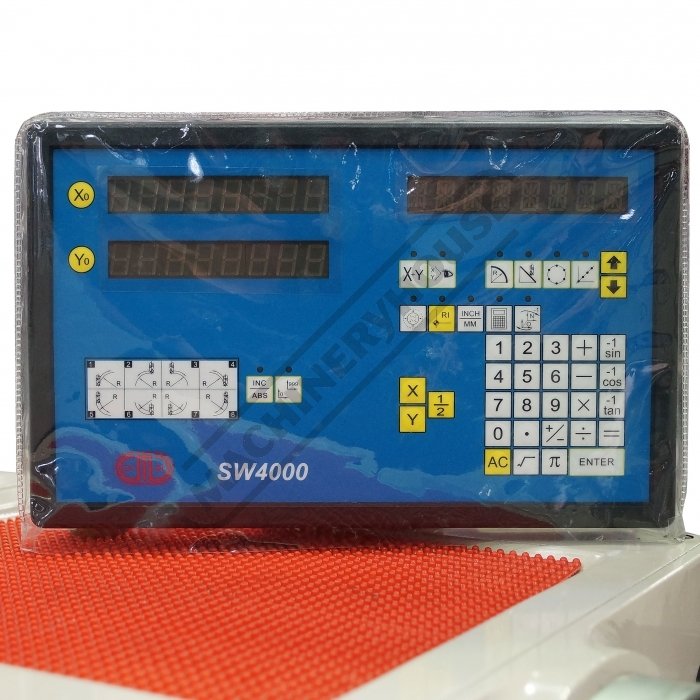

2 Axis DRO
3 of 31

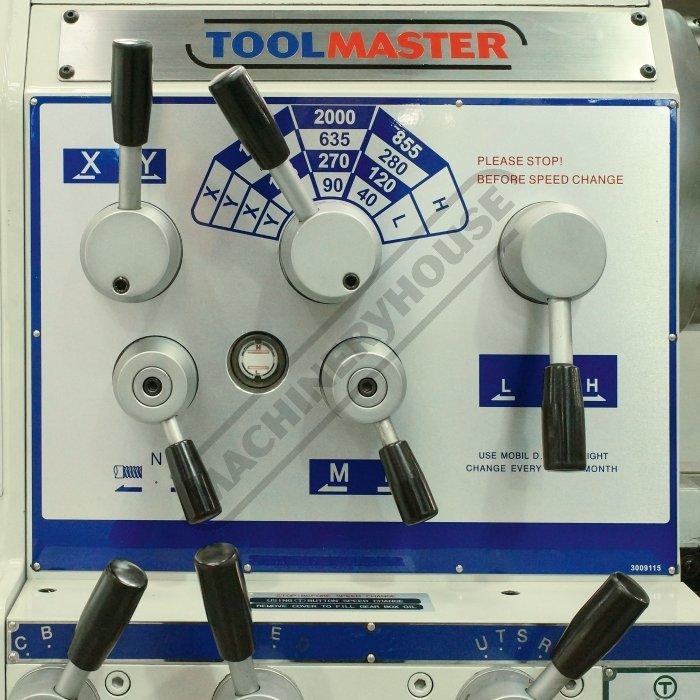

Speed Levers
4 of 31

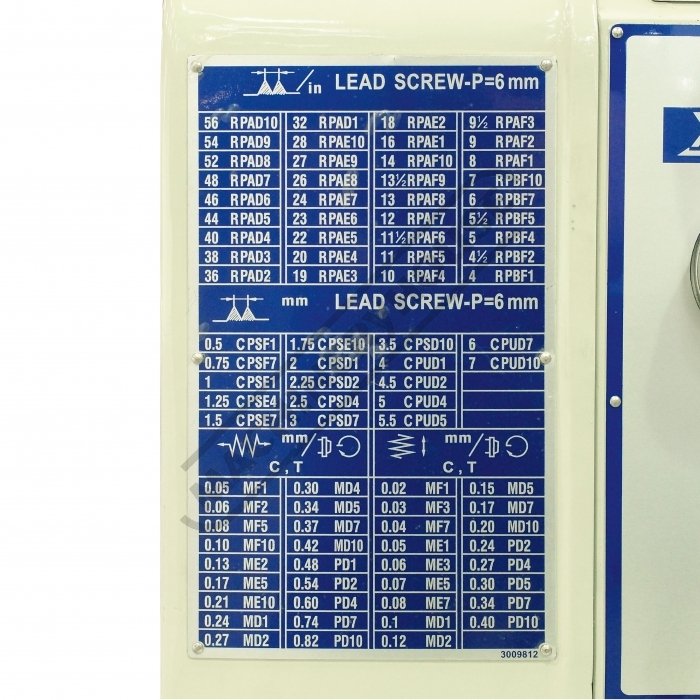

Thread Charts
5 of 31

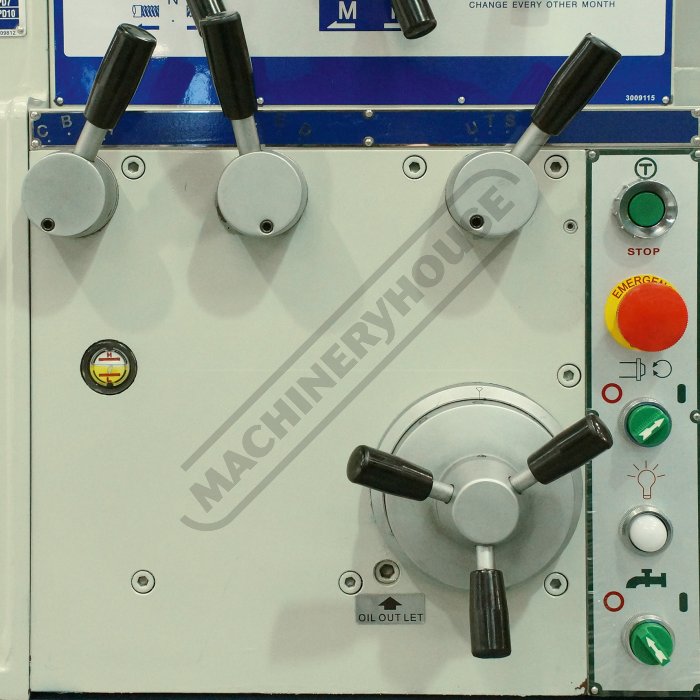

Gearbox
6 of 31

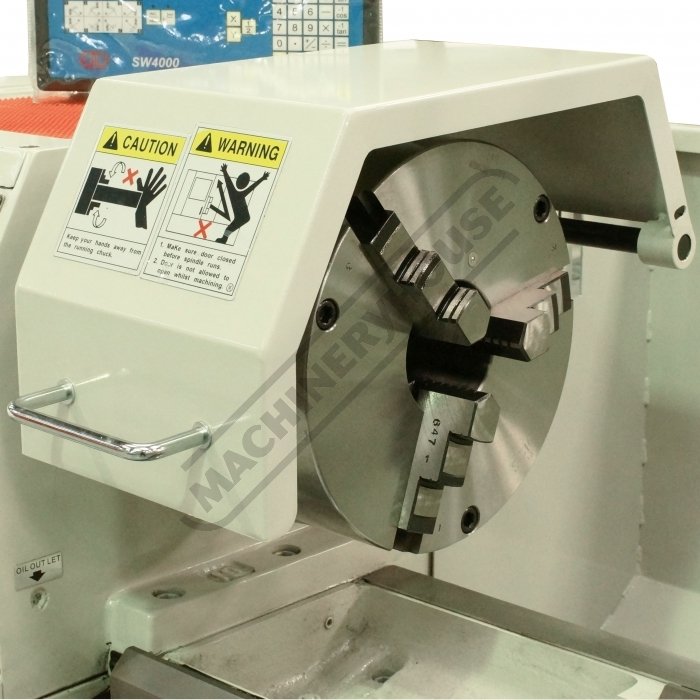

Safety Chuck Guard
7 of 31

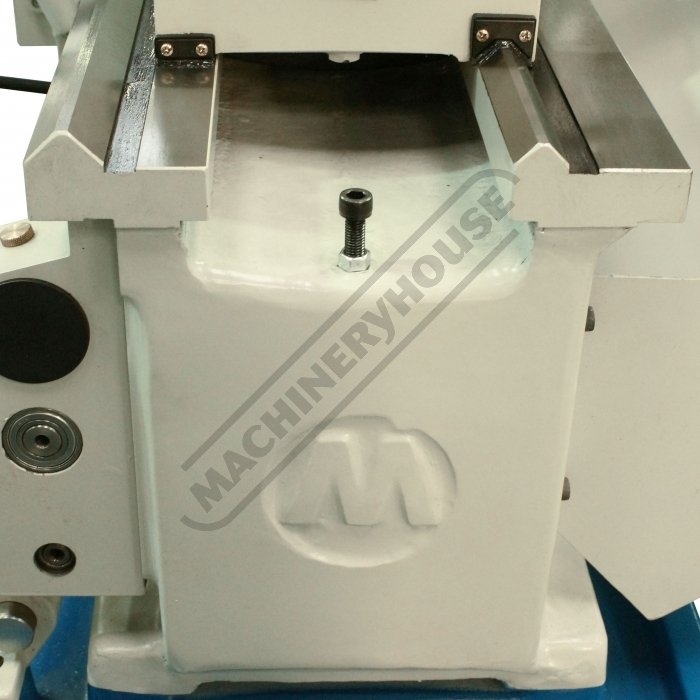

Meehanite Cast Bed
8 of 31

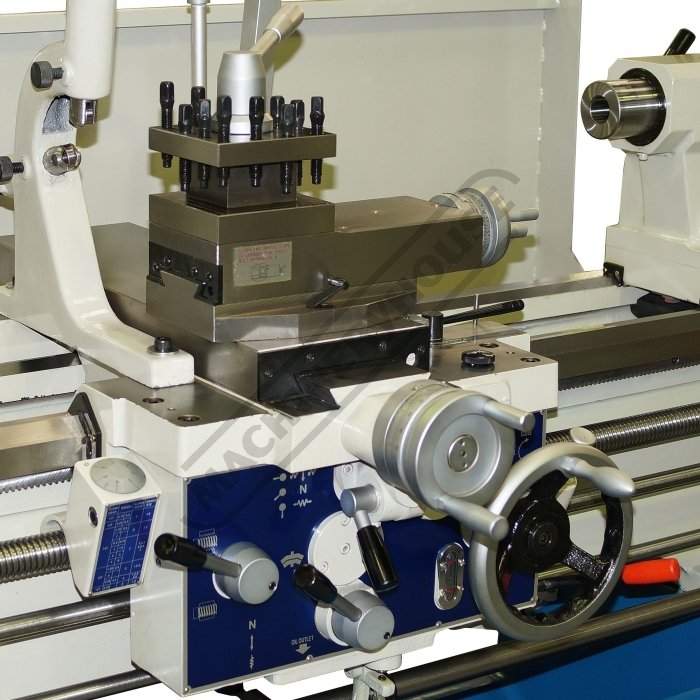

Saddle Left View
9 of 31

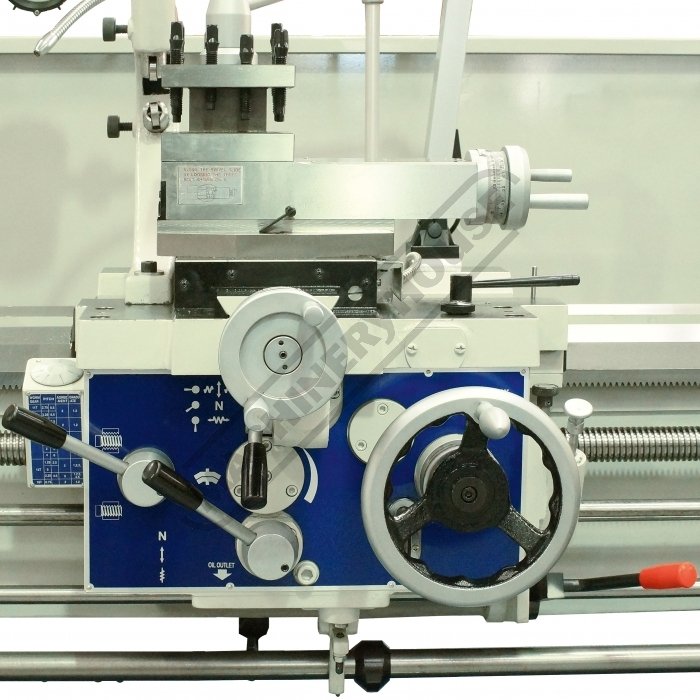

Saddle Front View
10 of 31

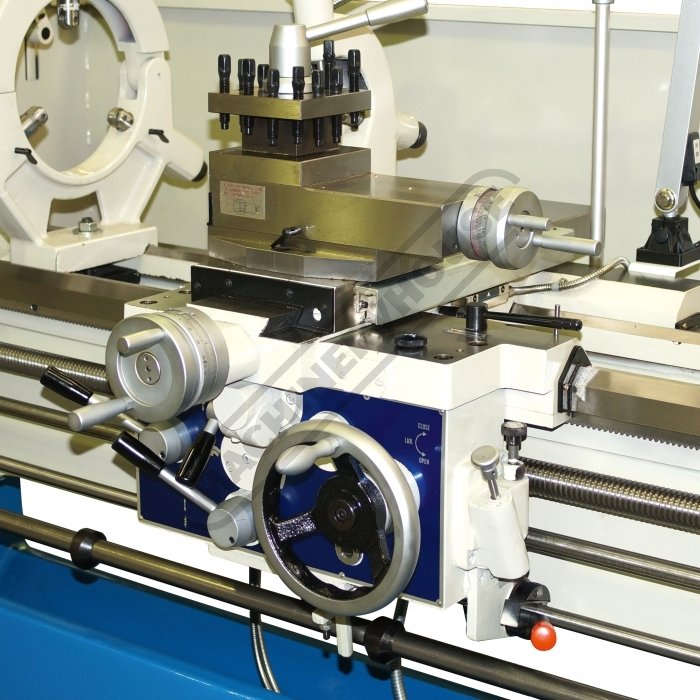

Saddle Right View
11 of 31

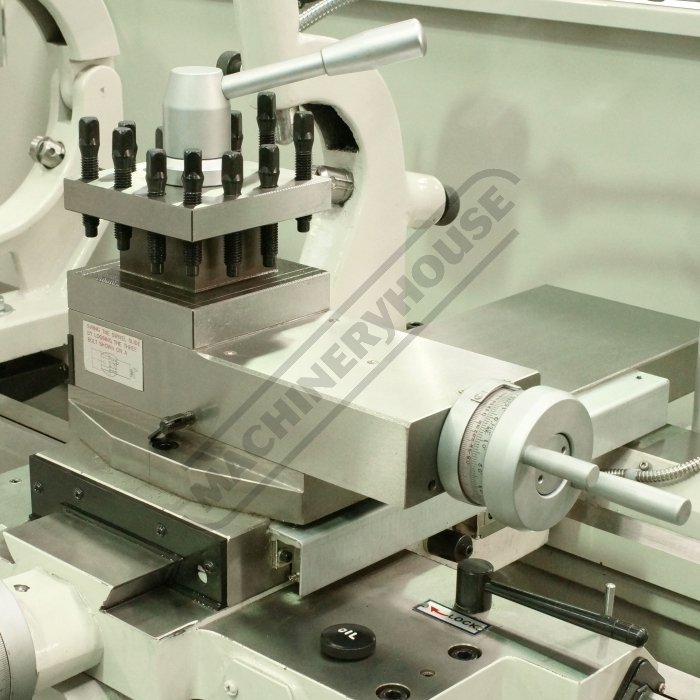

Compound Slide
12 of 31

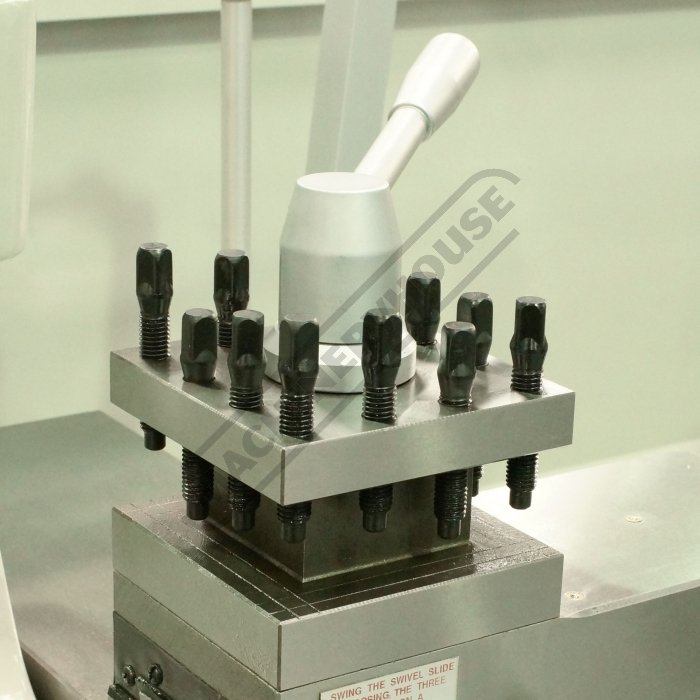

Toolpost
13 of 31

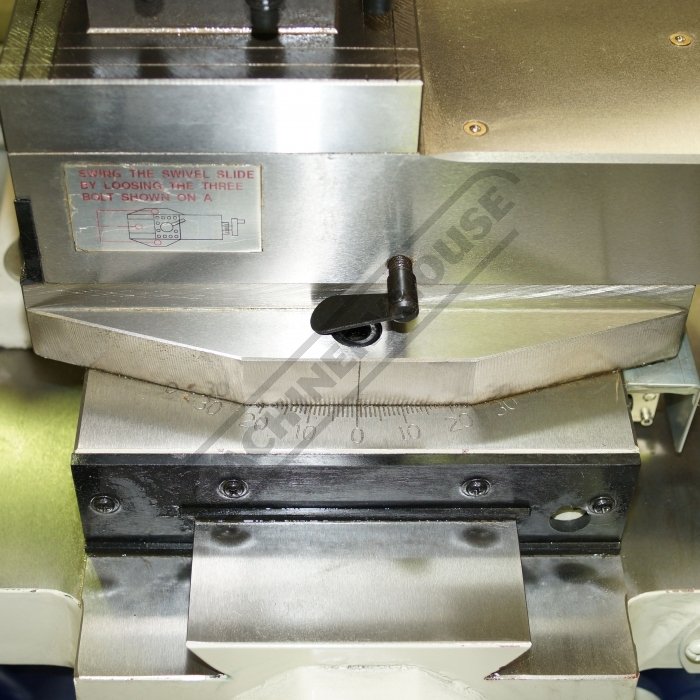

Compound Scale
14 of 31

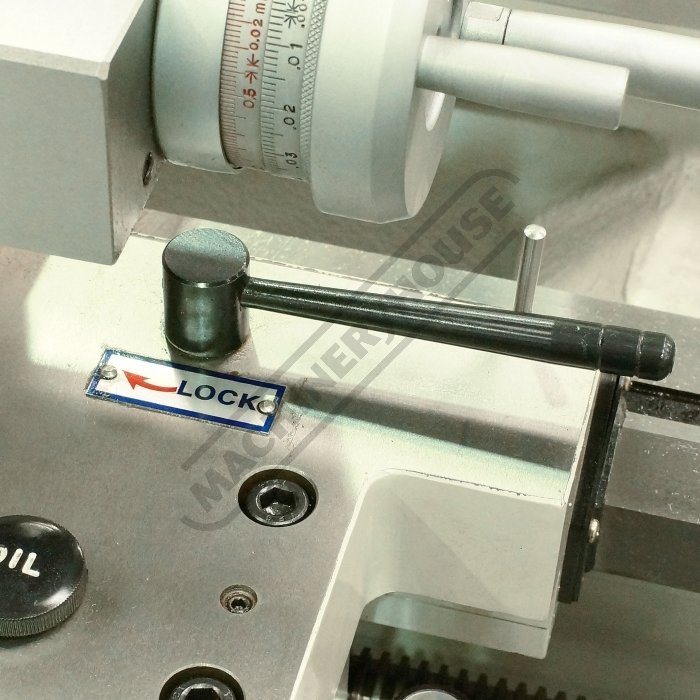

Saddle Lock
15 of 31

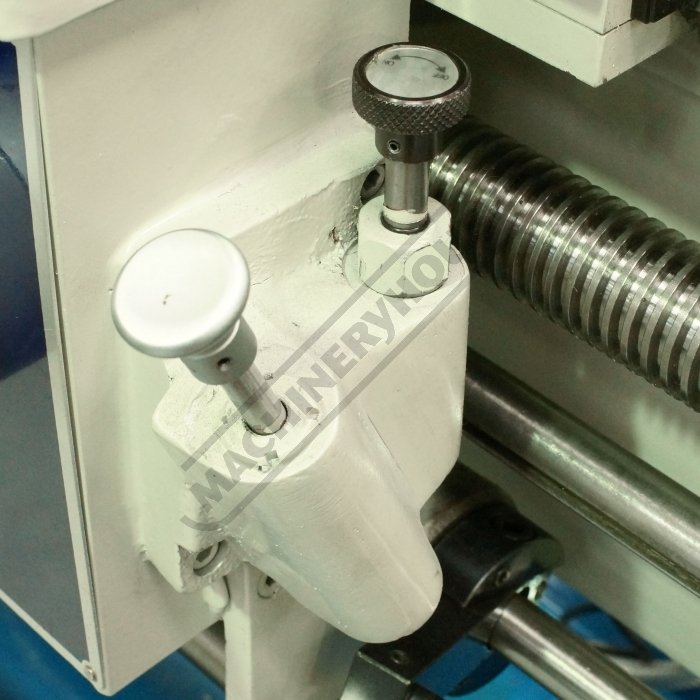

One Shot Slide Lubrication
16 of 31

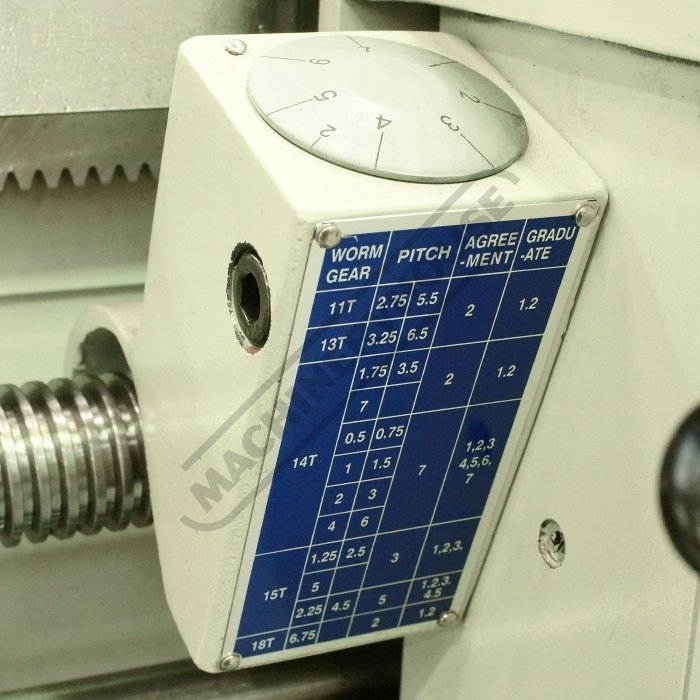

Thread Chasing Dial
17 of 31

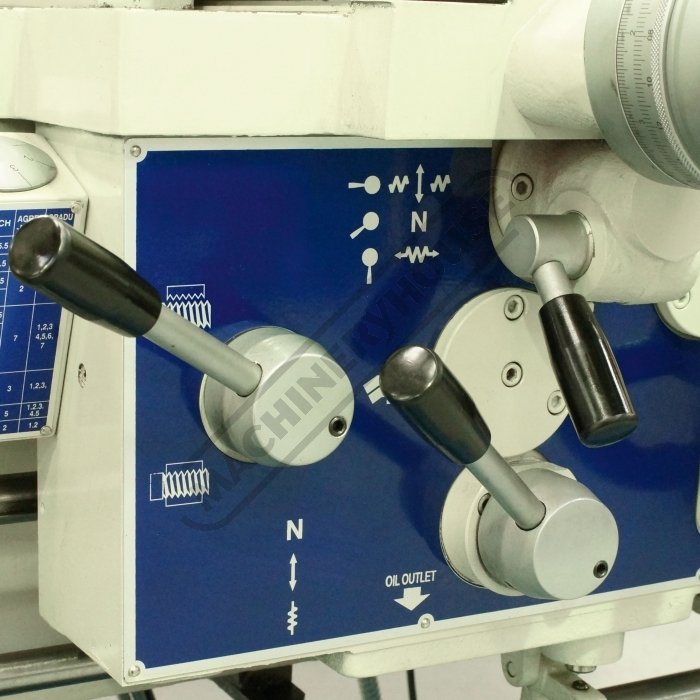

Feed and Threading Levers
18 of 31

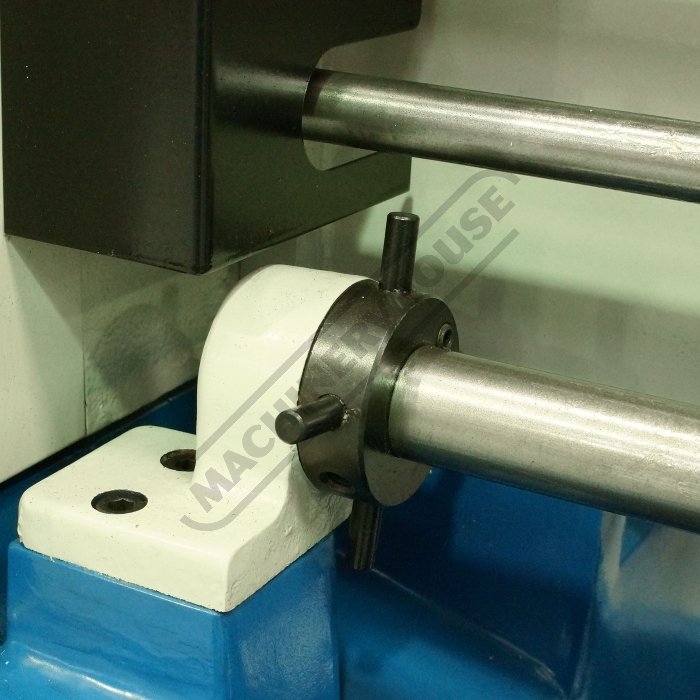

Adjustable Auto Feed Knockout
19 of 31

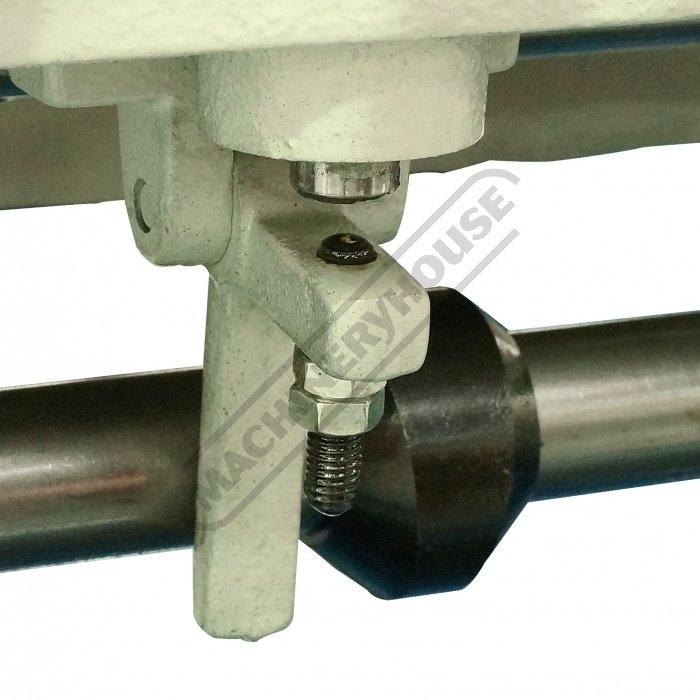

Auto Feed Knockout System
20 of 31

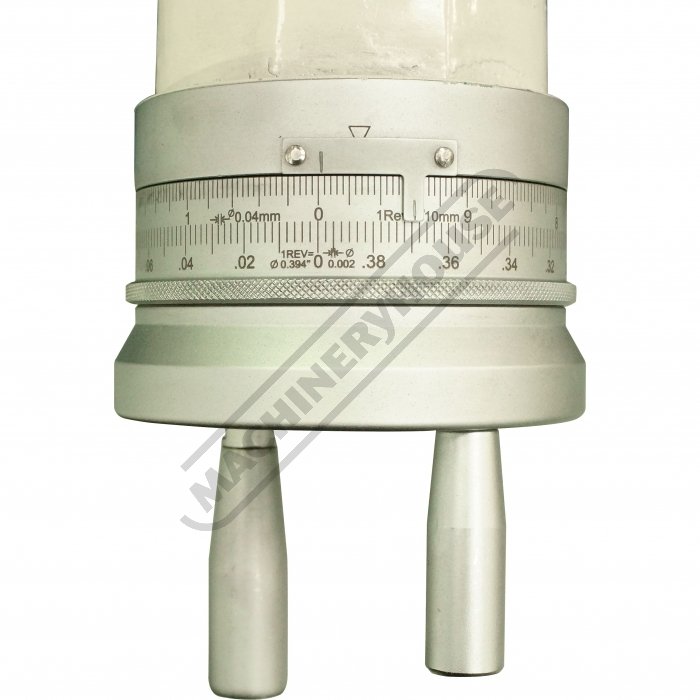

Cross Feed Dial
21 of 31

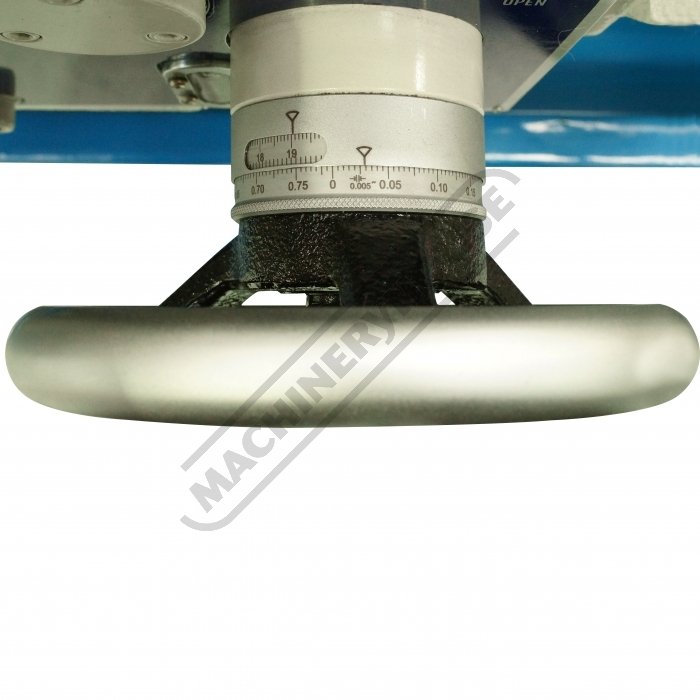

Saddle Hand Wheel
22 of 31

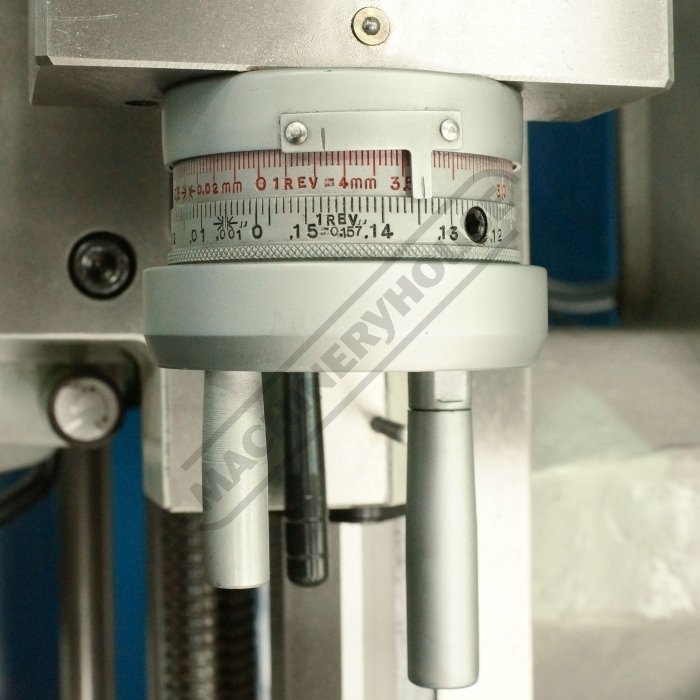

Compound Slide Dial
23 of 31

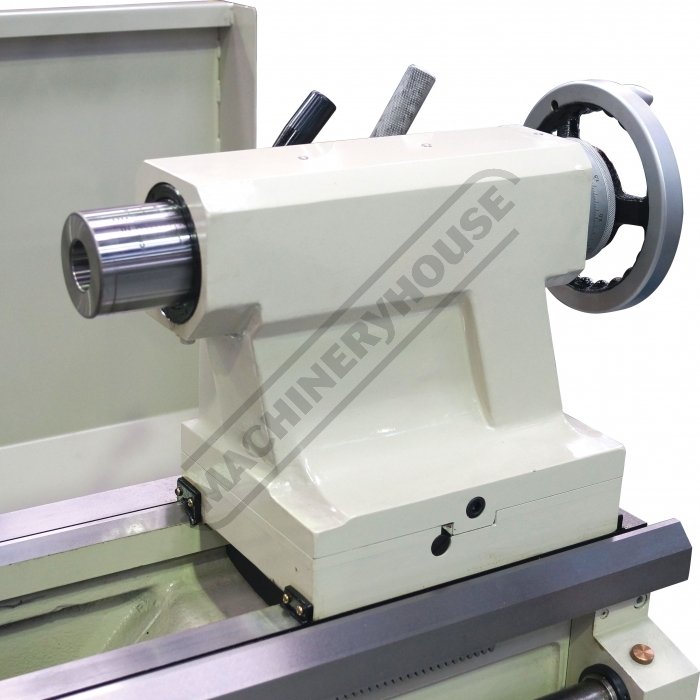

Tailstock
24 of 31

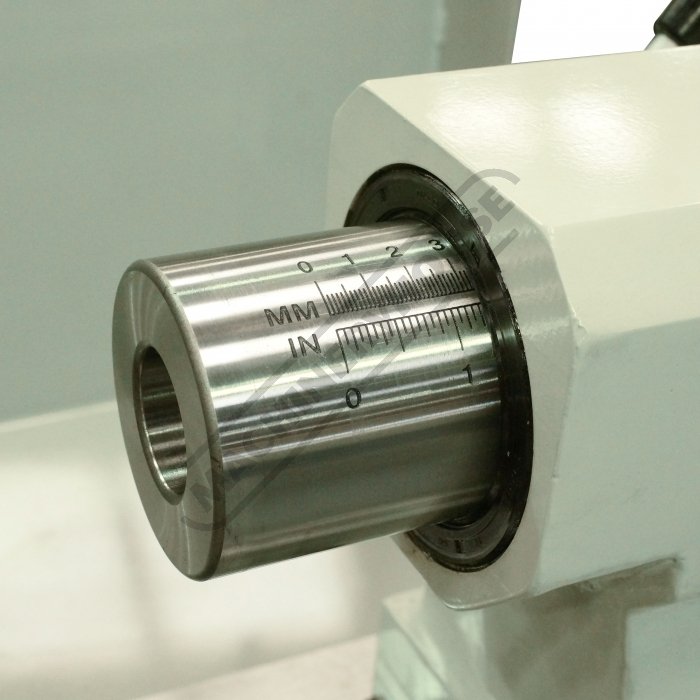

Tailstock Quill
25 of 31

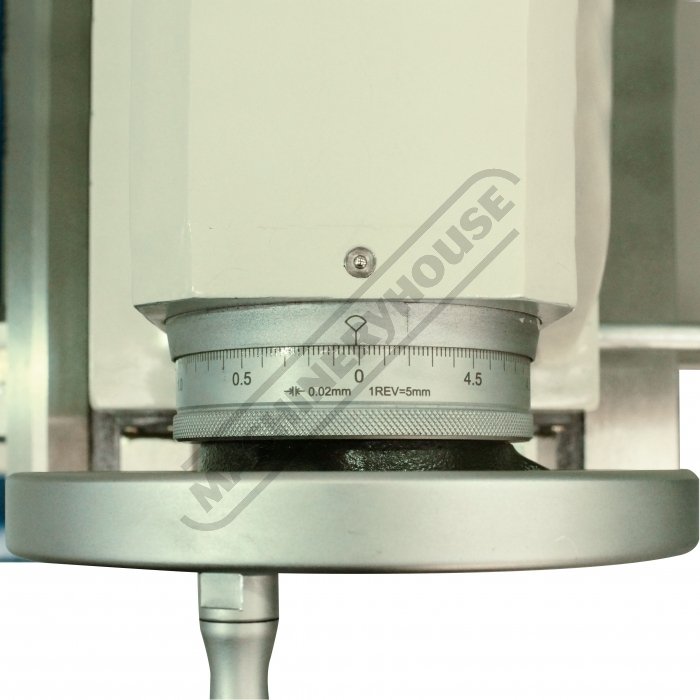

Tailstock Hand Wheel
26 of 31

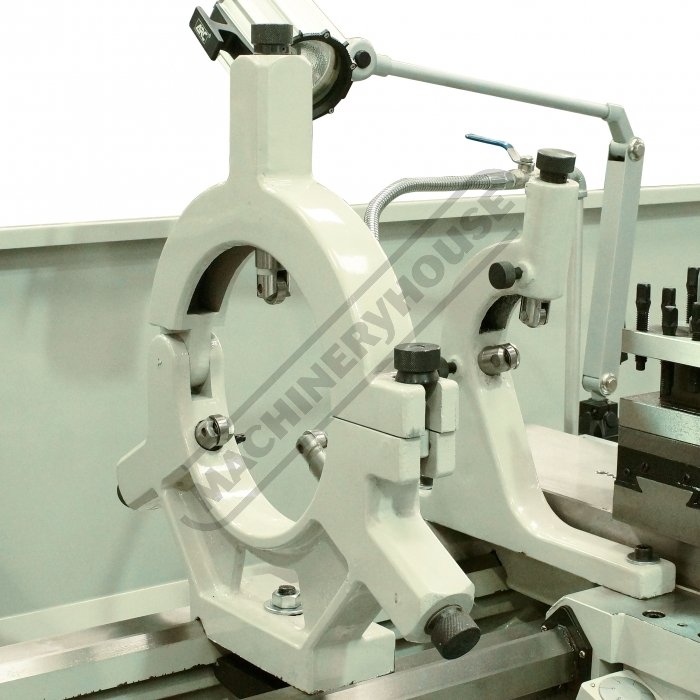

Fixed & Travelling Steadies
27 of 31

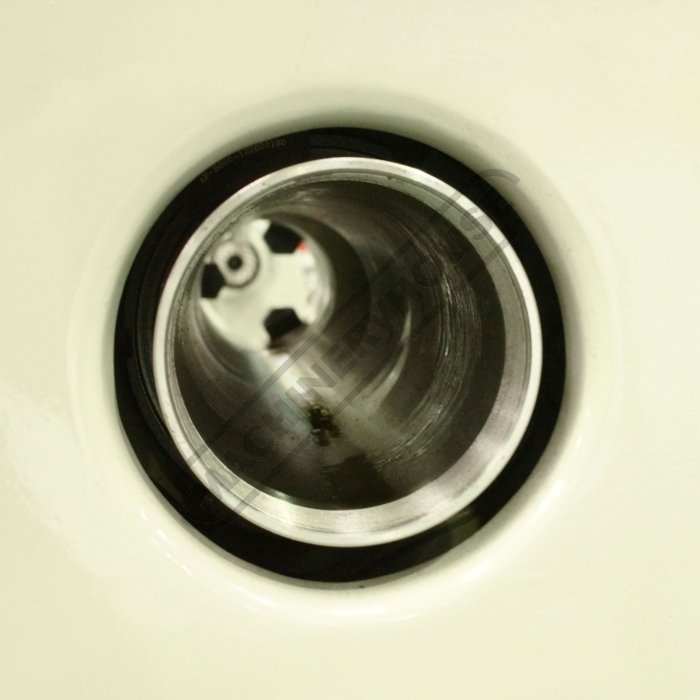

80mm Spindle Bore
28 of 31

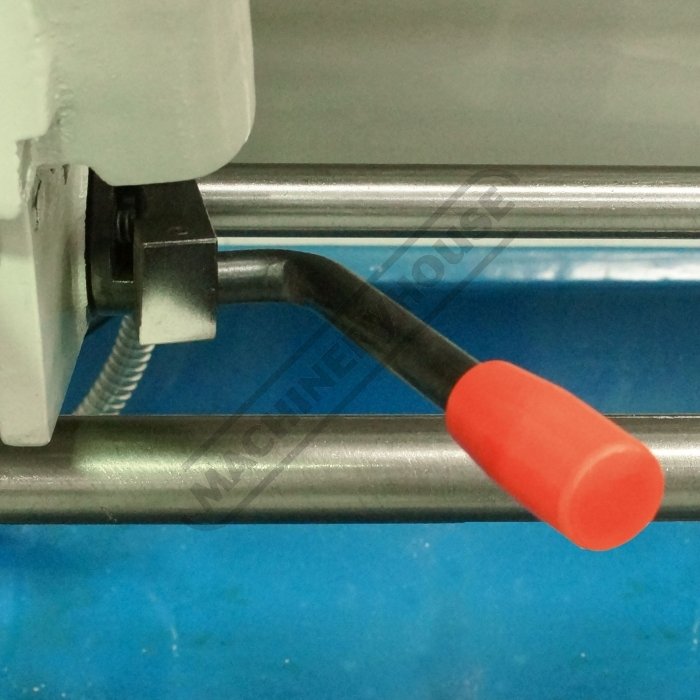

Spindle Engagement Lever
29 of 31

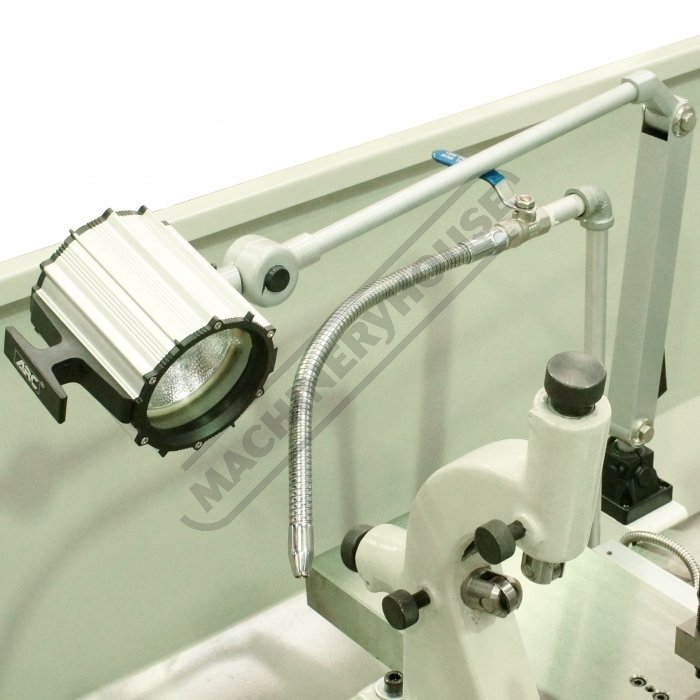

LED Work Light and Coolant Hose
30 of 31

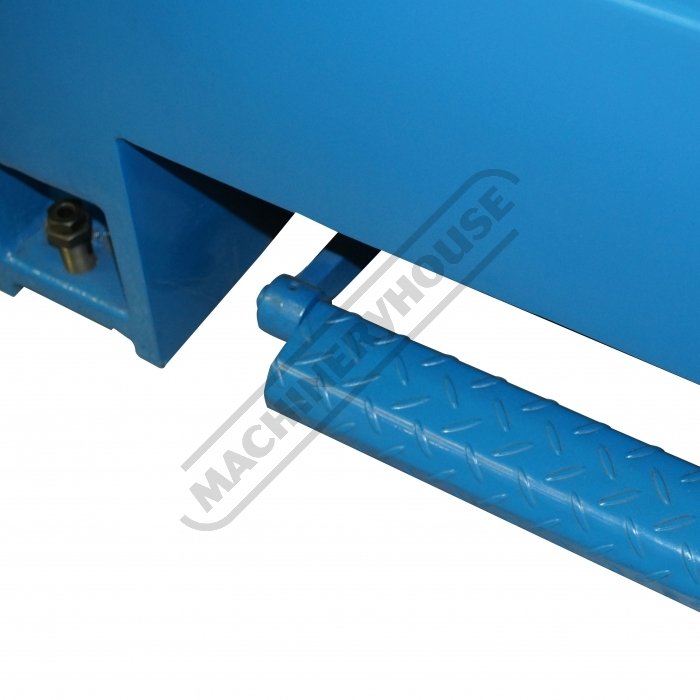

Foot Brake
31 of 31
Order Code: Z02790
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Made in Taiwan
Description
Centre Lathe - TM-1740G
Ø430 x 1000mm Turning Capacity - Ø80mm Spindle Bore
WA TAFE Specification
Overview
The TM-1740G industrial centre lathe is manufactured in Taiwan to precision standards, delivering the accuracy, durability and reliability demanded by professional machinists.
Designed for heavy-duty performance, it features three premium German SKF spindle bearings for exceptional spindle support under high cutting loads, while the Meehanite® cast iron bed provides superior rigidity, stability and long service life.
Supplied with all the essential features expected of a high-quality precision lathe, the TM-1740G is built to consistently produce accurate, professional results for years to come.
Backed by a comprehensive 2-year machine warranty for added peace of mind
Designed for heavy-duty performance, it features three premium German SKF spindle bearings for exceptional spindle support under high cutting loads, while the Meehanite® cast iron bed provides superior rigidity, stability and long service life.
Supplied with all the essential features expected of a high-quality precision lathe, the TM-1740G is built to consistently produce accurate, professional results for years to come.
Backed by a comprehensive 2-year machine warranty for added peace of mind
Features
- 2 axis digital readout system
- Triple SKF German made bearings supporting headstock spindle
- Adjustable taper roller bearings providing spindle accuracy
- Precision 'V'-beds & headstock gears are all hardened & ground
- High quality one-piece Meehanite cast base increases rigidity
- Overload protection on drive motor and coolant system
- Universal enclosed gearbox incorporating metric & imperial thread capabilities
- Inching button incorporated on the control panel for convenient spindle speed selection
- Foot operated spindle brake with safety cut out switch
- 300mm Wide induction hardened heavy duty cast iron bed
- Removable gap bed allowing work piece to swing up to 650mm
- Powered longitudinal and cross feeds
- Adjustable 4 position length-stop mechanism for accurate repetitive operation
- Metric calibrated dials to apron, cross slide, compound slide and tailstock
- Coolant system with flexible hose enabling operator to manipulate flow direction
- Oil sight glass for head stock, gearbox and apron
- Low voltage LED work light
- Lubrication pump on saddle oiling slides
- D1-8 camlock spindle for quick chuck removal
- 12 Spindle speeds from 40 - 2000rpm
- Large 80mm spindle bore
- 5.5kW / 7.5HP 415V IE-3 main motor
Includes
- 2 Axis digital readout system
- 275mm 3-jaw chuck with reverse jaws
- 320mm 4-jaw chuck
- 356mm face plate
- Fixed Steady with roller bearings
- Travelling steady with roller bearings
- Quick change toolpost with 4 holders
- Taper turning attachment
- Leadscrew cover
- 4-position knock out feed system
- Dead centres
- Thread chasing dial
- Foot brake
- Coolant system
- LED Work light
- Rear splash guard
- Spindle reducing bush
- Instruction booklet
Compare Product Range
Specifications
| ORDER CODE | L632D |
|---|---|
| MODEL | TM-1740G |
| (mm)Swing Over Bed | 430 |
| (mm)Distance Between Centres | 1000 |
| (mm)Spindle Bore | 80 |
| (mm)Swing In Gap | 650 |
| (mm)Swing Over Cross-slide | 235 |
| Digital Readout System Fitted | Yes |
| Quick Change Toolpost Fitted | Optional |
| Taper Turning Attachment | Optional |
| Coolant System | Yes |
| (mm)Tool Height To Suit | 25 |
| (mm)Centre Height | 215 |
| Spindle Nose Size or Type | D1-8 Camlock |
| (mm)Bed Width | 300 |
| (MT)Headstock Spindle Taper | 7 |
| (MT)Tailstock Taper | 4 |
| (mm)Cross Slide Travel | 250 |
| (mm)Compound Slide Travel | 125 |
| Leadscrew Type | Metric |
| (mm/rev)Metric Cross Feed (X-Axis) | 0.02 - 0.4 |
| (mm/rev)Metric Longitudinal Feed (Z-Axis) | 0.05 - 0.82 |
| (No. / mm)Metric Thread Steps & Pitch | 17 (0.5 - 7) |
| (No. / TPI)Imperial Thread Steps & TPI | 39 (4 - 56) |
| (mm)3 Jaw Chuck Diameter | 275 |
| (mm)4 Jaw Chuck Diameter | 320 |
| (No. / rpm)Spindle Steps / Speeds | 12 (40 - 2000) |
| (kW / hp)Motor Power | 5.5 / 7.5 |
| (V / amp)Voltage / Amperage | 415 |
| (kg)Nett Weight | 1910 |
