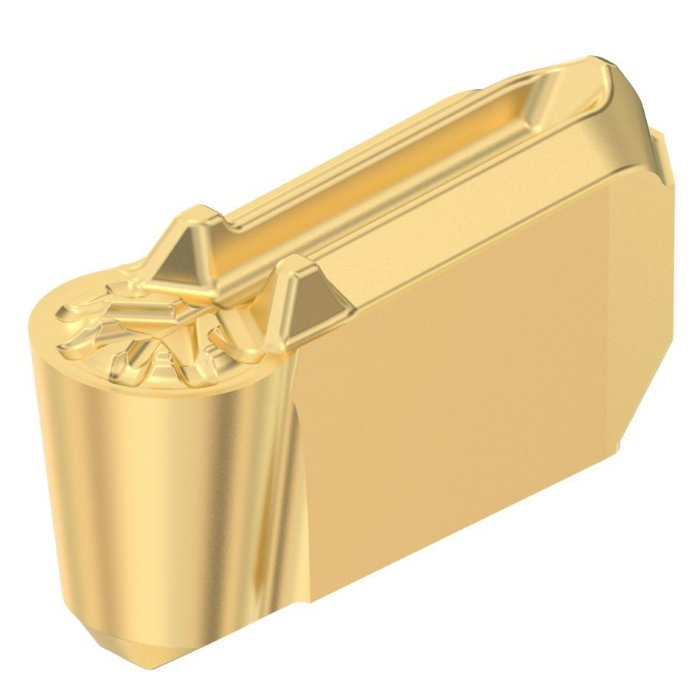

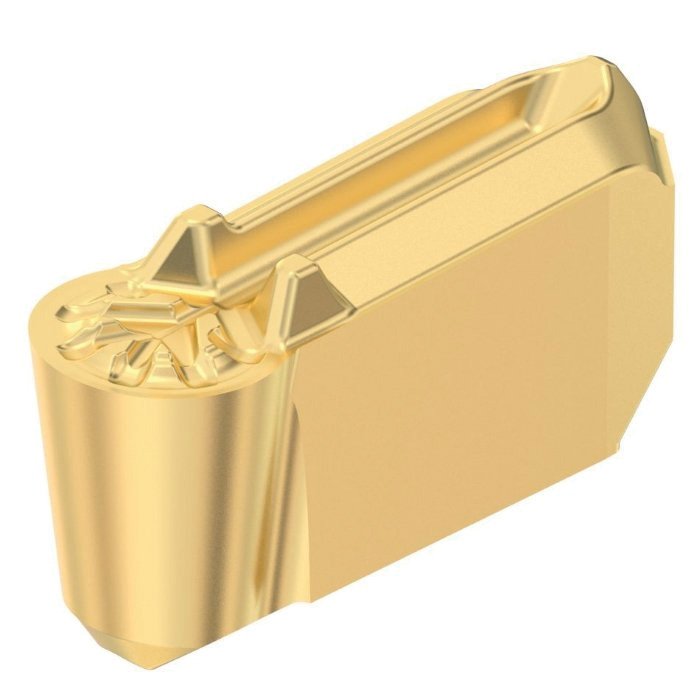

KENNAMETAL Grooving Insert EVO Generation - ERO212M02U00GUP
2.12mm Width Grooving Insert Grade KCU25B / Parting Blade code L4694 and L4695
10 Inserts Per Pack
L0510
1 of 1
On Sale - New Release
Order Code: L0510
ex-gst
inc-gst
$
139.09
$
153.00
$
126.36
$
139.00
Made in Germany
Description
KENNAMETAL Grooving Insert EVO Generation - ERO212M02U00GUP
2.12mm Width Grooving Insert Grade KCU25B / Parting Blade code L4694 and L4695
10 Inserts Per Pack
Overview
KCU25B upgrades Kennametal’s existing KCU25 with a newly engineered KENGold™ PVD, multilayer coating that makes machining from one material to another easy while also achieving consistency in cutting. The nano-composite coating has an enhanced coating adhesion that delivers better flank and chipping resistance. The new EVO grooving inserts fit into Parting Blade codes L4694 and L4695. Please click on Accessories for blade size requirement.
Features
- KCU25B - Coated grade
- 2.12mm Width
- 1.06mm Radius
- Made in Germany
- 10 Inserts Per Pack
Compare Product Range

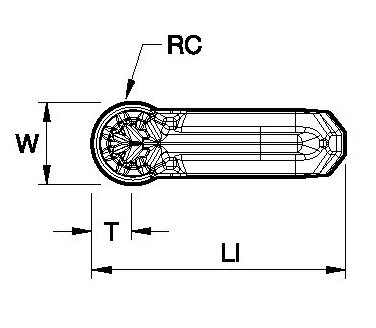

Specifications
| ORDER CODE | L0510 |
|---|---|
| ISO Catalog ID | ERO212M02U00GUP |
| Grade | KCU25B |
| (Type)Insert Hand | N |
| (mm)[W] Cutting Width | 2.12 |
| (mm)[RC] Corner Radius Center | 1.05 |
| (mm)[LI] Insert Length | 8.97 |
| (mm)[T] Cuttg Depth | 1.65 |
| (deg)Clearance Angle | 7.6° |
