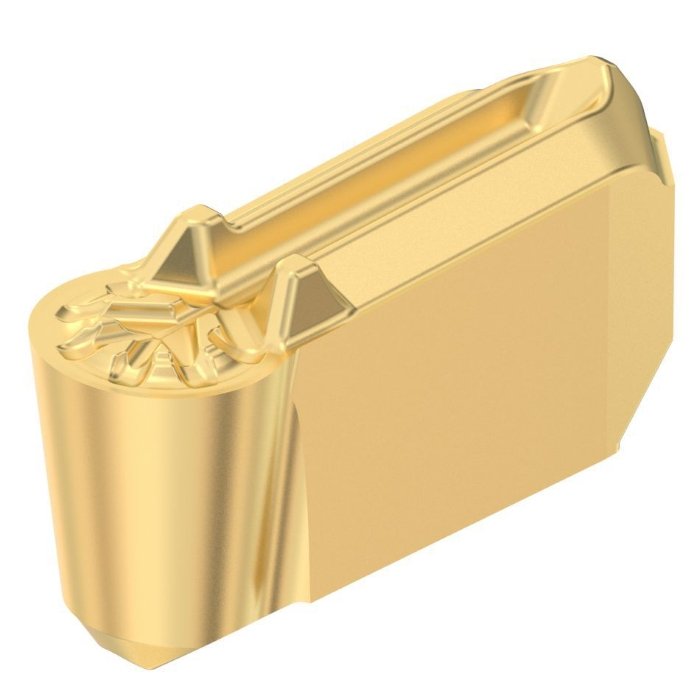

KENNAMETAL Grooving Insert EVO Generation - EGO400M04P04GUP
4.14mm Width Grooving Insert Grade KCU25B / Parting Blade code L4698 and L4699
10 Inserts Per Pack
L05111
1 of 1
Order Code: L05111
Made in Germany
Description
KENNAMETAL Grooving Insert EVO Generation - EGO400M04P04GUP
4.14mm Width Grooving Insert Grade KCU25B /
Parting Blade code L4698 and L4699
10 Inserts Per Pack
Overview
KCU25B upgrades Kennametal’s existing KCU25 with a newly engineered KENGold™ PVD, multilayer coating that makes machining from one material to another easy while also achieving consistency in cutting. The nano-composite coating has an enhanced coating adhesion that delivers better flank and chipping resistance. The new EVO grooving inserts fit into Parting Blade codes L4698 and L4699. Please click on Accessories for blade size requirement.
Features
- KCU25B - Coated grade: Suitable for heavy machining, particular suitable when turning Austenitic stainless steels. Reduces build up on the cutting edge
- 4.14mm Width
- 2.07mm Radius
- Made in Germany
- 10 Inserts Per Pack
Compare Product Range

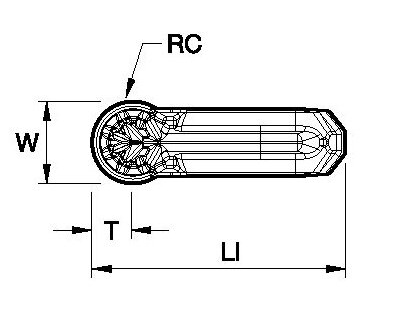

Specifications
| ORDER CODE | L05111 |
|---|---|
| ISO Catalog ID | ERG0400M04P04GUP |
| Grade | KCU25B |
| (Type)Insert Hand | N |
| (mm)[W] Cutting Width | 4.14 |
| (mm)[RC] Corner Radius Center | 2.07 |
| (mm)[LI] Insert Length | 9.6 |
| (mm)[T] Cuttg Depth | 1.56 |
| (deg)Clearance Angle | 7.6° |
- Compare:
- Wishlist:
- ORDER CODE
- ISO Catalog ID
- Grade
- (Type)Insert Hand
- (mm)Insert Size
- (mm)[W] Cutting Width
- (mm)[RC] Corner Radius Center
- (mm)[LI] Insert Length
- (mm)[T] Cuttg Depth
- (mm)[RR] Corner Radius
- (deg)Clearance Angle
- (ex-gst)Pricing
- (inc-gst)
-
-
Compare
-
Wishlist
- L0117
- ~
- ~
- ~
- ~
- 2
- ~
- ~
- ~
- ~
- $45.00
- $49.50
- ADD TO CART
- Back In Stock Soon
-
Compare
-
Wishlist
- L0118
- ~
- ~
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- ~
- $55.00
- $60.50
- ADD TO CART
- New Release
-
Compare
-
Wishlist
- L0508
- EC020M02N00CF02
- KCU25B
- N
- ~
- 2.00
- .02
- 8.97
- 1.65
- ~
- 7.6°
- $130.00
- $143.00
- ADD TO CART
- New Release
-
Compare
-
Wishlist
- L0509
- EC030M03N00CF02
- KCU25B
- N
- ~
- 3.00
- .02
- 8.97
- 1.65
- ~
- 7.6°
- $134.55
- $148.00
- ADD TO CART
- New Release
-
Compare
-
Wishlist
- L0510
- ERO212M02U00GUP
- KCU25B
- N
- ~
- 2.12
- 1.05
- 8.97
- 1.65
- ~
- 7.6°
- $139.09
- $153.00
- ADD TO CART
- New Release
-
Compare
-
Wishlist
- L0511
- ERO312M03U00GUP
- KCU25B
- N
- ~
- 3.13
- 1.58
- 9.6
- 1.56
- ~
- 7.6°
- $143.64
- $158.00
- ADD TO CART
-
-
Compare
-
Wishlist
- L0512
- A2022N00CR02
- KCU25B
- N
- 2
- 2.2
- ~
- ~
- ~
- 0.2
- 7.6°
- $139.09
- $153.00
- ADD TO CART
-
-
Compare
-
Wishlist
- L0513
- A2030N00CR02
- KCU25B
- N
- 3
- 3
- ~
- ~
- ~
- 0.2
- 7.6°
- $139.09
- $153.00
- ADD TO CART
