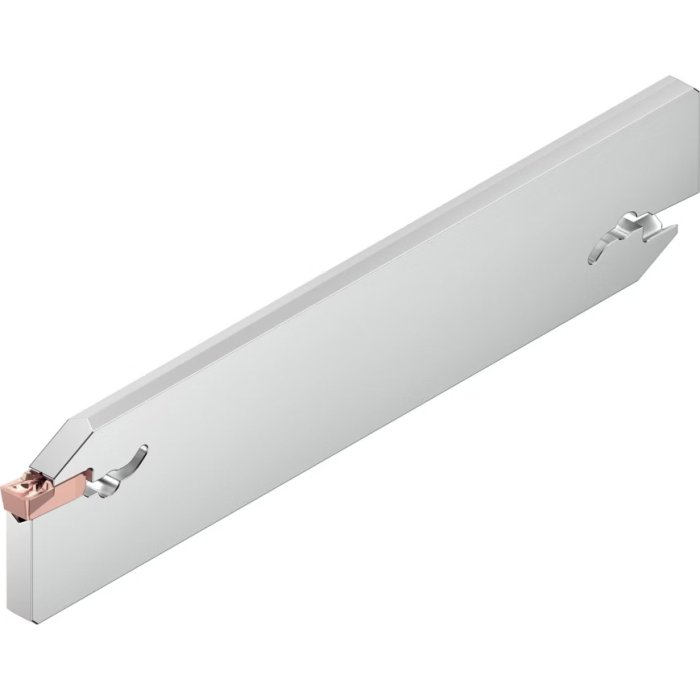

Parting Blade - EVBSN32M0450
32 x 4mm
Suits Grooving & Parting Inserts
L4699
1 of 1
Order Code: L4699
Made in Germany
Description
Parting Blade - EVBSN32M0450
32 x 4mm
Suits Grooving & Parting Inserts
Overview
To suit Kennametal EVO inserts
Uses insert L05091 Parting Insert 4mm and L05111 Grooving Insert 4.14mm
Uses insert L05091 Parting Insert 4mm and L05111 Grooving Insert 4.14mm
Features
- Blades have top and bottom V-prism design enabling greater clamping force preventing insert movement, even when cutting at high feed rates
Optional Accessories
- 4mm Width Parting Insert EVO Generation (L05091)
- 4.14mm Width Grooving Insert EVO Generation (L05111)
Compare Product Range
Specifications
| ORDER CODE | L4699 |
|---|---|
| ISO Catalog ID | EVBSN32M0450 |
| (mm)(H) Blade Height | 32 |
| (mm)(W) Insert Width | 4 |
| (mm)(H1) Cutting Height | 31.05 |
| (mm)(L1) Blade Length | 150.25 |
| (mm)(B) Blade Width | 4.0 |
- Compare:
- Wishlist:
- ORDER CODE
- ISO Catalog ID
- (mm)(H) Blade Height
- (mm)(W) Insert Width
- (mm)(H1) Cutting Height
- (mm)(L1) Blade Length
- (mm)(B) Blade Width
- (ex-gst)Pricing
- (inc-gst)
-
-
Compare
-
Wishlist
- L0007
- ~
- 1/2"
- ~
- ~
- 4"
- 3/32"
- $23.00
- $25.30
- ADD TO CART
-
-
Compare
-
Wishlist
- L0008
- ~
- 5/8"
- ~
- ~
- 5"
- 3/32"
- $28.00
- $30.80
- ADD TO CART
-
-
Compare
-
Wishlist
- L0102
- ~
- 19
- ~
- ~
- 86
- 2
- $27.00
- $29.70
- ADD TO CART
-
-
Compare
-
Wishlist
- L0103
- ~
- 19
- ~
- ~
- 86
- 3
- $27.00
- $29.70
- ADD TO CART
-
-
Compare
-
Wishlist
- L0112
- ~
- 26
- ~
- ~
- 110
- 2
- $29.00
- $31.90
- ADD TO CART
-
-
Compare
-
Wishlist
- L468
- ~
- 26
- ~
- ~
- 110
- 2
- $95.00
- $104.50
- ADD TO CART
- New Release
-
Compare
-
Wishlist
- L4694
- EVBSN26M0230
- 26
- 2
- 21.45
- 150.25
- 1.65
- $160.00
- $176.00
- ADD TO CART
- New Release
-
Compare
-
Wishlist
- L4695
- EVBSN26M0250
- 32
- 2
- 25.05
- 150.25
- 1.65
- $160.00
- $176.00
- ADD TO CART
- New Release
-
Compare
-
Wishlist
- L4696
- EVBSN26M0340
- 26
- 3
- 21.45
- 150.25
- 2.4
- $160.00
- $176.00
- ADD TO CART
- New Release
-
Compare
-
Wishlist
- L4697
- EVBSN32M0350
- 32
- 3
- 25.05
- 150.25
- 2.4
- $160.00
- $176.00
- ADD TO CART
-
-
Compare
-
Wishlist
- L0113
- ~
- 26
- ~
- ~
- 110
- 3
- $29.00
- $31.90
- ADD TO CART
-
-
Compare
-
Wishlist
- L469
- ~
- 26
- ~
- ~
- 110
- 3
- $95.00
- $104.50
- ADD TO CART
-
-
Compare
-
Wishlist
- L4693
- ~
- 32
- ~
- ~
- 150
- 3
- $105.00
- $115.50
- ADD TO CART
