Parting Blade - EVBSN26M0230
26 x 2mm
Grooving Insert Blade
L4694
1 of 1
Order Code: L4694
Made in Germany
Description

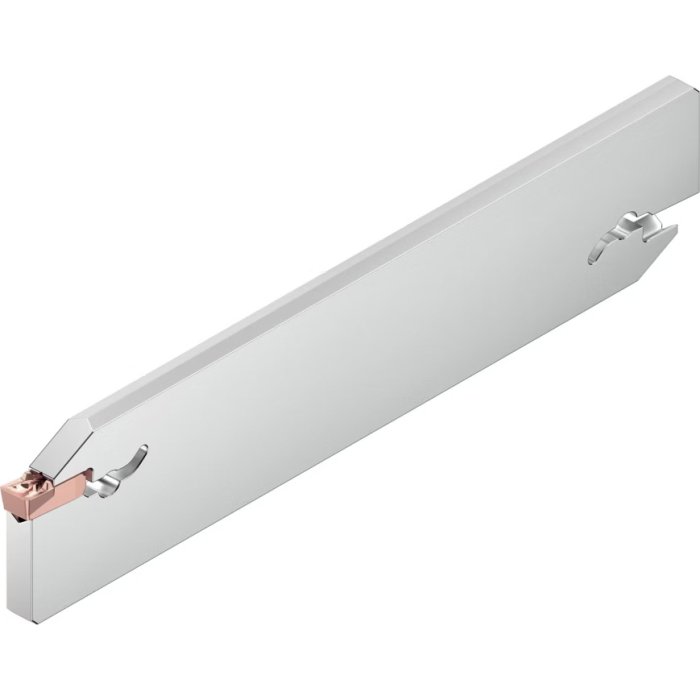

Parting Blade - EVBSN26M0230
26 x 2mm
Grooving Insert Blade
Overview
To suit Kennametal EVO inserts
Uses insert L0510
Uses insert L0510
Features
- Blades have top and bottom V-prism design enabling greater clamping force preventing insert movement, even when cutting at high feed rates
Compare Product Range

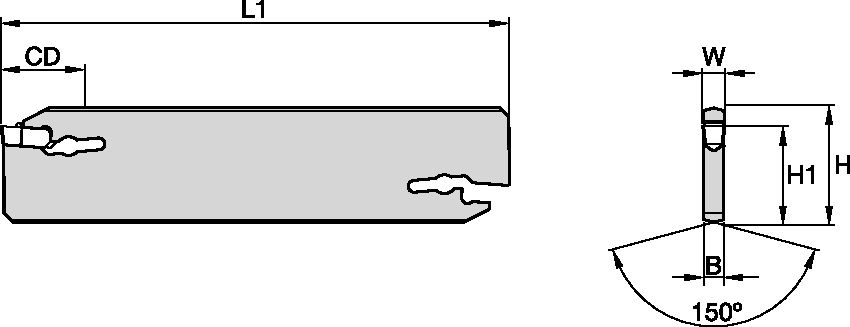

Specifications
| ORDER CODE | L4694 |
|---|---|
| ISO Catalog ID | EVBSN26M0230 |
| (mm)(H) Blade Height | 26 |
| (mm)(W) Insert Width | 2 |
| (mm)(H1) Cutting Height | 21.45 |
| (mm)(L1) Blade Length | 150.25 |
| (mm)(B) Blade Width | 1.65 |
