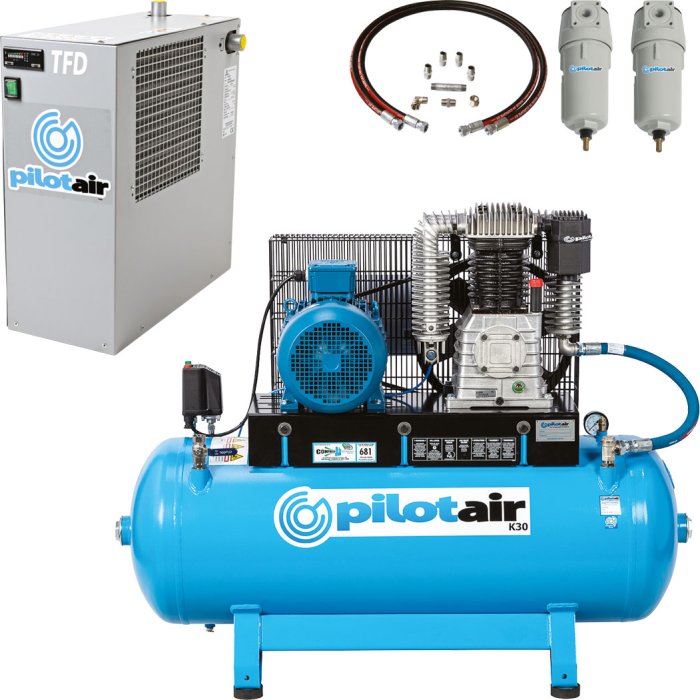

K30 - Industrial Pilot Air Compressor & TFD-10 Refrigerated Air Dryer Package Deal
200 Litre / 7.5hp
30.8cfm / 871.8lpm Piston Displacement

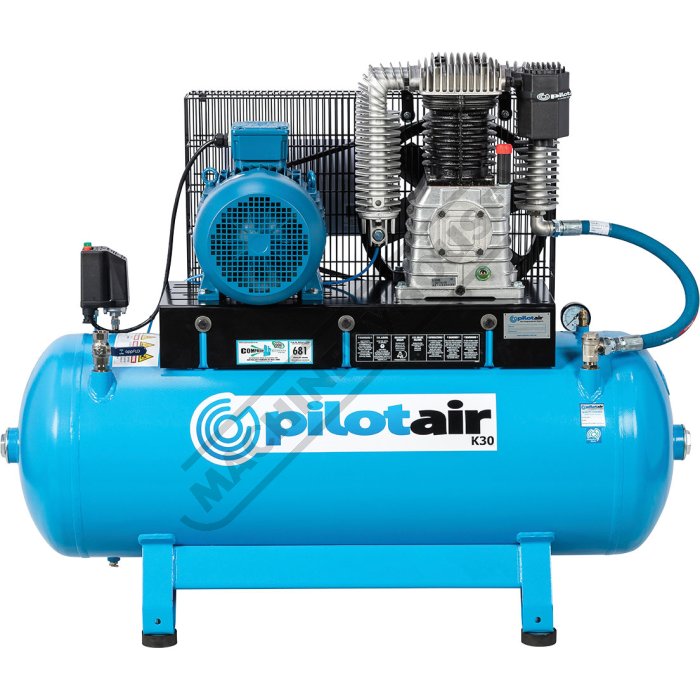

K30 - Industrial Air Compressor - (C525)
Pilot Air has over 30 years experience providing reliability & versatility in the compressed air industry
Two stage Italian made compressor pumps with after-cooler and intercooler for greater free air delivery and higher pressure
Cast iron cylinders and stainless steel valves give long life, high efficiency & reliability
3-year warranty on Italian pumps, 12 months warranty on other components, backed by Nationwide service network

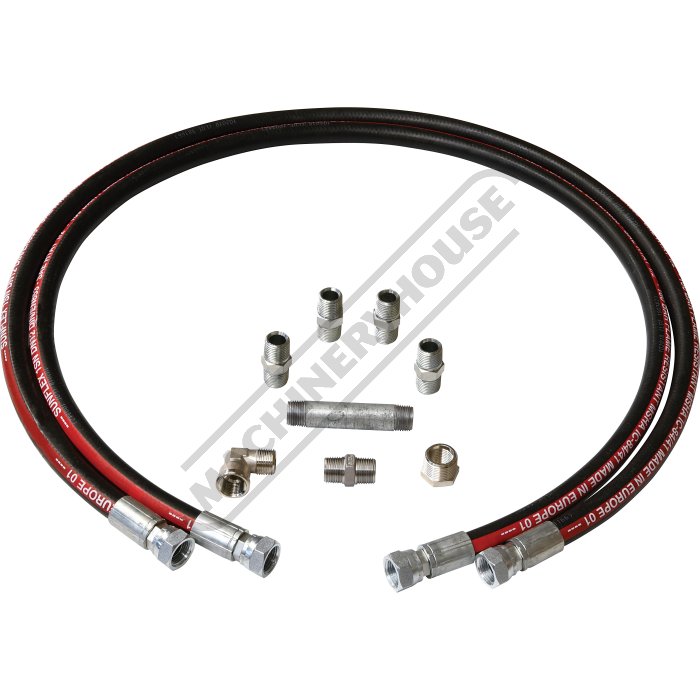

Supplied with high pressure, high temp resistant hoses for durability
TEFC motors with auto stop/start control
Performance tested to AS 4637
Made to Australian Standard AS1210
Custom built compressors available on request
TFD-10 - Refrigerated Compressed Air Dryer - (C5451)
Flow Rate - L/min - cfm, 990L/min - (35cfm)
Flow Rate - L/sec - 16.5 L/sec
The New TFD Series supersedes the ACT Dryer Series
Manufactured by the same supplier as the ACT Dryer
Price competitive –savings of up to 18.2% versus the ACT Dryer
Up to 30.9% higher flow rate versus the ACT Dryer
Upgraded Electronic Control Panel –DMC35
Operation of the dryer is monitored by a digital thermometer in the control panel
Upgrade available for alarm monitoring
Three new models added to the range, making it easier for you to size the best option for the right application
Tested and Rated at 35oC
Full range of spare parts available
Warranty: 12 months on all new dryers
The counter flows of compressed air in the air to air heat exchanger ensure maximum heat transfer.
Generous dimensions of the air to refrigerant heat exchanger plus the counter flow gas streams allow full and complete evaporation of the refrigerant (preventing liquid returning to the compressor).
The high efficiency condensate separator is located within the heat exchange module.
The large capacity separator is designed to operate even with high humidity levels in compressed inlet air.
The large cross section of flow channels within the heat exchanger module aids flow rates and leads to reduced power requirements.
It is mandatory to install a dryer pre-filter with a grade of a least 3 microns before the dryer to prevent rust, scale or other pollutants clogging the Alu-Dry module and the condensate drain. Failure to do so will void warranty on the dryer
