MH-19 - Power Hammer

1.6mm Mild Steel Capacity

482.6mm Throat Depth

B8935 1 of 15

MH-19 Power Hammer, Hollywood Hot Rods on the Baileigh (B8935) 2 of 15

Metal shaping by Baileigh Industrial 3 of 15

Baileigh Industrial The power hammer story by Chris Rusch Metal Shaping 4 of 15

Right View 5 of 15

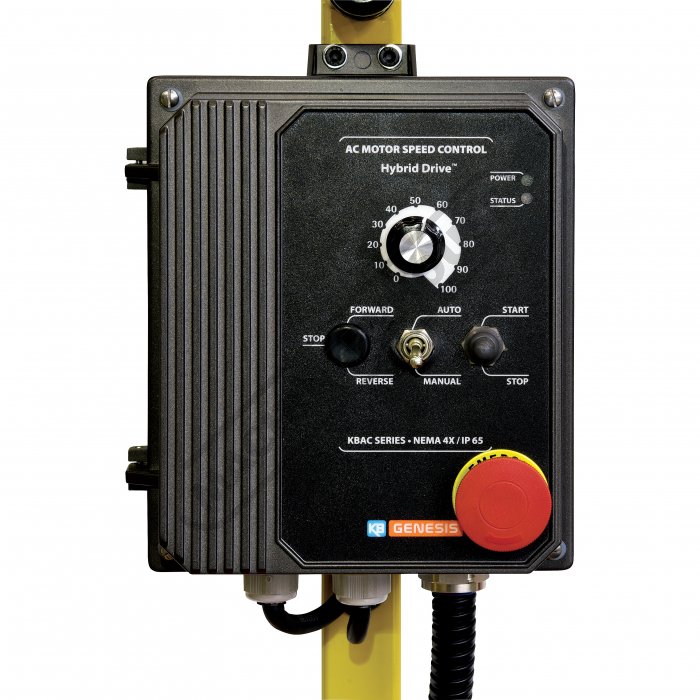

Machine Controls Hybrid Drivel 6 of 15

Speed Control Hybrid Drive 7 of 15

Stroke Adjustment Scale 8 of 15

Adjustable Depth Stop 9 of 15

Stroke Adjustment Lock 10 of 15

Quick Release Die Holder Positioning 11 of 15

Quick Release Pin for Die Changeover 12 of 15

Removing Quick Release Die Pin 13 of 15

Top Tool Height Adjustment Scale & Lock 14 of 15

Manual Cycle Hand Wheel 15 of 15

BAILEIGH

Discontinued

Order Code: B8935

240V / 10A
1 Year Warranty

Made in U.S.A

Sorry, this Product is no longer available
Click Here To View All Planishing & Power Hammers

Compare

Wishlist

Description Specifications Compare Accessories Related Downloads Spare Parts

Description

MH-19 - Power Hammer

1.6mm Mild Steel Capacity

482.6mm Throat Depth

Overview

Our best-selling power hammer, the MH-19 is the only metal-shaping tool you’ll need. Built from 25.4mm thick steel, this USA-made machine can drastically shape panels, planish, and more.

Features

482.6mm throat depth
1.6mm mild steel capacity
Variable speed from 0 to 1,500 beats per minute
You can increase the BPM to hit lightly for planishing and smoothing out dents
Change the speed in 2 ways: by foot pedal or through the operator panel
Switch between rigid and non-rigid modes to suit your project
Pullmax®-style mode for short stroke shaping and flanging
Spring-slapping Yoder®-style mode for aggressive shrinking and planishing
On-the-fly stroke adjustments range from 4.5 - 14mm
1.5kW / 2hp motor power, 240 volt
Die sets are available for shrinking, stretching, flanging, and making louvers. You can also create custom dies for the machine
Tooling design allows you to switch dies quickly for smooth production
Comes standard with a tooling rack on the side of the machine
Solid steel plate frame prevents flex, ensures high-quality hits, and helps this power hammer last for many years
Arrives fully assembled. Just unpack it, plug it in, and get started
Includes set of thumbnail dies, master flat top die, and 6" x 1" flat top die

Optional Accessories

You can bolt a planishing hammer attachment to the side of the machine for when you need to finish a piece.
Robust English wheel kit can bring even more versatility to the machine.

Specifications

Compare Product Range

Specifications

ORDER CODE	B8935
MODEL	MH-19
(Type)Machine	Power Hammer
(mm / Gauge)Mild Steel - Capacity	1.6 / 16
(mm / Gauge)Aluminium - Capacity	2.5 / 12
(mm)Tooling Height Adjustment	50.8
(mm)Throat Depth	482.6
(mm)Length of Stroke Adjustment	4.5 - 14
(BPM)Speed - blows per minute	0 - 1500 (Variable)
(kW / hp)Motor Power	1.5 / 2
(V / amp)Voltage / Amperage	240
(kg)Nett Weight	726
