PHM-940HD - Power Hammer

2.0mm Mild Steel Capacity

940mm Throat Depth

S2287 1 of 35

S228 Power Hammer 2 of 35

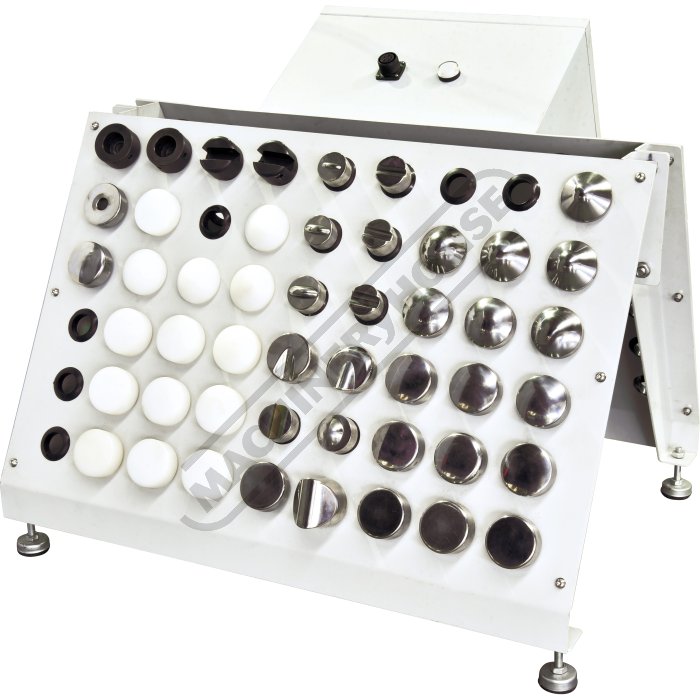

Die Holder and Power Box 3 of 35

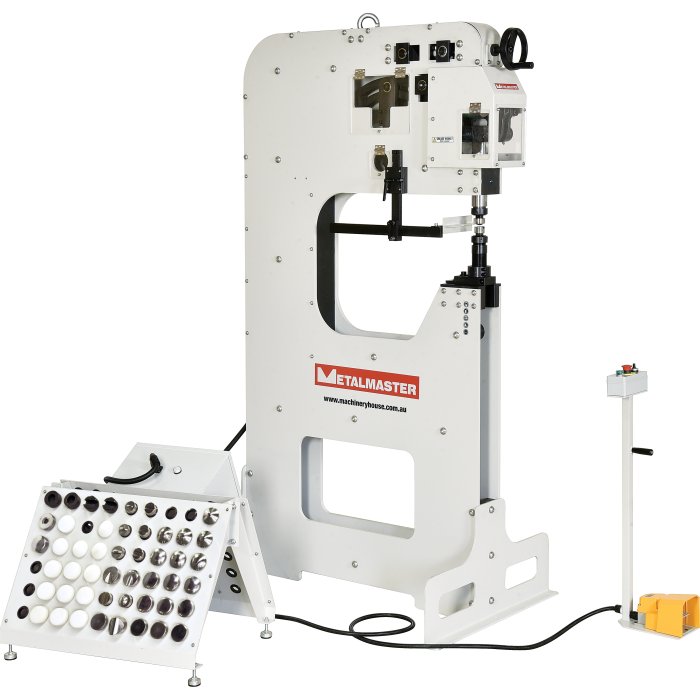

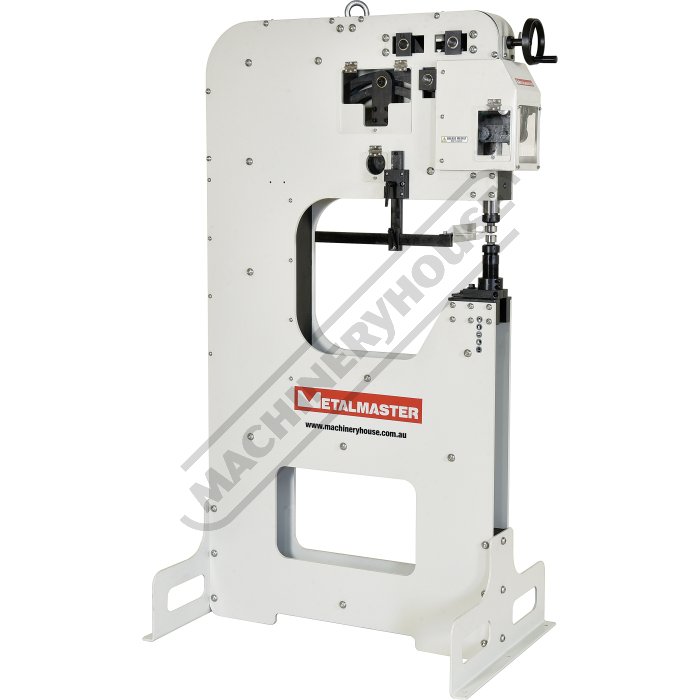

Machine Only 4 of 35

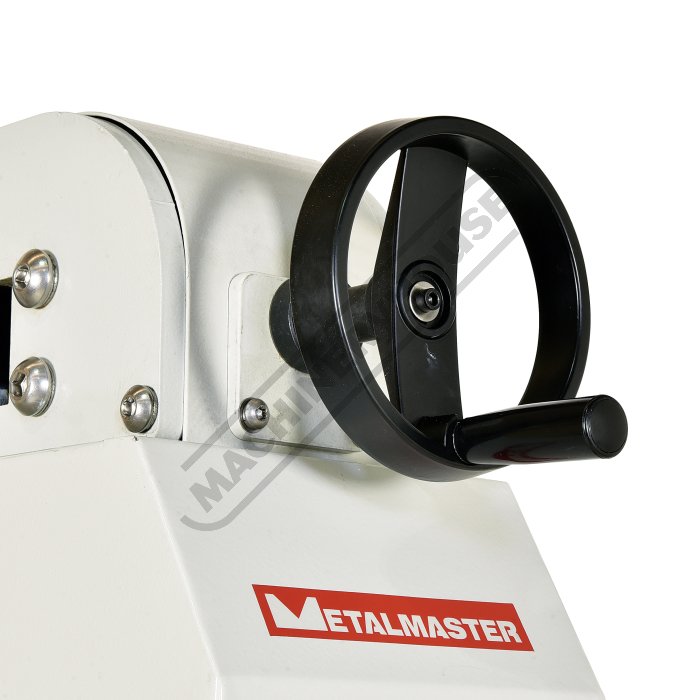

Stroke Adjustment Hand Wheel 5 of 35

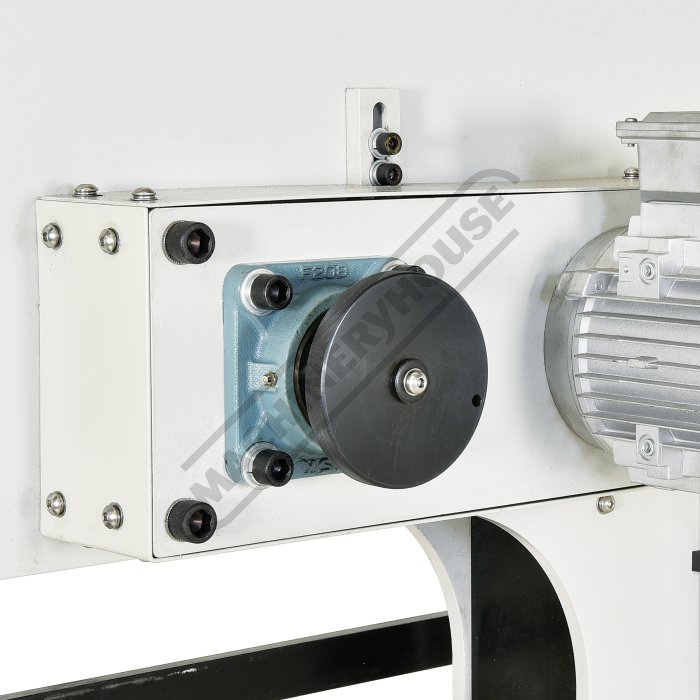

Top Tool Adjustment Hand Wheel 6 of 35

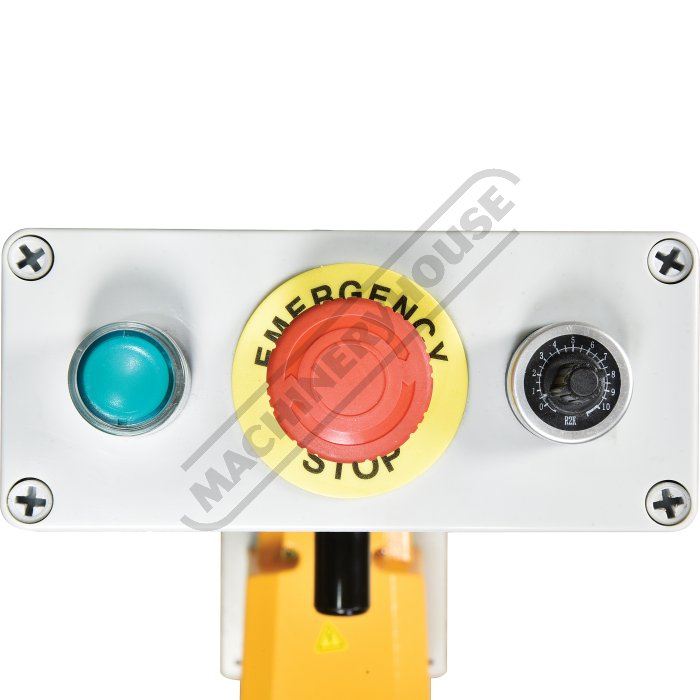

Power and Speed Contol 7 of 35

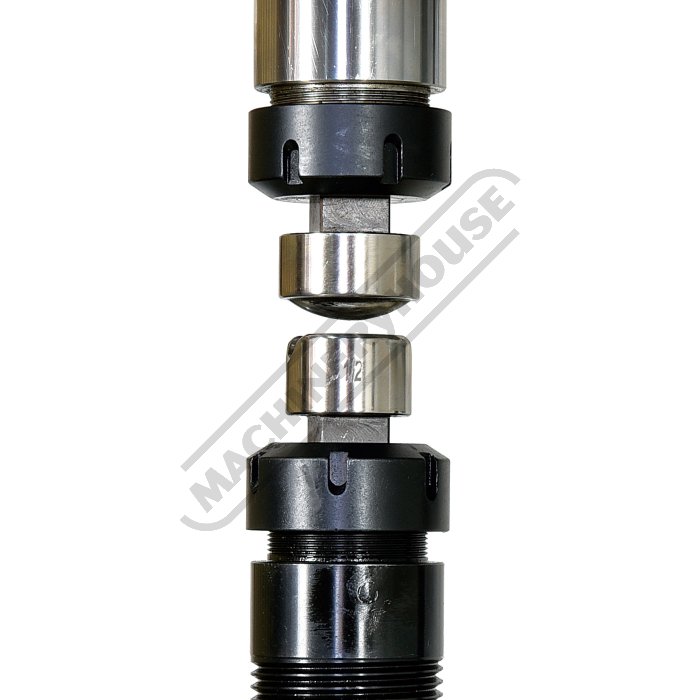

Quick Change Tooling 8 of 35

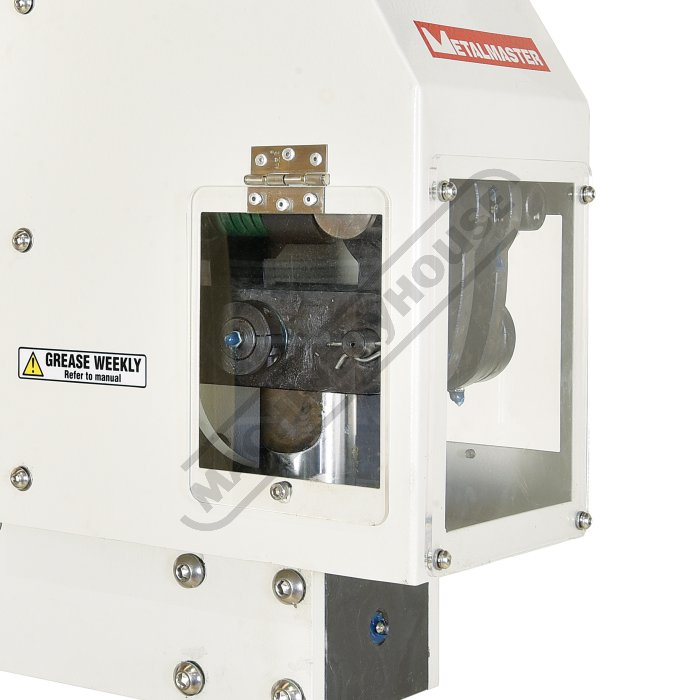

Clear Viewing Window for Adjustment Settings 9 of 35

14mm Thick Steel Frame 10 of 35

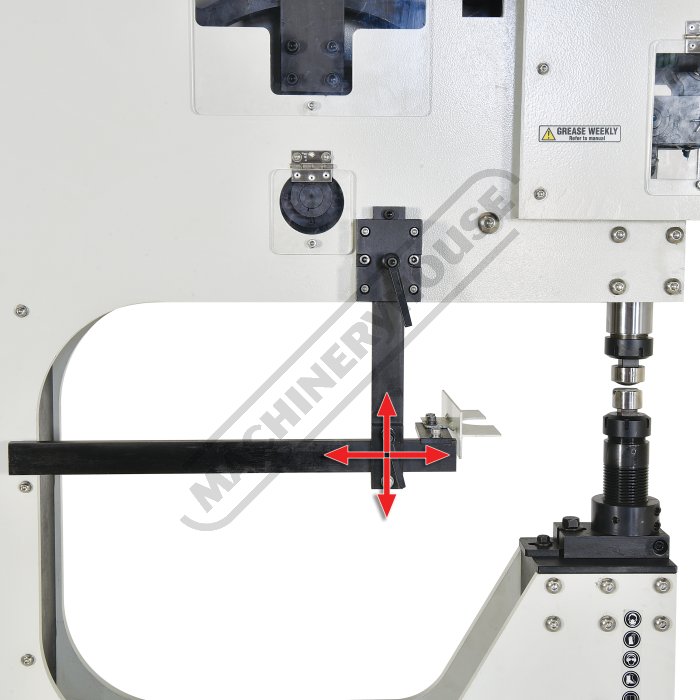

Stop Adjustable Depth Positions 11 of 35

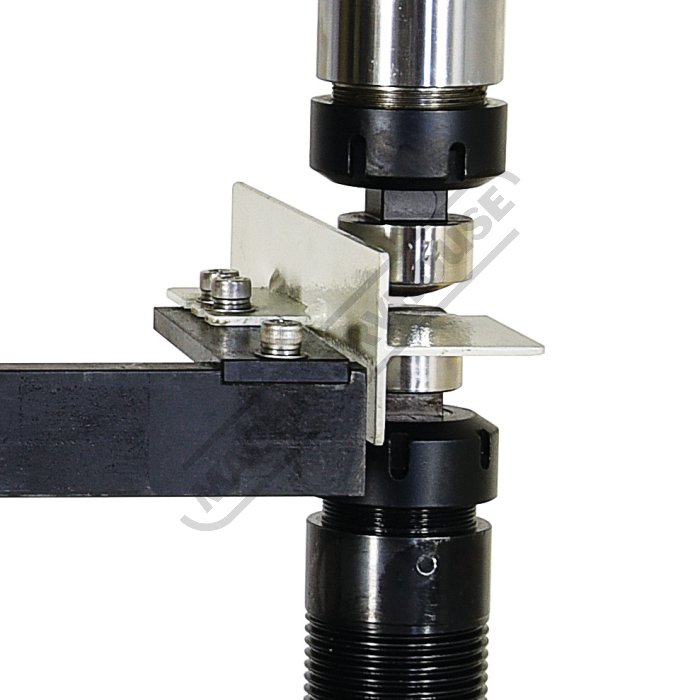

Adjustable Back Stop 12 of 35

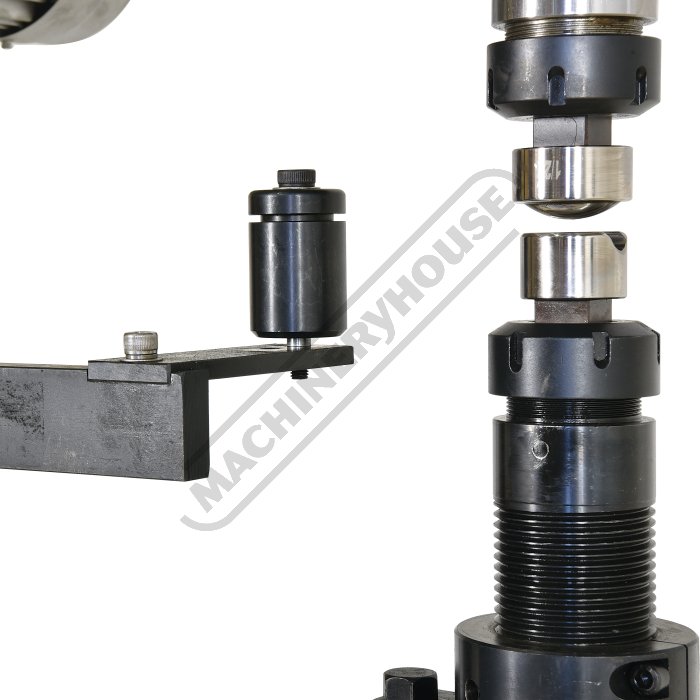

Round Roller Guide 13 of 35

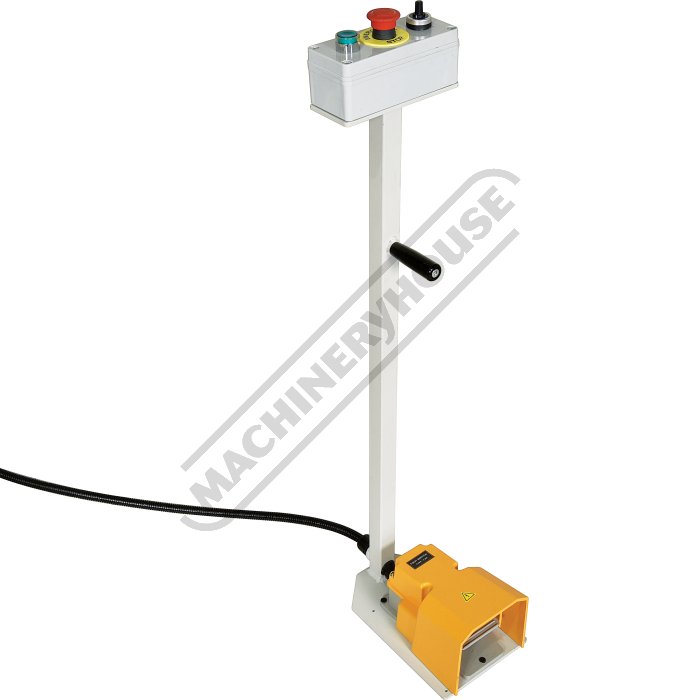

Foot Control 14 of 35

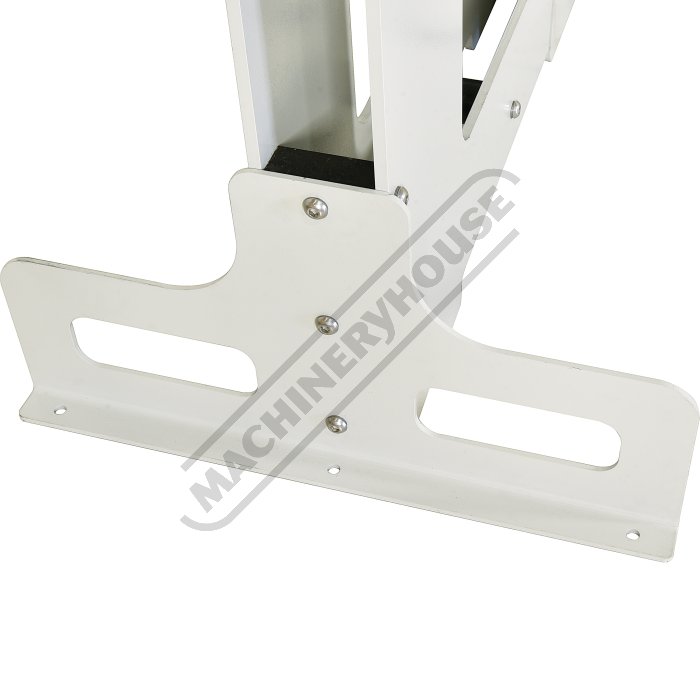

Wide Feet with Anchor Holes 15 of 35

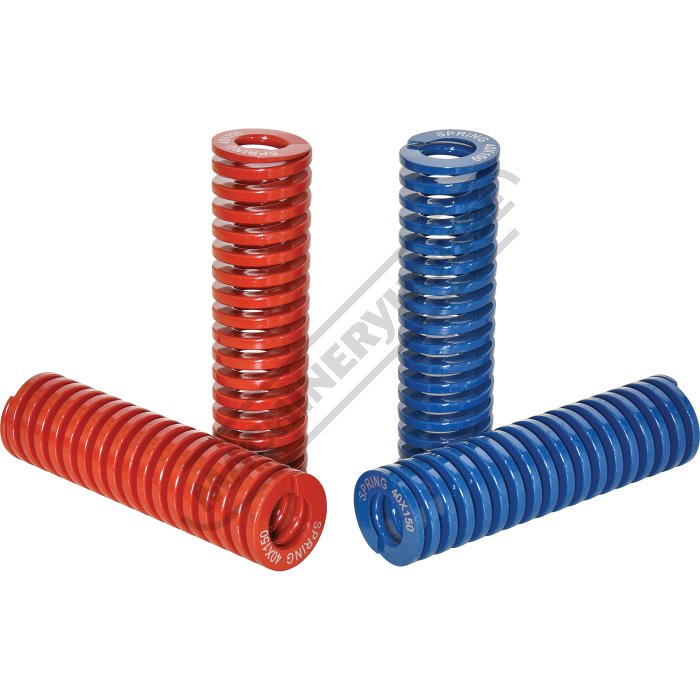

Soft, Medium & Hard Springs (Medium are Factory Fitted) 16 of 35

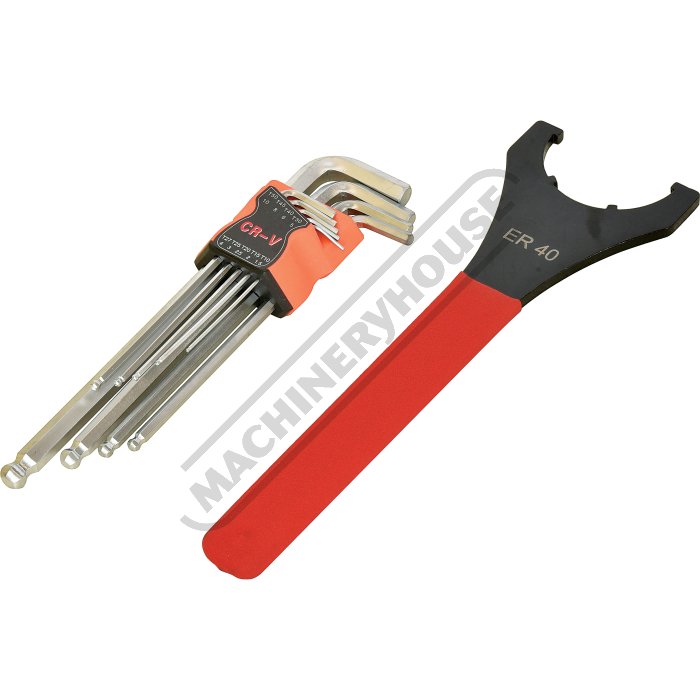

Included Tools 17 of 35

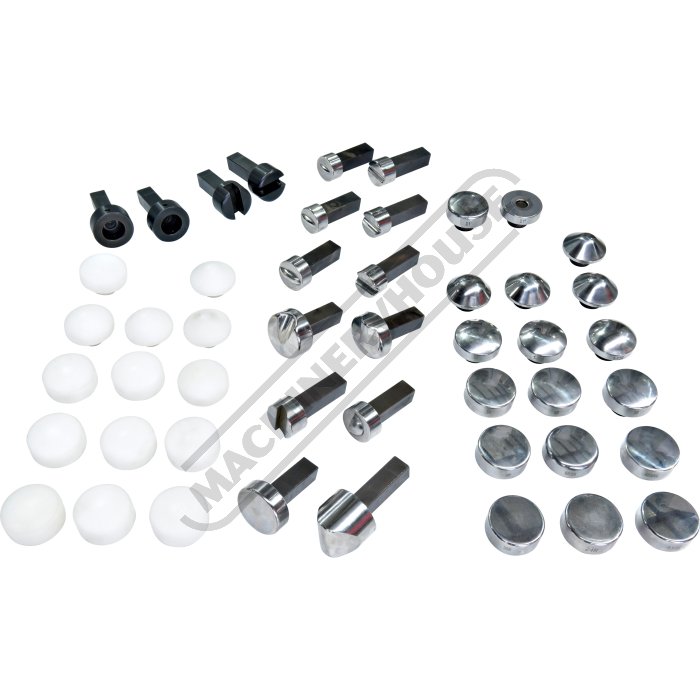

Included Dies and Holders 18 of 35

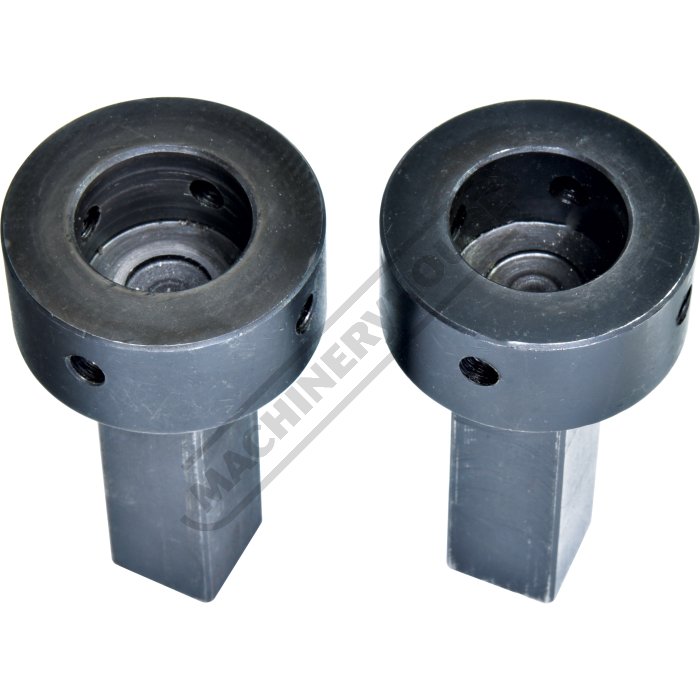

1 x Set of Round Die Holders - Ø30 x 20mm (22mm square shank) 19 of 35

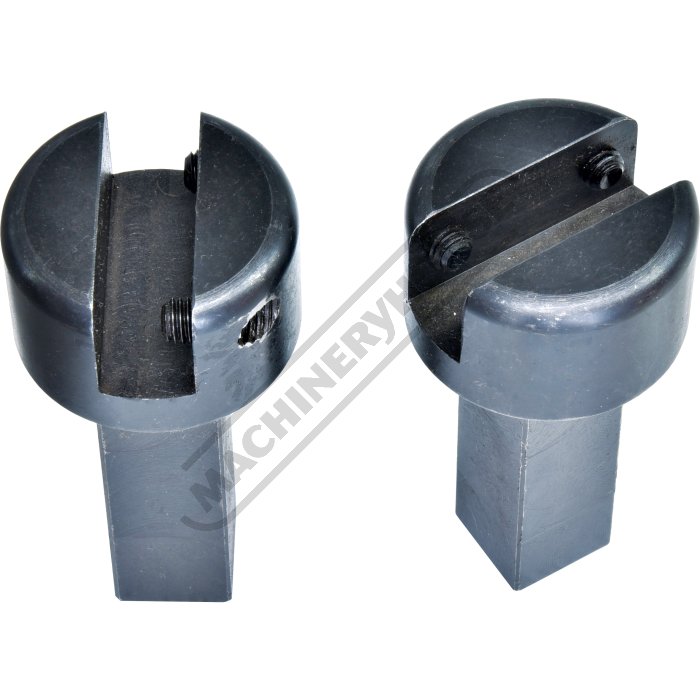

1 x Set of Universal Die Holders - 16mm opening (22mm square shank) 20 of 35

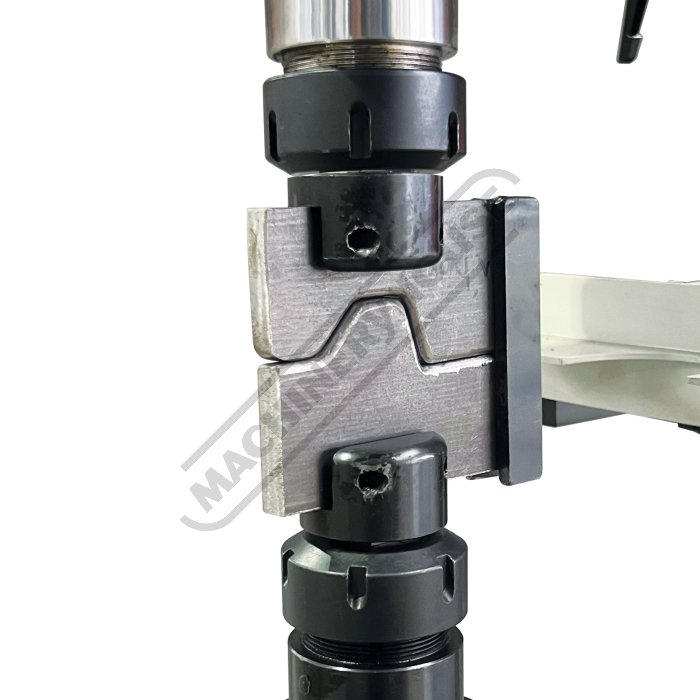

Shown Set Up with Optional Custom Made Tooling 21 of 35

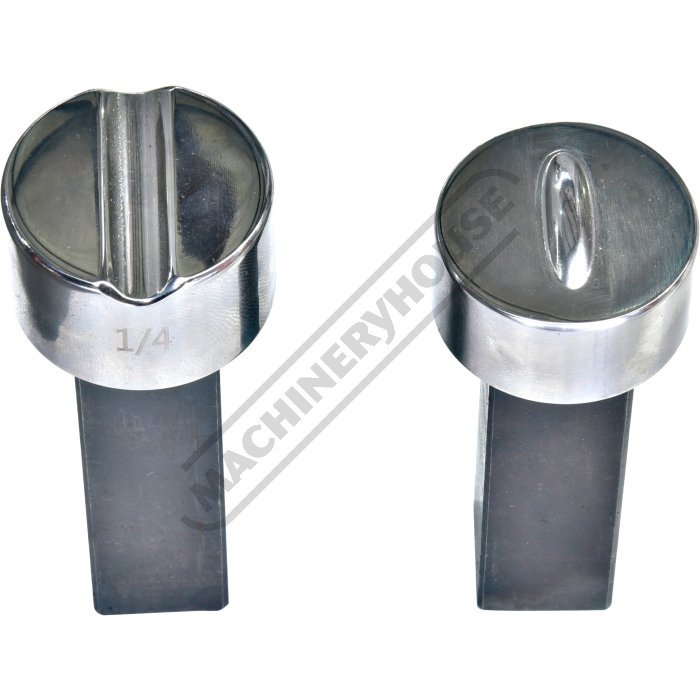

1 x Set of 1/4 Inch Beading Dies (22mm square shank) 22 of 35

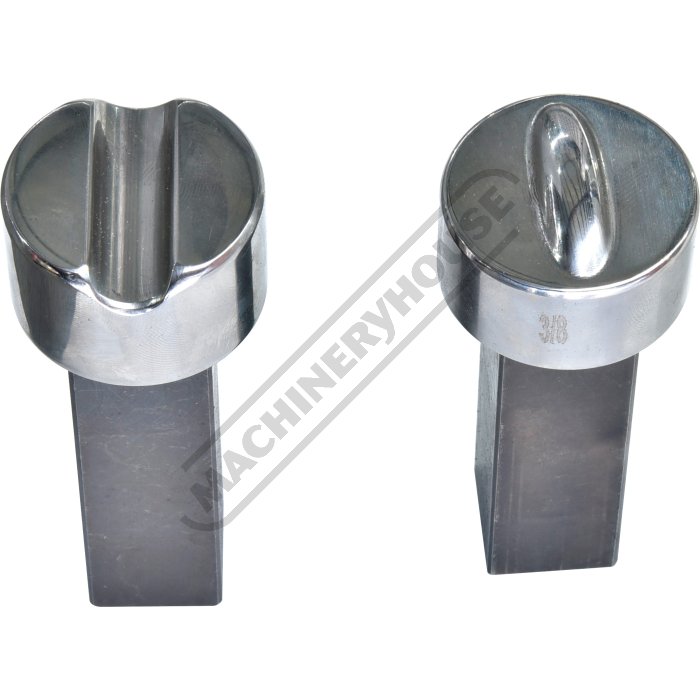

1 x Set of 3/8 Inch Beading Dies (22mm square shank) 23 of 35

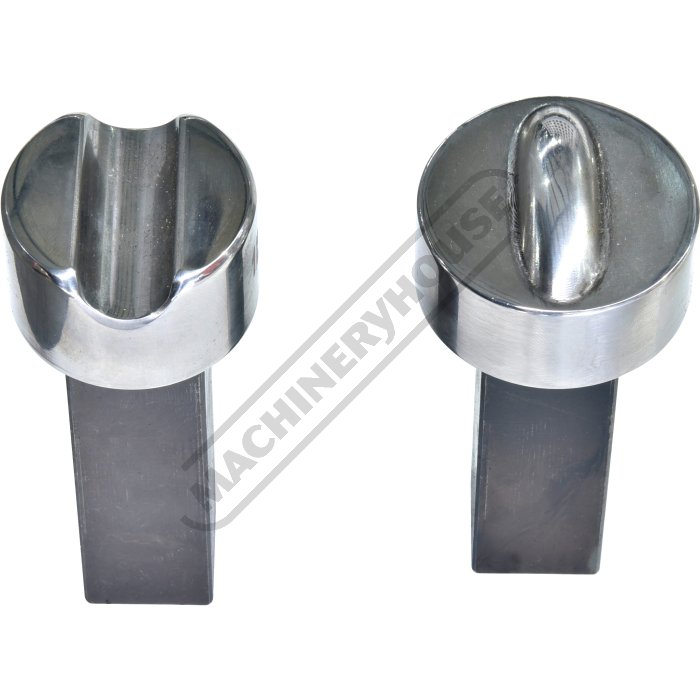

1 x Set of 1/2 Inch Beading Dies (22mm square shank) 24 of 35

1 x Set of Thumbnail Shrinking Dies (22mm square shank) 25 of 35

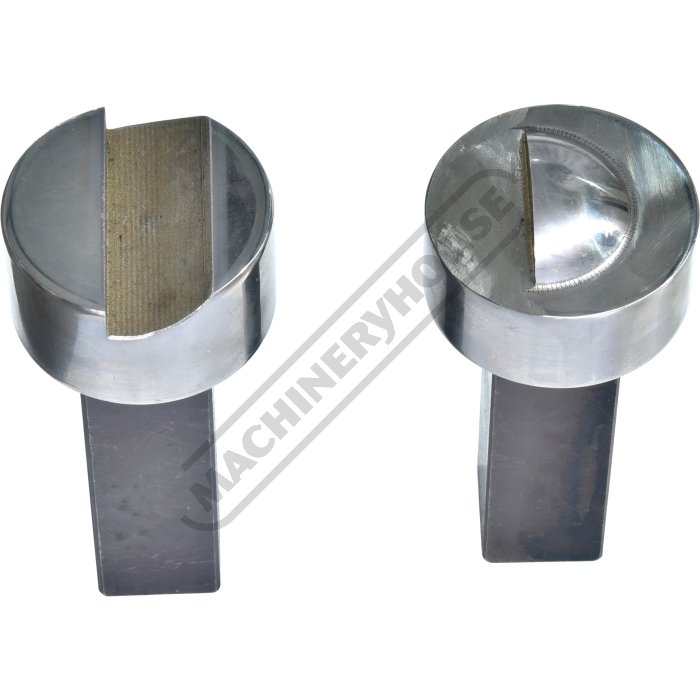

1 x Set of Louvre Dies (22mm square shank) 26 of 35

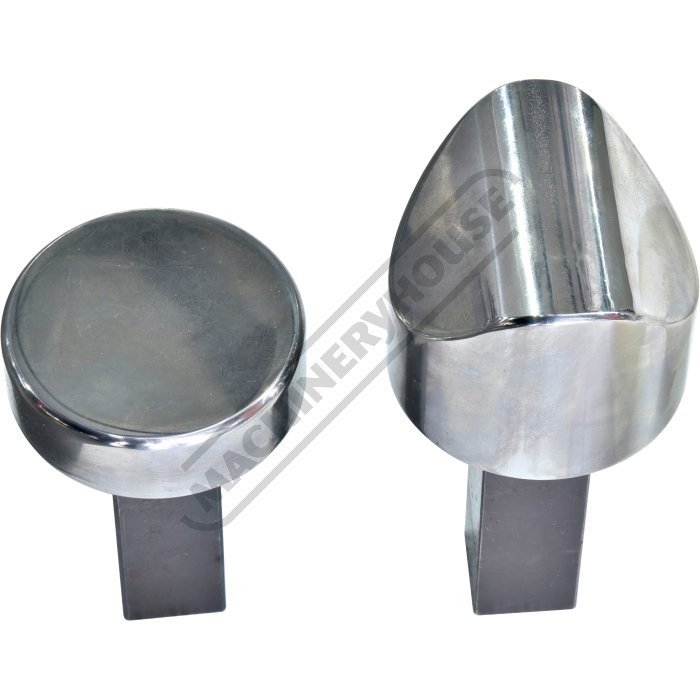

1pc x Linear Stretching Die and Upper Die (22mm square shank) 27 of 35

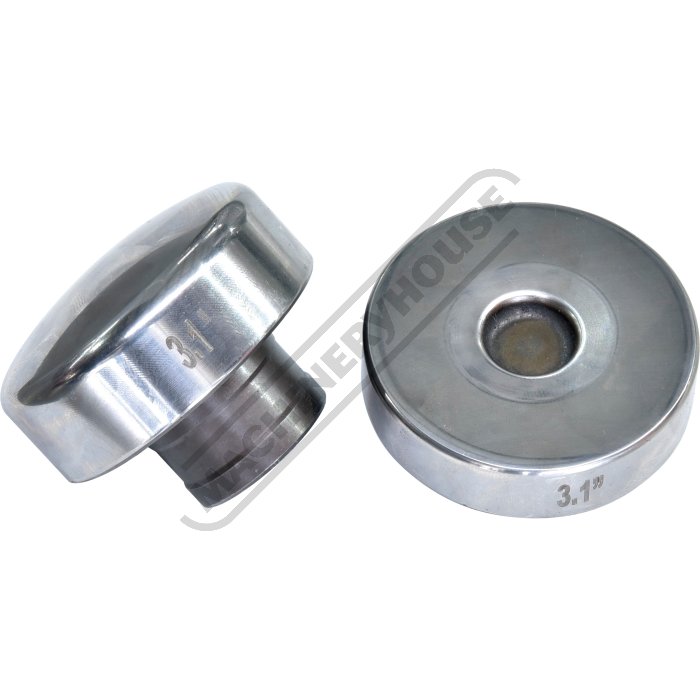

1 x Set of 3.1 Inch Doming Dies (Ø30 x 20mm round shank) 28 of 35

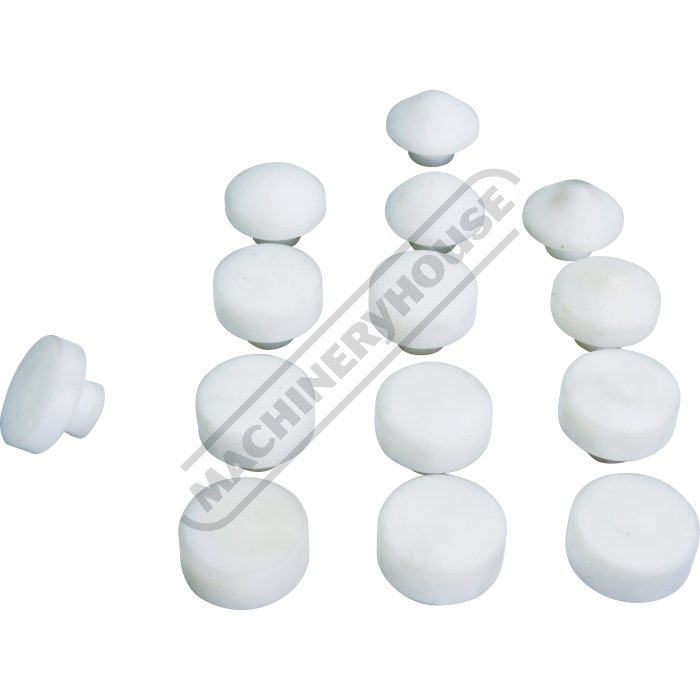

Nylon Lower Dies and Upper Die (Ø30 x 20mm round shank) 29 of 35

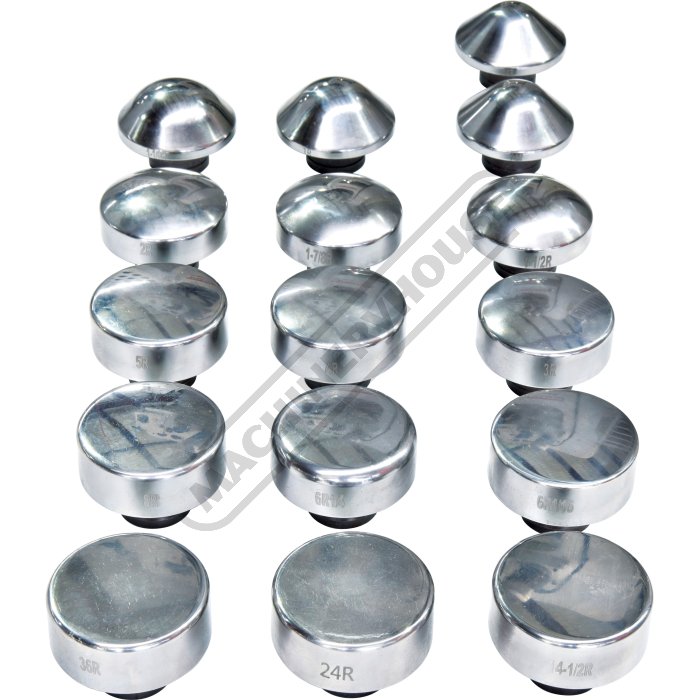

Steel Lower Dies (Ø30 x 20mm round shank) 30 of 35

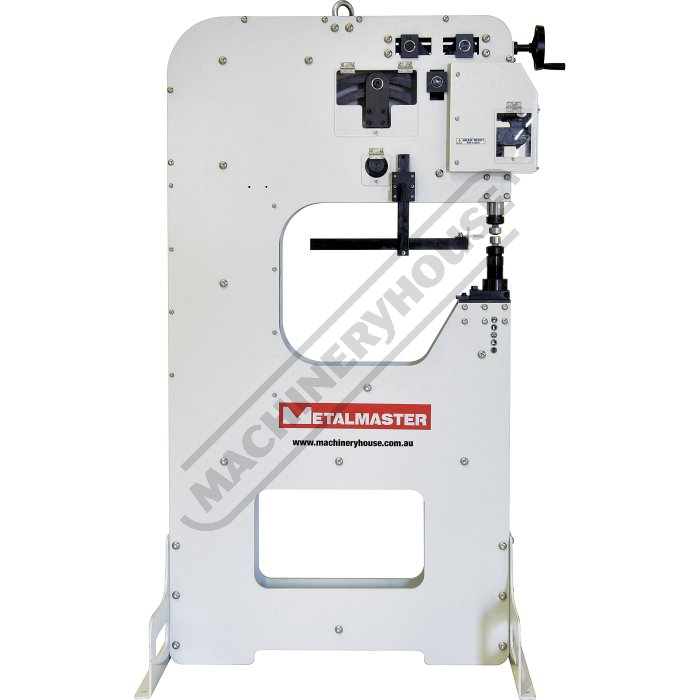

Side View 31 of 35

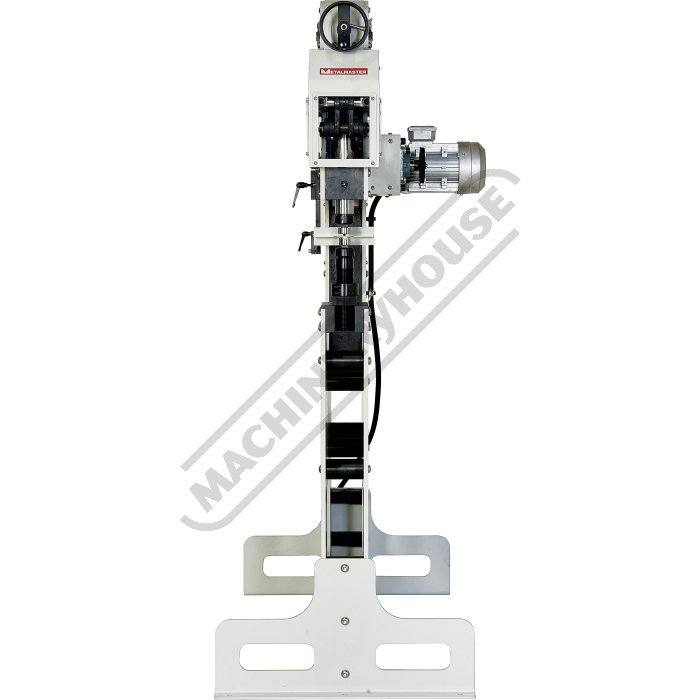

Front View 32 of 35

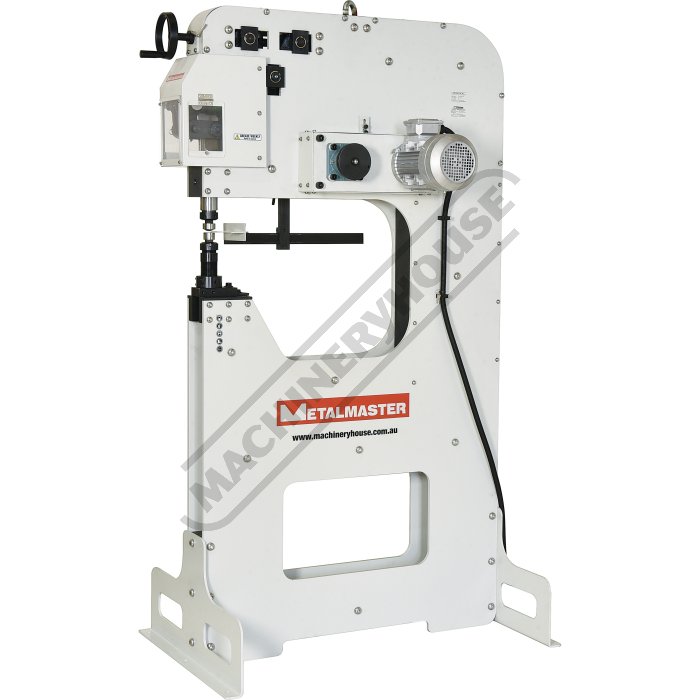

Right Side 33 of 35

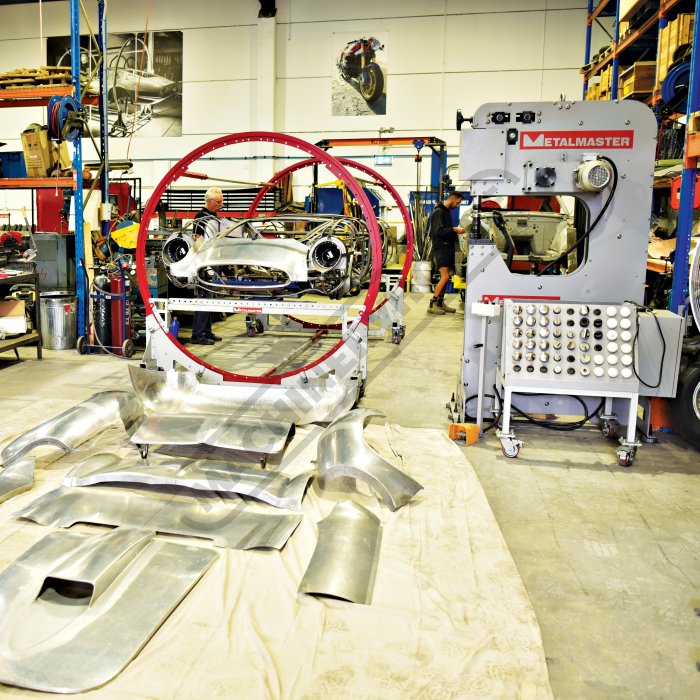

All Car Parts Made on Power Hammer 34 of 35

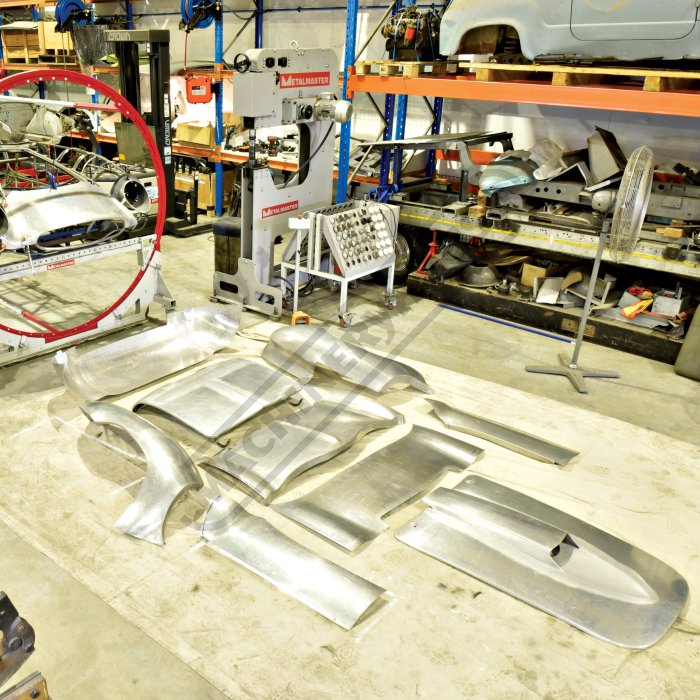

All These Car Parts Made on Power Hammer 35 of 35

METALMASTER

On Sale - Back In Stock Soon

Order Code: S2287

ex-gst

inc-gst

^$ 10,450.00

^$ 11,495.00

^$ 9,990.00

^$ 10,989.00

240V / 10A
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Downloads

Description

PHM-940HD - Power Hammer

2.0mm Mild Steel Capacity

940mm Throat Depth

Overview

At last, there’s an affordable solution for metal shaping. The PHM-940HD Metalmaster Electric Power Hammer was designed to have all the features of larger machines without the price tag. The ability to switch between rigid and non-rigid modes to suit your project makes this machine even more flexible. Only limited by your imagination the PHM-940HD can shrink, stretch, dome, edge turn, bead and form louvers, ideal for shaping sheet metal for cars, motorbikes & airplane panels. It has a 14mm thick steel fabricated upper frame and is supplied with and extensive range of CR12 hardened steel dies for shaping steel and nylon dies for forming softer metals like aluminium.It has variable speed and the capability of shaping up to 2.0mm thick sheet mild steel and up to 3.0mm thick sheet aluminium.

Features

Capacity - 2.0mm thick sheet mild steel
Quick change tool holder
22mm square Shank Tooling
Variable speed
Rigid & Spring Modes
940mm throat depth capacity
570mm throat height capacity
Foot pedal control with emergency stop
Steel fabricated upper frame - 14mm thick plate
Steel fabricated lower box section steel frame
Drive shafts have bronze bushes & greasing points
Adjustable heavy duty single arm length stop with 1 round roller & guide fence
Safety magnetic power switch
Steel dies made from CR12 steel & hardened
Nylon dies made from durable nylon
Includes Soft, Medium & Hard Springs for different gauge thickness metals.
3kW / 4hp, 240V motor

Includes

1 x Set of Universal Die Holders - 16mm opening (22mm square shank)
1 x Set of Louvre Dies (22mm square shank)
1 x Set of Thumbnail Shrinking Dies (22mm square shank)
1 x Linear Stretching Die (22mm square shank)

1 x Set of 1/4" Beading Dies (22mm square shank)
1 x Set of 3/8" Beading Dies (22mm square shank)
1 x Set of 1/2" Beading Dies (22mm square shank)

1 x Steel Upper Die (22mm square shank)

1 x Set of Round Die Holders - Ø30 x 20mm (22mm square shank)
1 x Set of 3.1" Doming Dies (Ø30 x 20mm round shank)
1 x Steel Lower Die - 3/4" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 7/8" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 1" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 1-1/8" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 1-1/2" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 1-7/8" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 2" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 3" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 4" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 5" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 6" Radius x 1/16" Radius Edge (Ø30 x 20mm round shank)
1 x Steel Lower Die - 6" Radius x 1/4" Radius Edge (Ø30 x 20mm round shank)
1 x Steel Lower Die - 8" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 14-1/2" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 24" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 36" Radius (Ø30 x 20mm round shank)

1 x Nylon Upper Die (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 3/4" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 7/8" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 1-1/8" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 1-1/2" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 1-7/8" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 4" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 5" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 6" Radius x 1/16" Radius Edge (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 6" Radius x 1/4" Radius Edge (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 8" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 14-1/2" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 24" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 36" Radius (Ø30 x 20mm round shank)

Optional Accessories

PHT-560FTS Full Tooling Set - 16mm Square Shank. Includes ER40 collets with 16mm square hole to suit our HD Power Hammers

Specifications

Compare Product Range

Specifications

ORDER CODE	S2287
MODEL	PHM-940HD
(Type)Machine	Power Hammer
(mm / Gauge)Mild Steel - Capacity	2.0 / 12
(mm / Gauge)Aluminium - Capacity	3.0 / 8
(mm)Tooling Shank Size	22
(mm)Throat Depth	940
(mm)Throat Height	570
(BPM)Speed - blows per minute	0 - 960 (Variable)
(kW / hp)Motor Power	3 / 4
(V / amp)Voltage / Amperage	240 / 15
(mm)Machine Dimensions (LxWxH)	940 x 1600 x 2260mm
(mm)Tooling Holder/Power Unit Dimensions (LxWxH)	800 x 850 x 700
(kg)Nett Weight	970
