PHM-760HD - Power Hammer

2.0mm Mild Steel Capacity

760mm Throat Depth

S2285 1 of 23

S228 Power Hammer 2 of 23

Machine Only 3 of 23

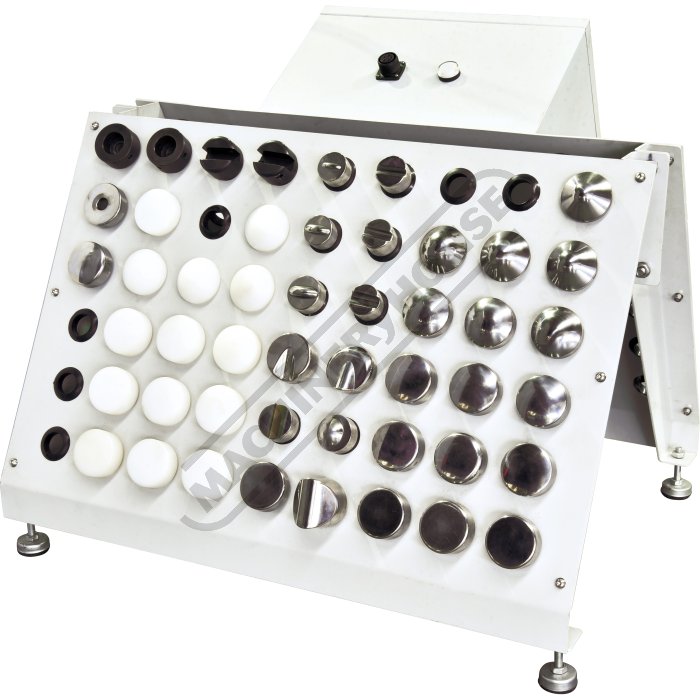

Die Holder and Power Box 4 of 23

Stroke Adjustment Hand Wheel 5 of 23

Top Tool Adjustment Hand Wheel 6 of 23

Power and Speed Contol 7 of 23

Quick Change Tooling 8 of 23

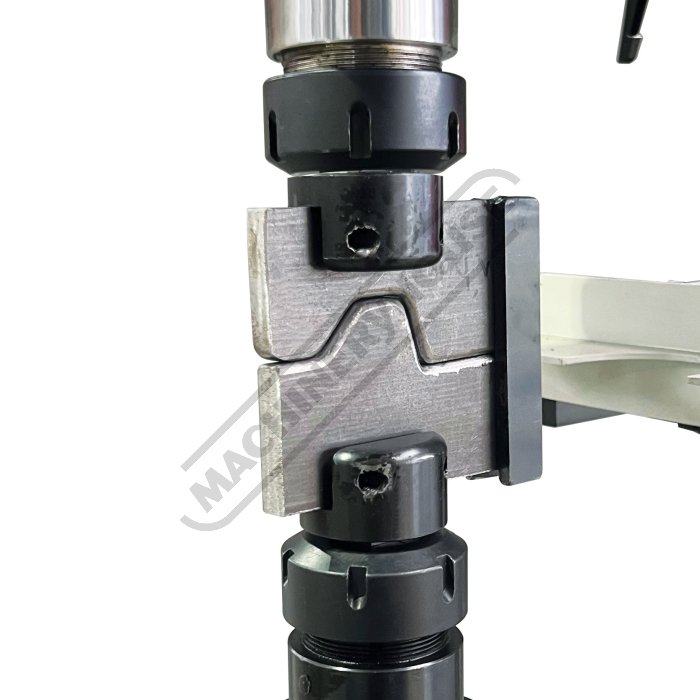

Custom Die Holders 9 of 23

Clear Viewing Window for Adjustment Settings 10 of 23

14mm Thick Steel Frame 11 of 23

Stop Adjustable Depth Positions 12 of 23

Adjustable Back Stop 13 of 23

Round Roller Guide 14 of 23

Foot Control 15 of 23

Wide Feet with Anchor Holes 16 of 23

Included Springs 17 of 23

Included Tools 18 of 23

Die Holders 19 of 23

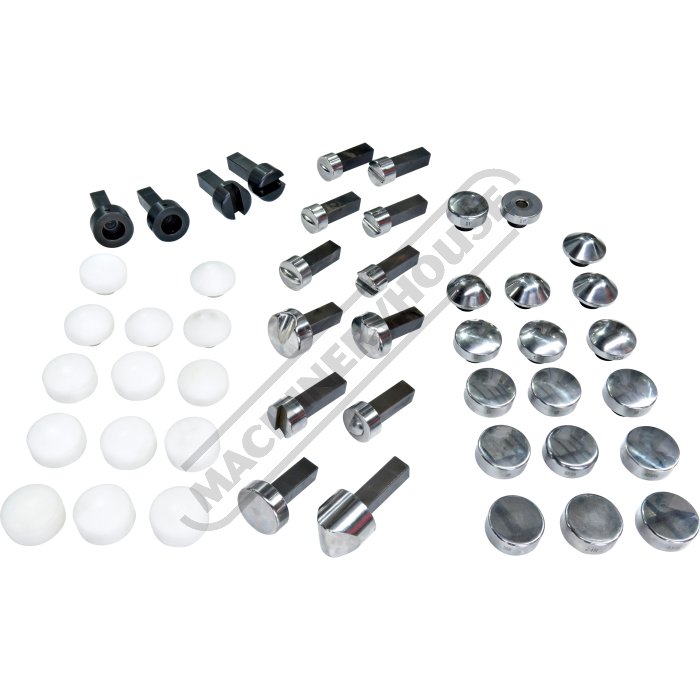

Included Dies and Holders 20 of 23

Side View 21 of 23

Front View 22 of 23

Right Side 23 of 23

METALMASTER

Order Code: S2285

ex-gst

inc-gst

^$ 8,250.00

^$ 9,075.00

240V / 10A
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Downloads

Description

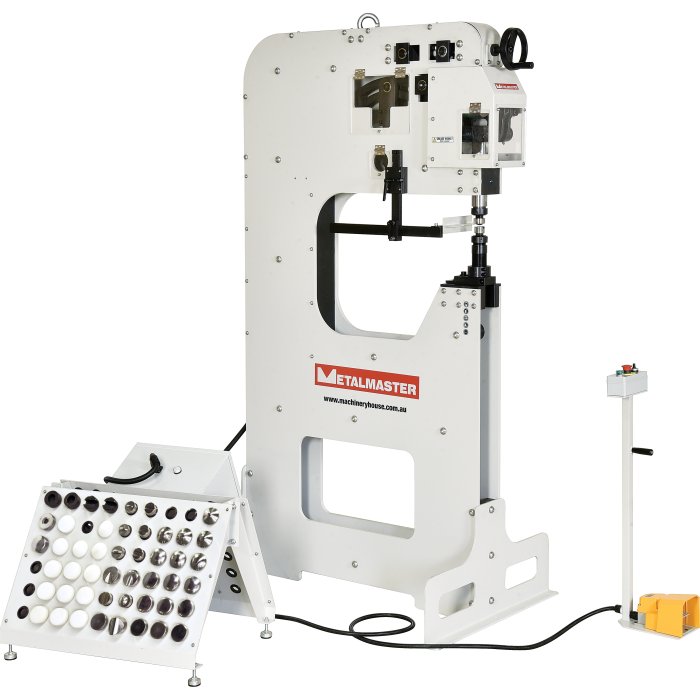

PHM-760HD - Power Hammer

2.0mm Mild Steel Capacity

760mm Throat Depth

Overview

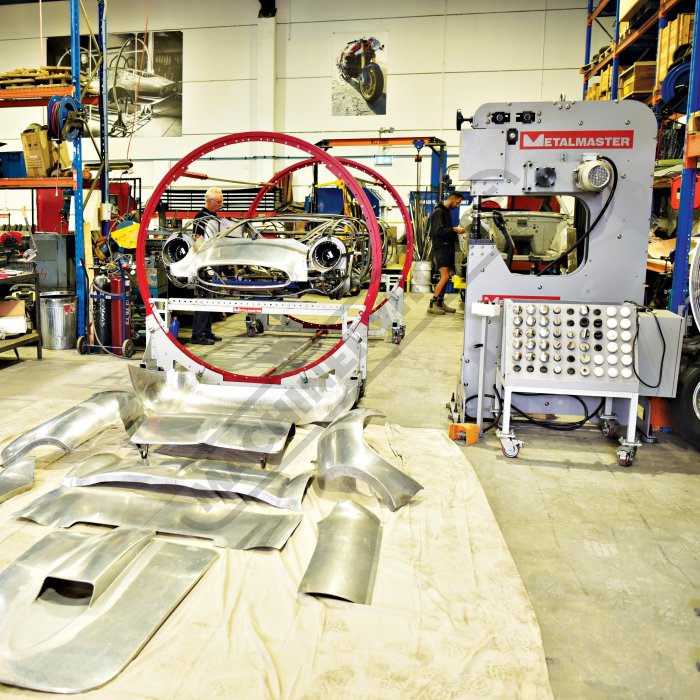

At last, there’s an affordable solution for metal shaping. ThePHM-760HD Metalmaster Electric Power Hammer was designed to have all the features of larger machines without the price tag. The ability to switch between rigid and non-rigid modes to suit your project makes this machine even more flexible. Only limited by your imagination the PHM-760HD can shrink, stretch, dome, edge turn, bead and form louvers, ideal for shaping sheet metal for cars, motorbikes & airplane panels. It has a 14mm thick steel fabricated upper frame and is supplied with and extensive range of CR12 hardened steel dies for shaping steel and nylon dies for forming softer metals like aluminium. It has variable speed and the capability of shaping up to 2.0mm thick sheet mild steel and up to 3.0mm thick sheet aluminium.

Features

Capacity - 2.0mm thick sheet mild steel
Quick change tool holder
22mm square Shank Tooling
Variable speed
760mm throat depth capacity
570mm throat height capacity
Foot pedal control with emergency stop
Steel fabricated upper frame - 14mm thick plate
Steel fabricated lower box section steel frame
Drive shafts have bronze bushes & greasing points
Adjustable heavy duty single arm length stop with 1 round roller & guide fence
Safety magnetic power switch
Steel dies made from CR12 steel & hardened
Nylon dies made from durable nylon
2.2kW / 3hp, 240V motor

Includes

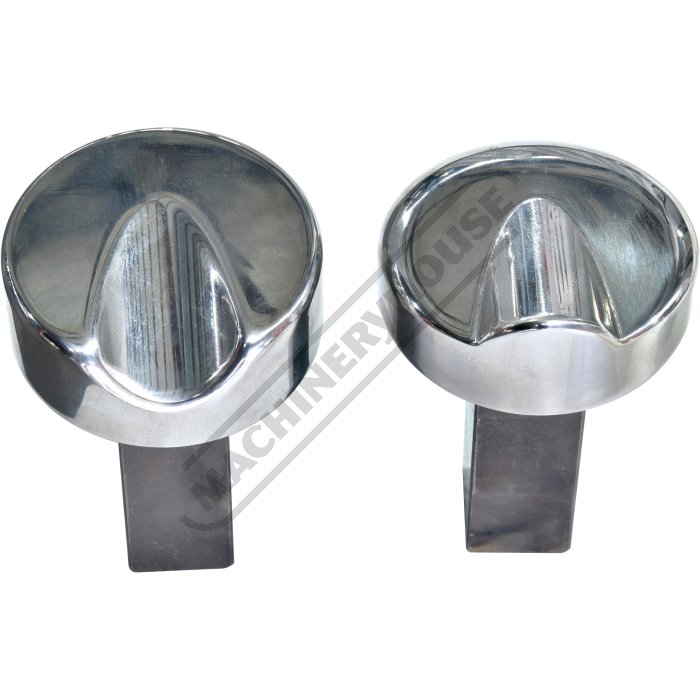

1 set (pair) of Thumbnail Shrinking Dies

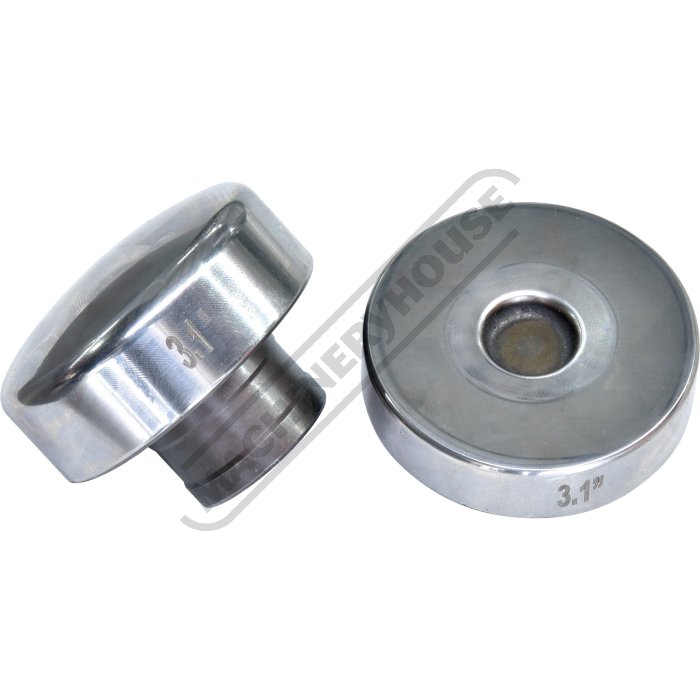

1 set (pair) of Doming Dies

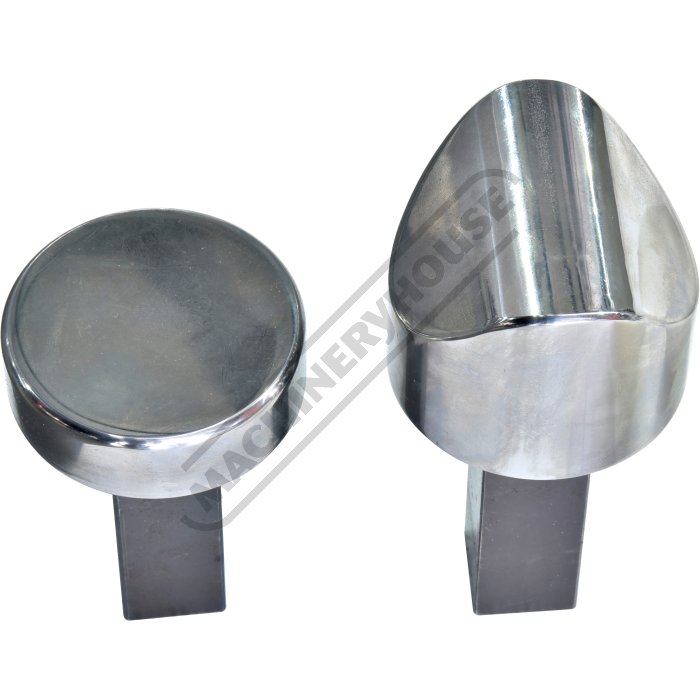

1pc Linear Stretching Die

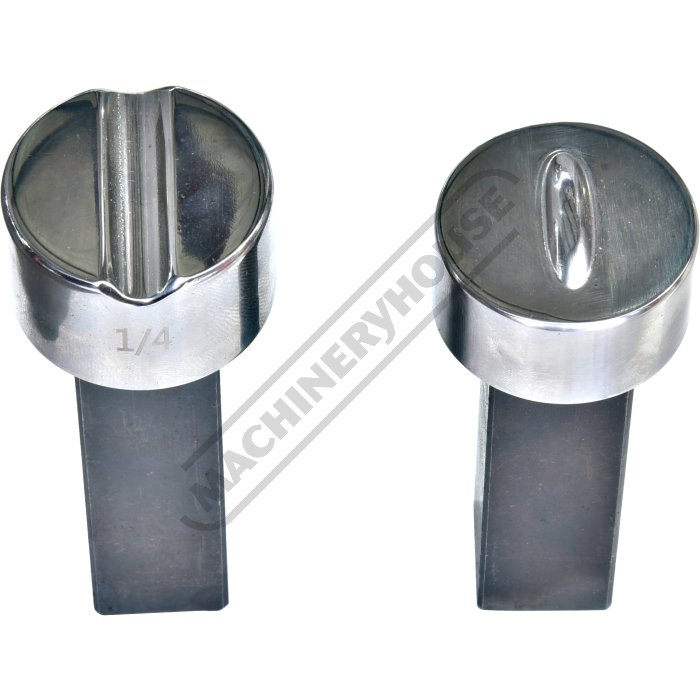

1 set (pair) of 1/4" Beading Dies

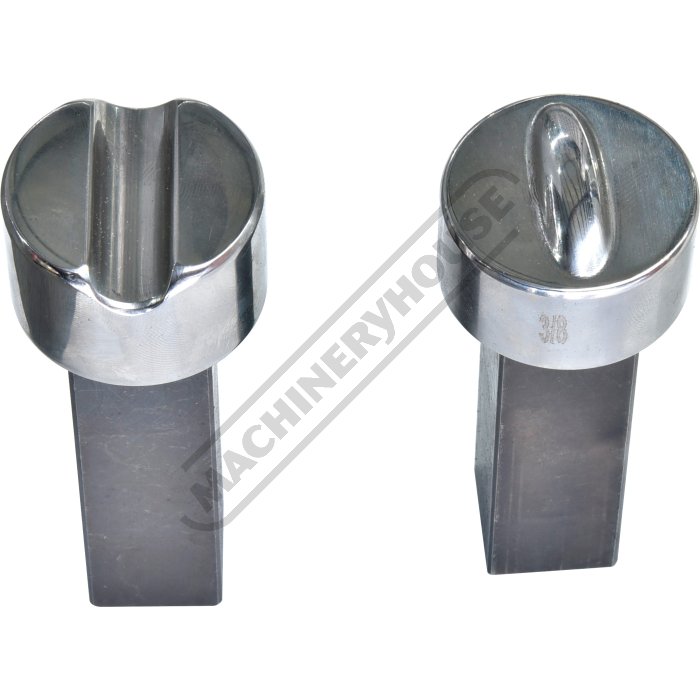

1 set (pair) of 3/8" Beading Dies

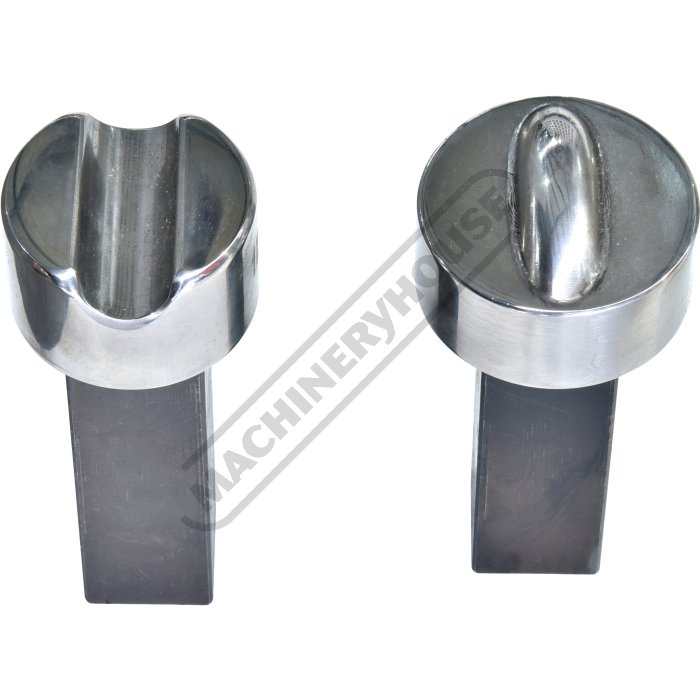

1 set (pair) of 1/2" Beading Dies
1pcs Steel Upper Die

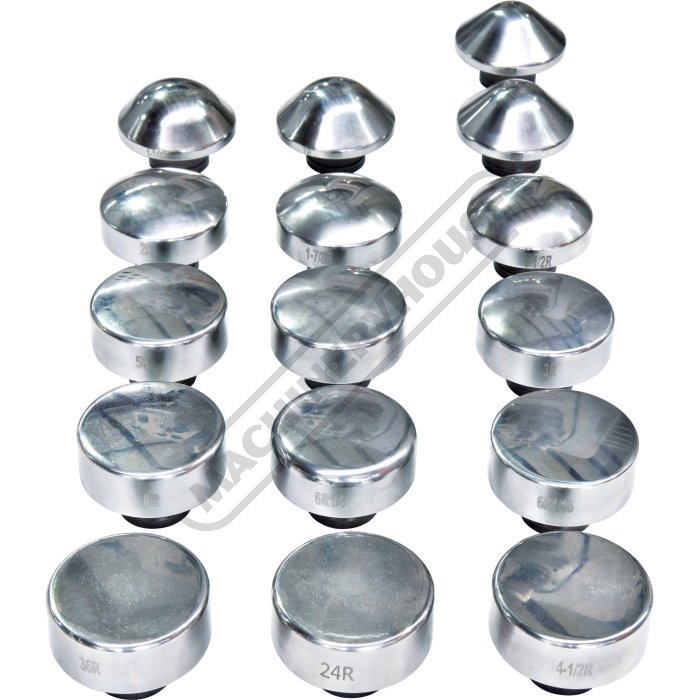

1pc Steel Lower Die - 3/4" Radius
1pc Steel Lower Die - 7/8" Radius
1pc Steel Lower Die - 1" Radius Dies
1pc Steel Lower Die - 1-1/2" Radius
1pc Steel Lower Die - 2" Radius

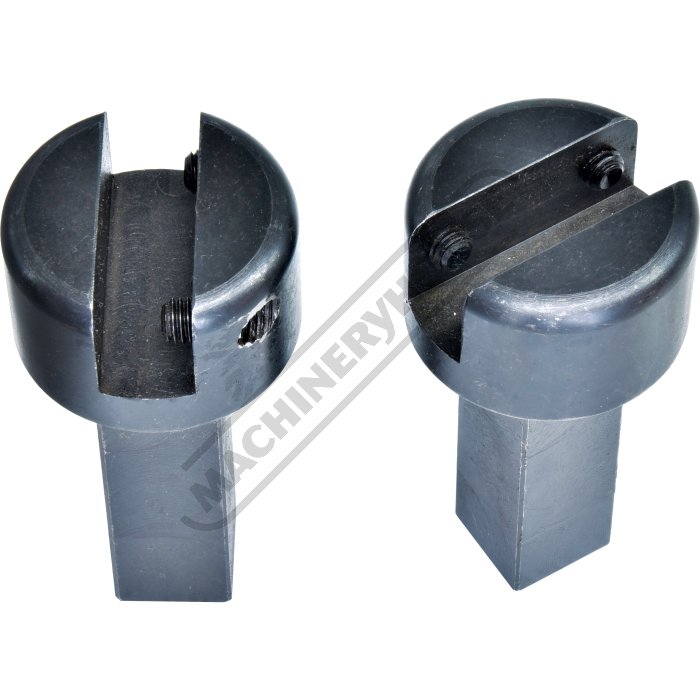

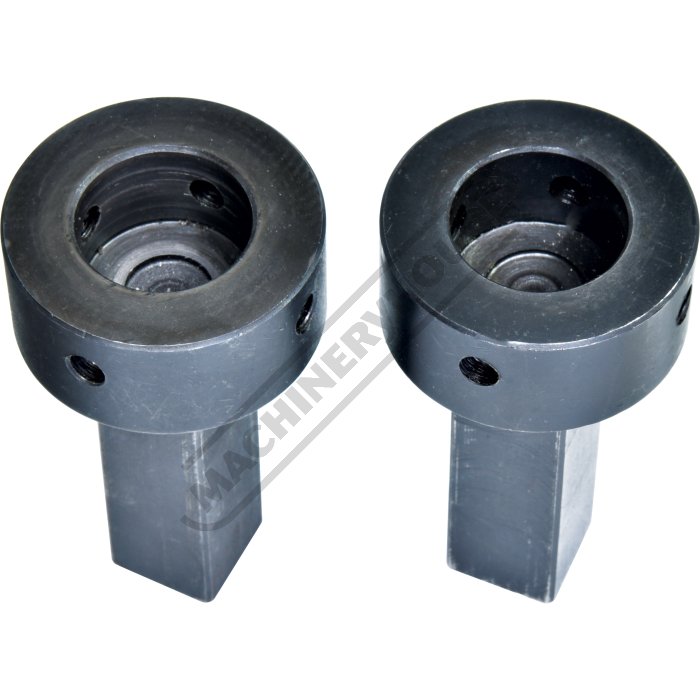

1 set (pair) of universal holders with 16mm opening
1pc Steel Lower Die - 1-1/8" Radius
1pc Steel Lower Die - 1-7/8" Radius
1pc Steel Lower Die - 3" Radius
1pc Steel Lower Die - 4" Radius
1pc Steel Lower Die - 5" Radius
1pc Steel Lower Die - 6" Radius (1/16" Radius Edge)
1pc Steel Lower Die - 6" Radius (1/4" Radius Edge)
1pc Steel Lower Die - 8" Radius
1pc Steel Lower Die - 14-1/2" Radius
1pc Steel Lower Die - 24" Radius
1pc Steel Lower Die - 36" Radius

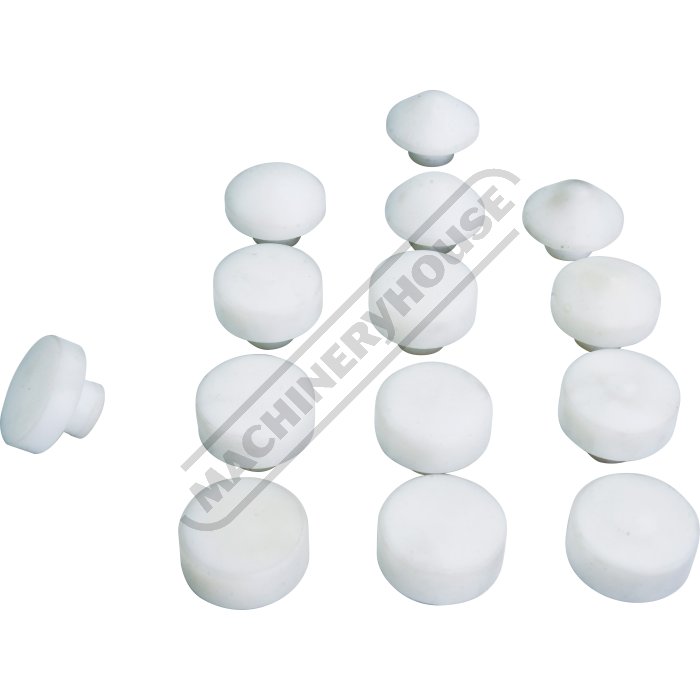

1pcs Nylon Upper Die
1pc Nylon Lower Die - 3/4" Radius
1pc Nylon Lower Die - 7/8" Radius
1pc Nylon Lower Die - 1-1/8" Radius
1pc Nylon Lower Die - 1-1/2" Radius
1pc Nylon Lower Die - 1-7/8" Radius
1pc Nylon Lower Die - 4" Radius
1pc Nylon Lower Die - 5" Radius
1pc Nylon Lower Die - 6" Radius (1/16" Radius Edge)
1pc Nylon Lower Die - 6" Radius (1/4" Radius Edge)
1pc Nylon Lower Die - 8" Radius
1pc Nylon Lower Die - 14-1/2" Radius
1pc Nylon Lower Die - 24" Radius
1pc Nylon Lower Die - 36" Radius

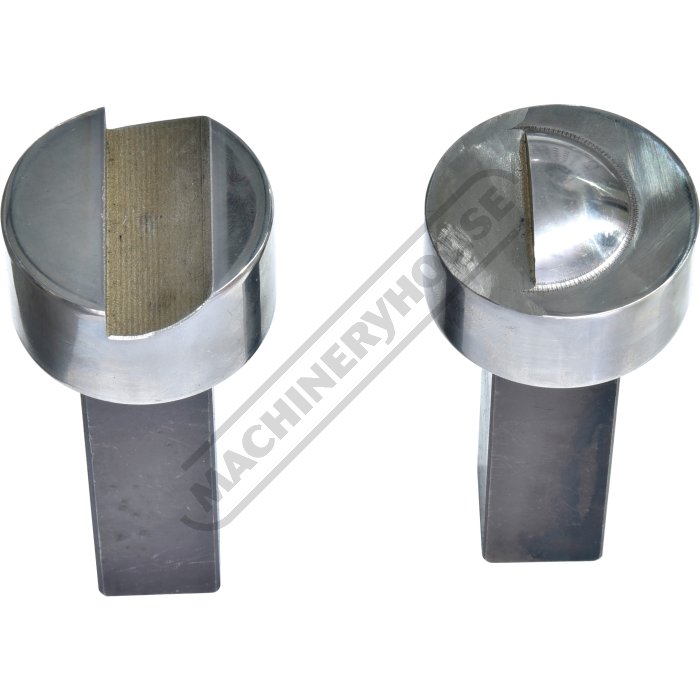

1 set (pair) of Louvre Dies

Specifications

Compare Product Range

Specifications

ORDER CODE	S2285
MODEL	PHM-760HD
(Type)Machine	Power Hammer
(mm / Gauge)Mild Steel - Capacity	2.0 / 12
(mm / Gauge)Aluminium - Capacity	3.0 / 8
(mm)Tooling Shank Size	22
(mm)Throat Depth	760
(mm)Throat Height	570
(BPM)Speed - blows per minute	0 - 960 (Variable)
(kW / hp)Motor Power	2.2 / 3
(V / amp)Voltage / Amperage	240 / 15
(mm)Machine Dimensions (LxWxH)	940 x 1450 x 2260
(mm)Tooling Holder/Power Unit Dimensions (LxWxH)	800 x 850 x 700
(kg)Nett Weight	760
