C-320NC - NC Double Column Metal Cutting Band Saw - Automatic Hitch Feed

NC Touch Screen Control Panel

380 x 320mm (W x H) Rectangle Capacity

B090 1 of 28

Left View 2 of 28

Rear View 3 of 28

Control Panel 4 of 28

Touchscreen Main Screen 5 of 28

Touchscreen Job Programs 6 of 28

Touchscreen Job Setup 7 of 28

Touchscreen Material Guides 8 of 28

Touchscreen Material Guides Bundle 9 of 28

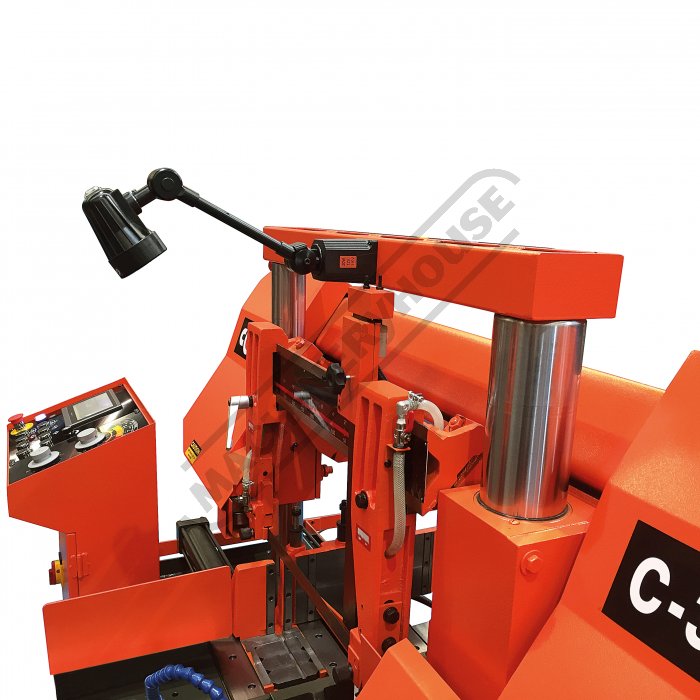

Dual Column 10 of 28

Hydraulic Driven Swarf Conveyor Front View 11 of 28

Hydraulic Driven Swarf Conveyor 12 of 28

Hydraulic Driven Swarf Conveyor Close Up 13 of 28

Rapid Approach Material Sensor 14 of 28

Ball Bearing Blade Guides with Carbide Pads 15 of 28

Bundle Cutting Clamps Right View 16 of 28

Bundle Cutting Clamps 17 of 28

Dual Vice Clamping 18 of 28

Hydraulic Blade Tension Lever & Gauge 19 of 28

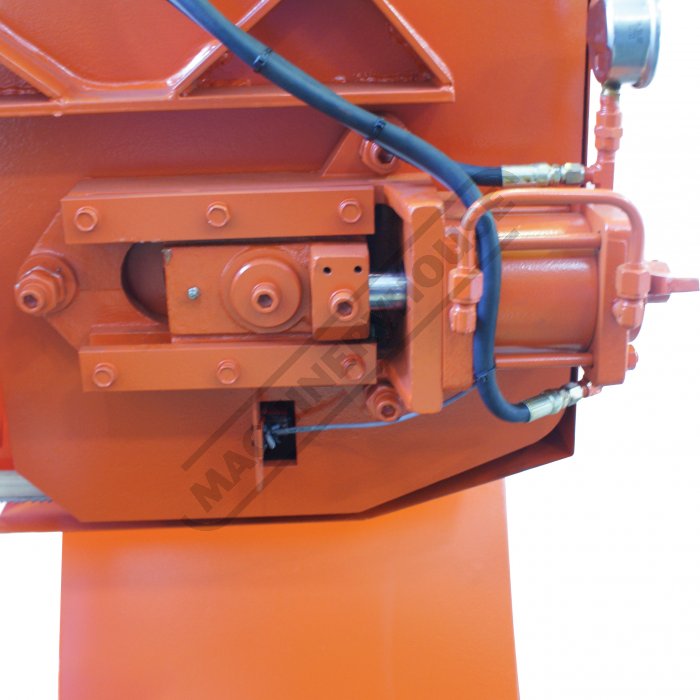

Hydraulic Blade Tension System Rear 20 of 28

Roller Guide System 21 of 28

LED Light Full View 22 of 28

LED Light 23 of 28

Micro Blade Guards 24 of 28

5hp Motor 25 of 28

Hydraulic Oil Level Gauge 26 of 28

Coolant Pump and Tank 27 of 28

Pressure Guages 28 of 28

COSEN

Discontinued

Order Code: B090

415V / (NO PLUG)
1 Year Warranty

Made in Taiwan

Product is no longer available
Click here to view a similar item: B118 View a similar item: B118

Compare

Wishlist

Description Specifications Compare Accessories Downloads

Description

C-320NC - NC Double Column Metal Cutting Band Saw - Automatic Hitch Feed

NC Touch Screen Control Panel

380 x 320mm (W x H) Rectangle Capacity

Overview

Manufactured in Taiwan

C-320NC Double column metal cutting band saw (415V): fully automatic hitch feed

Features

Smart NC-20 (SNC-20) touch screen control programmable to 99 different job quantities and lengths complete with hydraulic vice clamping and hitch feed system
Functions:
1. Automatic kerf compensation: blade thickness for multiple indexing: This function allows and calculates the blade thickness into the programmed cut length so you achieve desired length required (factory pre-set)
2. "Save-a-blade": to prevent blade tooth deformities, This function retracts the material back approx 3mm away from the blade preventing the blade teeth rubbing on the material on the return after completion of cut
3. Automatic shut-off for finished jobs or out of stock
4. Simplified self diagnostics error code display
5. LCD touch screen displaying the following blade speed, blade life & feed vice position display
Bundle and single cutting mode switch includes bundle cutting clamps (nesting fixture)
Idle wheel motion proximity switches shuts off machine if blade breaks or slips
Coolant system incorporating a wash down hose with trigger gun
Back-tilted saw frame for longer blade life
Inverter controlled infinitely variable blade speed 20-100mpm
Precision feed pressure & feed rate dual valve system for optimal performance in any material
Carbide and ball bearing blade guides provides superior accuracy and reduce friction for longer blade life
Large double columns precision ground for additional support
Automatic (work height) material sensor with rapid approach
Automatic hydraulic blade tensioning system
Electrical and hydraulic safety interlock prevents machine starting vices securely clamped
Synchronised power driven blade cleaning brush removes swarf from blade
Dual vice clamping providing burr free cut
Double retracting vice jaws (feeding vice only) reduces friction from jaws rubbing on material during the feeding process
Full stroke hydraulic cylinder vice provides quicker set-up of jobs
Hydraulic swarf conveyor directs excess waste to side of machine
Vibration dampener system provides smoother cutting.

Specifications

Compare Product Range

Specifications

ORDER CODE	B090
MODEL	C-320NC
Operation Type	Fixed (Double Column) Automatic - Hitch Feed
(mm)Round @ 90º	320
(mm)Square @ 90º	320
(mm)Rectangle (W x H) @ 90º	380 x 320
Coolant System	Yes
(mm)Table Working Height	790
Cutting Head Beam Type	Fully-Automatic
Cutting Head Beam Return	Auto-Hydraulic Return
Cutting Head Down Feed Control	Adjustable Hydraulic
Vice Clamping Fixture	Automatic-Hydraulic
Bundle Cutting Fixture	Yes
(m/min)Blade Steps / Speeds	Variable 20-100
(mm)Blade Size (L x W x T)	4240 x 34 x 1.1
(kW / hp)Motor Power	3.75 / 5
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	1850
