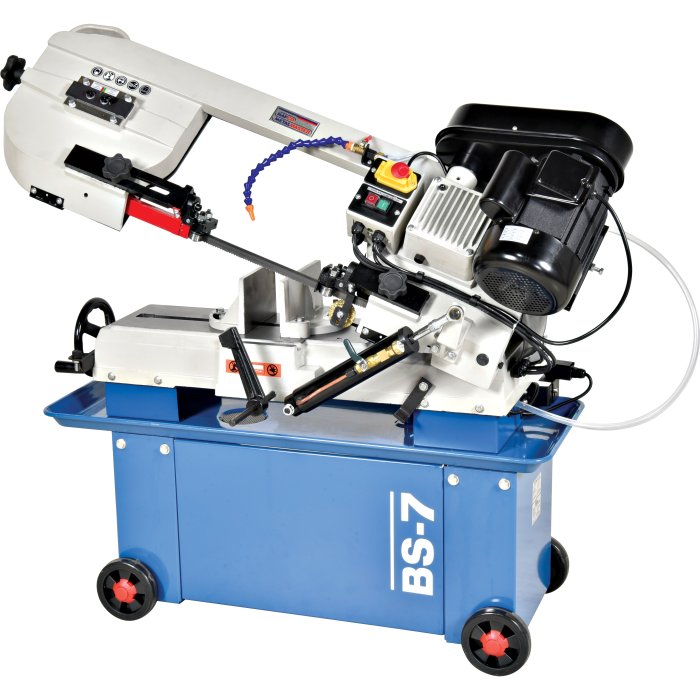

BS-7 - Metal Cutting Band Saw - Swivel Vice

Mitre Cuts Up To 45º & Includes Hydraulic Downfeed Control

300 x 180mm (W x H) Rectangle Capacity

B007 1 of 29

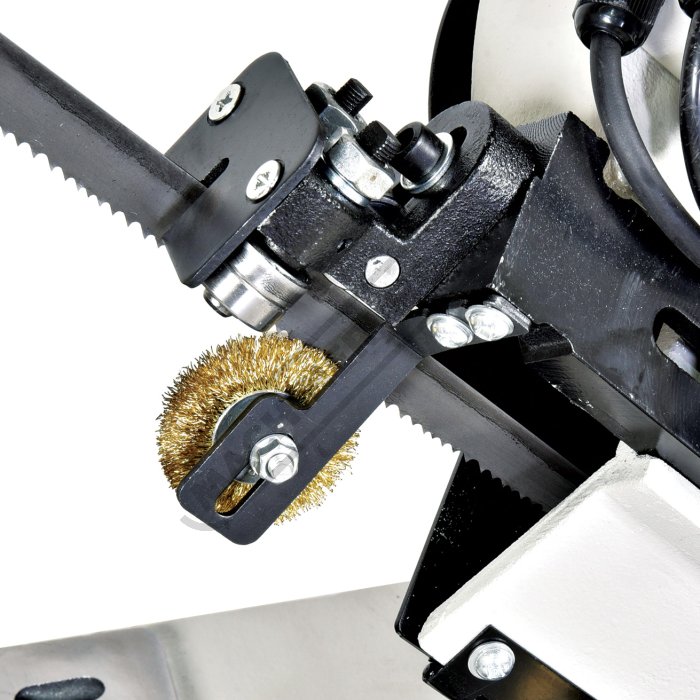

Blade Guide with Cleaning Brush 2 of 29

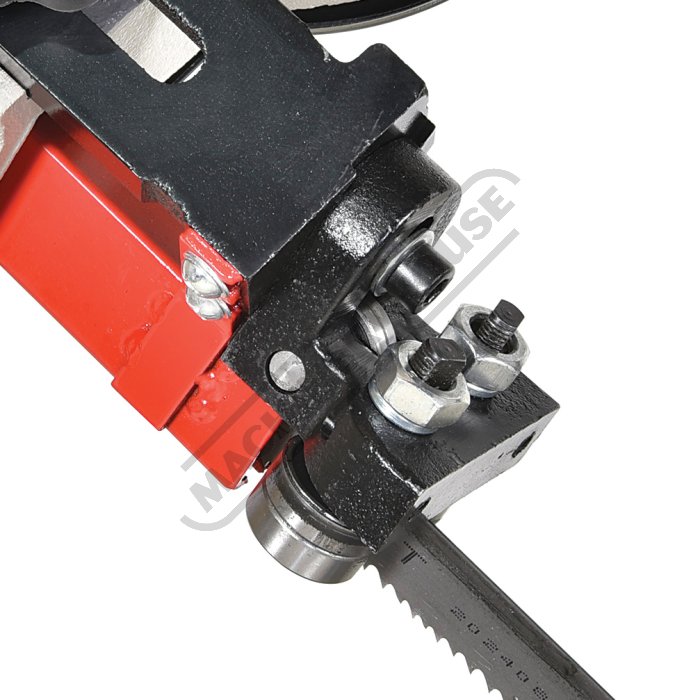

Adjustable Blade Roller Guides 3 of 29

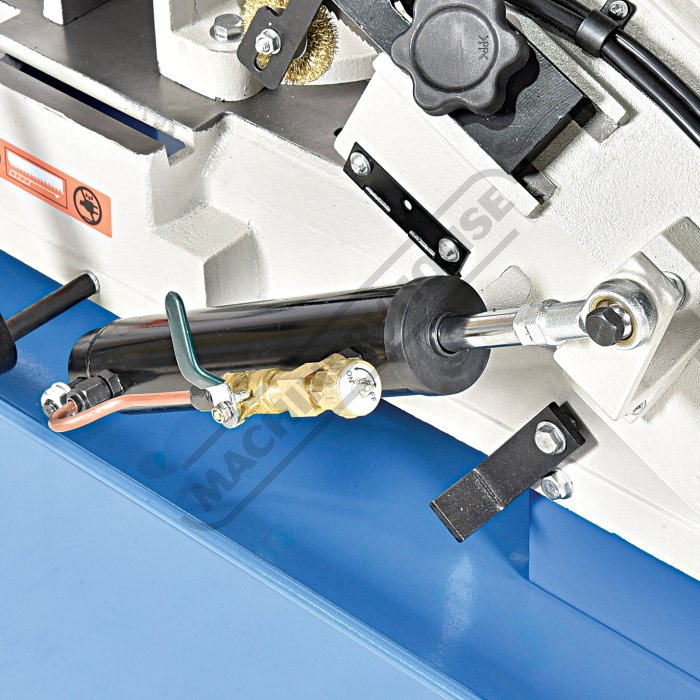

Hydraulic Ram For Down Feed Control 4 of 29

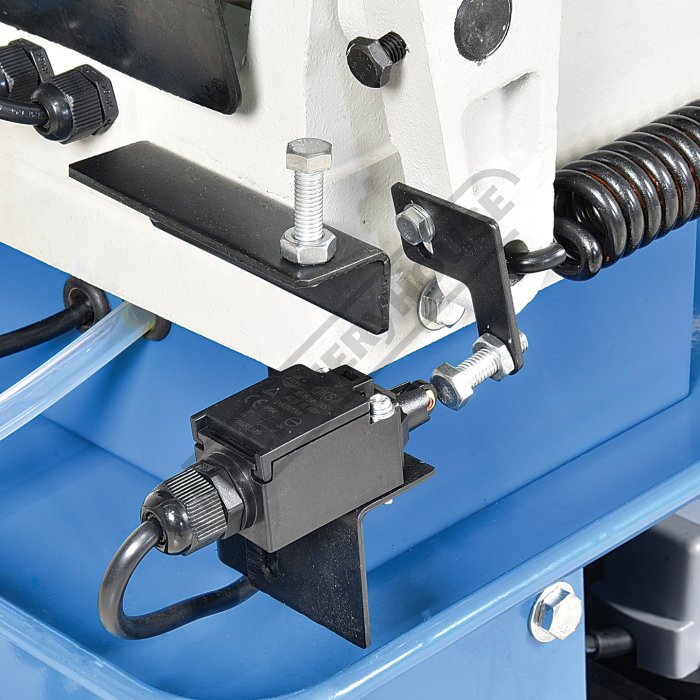

Micro Cut Switch 5 of 29

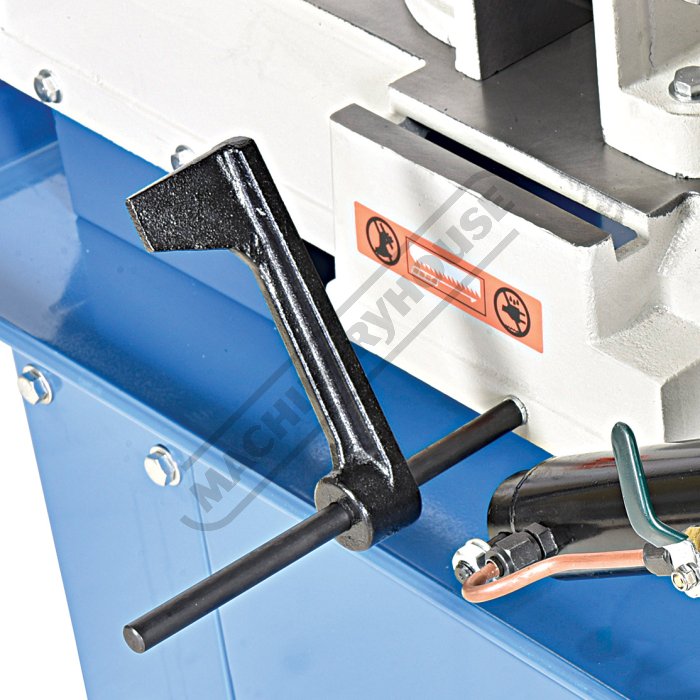

Length Stop 6 of 29

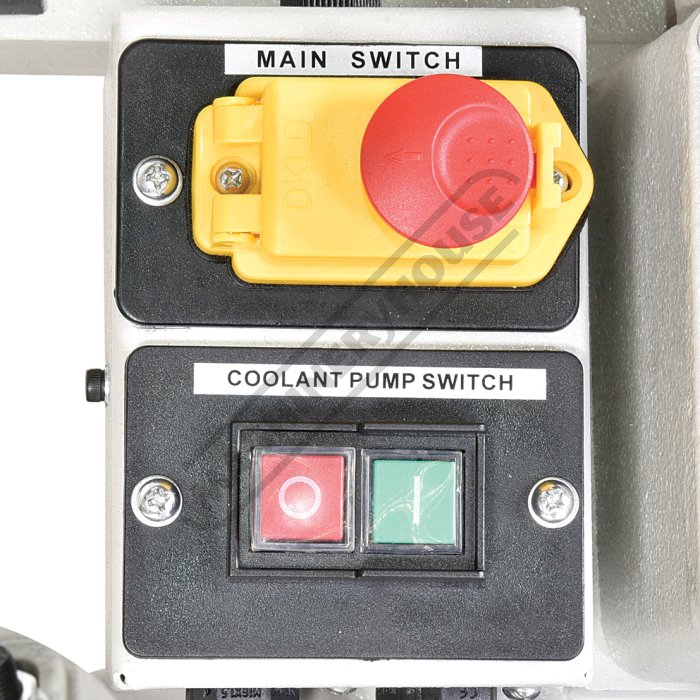

Main Switch and Coolant Pump Switch 7 of 29

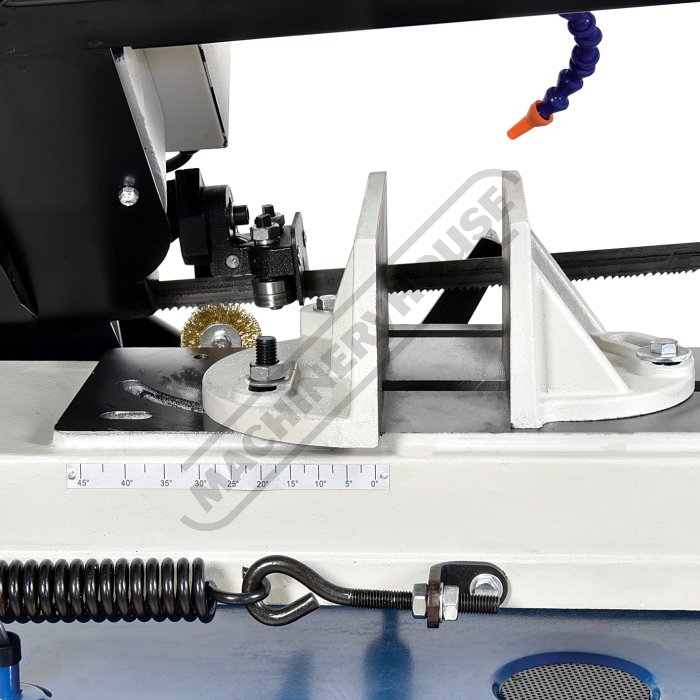

Vice Graduations 8 of 29

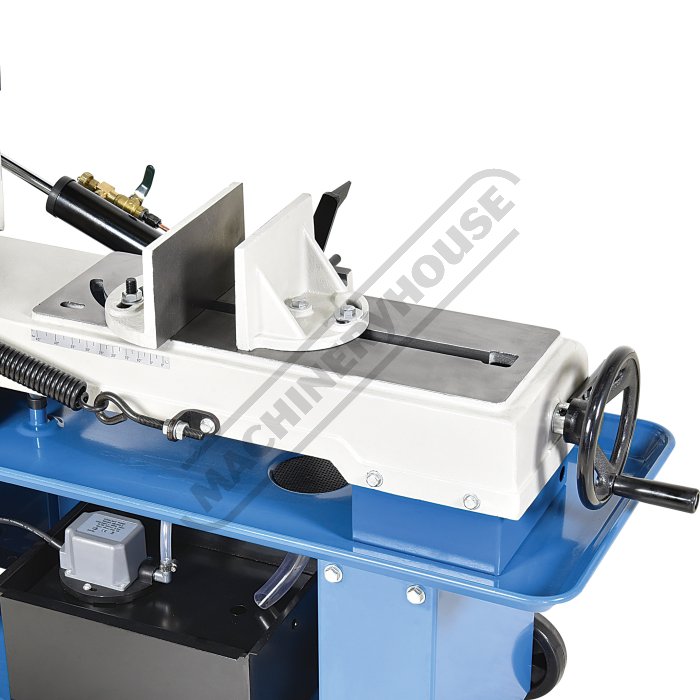

Swivel Vice With Handle Wheel 9 of 29

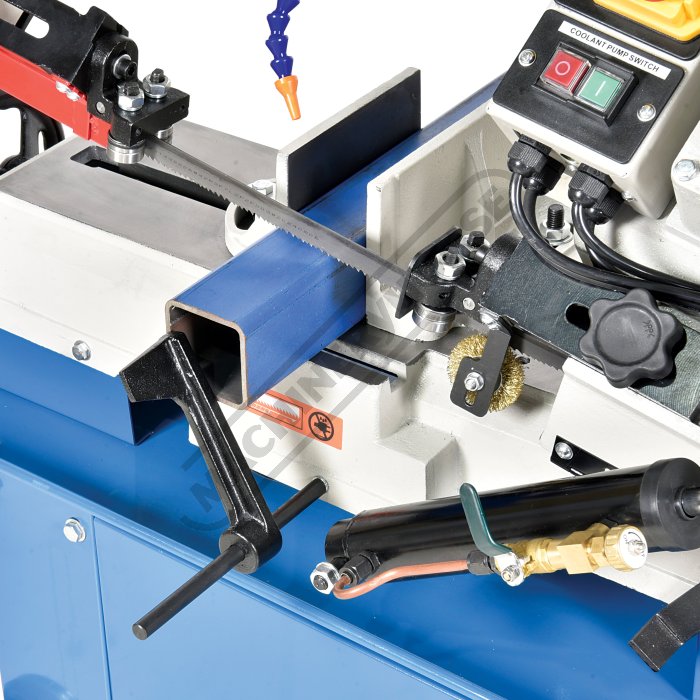

Vice At 90 Degrees 10 of 29

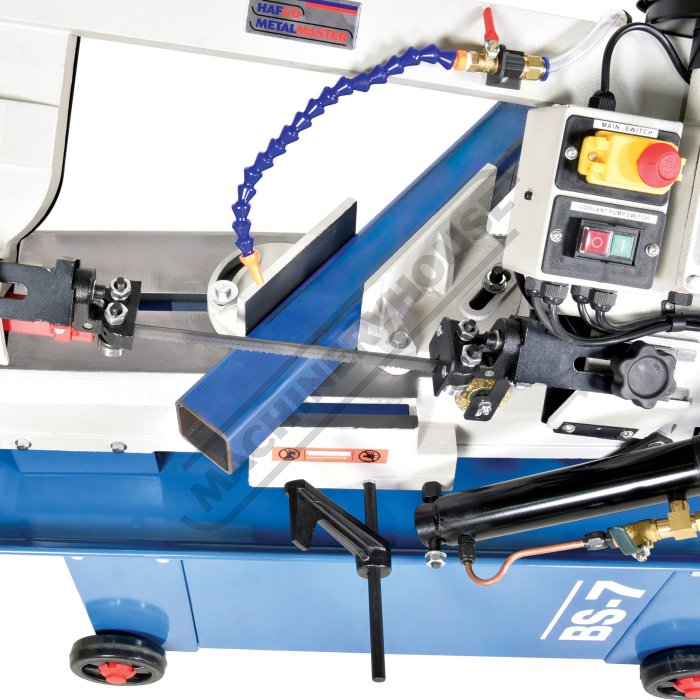

Vice at 45 Degree 11 of 29

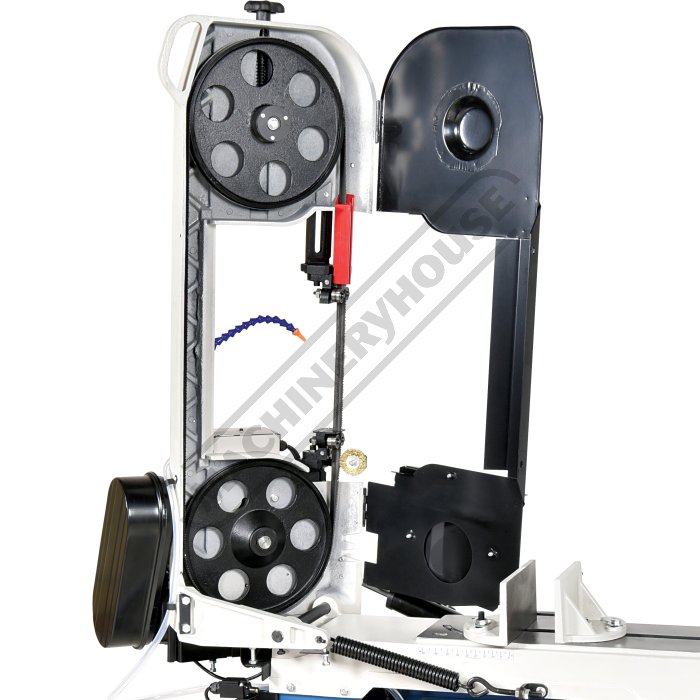

Blade Cover Open 12 of 29

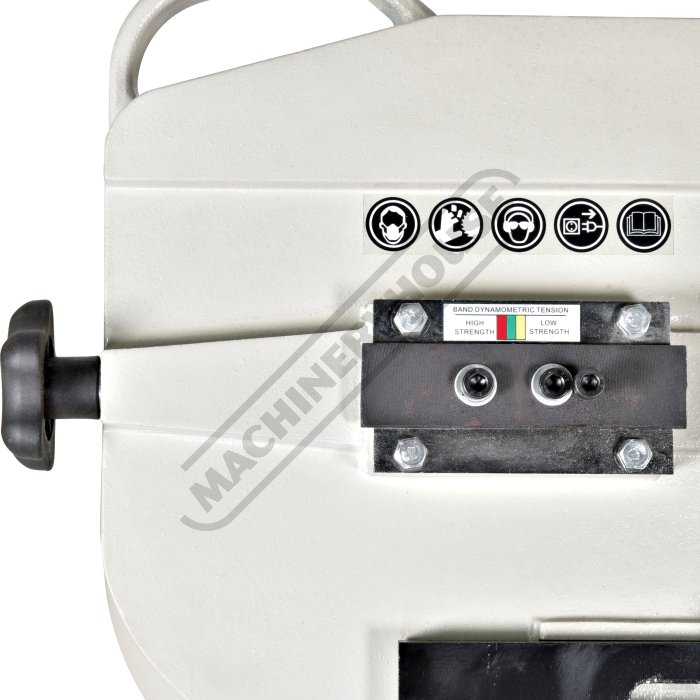

Blade Tension Adjustment Handle 13 of 29

Coolant Nozzle 14 of 29

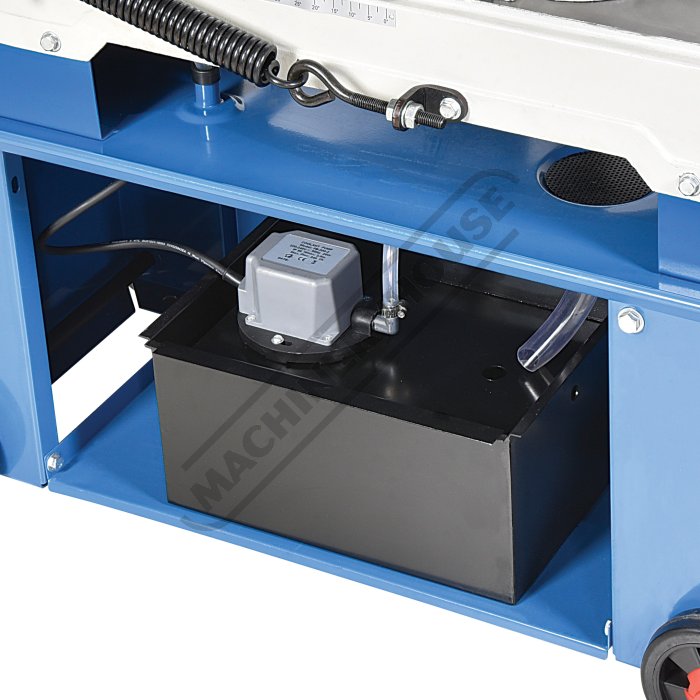

Coolant Tank 15 of 29

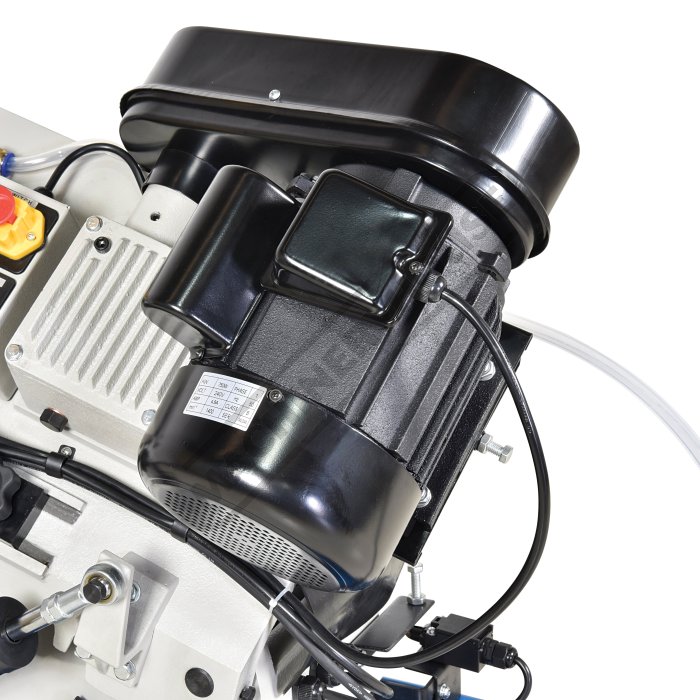

Heavy Duty 1HP 240V Motor 16 of 29

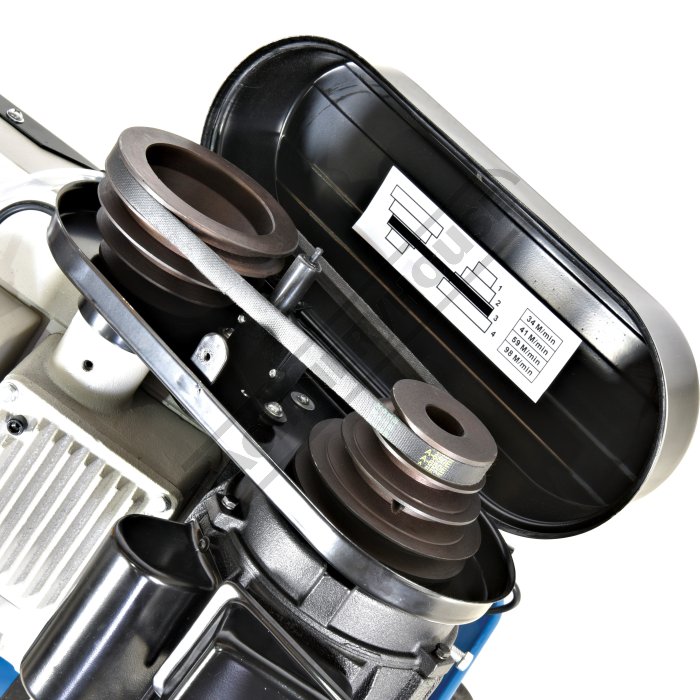

4 Speed Belt Drive System with Safety Micro Switch 17 of 29

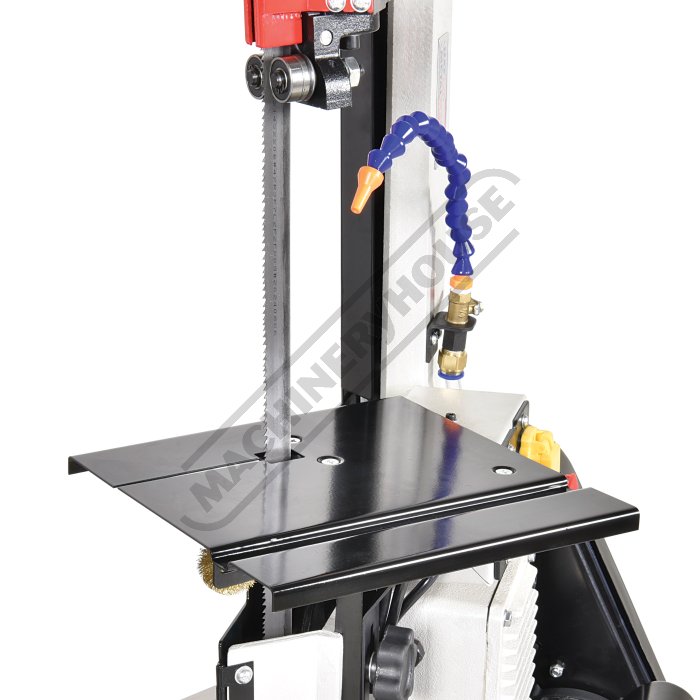

Vertical Cutting Table 18 of 29

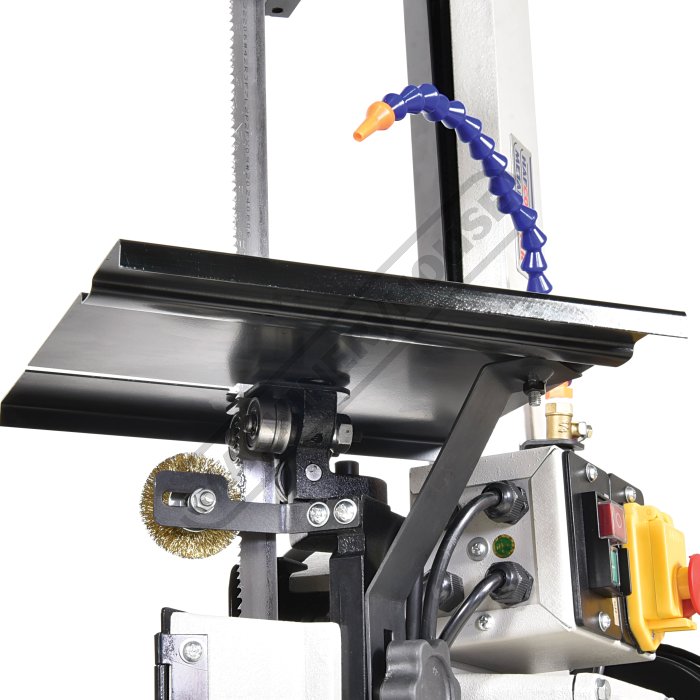

Vertical Cutting Table Fitted 19 of 29

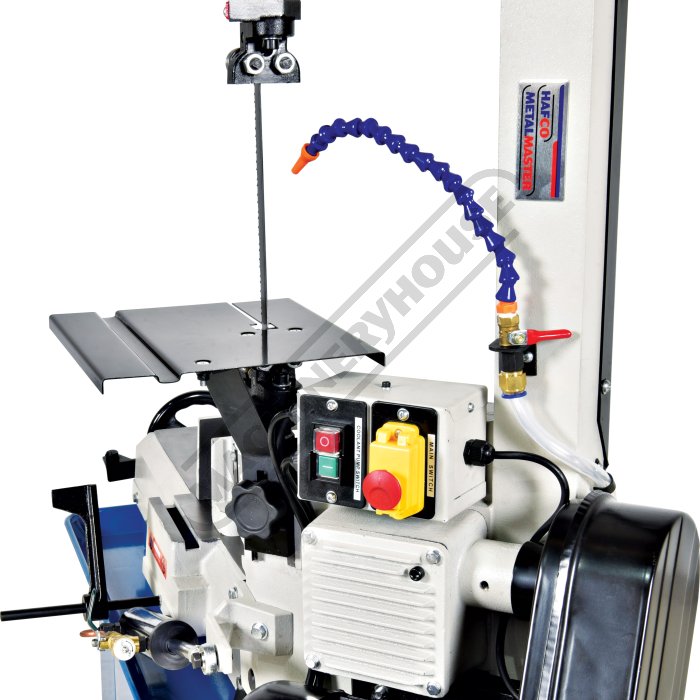

Vertical Cutting Table Rear View 20 of 29

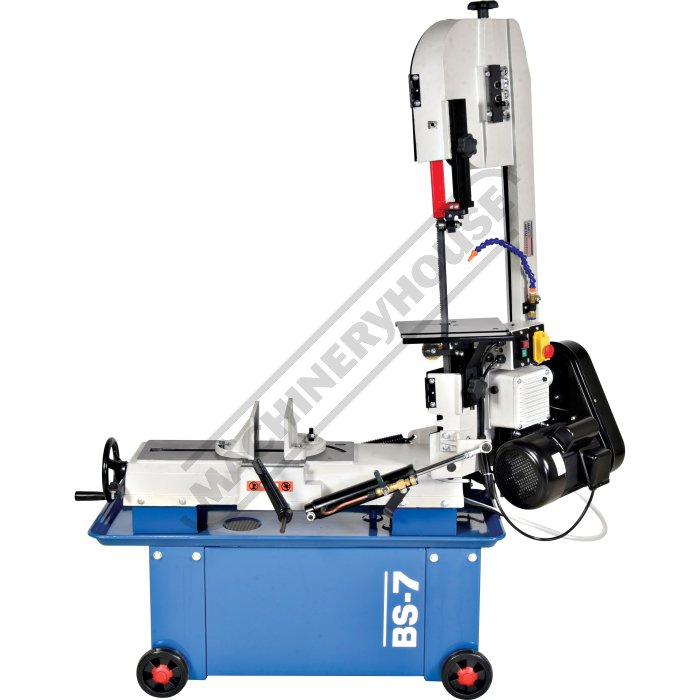

Vertical Cutting Table Front View 21 of 29

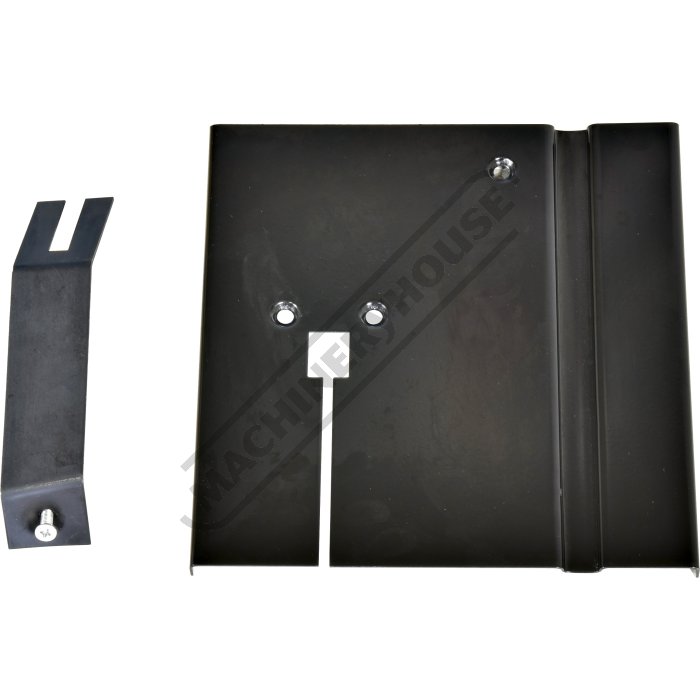

Vertical Cutting Table Parts 22 of 29

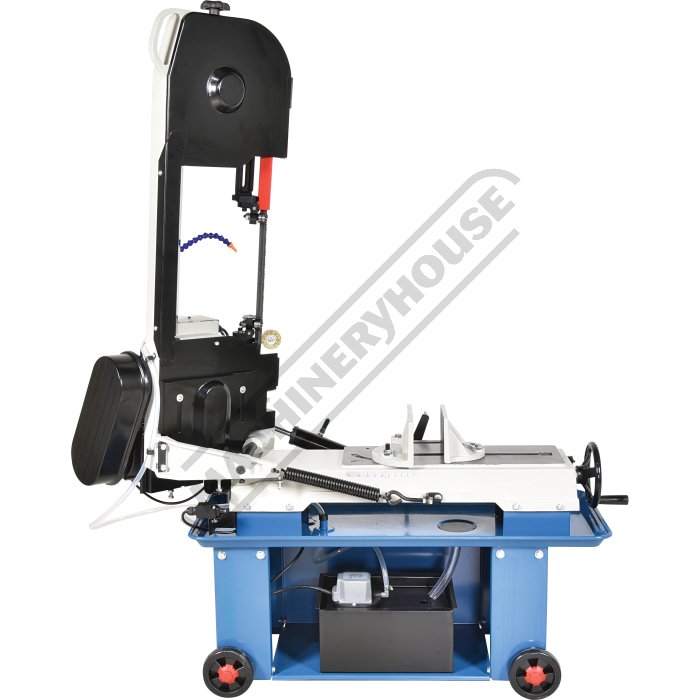

Rear View Fully Raised 23 of 29

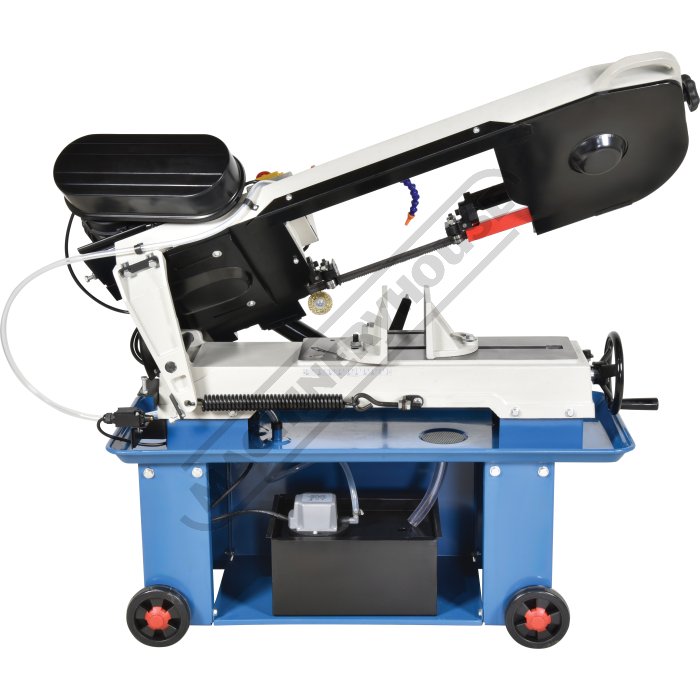

Rear View 24 of 29

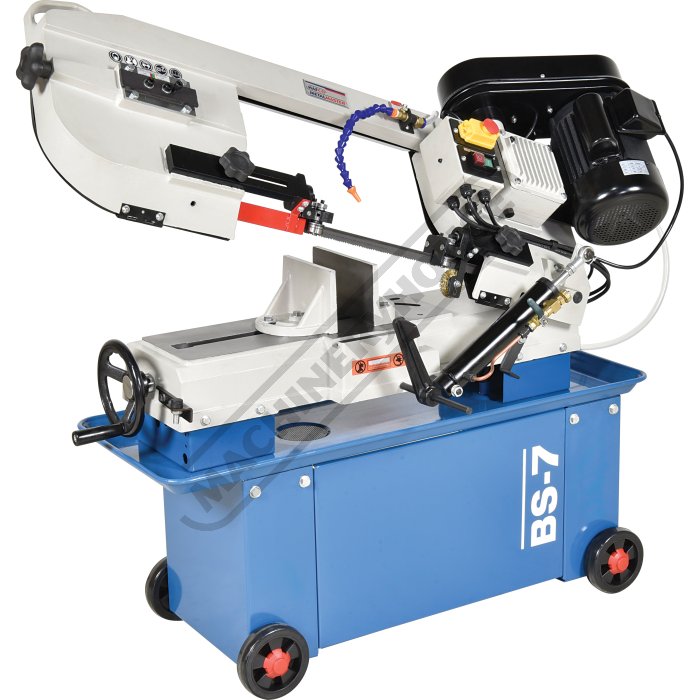

Left View 25 of 29

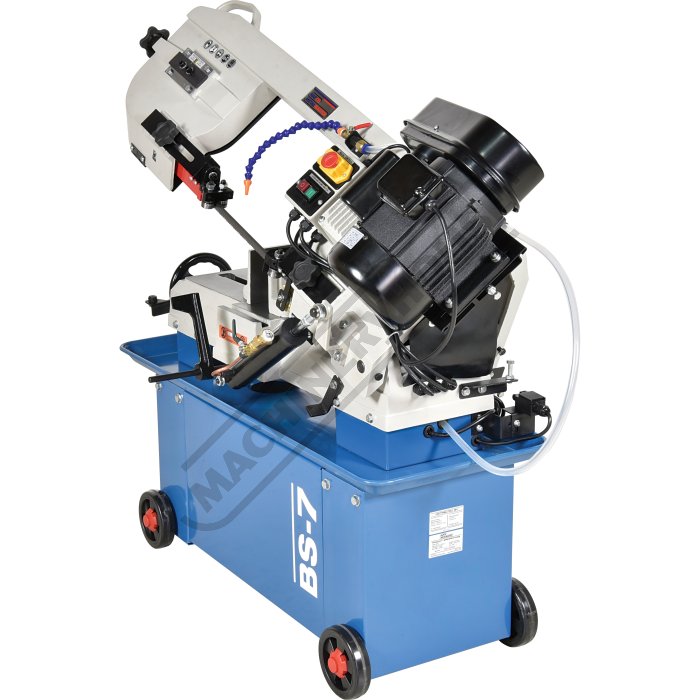

Left View Head Fully Down 26 of 29

Right View 27 of 29

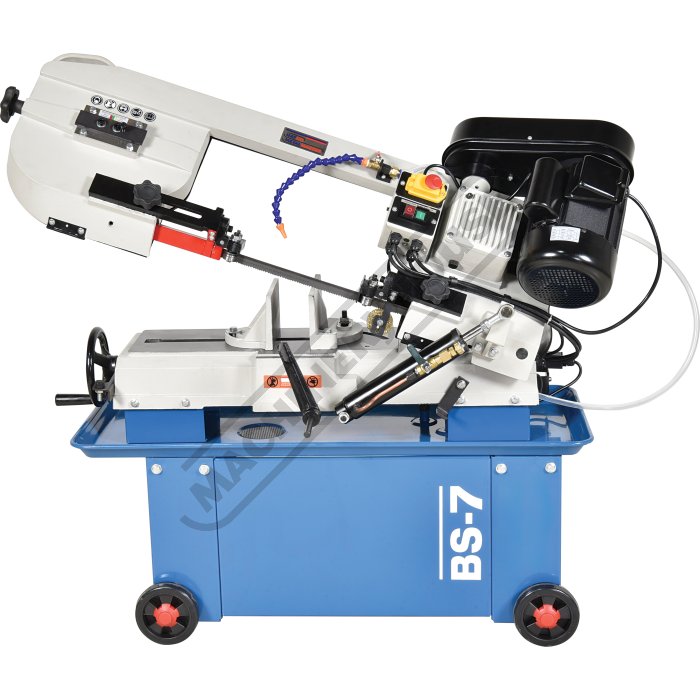

Front View 28 of 29

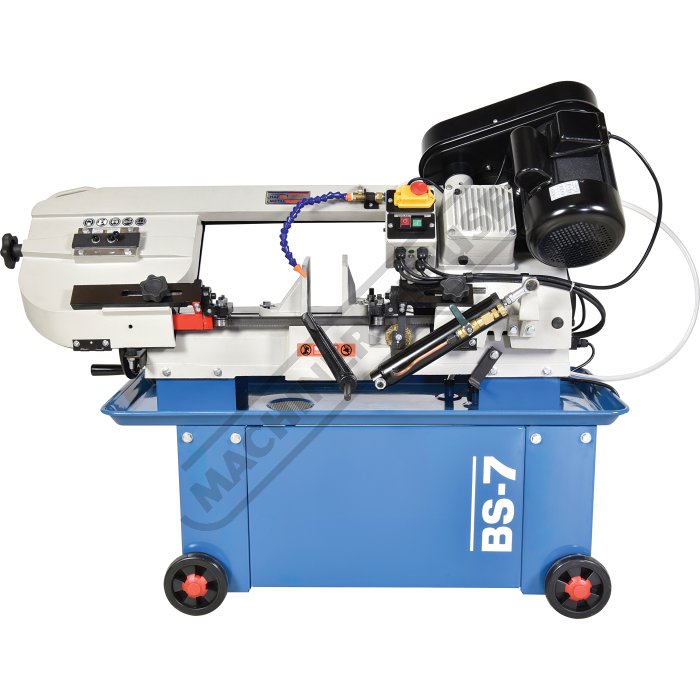

Front View Arm Fully Down 29 of 29

HAFCO-METALMASTER

On Sale

Order Code: B007

ex-gst

inc-gst

^$ 1,390.00

^$ 1,529.00

^$ 1,250.00

^$ 1,375.00

240V / 10A
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Downloads Spare Parts

Description

BS-7 - Metal Cutting Band Saw - Swivel Vice

Mitre Cuts Up To 45º & Includes Hydraulic Downfeed Control

300 x 180mm (W x H) Rectangle Capacity

Overview

Looking for a 7” metal bandsaw that outshines the competition in quality and reliability? Our Metalmaster BS-7 is the perfect solution. While our competitors may offer similar-looking products at a lower price, our bandsaw's superior craftsmanship and our company's 90-year legacy in the industry set us apart. We have been delivering unmatched quality and durability for decades, ensuring that you invest in machinery that is built to last.

Features

300 x 180mm (W x H) rectangular capacity @ 90 Degrees
Adjustable hydraulic cutting feed rate for multiple applications
Mitre cuts to 45º using calibrated vice
Built-in coolant system with flow control valve
Automatic electric cut-out switch stops machine when cut is complete
Roller bearing blade guides provides accurate cutting
4 cutting speeds via step pulleys (34-41-59-98mpm)
Adjustable length stop for repetition cutting
Portable - on wheels for ease of use
Vertical cutting table included
Heavy-duty 0.75kW / 1hp 240V motor

Includes

1 x blade
Vertical cutting table

Specifications

Compare Product Range

Specifications

ORDER CODE	B007
MODEL	BS-7
Operation Type	Fixed Head
(mm)Round @ 90º	180
(mm)Round @ 45º	110
(mm)Square @ 90º	180
(mm)Square @ 45º	110
(mm)Rectangle (W x H) @ 90º	300 x 180
(mm)Rectangle (W x H) @ 45º	110 x 180
Coolant System	Yes
(mm)Table Working Height	550
Cutting Head Beam Type	Manual
Cutting Head Beam Return	Manual Return
Cutting Head Down Feed Control	Adjustable Hydraulic
Vice Clamping Fixture	Manual
(m/min)Blade Steps / Speeds	34, 41, 59, 98
(mm)Blade Size (L x W x T)	2362 x 19 x 0.8
(kW / hp)Motor Power	0.75 / 1
(V / amp)Voltage / Amperage	240 / 10
(kg)Nett Weight	166
